Twitchell Rice: 2016-07-06 11:40:00 (DOY 188)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes

Summary: Leveled tower, no camera data, veg height data

Arrived 11:40. Sunny, warm, windy, clear sky with a bit of fog on the horizon. Field is flooded, some non-rice plants have sprung up around the tower.

Filled methane wash water reservoir, was nearly full. Collected USB GHG data, collected met data from 23X, did not collect camera data because Joe will collect it 2016-07-07.

Leveled the tower as best as possible in the squishy mud; sonic is now level.

Measured veg height from bottom of plant (not from water height) in cm: 60, 52, 59, 54, 61, 54, 64, 54, 62, 65, 57, 60, 58, 57, 58, 56, 56, 55, 58, 64.

Water height is about 28 cm.

Took 5 clip plots of rice using a 400cm2 sampling square. Clipped rice from the bottom of the plant, not the top of the water.

LI7500 readings
CO2 388.27
H2O 586.5
T 21.93
P 101.76
ss 77.09 -> 82
LI7700 readings
CH4 1.89
rssi 40 -> 65

left 12:30

Veg Height (cm): Tape measure from ground to top of plant
60, 52, 59, 54, 61, 54, 64, 54, 62, 65, 57, 60, 58, 57, 58, 56, 56, 55, 58, 64, avg = 58.2, stdev = 3.68

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

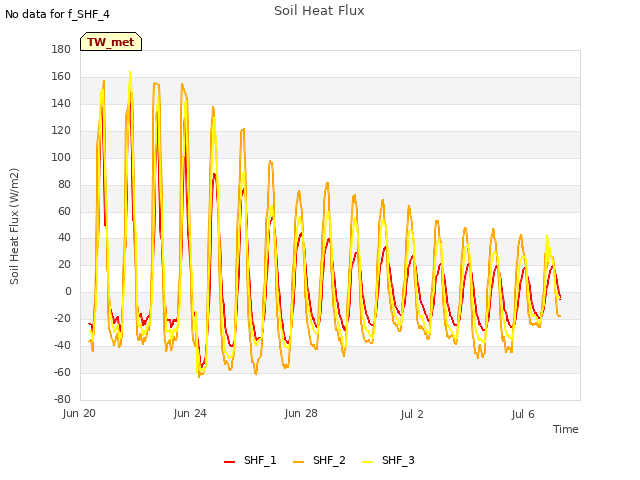

Explore the graph:Soil Heat Flux in a new window

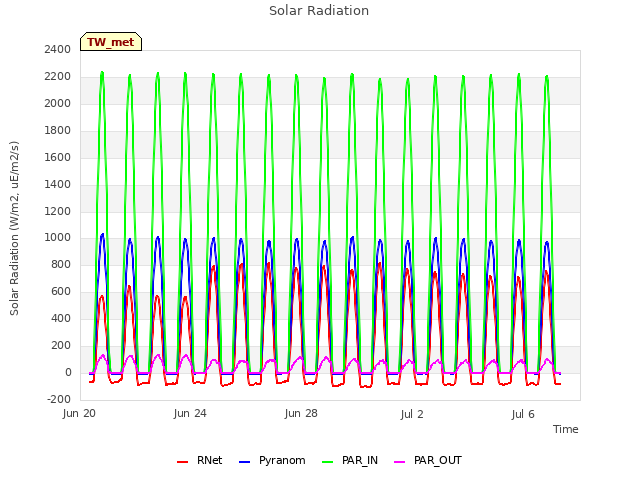

Explore the graph:Solar Radiation in a new window

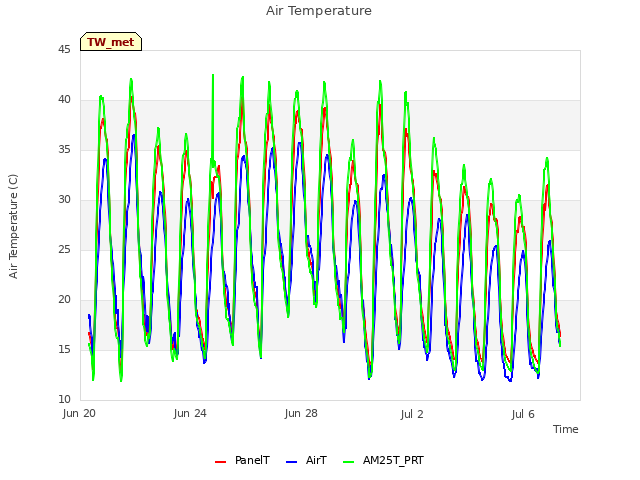

Explore the graph:Air Temperature in a new window

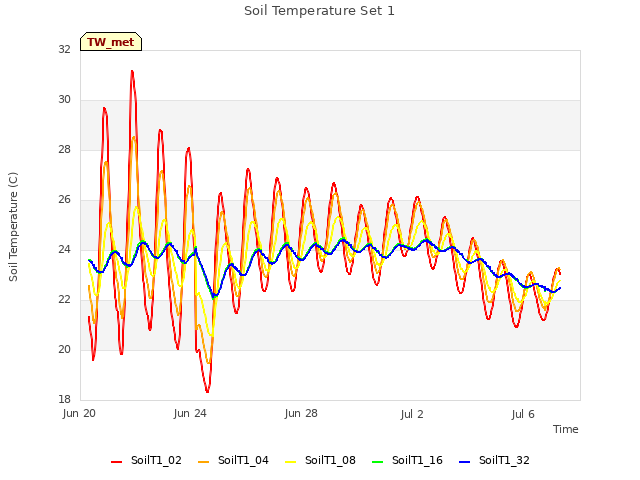

Explore the graph:Soil Temperature Set 1 in a new window

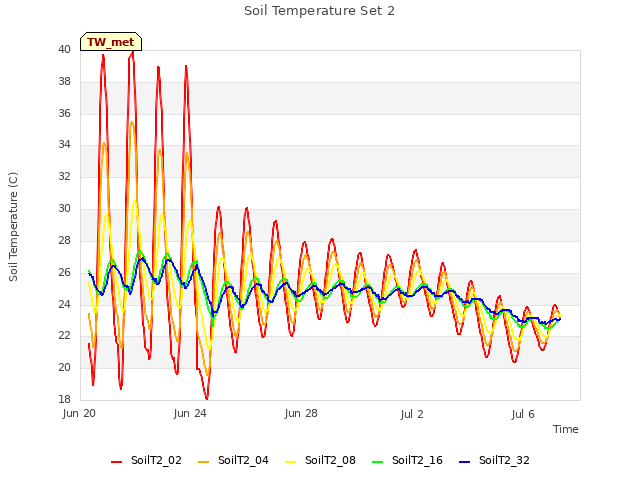

Explore the graph:Soil Temperature Set 2 in a new window

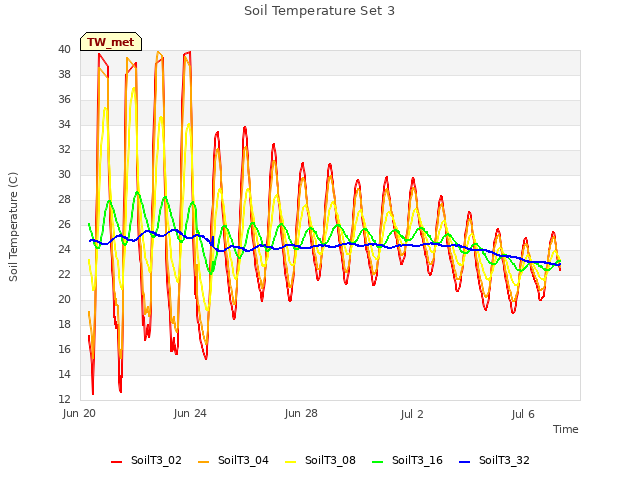

Explore the graph:Soil Temperature Set 3 in a new window

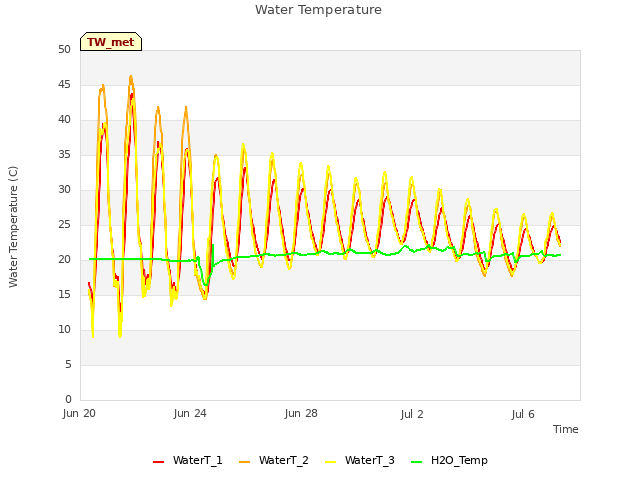

Explore the graph:Water Temperature in a new window

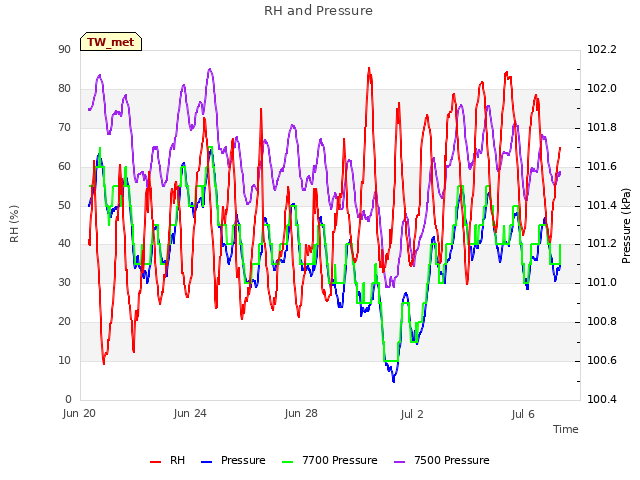

Explore the graph:RH and Pressure in a new window

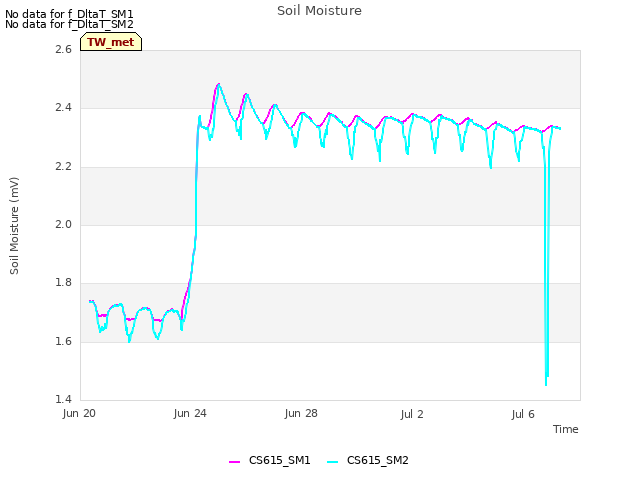

Explore the graph:Soil Moisture in a new window

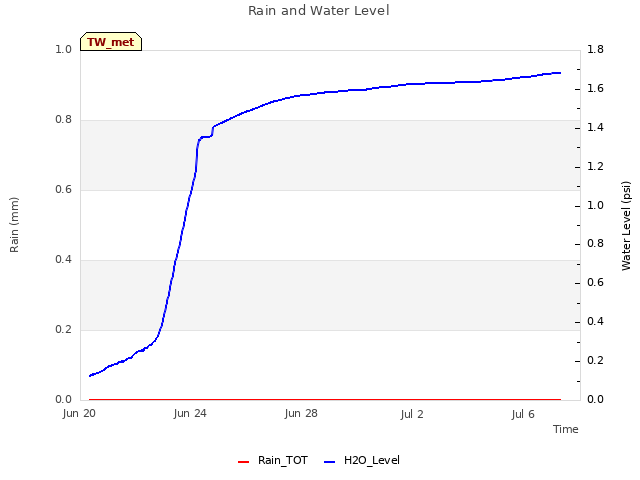

Explore the graph:Rain and Water Level in a new window

Explore the graph:Disolved Oxygen in a new window

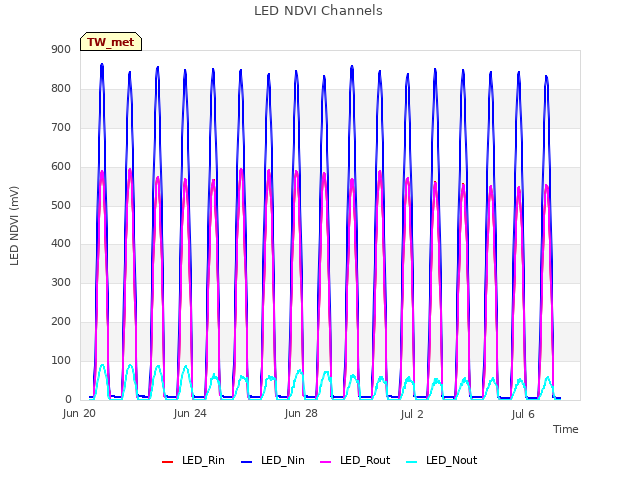

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

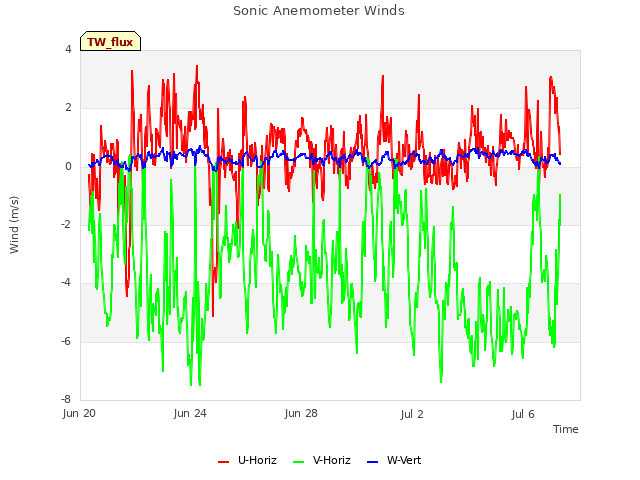

Explore the graph:Sonic Anemometer Winds in a new window

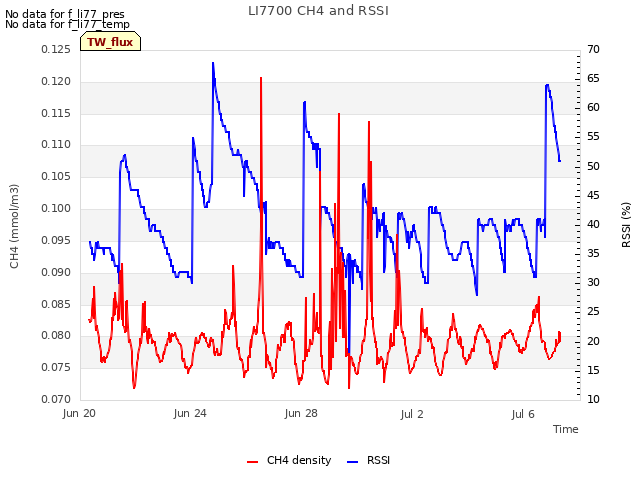

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

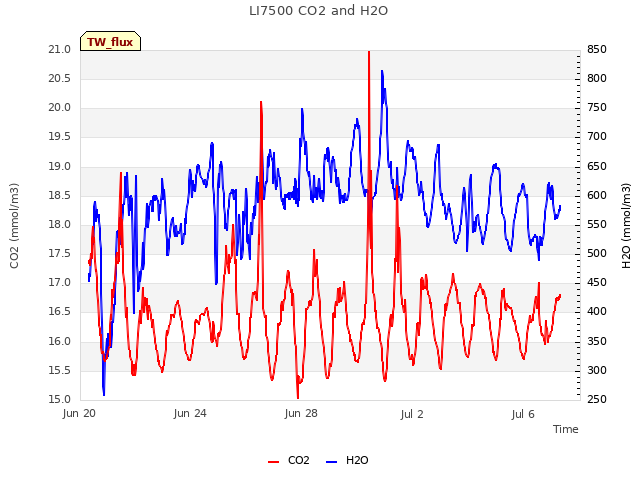

Explore the graph:LI7500 CO2 and H2O in a new window

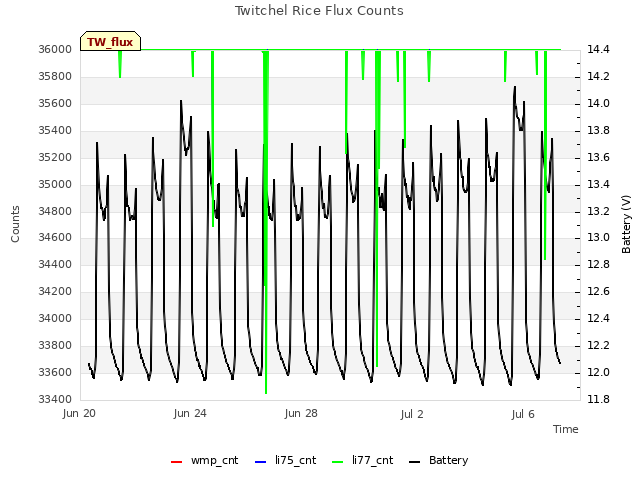

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

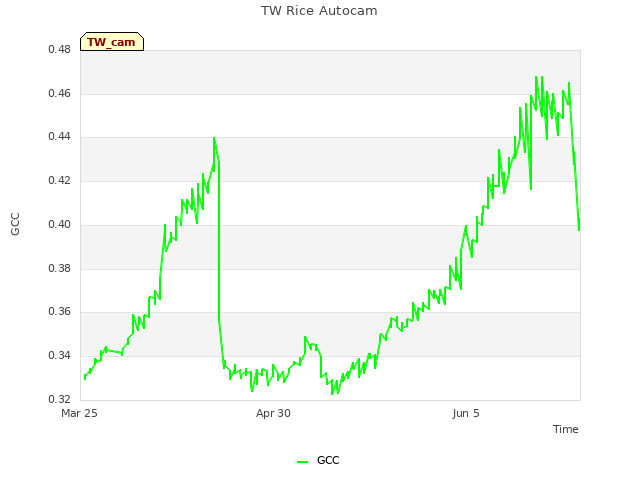

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
