Mayberry: 2016-07-06 10:10:00 (DOY 188)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes
Summary: Removed top CO2 sensor from water and took back to lab, LI7700 rssi low, regular data collection,

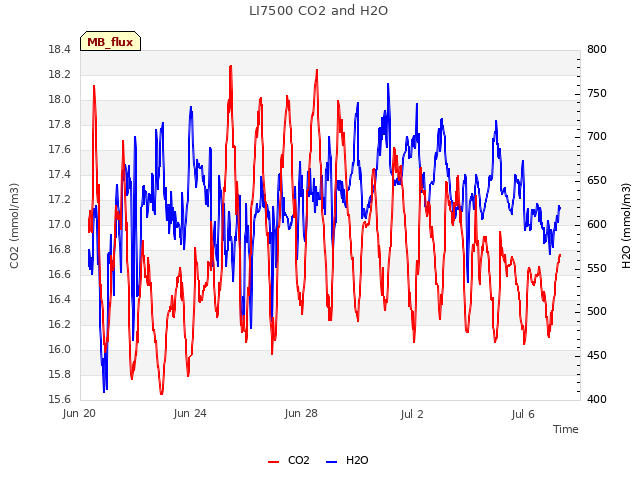

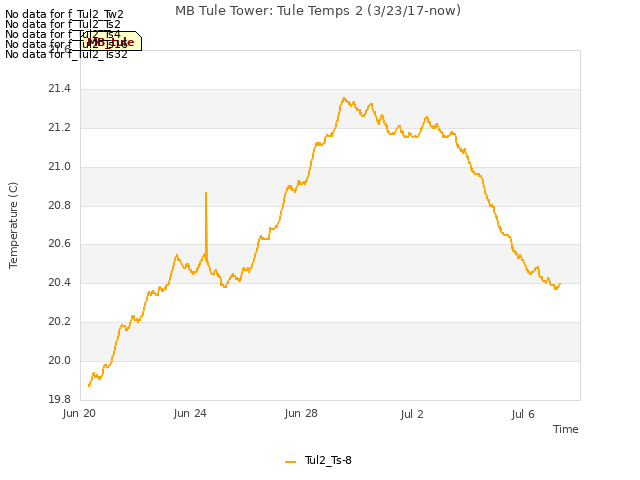

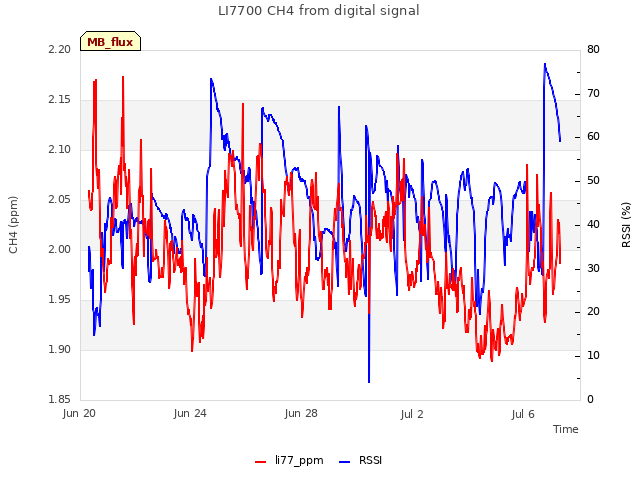

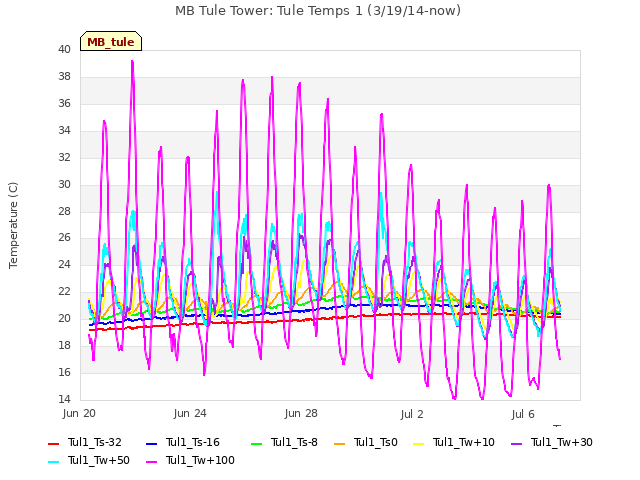

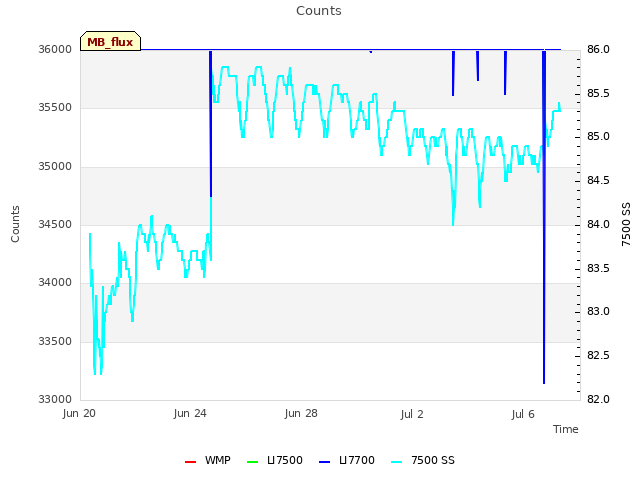

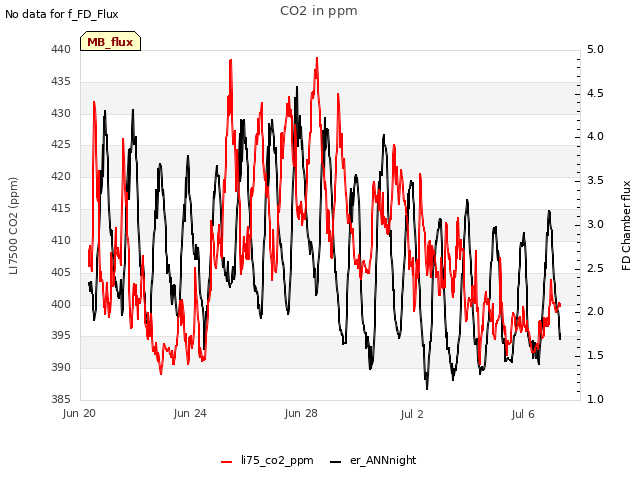

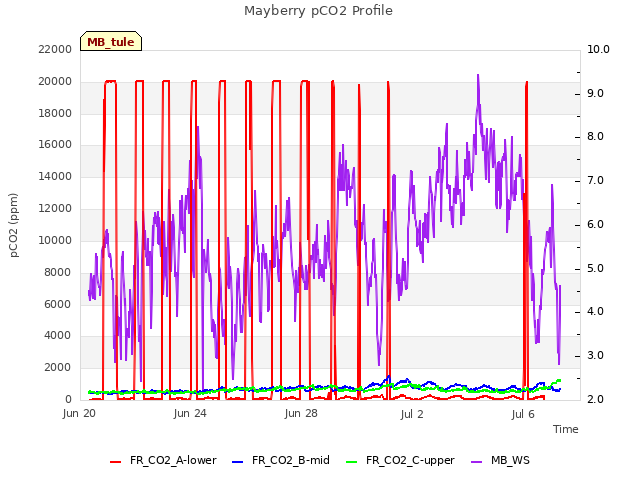

| Arrived 10:10. Sunny, warm, windy, clear sky with fog on the horizon. About half of the plants look dead, senescence isn’t in clumps but homogenously mixed with live plants. Water level fairly high. Methane was water reservoir filled, was about 2/3 full. Collected USB GHG data, collected met data from 23X, collected camera pictures. TUL1 TS16 =-INF. All other met data looks good. Removed the topmost CO2 sensor sn GP20140011 and took the canister and wires back to lab. The other CO2 and dissolved oxygen sensors remained intact and in the water. LI7700 had low rssi and the automatic cleaning mechanism should have turned on, so we checked the wash and both spray and spin worked when activated by the computer. We tried activating the cleaning mechanism by blocking the mirror with Kyle’s hand, but after 2 minutes with no reaction we assumed it probably averages rssi over a time period before cleaning. LI7500 readings CO2 394.31 H2O 624.6 T 21.09 P 101.40 ss 84.8 LI7700 readings CH4 1.92 rssi 22.4 -> 78.1 left 11:10 |
0 photos found
11 sets found

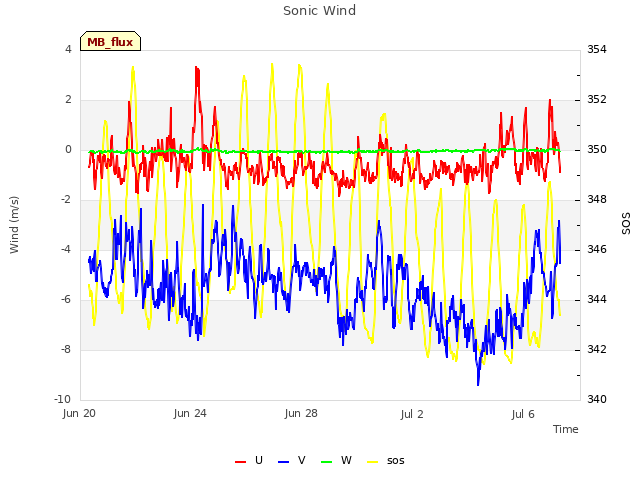

7 MB_flux graphs found
No data found for MB_met.

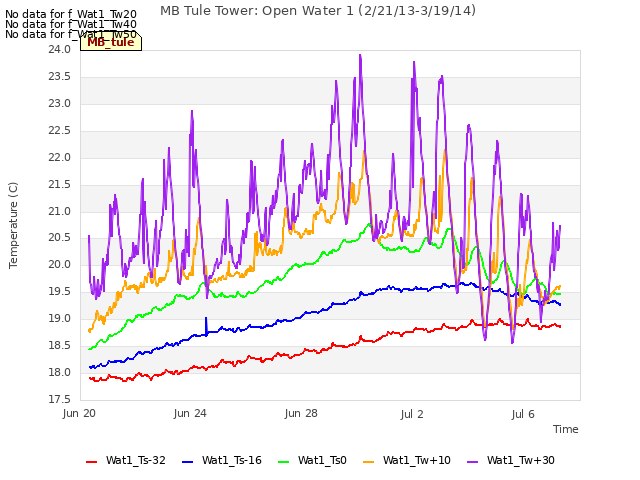

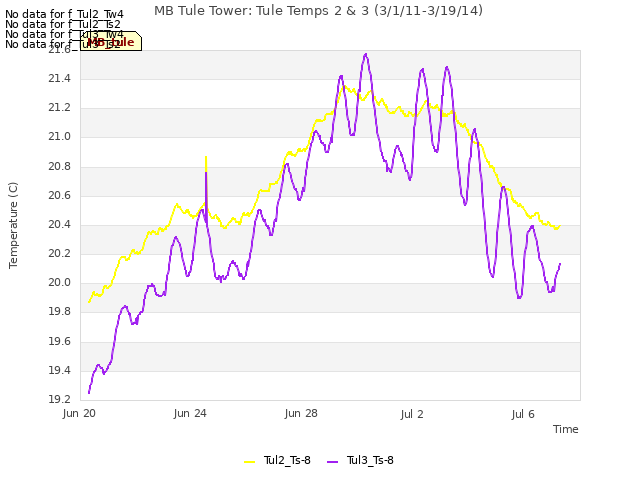

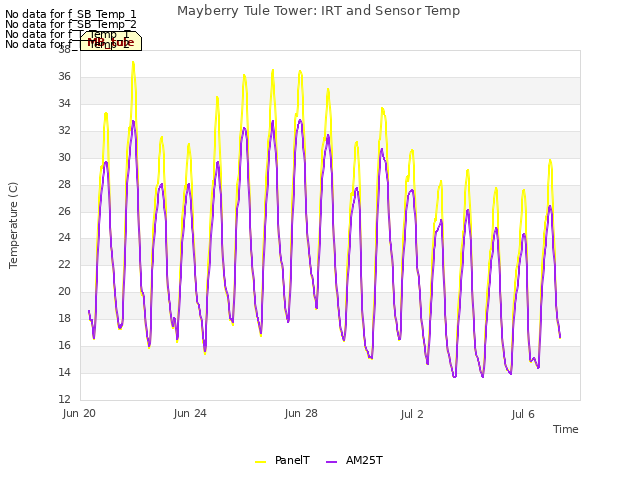

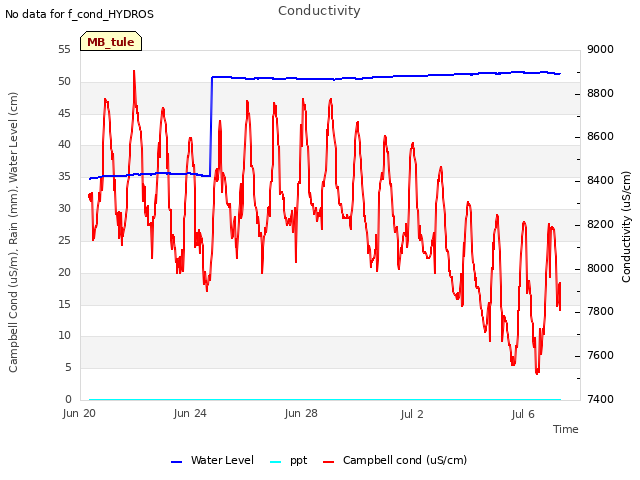

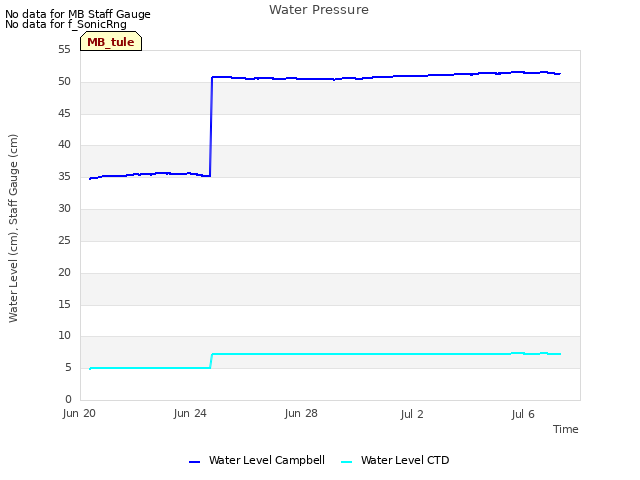

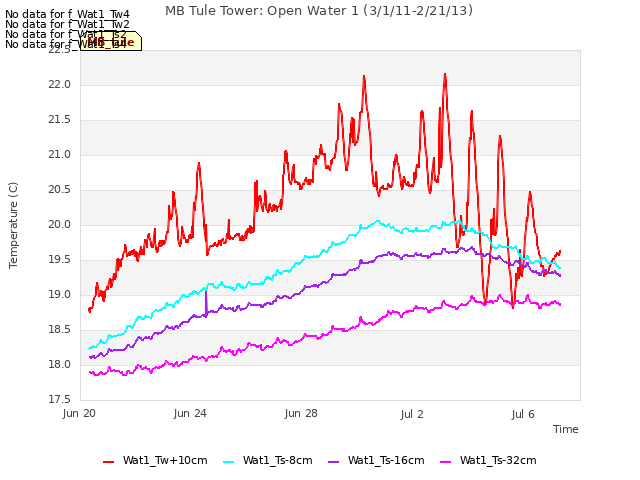

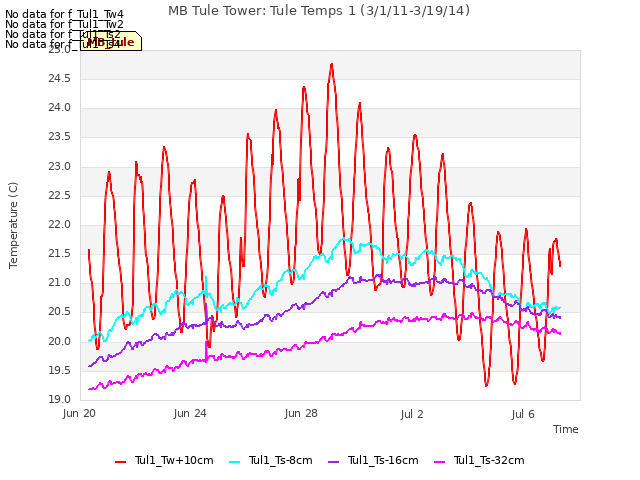

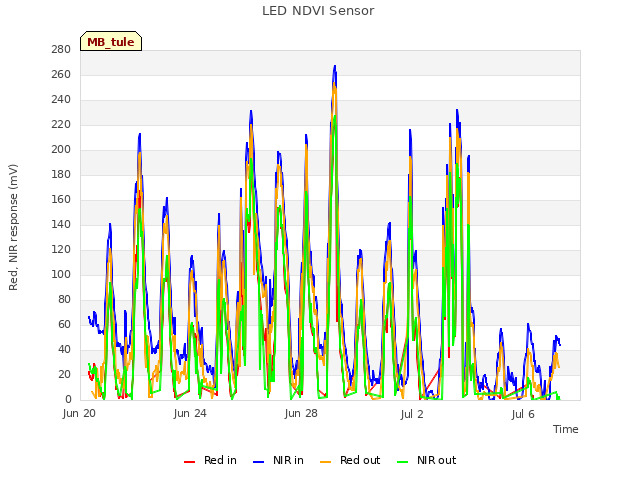

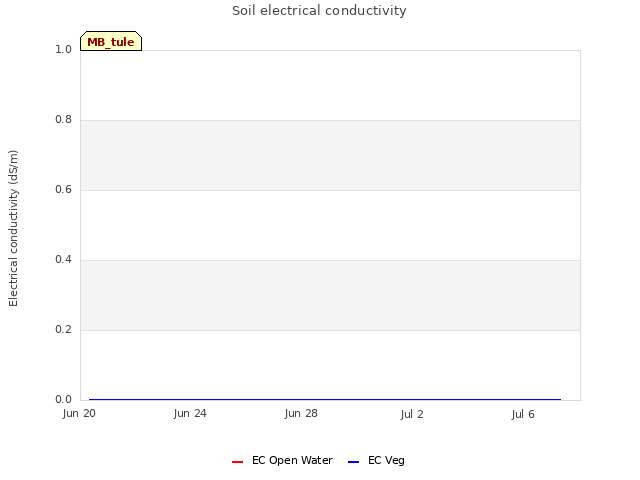

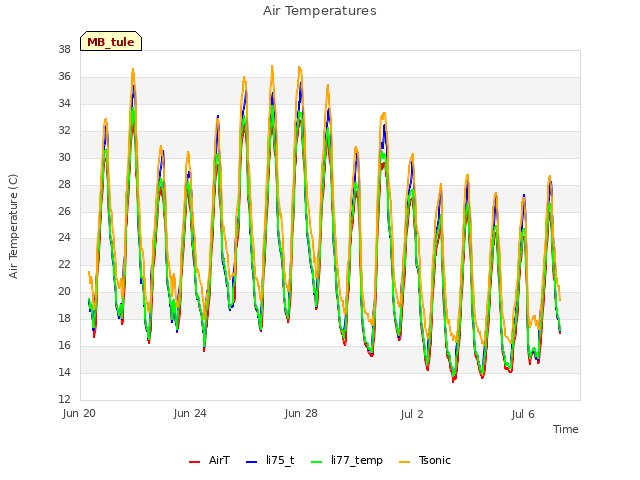

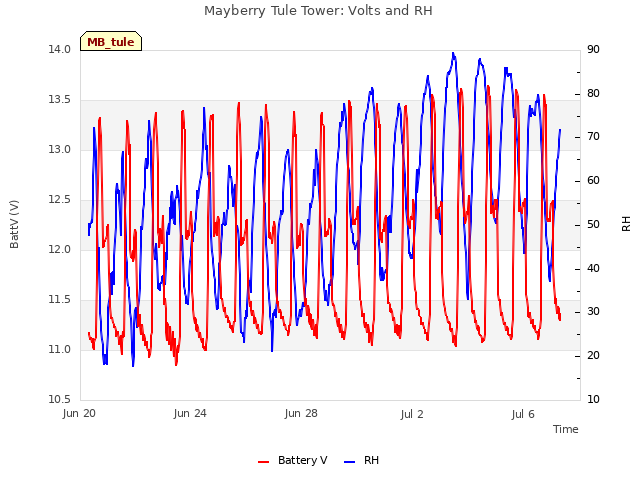

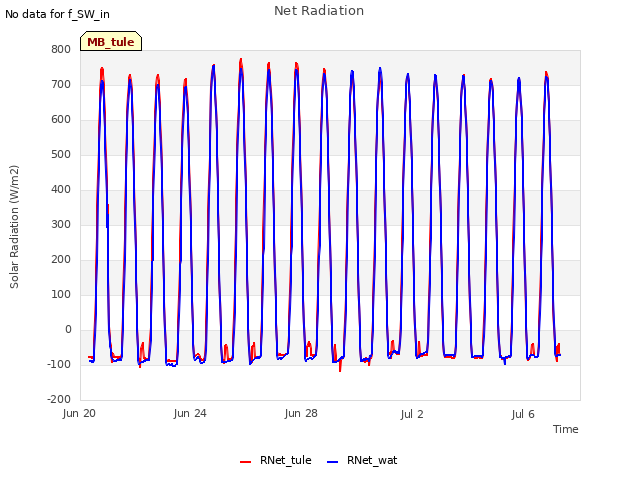

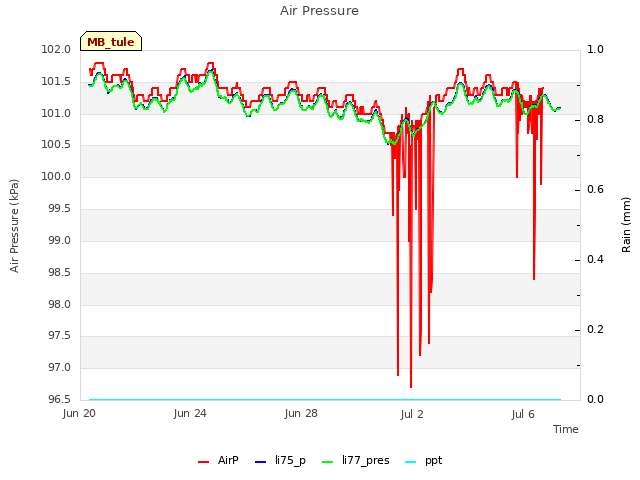

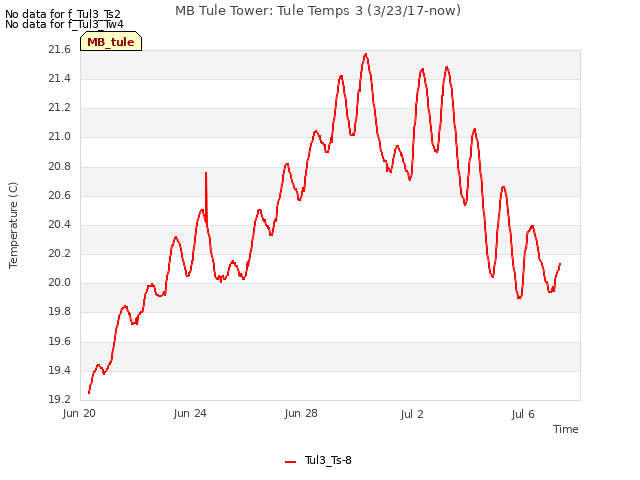

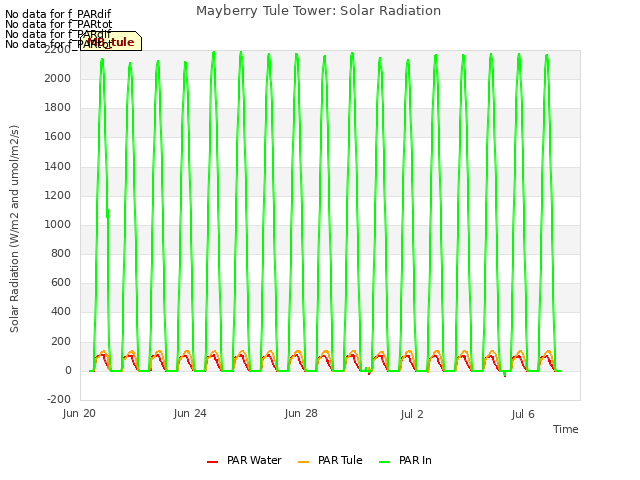

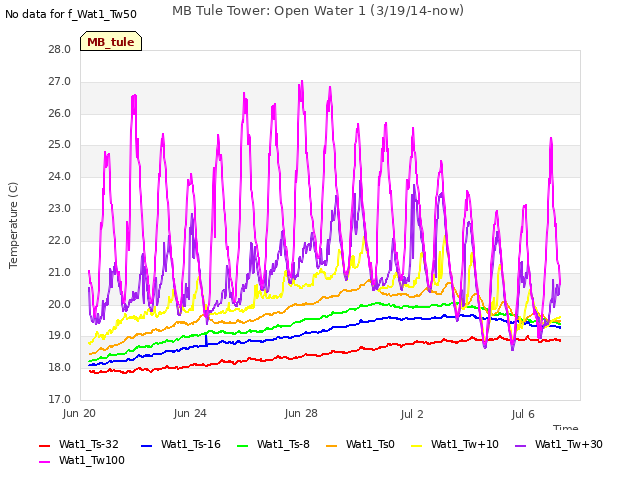

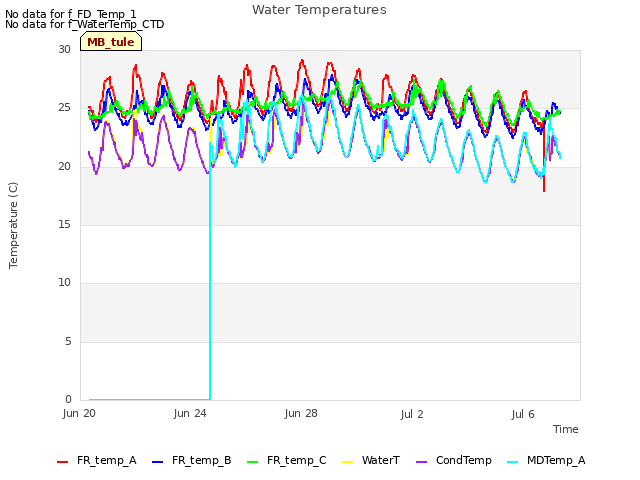

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

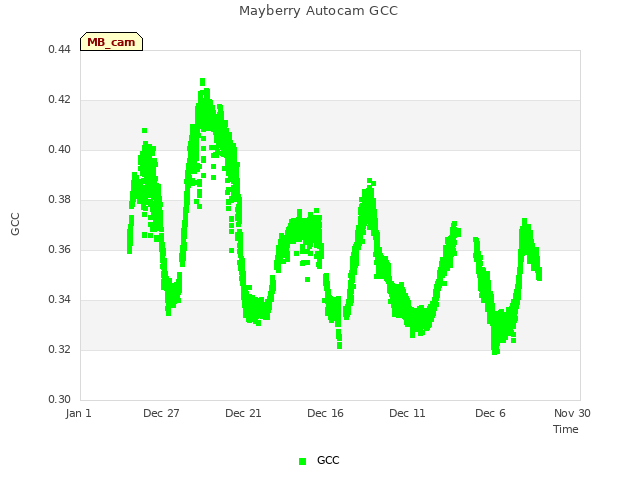

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

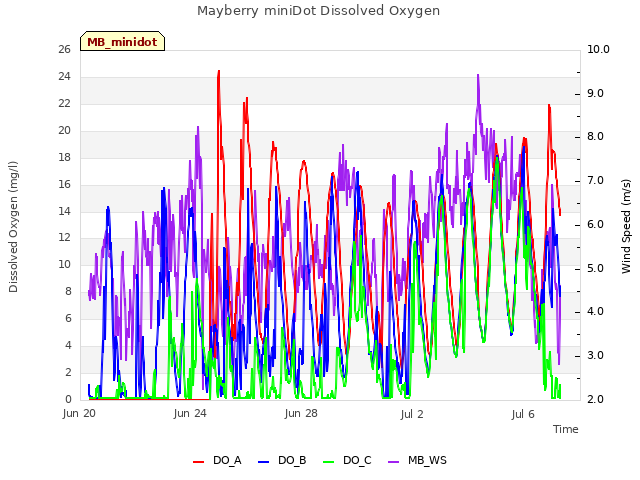

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

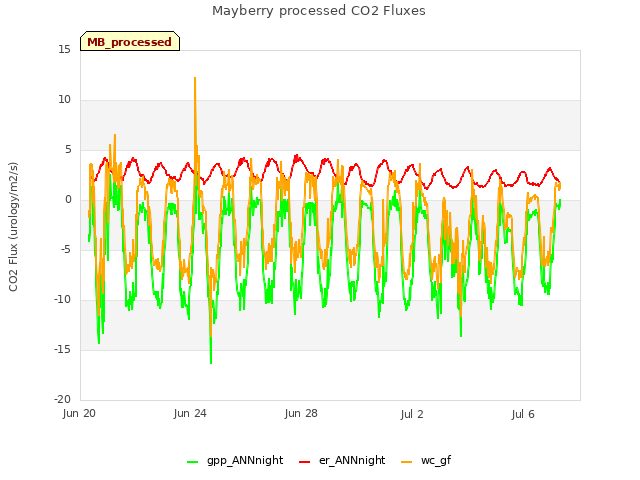

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
