Vaira: 2015-01-21 09:30:00 (DOY 21)
Author: Joe Verfaillie
Others: Siyan

Summary: Fence tangled, solar panels a-kilter, Updated CR1000 OS, added screen to tipping bucket.

Vaira 2015-01-21 I arrived about 9:30 with Siyan. It was cool and sunny with little to no wind. The water hole was full. The grass looks healthy. It seems the cows have been leaning on the fence – the upper wires were tangled in several places. I reset a couple of the corner braces that tightened up the wire a little but more could be done. I think I will also put back up a shock wire. The main solar panels were also off kilter a bit. I’m not sure is a cow got in and was pushing on them or the wind did it. There was evidence of high wind at Tonzi. I should add stakes to the bottom corners. Siyan did the usual fieldwork. I updated the OS on the CR1000 from v24 to v27. This mean having to reload the program and the program I loaded had a bug in it. I thought the card status looked odd, but didn’t figure it out until I saw the card status at Tonzi. After leaving Tonzi we stopped at Vaira again and I fixed the bug that was not creating the high frequency file on the card. The card also seemed to take a long time to format – maybe time to retire the card. I put a homemade screen in the tipping bucket. It looks like it will be fine to move the bucket to a shorter post in the middle. Hopefully this will reduce the bird fouling and make it easier to clean the bucket.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2015-01-21	TZ_floor	31.3
2015-01-21	TZ_road	38.5
2015-01-21	TZ_tower	34.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Floor_South_1 [1] => Floor_West_1 [2] => SoilCO2_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Floor_South_2 [11] => Floor_East_2 [12] => Floor_West_2 [13] => SoilCO2_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Floor_South_3 [22] => Floor_East_3 [23] => Floor_West_3 [24] => SoilCO2_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Floor_South_4 [33] => Floor_West_4 [34] => SoilCO2_4 [35] => Soil_Transect_4_4 [36] => Soil_Transect_3_4 [37] => Soil_Transect_2_4 [38] => Soil_Transect_1_4 [39] => SoilCO2_West_A_4 [40] => SoilCO2_West_B_4 [41] => SoilCO2_West_C_4 [42] => Floor_East_4 )

0000

Date	DOY	Rep	Depth	Floor_South_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_East_4	Avg	Spacial Count	Measurement Count
2015-01-21	21	0	nan	14.1	22.6	29.7	20.9	23.5	16.8	18.2	23.8	23.8	21.2	28.6	23.6	31.3	29.2	24	30.1	30.1	18.2	25.5	16.1	28.9	37.7	39.6	37.4	41.3	24	27.6	31	31.8	32.7	31.8	33.2	50	46	40	28.8	37.4	46.6	27.6	41.4	47.7	45.4
2015-01-21	21	1	nan	14.1	22	29.4	22.6	24.7	16.5	18.5	24.7	24.7	21.7	28.9	29.8	31	30.1	24.3	30.4	30.1	18.5	25.2	16.4	29.8	37.4	35.7	38.2	40.7	23.5	27.6	32.1	32.4	14.3	31	34.6	48.8	46.3	39.7	29.4	38	46.8	28.2	42.3	48	47.1	41.4
2015-01-21	21	Avg	0-15cm																																													0
2015-01-21	21	Avg	15-30cm																																													0
2015-01-21	21	Avg	30-45cm																																													0
2015-01-21	21	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Gate_2 [6] => Biomass_Cage_2 [7] => Solar_Panels_3 [8] => Flux_Tower_3 [9] => Gate_3 [10] => Biomass_Cage_3 [11] => Solar_Panels_4 [12] => Flux_Tower_4 [13] => Gate_4 [14] => Biomass_Cage_4 [15] => Flux_Tower_2 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Flux_Tower_2	Avg	Spacial Count	Measurement Count
2015-01-21	21	0	nan	13.8	1.9	13.5	6.8	29.8	15.5	17.9	27.6	20.9	20.7	27.9	35.7	27.4	15.6	27.6
2015-01-21	21	1	nan	15.3	18.2	13.5	6.8	27.1	15.8	17.9	28.5	20.7	19.8	29.9	39.4	26.2	16.2	28.2	26.1
2015-01-21	21	Avg	0-15cm																		0
2015-01-21	21	Avg	15-30cm																		0
2015-01-21	21	Avg	30-45cm																		0
2015-01-21	21	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Joe on site

Graphs display: days

9 sets found

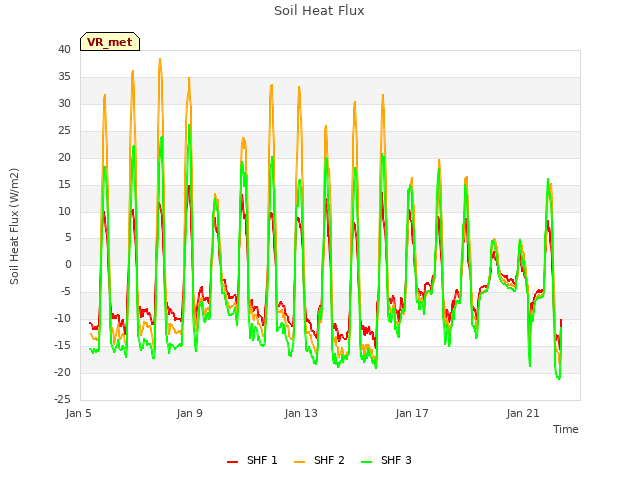

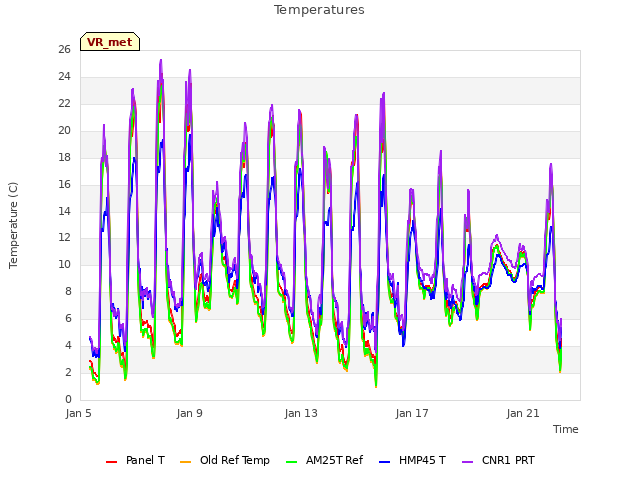

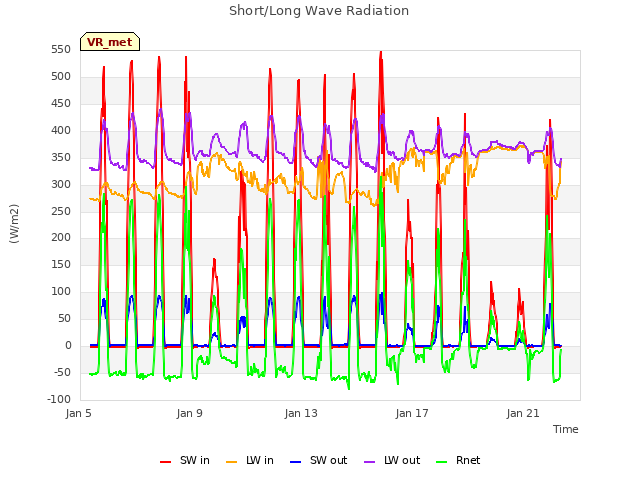

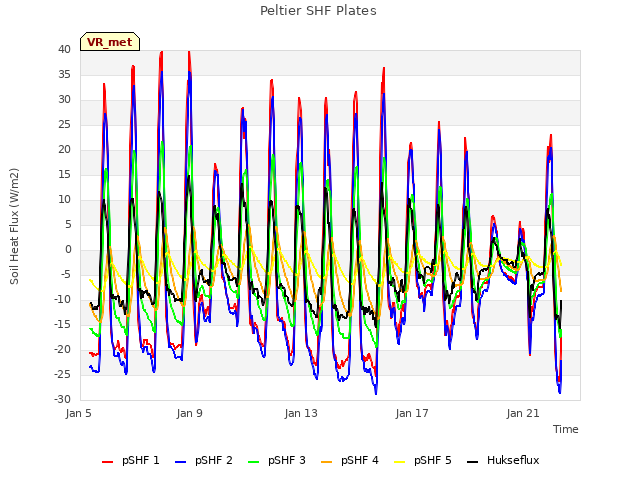

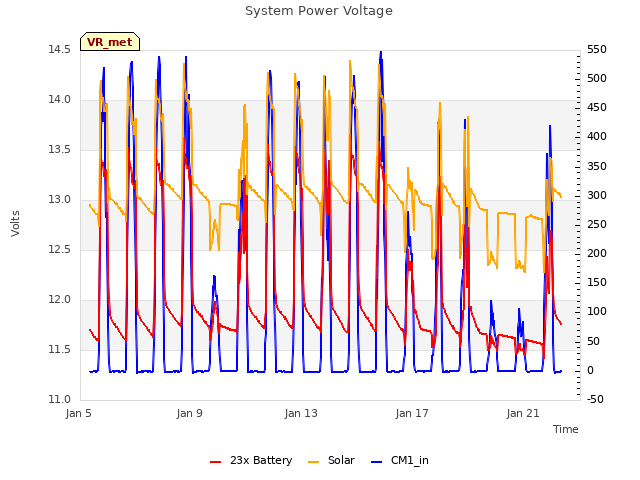

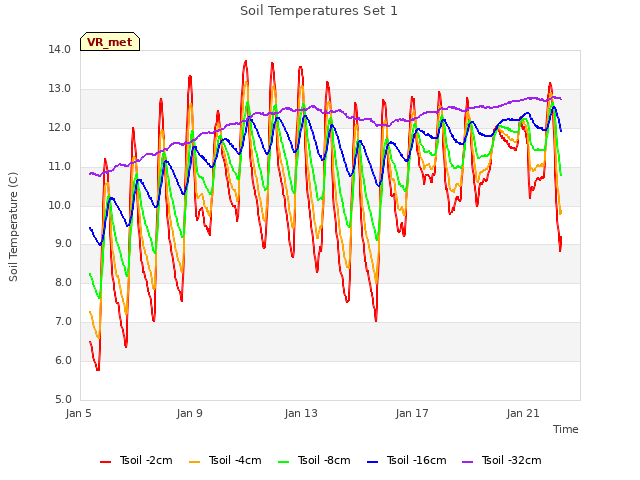

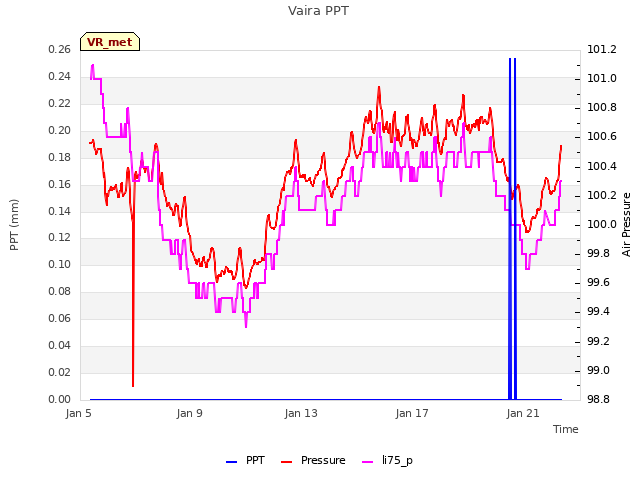

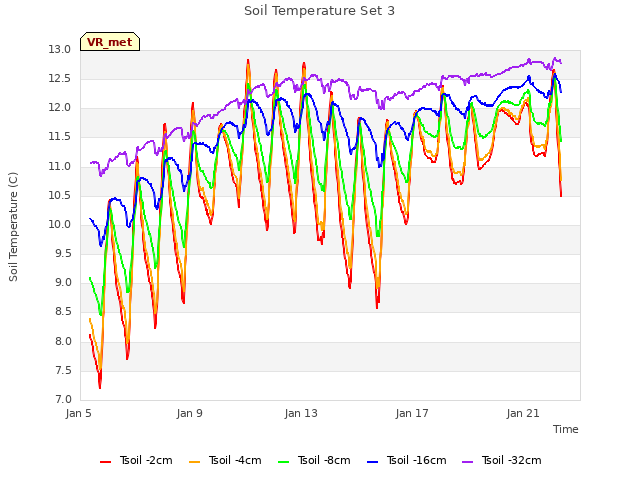

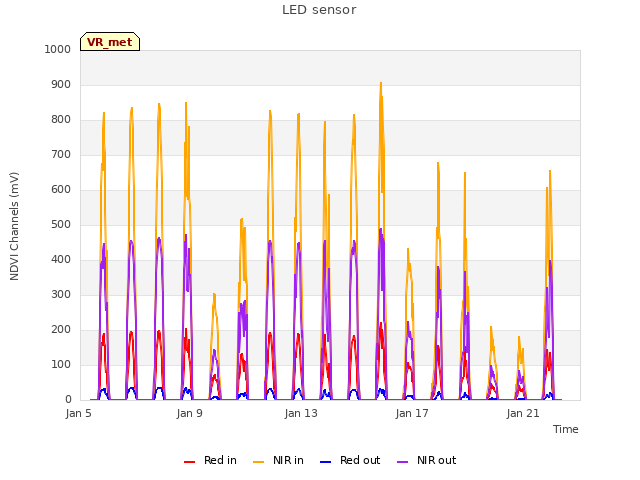

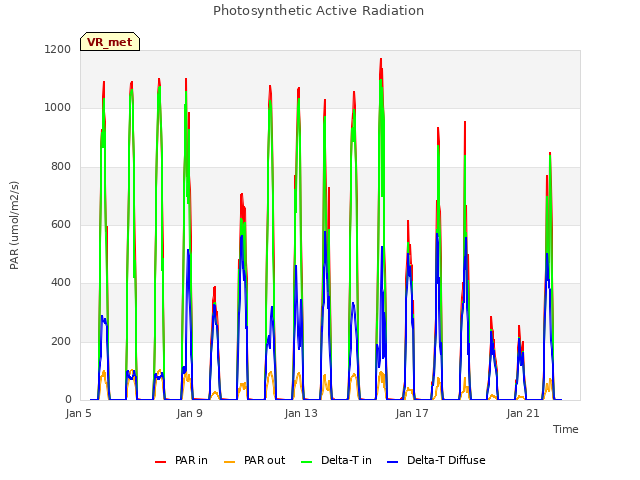

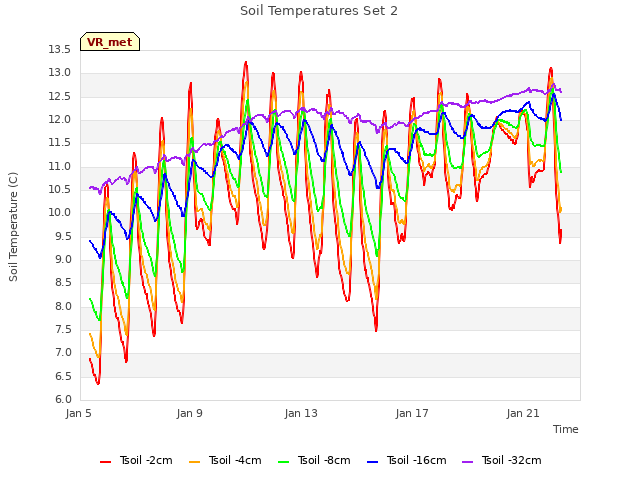

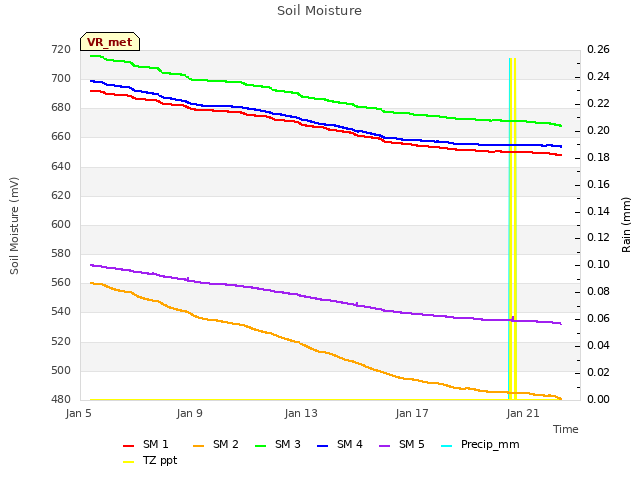

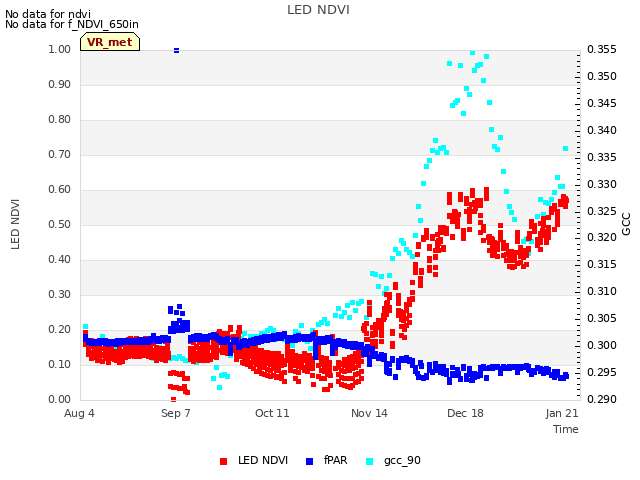

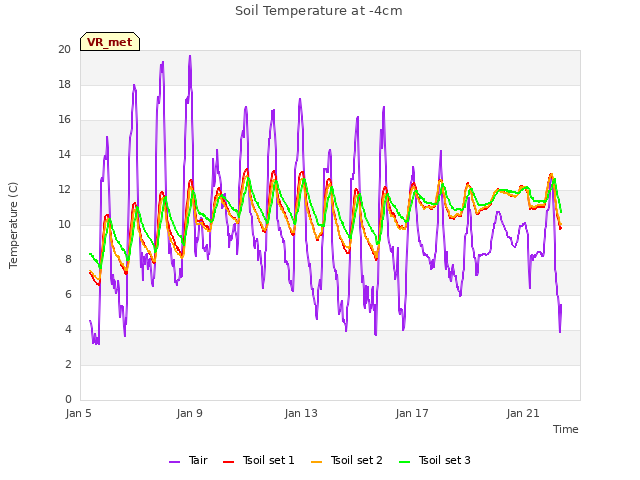

16 VR_met graphs found

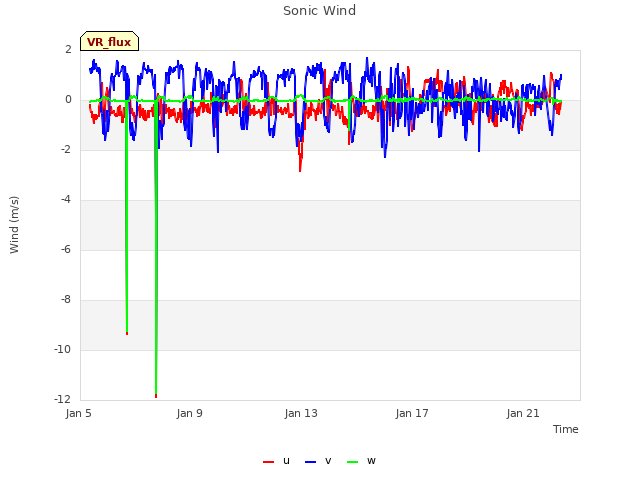

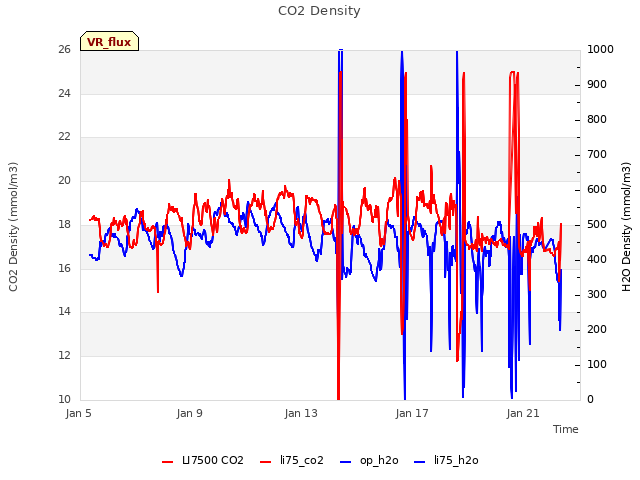

2 VR_flux graphs found

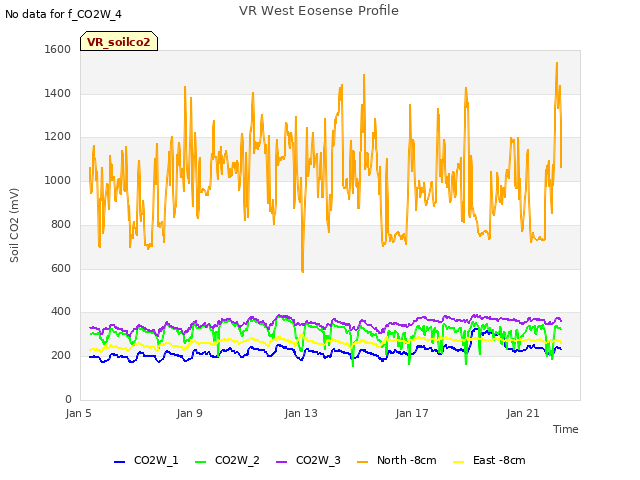

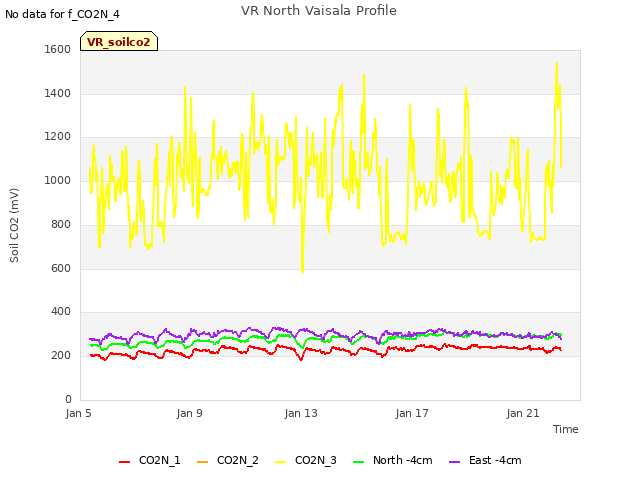

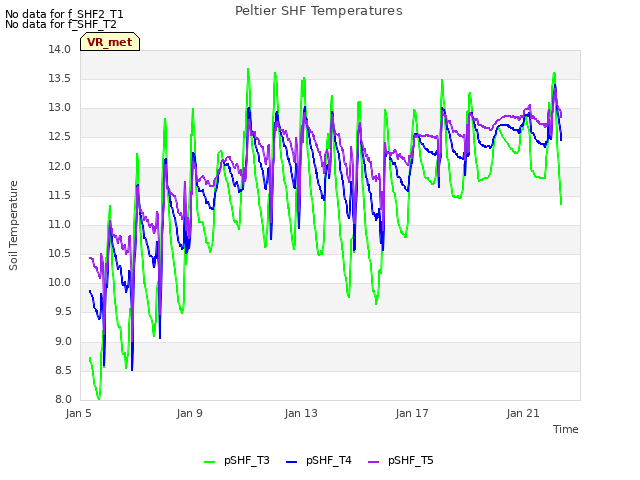

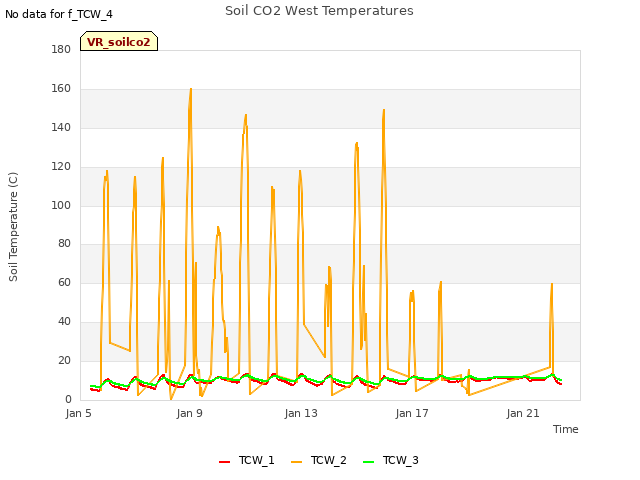

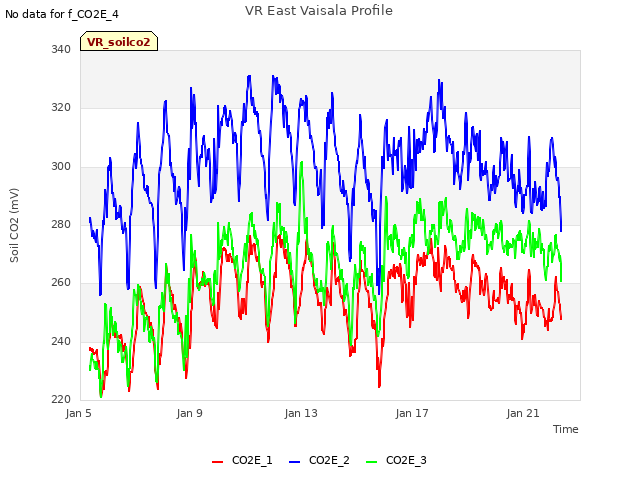

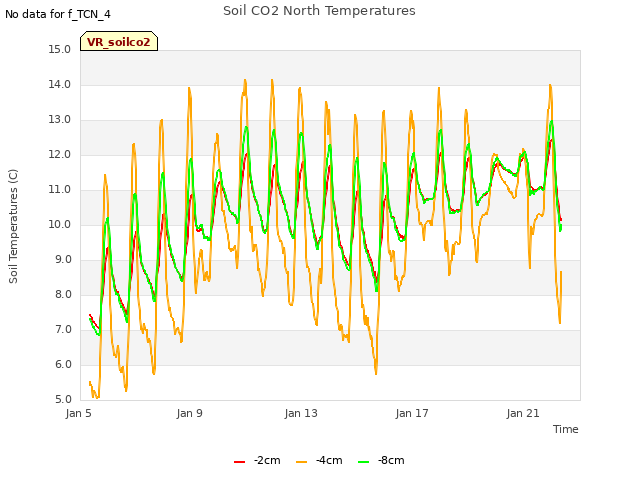

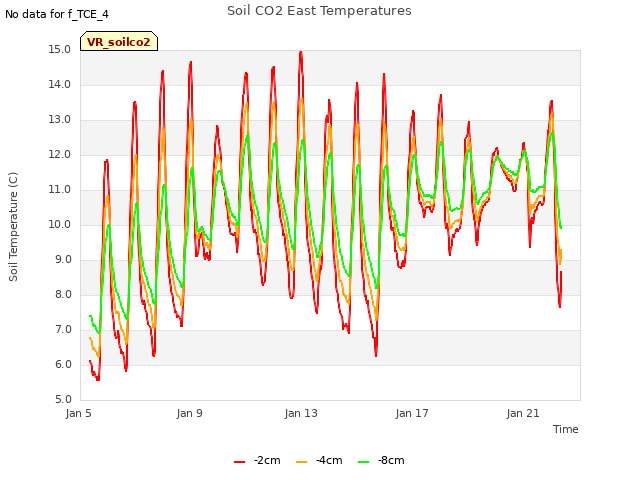

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
