Vaira: 2015-02-04 09:30:00 (DOY 35)
Author: Joe Verfaillie
Others: Siyan, Housen, Ana

Summary: Added electric wire to the fence, standard field work

Vaira 2015-02-04 I arrived about 9:30 with Siyan, Housen and Ana. The Delta and Central Valley had heavy fog, but here it is mostly clear and sunny with little to no wind. The grass looks good but a little dry. The water hole is full but the puddles in the road are dry or drying up. I put up an electrified wire on the fence. The wire is at about 20 inches above the ground. I tried tightening up the fence by adjusting a couple of the braces. Siyan collected data and did the standard fieldwork.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2015-02-04	TZ_floor	31
2015-02-04	TZ_road	37.7
2015-02-04	TZ_tower	34.5

mode = both
Moisture Point Probes TZ
Array ( [0] => Floor_South_1 [1] => Floor_East_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Floor_South_2 [11] => Floor_East_2 [12] => Floor_West_2 [13] => SoilCO2_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Floor_South_3 [22] => Floor_East_3 [23] => Floor_West_3 [24] => SoilCO2_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Floor_South_4 [33] => Floor_East_4 [34] => Soil_Transect_4_4 [35] => Soil_Transect_3_4 [36] => Soil_Transect_2_4 [37] => Soil_Transect_1_4 [38] => SoilCO2_West_A_4 [39] => SoilCO2_West_B_4 [40] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_East_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2015-02-04	35	0	nan	9.7	39.9	31.1	16.5	20	17.1	15.9	19.7	20.6	15.9	20.6	35.5	26.5	27.7	21.9	29.5	28.3	15.8	24.6	12.4	28	34.1	32.9	35.4	59.4	21.2	30.1	31.3	31.3	31.5	31	34.3	51.1	41.4	25.1	36.8	46.8	26.2	40	46.6	48
2015-02-04	35	1	nan	7.4	39.9	34.4	16.8	20	18.2	15.6	19.4	20.9	16.5	21.9	29.8	28.9	26.8	21.9	28.6	28.9	15.8	24.3	12.1	28.3	32.9	39.6	43.5	42.4	22.1	26.2	31.5	31.3	31.8	30.4	34.1	48.6	41.4	25.6	38.8	46.6	25.4	40.5	47.7	48.6
2015-02-04	35	Avg	0-15cm																																											0
2015-02-04	35	Avg	15-30cm																																											0
2015-02-04	35	Avg	30-45cm																																											0
2015-02-04	35	Avg	45-60cm																																											0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2015-02-04	35	0	nan	12.7	17.9	11.2	6.2	31.9	30.4	13.3	16.1	39.6	18.4	18.2	39.6	47.7	23.9	15.9	41.4
2015-02-04	35	1	nan	39.9	15.6	10.9	5.6	15.5	11.1	13	16.1	11.1	17.9	17.3	39.6	41.4	23.6	15.3	41.4
2015-02-04	35	Avg	0-15cm																		0
2015-02-04	35	Avg	15-30cm																		0
2015-02-04	35	Avg	30-45cm																		0
2015-02-04	35	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

3 photos found

Housen and Joe on site

Green grass coming up through grey, straw-like litter

Green grass coming up through grey, straw-like litter

Graphs display: days

9 sets found

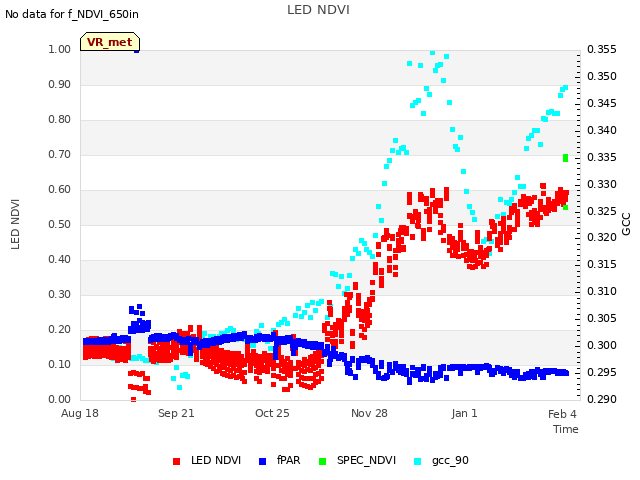

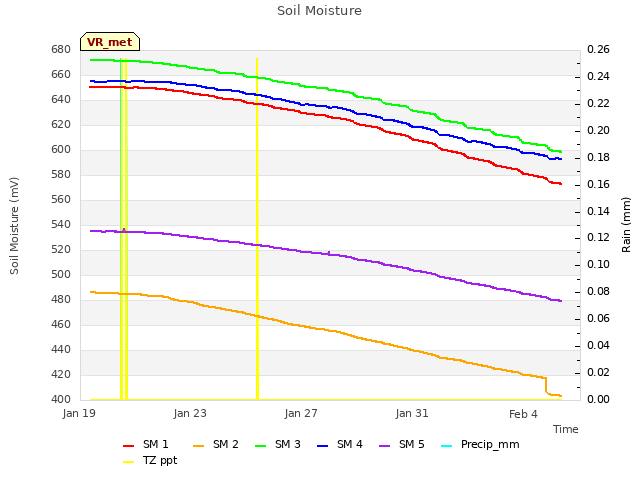

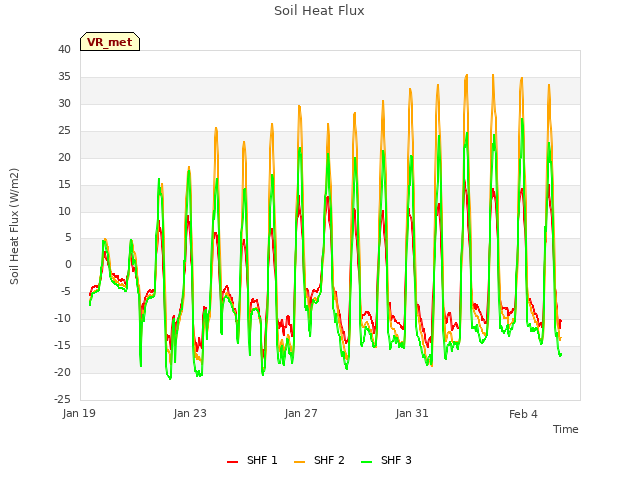

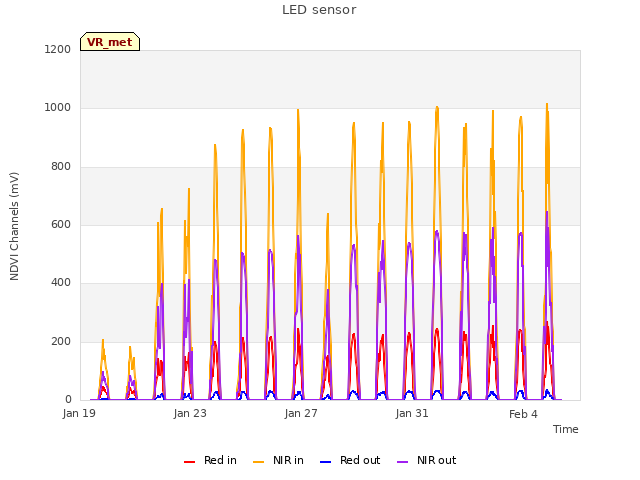

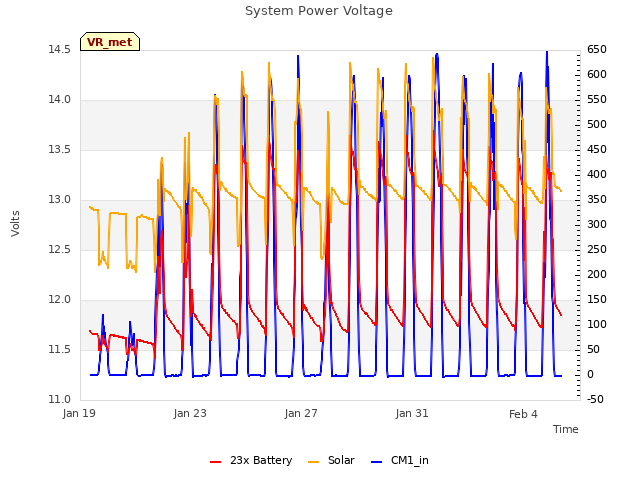

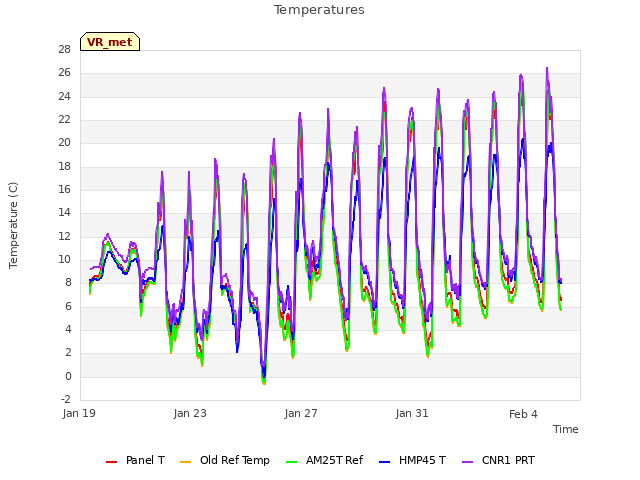

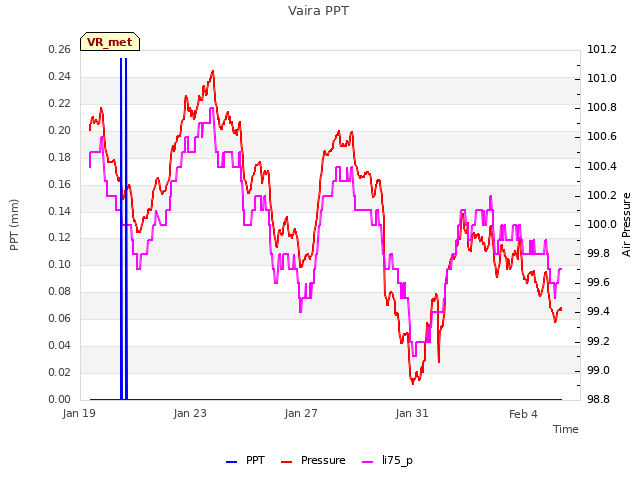

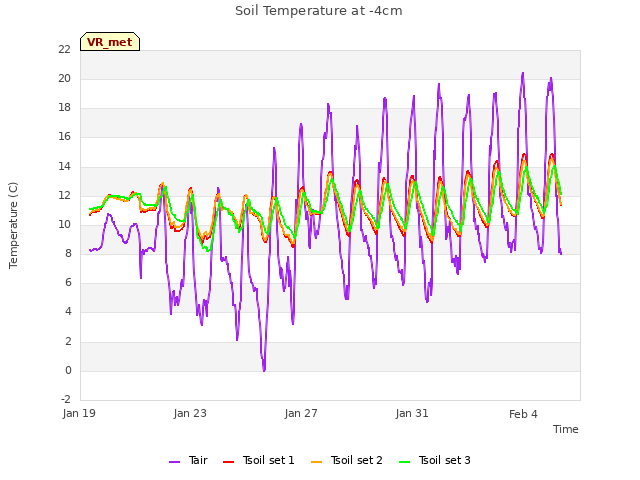

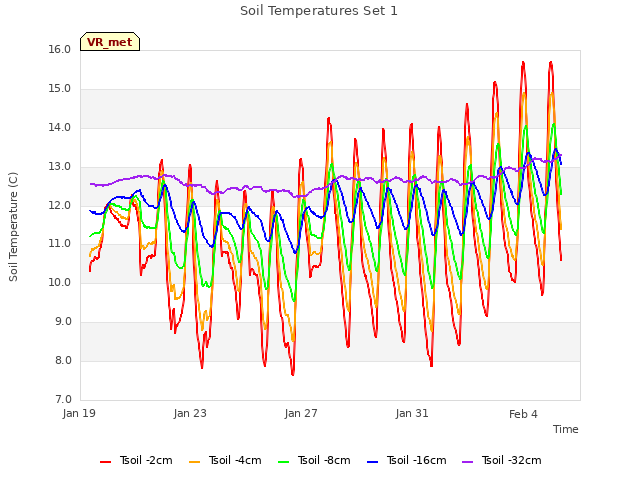

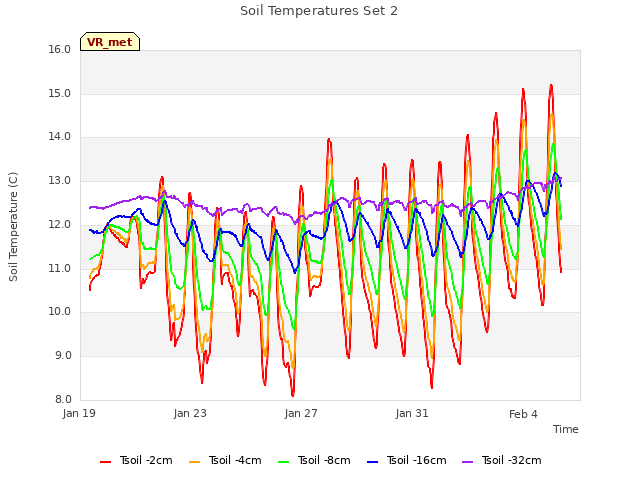

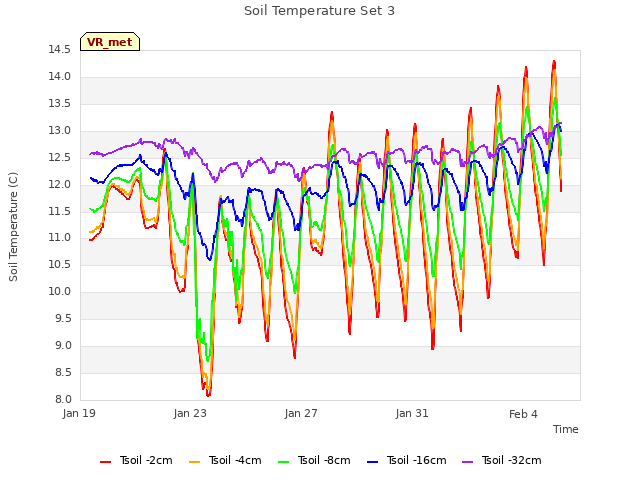

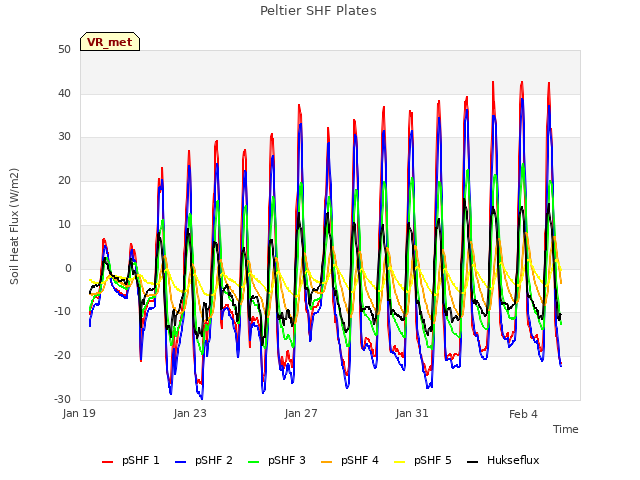

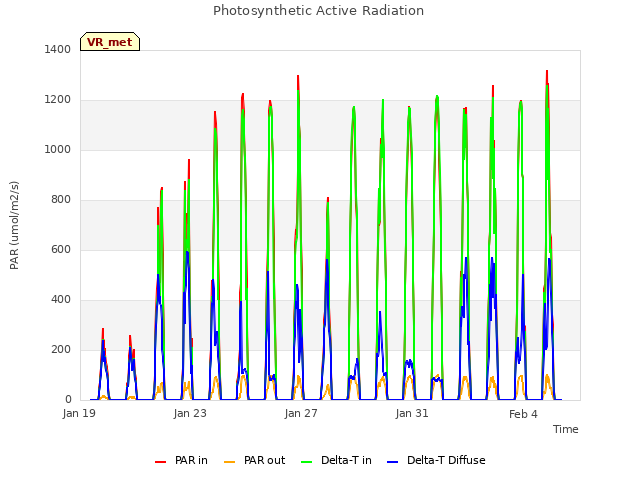

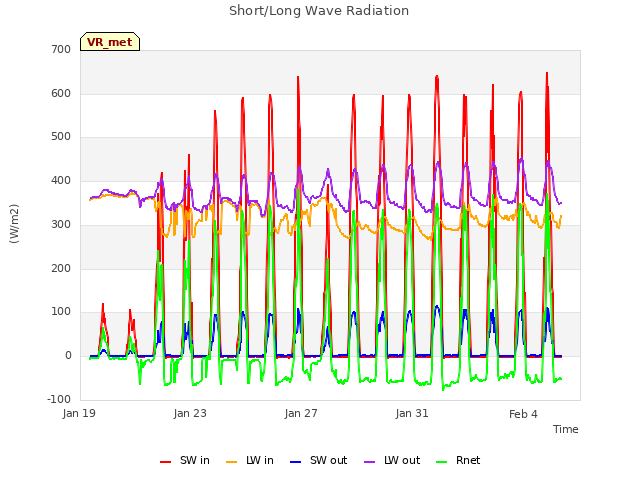

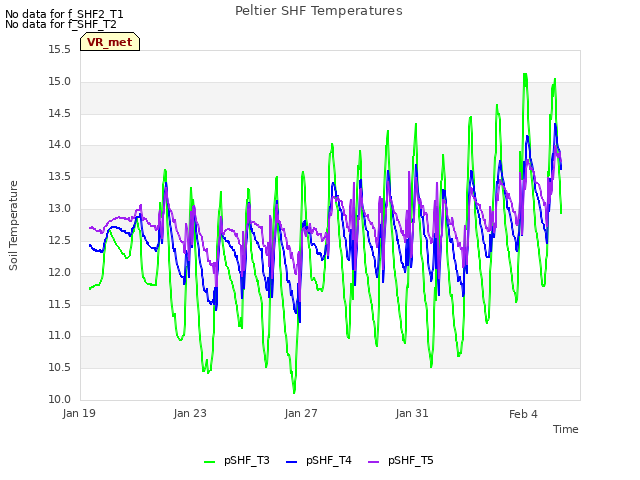

16 VR_met graphs found

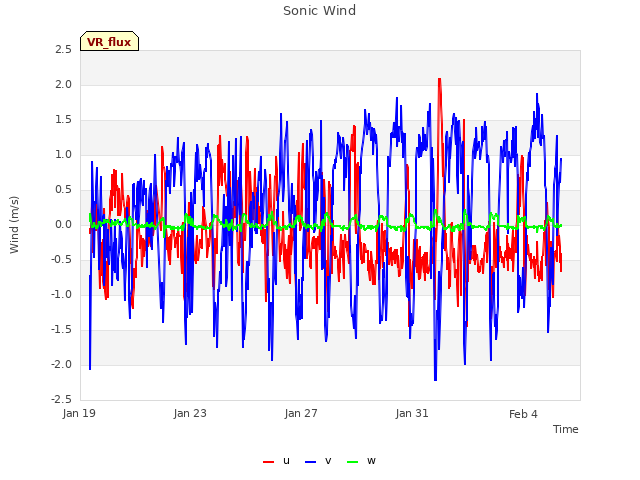

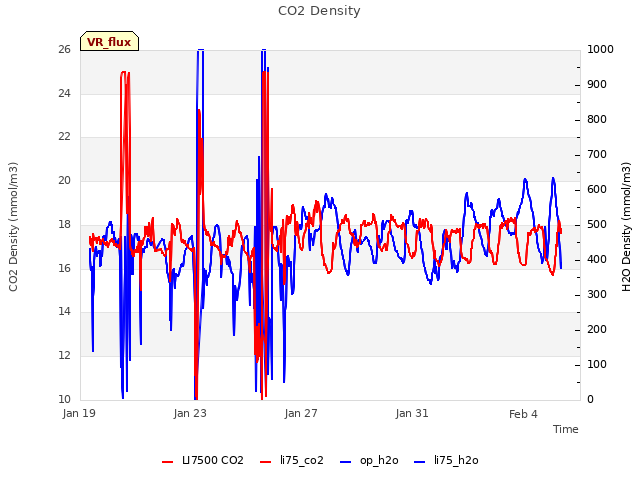

2 VR_flux graphs found

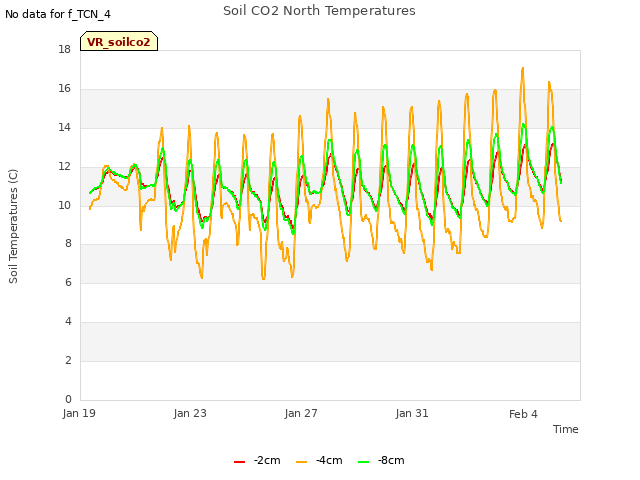

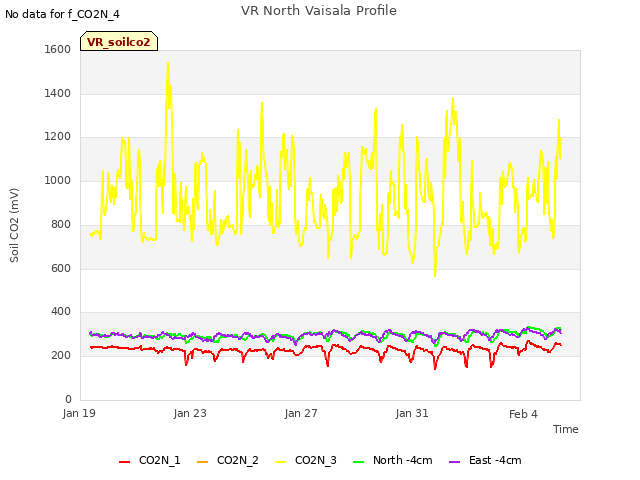

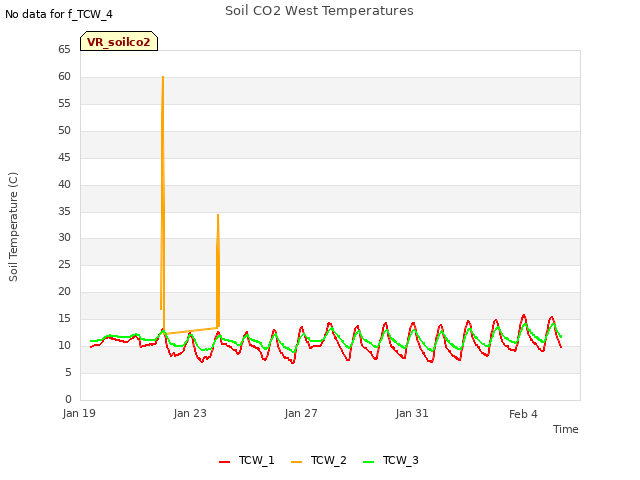

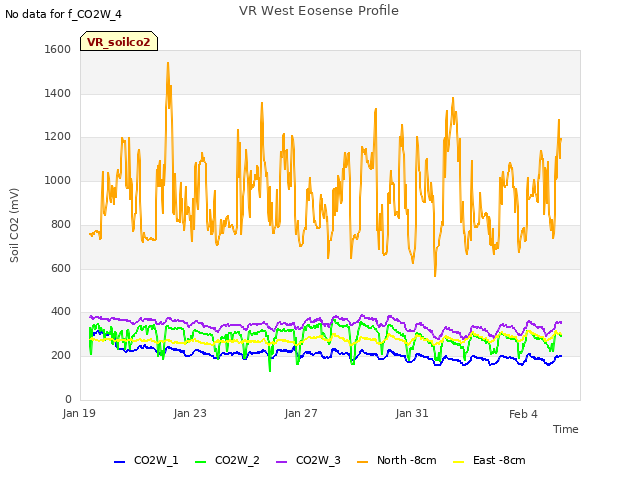

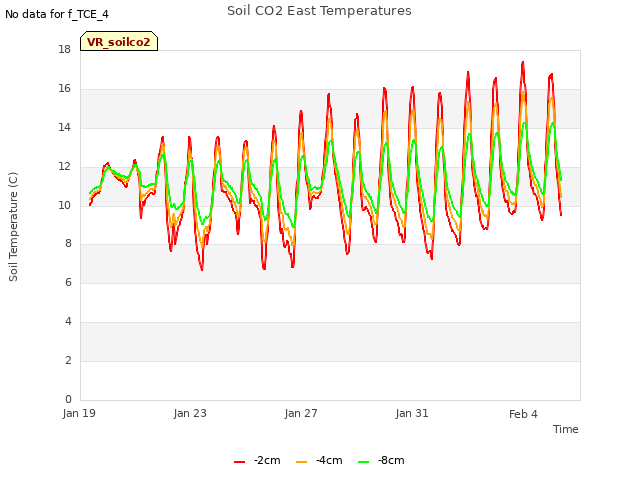

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
