Vaira: 2014-12-09 09:00:00 (DOY 343)
Author: Joe Verfaillie
Others: Siyan

Summary: Maintained Vaisala CO2 probes, standard field work

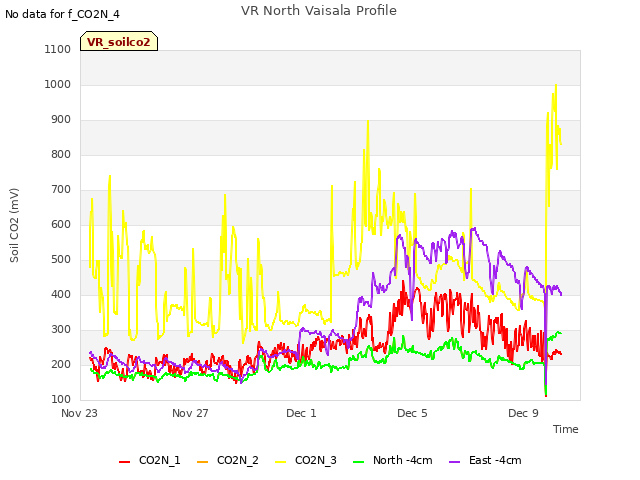

Vaira 2014-12-09 I arrived about 9:00am with Siyan. It was mild and overcast with little to no wind. The sun came out for a bit as we left but it got cold and dark again later. The puddles on the road were all full and there was some water in the water hole. The trees have lost their leaves or turned brown. The grass looks really healthy. The mowed area around the fence will be an interesting litter removal experiment. I worked on maintaining the Vaisala CO2 probes. Two thermocouples on the west set were reading INF. I couldn’t find any breaks but wiggling them around seemed to fix one. Next time maybe need to try re-soldering the other one. We pulled out all the probes and check serial numbers. The north set may have been in the wrong order. I put in new posts with clamps to hold the 2cm and 4cm tubes. I packed soil around all tubes so that they were firmly in the ground. There should be a couple of reading with all the probes exposed to ambient air. Vaisala Probes West 2cm, sn K1350103 West 4cm, sn K1350102 West 8cm, sn K1350101 North 8cm, sn Y1950005 may have been at 4cm North 4cm, sn G0230061 may have been at 2cm North 2cm, sn G0230062 may have been at 8cm East 2cm, sn Z2720015 East 4cm, sn Y2030049 East 8cm, sn Y2009109 Siyan did the standard field work including clip plots and grass height. I reinstalled one of two loose guy wires on the met tower. We need a new screen for the tipping bucket. We can remove the old fence charger post and solar panel, and the old 23x solar panels. We could add boardwalks to the soil CO2 solar panels and batteries.

Veg Height (cm): Tape measure from ground to top of plant - Inside fenced area - not grazed
6, 4, 4, 3, 7, 7, 4, 6, 3, avg = 4.7, stdev = 1.5

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2014-12-09	TZ_floor	32.4
2014-12-09	TZ_road	40.7
2014-12-09	TZ_tower	37.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Floor_South_4 [37] => Floor_East_4 [38] => Floor_West_4 [39] => SoilCO2_4 [40] => Soil_Transect_4_4 [41] => Soil_Transect_3_4 [42] => Soil_Transect_2_4 [43] => Soil_Transect_1_4 [44] => SoilCO2_West_A_4 [45] => SoilCO2_West_B_4 [46] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2014-12-09	343	0	nan	25	21.2	39.3	11.1	19.7	13.8	25	18.2	11.2	24.7	23.5	31.1	20	21.5	29.8	27.4	31.3	39.7	35	28.9	7.2	22.8	16.7	29.5	14.8	9.8	30.7	22.3	13.3	18.4	29.9	19.3	12.3	38	33.5	31.1	7	16.8	20.5	14.5	9.3	13.6	16.8	11	17.9	10.2	32.8
2014-12-09	343	1	nan	25.8	20.3		11.1	26.4			16.8		24.4		34.1	19.1	21.9		27.1	26.5			29.2		24		31.9	15.6	8.4		22.9	12			20.7		33.5		29.9	7		21.1	14.2			16.5		17.6		34.8
2014-12-09	343	Avg	0-15cm																																																	0
2014-12-09	343	Avg	15-30cm																																																	0
2014-12-09	343	Avg	30-45cm																																																	0
2014-12-09	343	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2014-12-09	343	0	nan	19.7	17.9	18.2	7.1	26.1	30.1	21	18.5	23.7	20.1	25.1	26	28.8	13.6	19.6	17.6
2014-12-09	343	1	nan	20.6	17.9	18.8	6.2	25.8	29.2	21.3	18.2	23.7	19	24.6	26	27.9	13.3	19.6	17.6
2014-12-09	343	Avg	0-15cm																		0
2014-12-09	343	Avg	15-30cm																		0
2014-12-09	343	Avg	30-45cm																		0
2014-12-09	343	Avg	45-60cm																		0

No TZ grass heigth found

Grass Height VR 9

Date	Height reps (cm)									Location	Average	Samp	STDEV
2014-12-09	3	4	4	6	7	7	4	6	3	GH_FENCED	4.89	9	1.52
2014-12-09	3	5	4							GH_OUT	4	3	0.82

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display: days

9 sets found

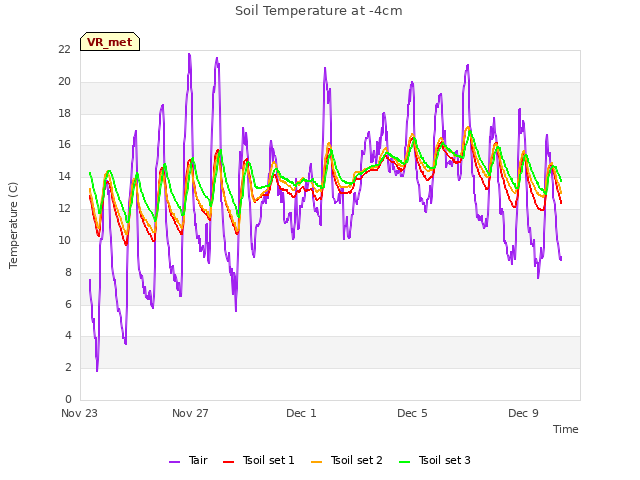

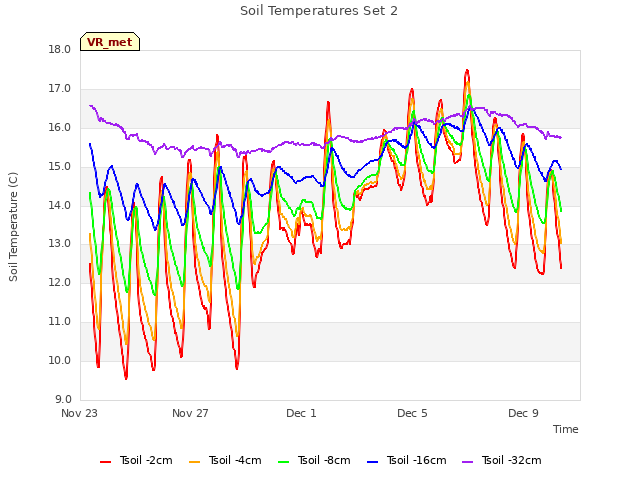

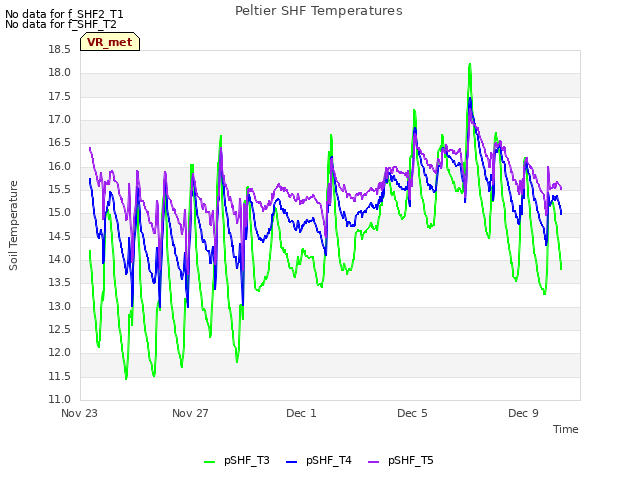

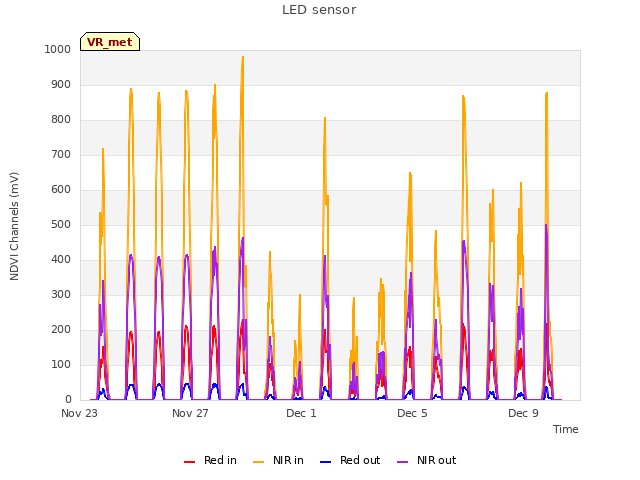

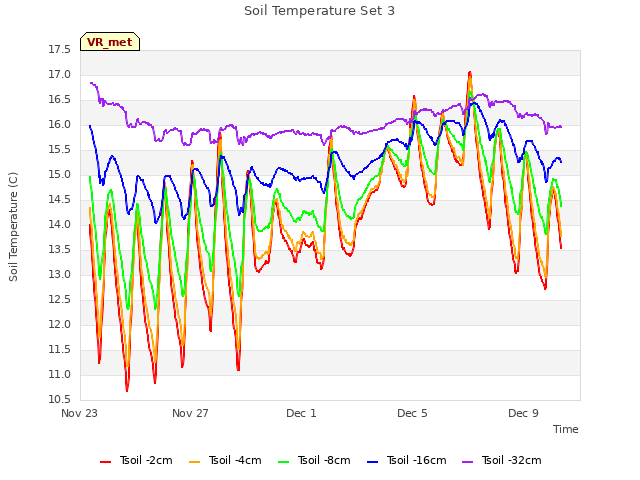

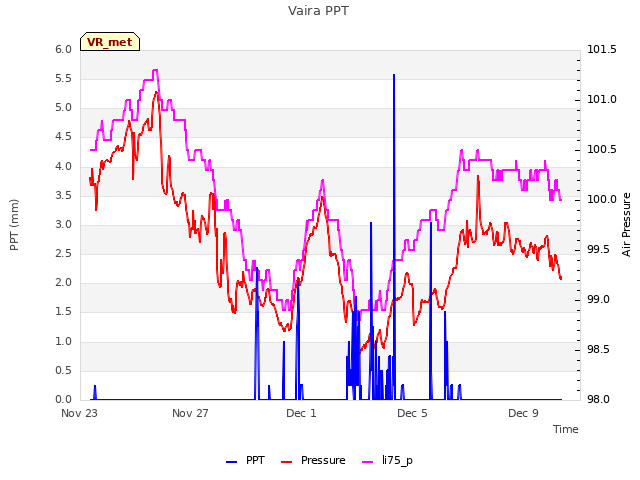

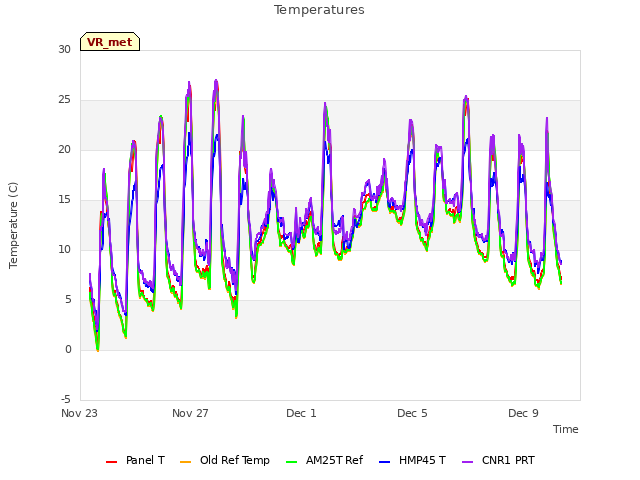

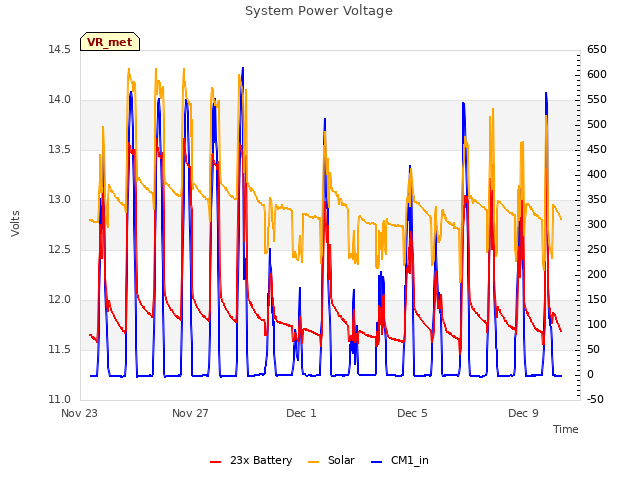

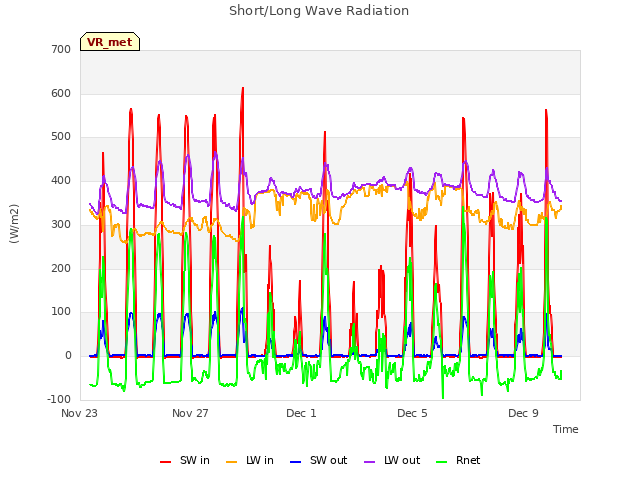

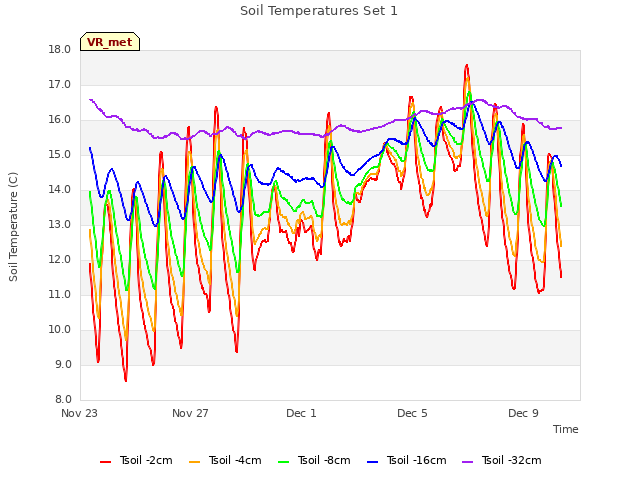

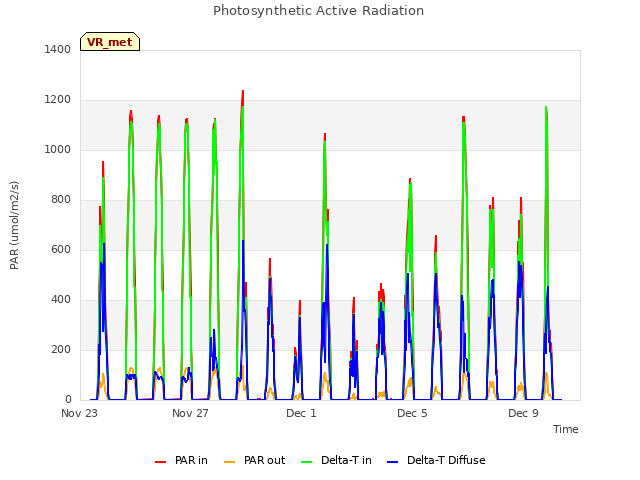

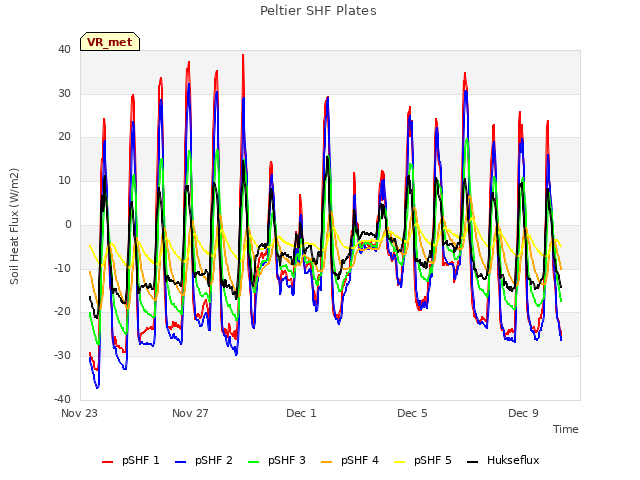

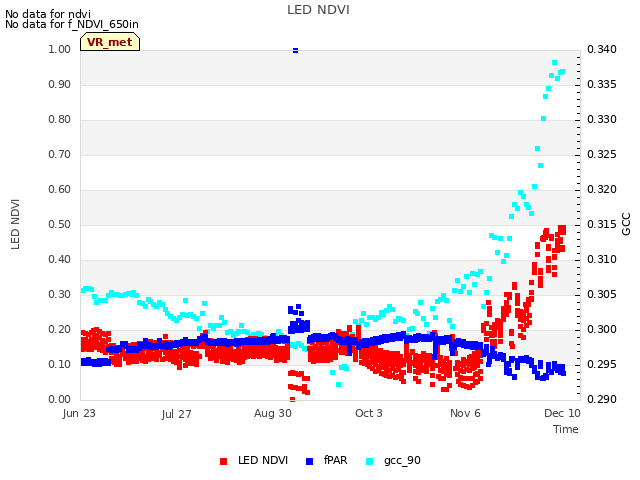

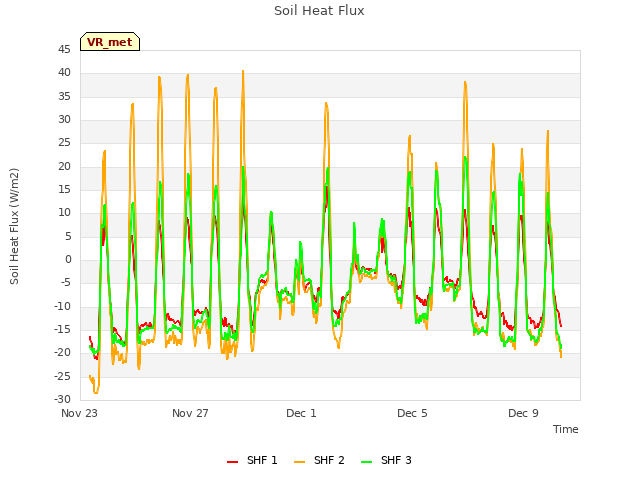

16 VR_met graphs found

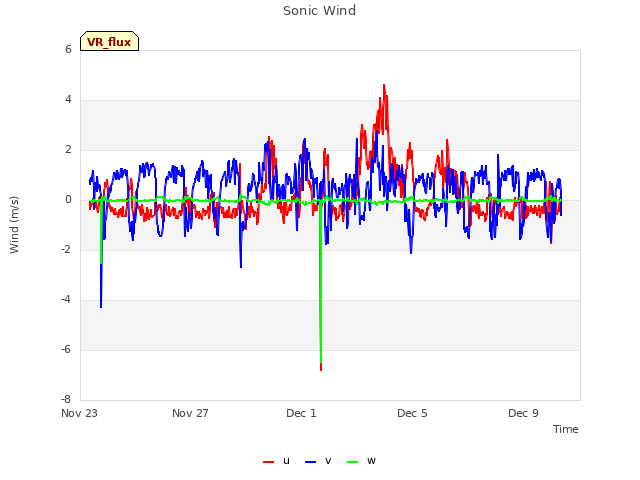

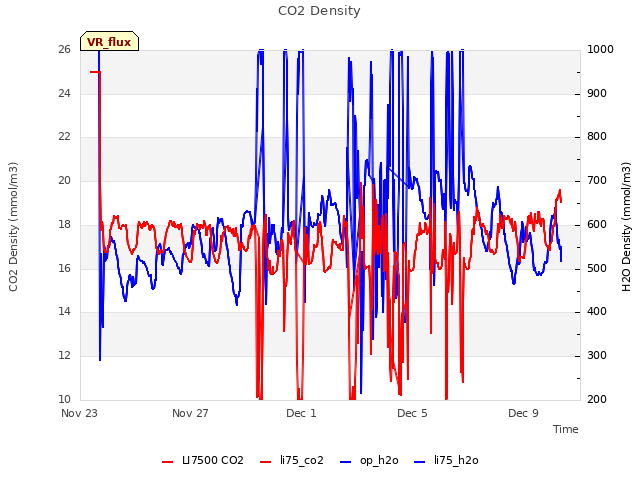

2 VR_flux graphs found

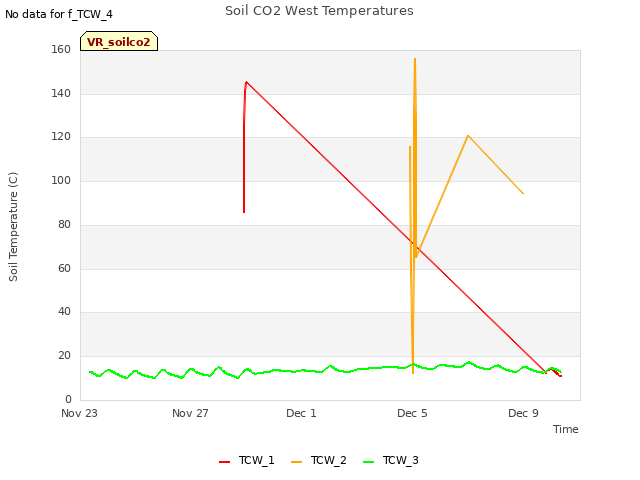

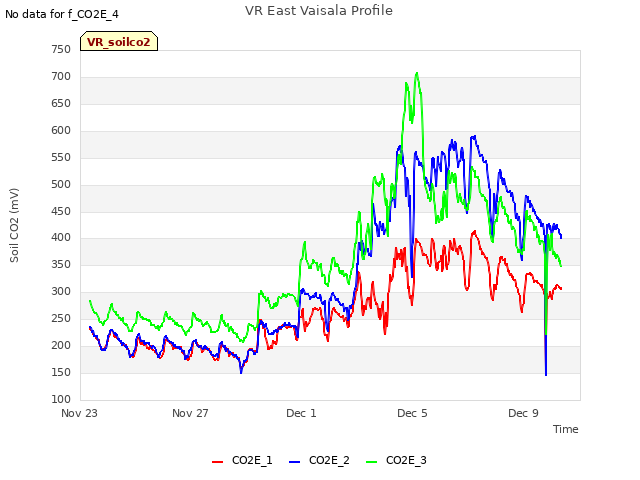

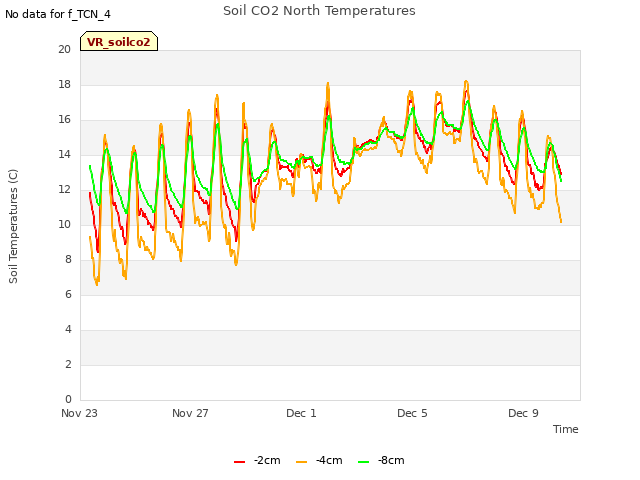

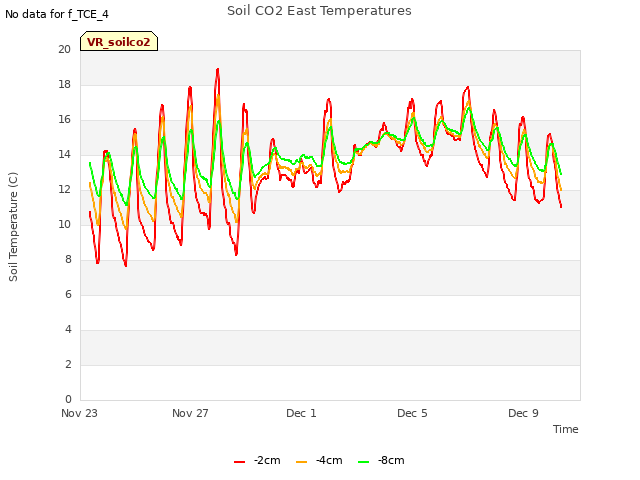

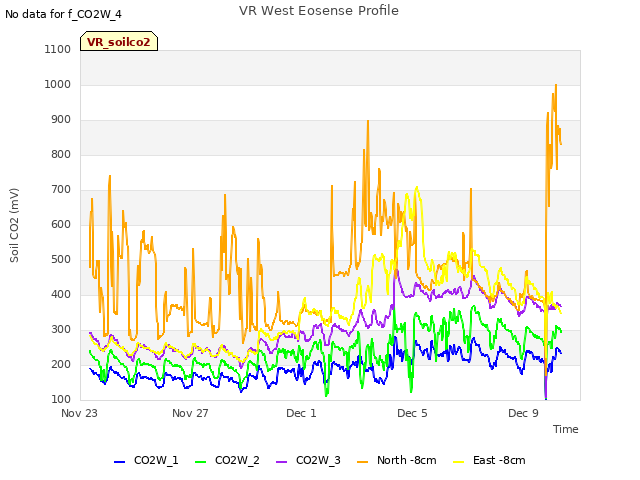

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
