Tonzi: 2015-01-21 10:45:00 (DOY 21)
Author: Joe Verfaillie
Others: Siyan
Summary: Reinstalled CO2 profile system with new CO2 tank, Removed downward LED head for repair, Swapped lowest HMP45, updated CR1000 OSs.

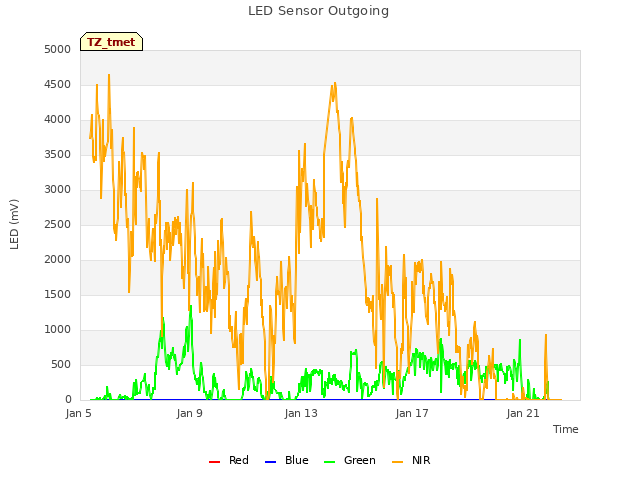

| Tonzi 2015-01-21 I arrived about 10:45 with Siyan. It was cool and sunny with little to no wind. The pond was nearly half full and the grass looks healthy. We saw Tonzi’s granddaughter and husband on the way in and then again later. The road looks like it has had more traffic than usual and they are cutting wood off to the west. I installed a new tank of CO2 from the profile system. I installed the LI-820 sn CGA-556 and got the co2 profile system running. The level two tubing was disconnected – I reconnected it. I calibrated the LI-820. Last cal was 2014-12-09. The N2 tank was 1350psi and the CO2 tank was 1700psi at 405ppm CO2. Zero was more than 50ppm low. Span was 25ppm low. There was condensation in both the BF5 and pyranometer. The LED sensor has not been working because the downward head was full of water. I think it dribbled in on the wire. I removed it from repair in the lab. The bird spike on the sonic were loose. I fixed them. The Tram was running. I replaced the lowest HMP45 sensor in the RH and Temp profile. sn T0720012 came off and sn U3030041 went on. I serviced the z-cams. I updated the OS on the CR1000s from v25 to v27. The battery cover at the tower needed some love. I tightened the screws on it. One small oak tree near the floor site fell down – number 230 I think. |
Field Data
CO2 Profile Tanks
| Date | Tank | Pressure (psi) | ppm |
|---|---|---|---|
| 2015-01-21 | CO2 | ||
| 2015-01-21 | N2 | 1350 | 0 |
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2015-01-21 | TZ_floor | 31.3 |
| 2015-01-21 | TZ_road | 38.5 |
| 2015-01-21 | TZ_tower | 34.7 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Floor_South
[1] => Floor_West
[2] => SoilCO2
[3] => Soil_Transect_4
[4] => Soil_Transect_3
[5] => Soil_Transect_2
[6] => Soil_Transect_1
[7] => SoilCO2_West_A
[8] => SoilCO2_West_B
[9] => SoilCO2_West_C
[10] => Floor_East
)
| Date | DOY | Rep | Depth | Floor_South |
Floor_West |
SoilCO2 |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Floor_East |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2015-01-21 | 21 | 0 | 0-15cm | 14.1 | 22.6 | 29.7 | 20.9 | 23.5 | 16.8 | 18.2 | 23.8 | 23.8 | 21.2 | ||||
| 2015-01-21 | 21 | 0 | 15-30cm | 28.6 | 31.3 | 29.2 | 24 | 30.1 | 30.1 | 18.2 | 25.5 | 16.1 | 28.9 | 23.6 | |||
| 2015-01-21 | 21 | 0 | 30-45cm | 37.7 | 37.4 | 41.3 | 24 | 27.6 | 31 | 31.8 | 32.7 | 31.8 | 33.2 | 39.6 | |||
| 2015-01-21 | 21 | 0 | 45-60cm | 50 | 46 | 40 | 28.8 | 37.4 | 46.6 | 27.6 | 41.4 | 47.7 | 45.4 | ||||
| 2015-01-21 | 21 | 1 | 0-15cm | 14.1 | 22 | 29.4 | 22.6 | 24.7 | 16.5 | 18.5 | 24.7 | 24.7 | 21.7 | ||||
| 2015-01-21 | 21 | 1 | 15-30cm | 28.9 | 31 | 30.1 | 24.3 | 30.4 | 30.1 | 18.5 | 25.2 | 16.4 | 29.8 | 29.8 | |||
| 2015-01-21 | 21 | 1 | 30-45cm | 37.4 | 38.2 | 40.7 | 23.5 | 27.6 | 32.1 | 32.4 | 14.3 | 31 | 34.6 | 35.7 | |||
| 2015-01-21 | 21 | 1 | 45-60cm | 48.8 | 46.3 | 39.7 | 29.4 | 38 | 46.8 | 28.2 | 42.3 | 48 | 47.1 | 41.4 | |||
| 2015-01-21 | 21 | Avg | 0-15cm | 14.1 | 22.3 | 29.55 | 21.75 | 24.1 | 16.65 | 18.35 | 24.25 | 24.25 | 21.45 | 21.68 | 10 | 20 | |
| 2015-01-21 | 21 | Avg | 15-30cm | 28.75 | 31.15 | 29.65 | 24.15 | 30.25 | 30.1 | 18.35 | 25.35 | 16.25 | 29.35 | 26.7 | 26.37 | 11 | 22 |
| 2015-01-21 | 21 | Avg | 30-45cm | 37.55 | 37.8 | 41 | 23.75 | 27.6 | 31.55 | 32.1 | 23.5 | 31.4 | 33.9 | 37.65 | 32.53 | 11 | 22 |
| 2015-01-21 | 21 | Avg | 45-60cm | 49.4 | 46.15 | 39.85 | 29.1 | 37.7 | 46.7 | 27.9 | 41.85 | 47.85 | 46.25 | 41.4 | 41.29 | 11 | 21 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
| Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
|---|---|---|---|---|---|---|---|---|---|---|
| 2015-01-21 | 21 | 0 | 0-15cm | 13.8 | 1.9 | 13.5 | 6.8 | |||
| 2015-01-21 | 21 | 0 | 15-30cm | 29.8 | 15.5 | 17.9 | ||||
| 2015-01-21 | 21 | 0 | 30-45cm | 27.6 | 20.9 | 20.7 | 27.9 | |||
| 2015-01-21 | 21 | 0 | 45-60cm | 35.7 | 27.4 | 15.6 | 27.6 | |||
| 2015-01-21 | 21 | 1 | 0-15cm | 15.3 | 18.2 | 13.5 | 6.8 | |||
| 2015-01-21 | 21 | 1 | 15-30cm | 27.1 | 26.1 | 15.8 | 17.9 | |||
| 2015-01-21 | 21 | 1 | 30-45cm | 28.5 | 20.7 | 19.8 | 29.9 | |||
| 2015-01-21 | 21 | 1 | 45-60cm | 39.4 | 26.2 | 16.2 | 28.2 | |||
| 2015-01-21 | 21 | Avg | 0-15cm | 14.55 | 10.05 | 13.5 | 6.8 | 11.23 | 4 | 8 |
| 2015-01-21 | 21 | Avg | 15-30cm | 28.45 | 26.1 | 15.65 | 17.9 | 22.03 | 4 | 7 |
| 2015-01-21 | 21 | Avg | 30-45cm | 28.05 | 20.8 | 20.25 | 28.9 | 24.5 | 4 | 8 |
| 2015-01-21 | 21 | Avg | 45-60cm | 37.55 | 26.8 | 15.9 | 27.9 | 27.04 | 4 | 8 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|---|---|
| 2015-01-21 | 1 | 11.5 |
| 2015-01-21 | 102 | 7.7 |
| 2015-01-21 | 2 | 13.0 |
| 2015-01-21 | 245 | 19.6 |
| 2015-01-21 | 3 | 13.2 |
| 2015-01-21 | 4 | 9.0 |
| 2015-01-21 | 5 | 12.9 |
| 2015-01-21 | 7 | 10.0 |
| 2015-01-21 | 72 | 19.5 |
| 2015-01-21 | 79 | 15.1 |
| 2015-01-21 | 8 | 13.5 |
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

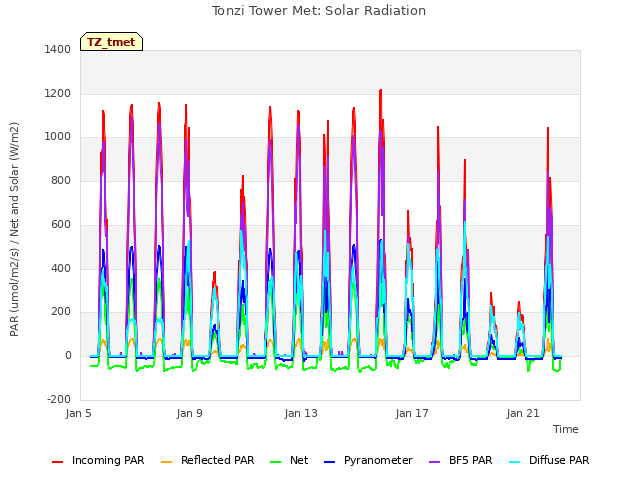

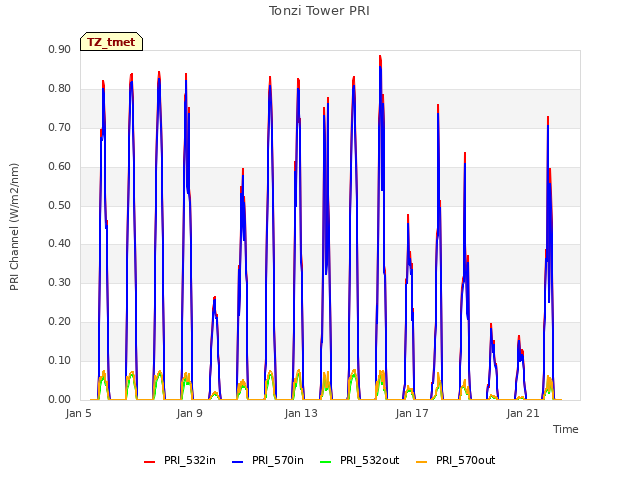

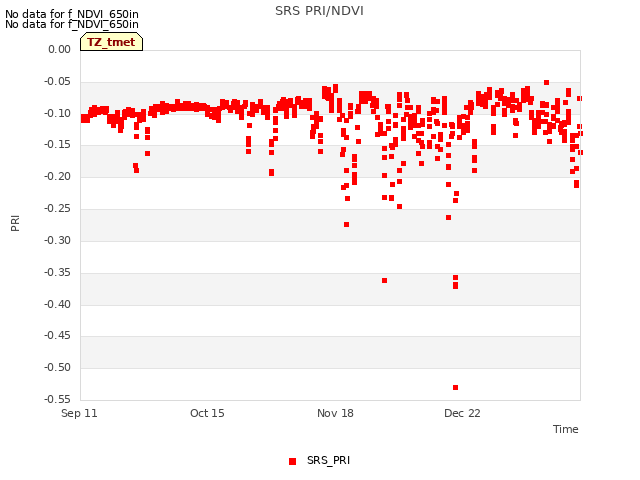

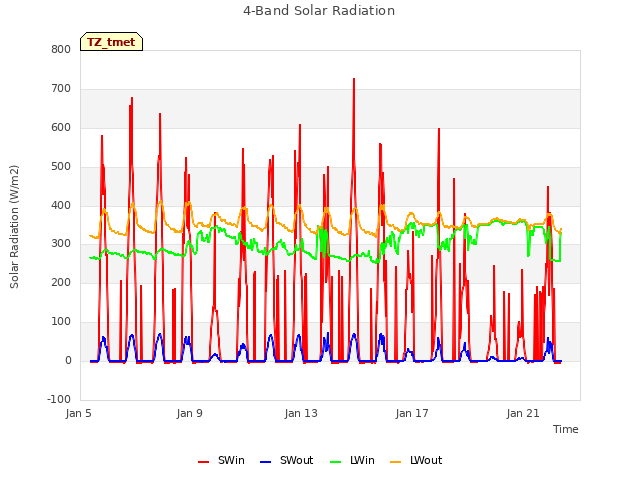

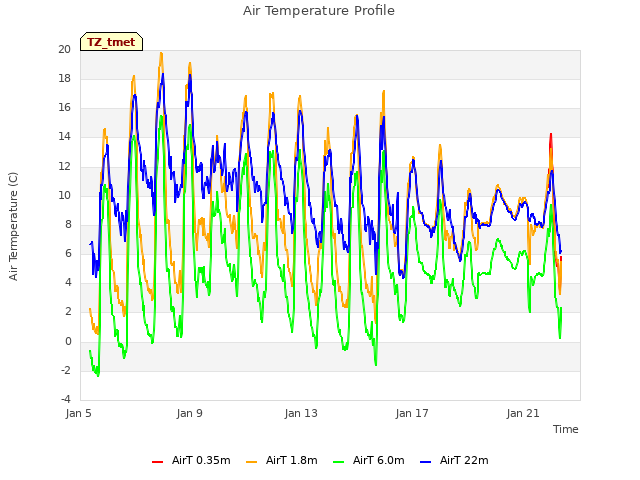

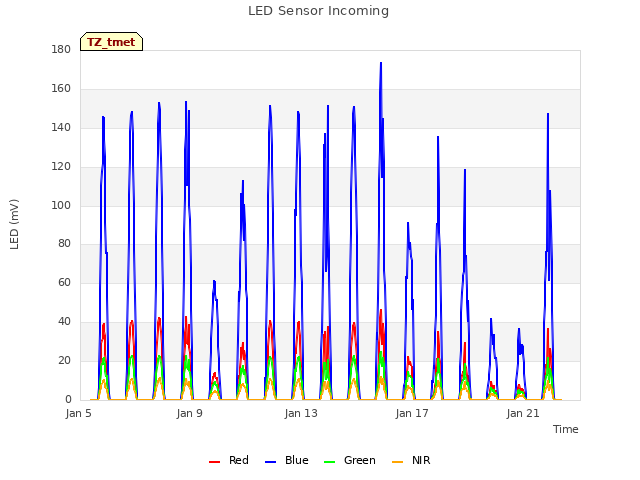

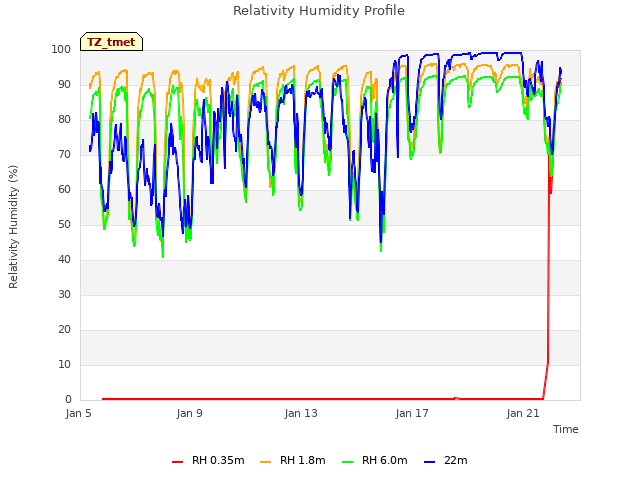

11 TZ_tmet graphs found

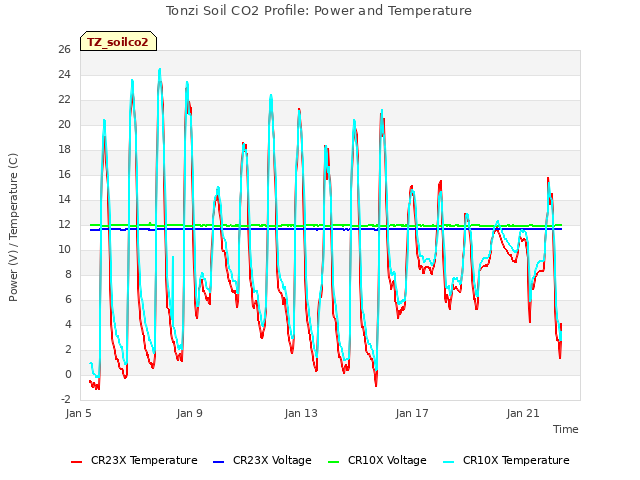

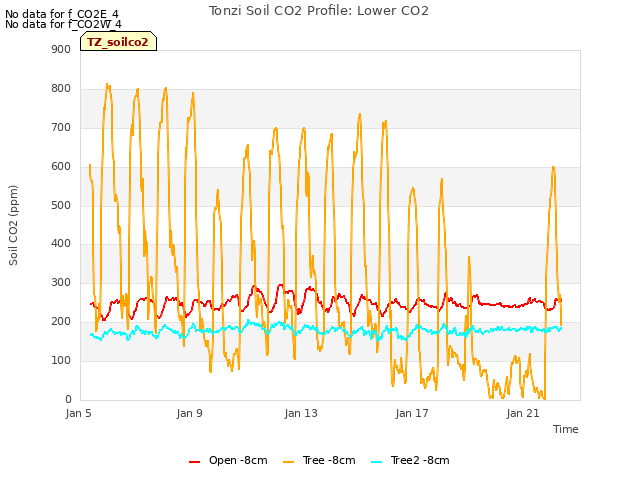

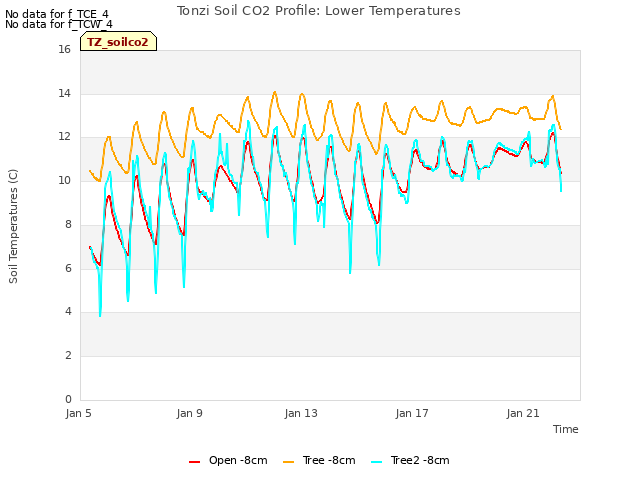

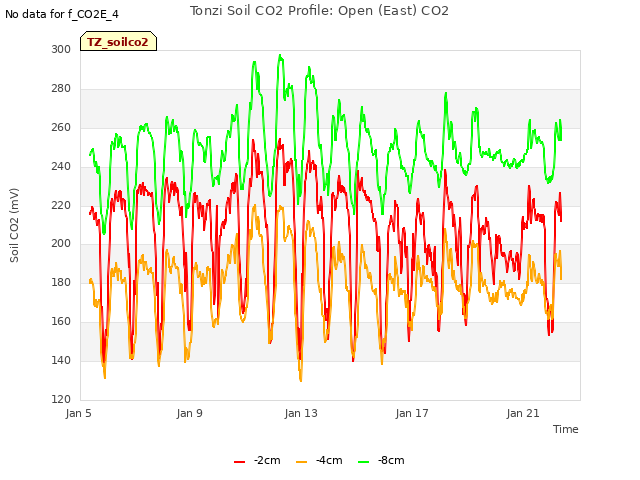

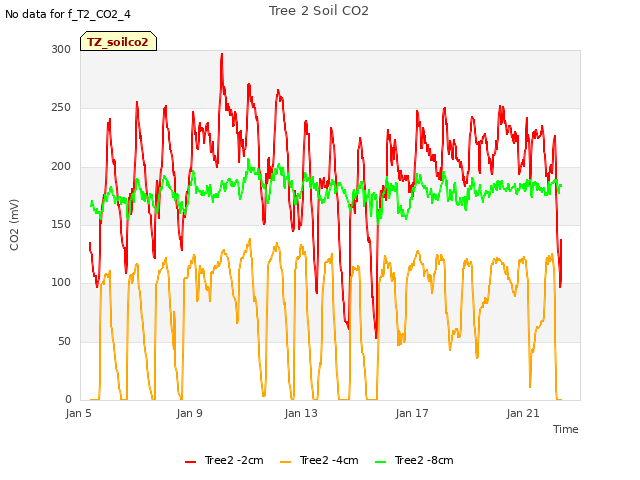

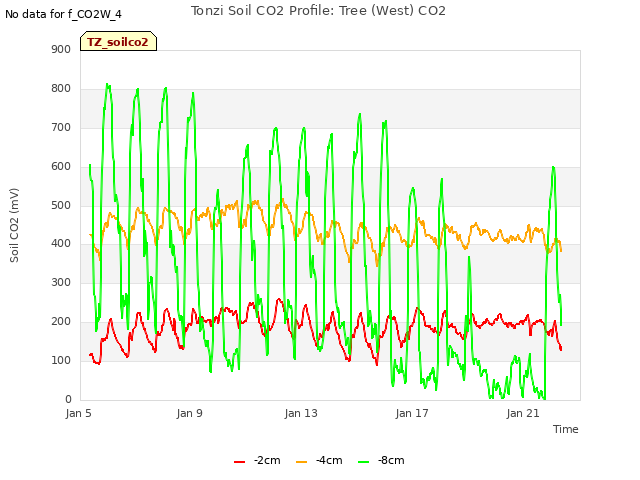

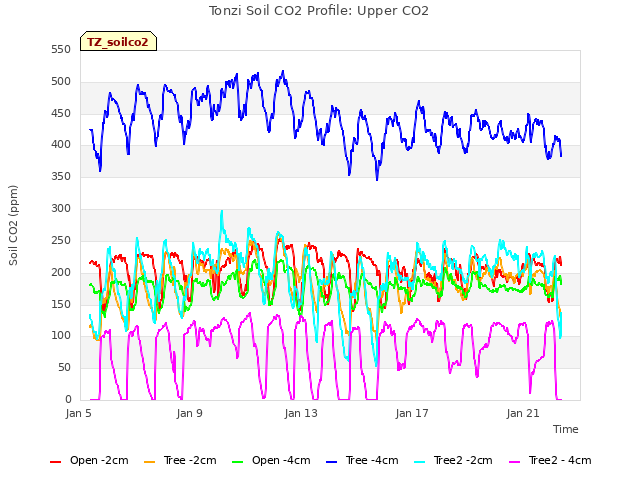

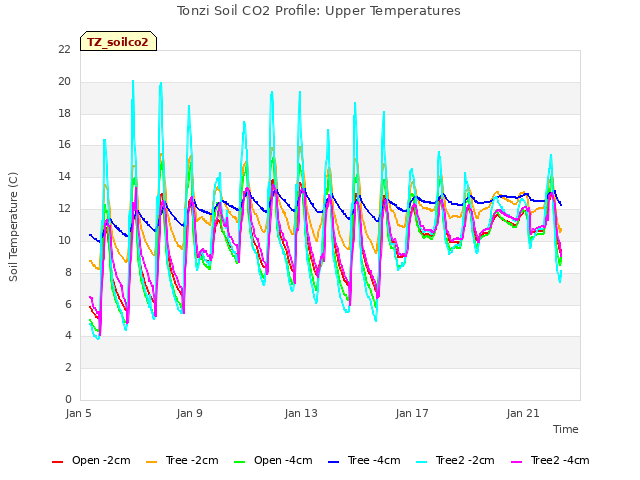

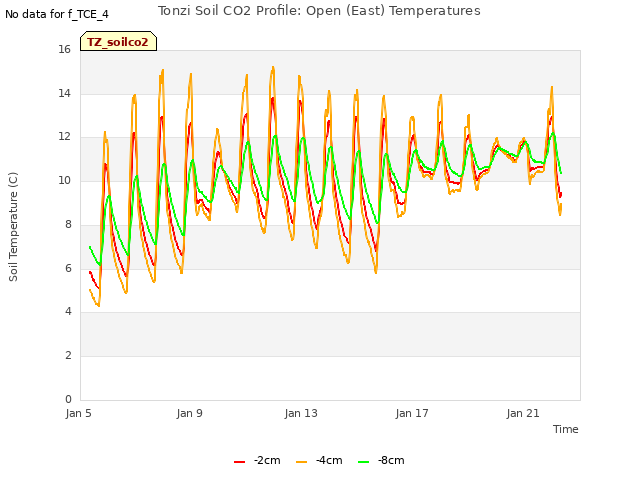

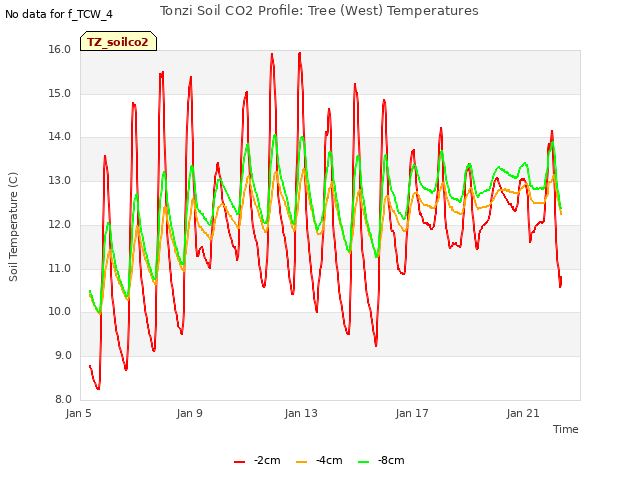

11 TZ_soilco2 graphs found
Can't check TZ_mixed

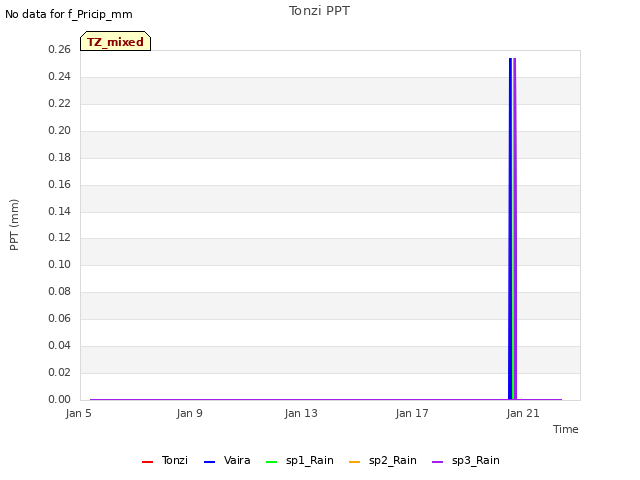

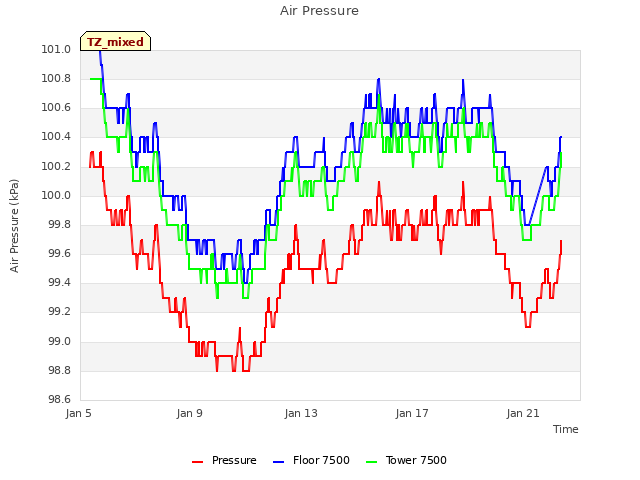

3 TZ_mixed graphs found
1 TZ_fflux graphs found

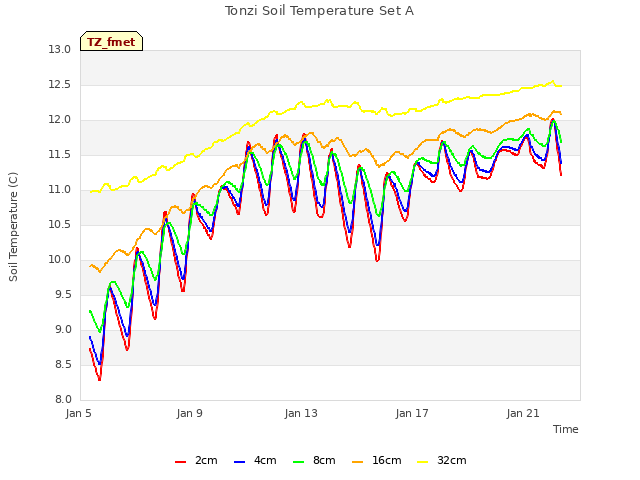

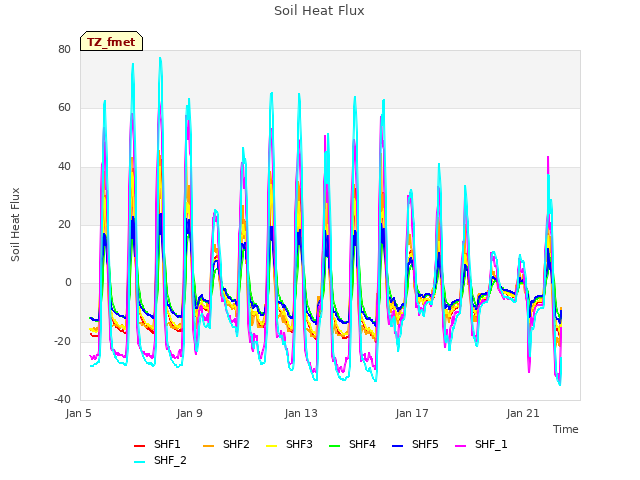

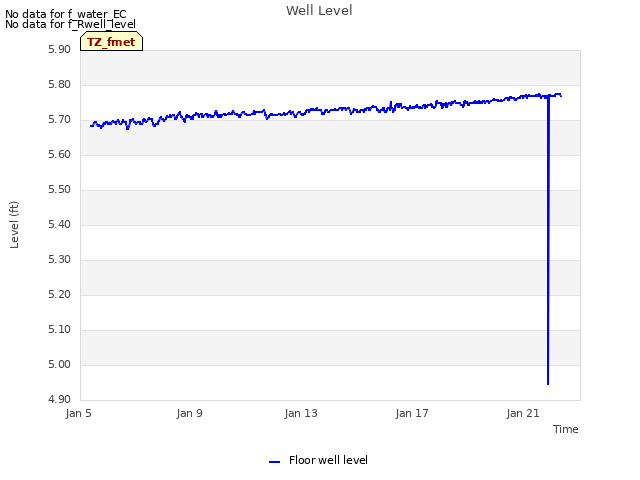

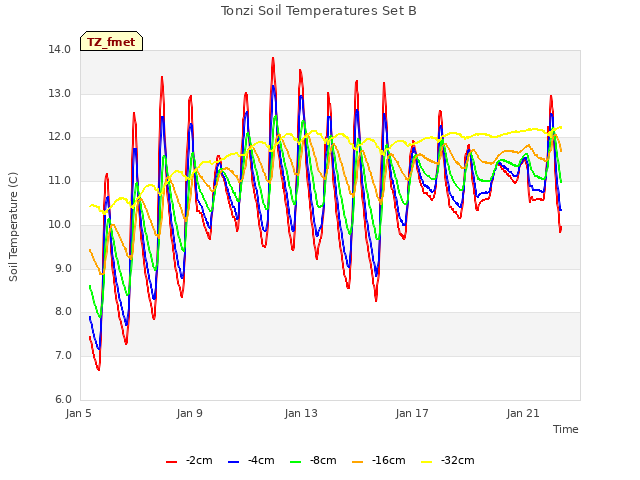

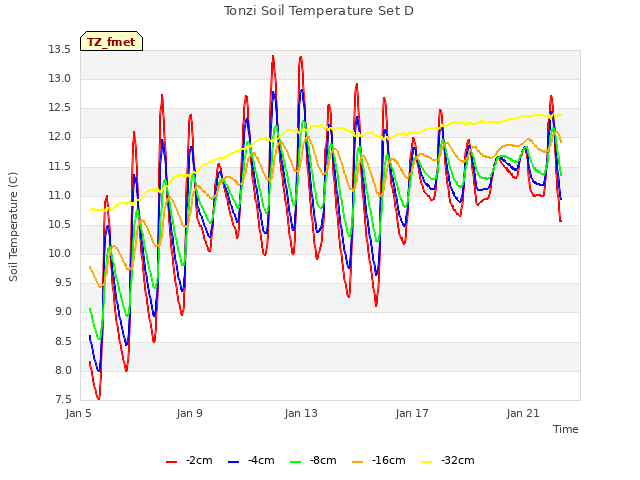

8 TZ_fmet graphs found

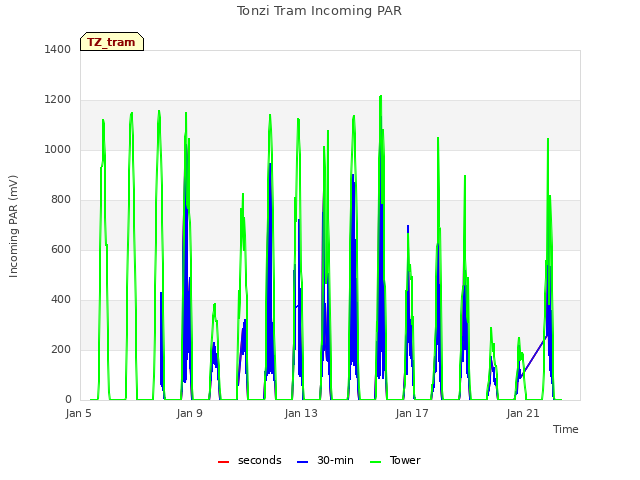

1 TZ_tram graphs found
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.

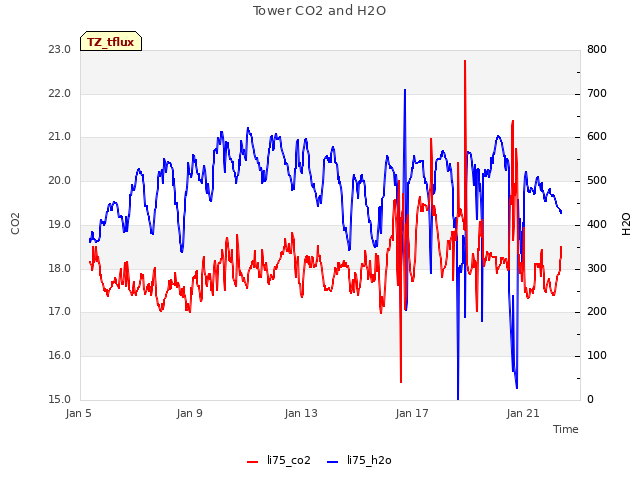

1 TZ_tflux graphs found

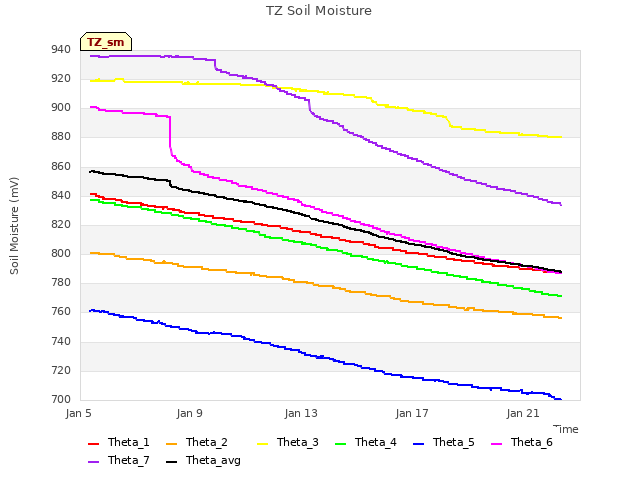

2 TZ_sm graphs found
Can't check TZ_met

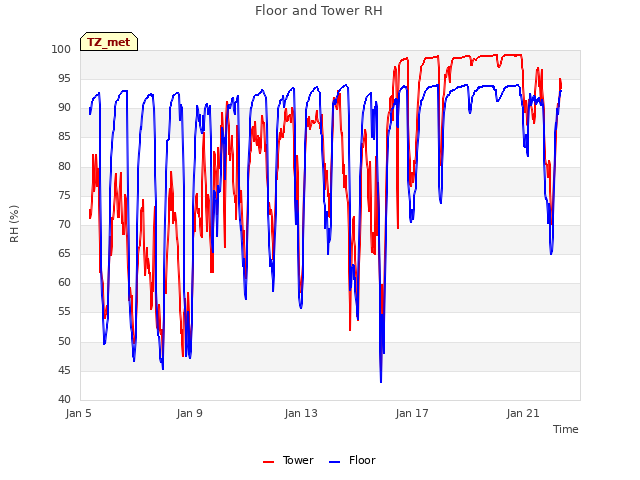

1 TZ_met graphs found
Can't check TZVR_mixed

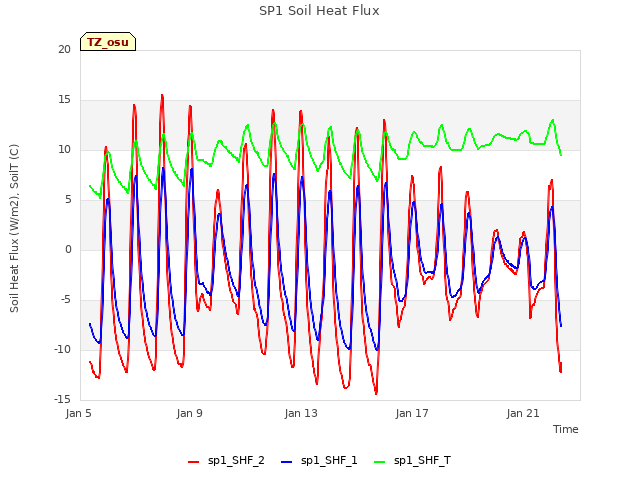

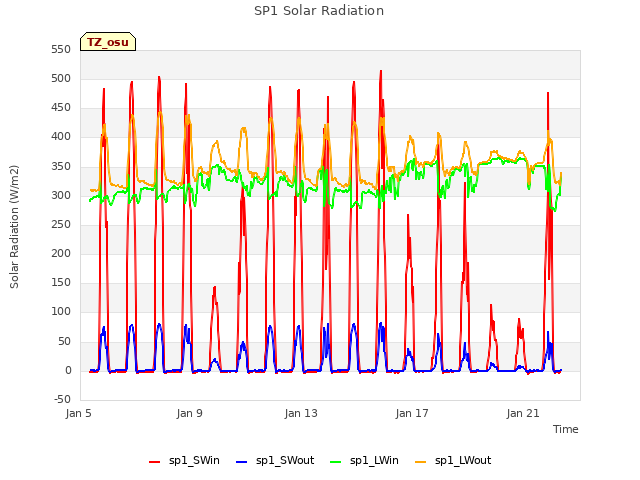

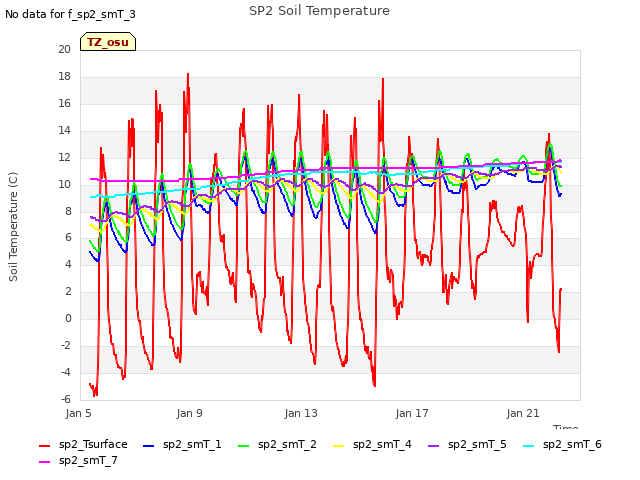

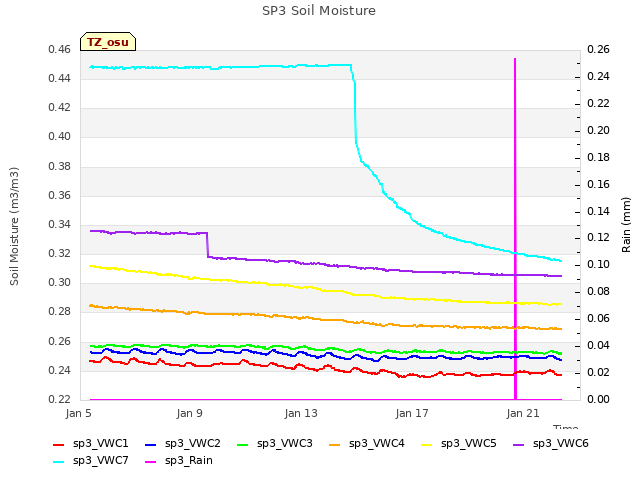

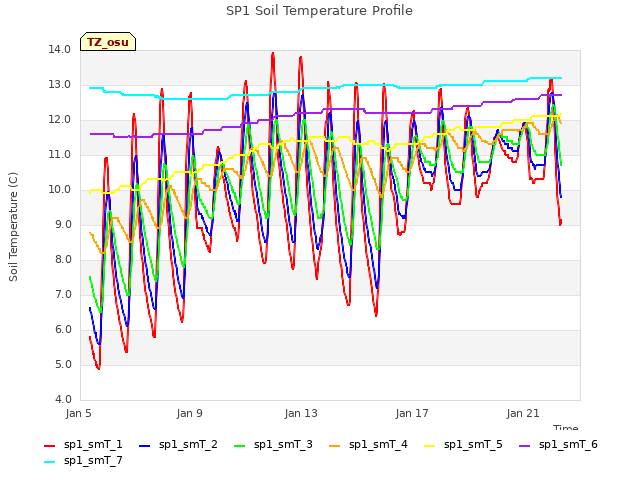

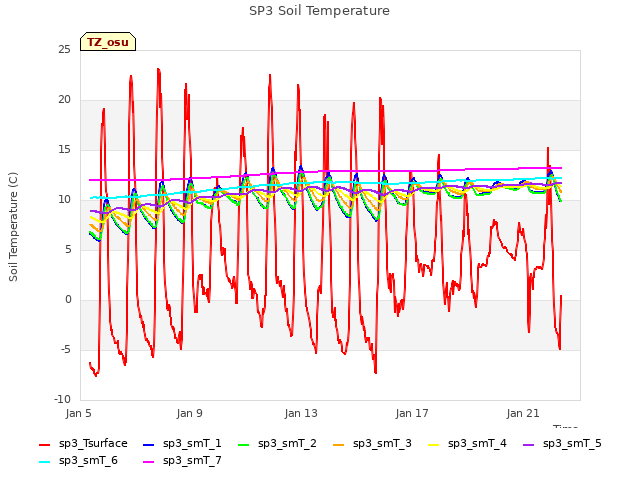

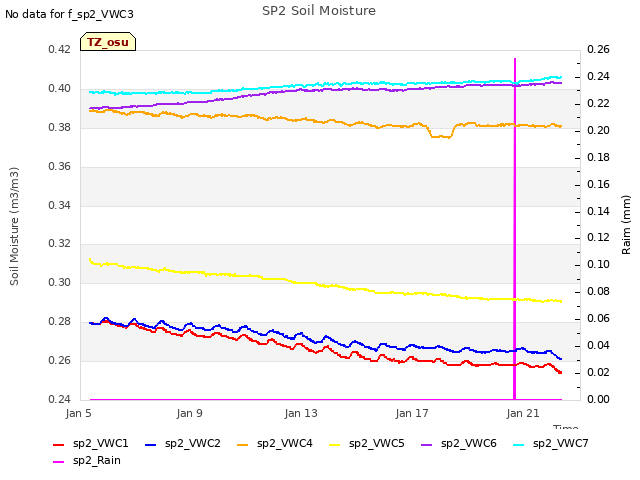

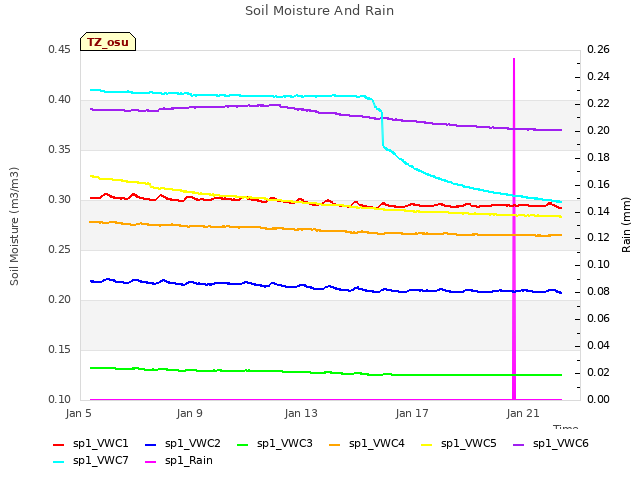

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
