West Pond: 2014-10-16 11:45:00 (DOY 289)
Author: Joe Verfaillie
Others: Sara
Summary: Standard data collection, swapped 7550-7500 cable and pressure port gasket.
| West Pond 2014-10-16 I arrived about 11:45 with Sara. It was still and warm with high thin clouds. The water level was normal and the inlet was running. We did the standard data collection. The 7500 read: 390ppm CO2, 575mmol/m3 H2O, 90.9SS, 22.7C, 101.2kPa The 7700 read: 2.00ppm CH4, 52.5RSSI – 81.5 after cleaning We swapped the cable between the 7550 box and the 7500A head per Licor’s orders. The GHG readings did not change after the cable swap. There is also a gasket upgrade to the pressure port of the 7550 box that we did. Sara took water samples. The water sensors did not need cleaning. |
0 photos found
8 sets found
Can't check WP_DO

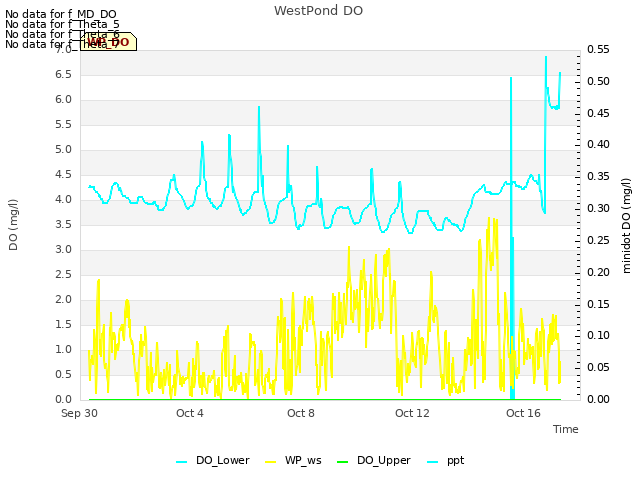

1 WP_DO graphs found

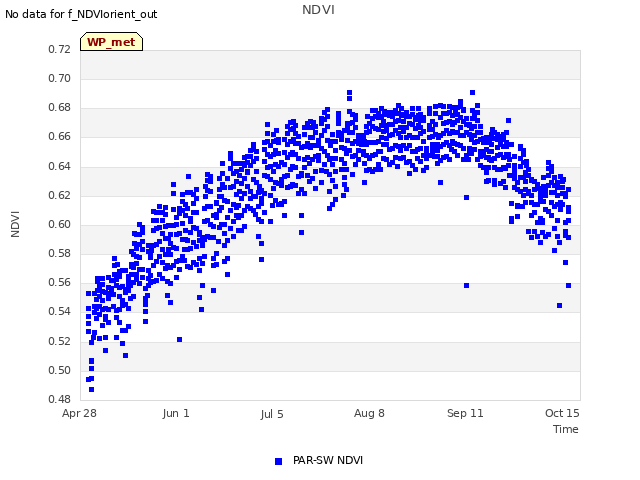

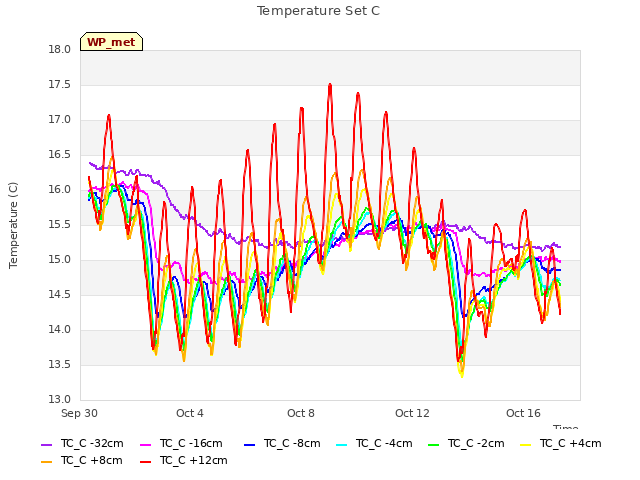

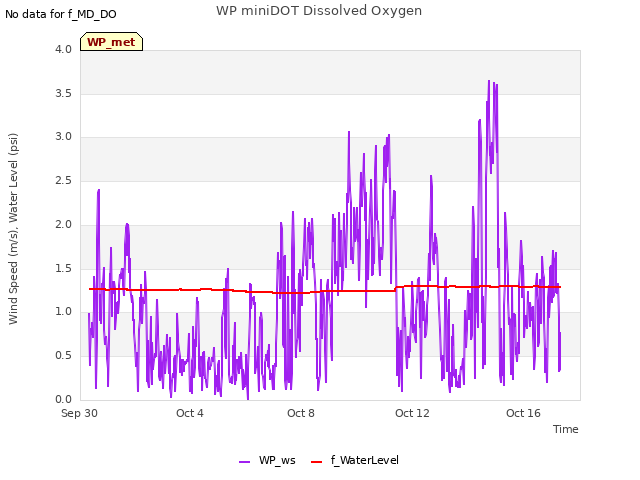

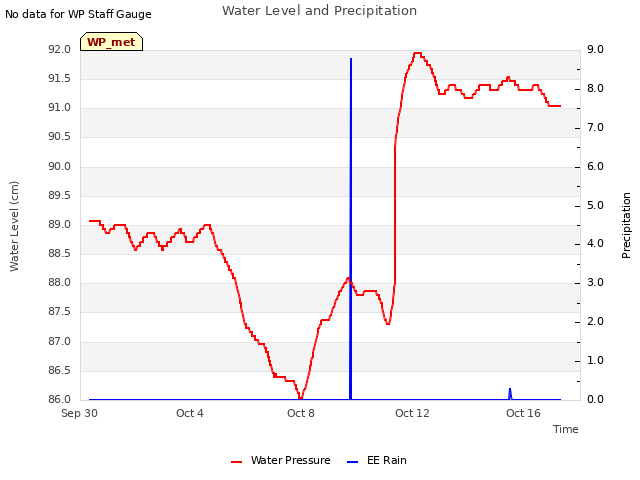

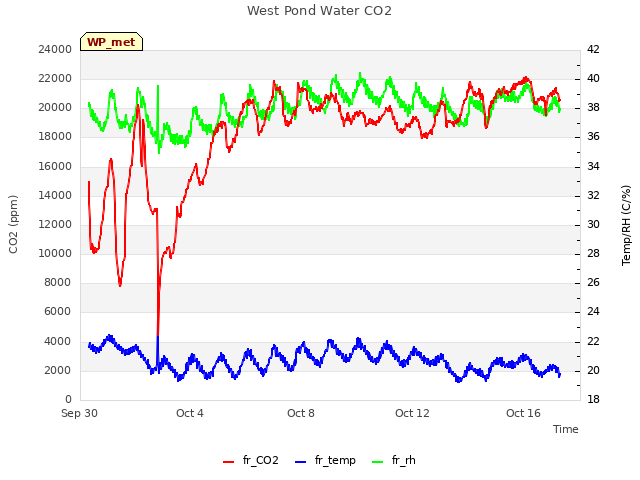

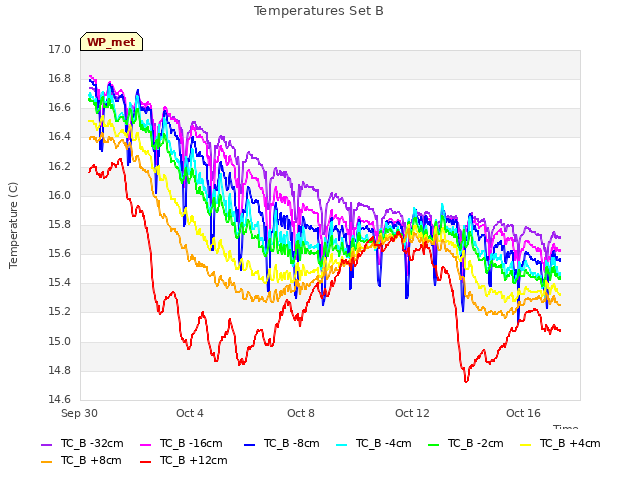

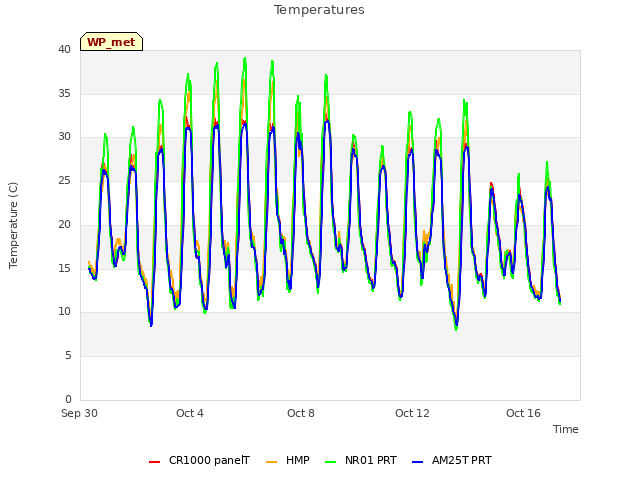

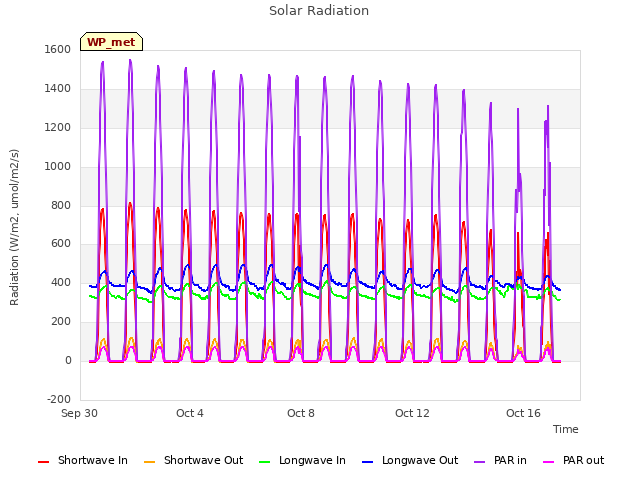

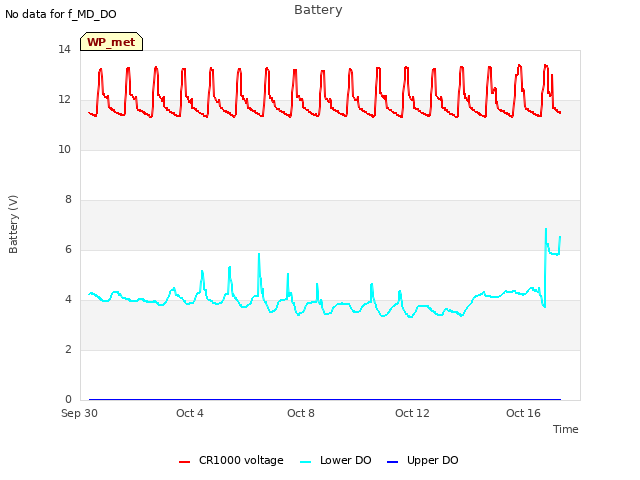

14 WP_met graphs found

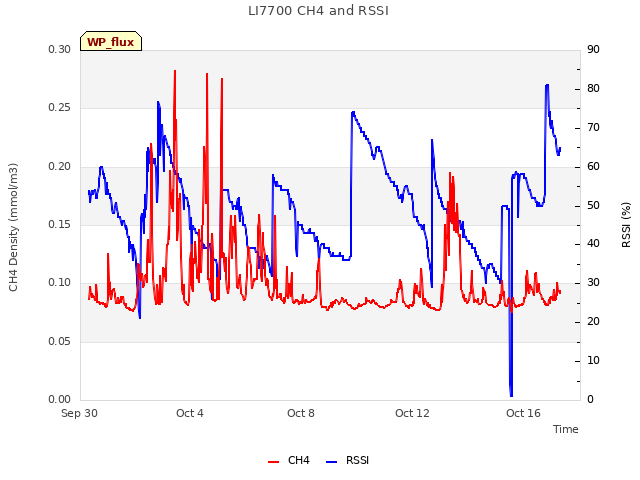

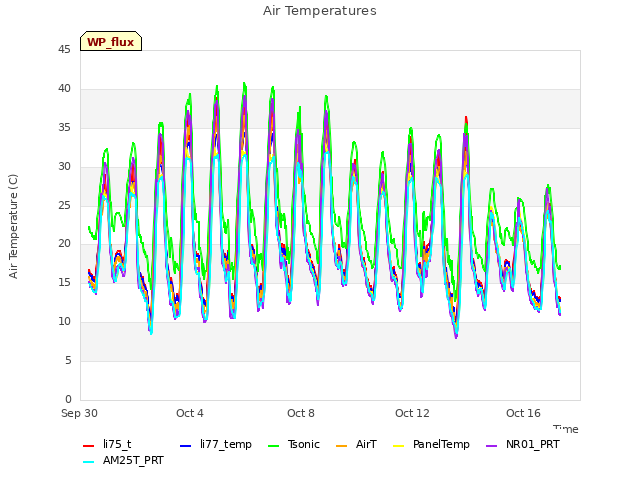

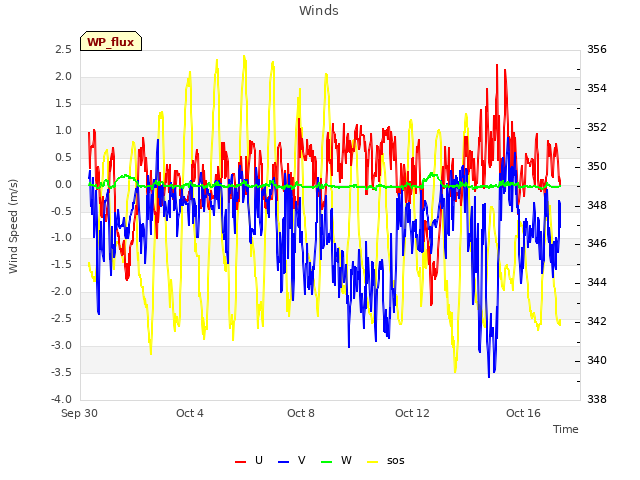

5 WP_flux graphs found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA

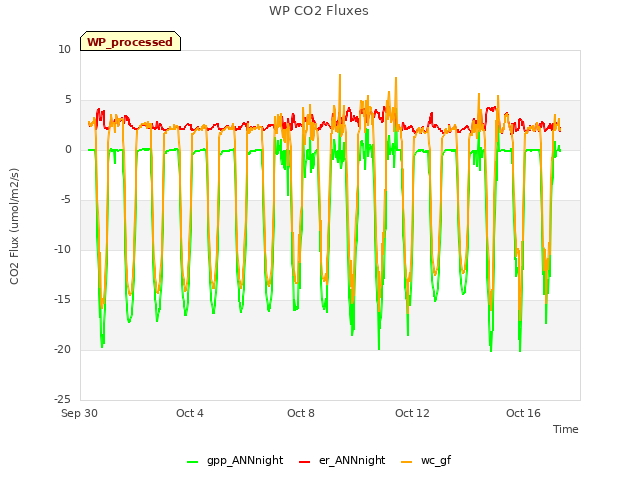

1 WP_processed graphs found
No data found for WP_arable.
