West Pond: 2014-10-30 12:15:00 (DOY 303)
Author: Joe Verfaillie
Others: Patty

Summary: Standard data collection, inlet not running

WestPond
2014-10-30

I arrived about 12:15 with Patty. It was mild with a high thin overcast. The water level at the tower was a little higher with the CO2 probe completely under water, but the inlet was not running.

The 7500 read: 412.9ppm CO2, 559mmol/m3 H2O, 91.7SS, 22.79C, 100.9kPa
The 7700 read: 2.54ppm CH4, 48.1RSSI – 80.0 after cleaning

Patty collected water samples.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

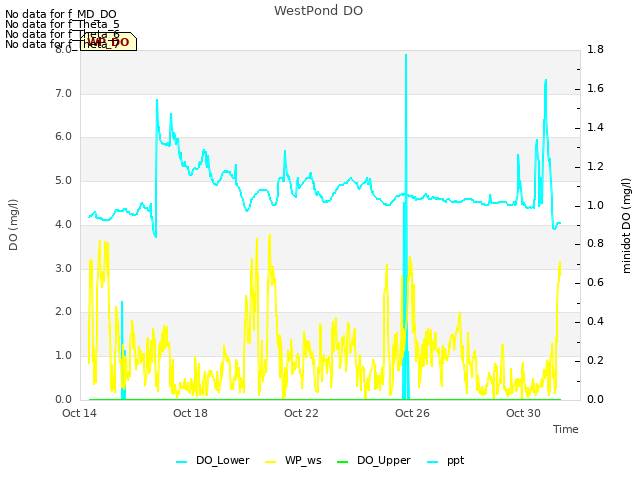

WestPond DO

14 WP_met graphs found

Battery

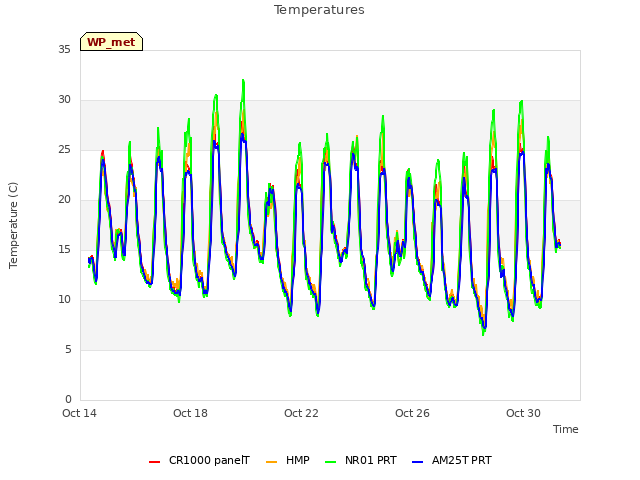

Temperatures

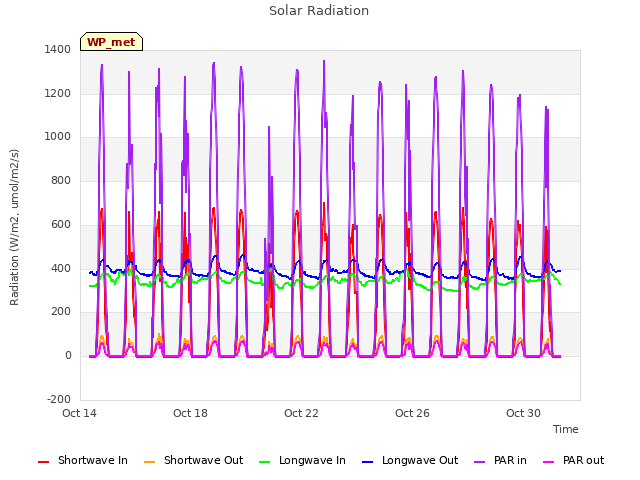

Solar Radiation

RH and Pressure

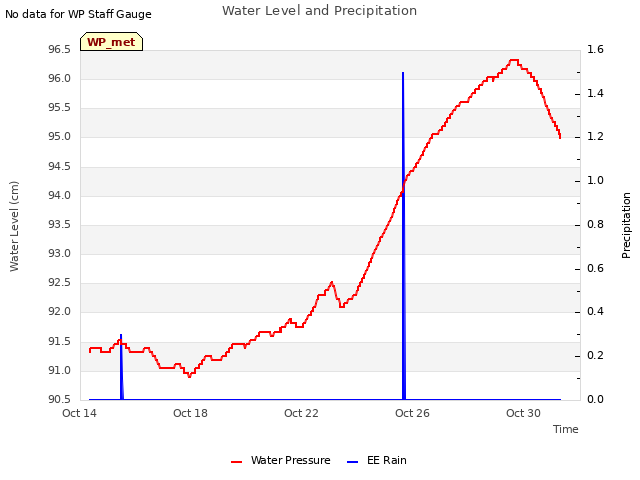

Water Level and Precipitation

Conductivity

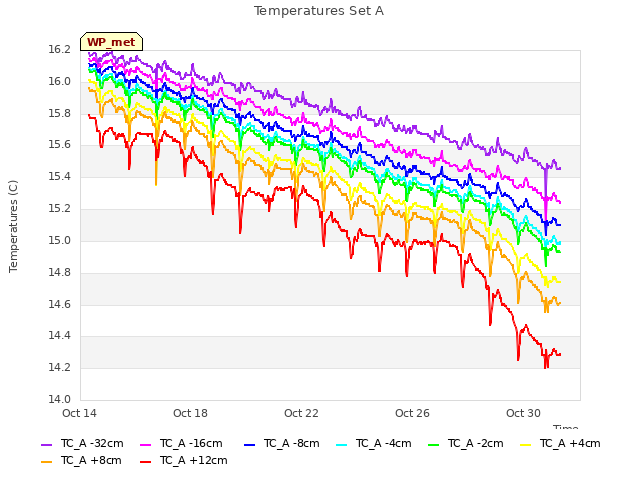

Temperatures Set A

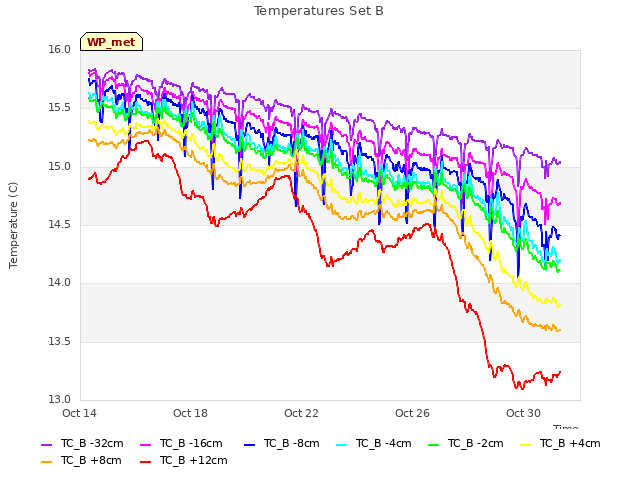

Temperatures Set B

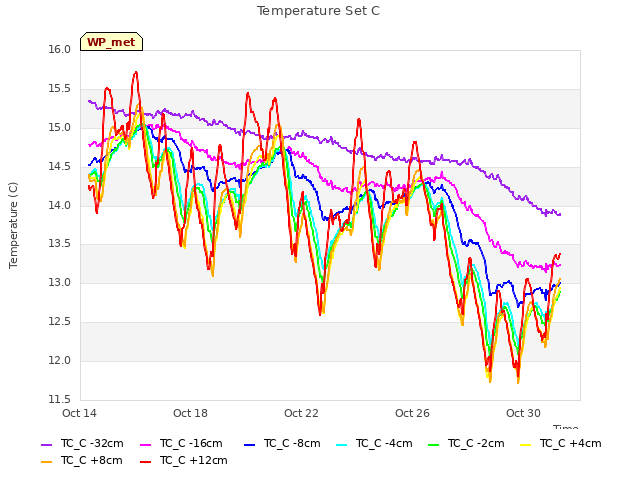

Temperature Set C

Water CO2 and Temp

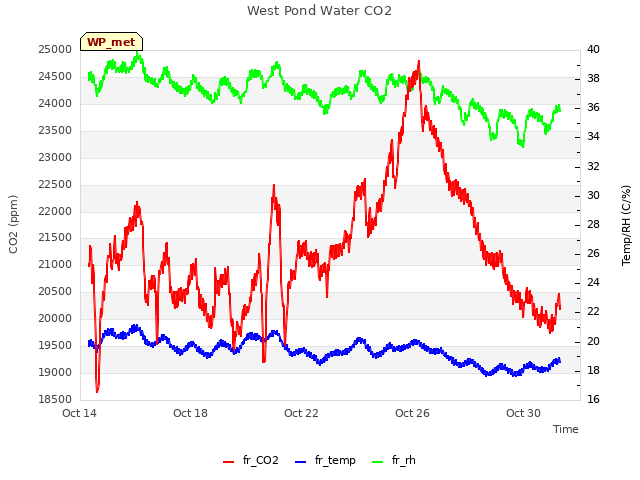

West Pond Water CO2

WP miniDOT Dissolved Oxygen

SRS NDVI Channels

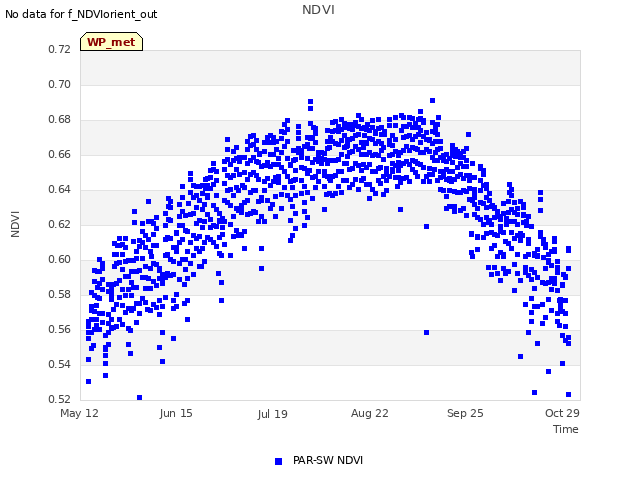

NDVI

5 WP_flux graphs found

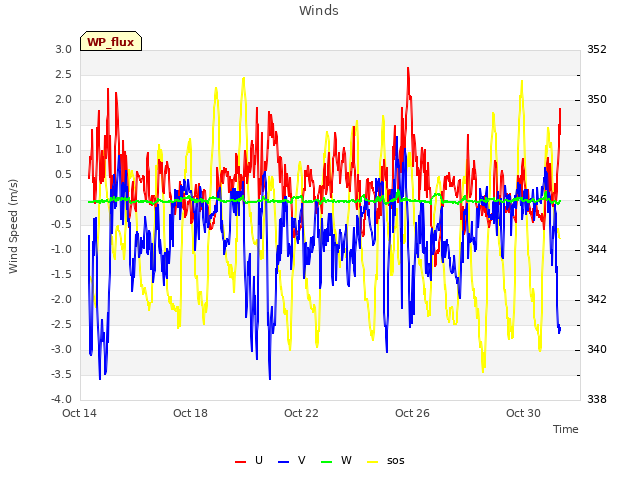

Winds

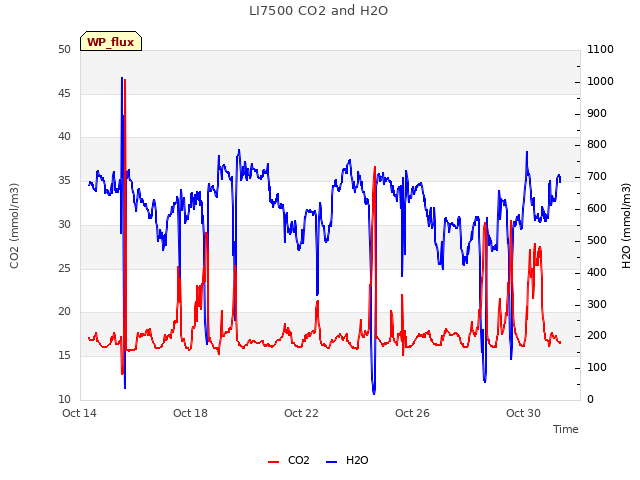

LI7500 CO2 and H2O

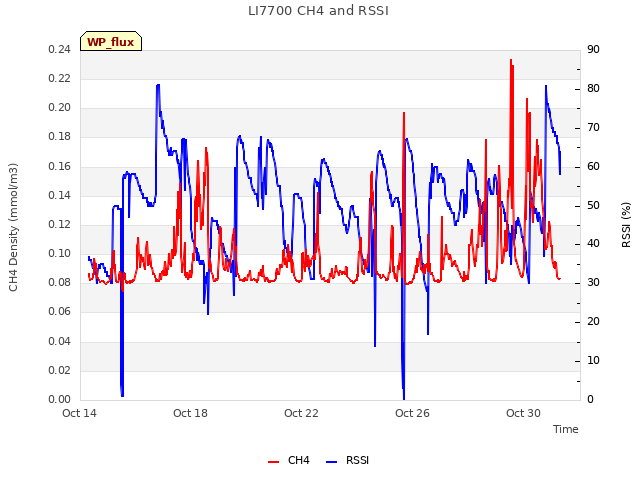

LI7700 CH4 and RSSI

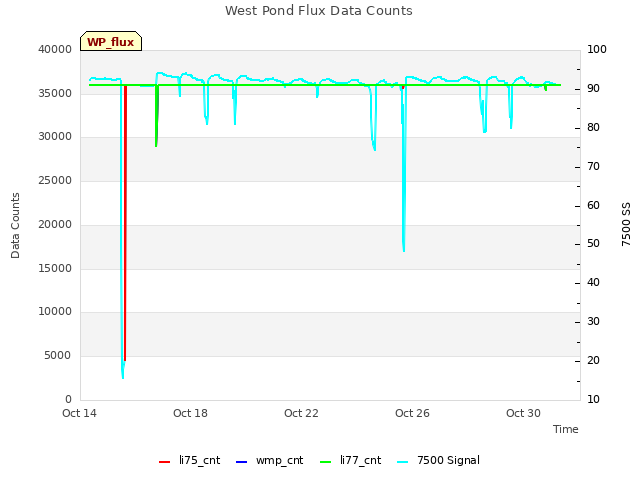

West Pond Flux Data Counts

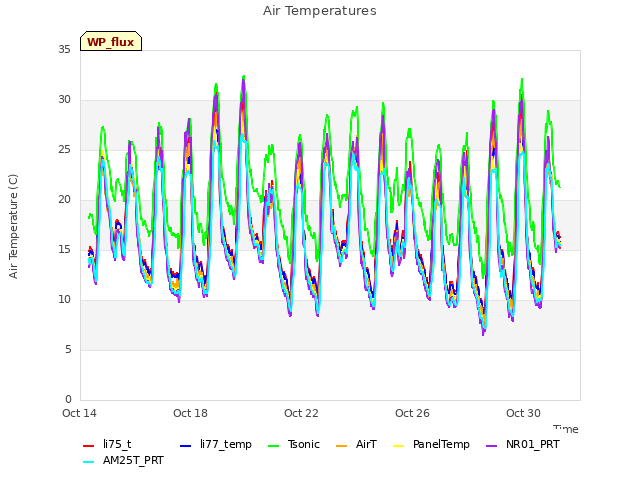

Air Temperatures

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

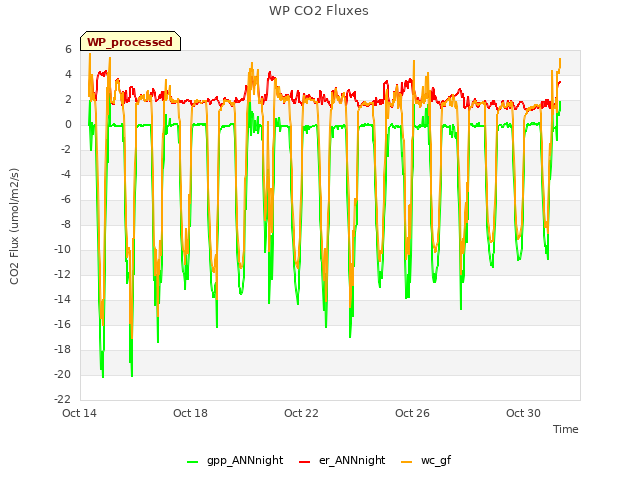

WP CO2 Fluxes

No data found for WP_arable.
