Sherman Island: 2014-10-16 14:00:00 (DOY 289)
Author: Joe Verfaillie
Others: Sara

Summary: Standard data collection. All is well.

Sherman
2014-10-16

I arrived about 2pm with Sara. It was still and warm with high thin clouds. There seems to be a new crop of pepper weed leaves coming up but are largely out competed by the other weeds.

We did the standard data collection.
The LGR read: 14:25, 23.23C, 143.9Torr, 14.721usec, 10Hz, 1.895ppm CH4
The 7500 read: 15.52mmol/m3 CO2, 508mmol/m3 H2O, 101.7kPa, 26.51C, 248diag.

Met was okay. I cleaned the radiation sensors. Some of the met data was missing due to overwrite when the computer lost its Loggernet settings and didn’t do its scheduled collections.

I did not collect the camera images since I did that last week.

Sara did spectral and veg height while I did the Moisture Point measurements.

Veg Height (cm): Tape measure from ground to top of plant
30, 18, 5, 36, 22, 12, 2, 10, 12, 26, 45, 30, 23, 19, 46, 50, 80, 30, 100, 50, avg = 32.3, stdev = 24.56

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

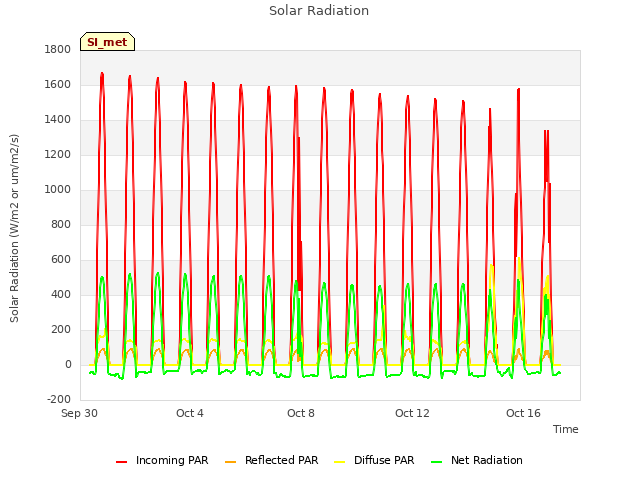

Explore the graph:Solar Radiation in a new window

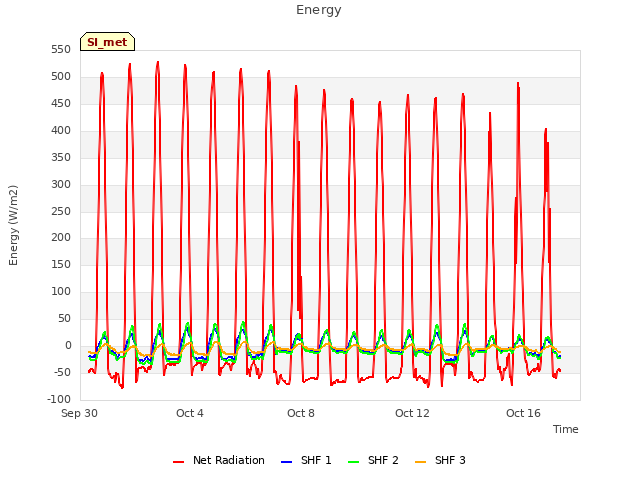

Explore the graph:Energy in a new window

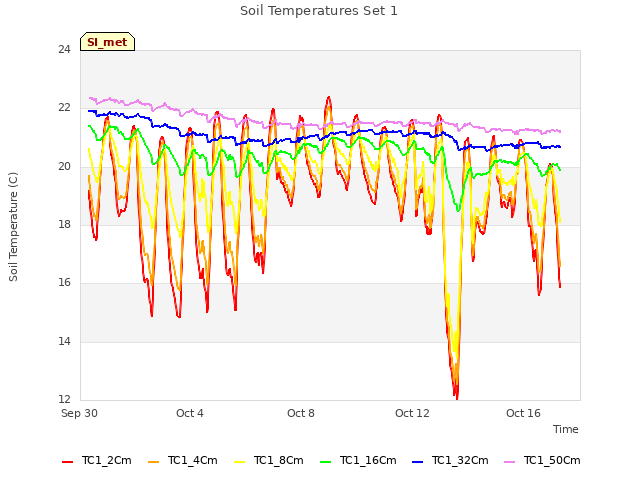

Explore the graph:Soil Temperatures Set 1 in a new window

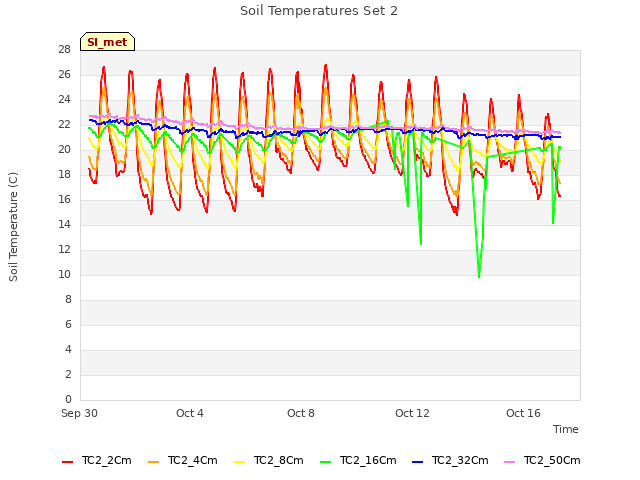

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

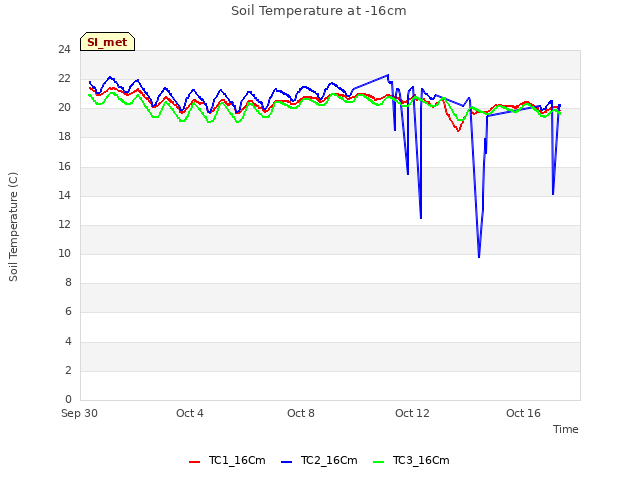

Explore the graph:Soil Temperature at -16cm in a new window

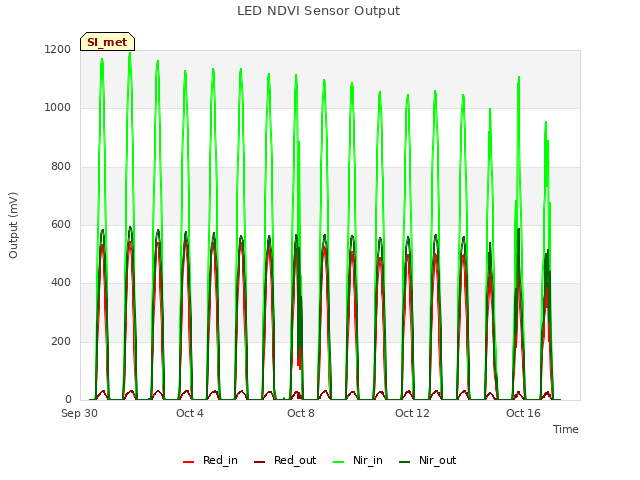

Explore the graph:LED NDVI Sensor Output in a new window

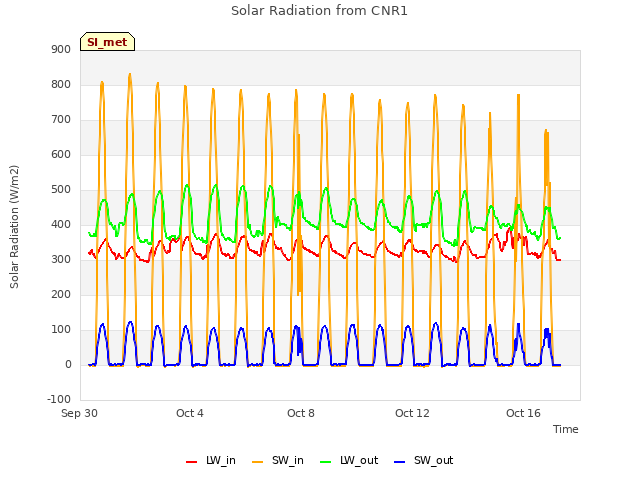

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

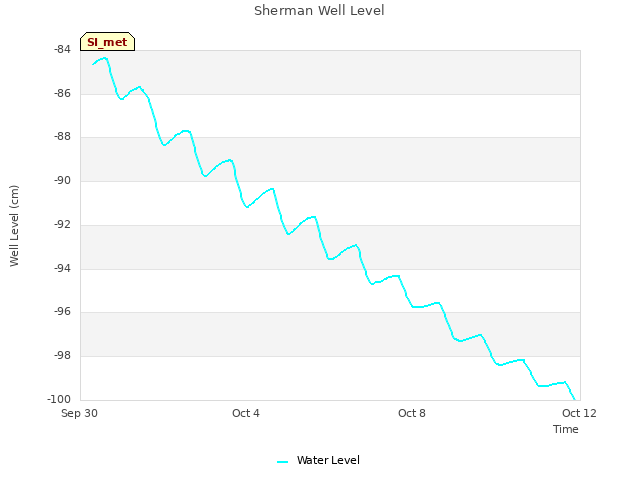

Explore the graph:Sherman Well Level in a new window

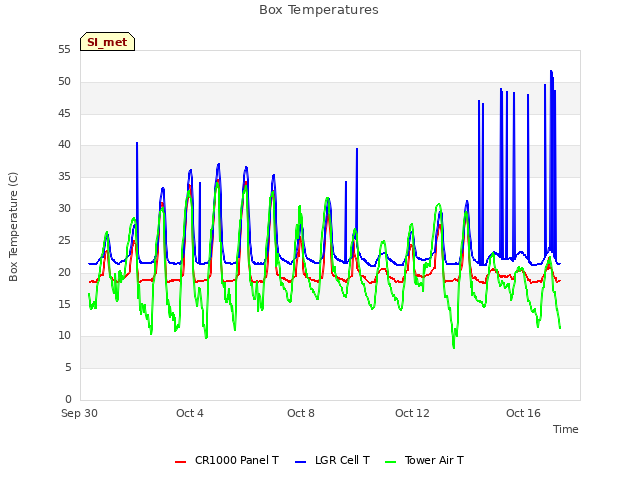

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

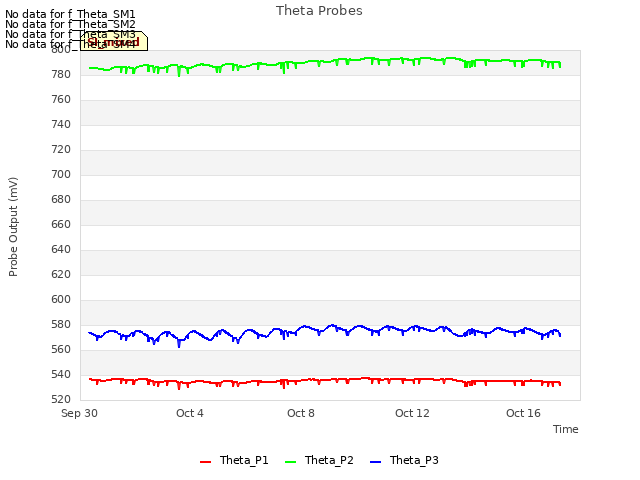

Explore the graph:Theta Probes in a new window

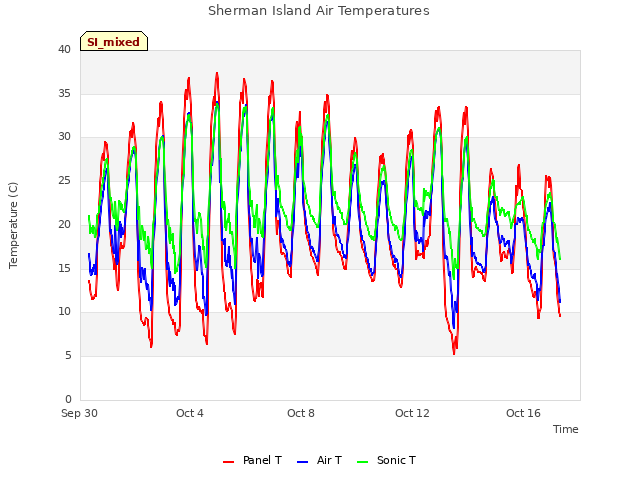

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

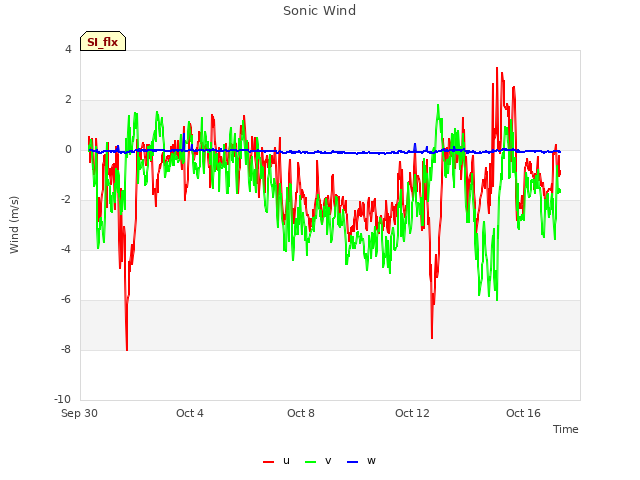

Explore the graph:Sonic Wind in a new window

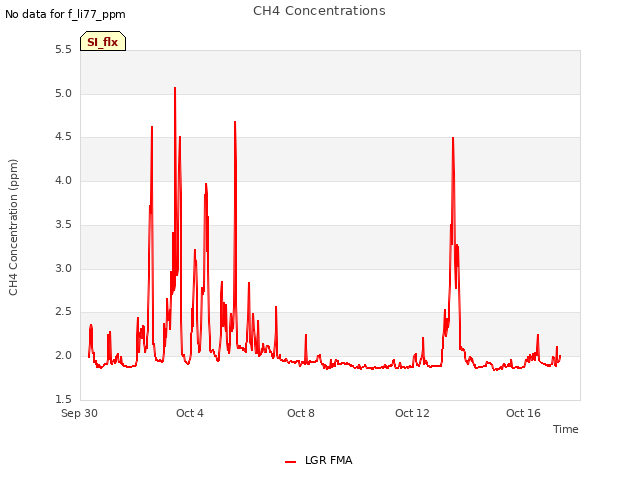

Explore the graph:CH4 Concentrations in a new window

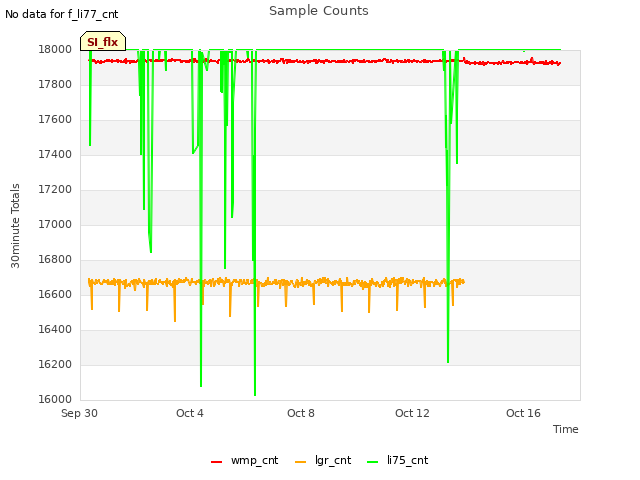

Explore the graph:Sample Counts in a new window

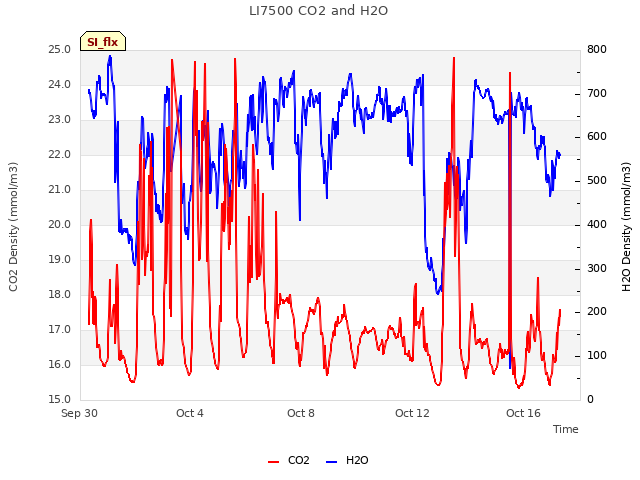

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
