<--2012-07-10 10:00:00 | 2012-08-08 10:30:00-->

Tonzi: 2012-07-25 05:30:00 (DOY 207)
Author: Siyan Ma
Others:

Summary: Standard fieldwork, swapped 7500s at all towers, removed CO2 profile pump.


When: Date: 7/25/2012 , Day: 207 , Watch Time: 5:30 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: clear, sunny, hot
Phenology:


Summary
  1. Measured pre-dawn water potential of oak leaves and pine needles: ~-30 bar for oak; ~-10 bar for pine.
  2. checked and downloaded data at Tower, Floor, and Vaira
  3. Swapped Li-7500 at TZ Tower, Floor, and Vaira.
  4. Turn off the CO2 profile system because the pump might not work properly. The pump was removed and brought back to the lab.
  5. Read dendrometers
  6. Measured soil moisture
  7. Measure groundwater wells

Date
DOY
Location
Depth without the black thing (feet)

7/25/2012
207
Floor
25.7



Tower
30.4



roadside
34.9

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 12.4 v; 0.4 amps; 2.6 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 � 5 v.)

  1. Swap Li-7500: Remove sn 0042 install sn 0041
  2. Downloaded data: raw, met, soil CO2 profile, pictures(2).
  3. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
  4. Check MD-9 system connections YES!
  5. Check CR23X with two multiplexers

  1. Check levels of Radiation sensors, clear up surfaces. Sorry, forgot!
  2. Check rain gage, make sure not clogged. Sorry, forgot!
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Swap Li-7500: Remove sn 1594 install sn 0976
  2. Fence and gate power: 12 v.
  3. Panel and Batteries: 12.2 v; 0.0 amps; 4.4 amps.
  4. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 � 5 v.)

  1. downloading data YES!
  2. Swap Li-7500: Remove #1594; install #0976.
  3. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  4. Check rain gage, make sure not clogged. YES!
  5. Turn off the CO2 profile system because the pump might not work properly. The pump was removed and brought back to the lab.
  6. close gate and set up fence. YES!

Toniz_Floor Site
  1. Swap Li-7500: Remove sn 0035 install sn 0073
  2. Fence and gate power: 12 v.
  3. Panel and Batteries: - v; - amps; - amps. (about 7:00 am local time)
  4. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 � 5 v.)
  5. downloading data YES!
  6. Check MD-9 system connections YES!

CR23X3 � floor-Met
CR23X6 � tower-Met
CR10X2 � floor-Met



  1. Soil CO2 profile: CR23X5 � soil CO2 profile

  1. Close gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2012-07-25TZ_floor25.7
2012-07-25TZ_road34.9
2012-07-25TZ_tower30.4

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2012-07-25121.6
2012-07-2510214
2012-07-25215
2012-07-2524510.4
2012-07-25319
2012-07-2543.3
2012-07-25523.9
2012-07-25716.1
2012-07-257211.8
2012-07-257911.4
2012-07-2587.2

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2012-07-25 04:27:00 OAK UNKNOWN -26 -33 -28 -9 -7 -8.5
2012-07-25 04:27:00 PINE UNKNOWN -13.5 -7.5 -8.5 -3.5 -4.5 -2.5
2012-07-25 08:42:00 PINE UNKNOWN -20 -3.5 -3.5
2012-07-25 08:42:00 OAK UNKNOWN -23.5 -30 -32
2012-07-25 10:48:00 PINE UNKNOWN -19.5 -3.5 -7 -4 -1.5 -1.5 -4.5 -5
2012-07-25 10:48:00 OAK UNKNOWN -33 -31.5 -31.5
2012-07-25 12:24:00 PINE UNKNOWN -11 -4 -6
2012-07-25 12:24:00 OAK UNKNOWN -38.5 -37.5 -35

OAK_UNKNOWN Whole Study20120725 04:27:00 twig/leaf cluster -1.86 1.17 6
OAK_UNKNOWN Whole Study20120725 08:42:00 twig/leaf cluster -1.43 1.59 6
OAK_UNKNOWN Whole Study20120725 10:48:00 twig/leaf cluster -1.6 1.75 6
OAK_UNKNOWN Whole Study20120725 12:24:00 twig/leaf cluster -1.9 2.03 6
PINE_UNKNOWN Whole Study20120725 04:27:00 twig/leaf cluster -0.67 0.41 6
PINE_UNKNOWN Whole Study20120725 08:42:00 twig/leaf cluster -0.68 0.9 4
PINE_UNKNOWN Whole Study20120725 10:48:00 twig/leaf cluster -0.58 0.58 8
PINE_UNKNOWN Whole Study20120725 12:24:00 twig/leaf cluster -0.5 0.46 4

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

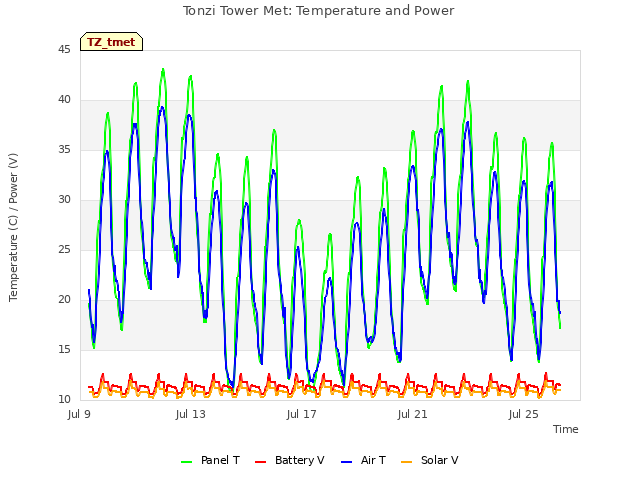

Tonzi Tower Met: Temperature and Power

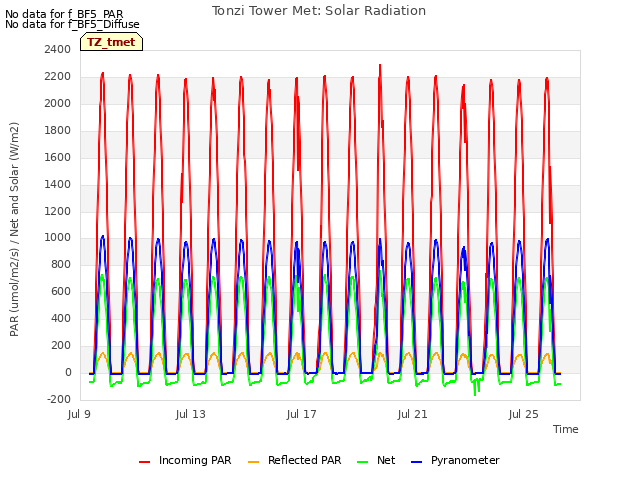

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

LED Sensor Incoming

LED Sensor Outgoing

4-Band Solar Radiation

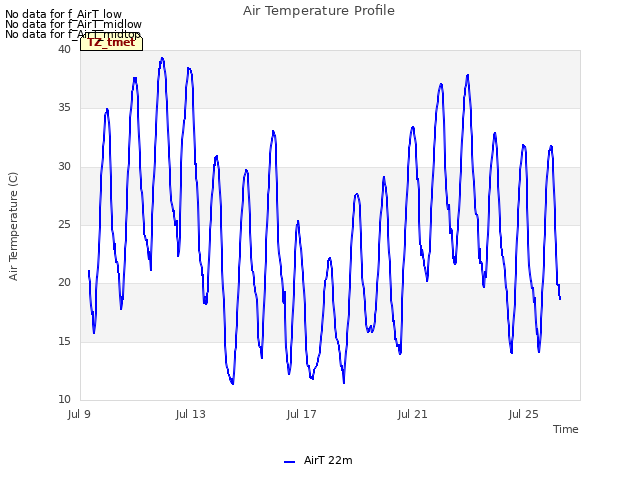

Air Temperature Profile

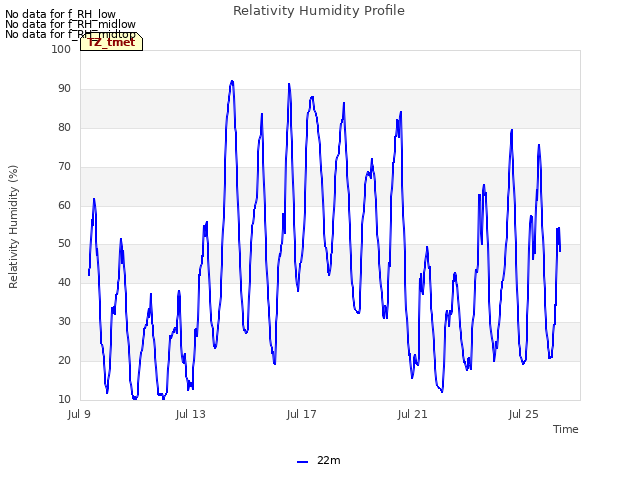

Relativity Humidity Profile

Tonzi Tower PRI

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

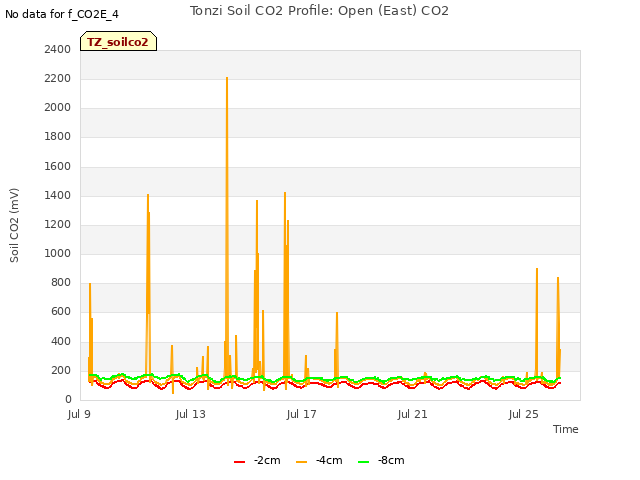

Tonzi Soil CO2 Profile: Open (East) CO2

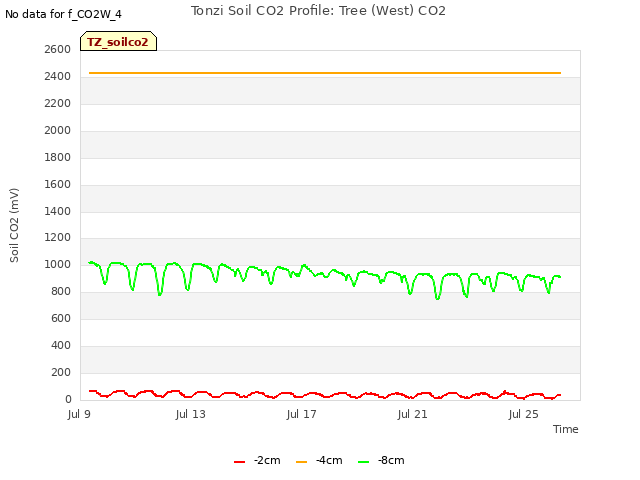

Tonzi Soil CO2 Profile: Tree (West) CO2

Tonzi Soil CO2 Profile: Open (East) Temperatures

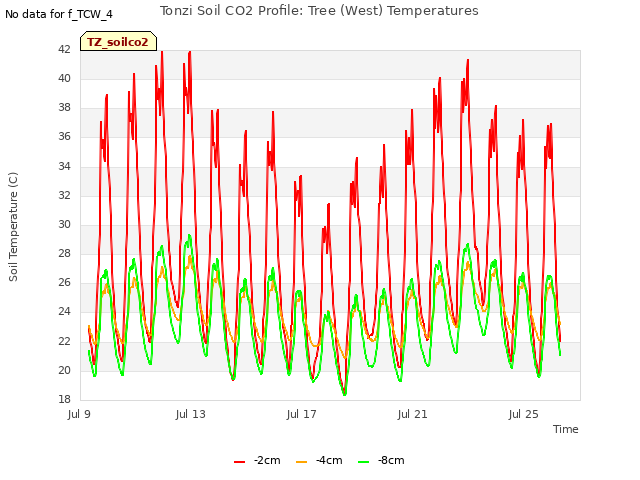

Tonzi Soil CO2 Profile: Tree (West) Temperatures

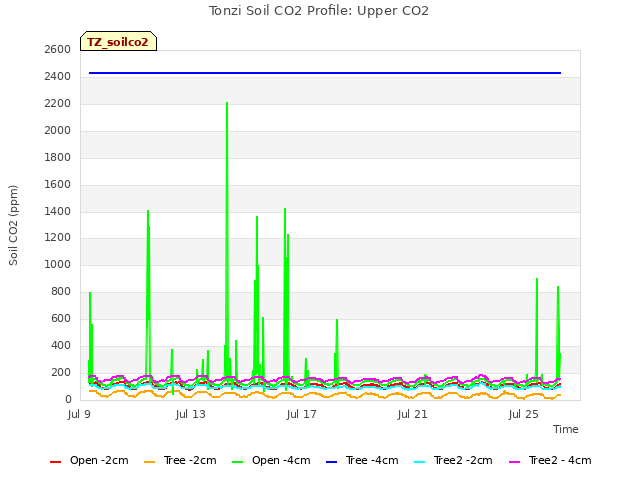

Tonzi Soil CO2 Profile: Upper CO2

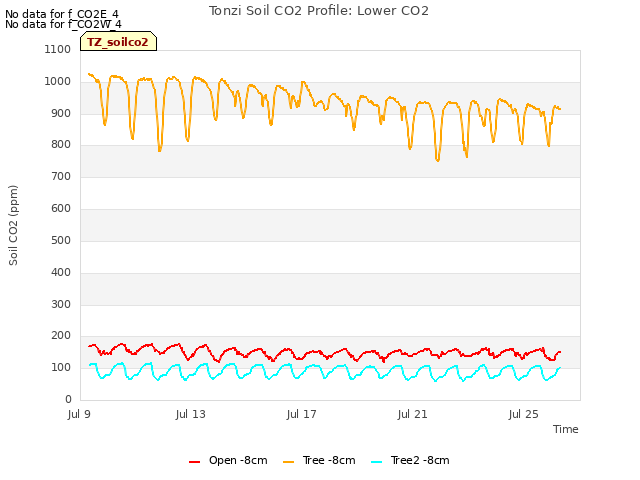

Tonzi Soil CO2 Profile: Lower CO2

Tonzi Soil CO2 Profile: Upper Temperatures

Tonzi Soil CO2 Profile: Lower Temperatures

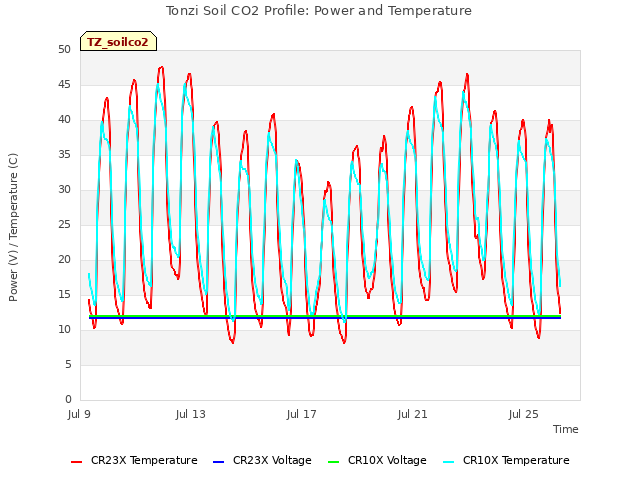

Tonzi Soil CO2 Profile: Power and Temperature

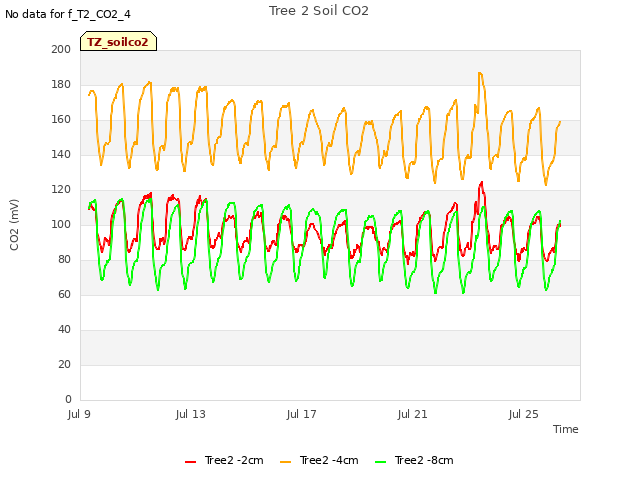

Tree 2 Soil CO2

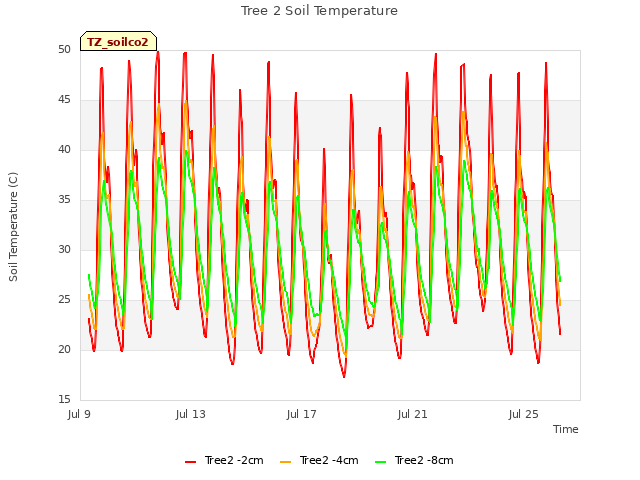

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

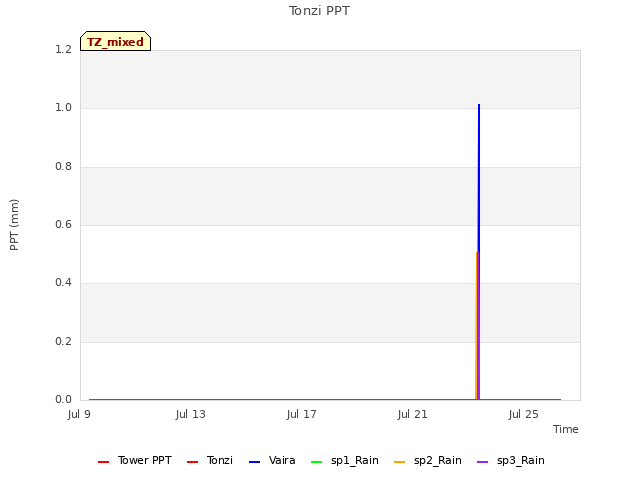

Tonzi PPT

Tonzi CO2 and H2O Densities

Air Pressure

1 TZ_fflux graphs found

Tonzi Wind Speed

8 TZ_fmet graphs found

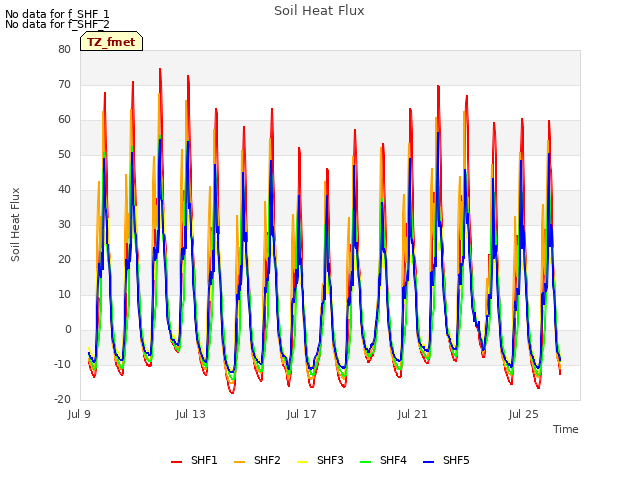

Soil Heat Flux

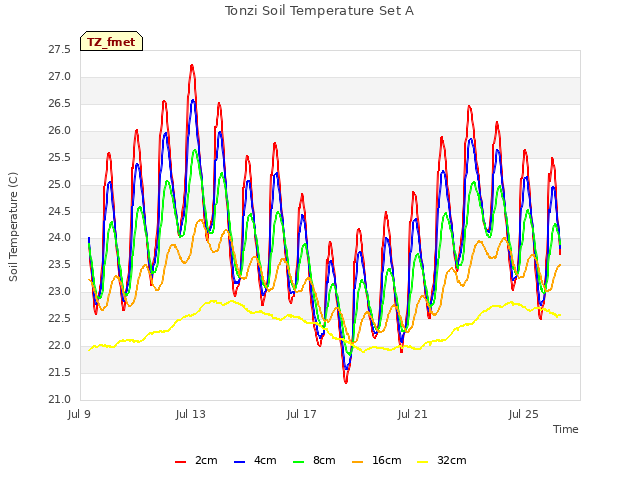

Tonzi Soil Temperature Set A

Tonzi Soil Temperatures Set B

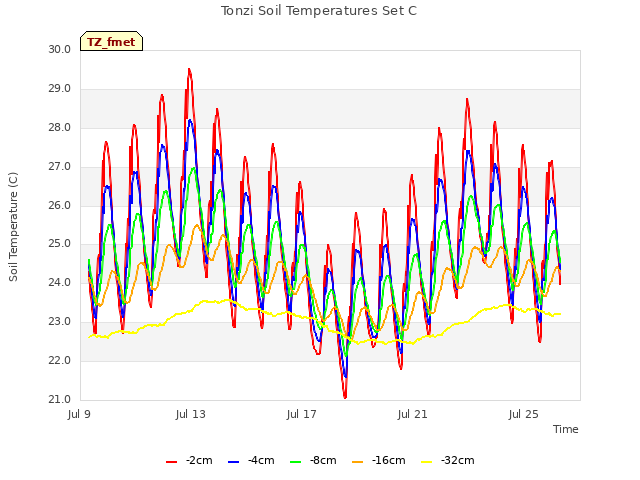

Tonzi Soil Temperatures Set C

Tonzi Soil Temperature Set D

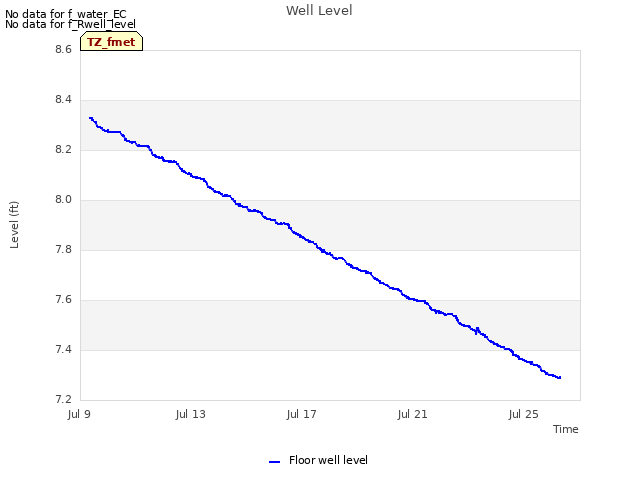

Well Level

Well Water Temperature

Soil Water Potential

1 TZ_tram graphs found

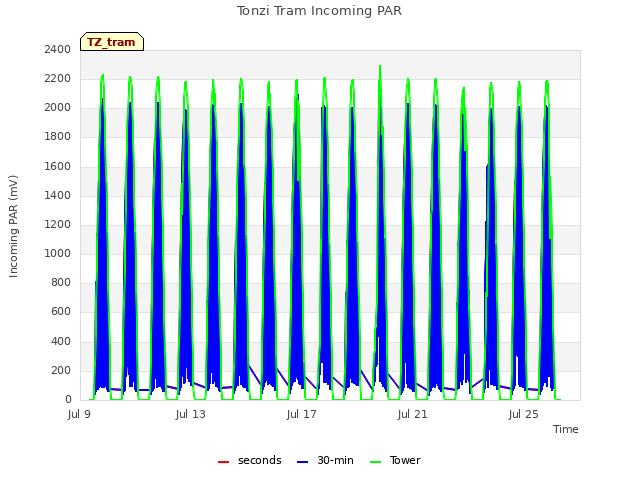

Tonzi Tram Incoming PAR

3 TZ_co2prof graphs found

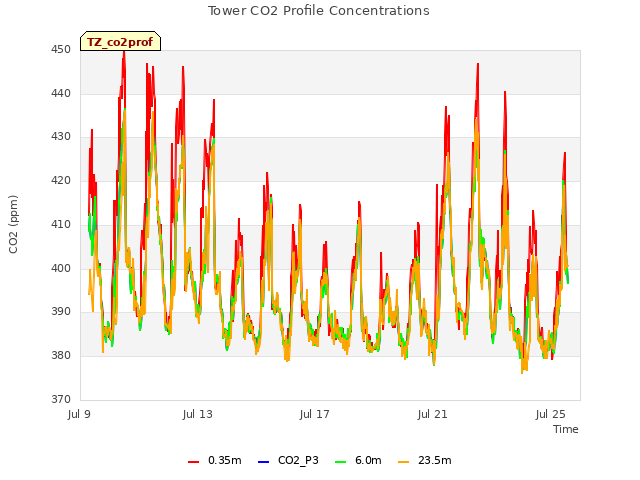

Tower CO2 Profile Concentrations

Tower CO2 Profile Cell Pressure

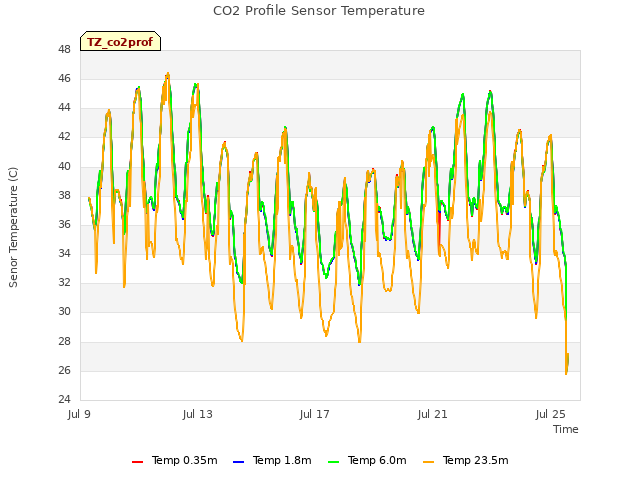

CO2 Profile Sensor Temperature

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

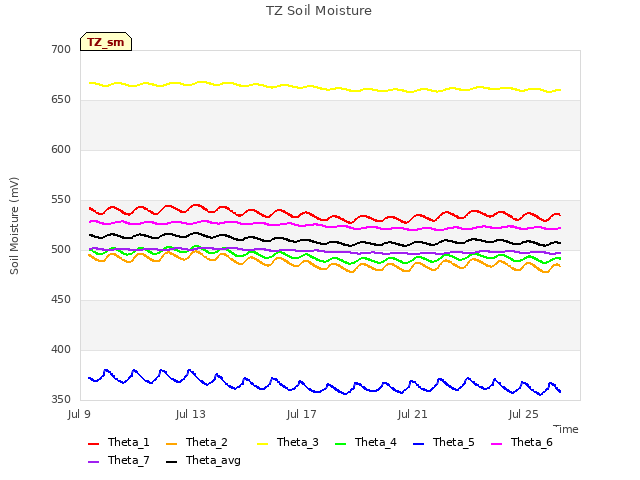

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

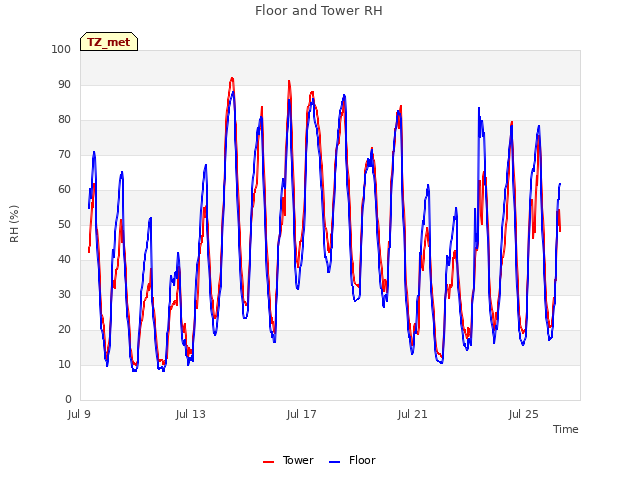

Floor and Tower RH

Can't check TZVR_mixed
8 TZ_osu graphs found

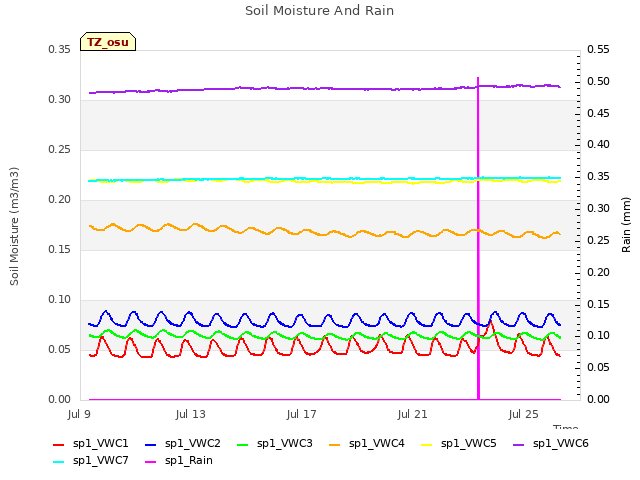

Soil Moisture And Rain

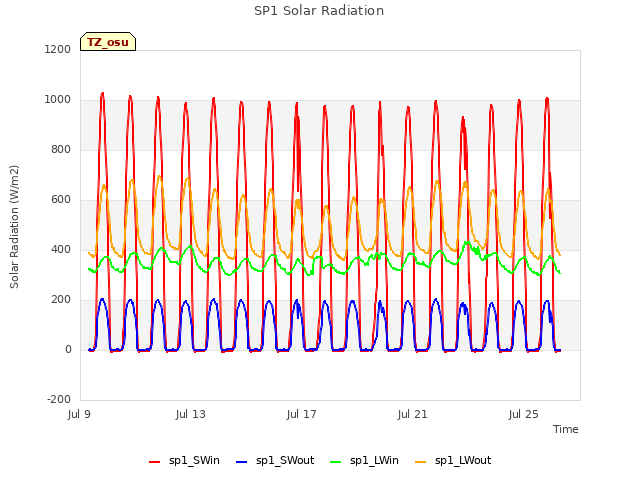

SP1 Solar Radiation

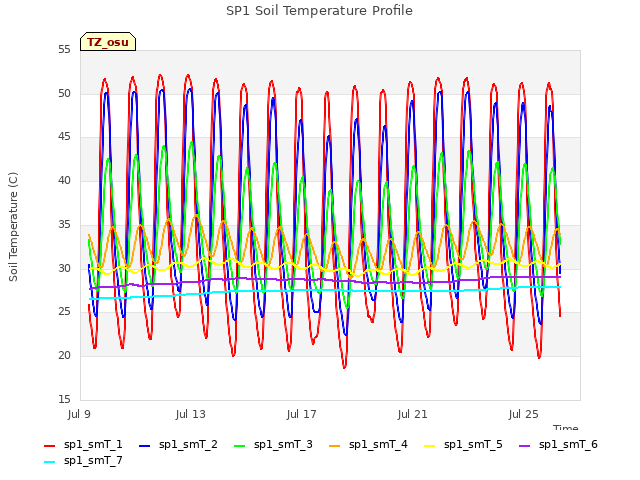

SP1 Soil Temperature Profile

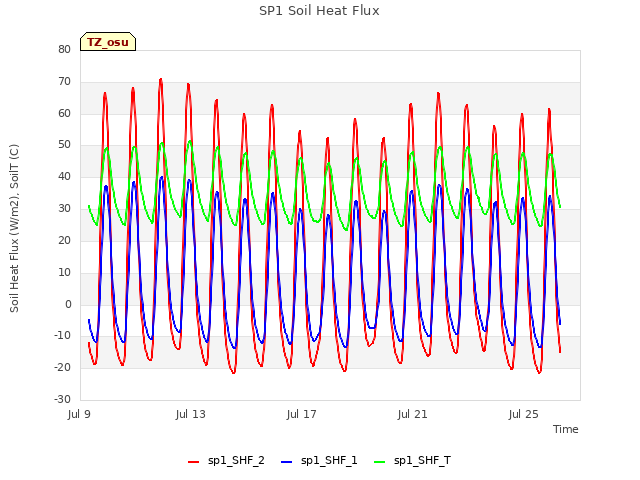

SP1 Soil Heat Flux

SP2 Soil Moisture

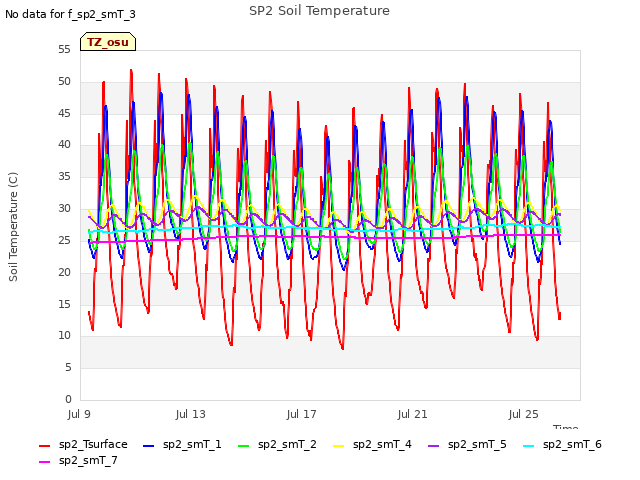

SP2 Soil Temperature

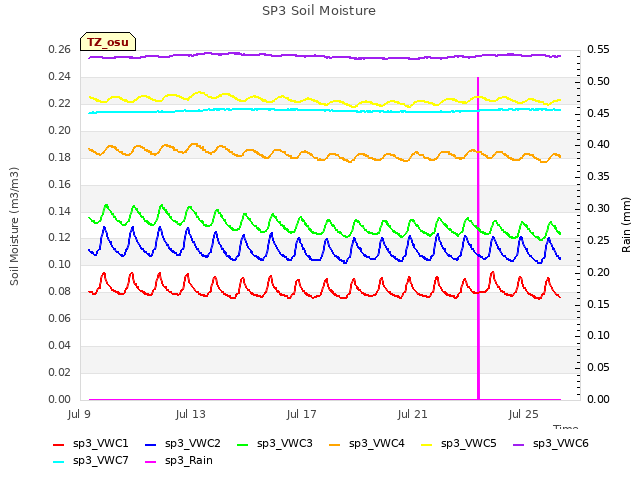

SP3 Soil Moisture

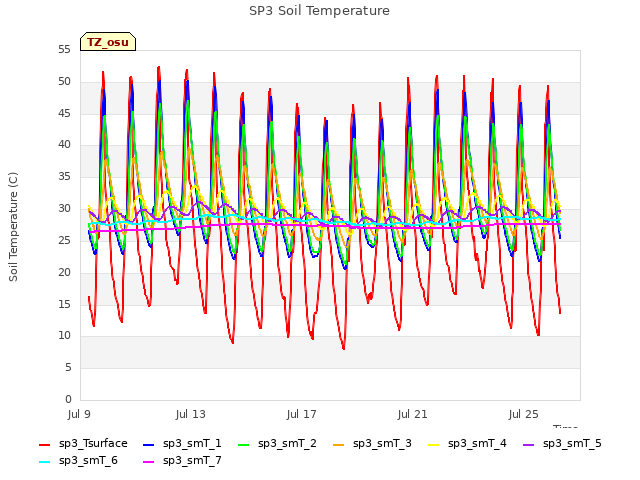

SP3 Soil Temperature

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
