Field Notes
<--2012-07-04 05:20:00 | 2012-07-25 05:30:00-->Other sites visited today: Vaira
Tonzi: 2012-07-10 10:00:00 (DOY 192)
Author: Joe Verfaillie
Others:
Summary: Serviced z-cams, cleared disk space on the tower computer, CO2 profile system has little to no flow.
| Tonzi
2012-07-10 I arrived about 10am PDT. The Tonzi gate is no longer orange, it has been painted silver. It was clear, sunny and hot with a puff of breeze from the west. The grasses are golden yellow and the trees at still very green. Grasses around the floor site and the soil CO2 sites have been trampled, probably where Martin was working with the spectrometers. I serviced the z-cams and generally inspected things. Everything seemed okay. The tower computer is low on disk space, less than 3GB on both drives. I had previously compressed the archived 2007 data on the D: drive. Today I moved the 2007 data to external memory to transfer to the lab. I started compressing the 2008 data. Now there is more than 5GB free on the D: drive. On the C: drive I moved archived Phenocam images from 2011 to external memory for transfer to the lab. The CO2 profile system has little to no flow. The pump may have broken after being stressed by the sticky solenoid. I’m trying to decide whether a quick fix or a larger rebuild is in order. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

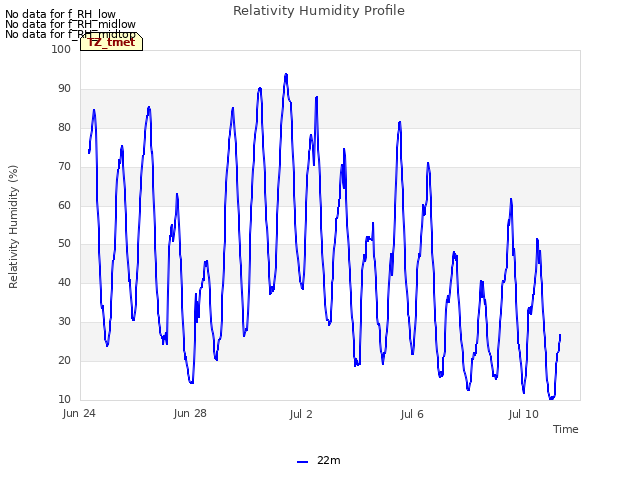

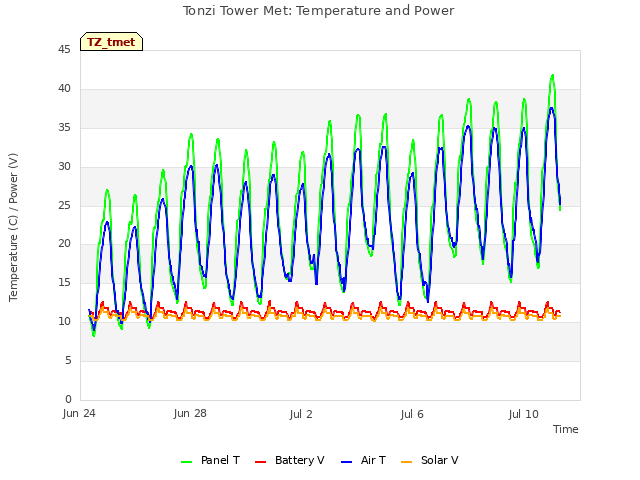

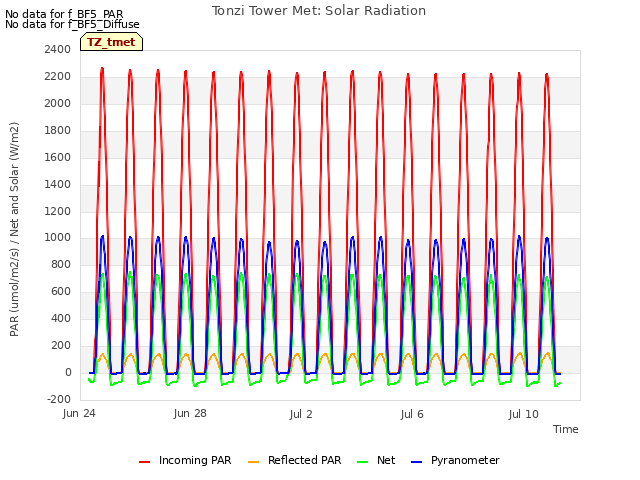

11 TZ_tmet graphs found

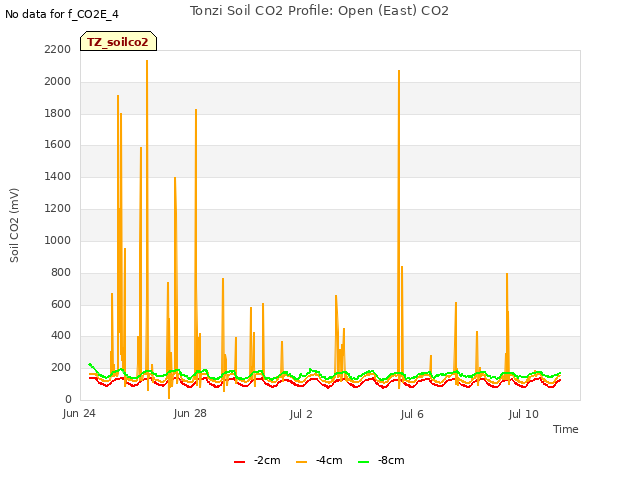

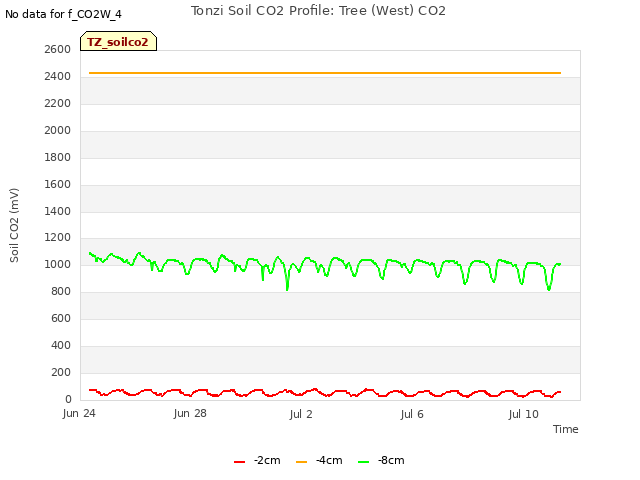

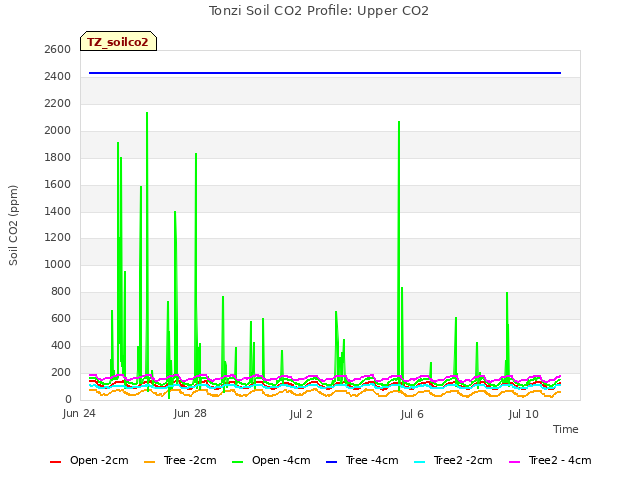

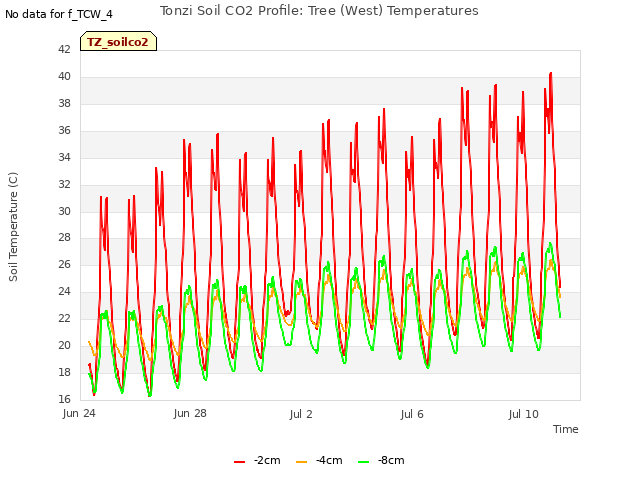

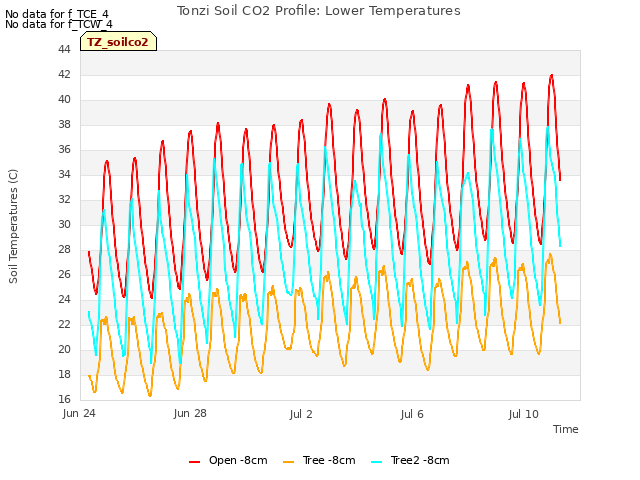

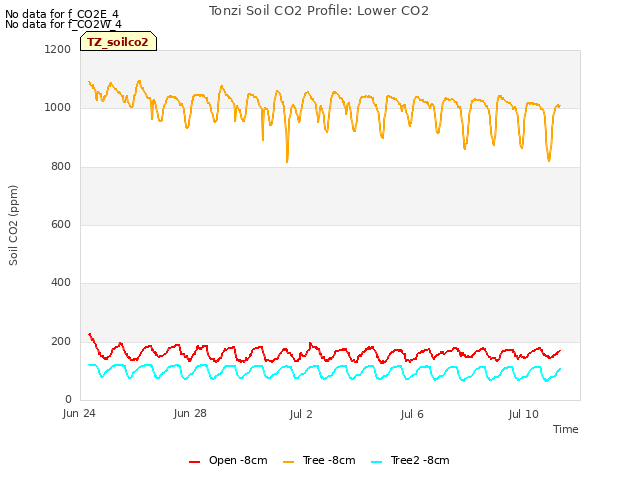

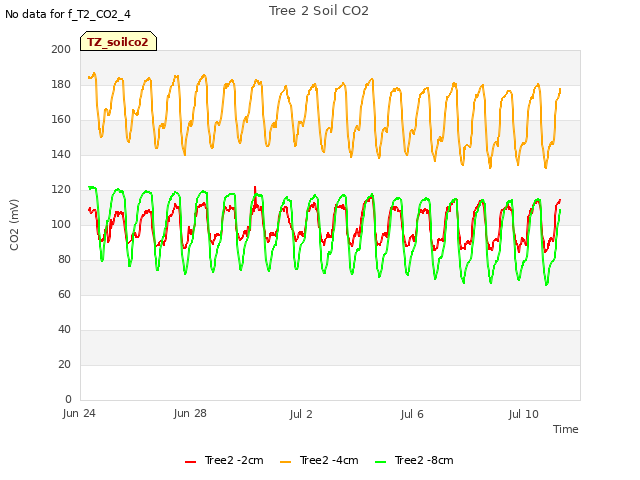

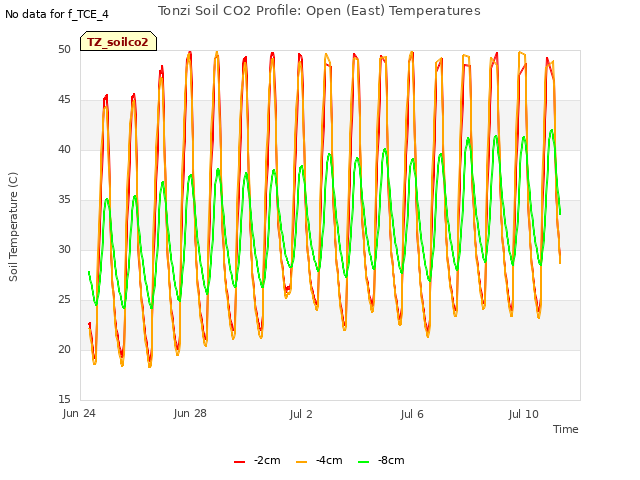

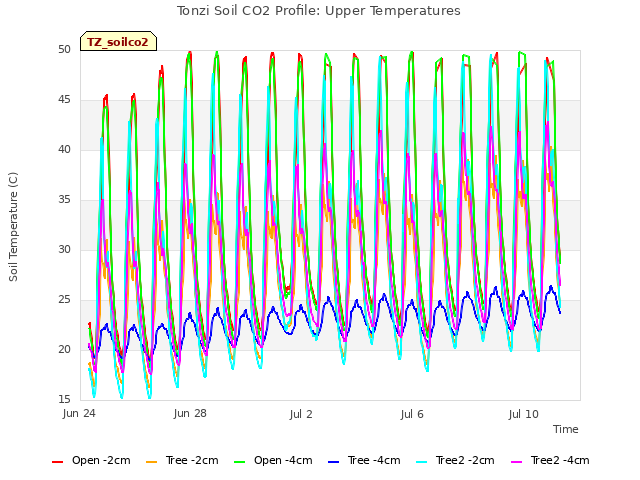

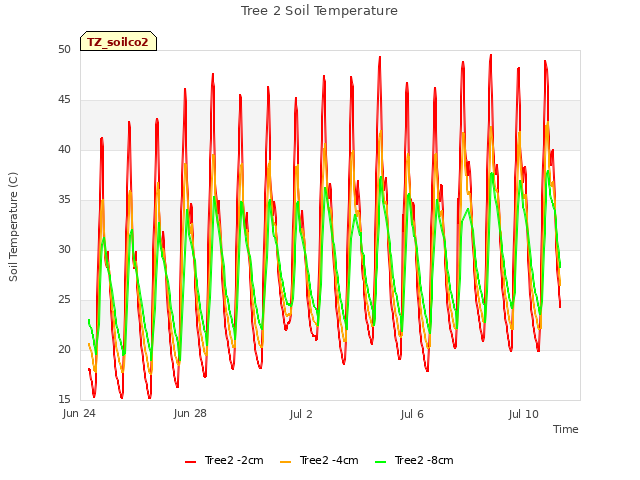

11 TZ_soilco2 graphs found
Can't check TZ_mixed

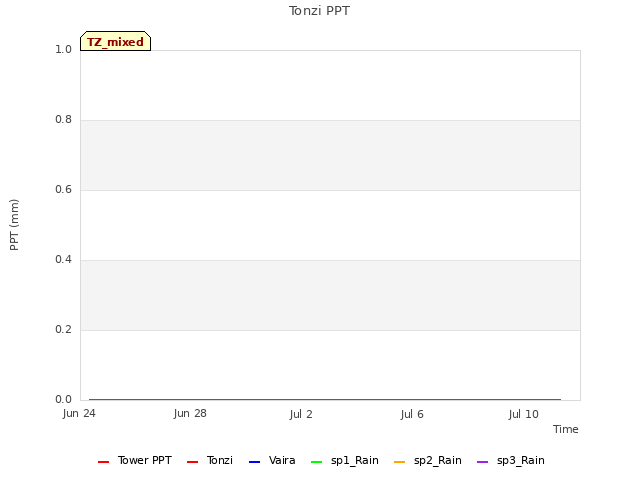

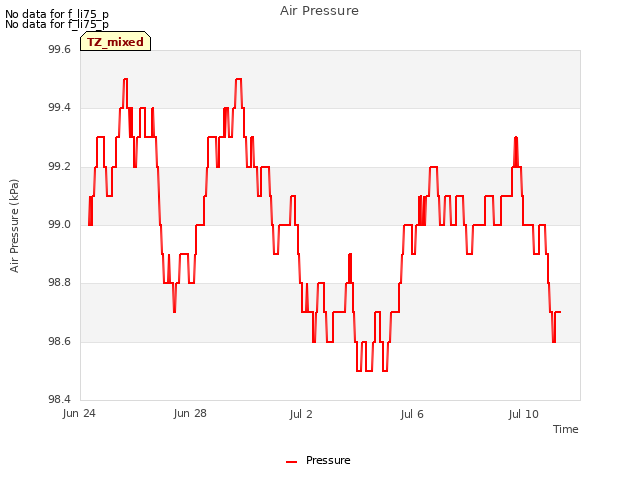

3 TZ_mixed graphs found
1 TZ_fflux graphs found

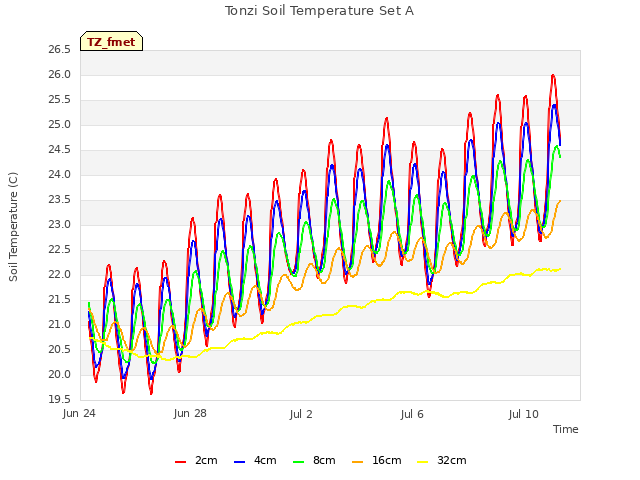

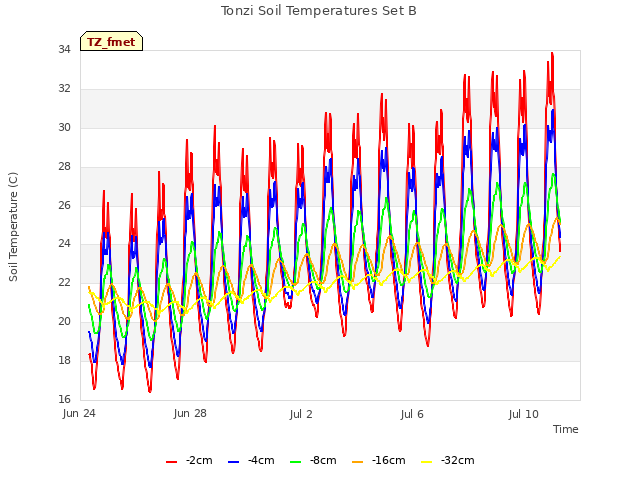

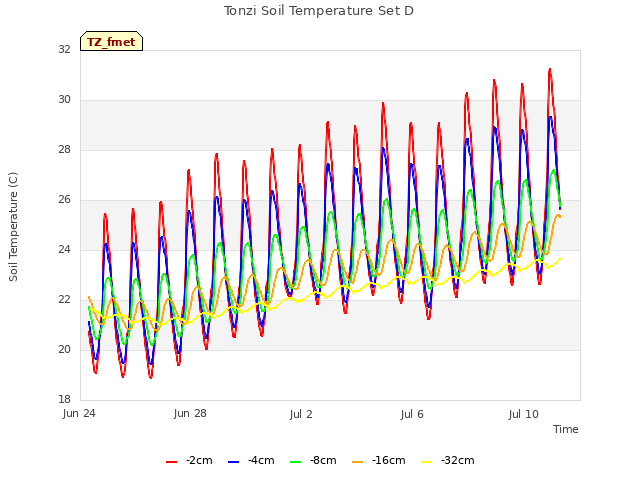

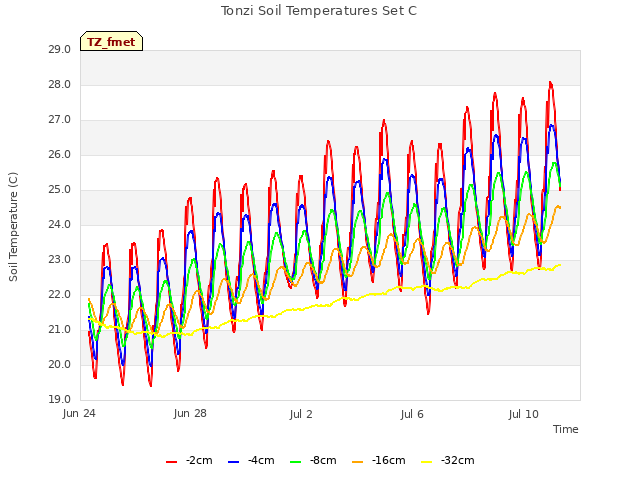

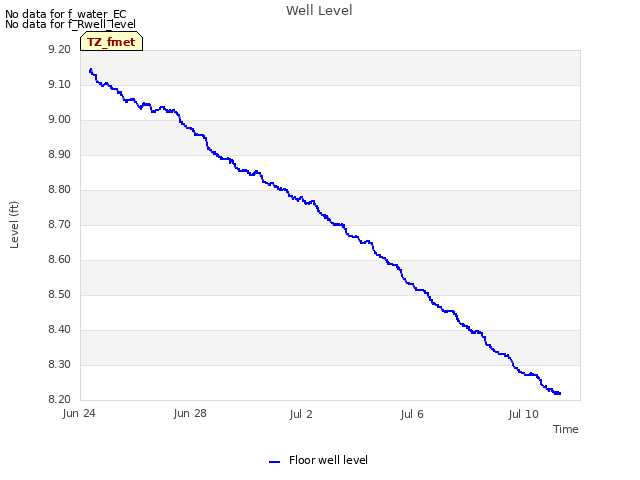

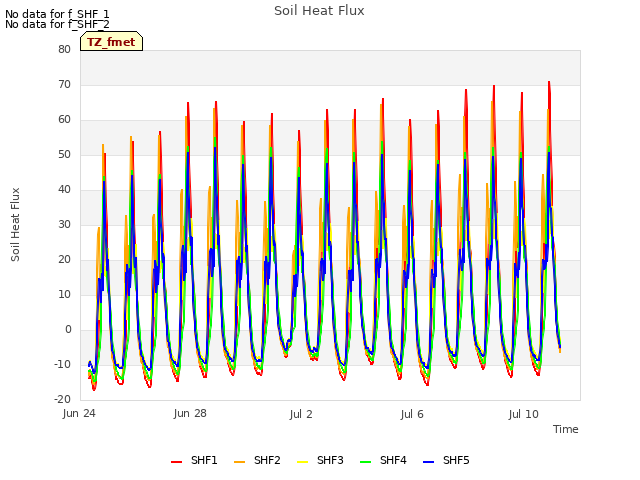

8 TZ_fmet graphs found

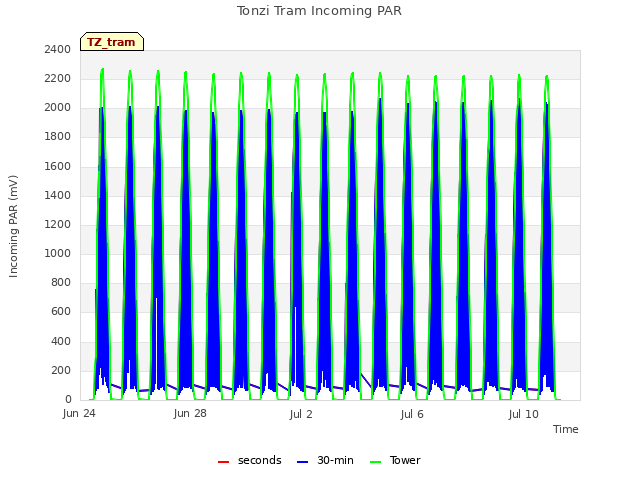

1 TZ_tram graphs found

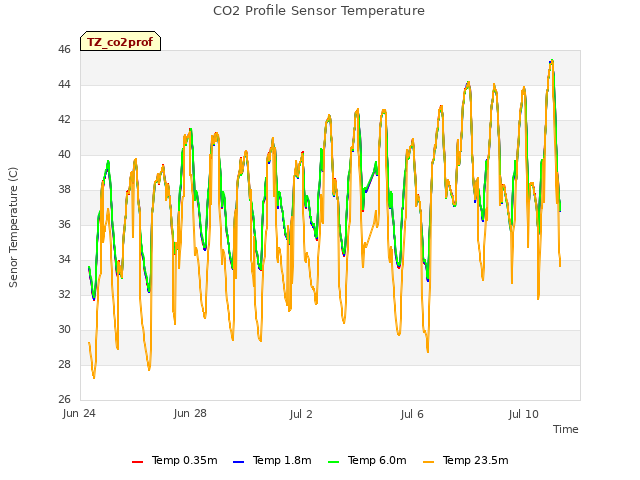

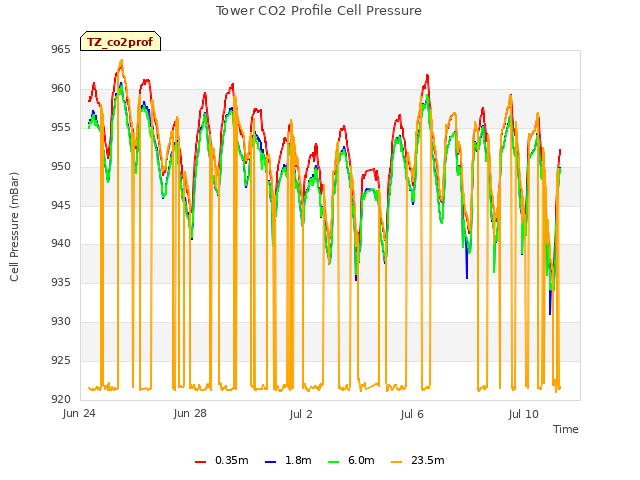

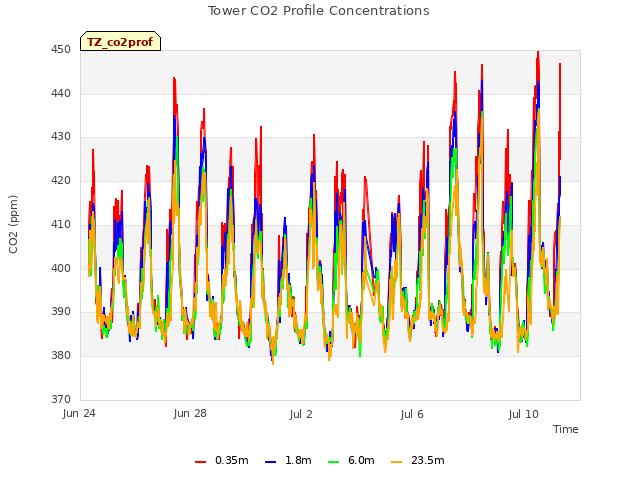

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

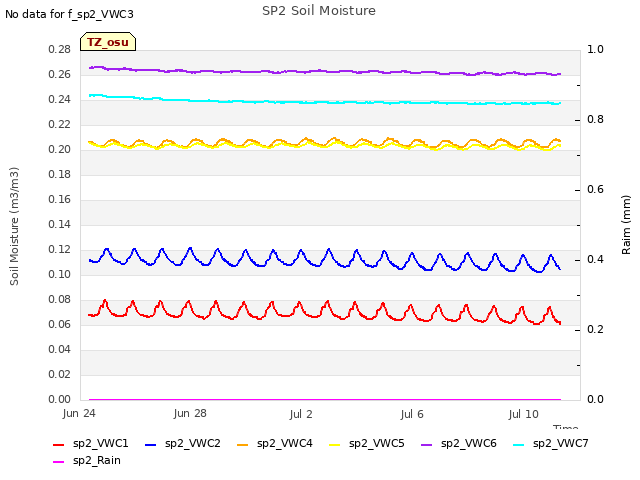

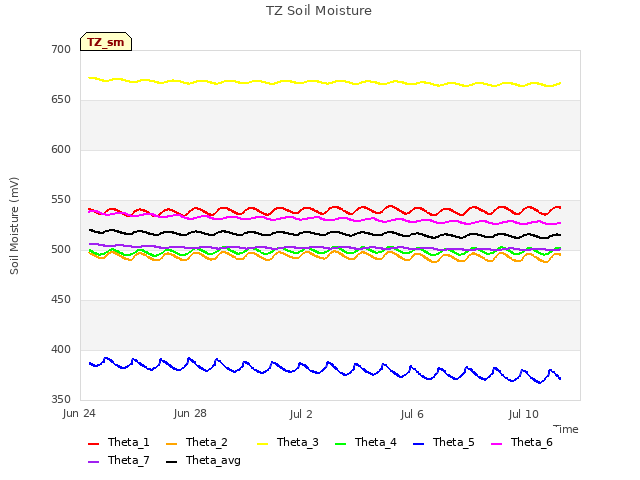

2 TZ_sm graphs found
Can't check TZ_met

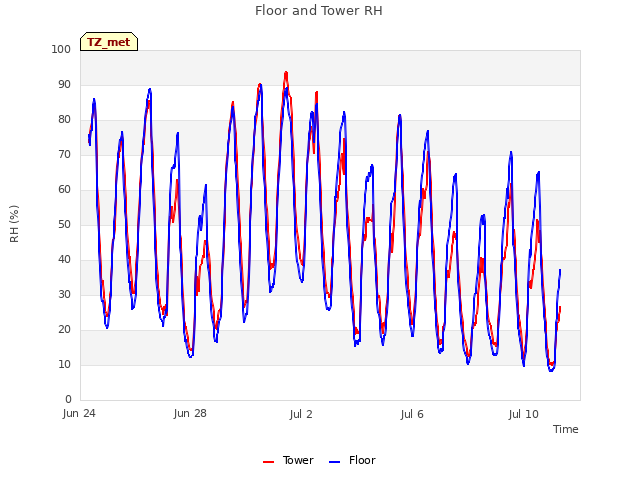

1 TZ_met graphs found
Can't check TZVR_mixed

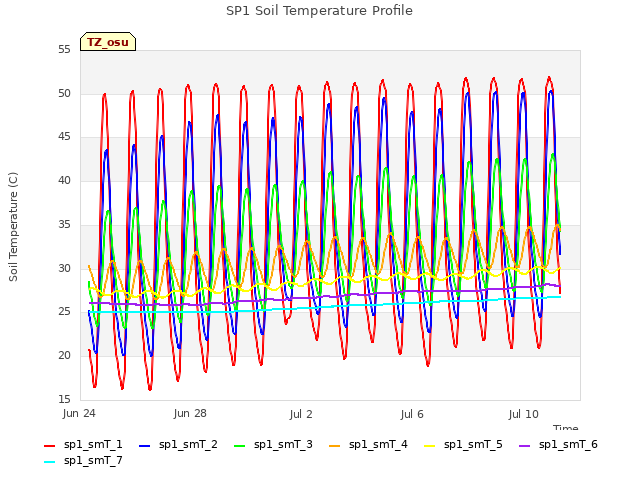

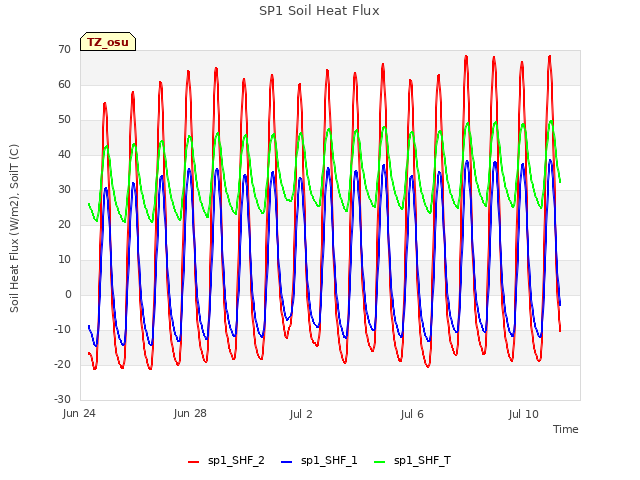

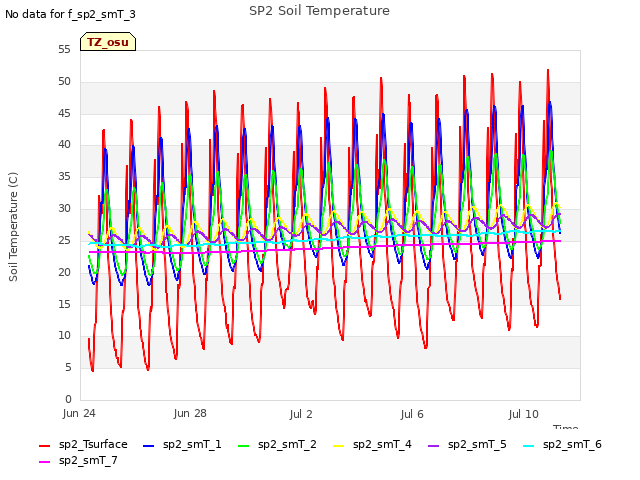

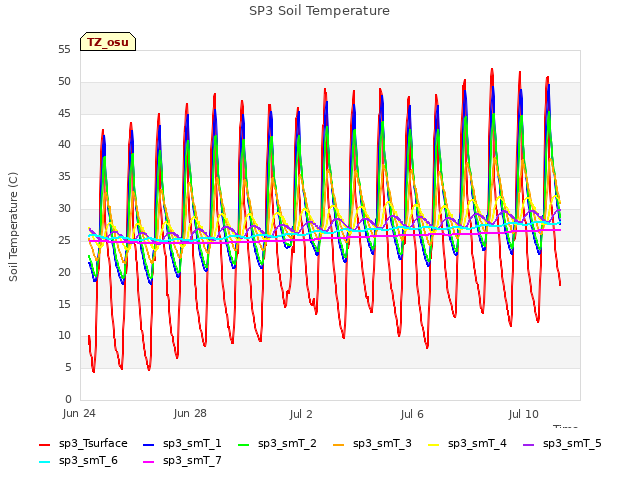

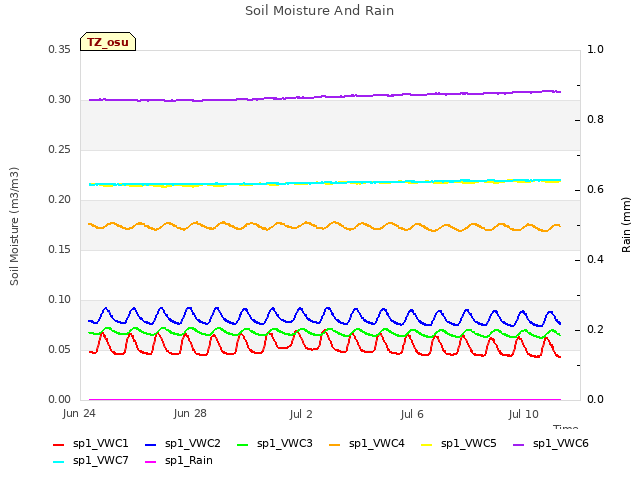

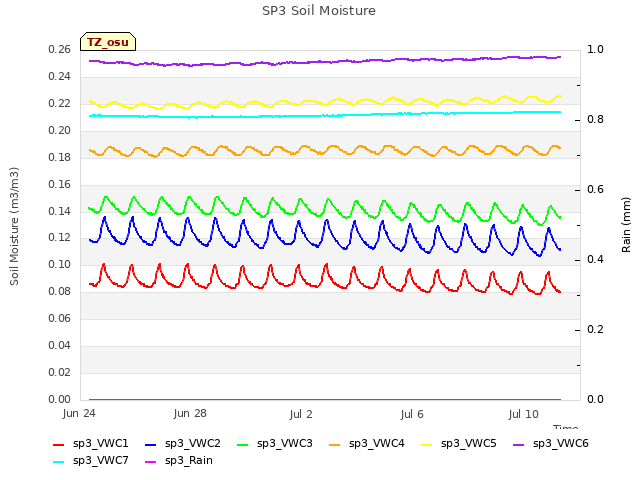

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
