Mayberry: 2012-01-17 12:30:00 (DOY 17)
Author: Joe Verfaillie
Others: Jaclyn, Sara, Juwon, Sean
Summary: Added water pressure to Tule tower, rewired LED sensor, new Tule program. Swapped 7500.
Mayberry

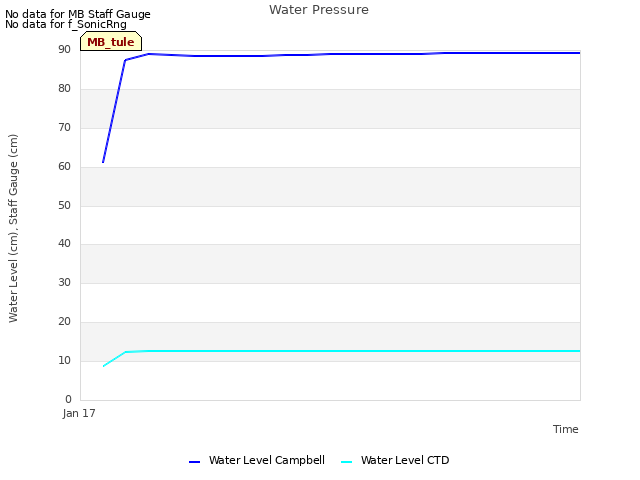

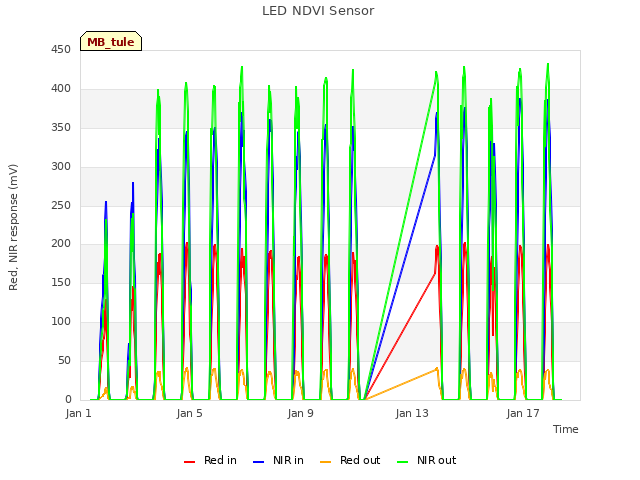

2012-01-17 I arrived about 12:30 with Jaclyn, Sara, Sean and Juwon. It was clear, sunny and cool with little to no wind. A hawk was sitting on the camera and then on the Tule Tower when we arrived. The tules and cattails are much browner than last visit ? still a little green at the base. Jaclyn and Sara installed the water pressure sensor at the Tule Tower. They also changed the wiring of the LED sensor on the multiplexor. I uploaded a new program to the CR10X to add the water pressure to the end of the output and reflect the new wiring of the LED sensor. I also added some time checks to the data program that indicated the program was executing in less the 3 seconds. The data from the Tule tower looked okay, but need double checking. The RSSI on the 7700 was about 50 so I did not clean the mirrors. We swapped the LI7500. Sn 1594 went on and sn 0035 came off. I swapped internal chemicals and painted the box on sn 1594 before calibrating it. In painting the box I removed its mounting plate and forgot to reattach it. It still fit on the tower but not as well. |
1 photos found
Hawk on Tule Tower
11 sets found

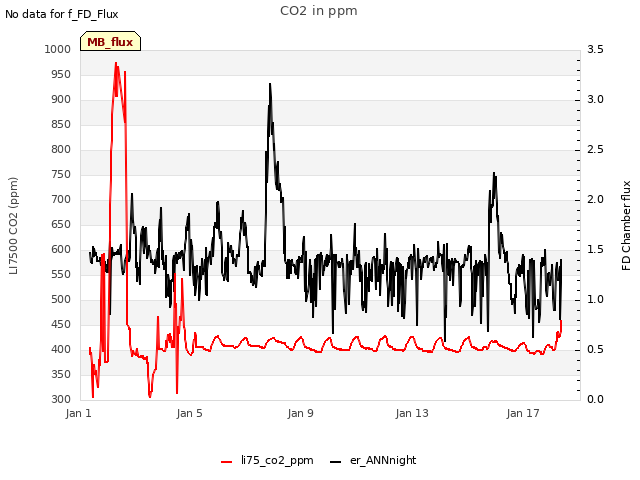

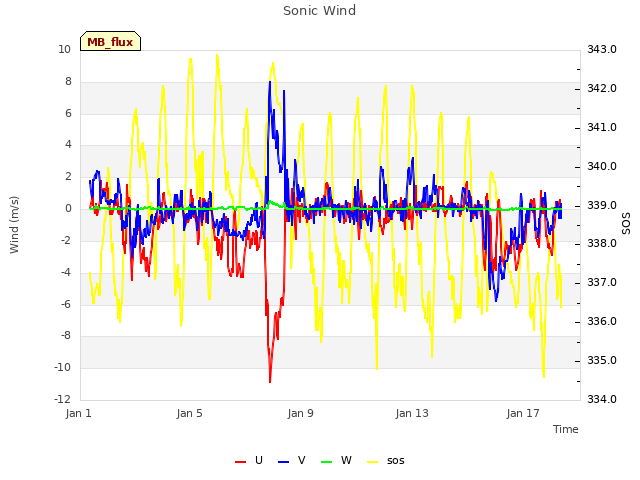

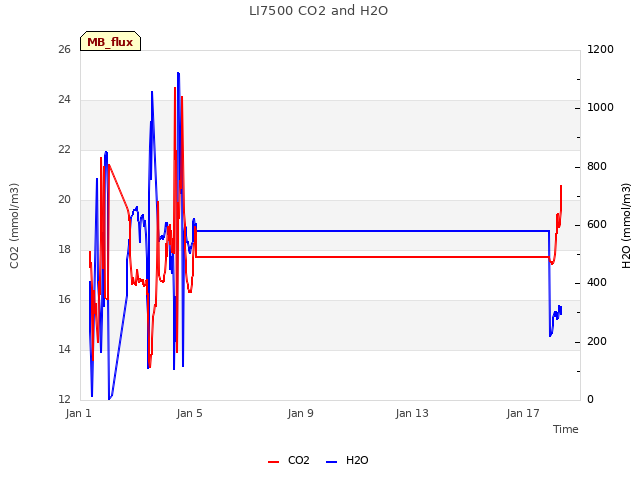

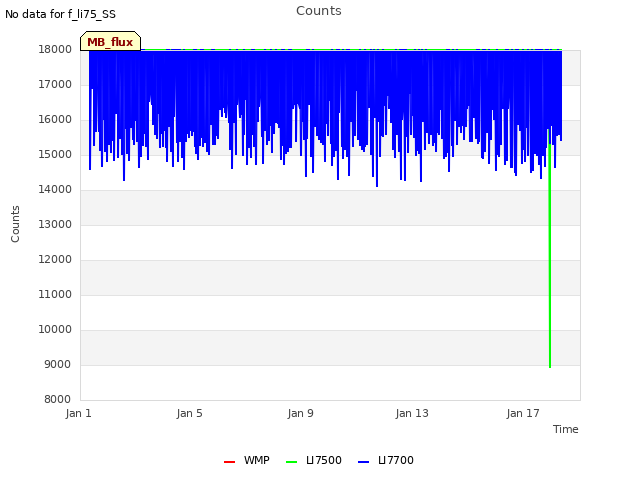

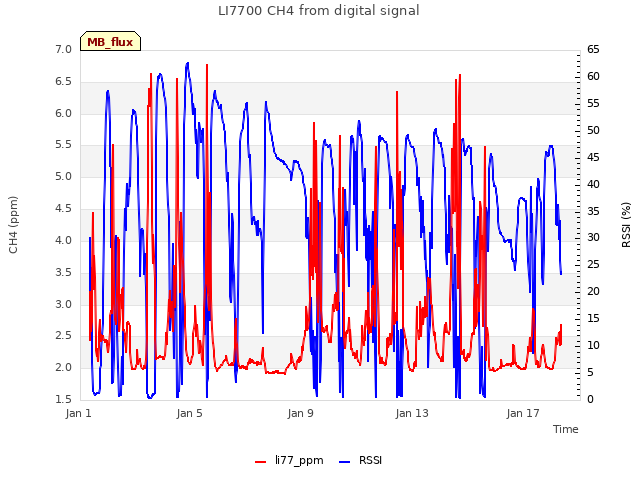

7 MB_flux graphs found

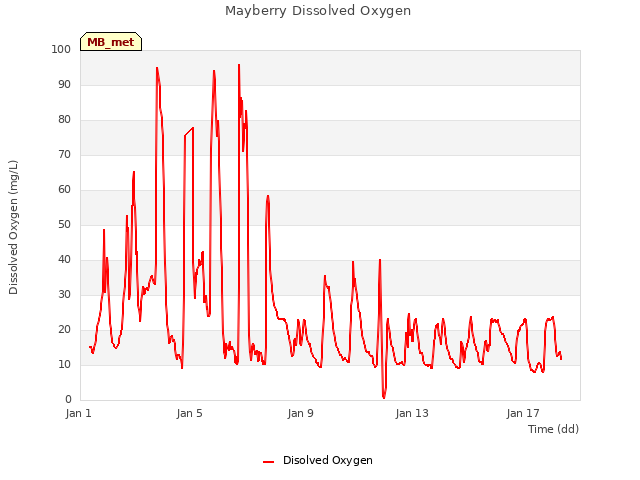

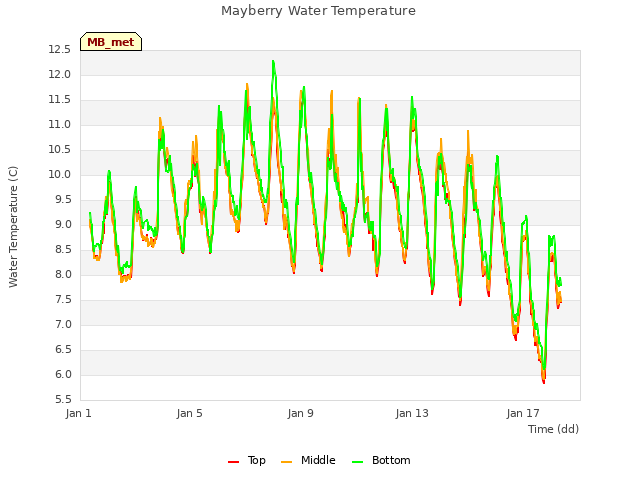

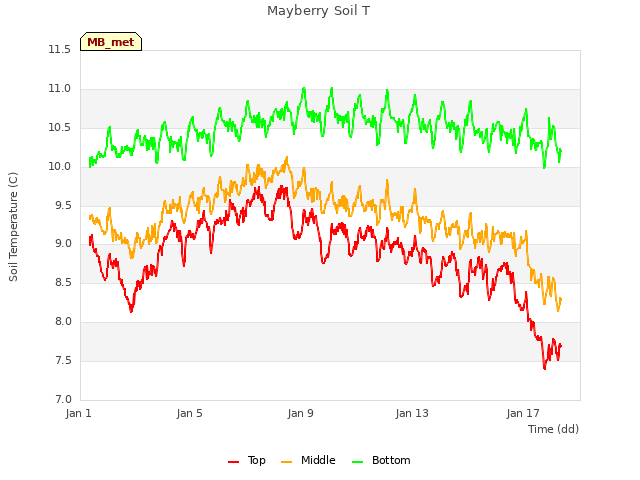

5 MB_met graphs found

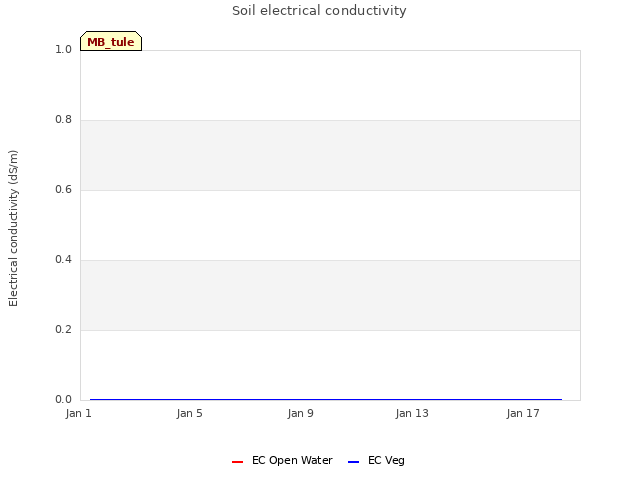

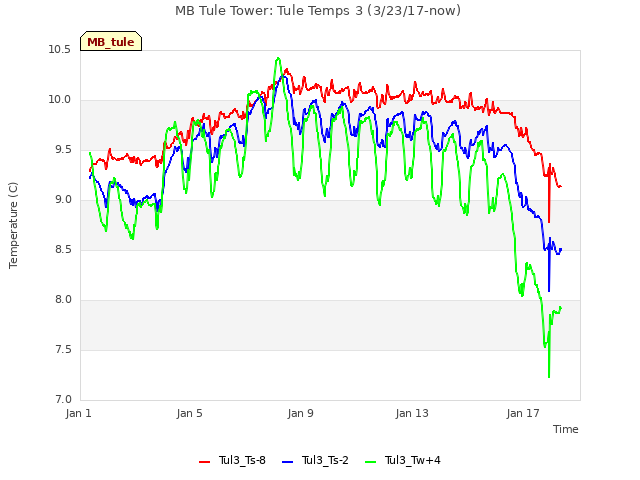

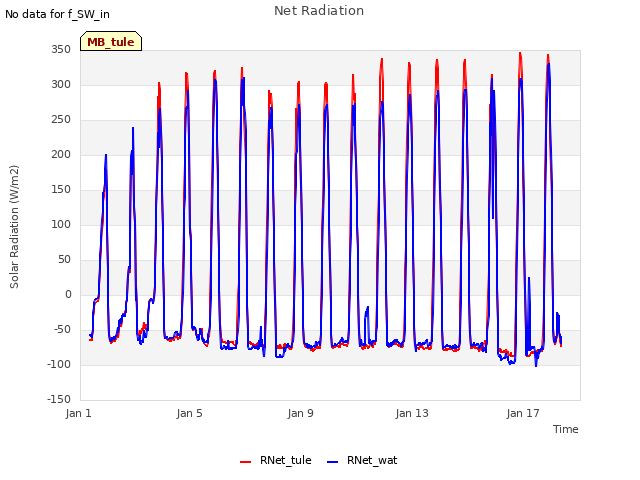

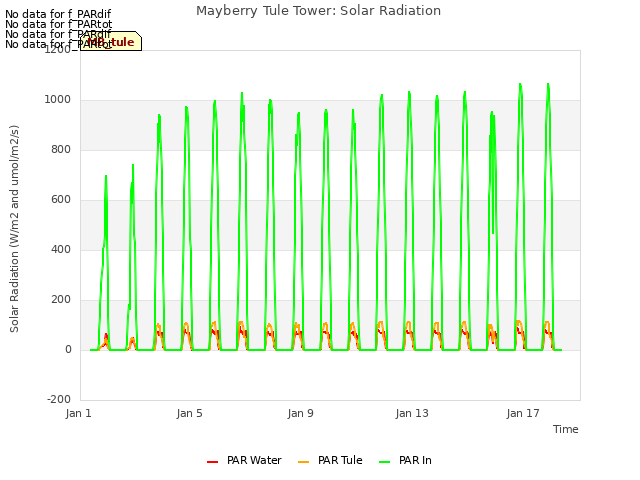

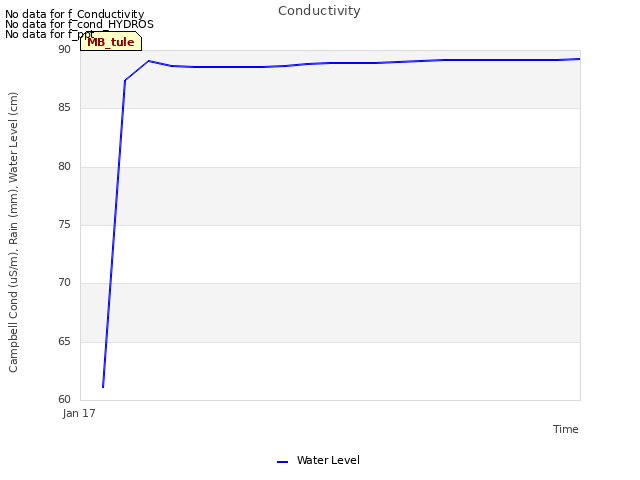

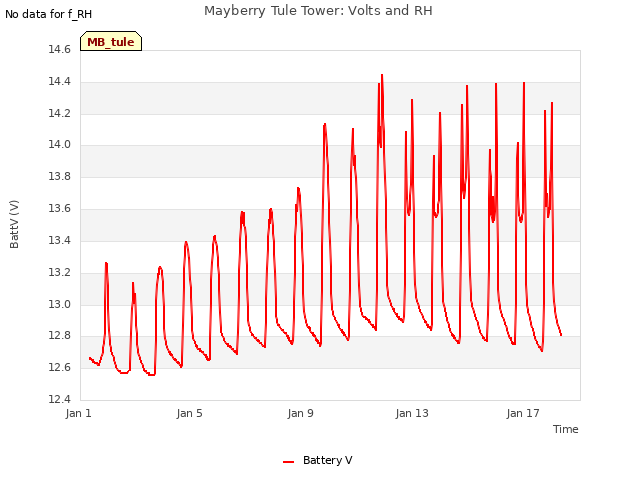

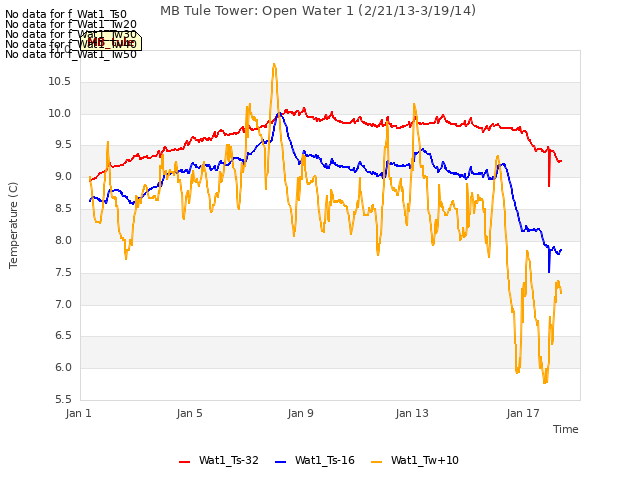

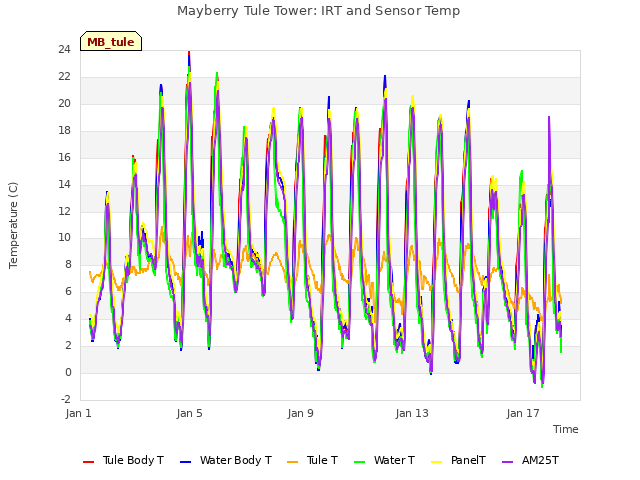

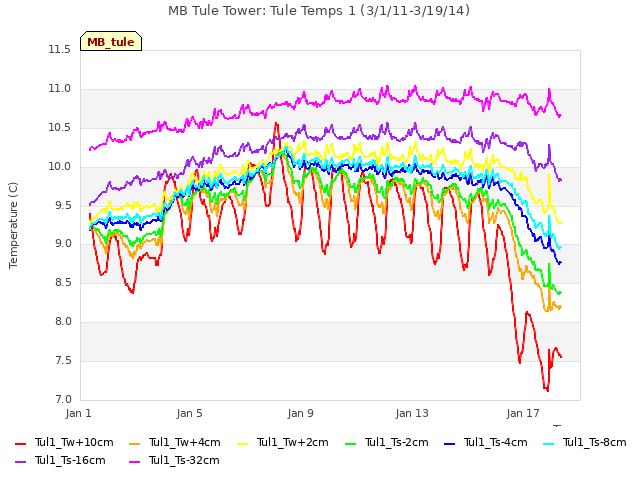

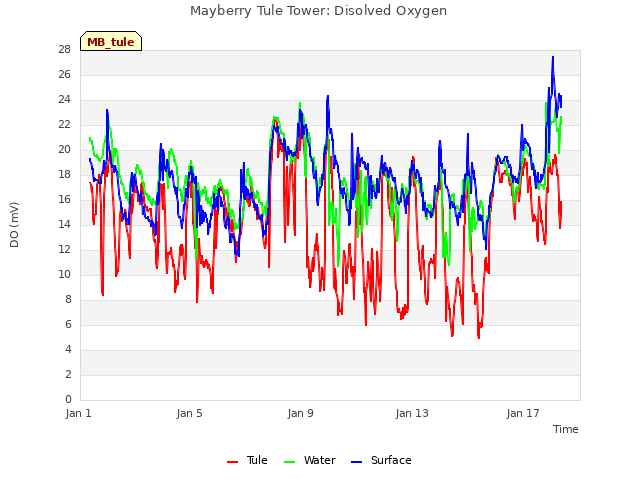

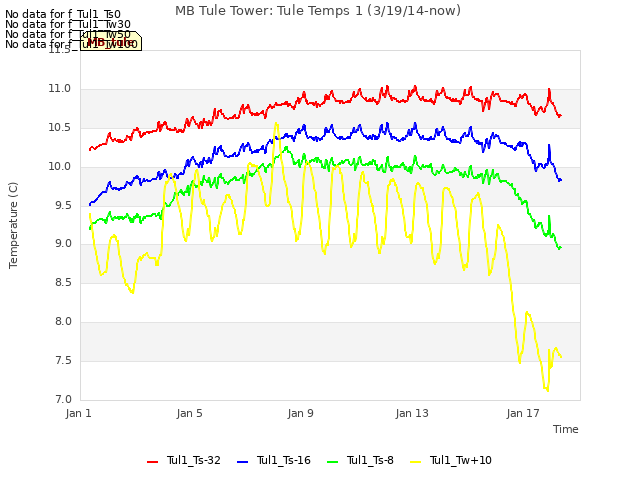

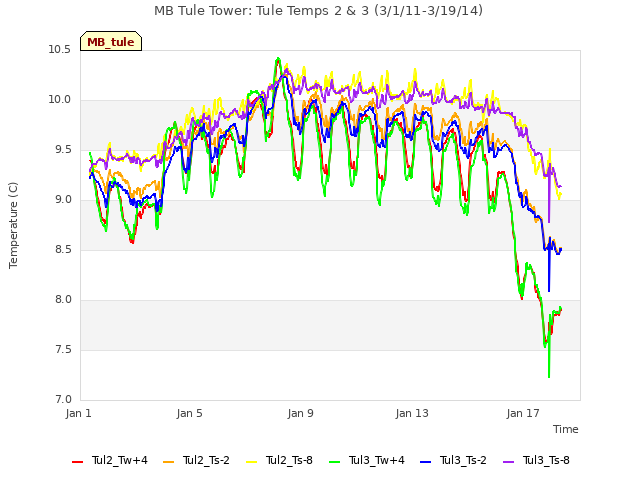

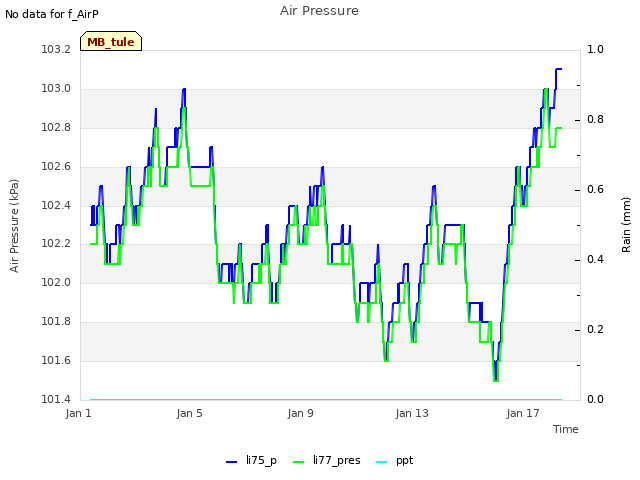

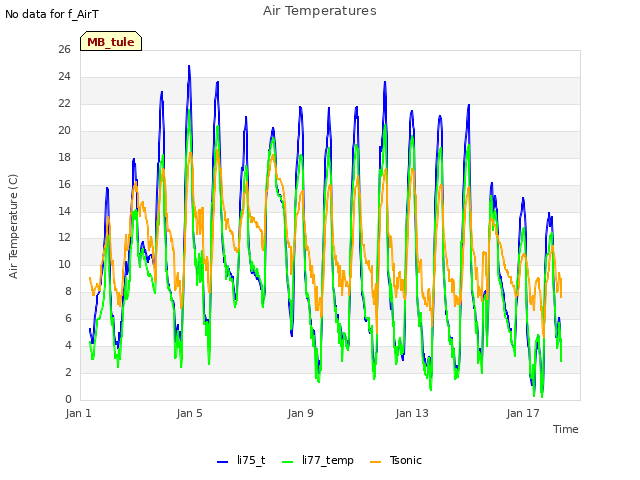

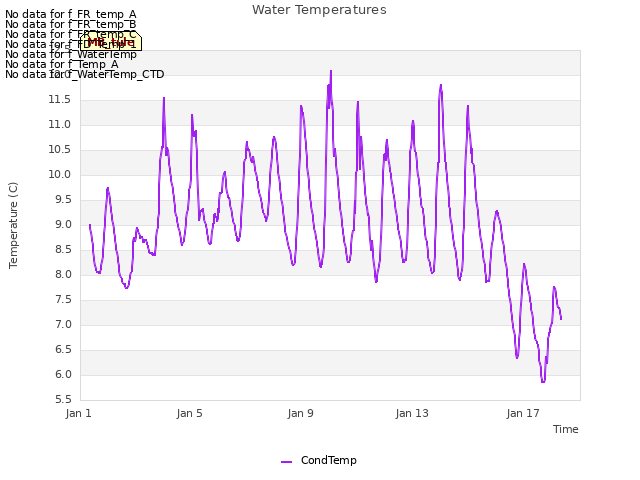

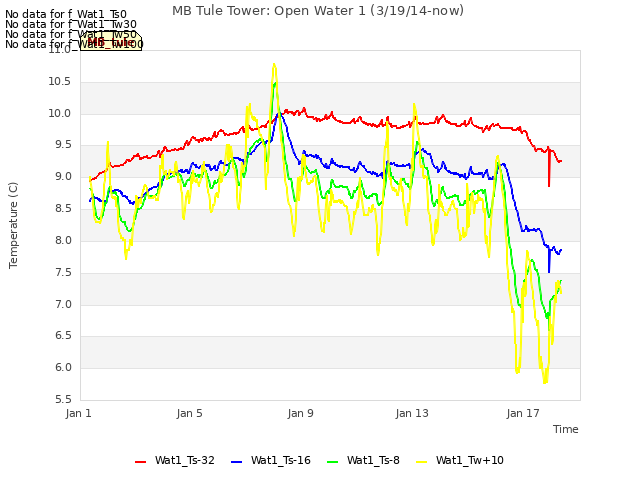

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

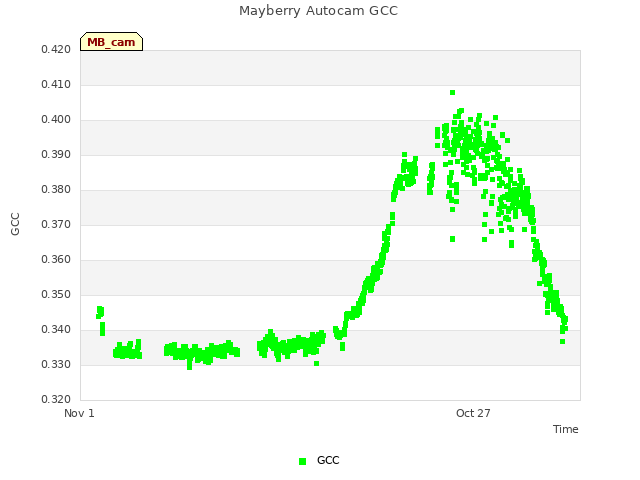

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

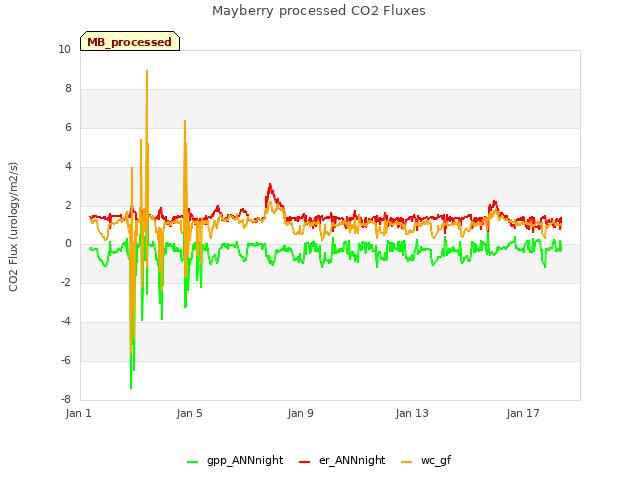

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
