Vaira: 2011-12-01 12:00:00 (DOY 335)
Author: Joe Verfaillie
Others: Siyan
Summary: Fixed Stardot wiring, check fence charger.
| Vaira
2011-12-01 I arrived with Siyan about noon. It was clear and sunny with a strong wind from the north. It seemed windier here than at tonzi ? maybe less protection from the trees. The grass seems to be waiting for more moisture. Some of the trees here still have leaves, but yellowing. The water hole was damp in the bottom, but no standing water. The cow fence here was intact and seemed to be working. I could get it to arc to the fence post. I replaced the power relay for the cameras. The new one has better wiring terminals but doesn?t fit as well in the box. I reran the wires for the Stardot camera to go through the wiring nut to better seal the enclosure. This meant cutting the RJ45 connector off the network cable and putting on a new on after the run. Afterwards all seemed well. There was some bird poop in the tipping bucket, but I don?t think it totally blocked the funnel as the tipper had a little bit of water in it. We returned to Tonzi about 1pm |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
3 photos found
view of field site
view of field site
Siyan at site
9 sets found

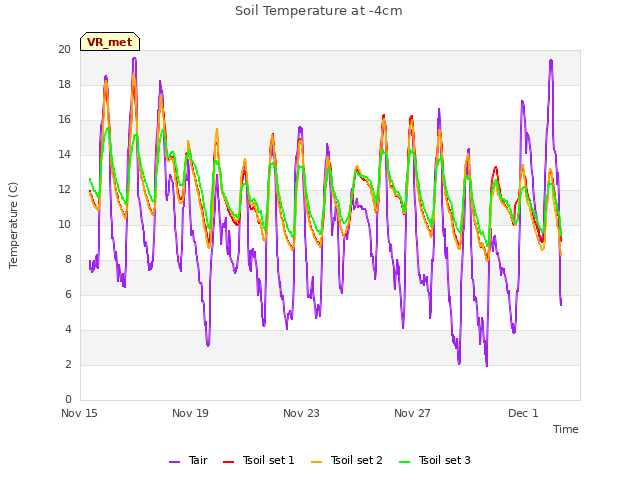

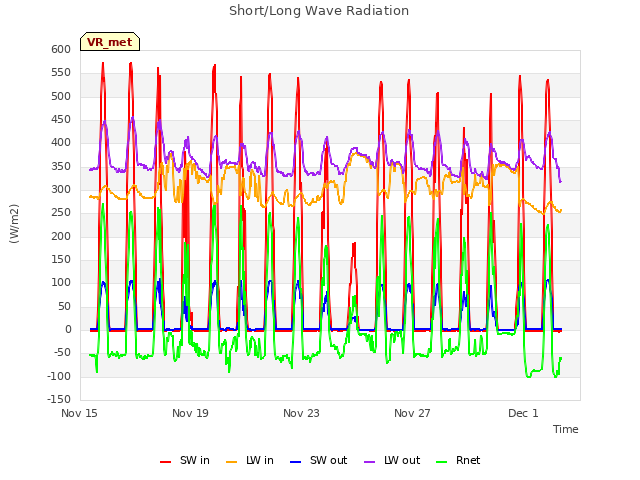

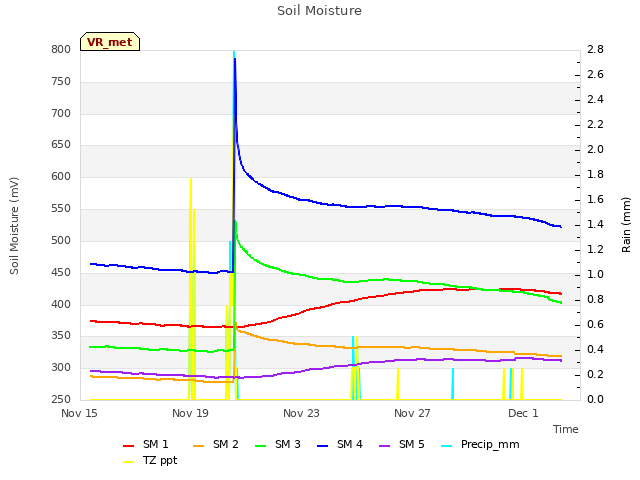

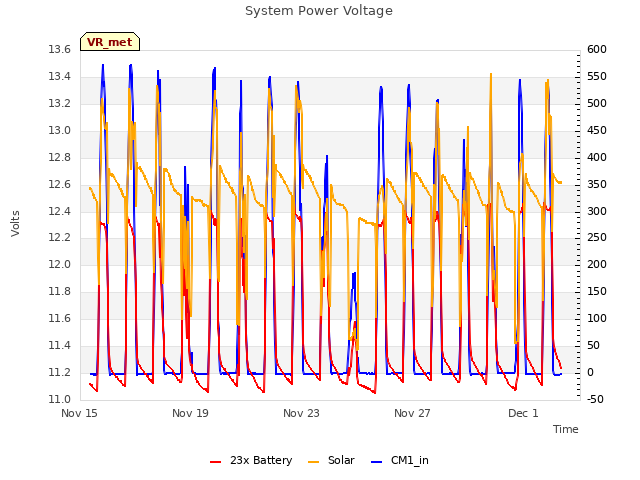

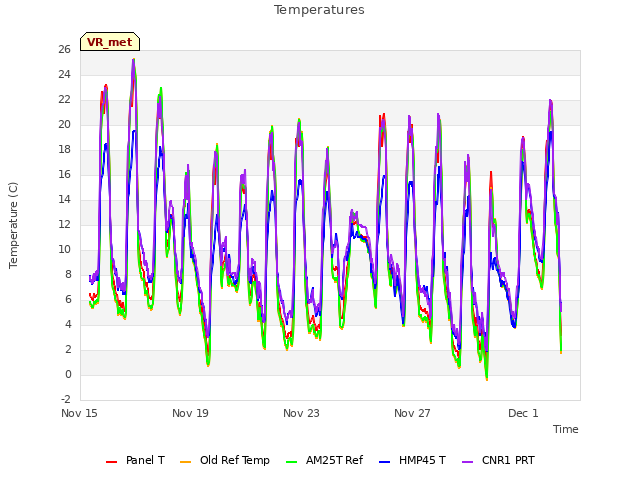

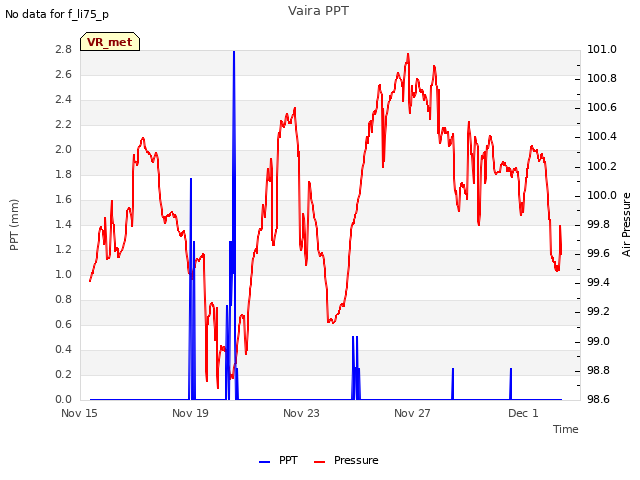

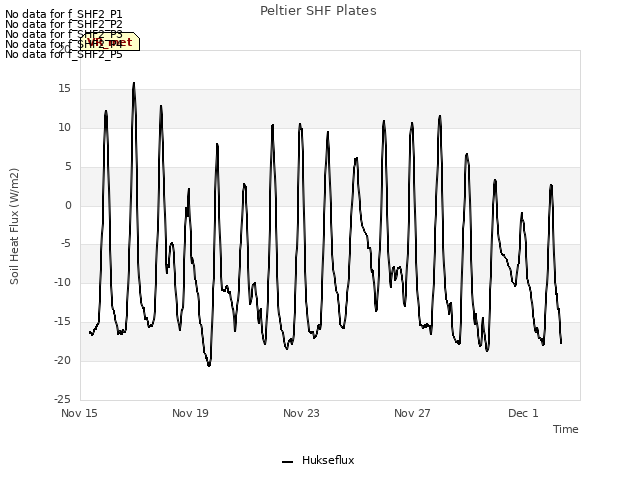

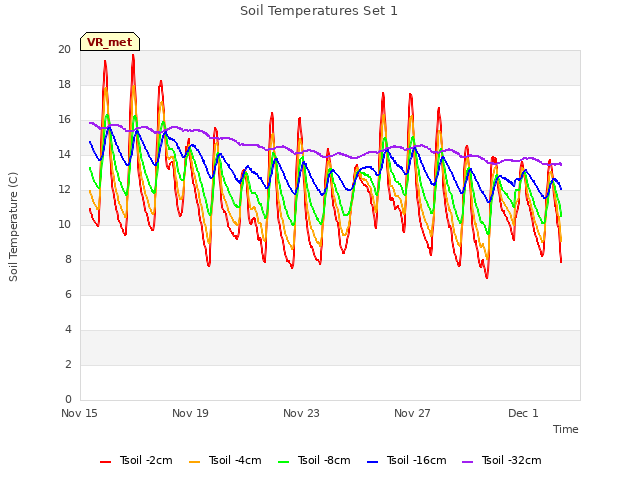

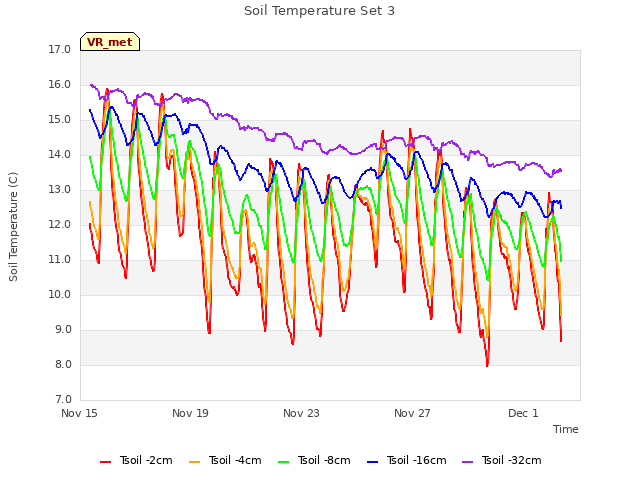

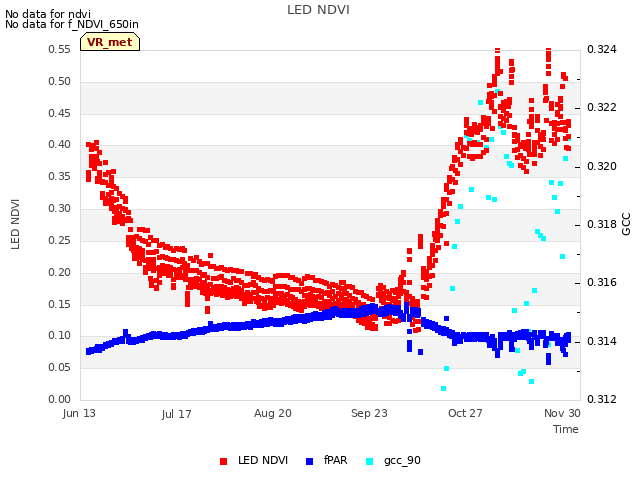

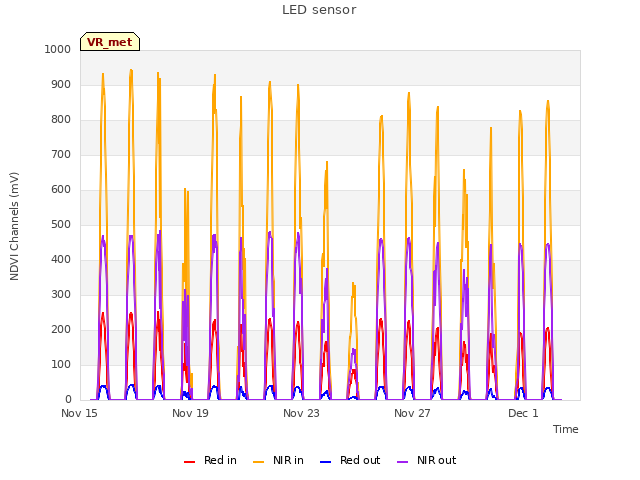

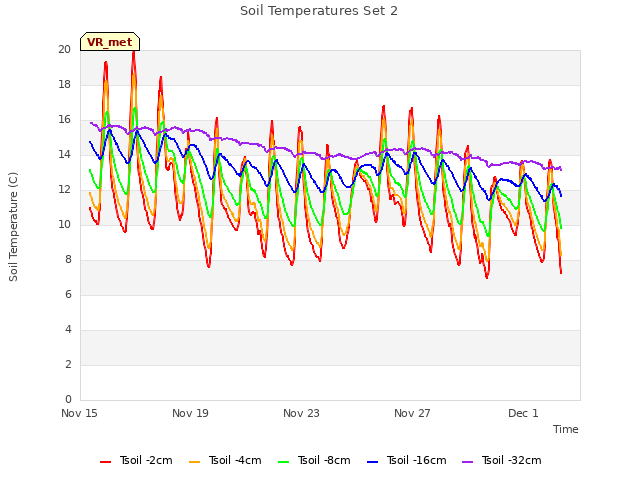

16 VR_met graphs found

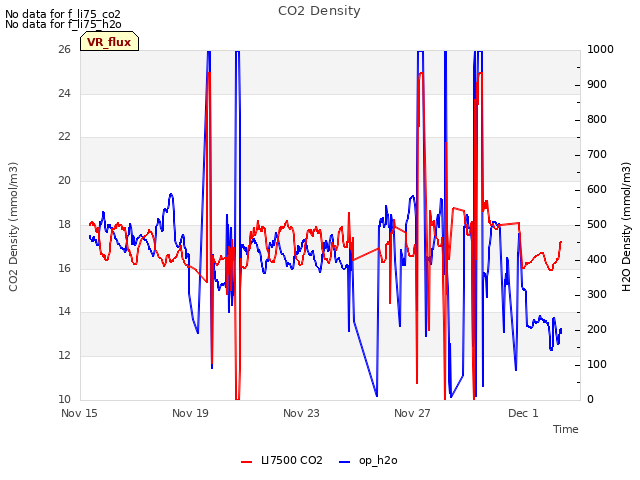

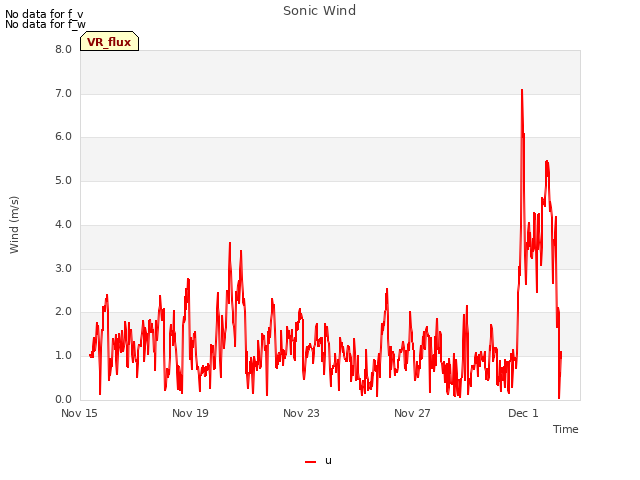

2 VR_flux graphs found
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
