Vaira: 2012-02-01 12:00:00 (DOY 32)
Author: Joe Verfaillie
Others: Siyan
Summary: Cows got inside the cow fence, extended cow fence for soil co2 install, low solar power, changed pyranometer desiccant.
| Varia

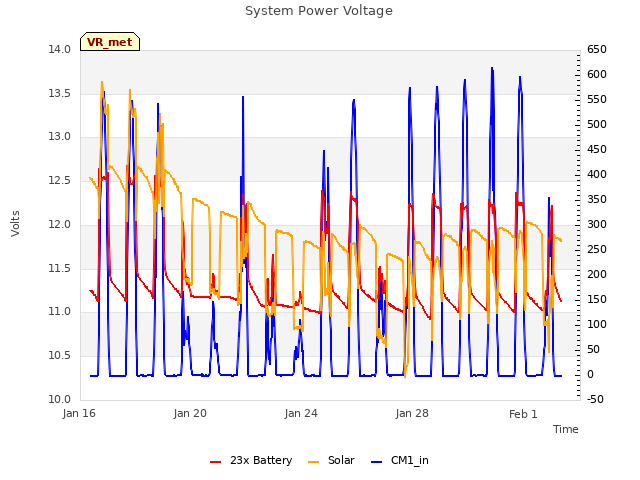

2012-02-01 I arrived about 12 noon with Siyan. It was cool and overcast with a light breeze. The cows have heavily grazed the field. The cows also seemed hungry hanging around us waiting for something. They left after a while but were next to the gate on the way out. An insulator came off the gate on the cow fence and there maybe was a fresh cow patty inside. I extended the cow fence about 5m to the northwest, the back end behind the solar panels. The plan is to install the Vaisala CO2 sensors here. There didn’t seem to be enough power to turn the computer screen on. I plugged in an extra battery I had brought for Tonzi and that worked. The computer seemed to run fine without the screen. We might have problems adding the Vaisala without adding more power. There was some condensation in the pyranometer and I changed the desiccant. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2012-02-01 | TZ_floor | 29.4 |
| 2012-02-01 | TZ_road | 38 |
| 2012-02-01 | TZ_tower | 34.3 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
5 photos found
Cows with Siyan in the background
Herd of black cows at Varia
Herd of black cows at Varia
Cows near the Vaira gate
Phenocam image distorted by water on the window
9 sets found

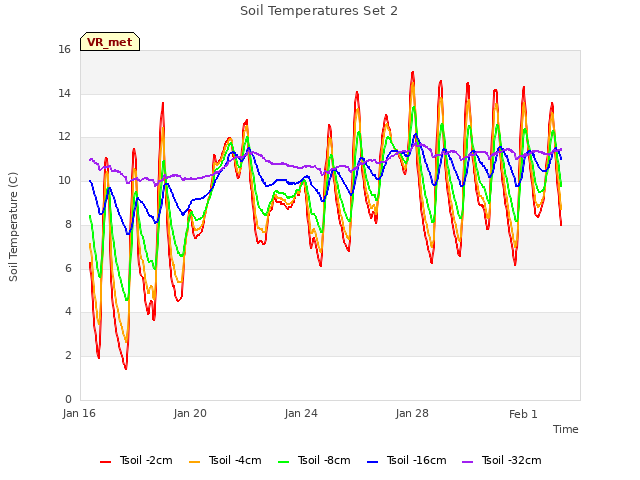

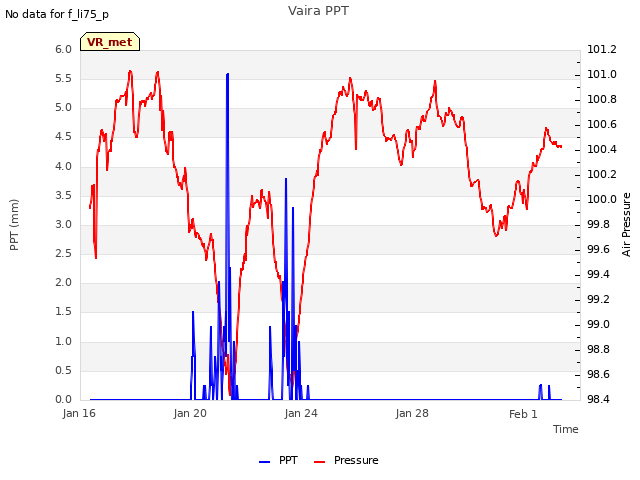

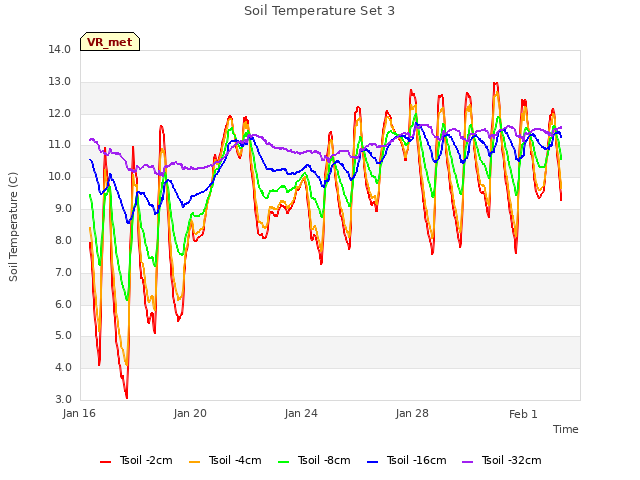

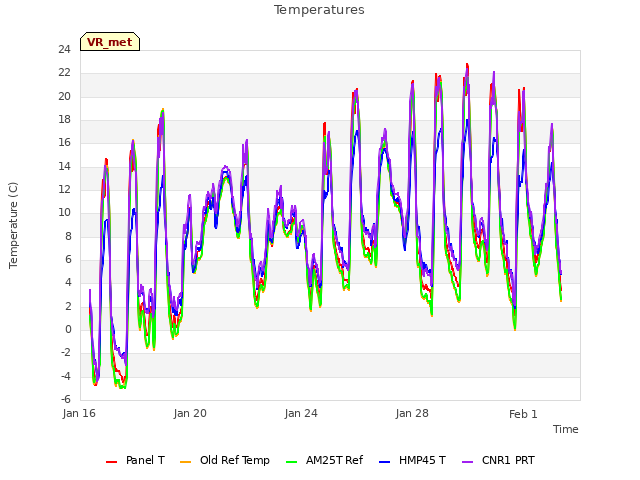

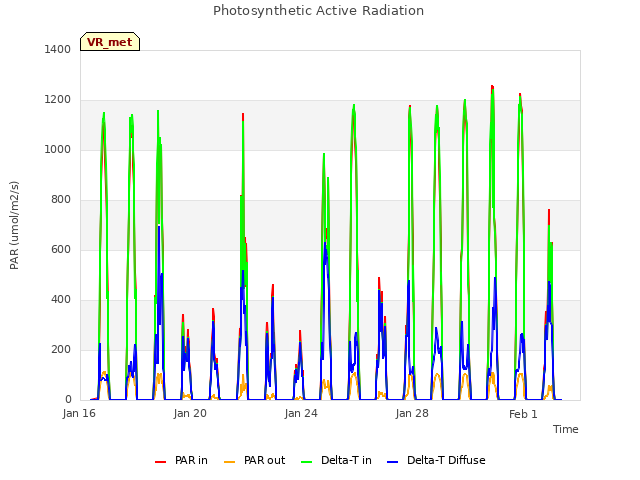

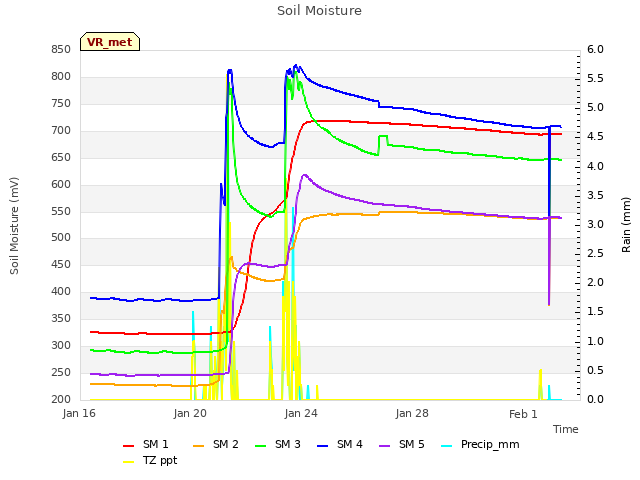

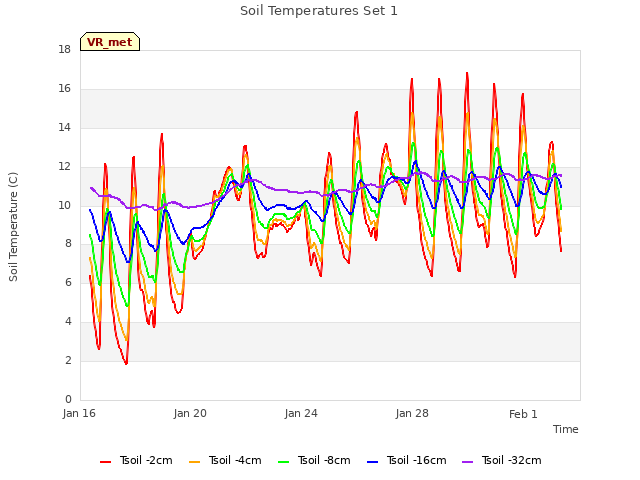

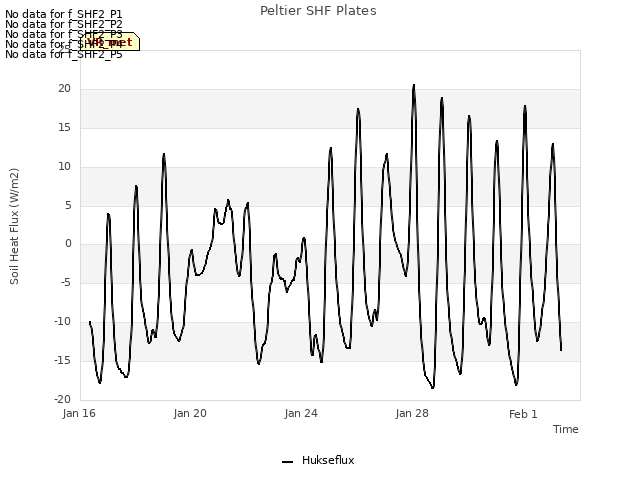

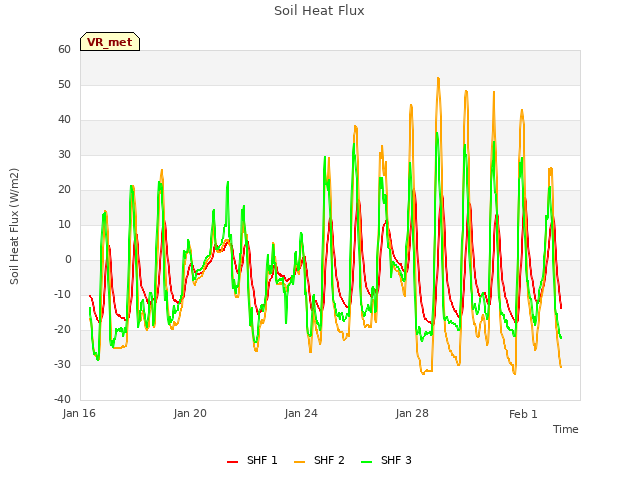

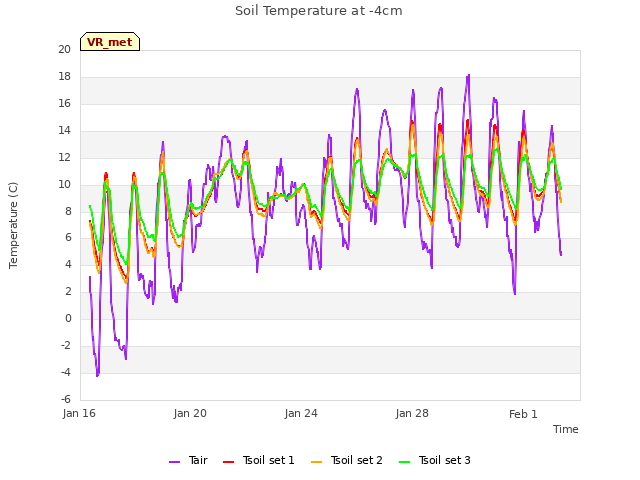

16 VR_met graphs found

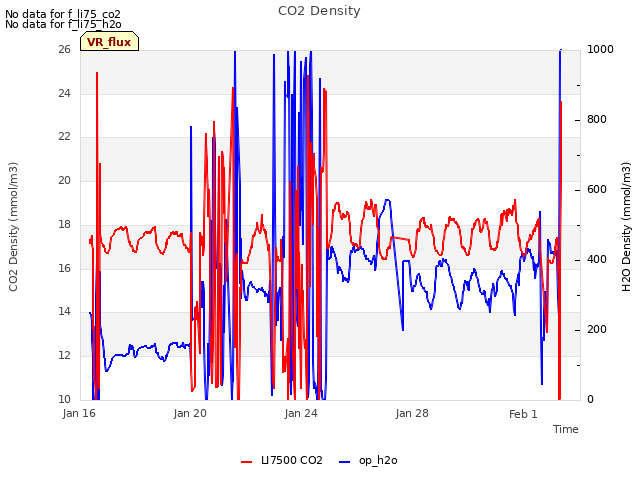

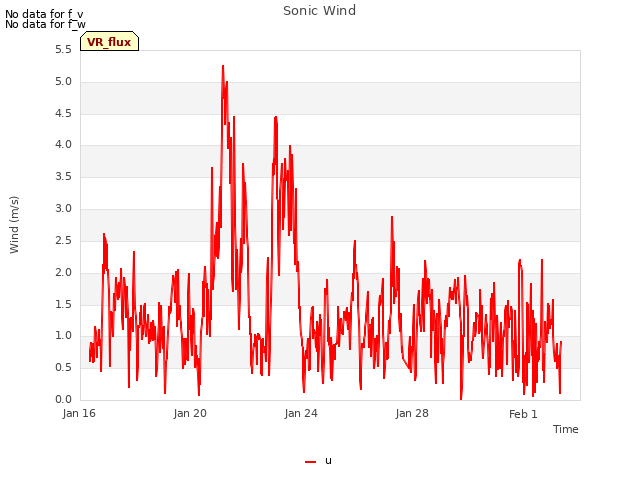

2 VR_flux graphs found
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
