Twitchell Rice: 2011-12-01 08:30:00 (DOY 335)
Author: Joe Verfaillie
Others: Siyan, Laurie, Erika

Summary: Quick check on power.

Twitchell
2011-12-01

I arrived about 8:30 with Siyan, Laurie and Erika. It was clear and cool with a strong wind from the north.

The power was up and everything was running. The LGR had a pressure of about 106Torr, I adjusted the bypass valve to set it to about 147Torr.

The computer was off. I started it up and checked the data loggers. One of the theta probes looks odd. I?m not sure the computer will catch up downloading data from the CR1000.

The power cord was plugged into the upper outlet instead of the lower outlet on the generator as before. I?m not sure if Jim replaced the outlet or not.

Left for Tonzi about 9AM.

2 photos found

Swans midway out on the left
Swans midway out on the left

UC Davis on sight
UC Davis on sight

Graphs display:
6 sets found

12 TW_met graphs found

Explore the graph:Soil Heat Flux in a new window

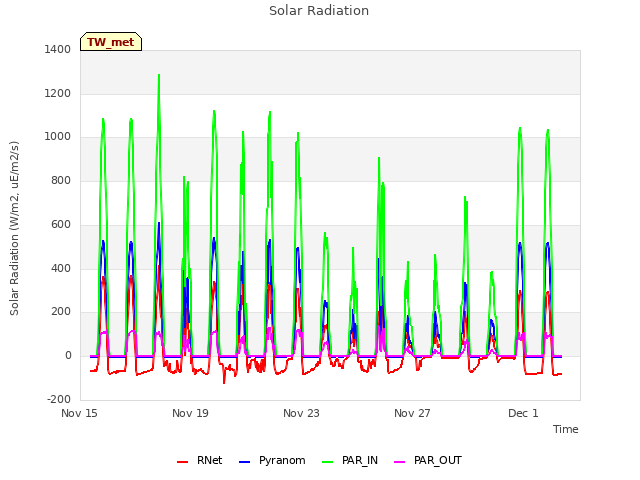

Explore the graph:Solar Radiation in a new window

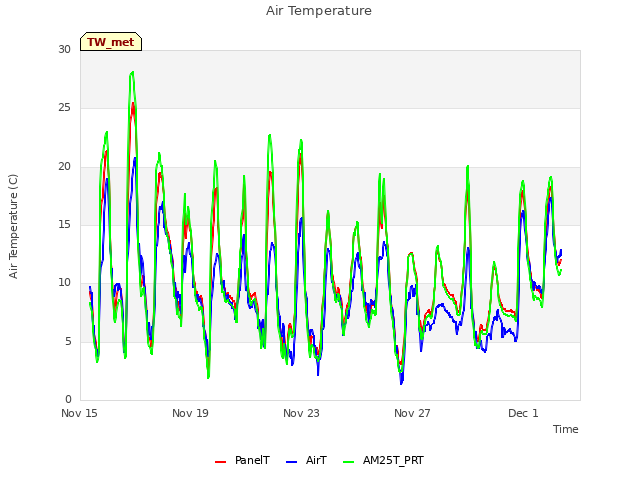

Explore the graph:Air Temperature in a new window

Explore the graph:Soil Temperature Set 1 in a new window

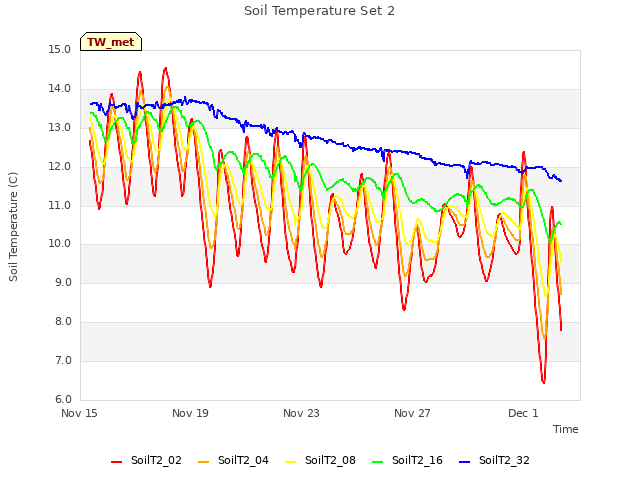

Explore the graph:Soil Temperature Set 2 in a new window

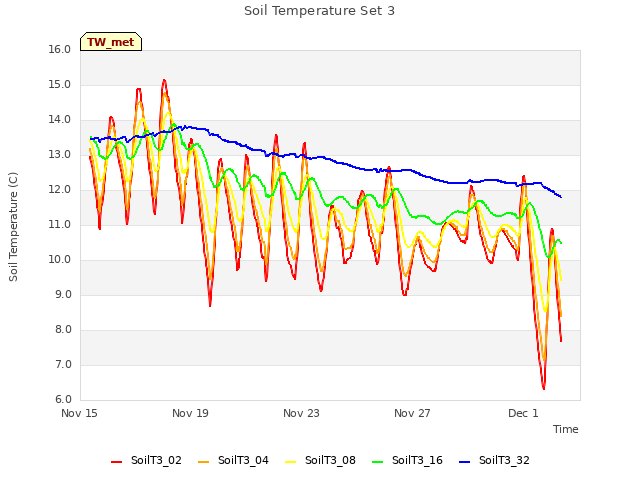

Explore the graph:Soil Temperature Set 3 in a new window

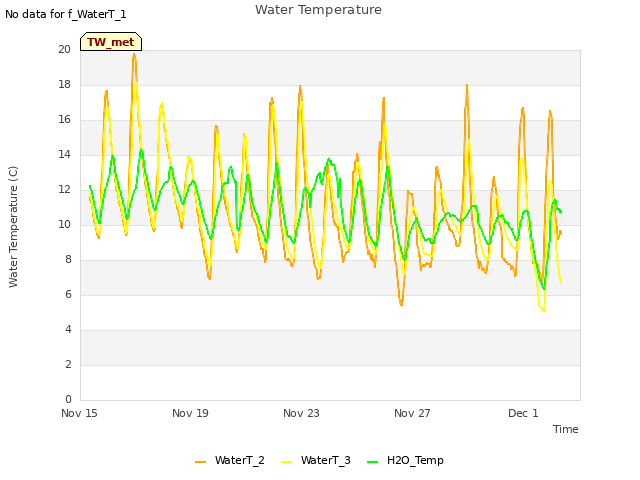

Explore the graph:Water Temperature in a new window

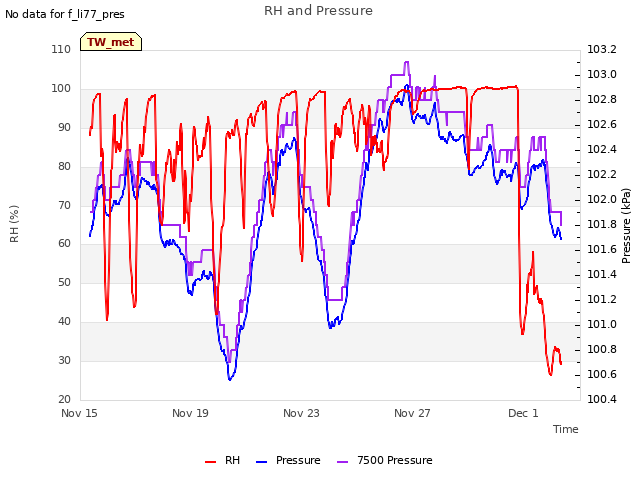

Explore the graph:RH and Pressure in a new window

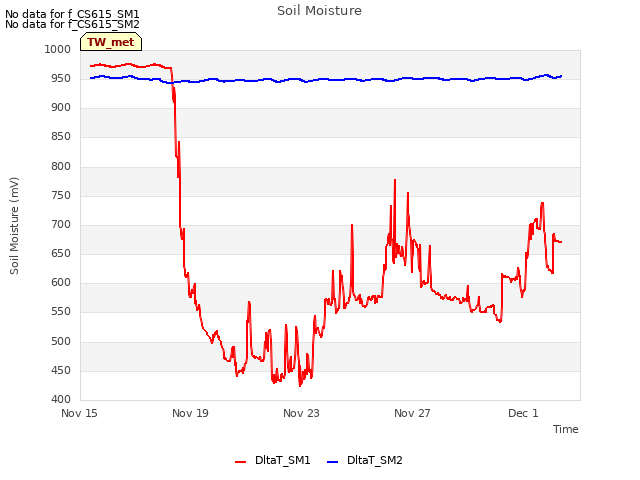

Explore the graph:Soil Moisture in a new window

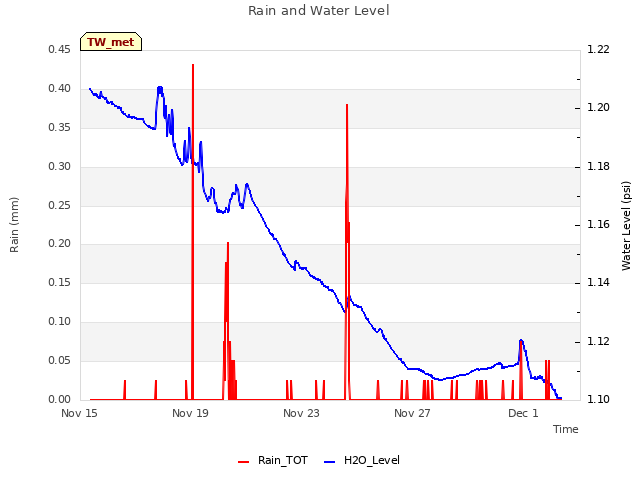

Explore the graph:Rain and Water Level in a new window

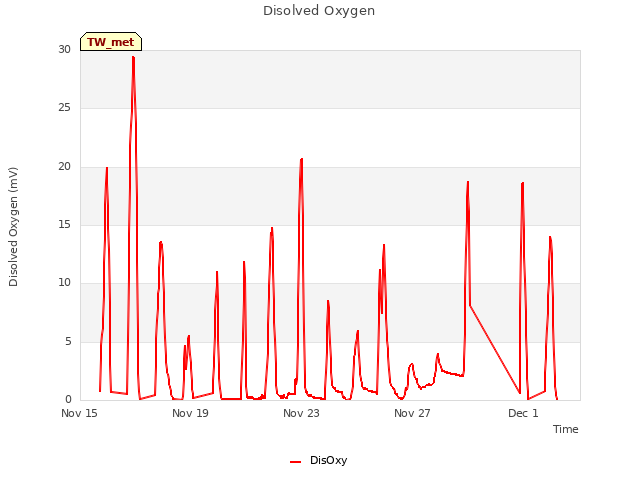

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

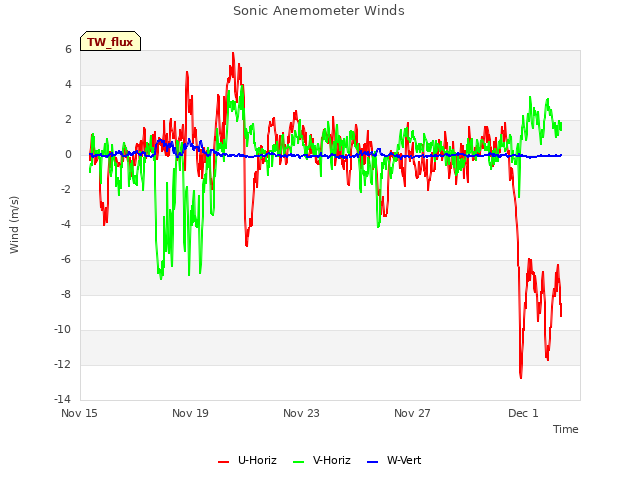

Explore the graph:Sonic Anemometer Winds in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

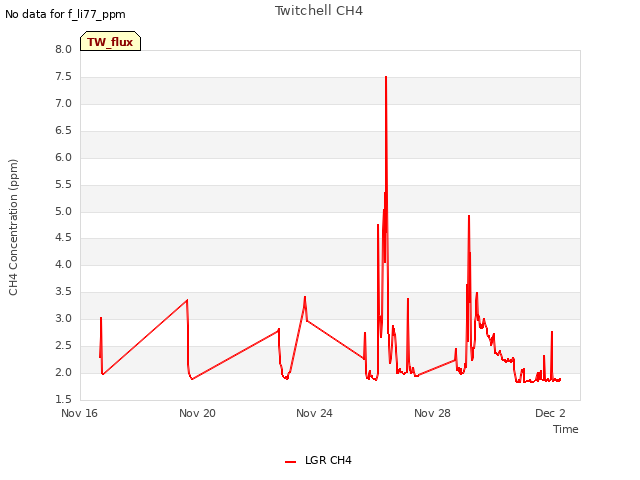

Explore the graph:Twitchell CH4 in a new window

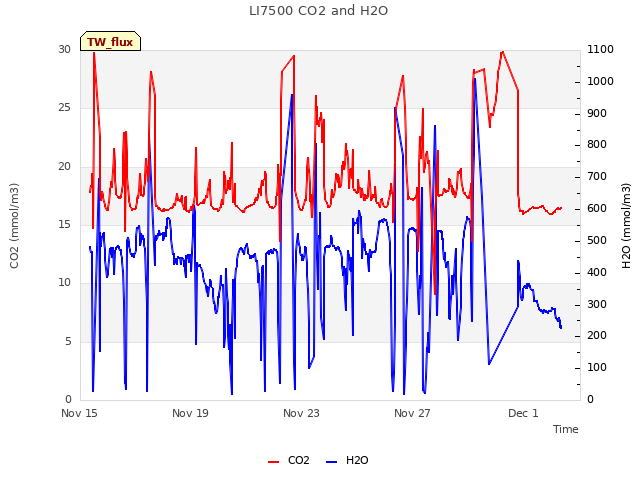

Explore the graph:LI7500 CO2 and H2O in a new window

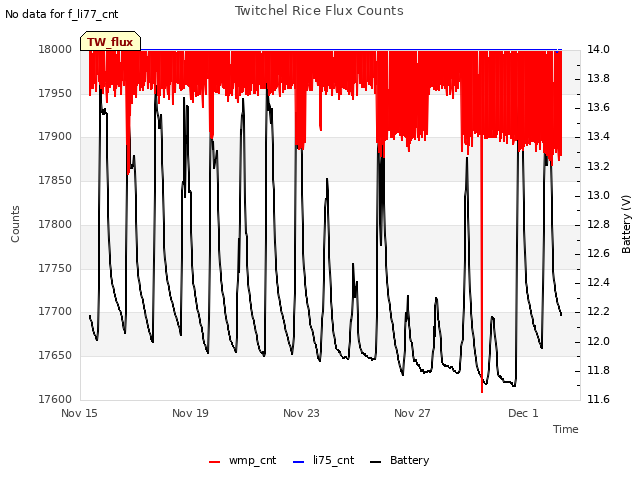

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

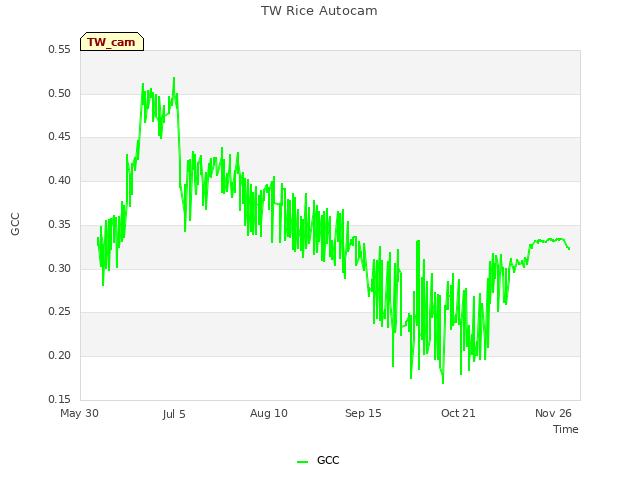

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
