Field Notes

<--2011-11-08 09:15:00 | 2011-11-22 09:30:00-->
Other sites visited today: Sherman Island | Vaira | Tonzi

Twitchell Rice: 2011-11-16 08:00:00 (DOY 320)
Author: Joe Verfaillie
Others:

Summary: Installed new autocam, replaced weather stripping, added braces to doors, power down due to popped GFI on generator.

Twitchell
2011-11-16

I arrived about 8am PST. It was clear, sunny and warm without any wind. There was some patchy fog mostly farther to the northwest. The field is completely flooded.

When I arrived the power to the box was down. The generator was running but the GFI outlet on the generator had popped. I reset it and power was restored. Looking at the data files seems it had been down almost a week. Several days of data after our last visit were recorded hopefully catching flood up of the field. I left a message with Jim to check the GFI on the generator.

I installed a new camera of a 4x4 post attached to the side of the box. The camera is a Canon A480 with CHDK firmware and a custom script to take photos every 30 minutes. This is a temporary mounting since I didn?t have some of the hardware I needed and wanted to leave the existing plantcam up for a while longer for a cross comparison.

I also installed new weather stripping around both door openings on the box. And I put some wooden braces across the top and bottom of the doors to prevent them from warping.

I collected some water samples for Jaclyn and Emily G. The water depth is about 20C near the well.

Before I left the LGR was reading:
10:03PST, 22.90C, 141.78Torr, 14.303usec, 10Hz, 1.937ppm

When I arrived CH4 was as high as 3ppm ? no wind.

On my way out, the kestrel that has been sitting on the plantcam had already found the new post.

14 photos found

view of field site
view of field site

view of field site
view of field site

view of field site
view of field site

view of field site
view of field site

view of field site
view of field site

view of field site
view of field site

view of field site
view of field site

Kestral on LGR inlet.
Kestral on LGR inlet.

UC Davis and Black Phoebe on site.
UC Davis and Black Phoebe on site.

Nice sunset.
Nice sunset.

Nice Sunset.
Nice Sunset.

Nice Sunset.
Nice Sunset.

UC Davis on site
UC Davis on site

Nice Sunset
Nice Sunset

Graphs display:
6 sets found

12 TW_met graphs found

Soil Heat Flux

Solar Radiation

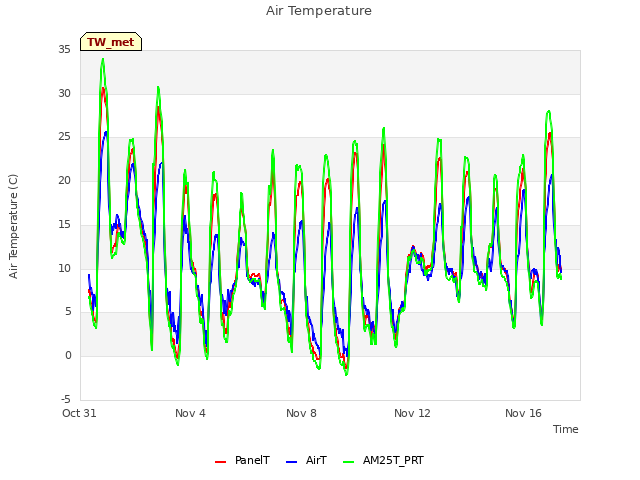

Air Temperature

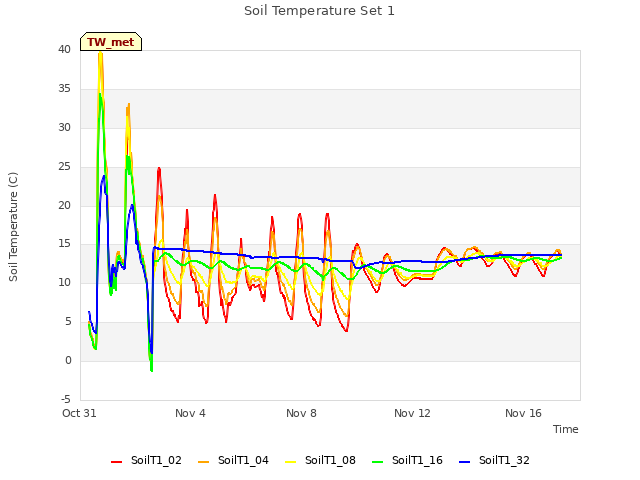

Soil Temperature Set 1

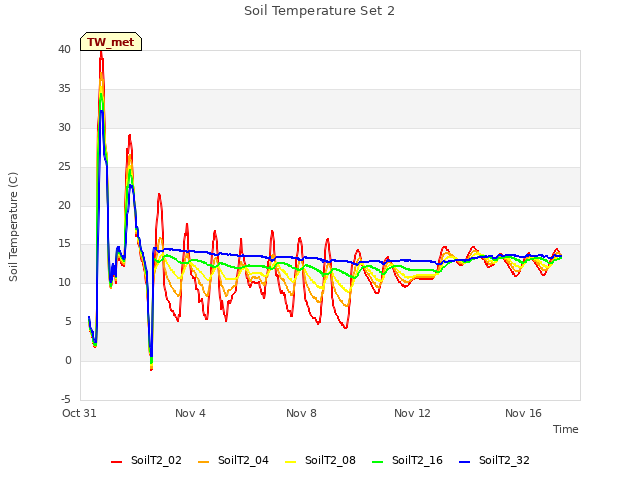

Soil Temperature Set 2

Soil Temperature Set 3

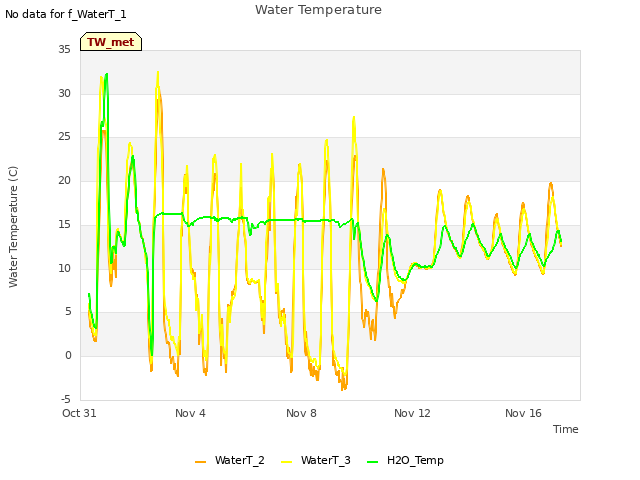

Water Temperature

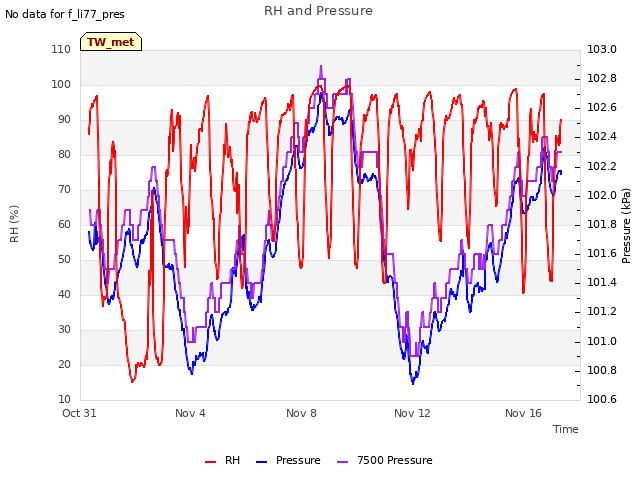

RH and Pressure

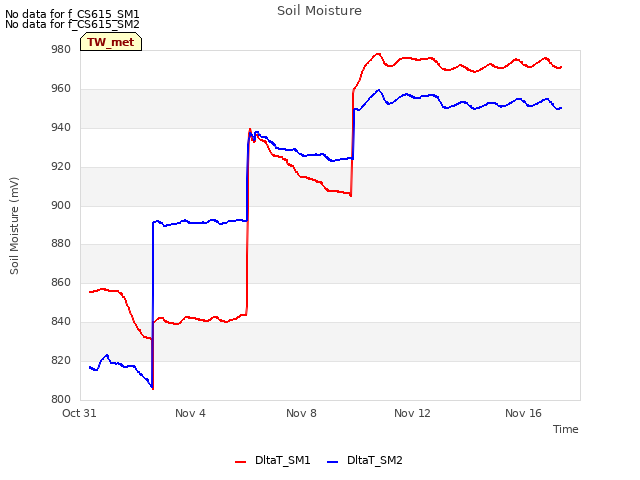

Soil Moisture

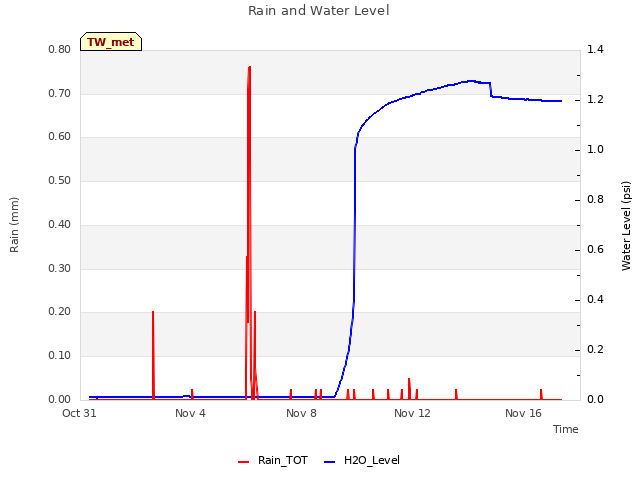

Rain and Water Level

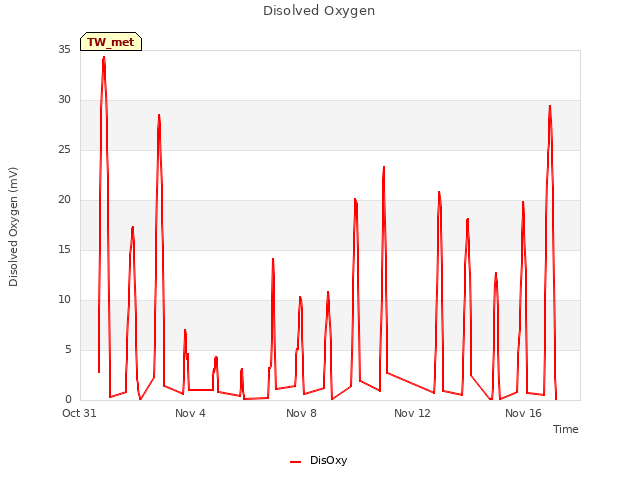

Disolved Oxygen

LED NDVI Channels

5 TW_flux graphs found

Sonic Anemometer Winds

LI7700 CH4 and RSSI

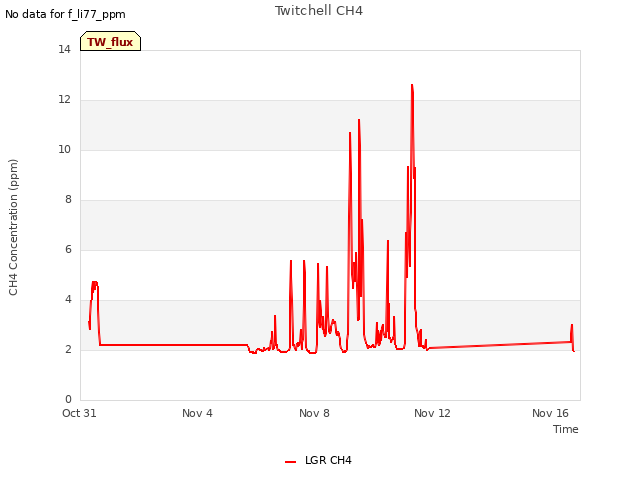

Twitchell CH4

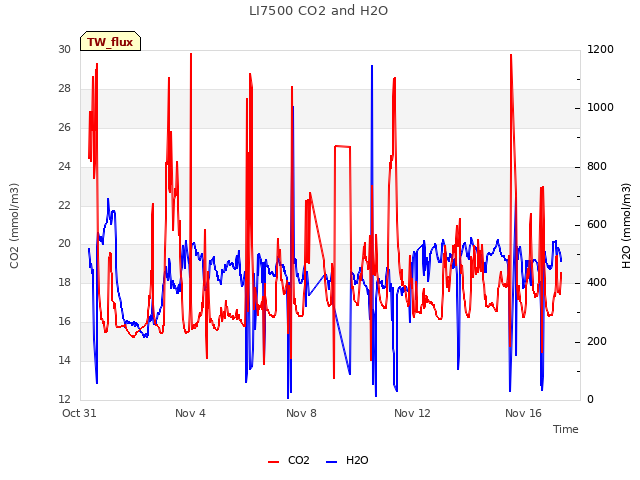

LI7500 CO2 and H2O

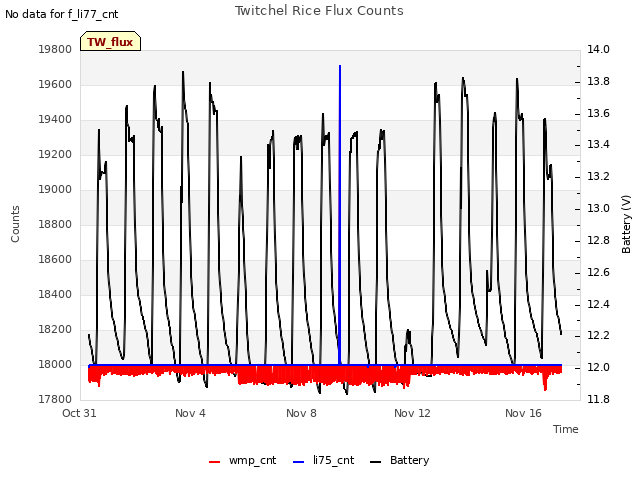

Twitchel Rice Flux Counts

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

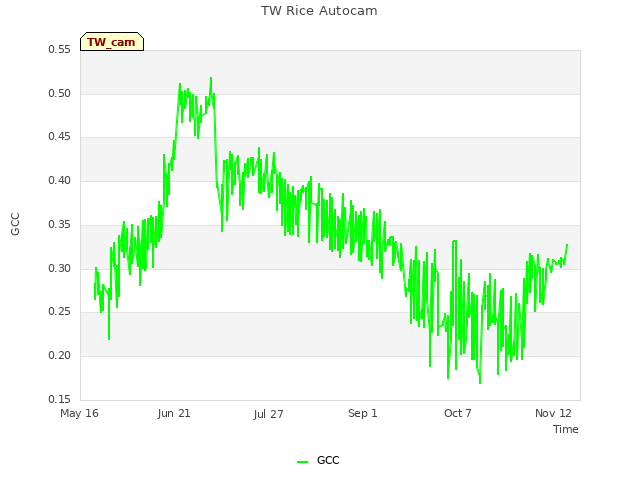

TW Rice Autocam

Can't check TATWBABCSB_cam
