East End: 2024-09-26 11:00:00 (DOY 270)
Author: Daphne Szutu
Others: Carlos

Summary: Regular data collection/cleaning, wasps in enclosure

2024-09-26
East End

Carlos and I arrived at 11:00 PST. It was warm and there were lots of wasps flying around. The staff gauge read 50cm.

I downloaded met, cam, and USB GHG data. The water level sensor jumped again. I would like to move it to underneath the met box, hanging straight down, so hopefully it was be disturbed less. I downloaded the miniDOT data and swapped its desiccant. I planned to update its clock today, but this is an older miniDOT and I didn’t bring the correct cable. Next time. Carlos cleaned flux and rad sensors and topped off the wash reservoir. He reported the rain bucket was clean.

We measured the surface water conductivity.
Surface, 296uS, 15.6C

The 7500 read: 409ppm CO2, 720mmol/m3 H2O, 24.4C, 101.1kPa, 98SS - 99 after cleaning
The 7700 read: 2.15ppm CH4, 61RSSI - 75 after cleaning

I noticed that there were some wasps flying in/out of the middle box, the newest installed box that has just a power strip in it. I opened the box and discovered probably 200 wasps. They didn’t seem aggressive, and I didn’t see any honeycomb nests, so I evicted all of the wasps, mostly by knocking on the box. I had to prod a few last wasps out with a reed. I had to unscrew the wooden backing board to get all the wasps behind the board. The board is still loose. I sealed the hole on the bottom of the box with electrical tape. I would like to move the met box datalogger/mux to this box eventually because it’s more pleasant on the middle level than the darker and less ergonomic lower level.

We left at 12:00 PST.

2 photos found

Wasps in enclosure. Guess I should have sealed this box better.
Wasps in enclosure. Guess I should have sealed this box better.

Wasps on back of wooden backing board
Wasps on back of wooden backing board

Graphs display:
11 sets found

14 EE_met graphs found

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:PAR in a new window

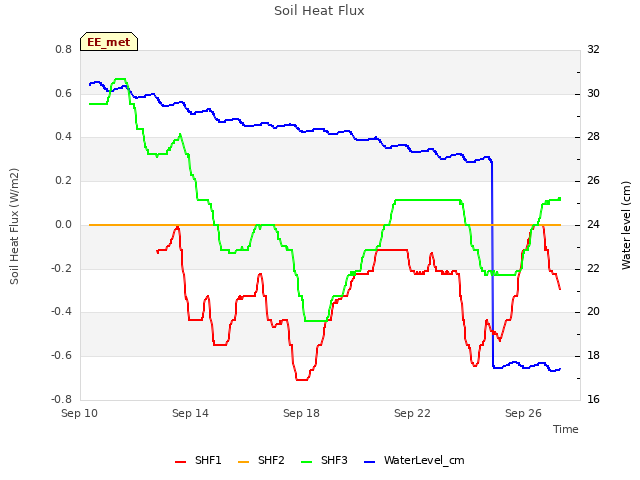

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Water Level and Rain in a new window

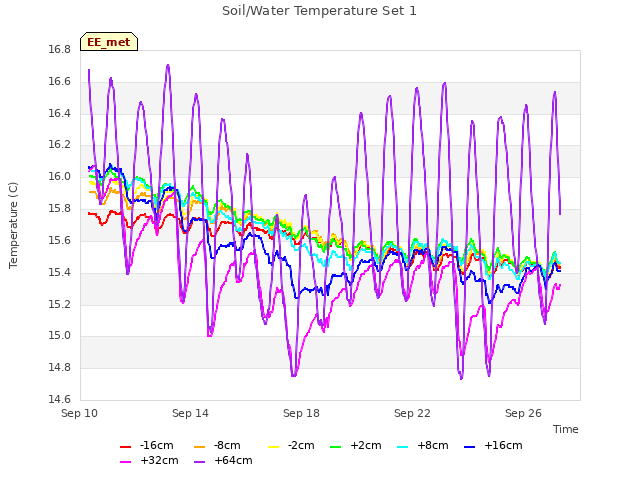

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

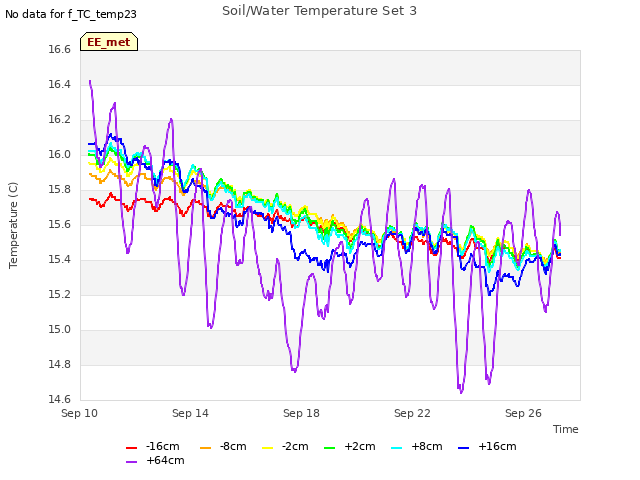

Explore the graph:Soil/Water Temperature Set 3 in a new window

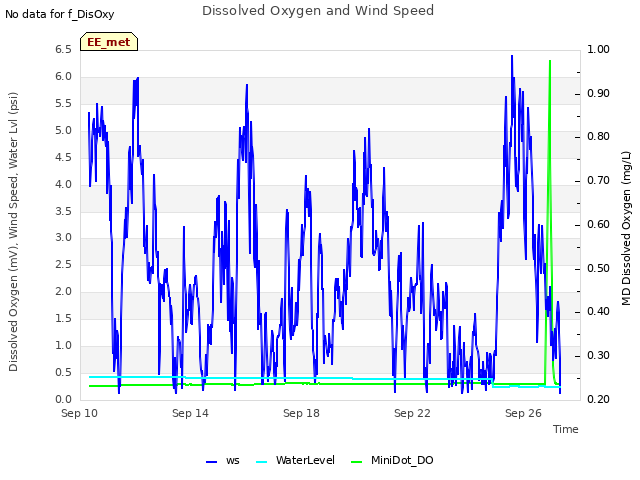

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

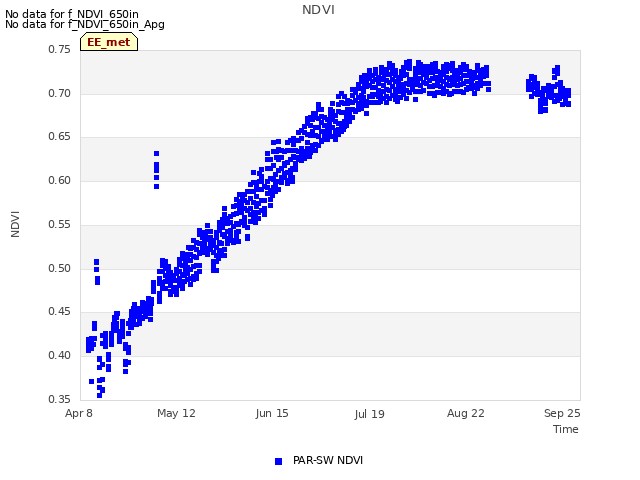

Explore the graph:NDVI in a new window

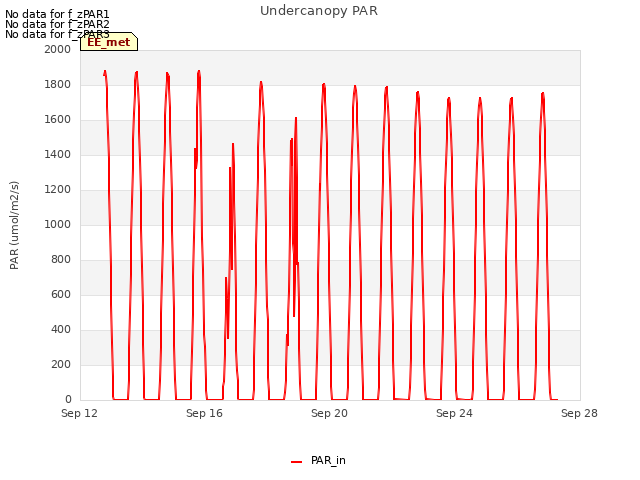

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

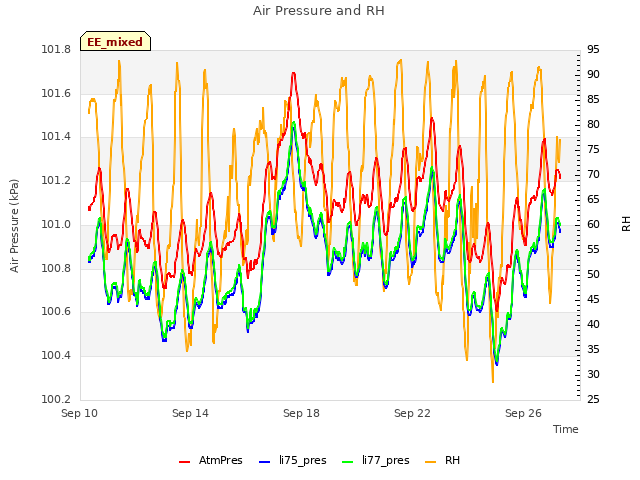

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

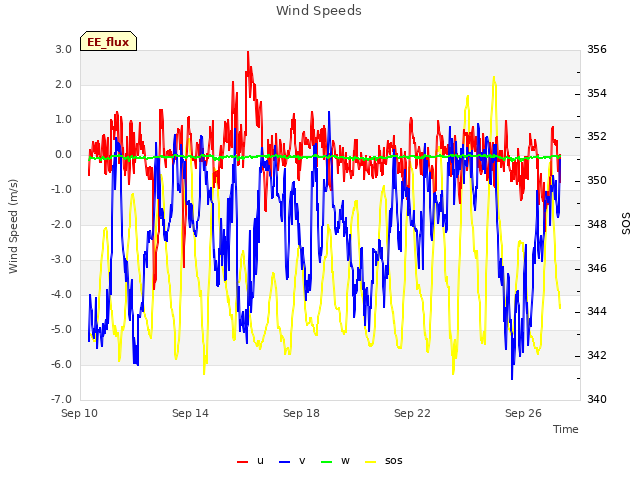

Explore the graph:Wind Speeds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

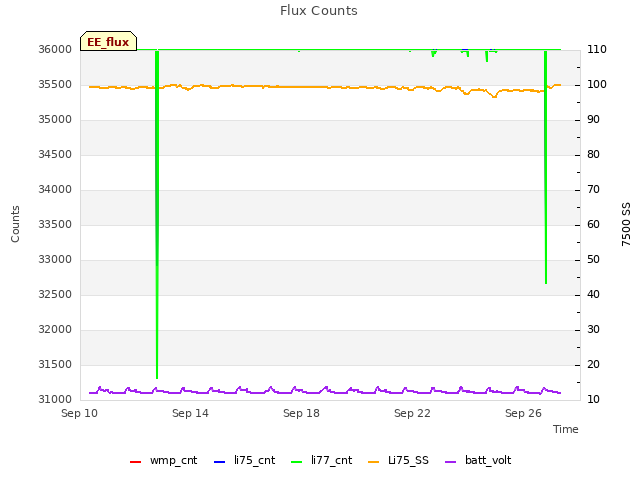

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

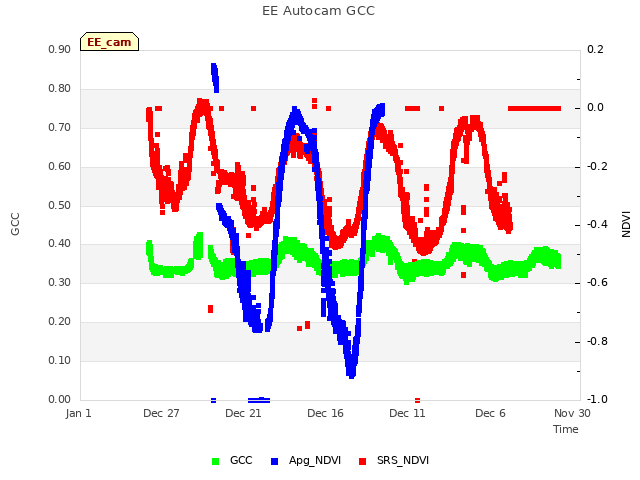

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

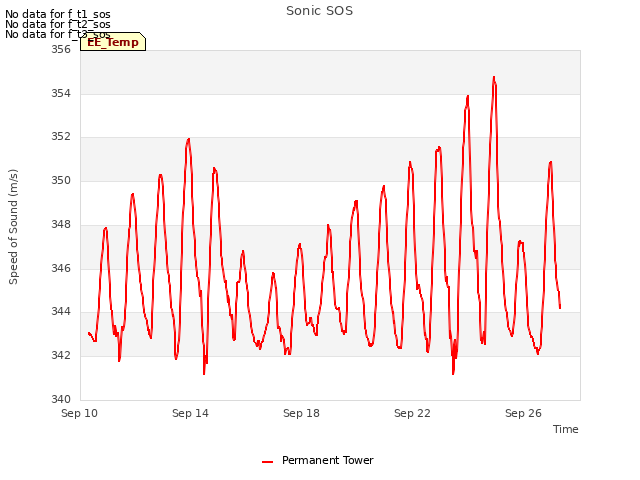

Explore the graph:Sonic SOS in a new window

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

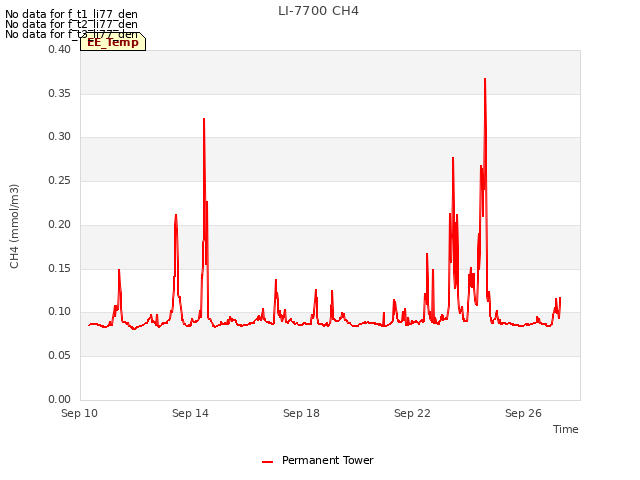

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

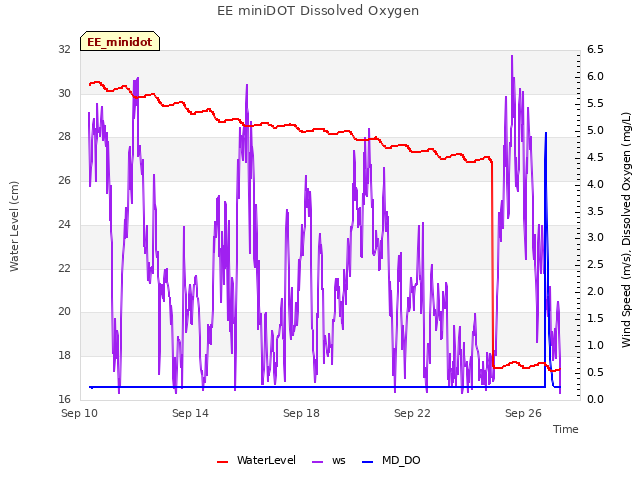

Explore the graph:EE miniDOT Dissolved Oxygen in a new window
