Gilbert Tract: 2024-09-26 08:30:00 (DOY 270)
Author: Daphne Szutu
Others: Carlos, Joe

Summary: Installed new solar batteries with improved security, downloaded wetland DO data

2024-09-26
Gilbert Tract

Carlos, Joe, and I arrived around 8:30 PST. It was sunny, cool, and breezy. Joe had purchased 4 new batteries for sn BB-GT to replace the ones that were stolen earlier this week.

Joe and Carlos worked on installing the batteries. They moved the boardwalk lower so the battery box will be less visible from the road. Before wiring all of the batteries, Joe added an aluminum bar across the top of all the batteries. The bar is secured with all-thread that goes through the box, through the boardwalk wood, and through metal cross pieces underneath the wood that Joe added today. The all-thread is secured with security nut on top and bottom. He also added a lock to the action packer box with our usual code. We probably didn’t add a lock before because Joe had to drill a bigger hole through the plastic latch to fit the lock shackle.

While they were working on the batteries, I waded back out into the wetland to download the miniDOT data. I did not change their desiccants today. Wading was less stressful today because the water was only up to my knees, not up to my chest. I trimmed back some of the reeds around the tower.

After the power was on, I downloaded the met data. There was about 12 hours of data before the lithium power pack ran out of juice. Carlos cleaned the 7700.

The 7500 read 420ppm CO2, 700mmol/m3 H2O, 20.8C, 101.4kPa, 101SS
The 7700 read: 2.1ppm CH4, 55RSSI - 81 after cleaning

We measured the surface water conductivity. The staff gauge read 40cm at 9:59 PST.

Surface, 533uS, 19.2C

We left around 10:00 PST. Joe headed home and Carlos and I continued on to service other sites.

4 photos found

Empty ActionPacker battery box on the ground under the solar panels. Batteries stolen
Empty ActionPacker battery box on the ground under the solar panels. Batteries stolen

Daphne waist deep in the azolla covered wetland
Daphne waist deep in the azolla covered wetland

Security nut on underside of boardwalk to secure the new batteries
Security nut on underside of boardwalk to secure the new batteries

New batteries strapped into battery box
New batteries strapped into battery box

Graphs display:
8 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 GT_met graphs found

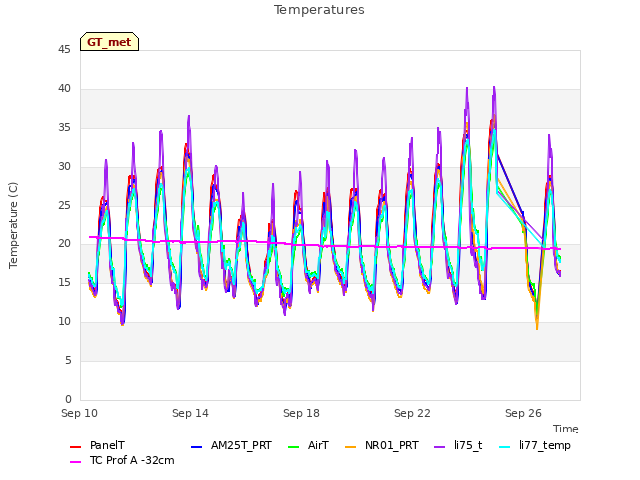

Explore the graph:Temperatures in a new window

Explore the graph:Temperature Profile A in a new window

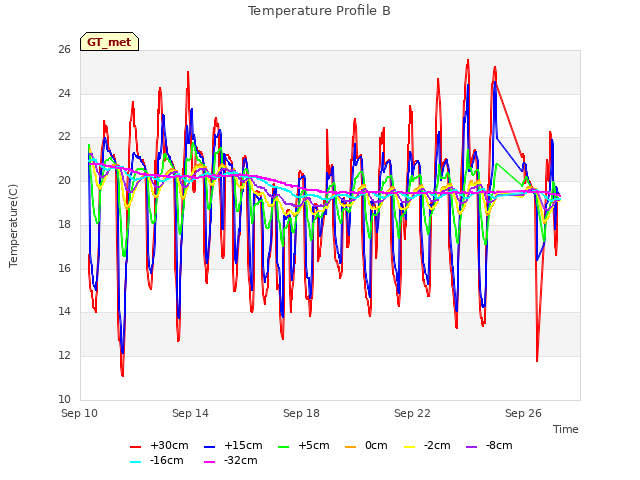

Explore the graph:Temperature Profile B in a new window

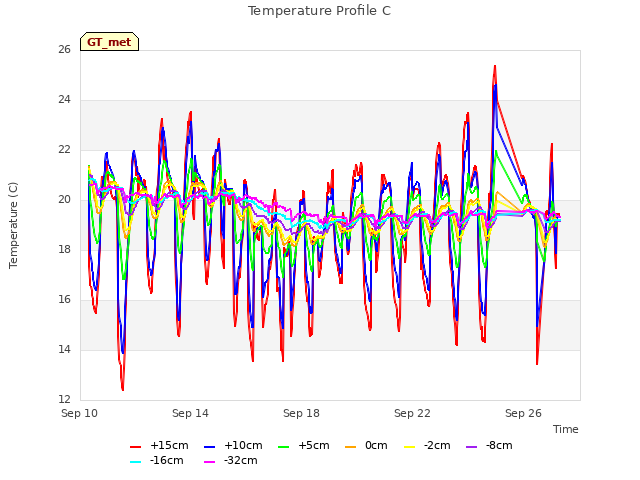

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

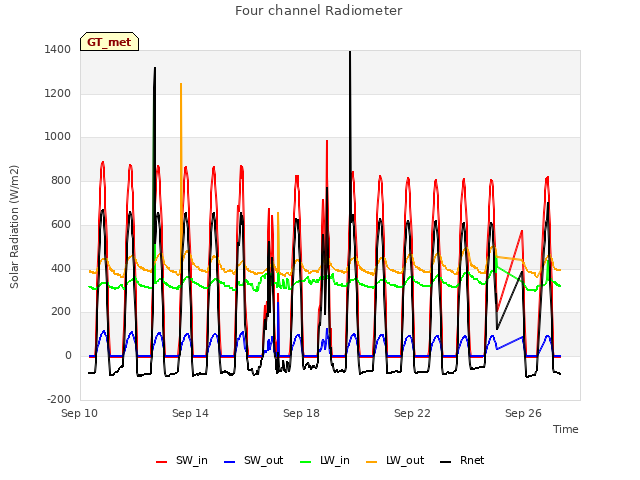

Explore the graph:Four channel Radiometer in a new window

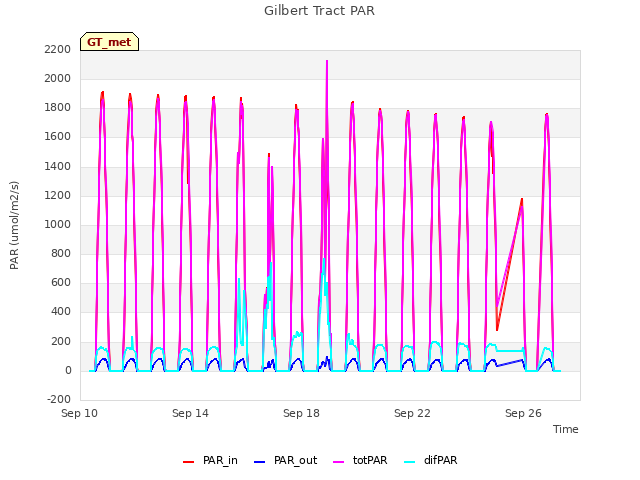

Explore the graph:Gilbert Tract PAR in a new window

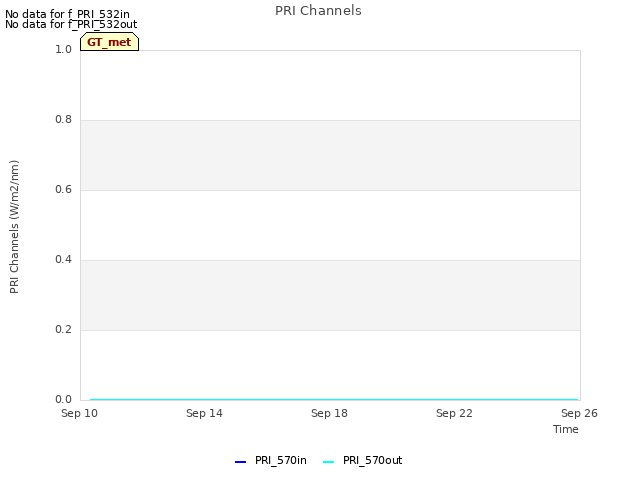

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI Channels in a new window

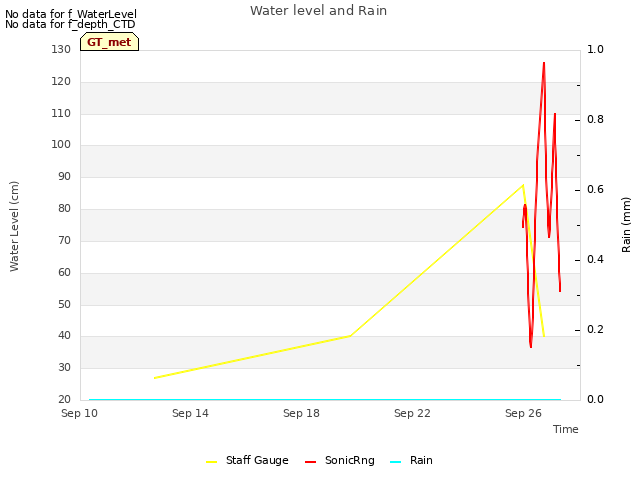

Explore the graph:Water level and Rain in a new window

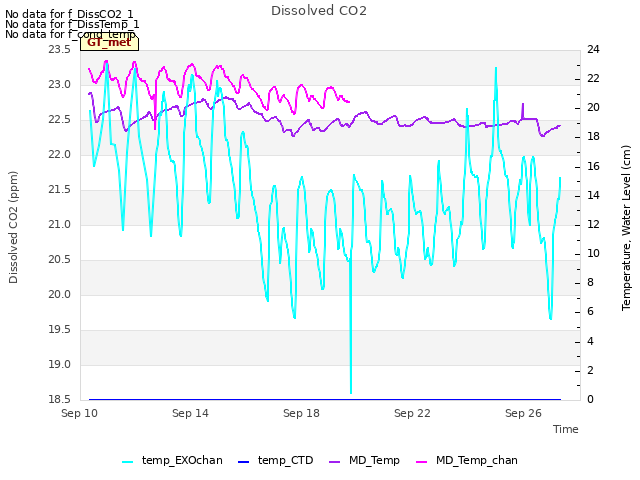

Explore the graph:Dissolved CO2 in a new window

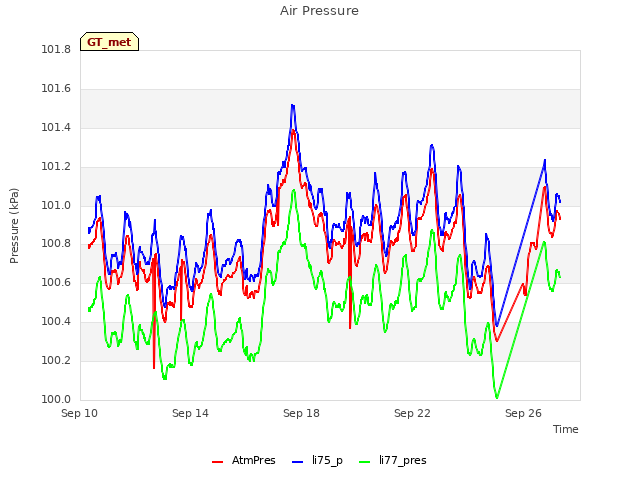

Explore the graph:Air Pressure in a new window

Explore the graph:Battery Voltage and RH in a new window

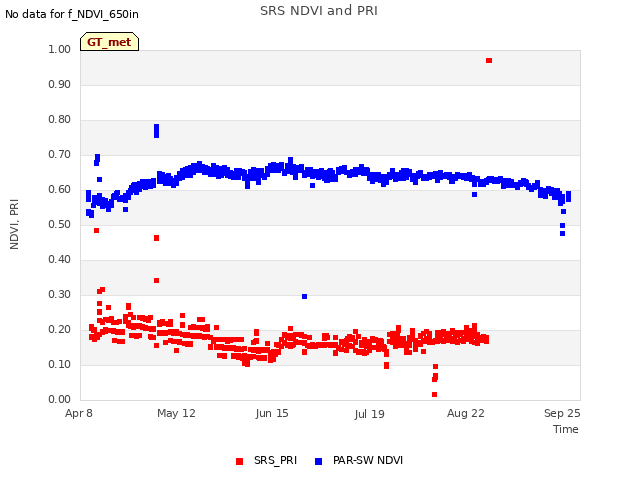

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:Conductivity in a new window

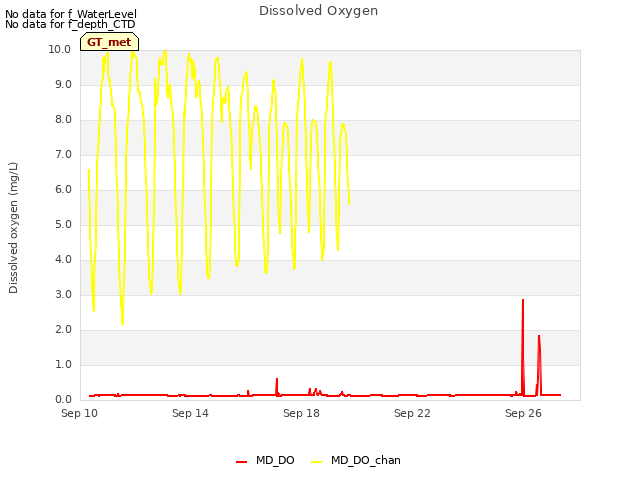

Explore the graph:Dissolved Oxygen in a new window

4 GT_flux graphs found

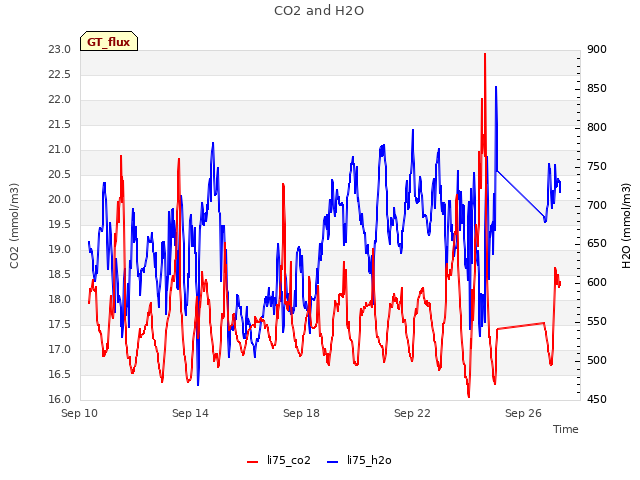

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

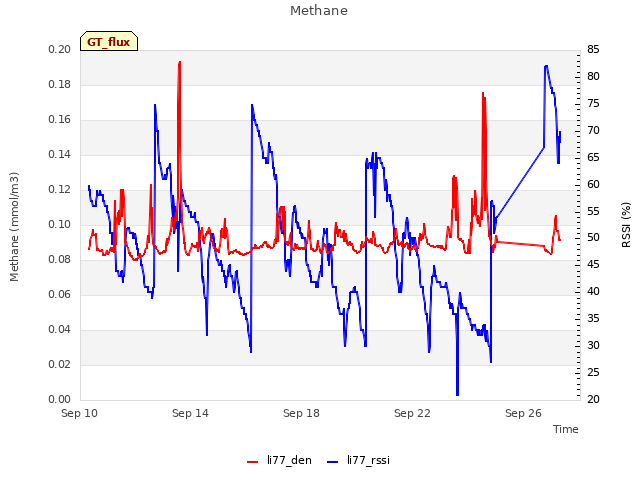

Explore the graph:Methane in a new window

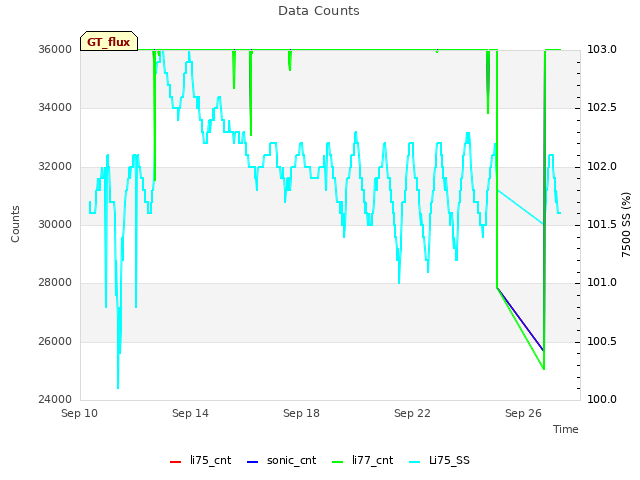

Explore the graph:Data Counts in a new window

3 GT_adcp graphs found

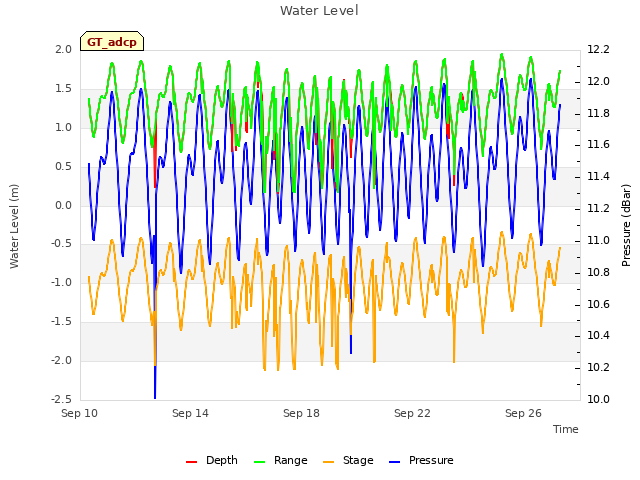

Explore the graph:Water Level in a new window

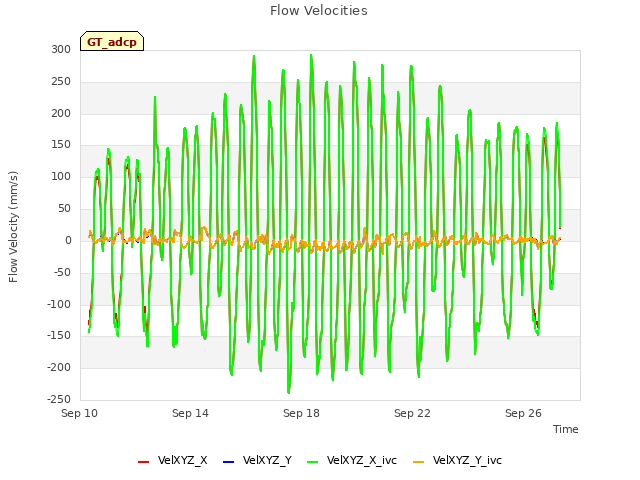

Explore the graph:Flow Velocities in a new window

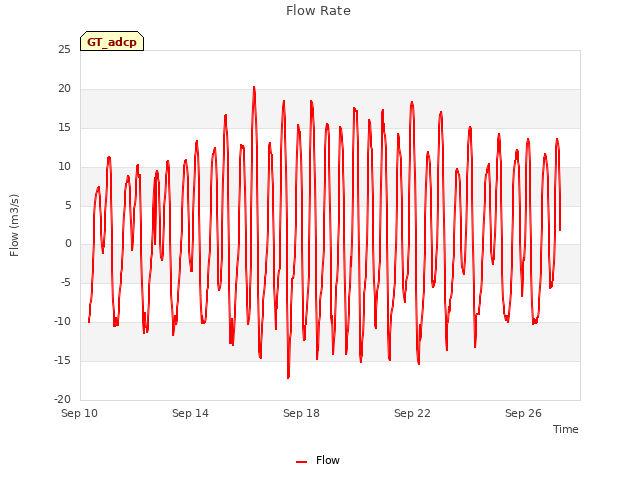

Explore the graph:Flow Rate in a new window

1 GT_cam graphs found

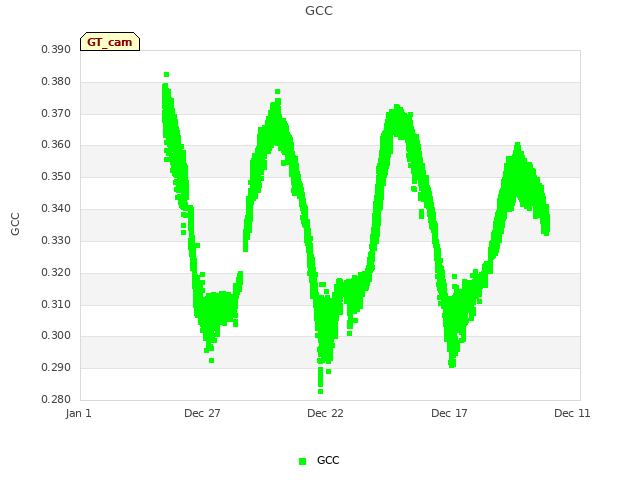

Explore the graph:GCC in a new window

2 GT_usgs graphs found

Explore the graph:Jersey Island EC, Turbidity in a new window

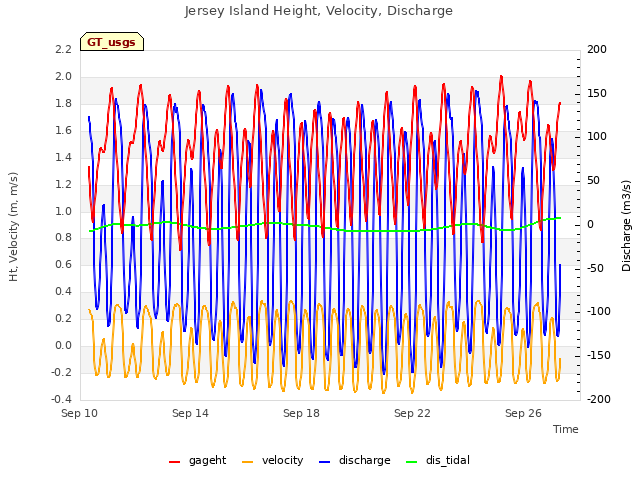

Explore the graph:Jersey Island Height, Velocity, Discharge in a new window

2 GT_chanexo graphs found

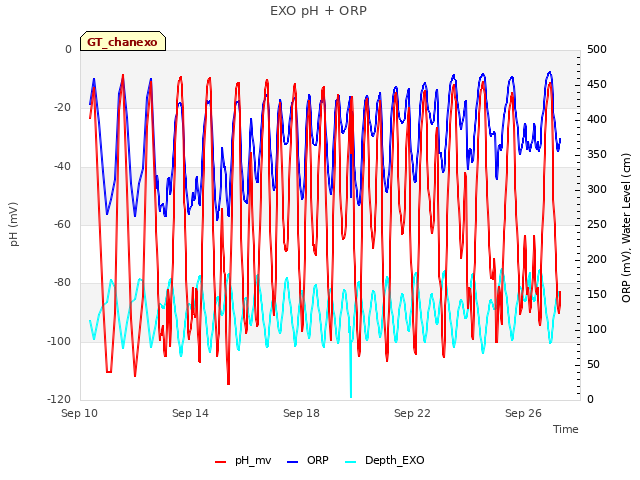

Explore the graph:EXO pH + ORP in a new window

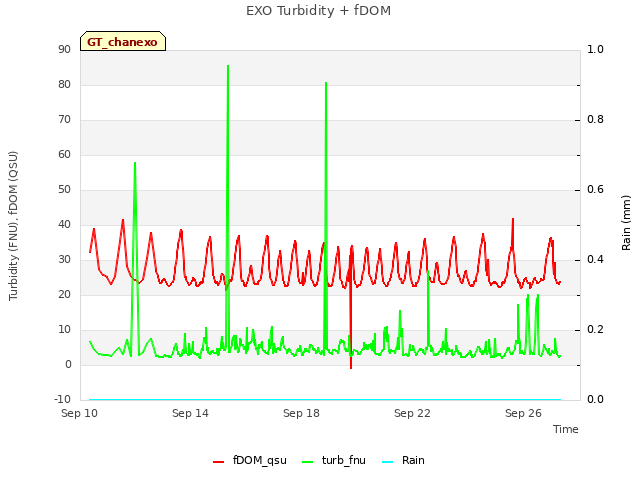

Explore the graph:EXO Turbidity + fDOM in a new window
