Gilbert Tract: 2024-01-04 15:23:00 (DOY 4)
Author: Joe Verfaillie
Others: Dennis

Summary: Year end data collection, all seemed well.

Gilbert Tract
2024-01-04

Dennis and I arrived at 15:23. It was clear and sunny but beginning to cool down and a breeze was picking up. It was close to low tide here but still ebbing. The water level was 42cm at 15:33.

Dennis cleaned the eddy sensors and the radiometers and made sure the tipping bucket was clean.
The 7500 read: 433.5ppm CO2, 408.4mmol/m3 H2O, 15.2C, 102.3kPa, 101.1SS
The 7700 read: 2.04ppm CH4, 66RSSI – 80.4 after cleaning
The wash reservoir was refilled by about half.

I collected the flux, met, camera and miniDot data. Lowering the water sensors and checking the CTD conductivity were on the list but I skipped/missed those. I think a floating boom might be useful for the water sensors.

We went to the channel and downloaded the flow data. This time the software asked for a clock reset (yes), pressure calibration (no) and warned that the firmware was old. I stopped logging, collected the data and restarted logging. We waited for about 5min to see if the real time data window would update but didn’t see that happen.

We left at 15:50

0 photos found

Graphs display:
8 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 GT_met graphs found

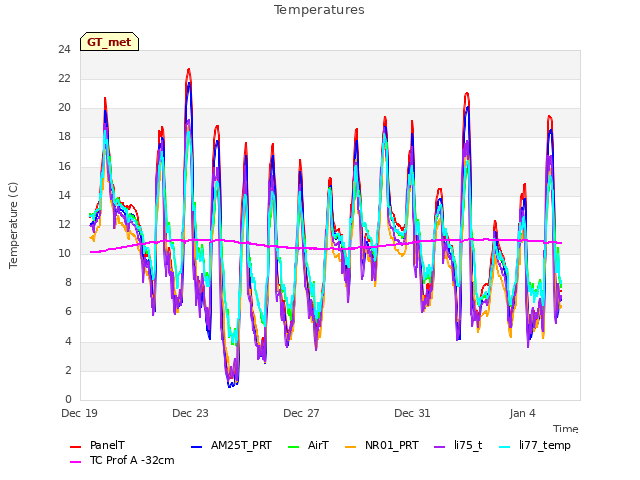

Explore the graph:Temperatures in a new window

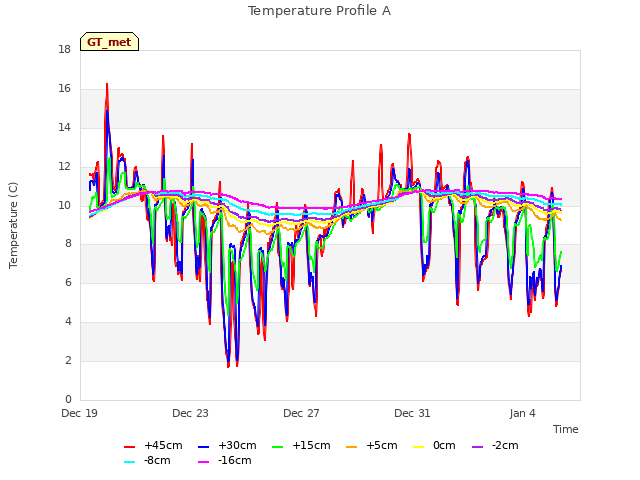

Explore the graph:Temperature Profile A in a new window

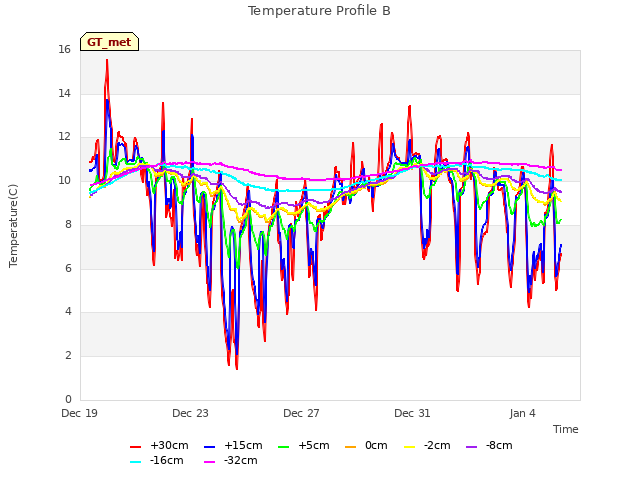

Explore the graph:Temperature Profile B in a new window

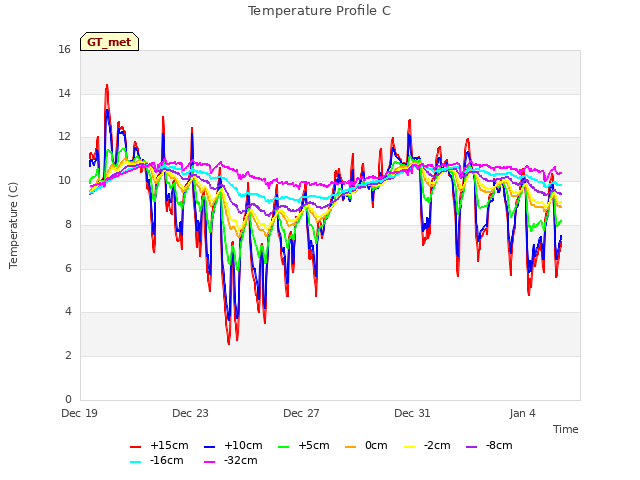

Explore the graph:Temperature Profile C in a new window

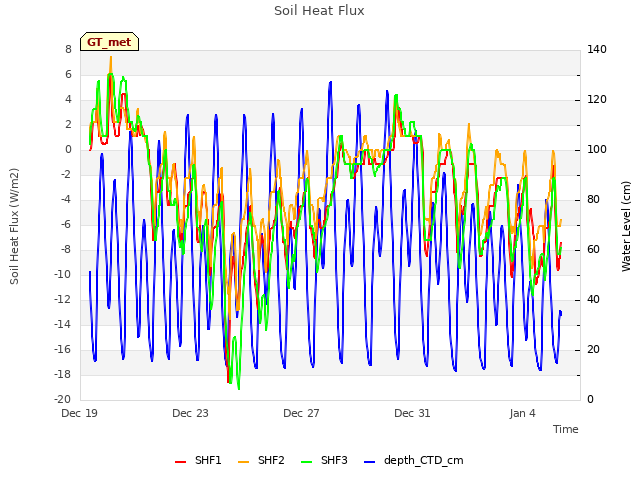

Explore the graph:Soil Heat Flux in a new window

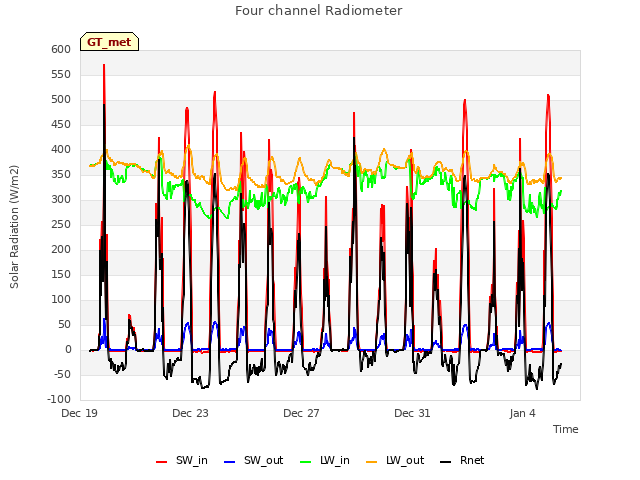

Explore the graph:Four channel Radiometer in a new window

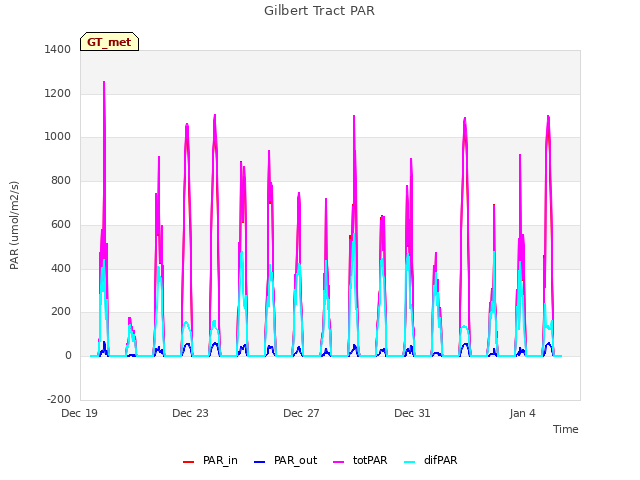

Explore the graph:Gilbert Tract PAR in a new window

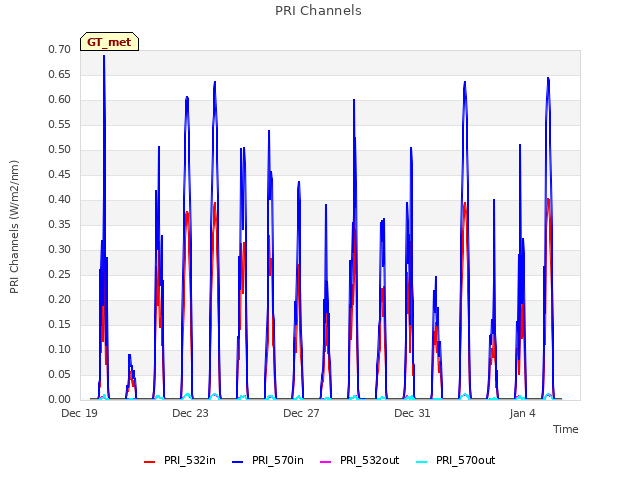

Explore the graph:PRI Channels in a new window

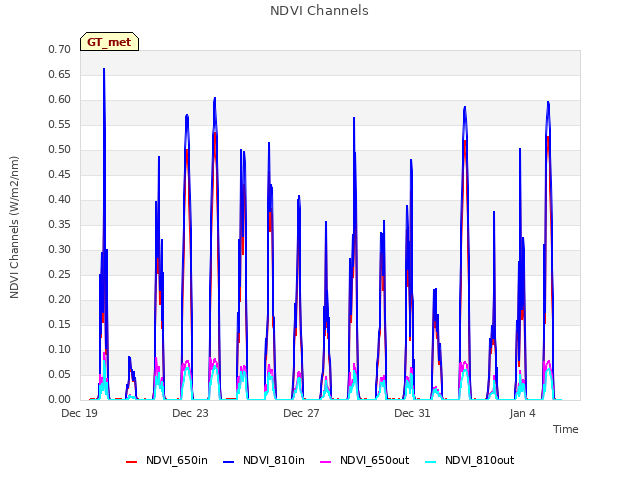

Explore the graph:NDVI Channels in a new window

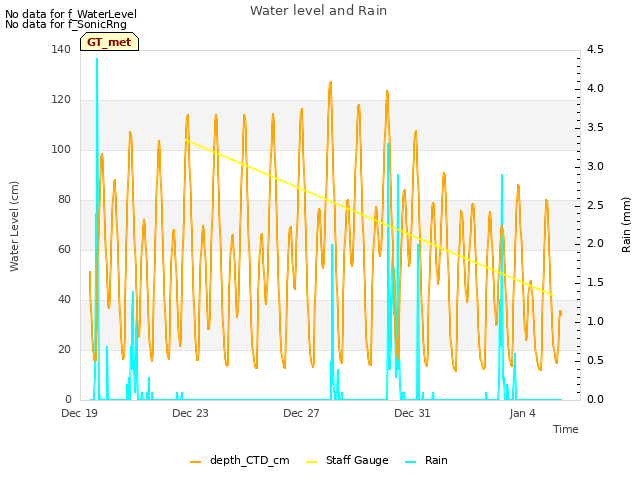

Explore the graph:Water level and Rain in a new window

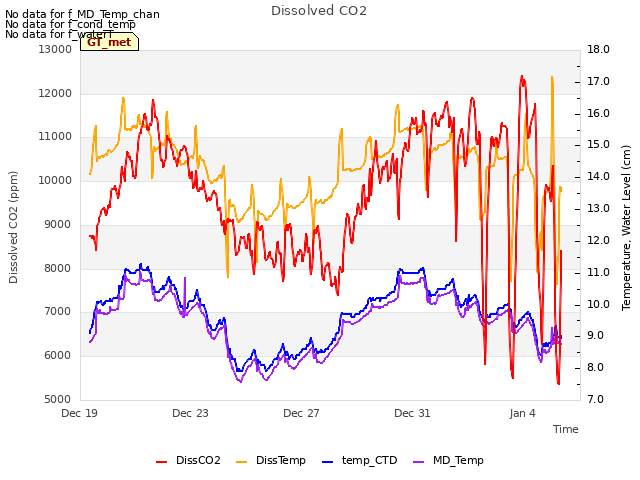

Explore the graph:Dissolved CO2 in a new window

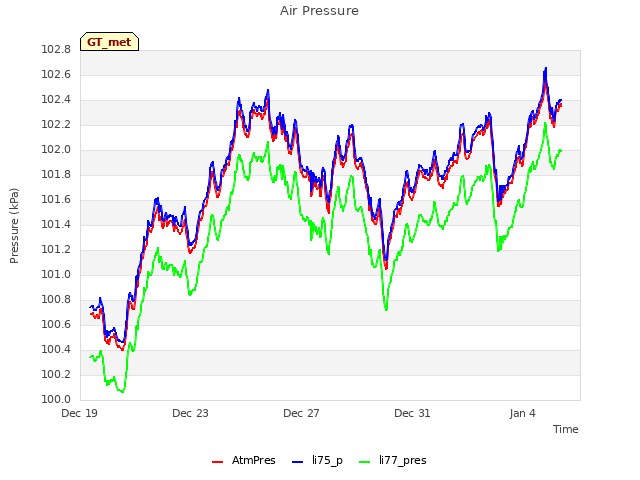

Explore the graph:Air Pressure in a new window

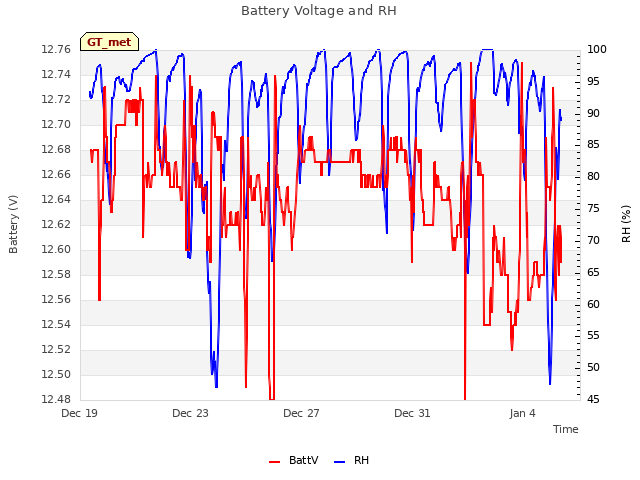

Explore the graph:Battery Voltage and RH in a new window

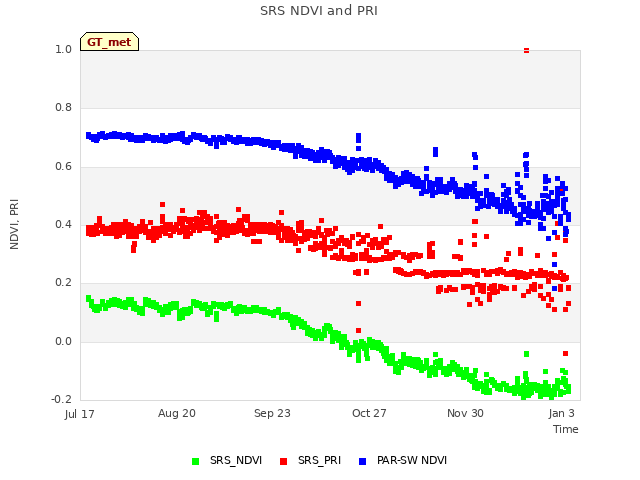

Explore the graph:SRS NDVI and PRI in a new window

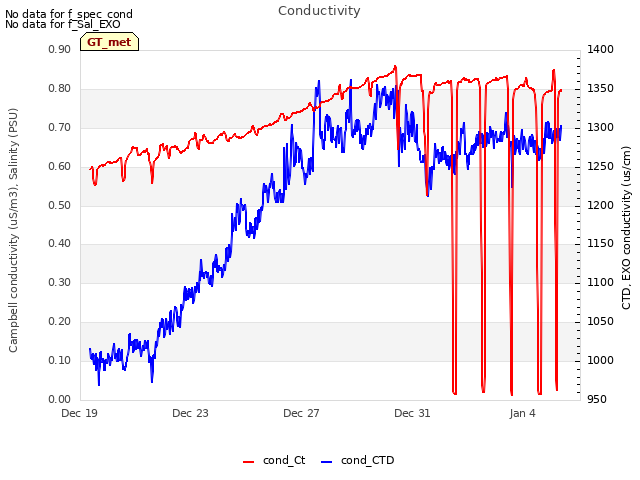

Explore the graph:Conductivity in a new window

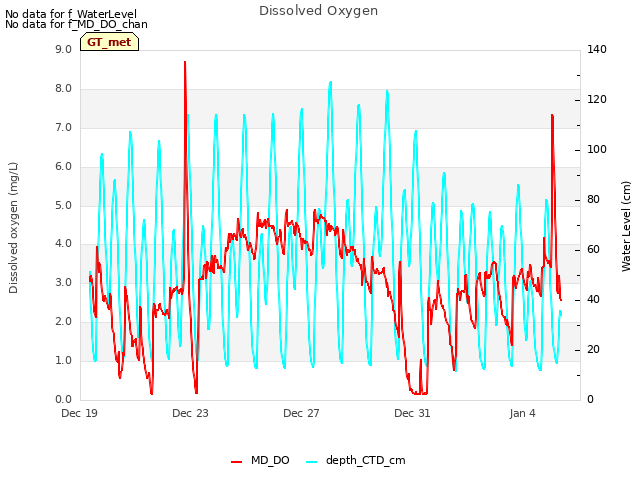

Explore the graph:Dissolved Oxygen in a new window

4 GT_flux graphs found

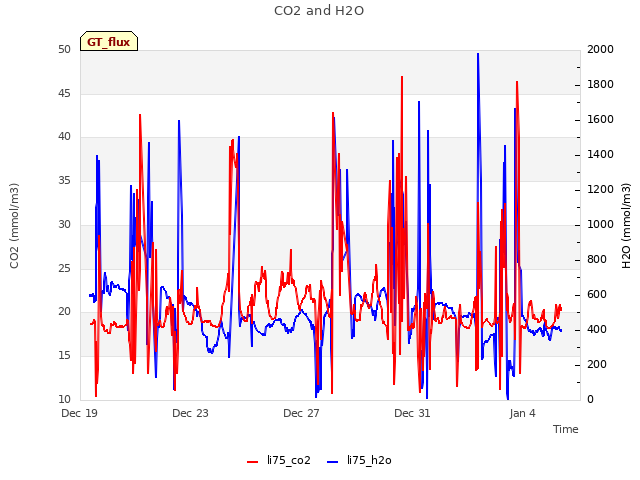

Explore the graph:CO2 and H2O in a new window

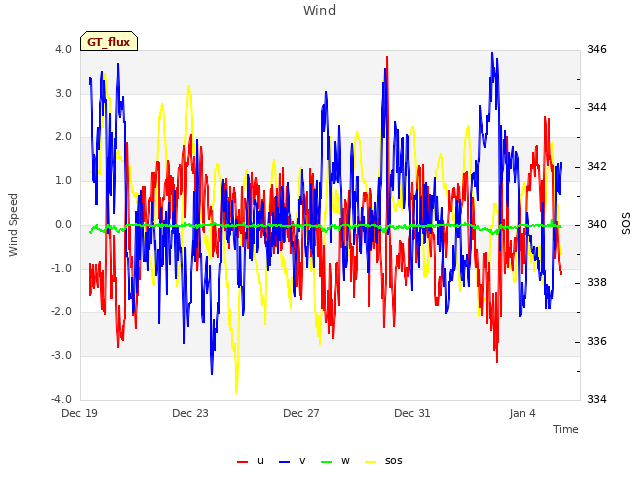

Explore the graph:Wind in a new window

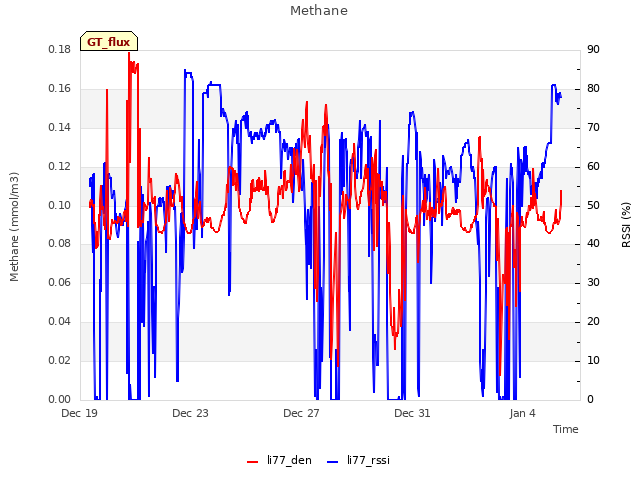

Explore the graph:Methane in a new window

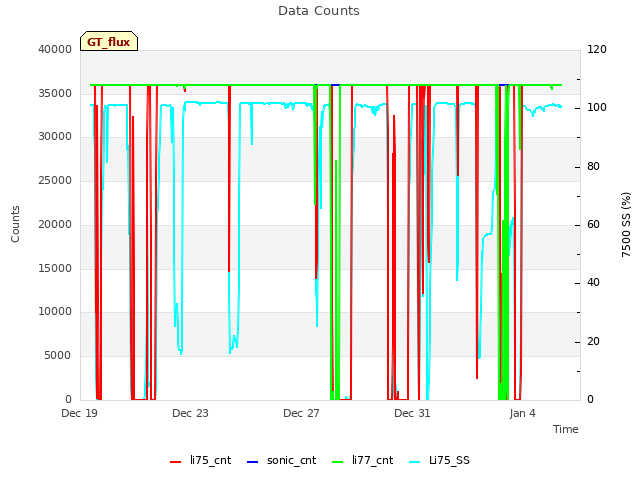

Explore the graph:Data Counts in a new window

3 GT_adcp graphs found

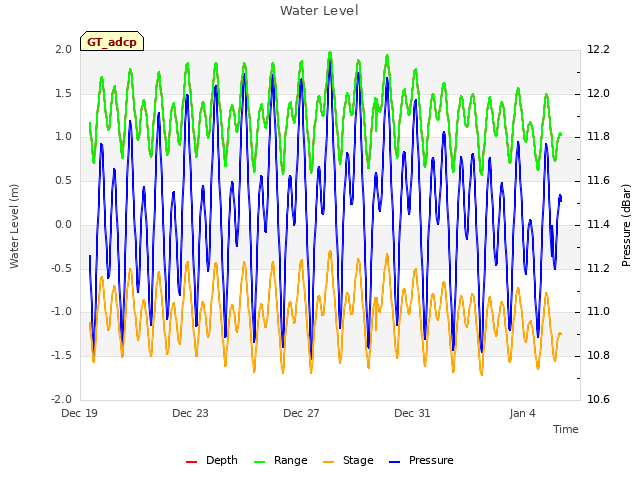

Explore the graph:Water Level in a new window

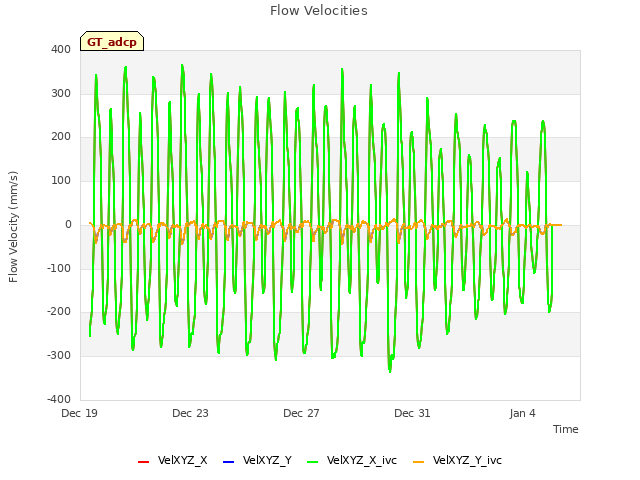

Explore the graph:Flow Velocities in a new window

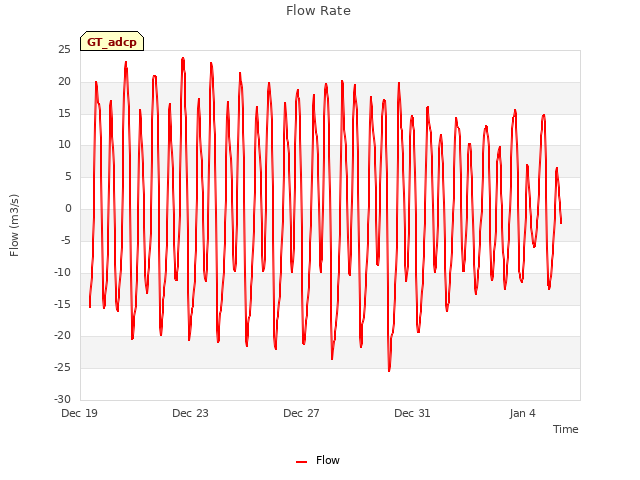

Explore the graph:Flow Rate in a new window

1 GT_cam graphs found

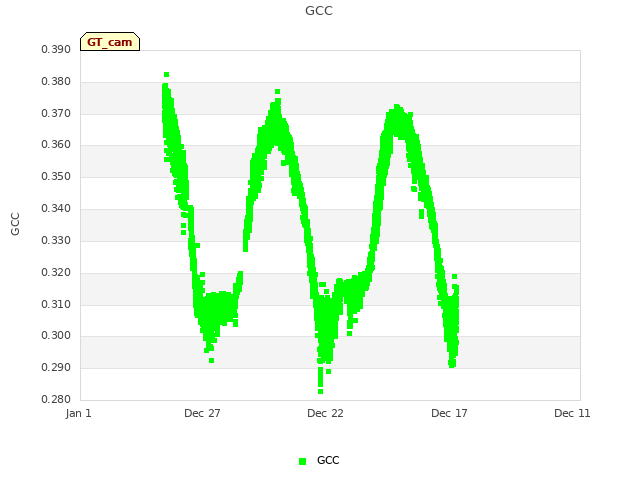

Explore the graph:GCC in a new window

2 GT_usgs graphs found

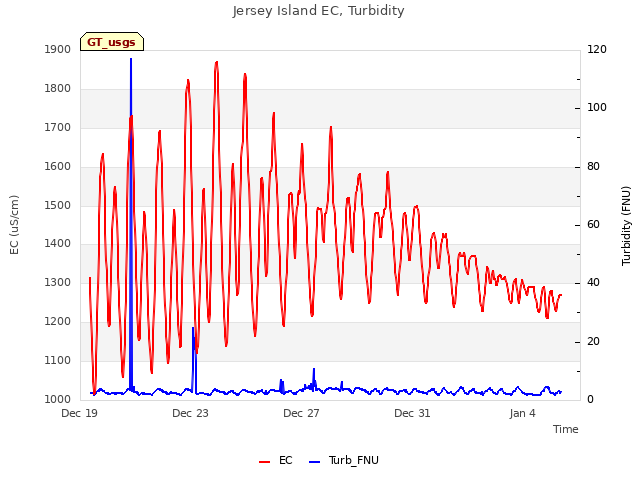

Explore the graph:Jersey Island EC, Turbidity in a new window

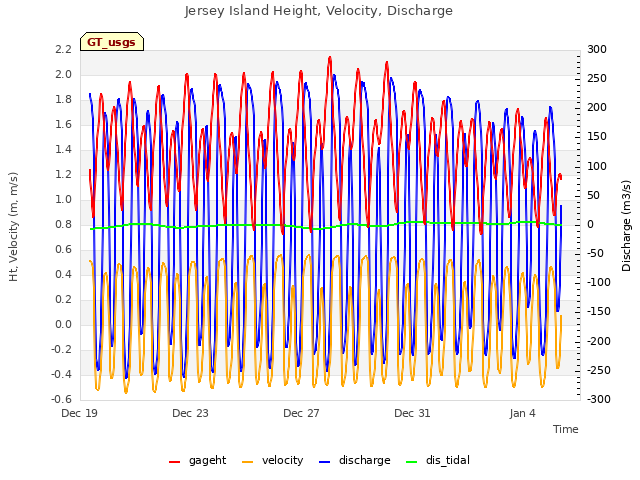

Explore the graph:Jersey Island Height, Velocity, Discharge in a new window

No data found for GT_chanexo.
