Bouldin Corn: 2024-01-04 10:35:00 (DOY 4)
Author: Joe Verfaillie
Others: Dennis

Summary: Year end data collection, swapped 7500 for calibration, removed IRTs - end of experiment, Rain bucket was plugged and full of water, roads are muddy

Bouldin Corn
2024-01-04

Dennis and I arrived at 10:35 PDT. It was clear sunny and mild with little to no wind. The field is flooded with water at the surface under the tower. The water level in the well was 48cm below the top of the pipe and pretty much right at ground level there.

Dennis cleaned the eddy and radiation sensors. We swapped the 7500 for calibration: sn 0042 came off and sn 0065 went on.
0042 read: 432.1ppm CO2, 410.7mmol/m3 H2O, 14.2C, 102.7kPa, 100.6SS
0065 read: 429.6ppm CO2, 394.9mmol/m3 H2O, 14.7C, 102.6kPa, 97.2SS
I updated the pressure coefficients and reset the box. Here the 7500 mount is frozen to the threaded post.
The 7700 read: 2.04ppm CH4, 52.0RSSI – 75 after cleaning
We refilled the wash reservoir by about 1/4.

The rain bucket was full of water. Dennis dumped the water and unplugged the hole with a bird spike.

I collected the flux, camera, met and PA data.

We removed the Corteva IRT sensors and box as that experiment is finished. I still need to get the data off the uSD card. CR1000X sn 1132, power controller sn 2963, and IRTs sn 1073 and sn 1076 were removed.

We left at 11:05

The on ramp to the highway is a muddy mess. I’m not sure the internal roads are much better.

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

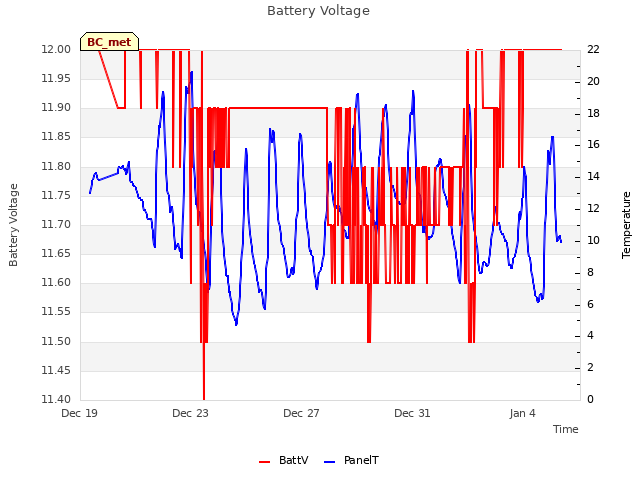

Explore the graph:Battery Voltage in a new window

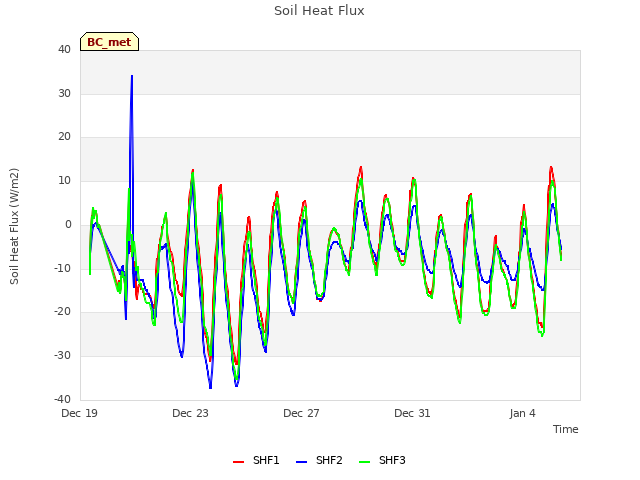

Explore the graph:Soil Heat Flux in a new window

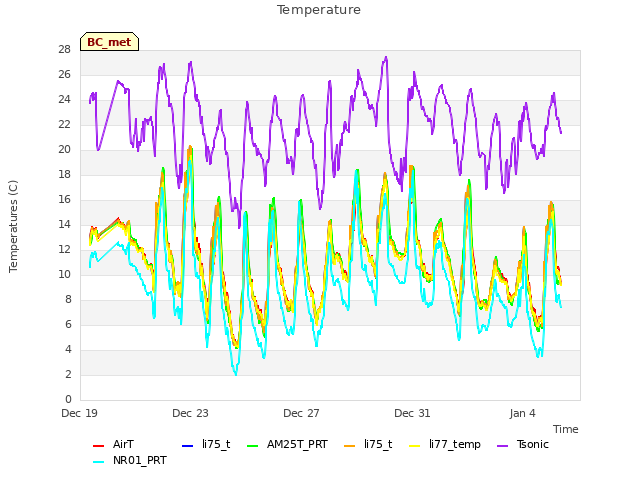

Explore the graph:Temperature in a new window

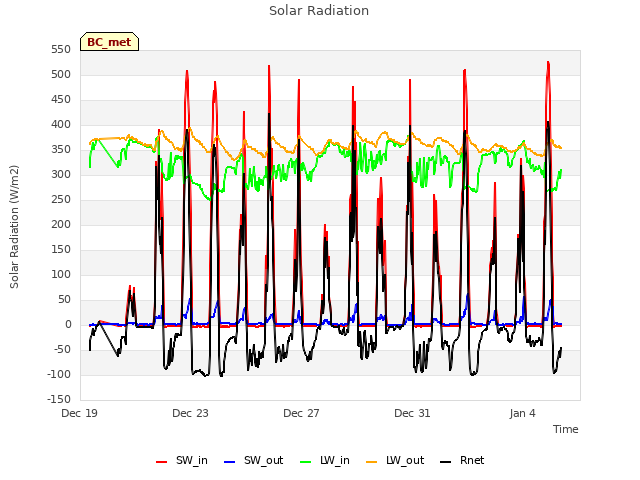

Explore the graph:Solar Radiation in a new window

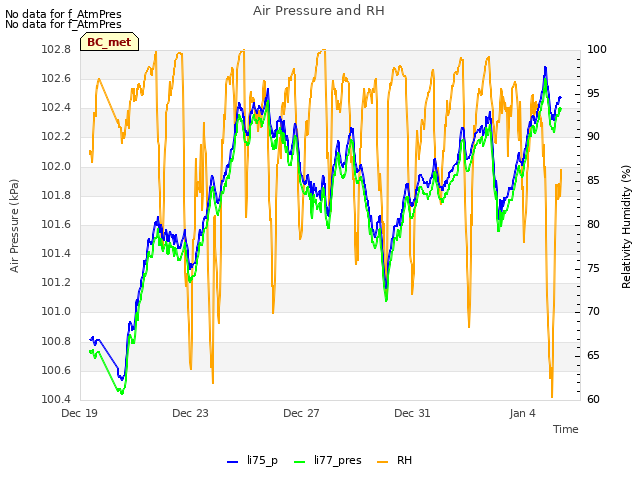

Explore the graph:Air Pressure and RH in a new window

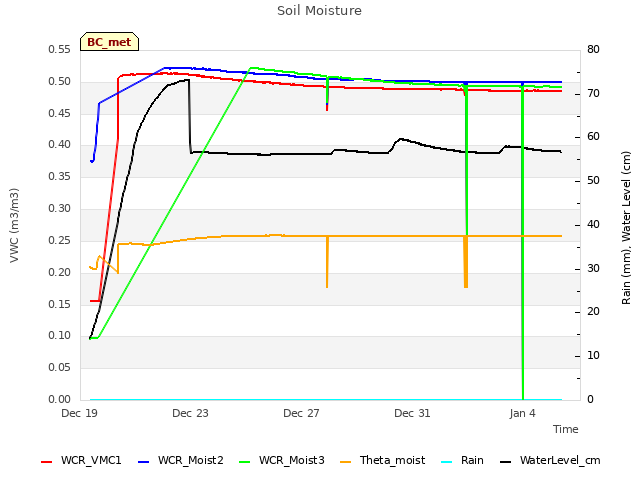

Explore the graph:Soil Moisture in a new window

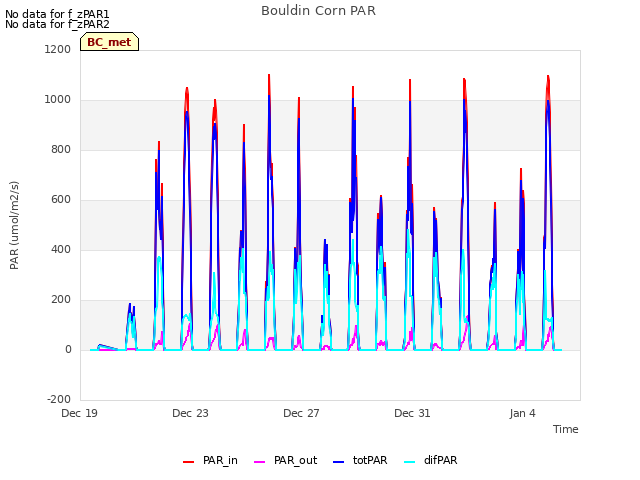

Explore the graph:Bouldin Corn PAR in a new window

Explore the graph:NDVI channels in a new window

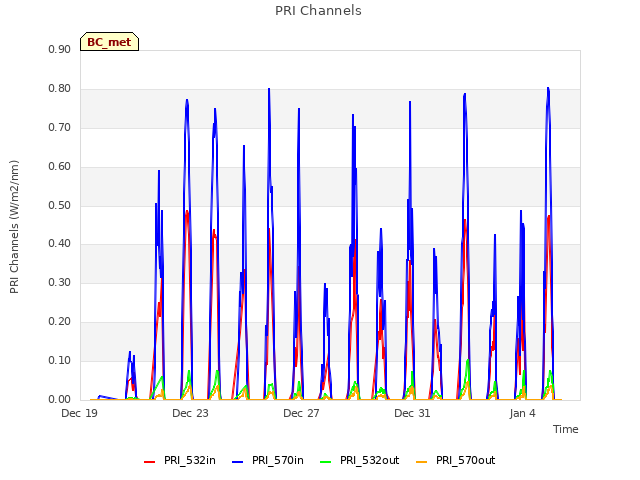

Explore the graph:PRI Channels in a new window

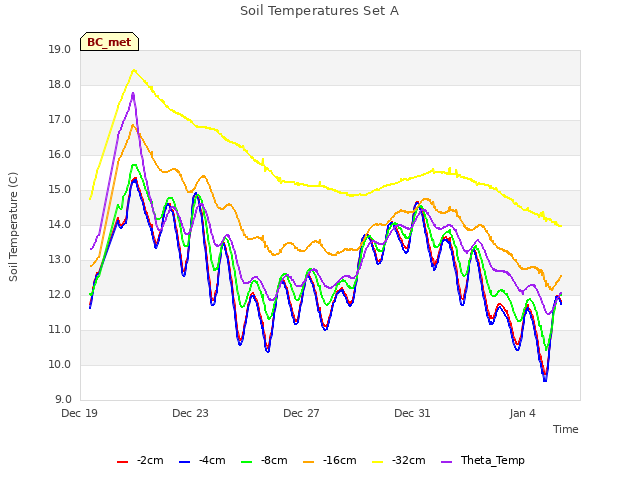

Explore the graph:Soil Temperatures Set A in a new window

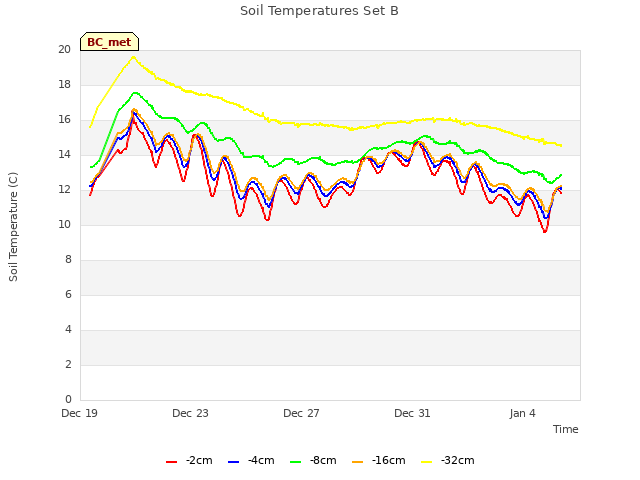

Explore the graph:Soil Temperatures Set B in a new window

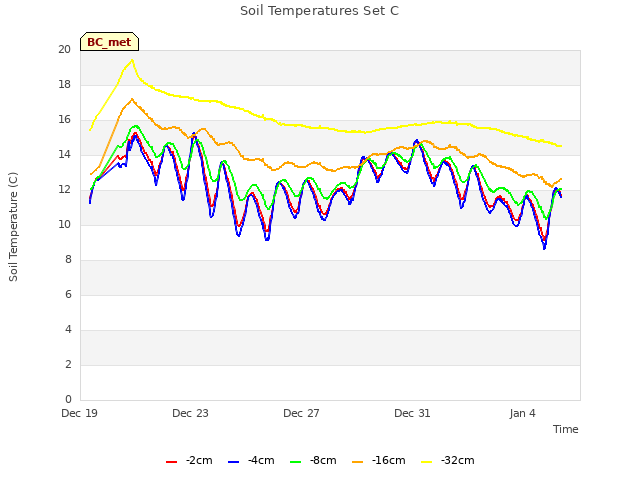

Explore the graph:Soil Temperatures Set C in a new window

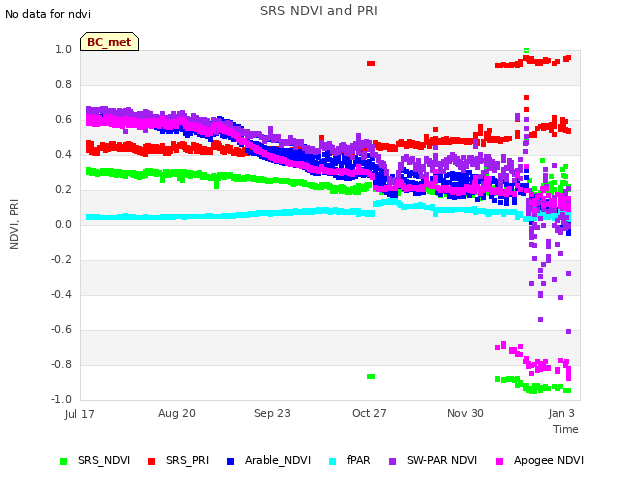

Explore the graph:SRS NDVI and PRI in a new window

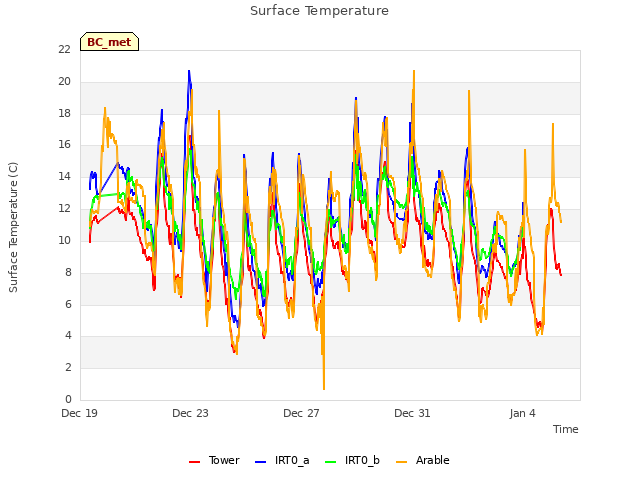

Explore the graph:Surface Temperature in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

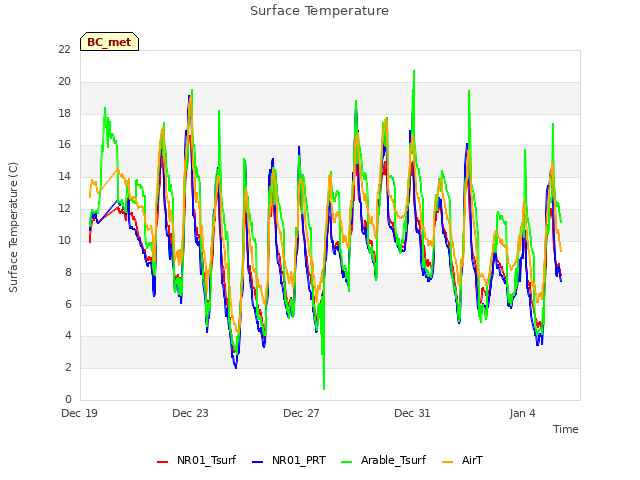

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

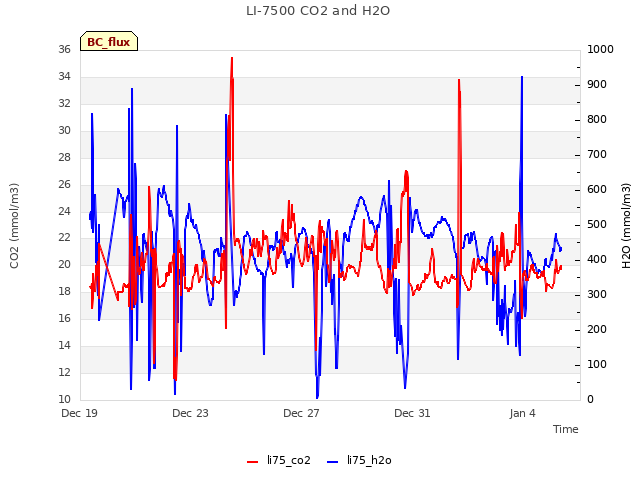

Explore the graph:LI-7500 CO2 and H2O in a new window

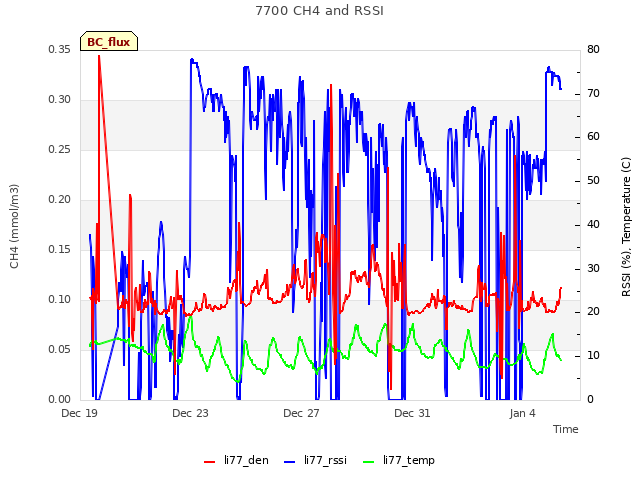

Explore the graph:7700 CH4 and RSSI in a new window

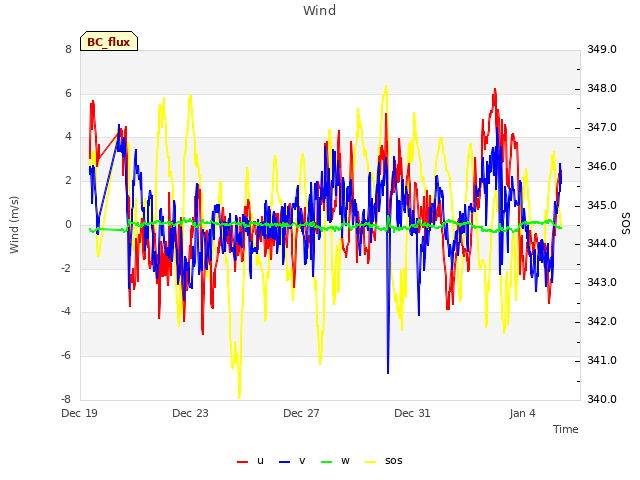

Explore the graph:Wind in a new window

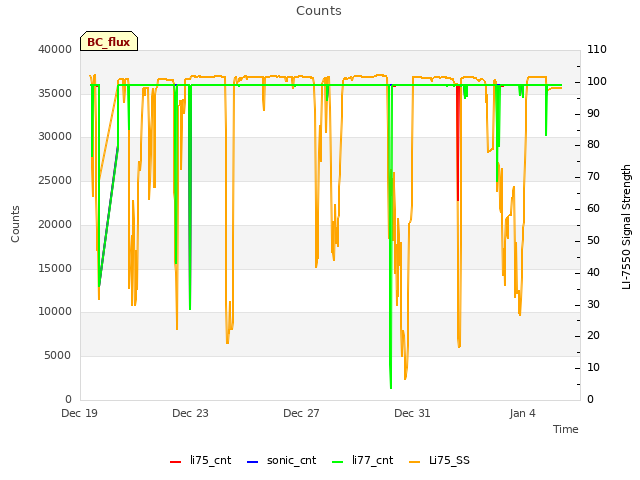

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

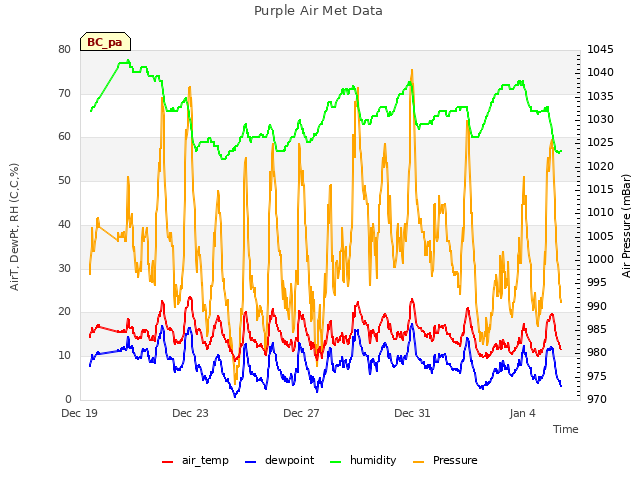

Explore the graph:Purple Air Met Data in a new window

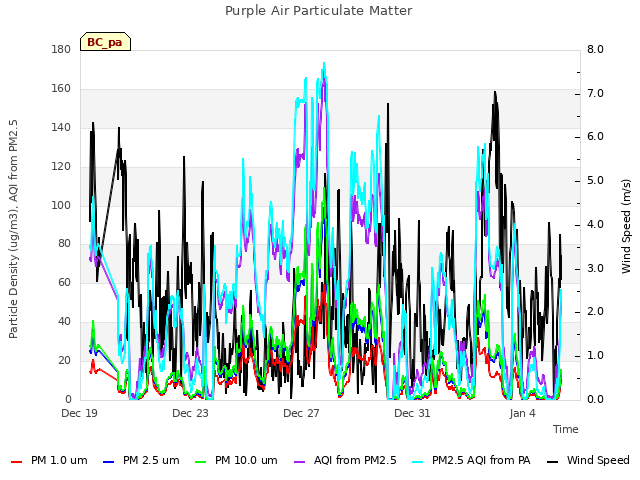

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

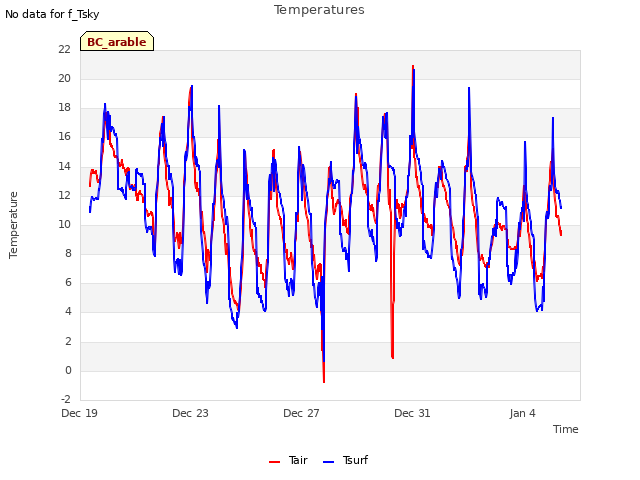

Explore the graph:Temperatures in a new window
