Field Notes

<--2022-03-15 11:15:00 | 2022-04-13 15:45:00-->
Other sites visited today: Hill Slough | Bouldin Corn | West Pond | East End | Mayberry | Gilbert Tract

Bouldin Alfalfa: 2022-03-31 13:20:00 (DOY 90)
Author: Daphne Szutu
Others: Joe

Summary: Regular data collection/cleaning, mowing imminent--trimmed alfalfa under our equipment, SWout sensor dirty, swapped PL Arable

2022-03-31
Bouldin Alfalfa

Joe and I arrived around 13:20 PDT. It was breezy but otherwise mild and sunny with high thin clouds. The alfalfa looks more tattered than in previous years, or maybe it’s just the combination of slow winter growth, weed spray, and grazing by geese. They were mowing the alfalfa 2 fields over to our east. Joe trimmed the alfalfa under our tower and under the PL Arable post.

Joe swapped the Arable: sn C003947 came off and sn C011018 went on. I’m not sure if the old Arable was working at all.

I downloaded met, camera, and USB GHG data and cleaned flux and rad sensors. There was a lot of gunk on the SWout sensor so that data should be inspected carefully. At least ¼ of the glass dome was covered by small brown sand-shaped particles, maybe insect eggs?

I downloaded the FD data and cleared its memory. I downloaded the IRT data by swapping the microSD card and using CardConvert to convert the fast data to TOB1 and the slow data to TOA5. I replaced the ethernet switch that we removed last time (to shoo the ants away). This time there were more ants in the IRT datalogger box. We left some mothballs in both boxes.

Joe took veg height measurements.

The upper boardwalk should be replaced.

LI-7500 readings:
CO2 415ppm
H2O 407ppm
T 20.0C
P 101.3Pa
SS 102-
LI7700 readings:
CH4 1.97ppm
RSSI 59 --> 90 after cleaning

We left around 14:20 PDT.

Next Mowing: 2022-04-01

Veg Height (cm): Tape measure from ground to top of plant - Mowing expected soon
43, 23, 15, 25, 31, 28, 16, 30, 35, 42, 35, 22, 18, avg = 27.9, stdev = 9.2

1 photos found

Tractor mowing in progress
Tractor mowing in progress

Graphs display:
7 sets found

5 BA_flux graphs found

Explore the graph:Wind in a new window

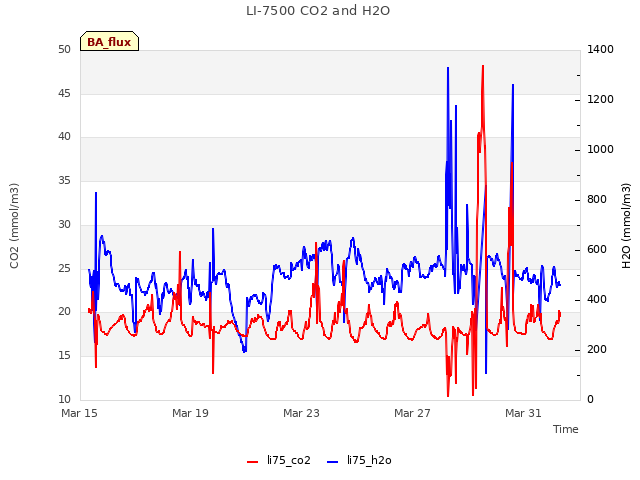

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

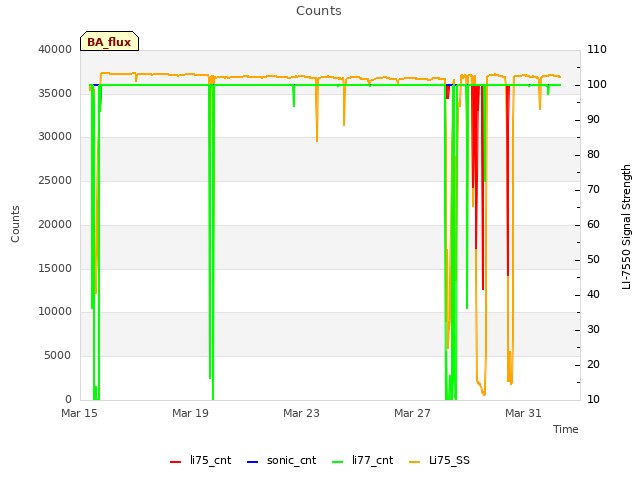

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

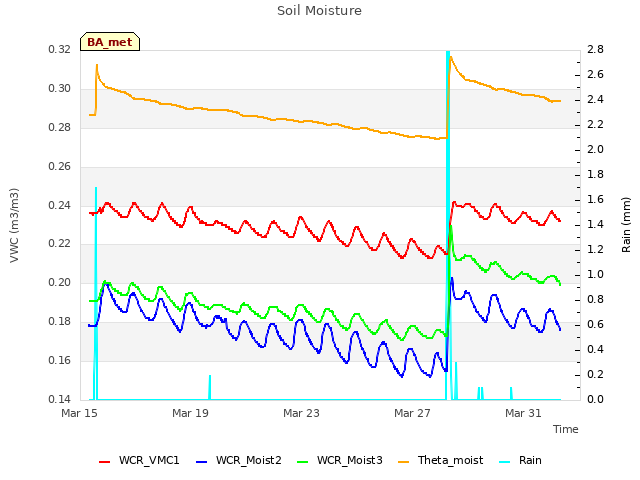

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

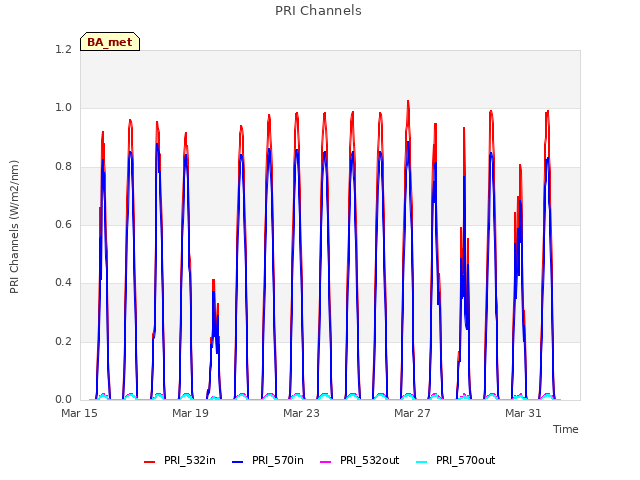

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI channels in a new window

Explore the graph:Battery Voltage in a new window

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

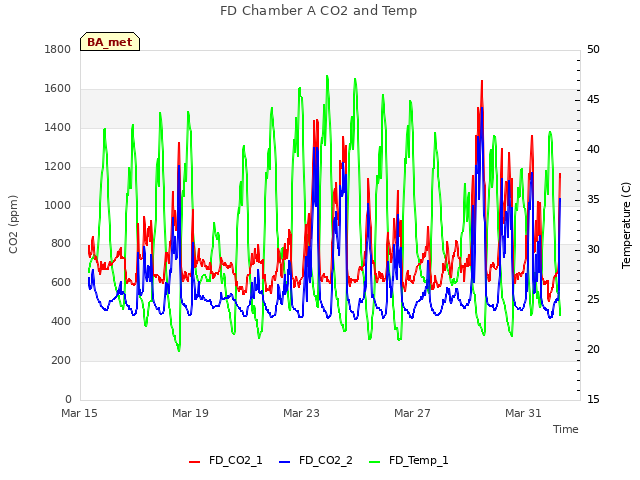

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

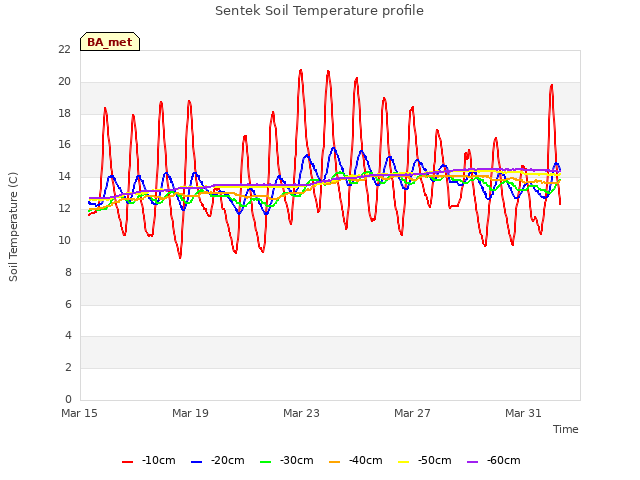

Explore the graph:Sentek Soil Temperature profile in a new window

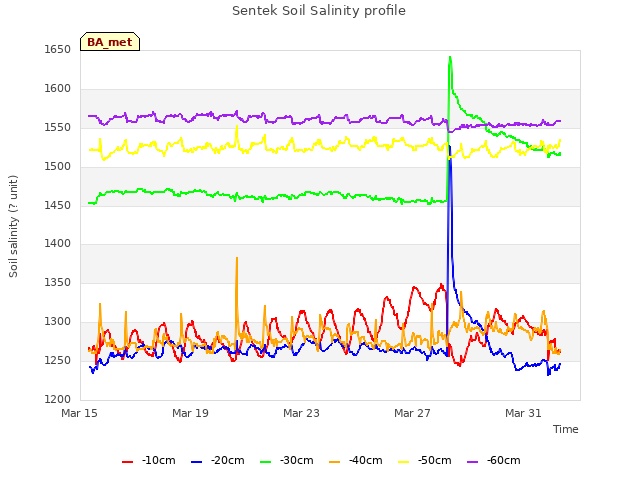

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

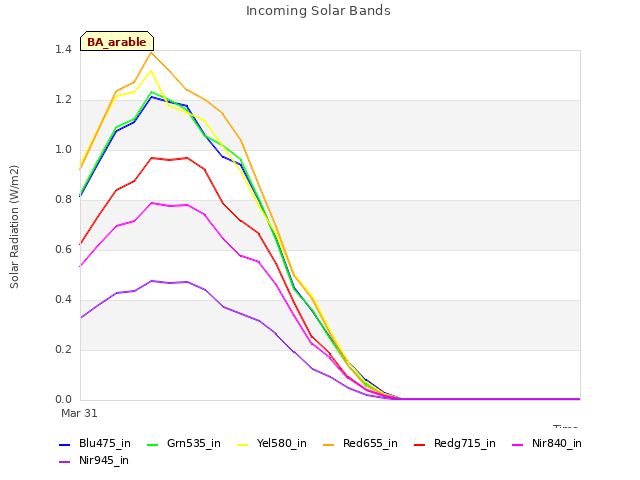

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

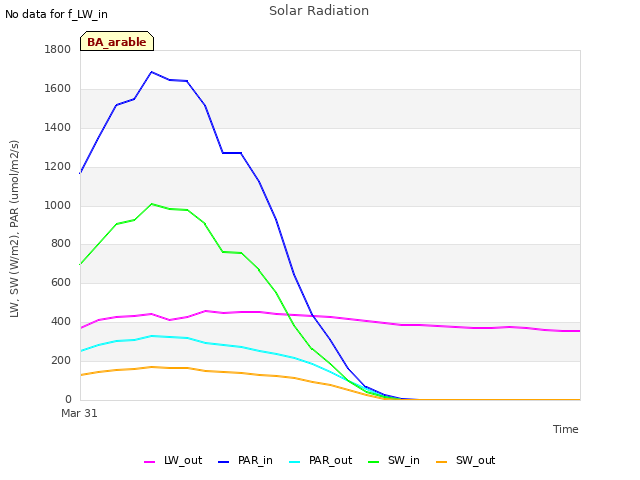

Explore the graph:Solar Radiation in a new window

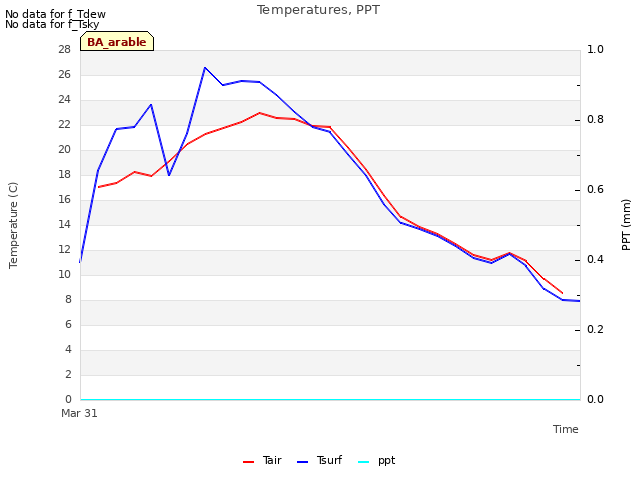

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
