Vaira: 2005-03-22 00:00:00 (DOY 81)
Author: Ted Hehn
Others: Matthias
| When: Tue, 22Mar05 JD-81-

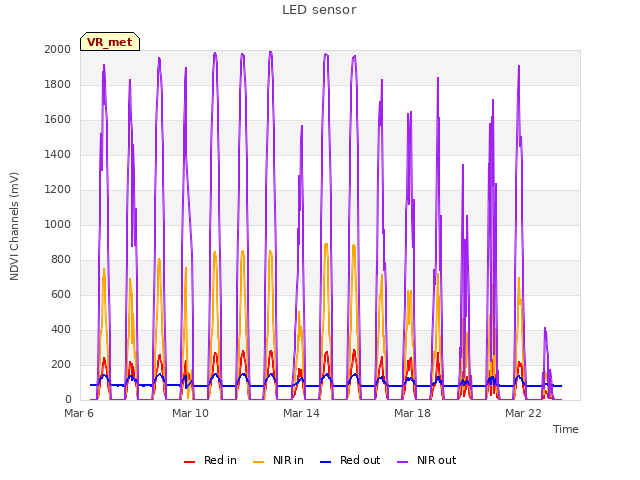

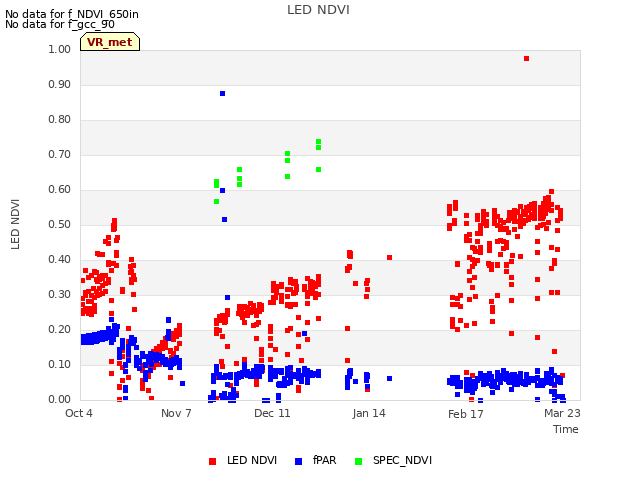

Where: Tonzi/Vaira Ranches Who: Ted Hehn & Matthias Weather Tuesday raining hard and rivers are flowing through the Floor system and about ½ inch of water is present everywhere on the ground. Flowers beginning to bloom. Yellow and purple/blue Vaira Ranch: 18:00 Tuesday all appears well 12:12 Wednesday Flux PC power LED on. However, PC is not functioning. Battery volts at 11.4. PC goes into low voltage dropout slightly before solar regulator does Batt V = 11.4 Solar A = 0.6 Load A = 2.x Connect signal return lead on NDVI Red Down channel. Install bird spike on net radiometer. Thursday 11:18 Pyranometer desiccant blue. 11:19 29.7 solar amps Charge status green Batt V = 11:27 Solar A = 13.7 Load A =28.9 Remove 2 solar panels from array and solar current falls to 23.0 11:44 Remove NDVI to run noon calibration and while device was in hand I touched the electric fence and felt a powerful shock. The device no longer functions correctly. Water also ran out of the device upon turning upside down. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

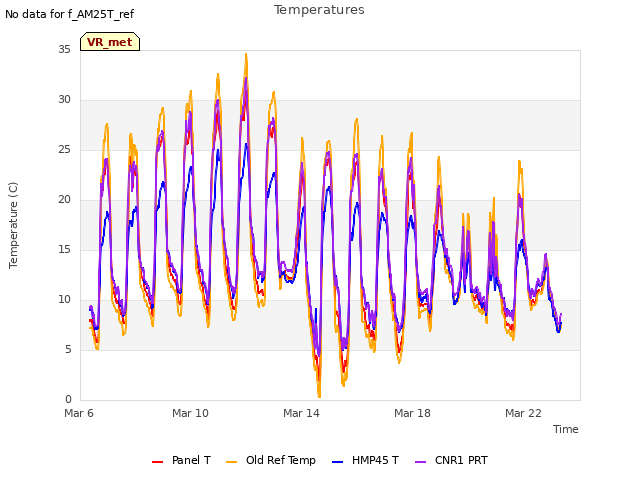

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
