Mayberry: 2021-06-22 16:40:00 (DOY 173)
Author: Daphne Szutu
Others: Dennis, Ariane
Summary: Regular data collection/cleaning, breezy, forgot card reader for Stardot photos

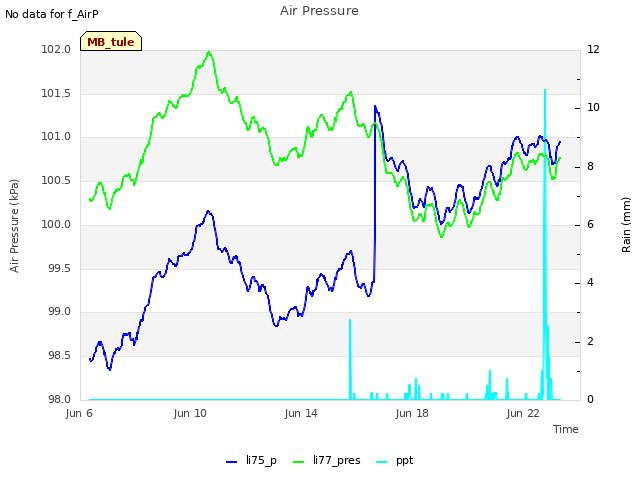

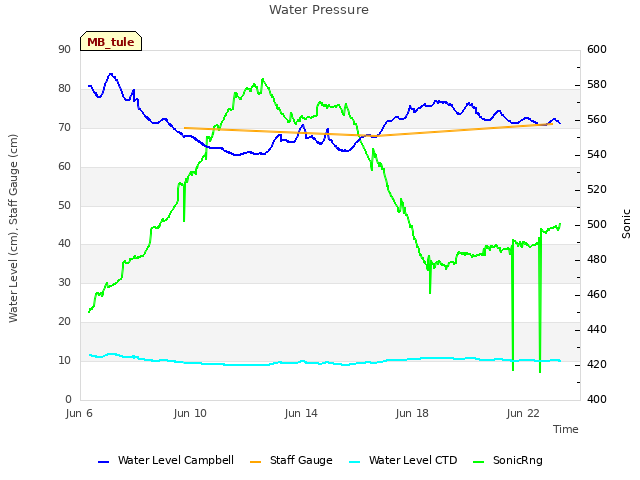

| 2021-06-22 Mayberry Dennis, Ariane, and I arrived at 16:40 PDT. It was a mild and breezy day with good visibility. The staff gauged read 71cm. Dennis used a shovel to fill in the hole in the ground immediately before the plank boardwalks. Ari cleaned flux and rad sensors. I downloaded met, camera, and USB GHG data. We had to rotate the Stardot enclosure to access the Canon camera but tried to return it to its original location. I downloaded the FD data and cleared its memory. The wash reservoir was mostly full. The precip data had quite a few tips in the last few days, which we know is not right because there hasn't been rain in a while. I found that the spliced portion of the sensor cable was underwater, probably dropped there on 6/9 when I put the stardot camera up and rearranged the cable organization on the scaffolding. I decided to bring the precip bucket sn 40415-1006 back to the lab to fix since it's not going to rain anytime soon so we won't lose any data. I downloaded the picam photos, and I tried to download it by copying the files through LoggerNet’s File Control window, but that was way too slow (>1 min/photo). Next time I’ll bring the card reader. LI-7500 readings: CO2 411ppm H2O 686ppm T 23.3C P 100.8kPa SS 99-->100 after cleaning LI7700 readings: CH4 1.92ppm RSSI 64--> 87 after cleaning We left at 17:15 PDT. |
0 photos found
11 sets found

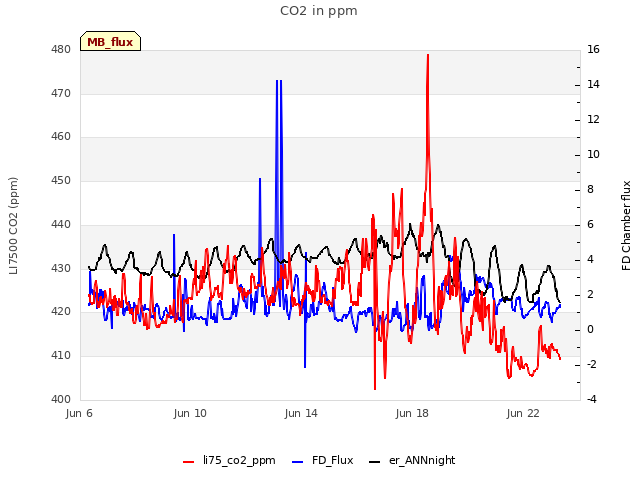

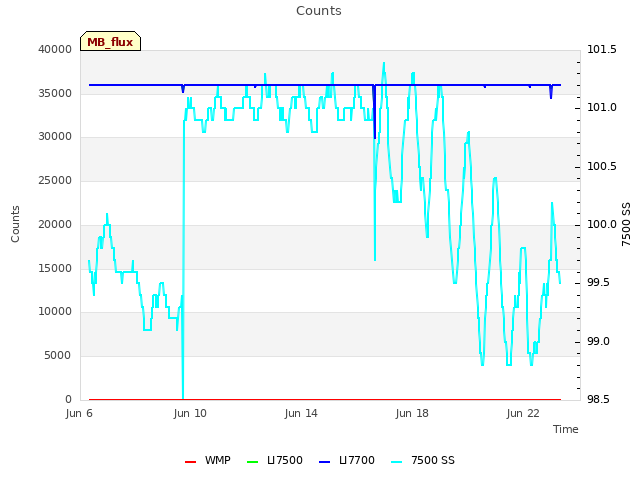

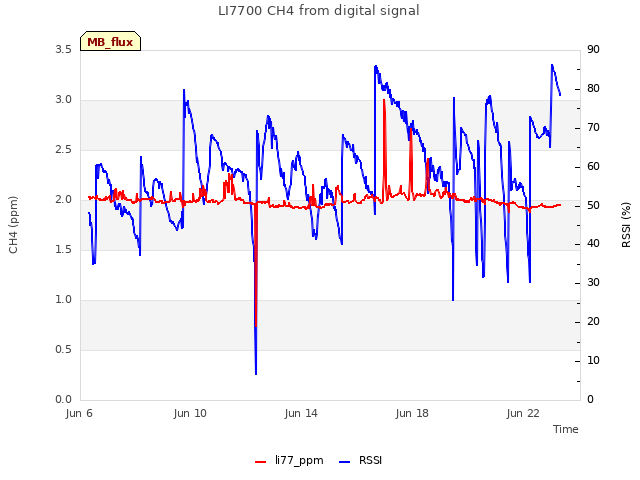

7 MB_flux graphs found
No data found for MB_met.

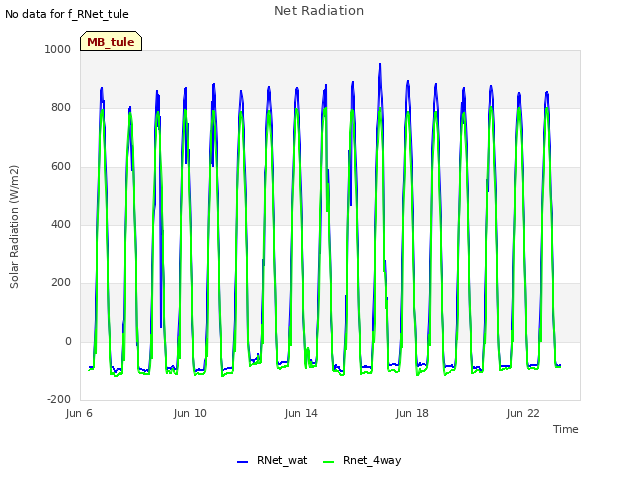

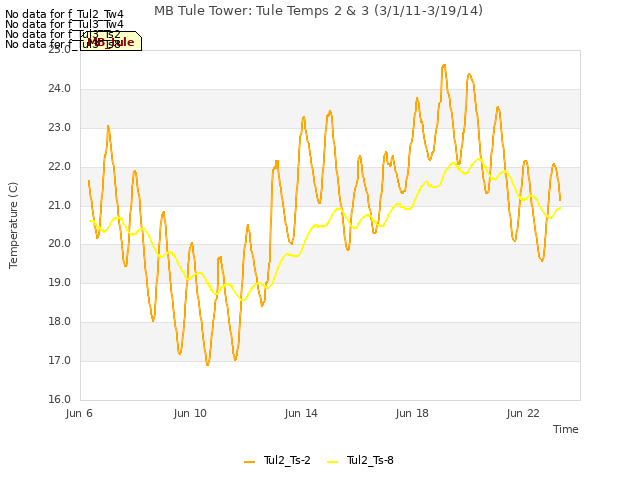

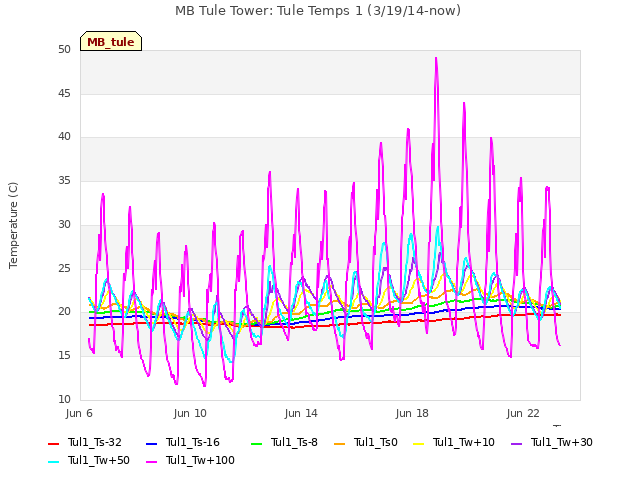

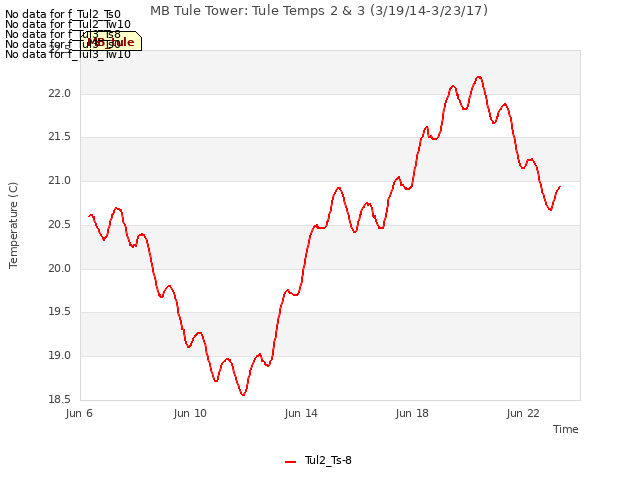

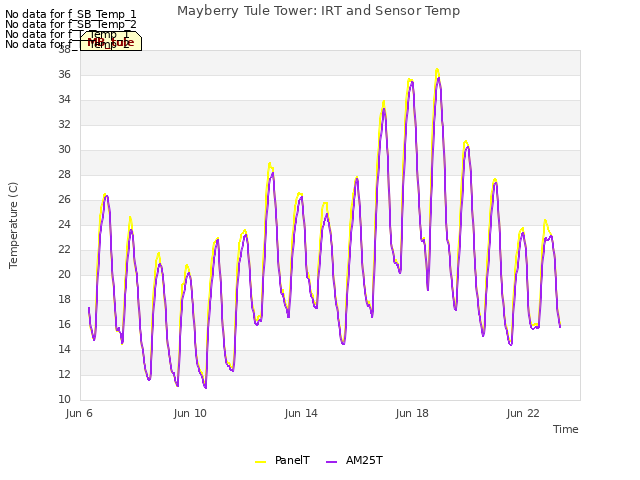

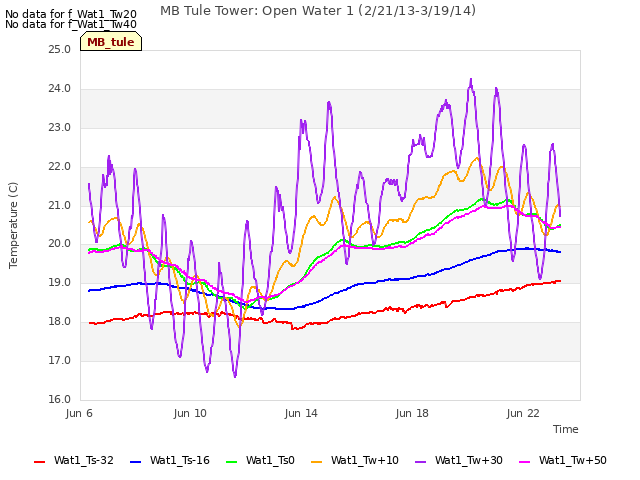

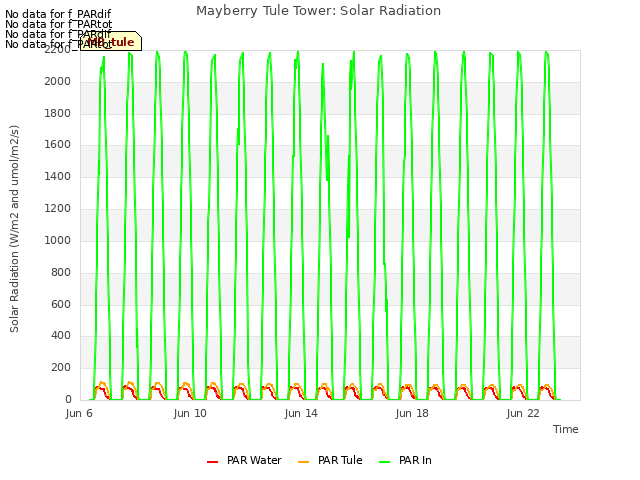

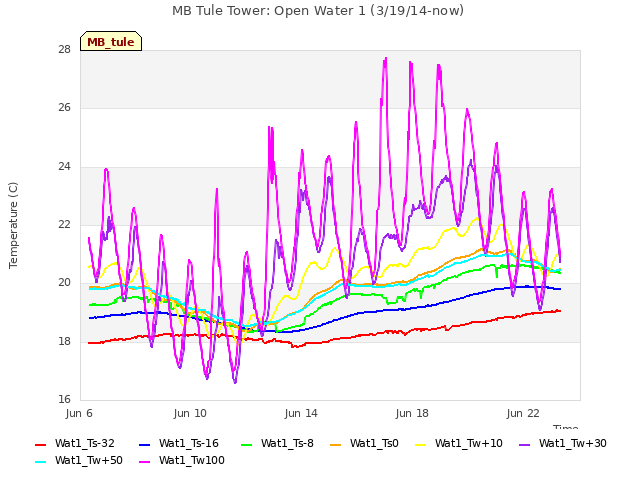

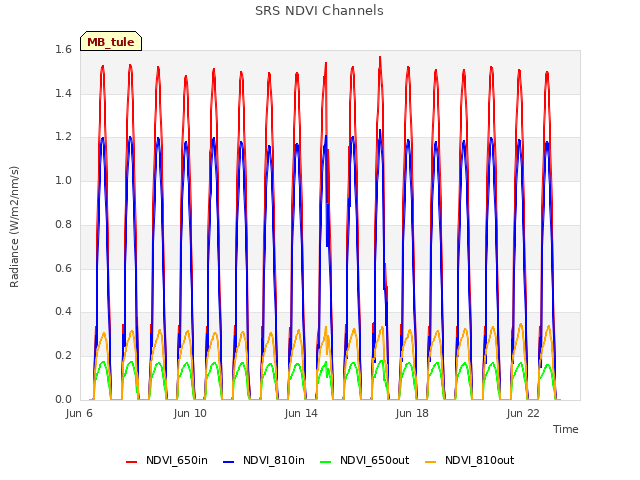

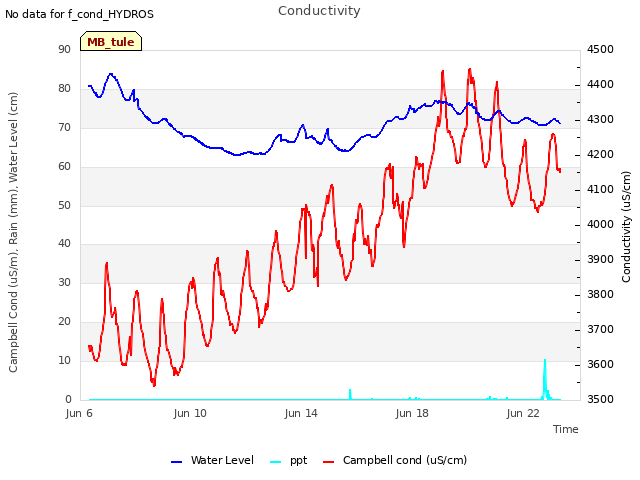

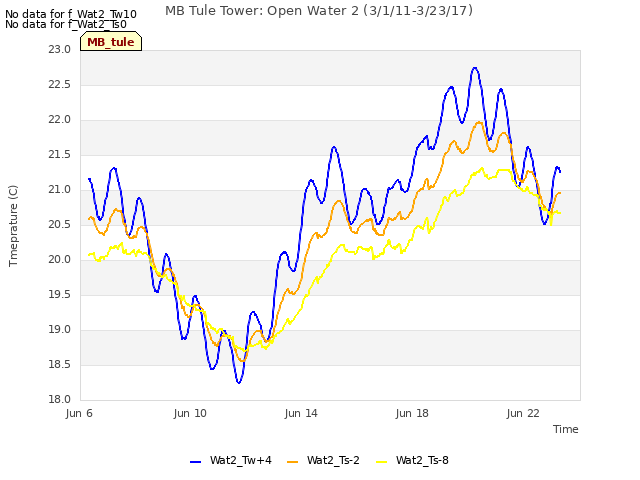

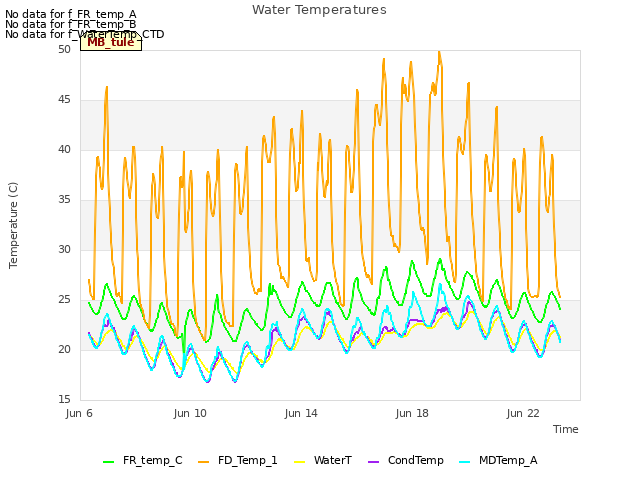

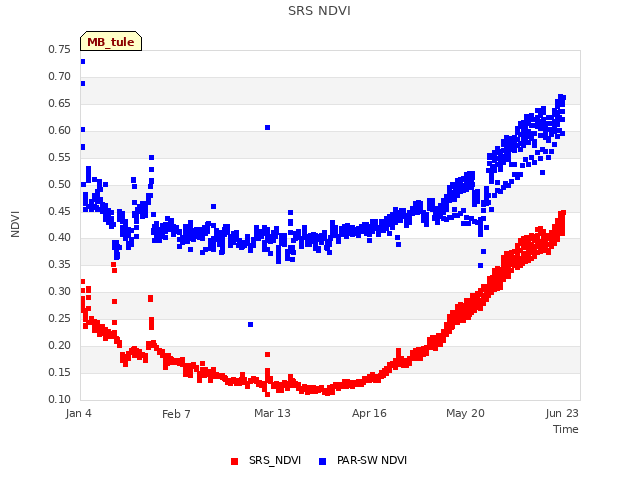

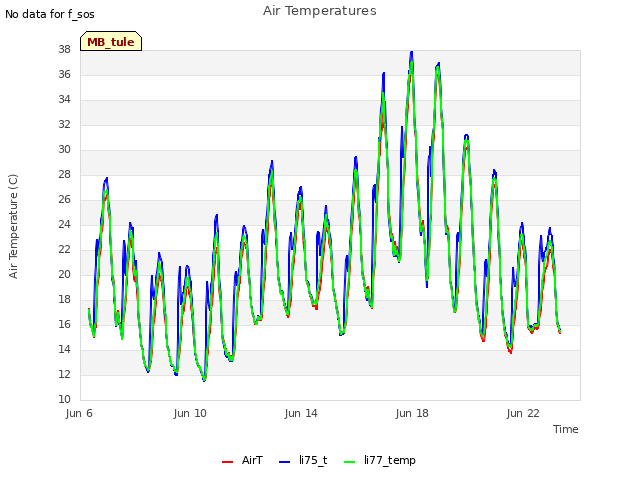

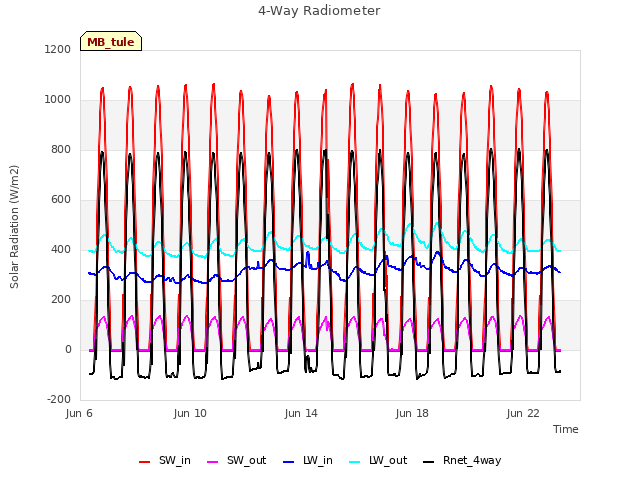

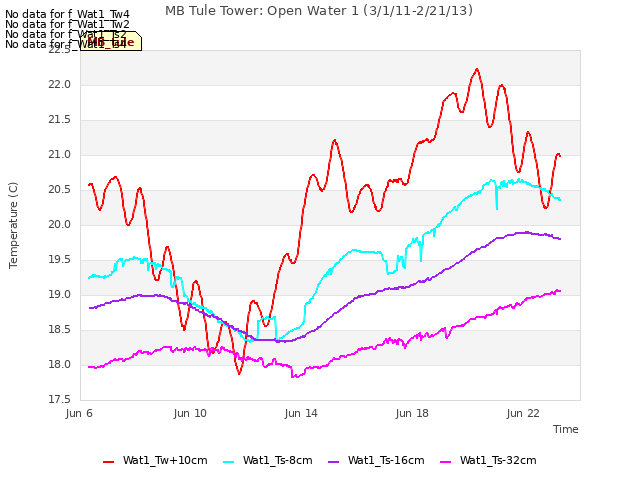

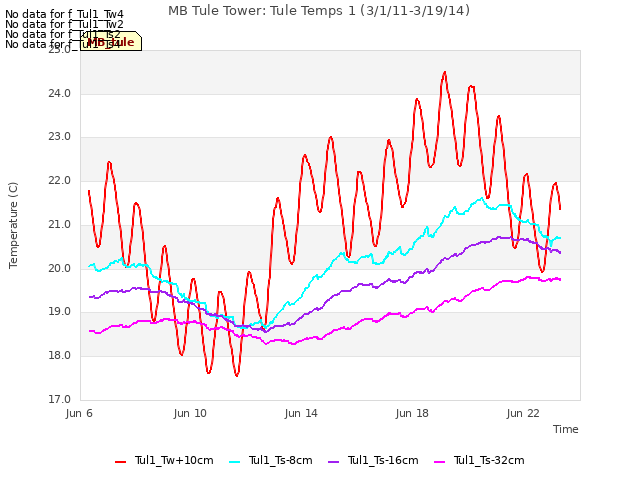

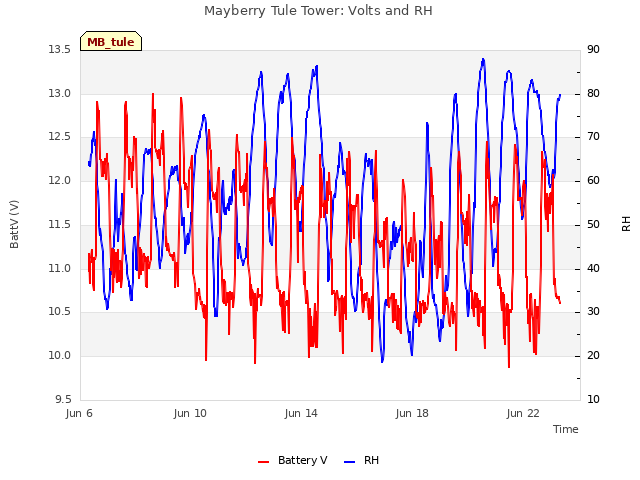

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

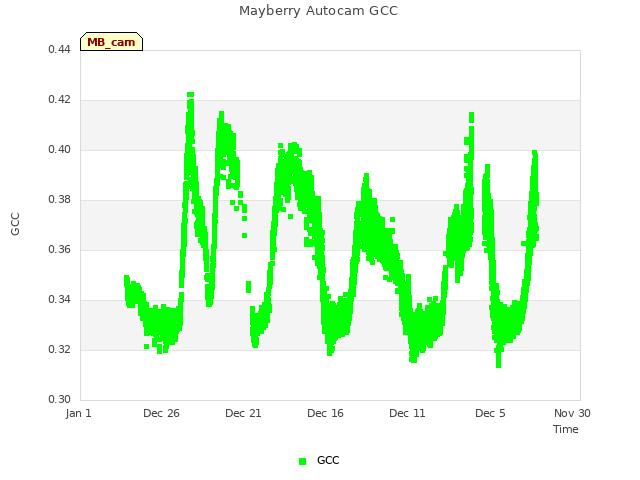

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

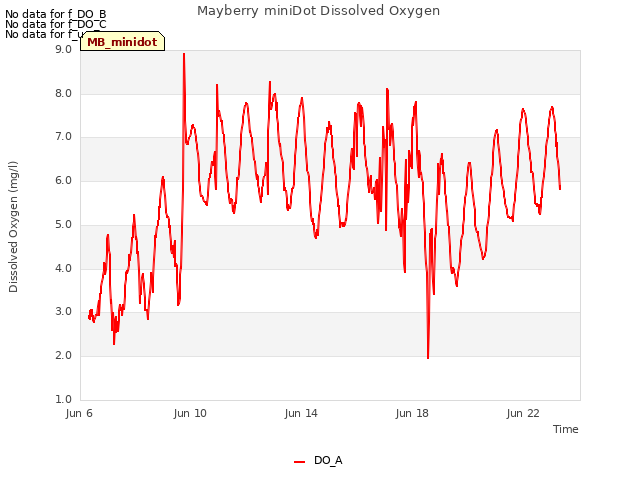

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

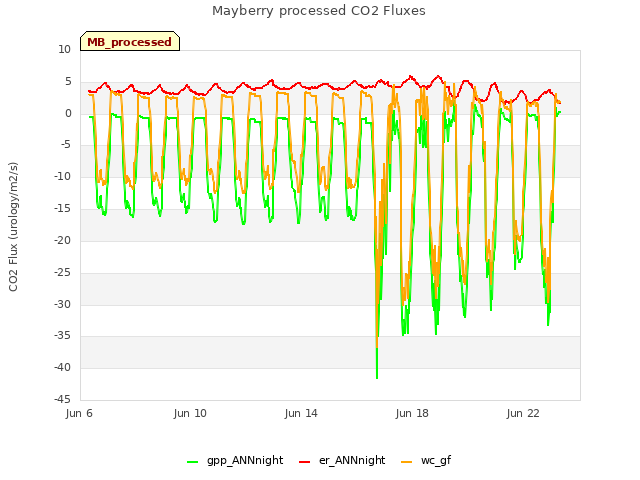

1 MB_processed graphs found
Can't check MB_fd

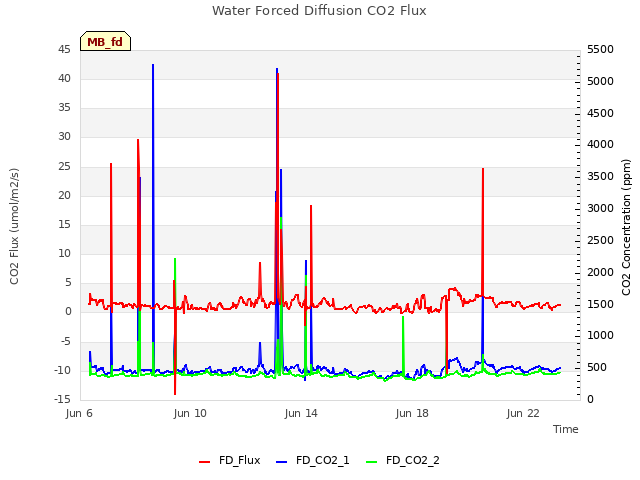

1 MB_fd graphs found
