Bouldin Alfalfa: 2021-05-18 09:30:00 (DOY 138)
Author: Camilo Rey-Sanchez
Others:

Summary: Leaf-level msts. Aci and light response curves

I arrived at 9:30 AM. It was a sunny day with a relatively strong breeze. The sky was clear and there was a clear view of Mount Diablo. The alfalfa was at about knee height. I had the machine ready to go, so after warming up the first leaf was measured at 10:00 AM. I measured 5 other leaves from 10 AM-2:30 PM. The first two leaves I selected were on the sun and had relatively low stomatal conductance whereas the last three leaves had been in the shade a bit more and had higher stomatal conductance.In all leaves, I performed ACi curves with the leaf chamber fluorometer.

The CO2 concentration was varied in the following order: 400,300,200,150,100,75,50,400,500,600,800,1000,1300 ppm.

I did light response curves on the last 3 leaves using the following light levels:
2000,1500,1000,500,300,200,100,50,20,0 umol m-2 s-1.

Only 2 leaves were big enough to cover all the chamber, the other 3 leaves cover between 80-90 % of the area in the chamber. After the curves were done, the leaves were harvested and I estimated area covered within the leaf cuvette and measured chlorophyll content. I left the site around 3 PM.

Next Mowing: 2021-05-28

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

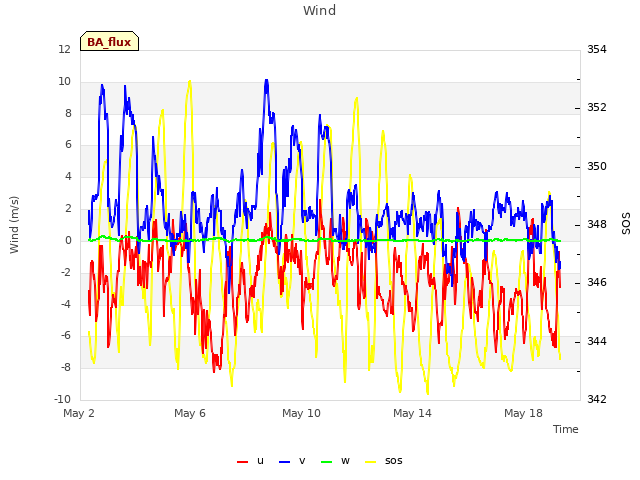

Explore the graph:Wind in a new window

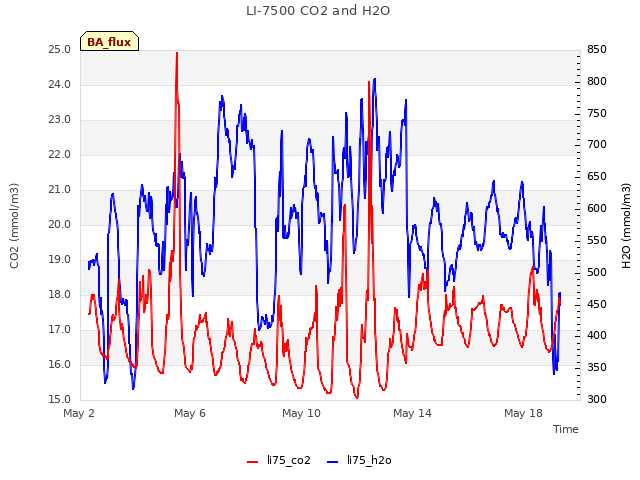

Explore the graph:LI-7500 CO2 and H2O in a new window

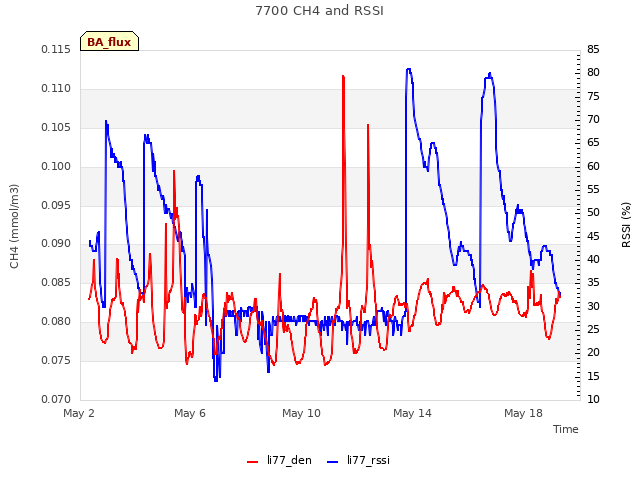

Explore the graph:7700 CH4 and RSSI in a new window

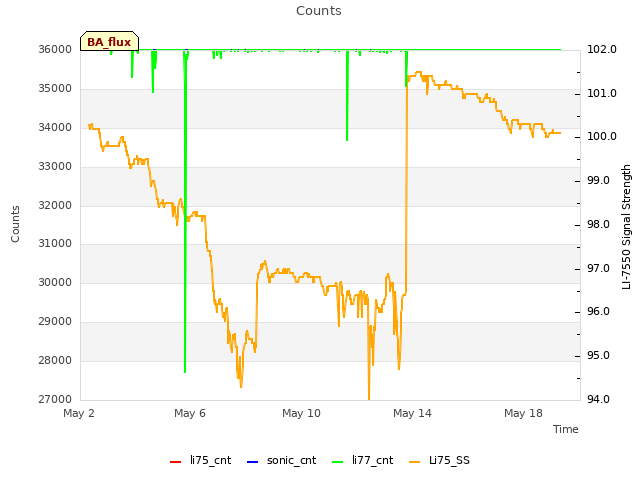

Explore the graph:Counts in a new window

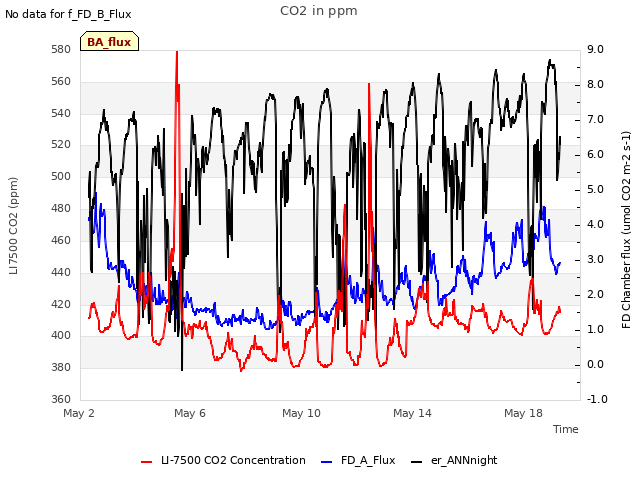

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

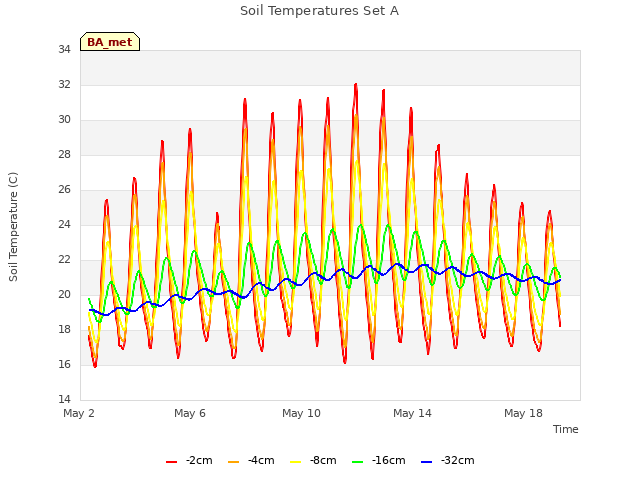

Explore the graph:Soil Temperatures Set A in a new window

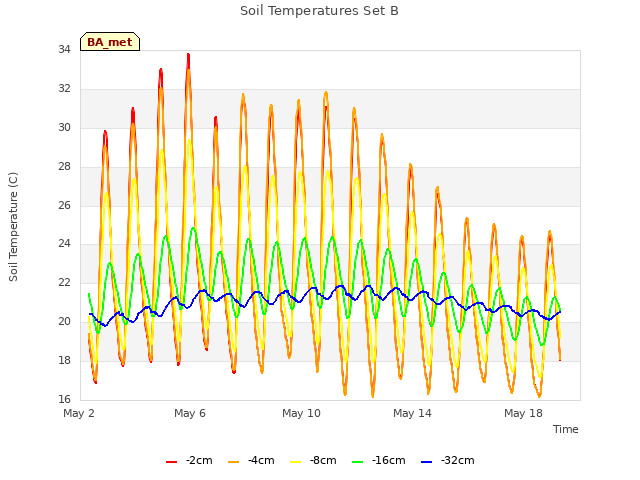

Explore the graph:Soil Temperatures Set B in a new window

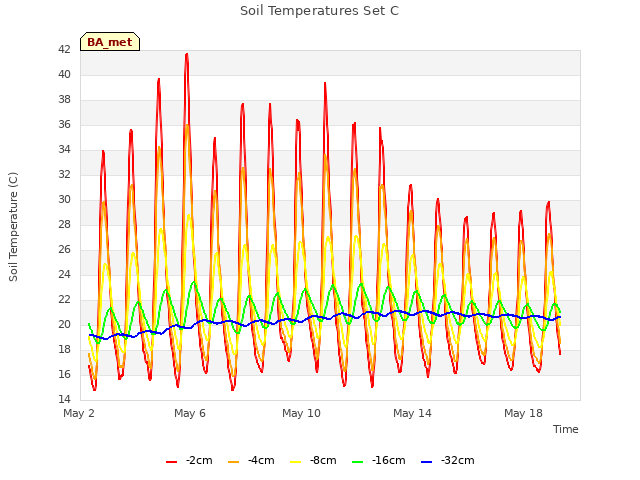

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

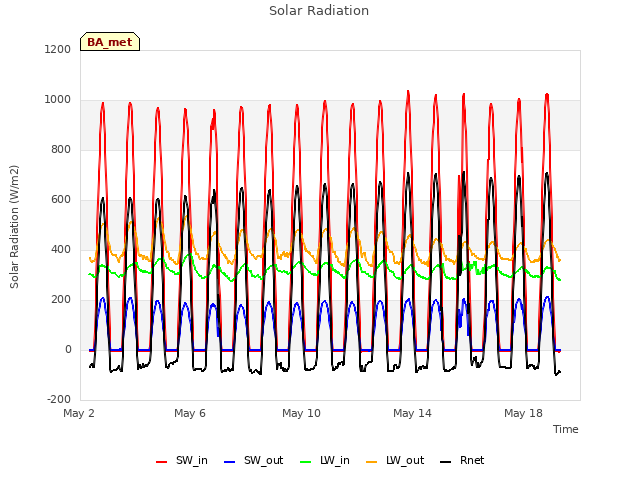

Explore the graph:Solar Radiation in a new window

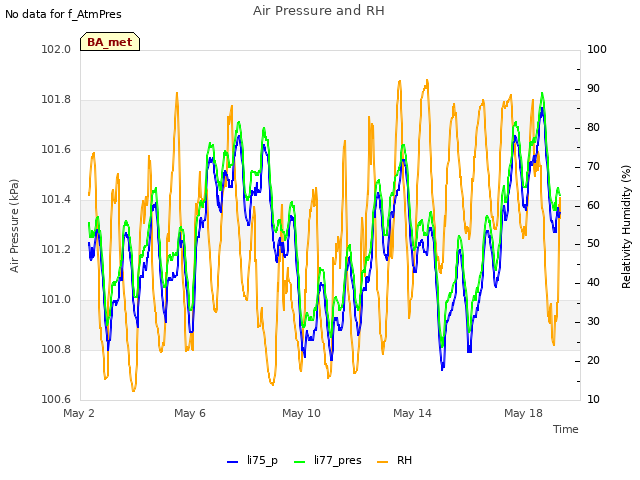

Explore the graph:Air Pressure and RH in a new window

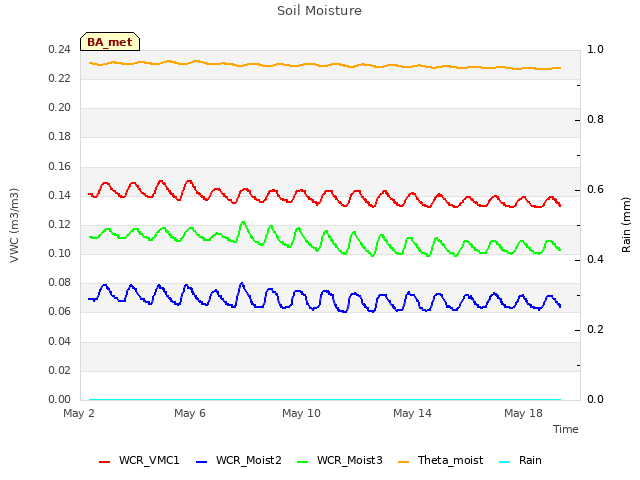

Explore the graph:Soil Moisture in a new window

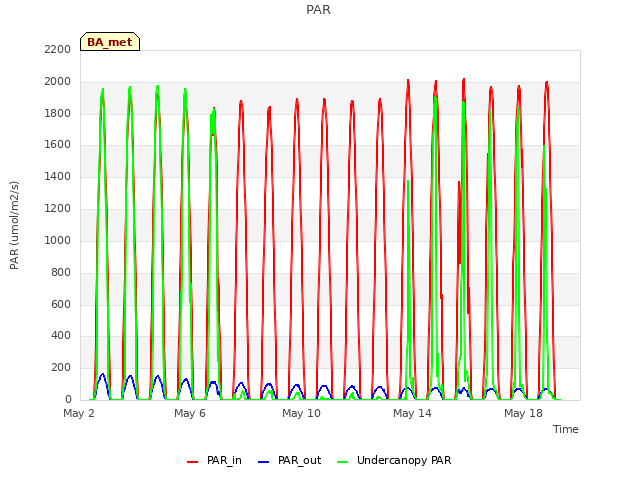

Explore the graph:PAR in a new window

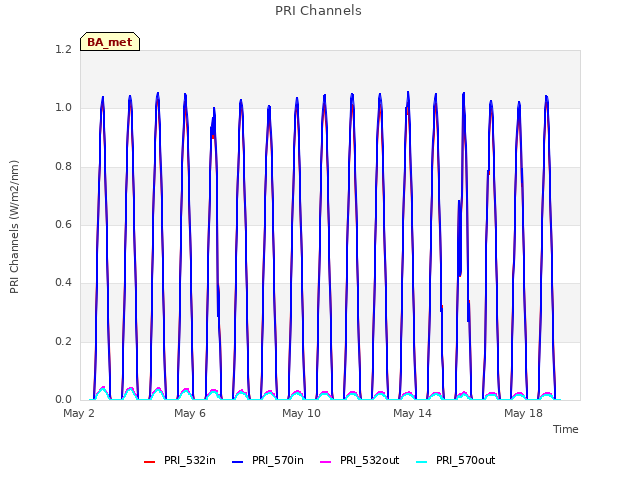

Explore the graph:PRI Channels in a new window

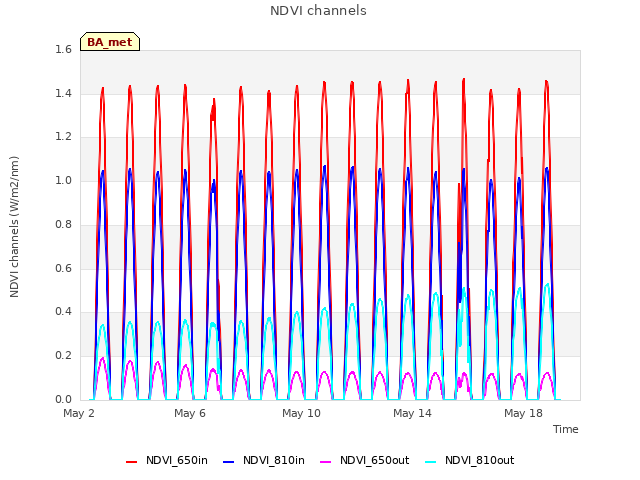

Explore the graph:NDVI channels in a new window

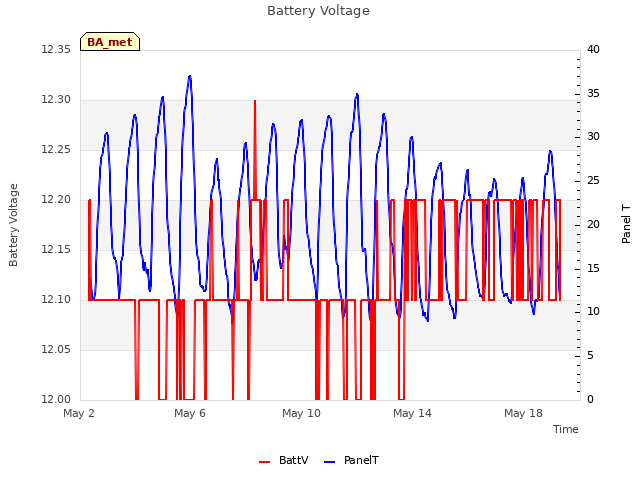

Explore the graph:Battery Voltage in a new window

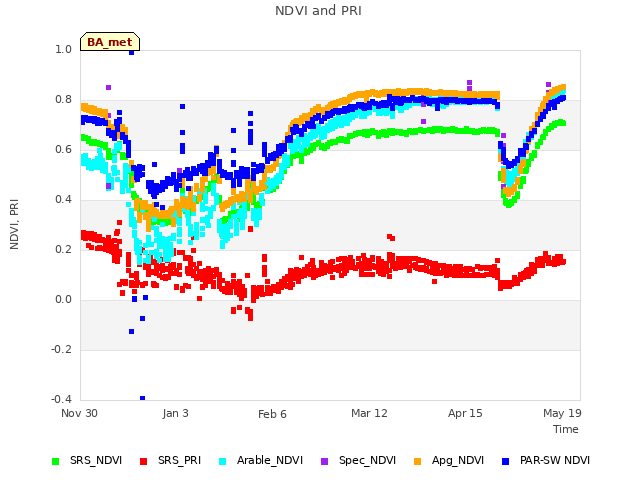

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

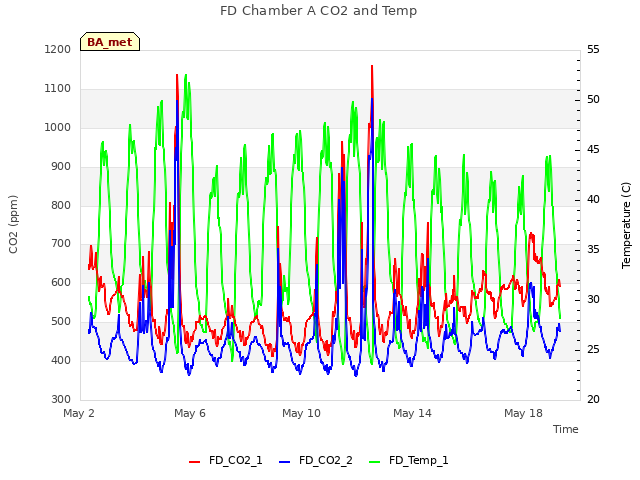

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

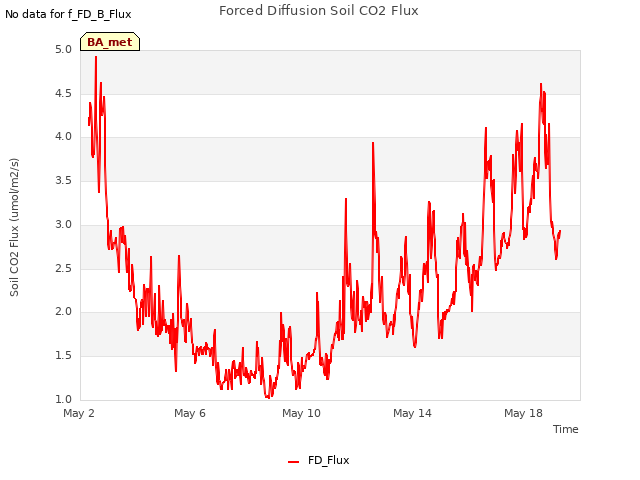

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

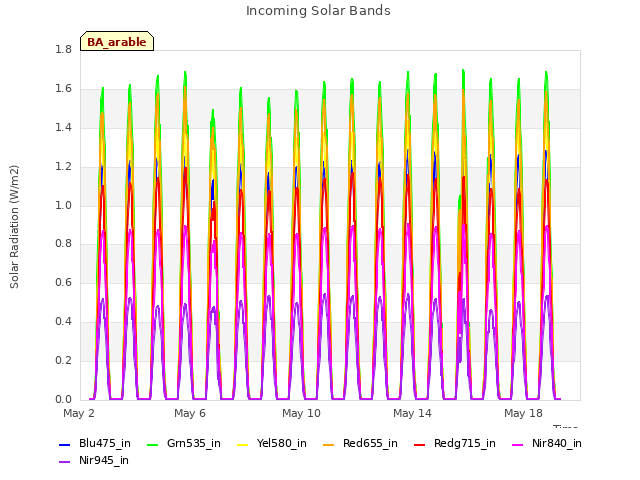

Explore the graph:Incoming Solar Bands in a new window

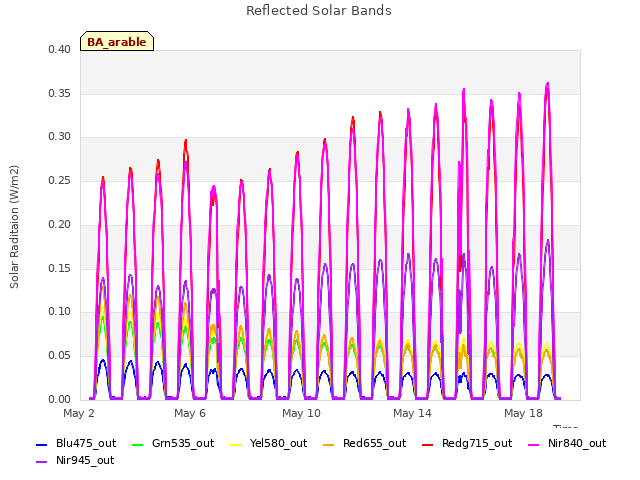

Explore the graph:Reflected Solar Bands in a new window

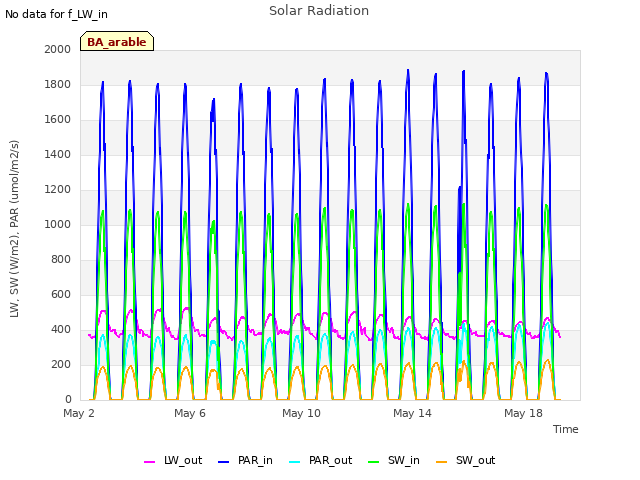

Explore the graph:Solar Radiation in a new window

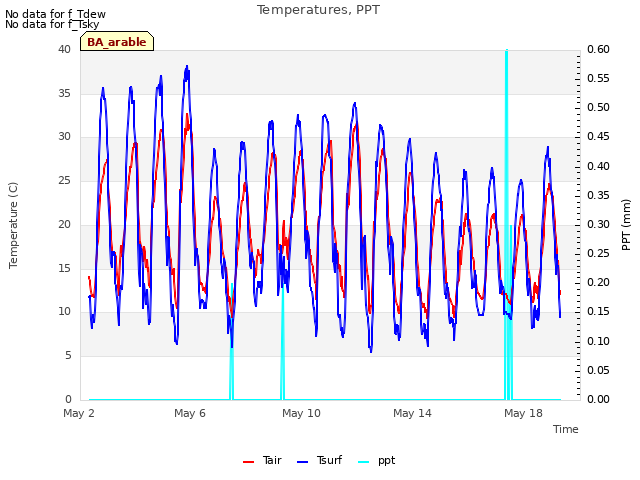

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

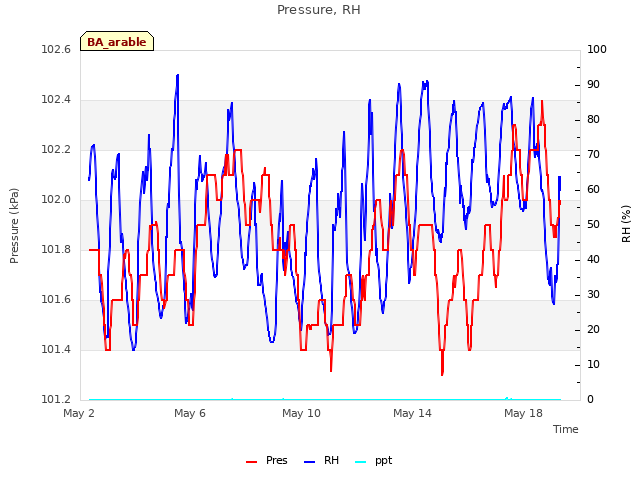

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

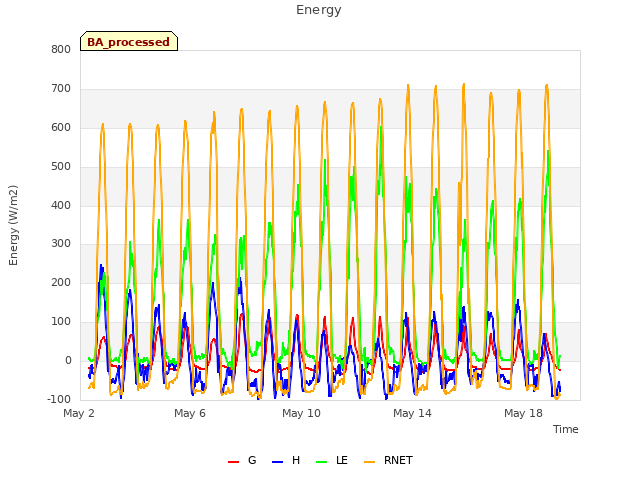

Explore the graph:Energy in a new window
