Field Notes

<--2021-05-04 09:40:00 | 2021-05-18 09:30:00-->
Other sites visited today: Hill Slough | Bouldin Corn | West Pond | East End | Sherman Wetland | Mayberry
Phenocam link: Searching...

Bouldin Alfalfa: 2021-05-13 11:45:00 (DOY 133)
Author: Daphne Szutu
Others: Joe

Summary: Regular data collection/cleaning, cleared debris off undercanopy PAR sensor

2021-05-13
Bouldin Alfalfa

Joe and I arrived at 11:45 PDT. The alfalfa bales have been removed, and the plants are back to shin height. I think they left the cuttings on the field too long and the alfalfa grew up under and into the cuttings - a lot of cuttings were left on the field and some of the alfalfa very pale to white leaves. We removed some dried cutting near the radiometers to the south. It was sunny and breezy with thin cirrus clouds overhead. Tyler is done with his insulated box at his alfalfa site and wondered if we needed it for anything.

I downloaded met, camera, and USB GHG data. I downloaded FD data and cleared its memory. The reservoir was 1/3 empty; we refilled it. Joe cleaned flux and rad sensors and the solar panels.

The undercanopy PAR sensor was covered with dead leaves, which we cleaned off. The undercanopy PAR is 2.5m at 205deg from the SW corner of the scaffolding. I took a few spectral measurements. Joe did veg height.

LI-7500 readings:
CO2 390ppm
H2O 820ppm
T 22.7C
P 101.5kPa
SS 96--> 101 after cleaning
LI7700 readings:
CH4 1.97
RSSI 28--> 80 after cleaning

We left around 12:15 PDT.

Next Mowing: 2021-05-28

Veg Height (cm): Tape measure from ground to top of plant - Lots of different heights maybe due to cuttings being left on the field too long
36, 26, 19, 40, 44, 32, 20, 31, 27, 44, 22, 36, avg = 31.4, stdev = 8.82

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

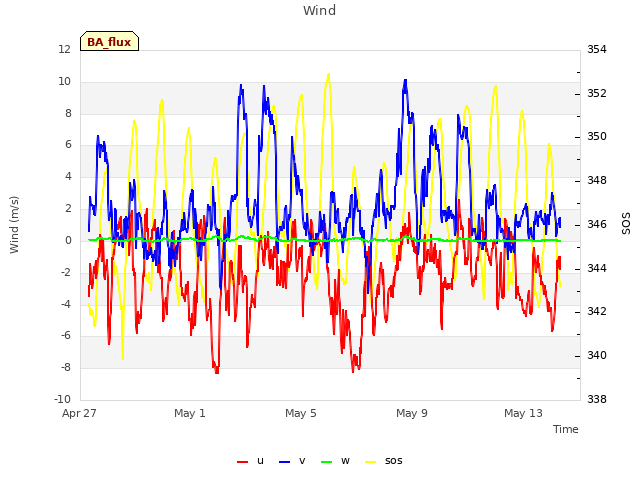

Explore the graph:Wind in a new window

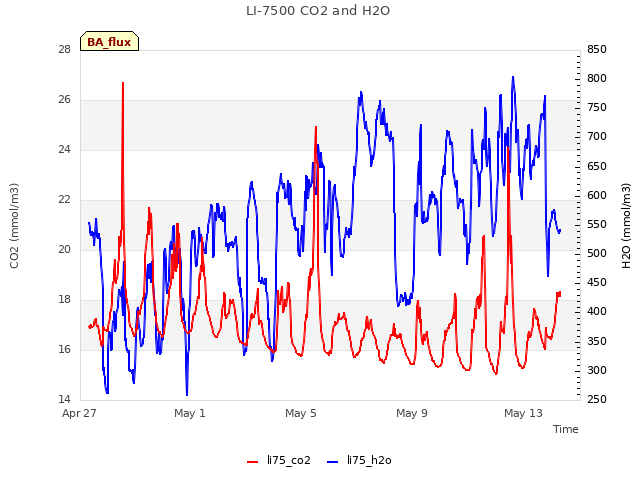

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

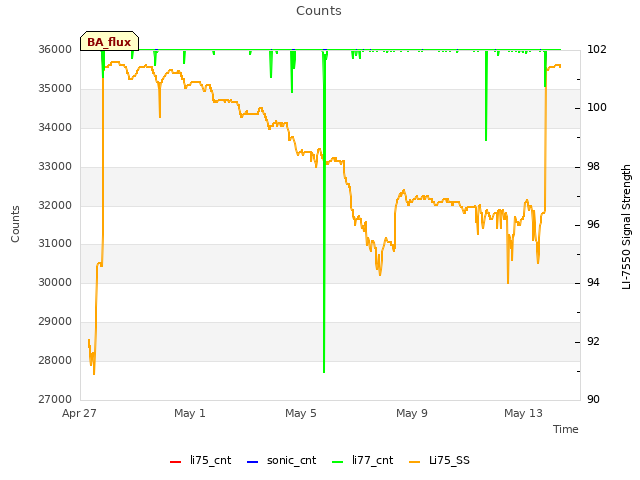

Explore the graph:Counts in a new window

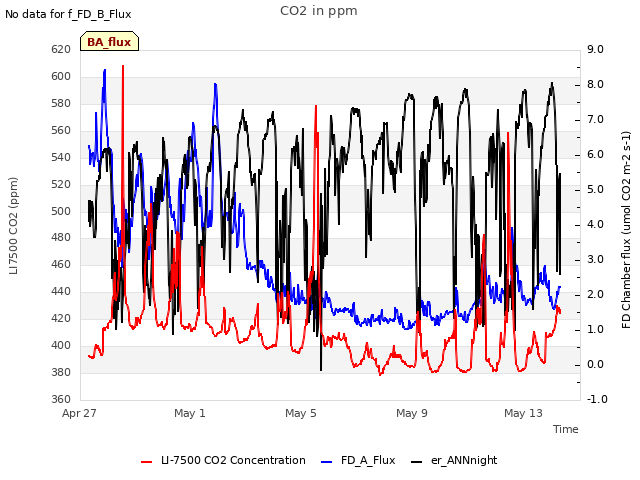

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

Explore the graph:Soil Temperatures Set A in a new window

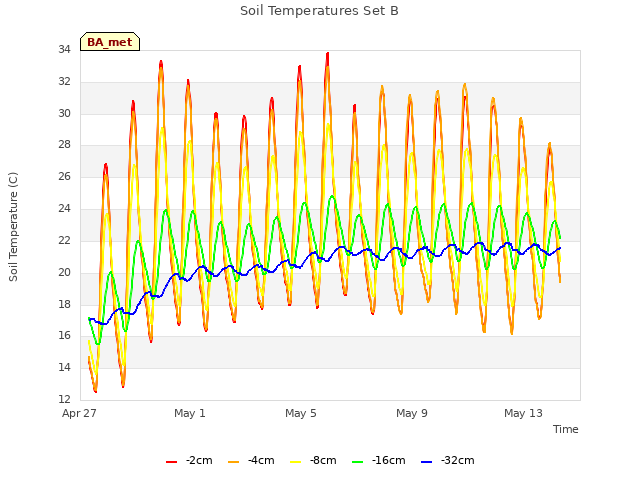

Explore the graph:Soil Temperatures Set B in a new window

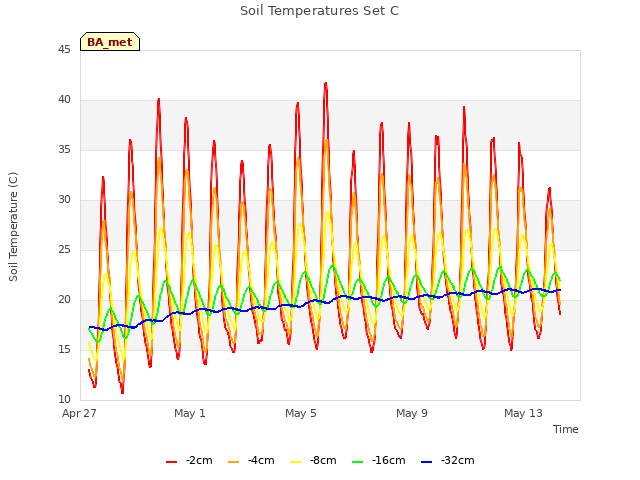

Explore the graph:Soil Temperatures Set C in a new window

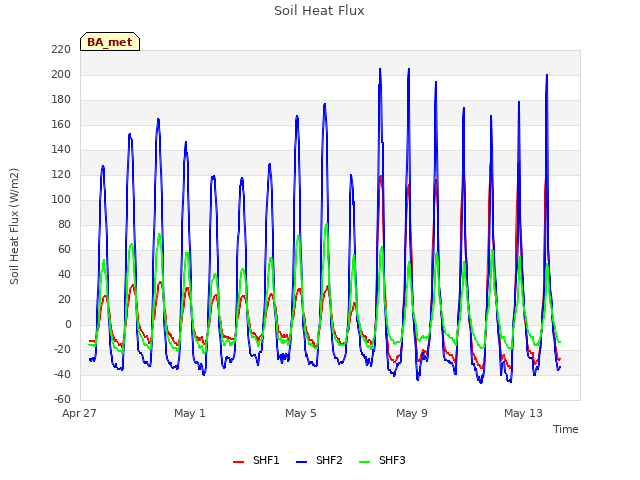

Explore the graph:Soil Heat Flux in a new window

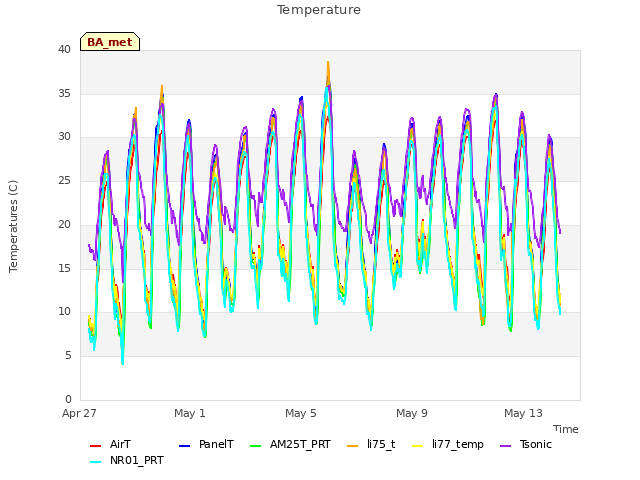

Explore the graph:Temperature in a new window

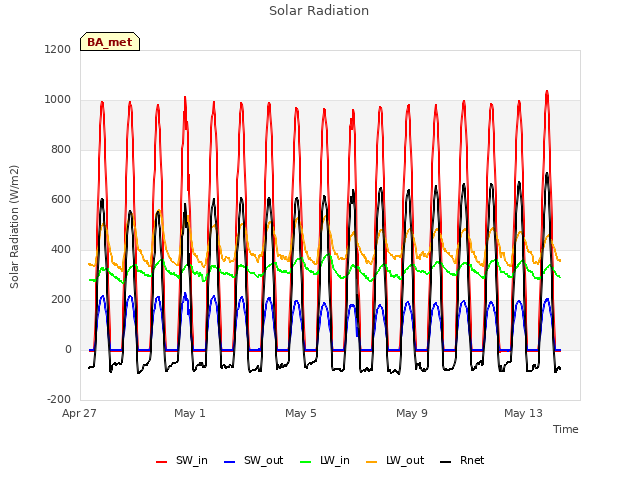

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

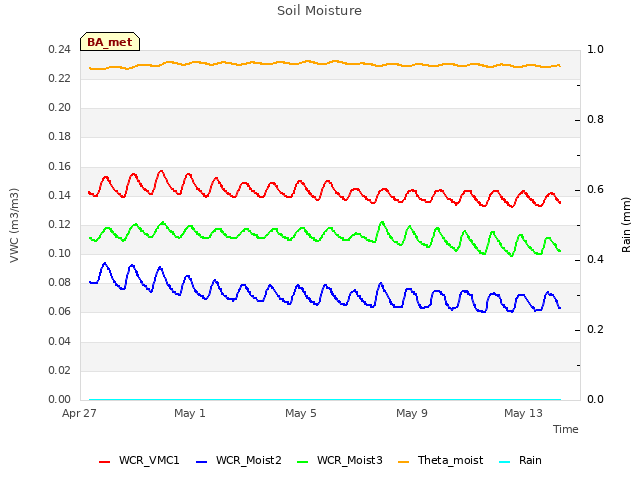

Explore the graph:Soil Moisture in a new window

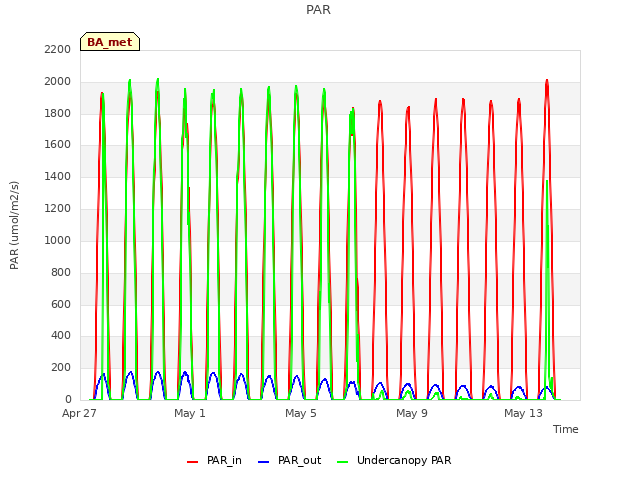

Explore the graph:PAR in a new window

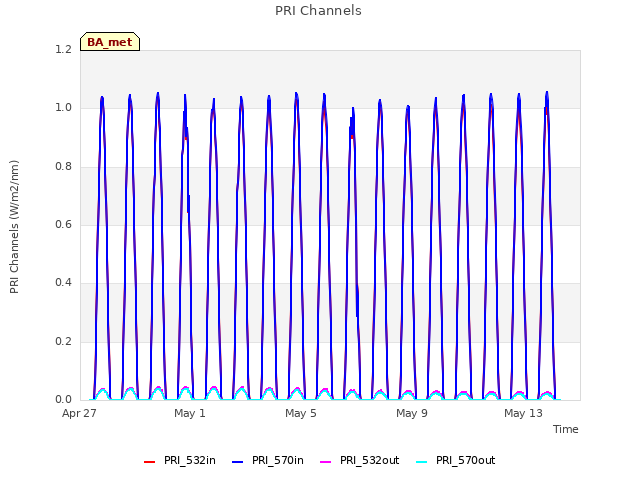

Explore the graph:PRI Channels in a new window

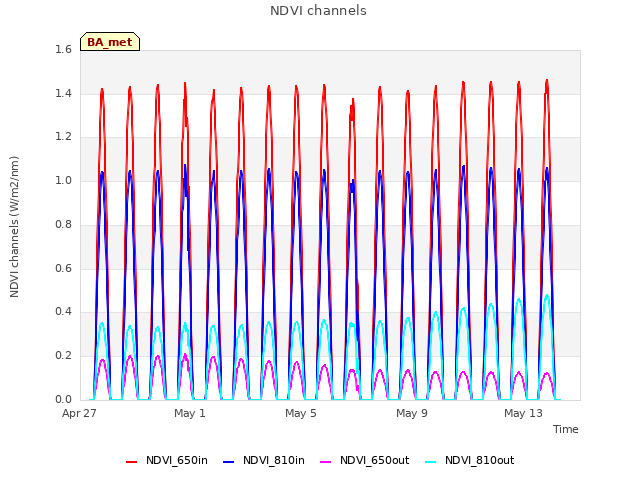

Explore the graph:NDVI channels in a new window

Explore the graph:Battery Voltage in a new window

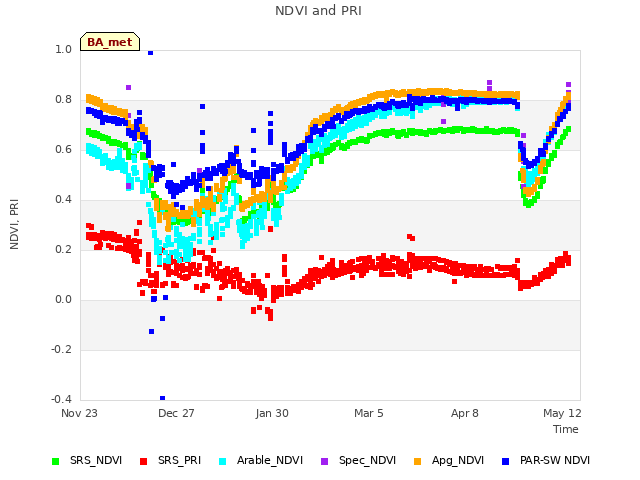

Explore the graph:NDVI and PRI in a new window

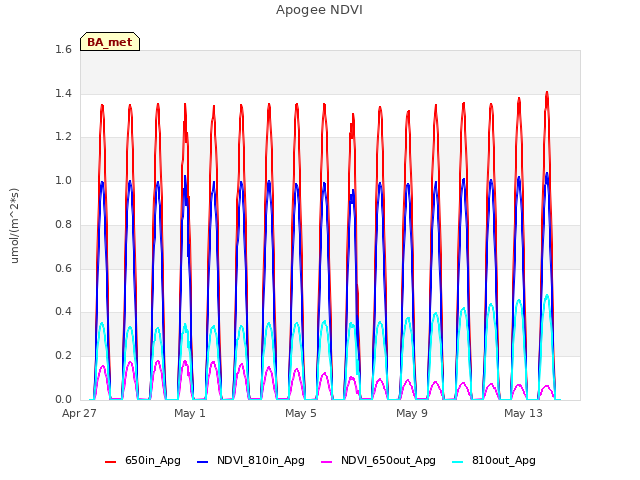

Explore the graph:Apogee NDVI in a new window

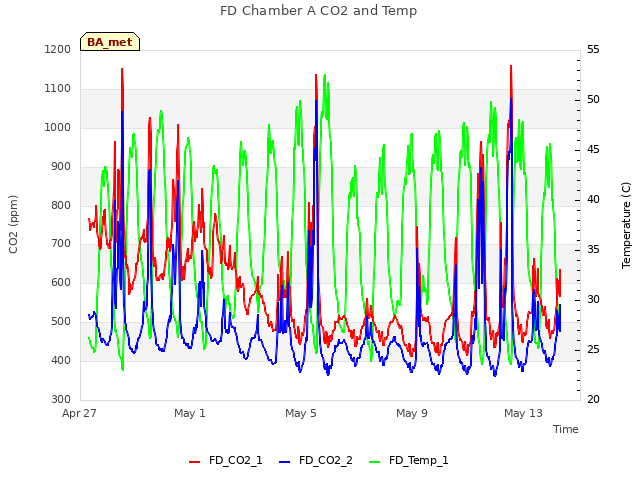

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

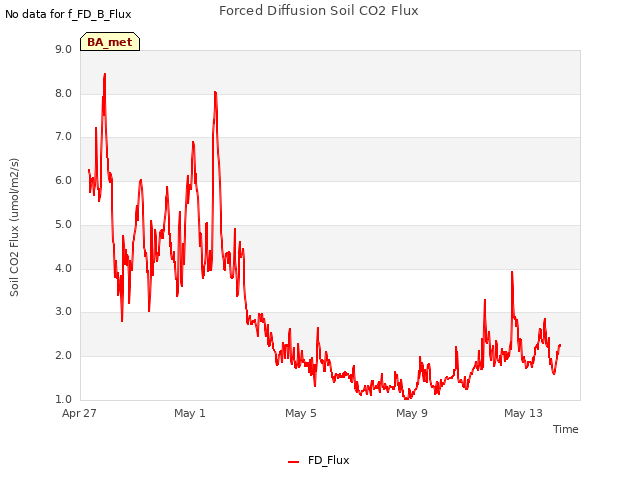

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

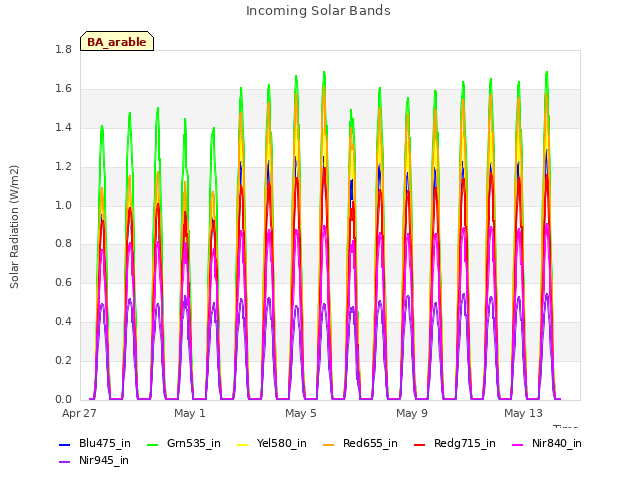

Explore the graph:Incoming Solar Bands in a new window

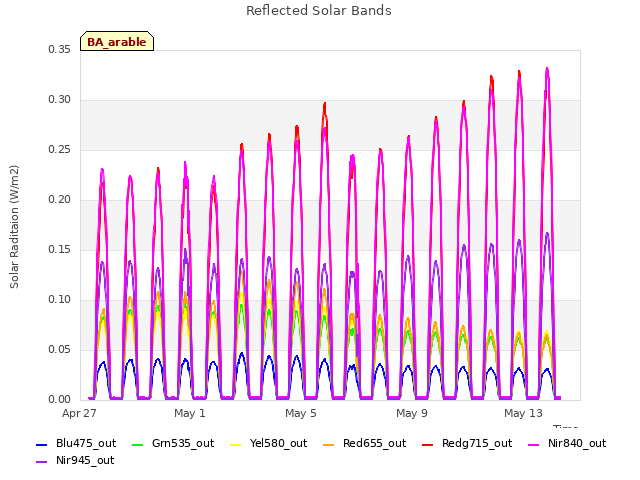

Explore the graph:Reflected Solar Bands in a new window

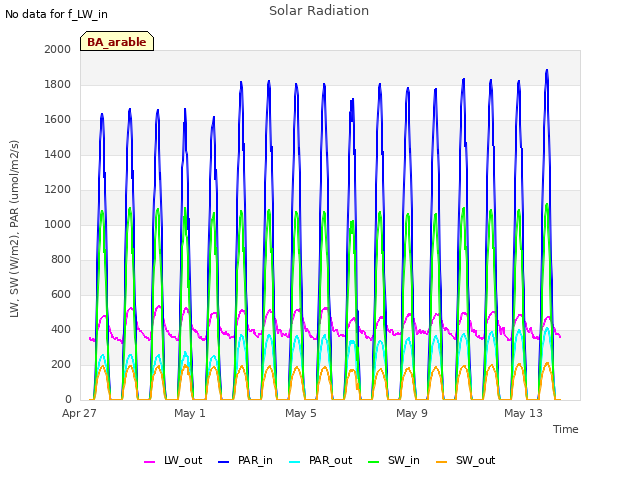

Explore the graph:Solar Radiation in a new window

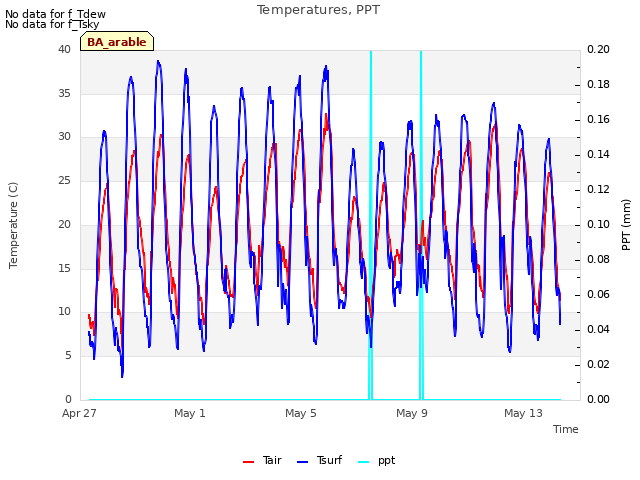

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

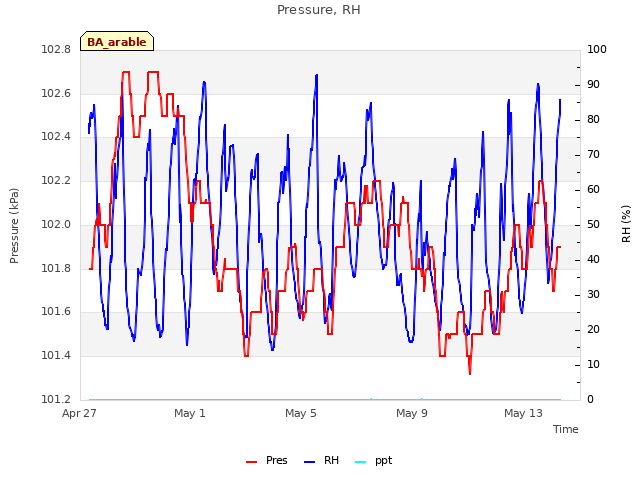

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

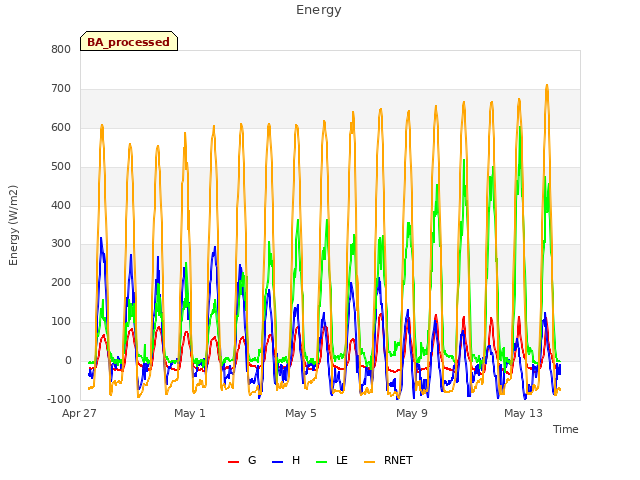

Explore the graph:Energy in a new window

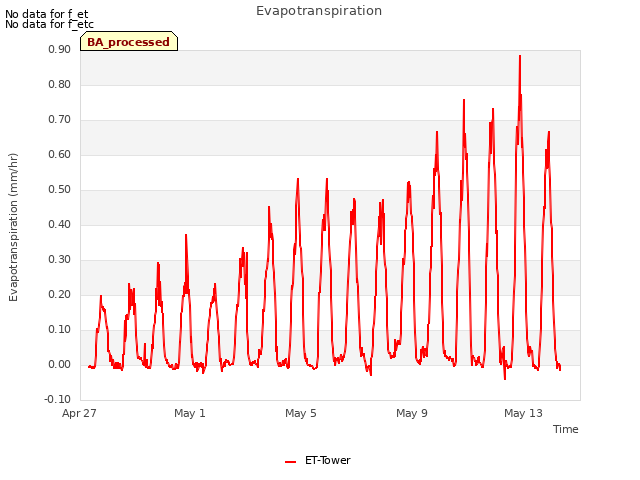

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
