Other sites visited today: Bouldin Corn

Bouldin Alfalfa: 2021-05-27 11:00:00 (DOY 147)
Author: Joe Verfaillie
Others: Daphne

Summary: Tall alfalfa soon to be mowed - maybe, trimmed around tower and Arables, removed Apogee NDVI to use as inter-comparison

Bouldin Alfalfa
2021-05-27

Daphne and I arrived at about 11:00 PDT. It was clear sunny and warm with a strong breeze from the west. The alfalfa is about thigh high. Fields to the north have been mowed and a mower was working to the northwest. Our field will probably be mowed shortly so we trimmed the alfalfa under the tower and around the two Arable posts in the field.

I collected data while Daphne trimmed.
The 7500 read: 398.6ppm CO2, 650.6mmo/m3 H2O, 20.7C, 101.8kPa, 98.4SS – 101.5 after cleaning
The 7700 read: 1.97ppm CH4, 66.6RSSI – 87 after cleaning
The wash reservoir was full.

We removed the Apogee NDVI sensors to use for inter-comparisons. Incoming sn 1049 and outgoing sn 1050 were removed.

I did veg height and spectral measurements.

We left at about 12:00 noon.

Tyler has removed his alfalfa chamber system and I thought about retrieving the wooden box, but it still has locks on it and a power line running inside. If he can removed the locks and power I’ll dispose of the box.

Next Mowing: 2021-05-28

Veg Height (cm): Tape measure from ground to top of plant
56, 63, 41, 67, 48, 56, 45, 72, 70, 71, 58, 46, 73, 52, 68, 68, avg = 59.6, stdev = 10.78

1 photos found

Mowing
Mowing

Graphs display:
7 sets found

5 BA_flux graphs found

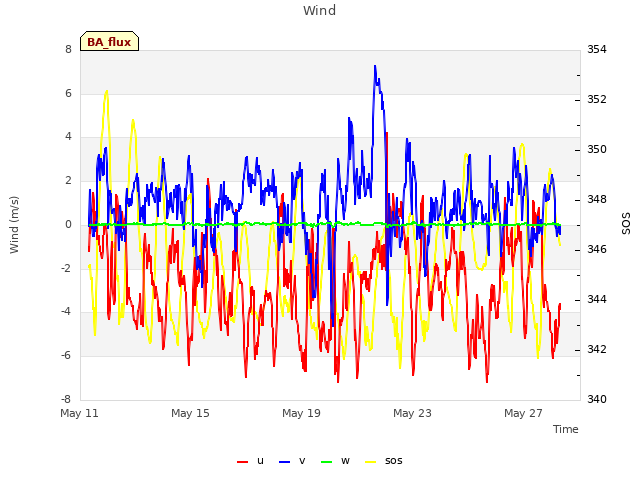

Explore the graph:Wind in a new window

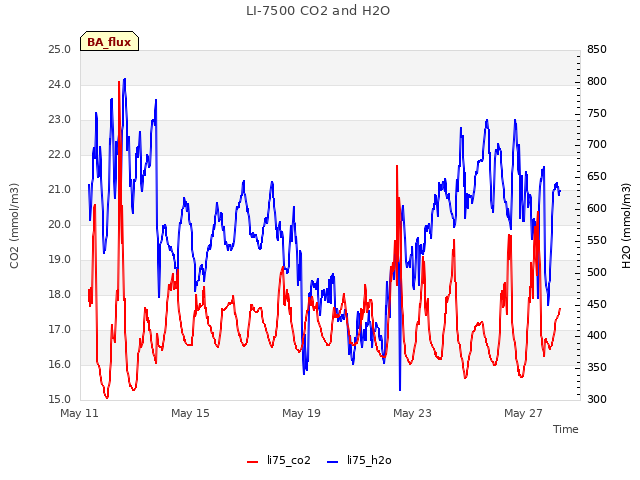

Explore the graph:LI-7500 CO2 and H2O in a new window

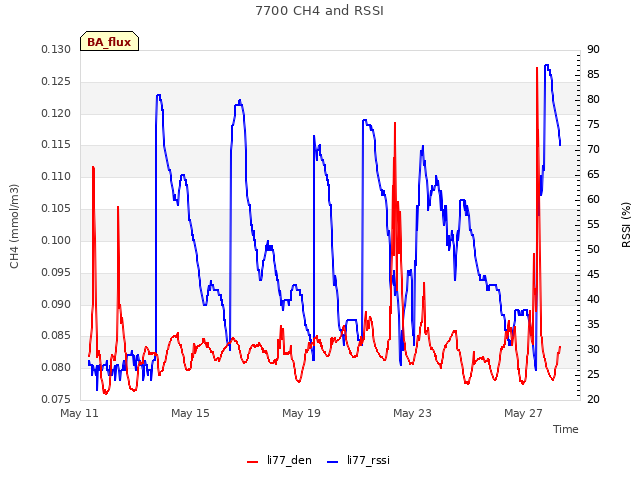

Explore the graph:7700 CH4 and RSSI in a new window

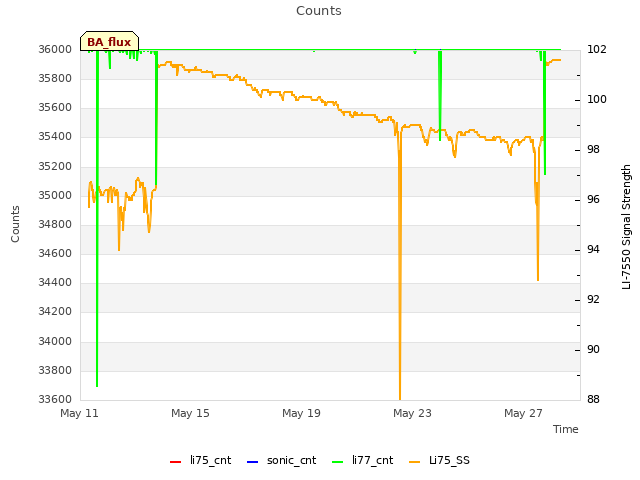

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

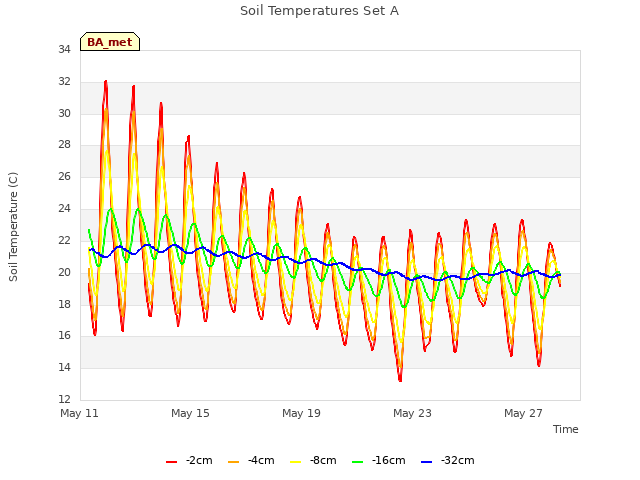

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

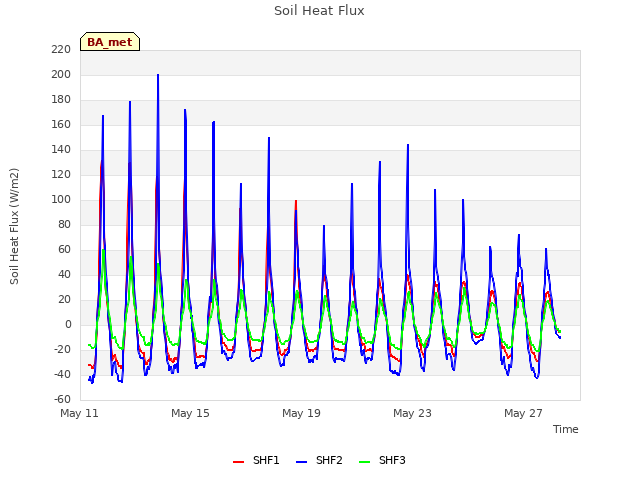

Explore the graph:Soil Heat Flux in a new window

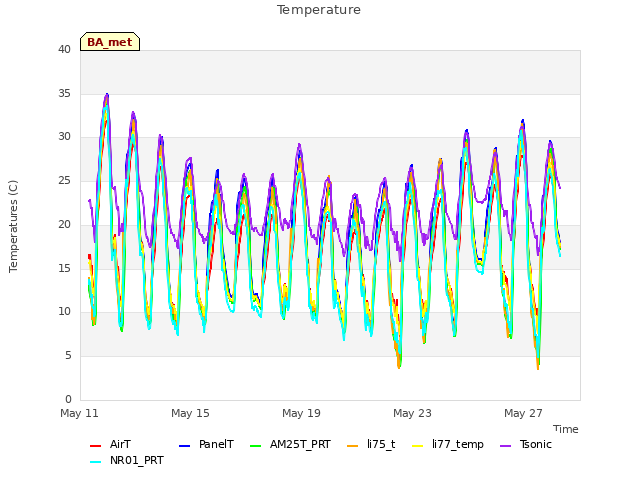

Explore the graph:Temperature in a new window

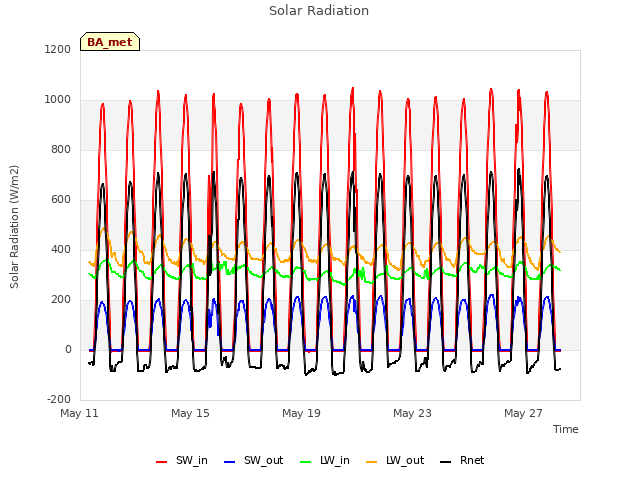

Explore the graph:Solar Radiation in a new window

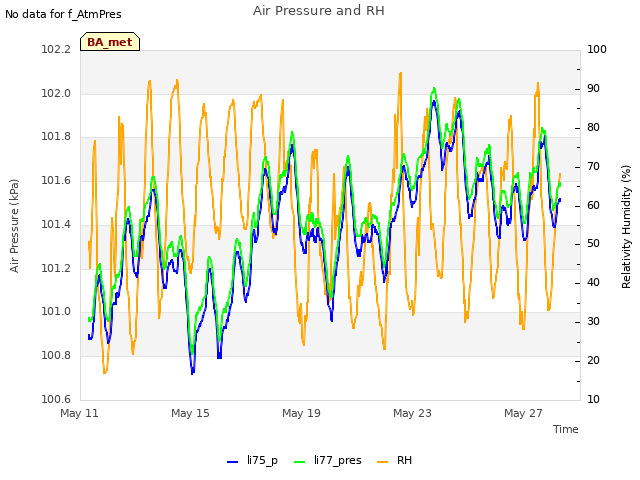

Explore the graph:Air Pressure and RH in a new window

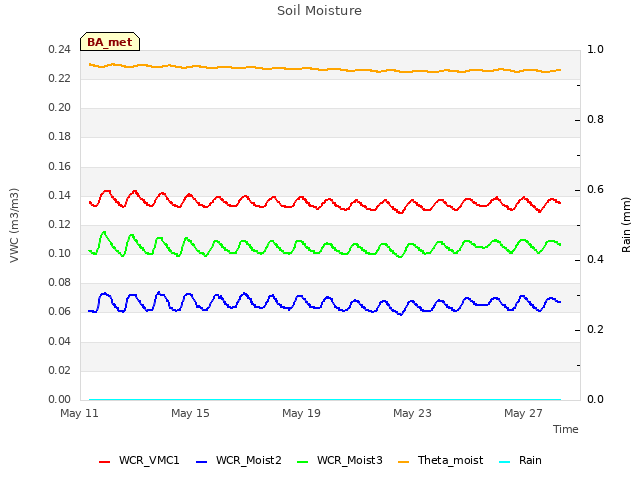

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

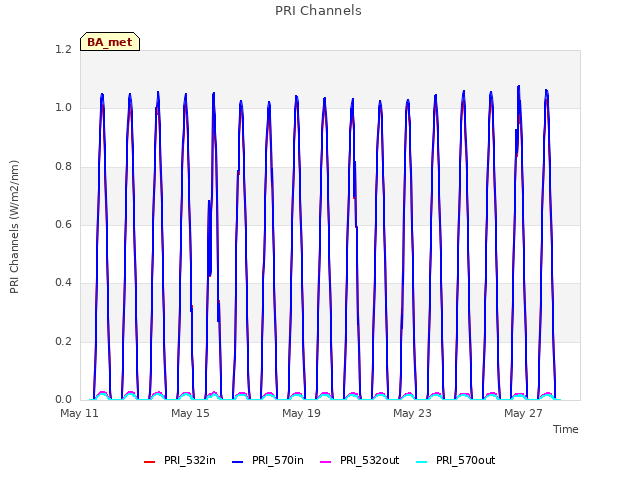

Explore the graph:PRI Channels in a new window

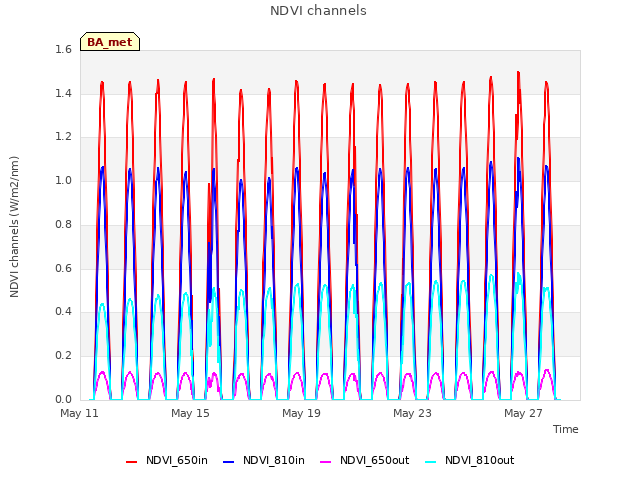

Explore the graph:NDVI channels in a new window

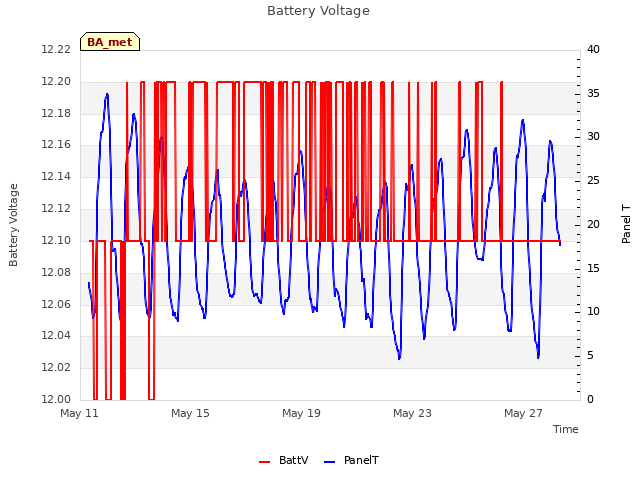

Explore the graph:Battery Voltage in a new window

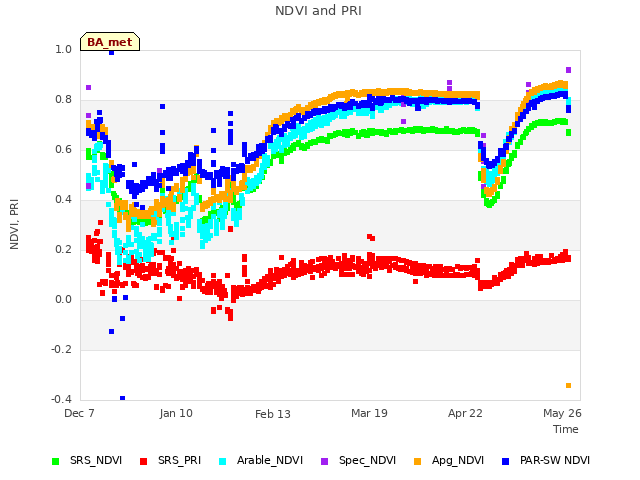

Explore the graph:NDVI and PRI in a new window

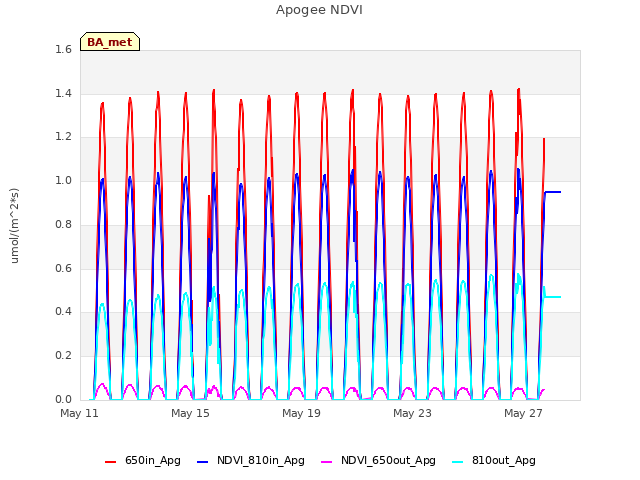

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

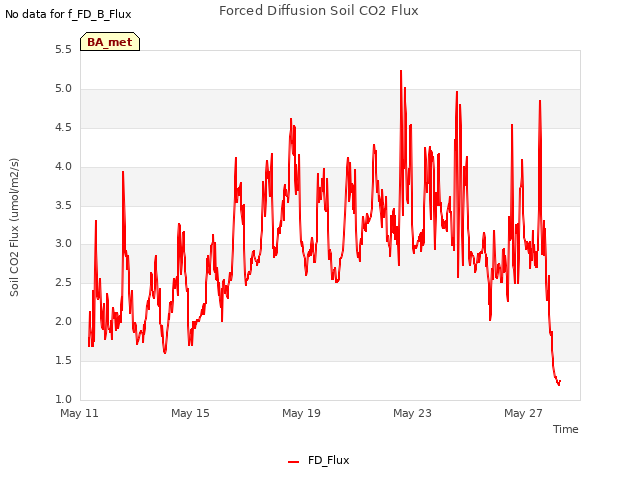

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

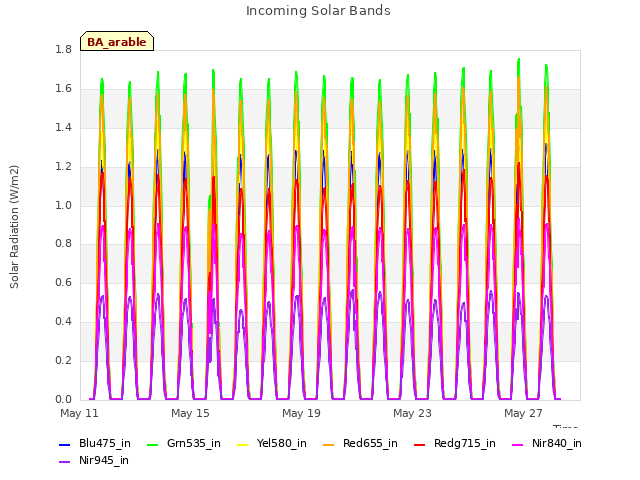

Explore the graph:Incoming Solar Bands in a new window

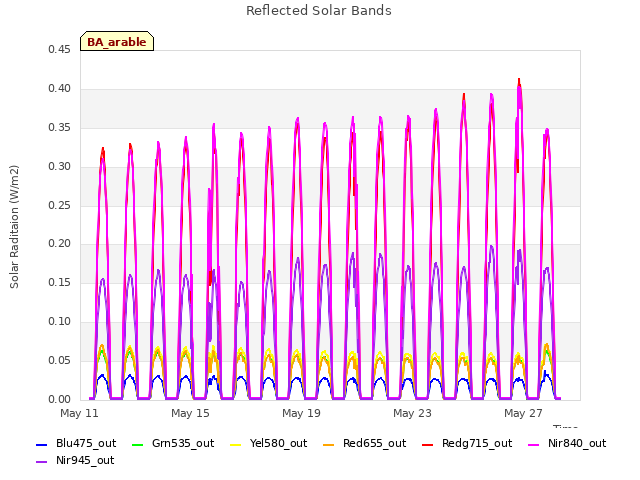

Explore the graph:Reflected Solar Bands in a new window

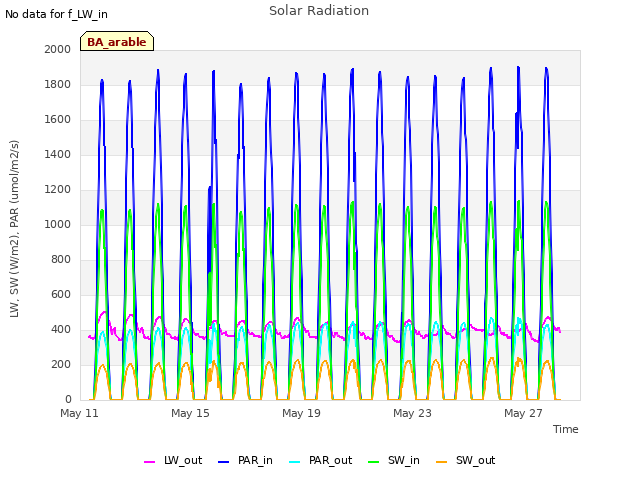

Explore the graph:Solar Radiation in a new window

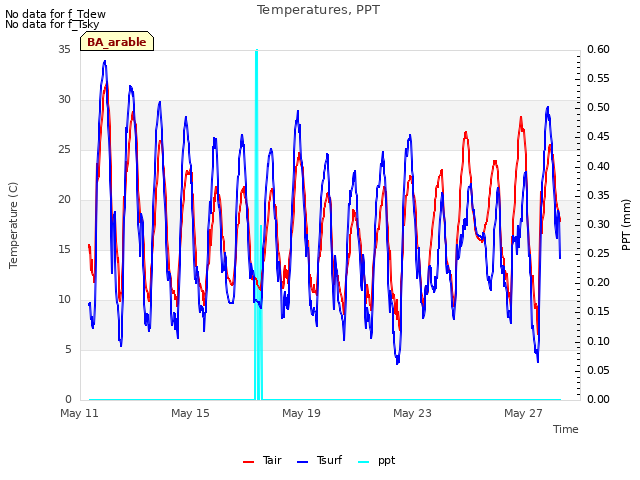

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

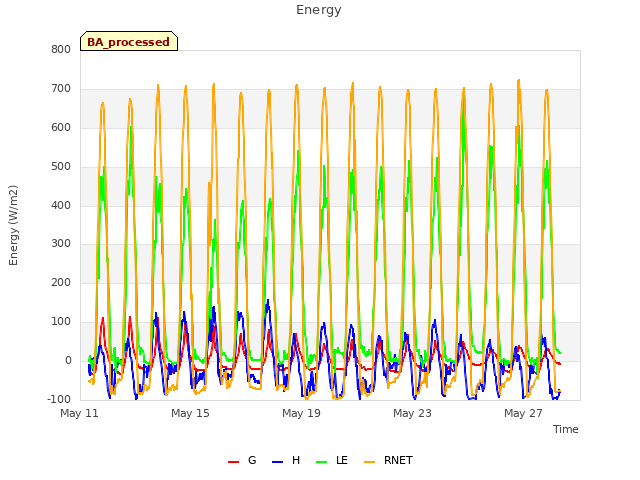

Explore the graph:Energy in a new window

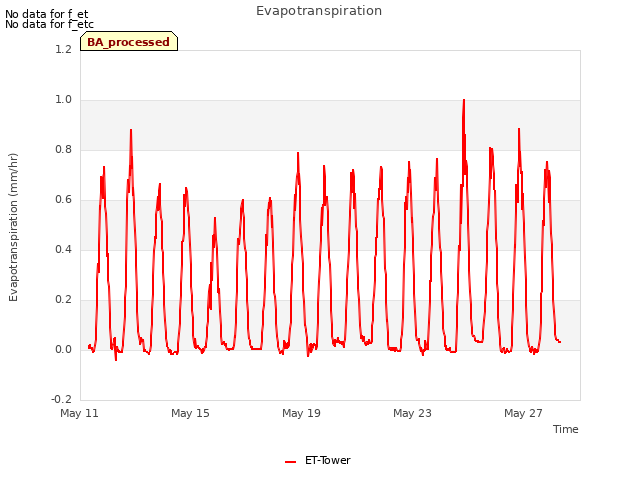

Explore the graph:Evapotranspiration in a new window
