West Pond: 2019-10-31 14:20:00 (DOY 304)
Author: Joe Verfaillie
Others: Camilo

Summary: Water level is full but inlet is not running - maybe ok. Standard data collection.

West Pond
2019-10-31

Camilo and I arrived at 14:20. It was clear and sunny and mild with little to no wind. The water level was 54cm. A big increase since last time, but the inlet was not running because the valve was turned off. We left it that way since is seems someone is actively managing things right now. A lot of the vegetation along the roads had also been cut back.

Camilo measured the water levels at the outlets. The east outlet was 4cm below the boards on the upstream side and 43cm below the boards on the downstream side. The west outlet was even with (0cm) the boards on the upstream side and 42cm below the boards on the downstream side.

The 7500 read: 402.7ppm CO2, 248.3mmol/m3 H2O, 23.0C, 102.2kPa, 95.8SS
The 7700 read: 1.95ppm CH4, 32.5RSSI – 74.1 after cleaning
The wash reservoir was about half full – refilled.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

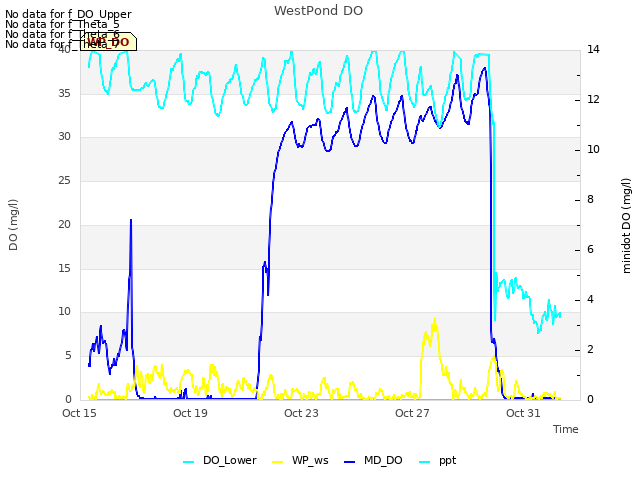

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

Explore the graph:Battery in a new window

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:RH and Pressure in a new window

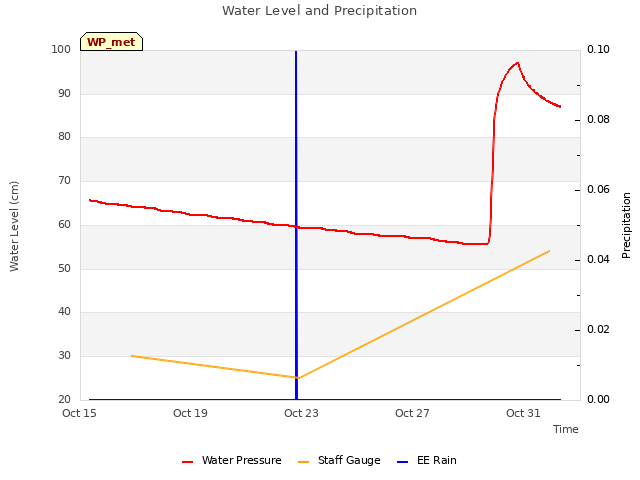

Explore the graph:Water Level and Precipitation in a new window

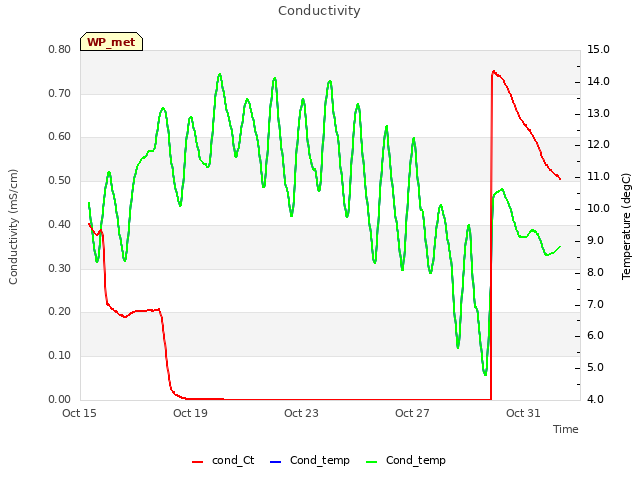

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

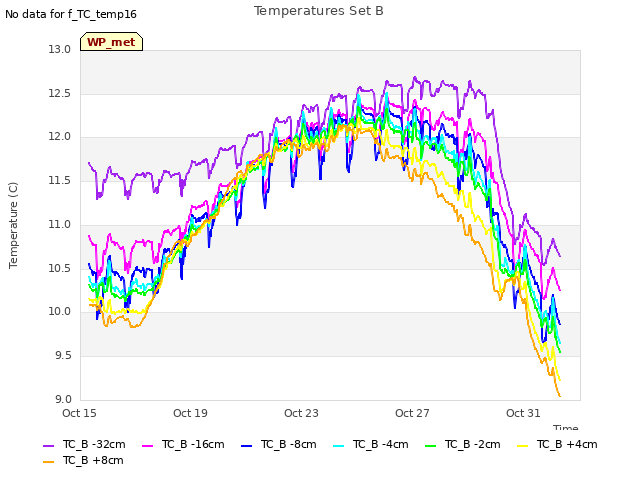

Explore the graph:Temperatures Set B in a new window

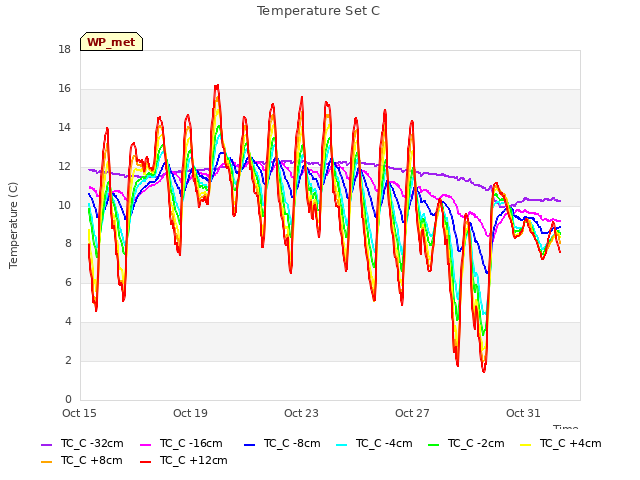

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

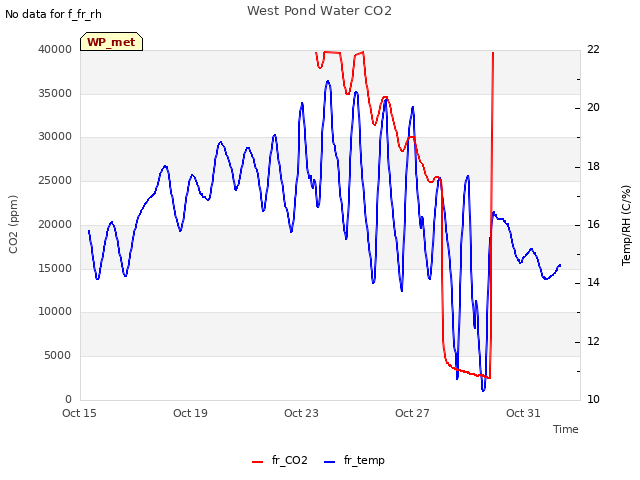

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

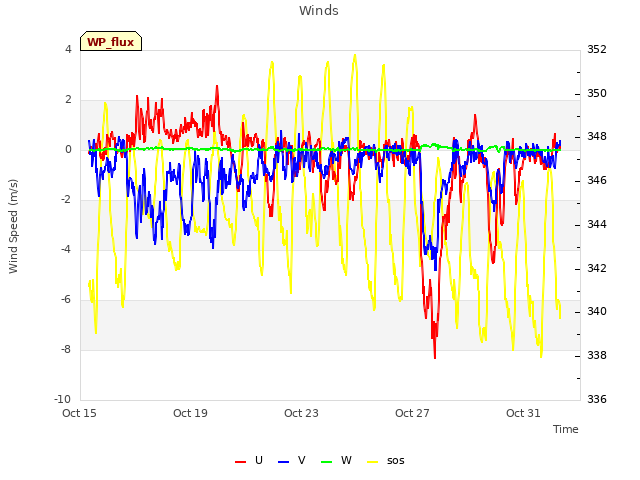

Explore the graph:Winds in a new window

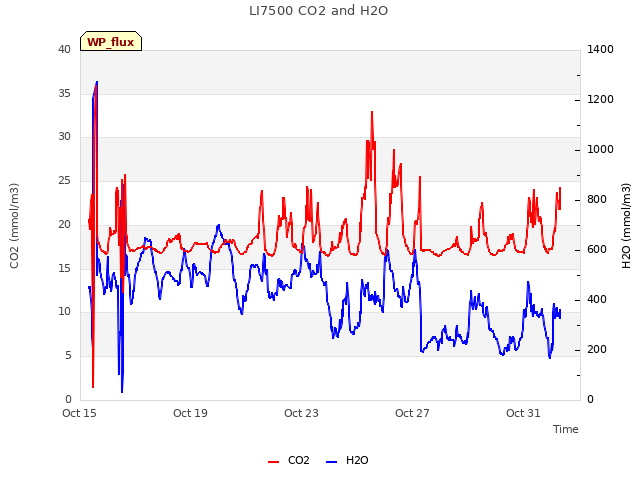

Explore the graph:LI7500 CO2 and H2O in a new window

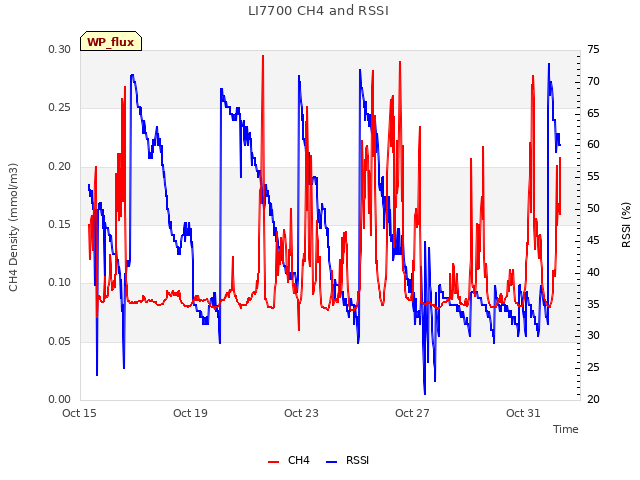

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

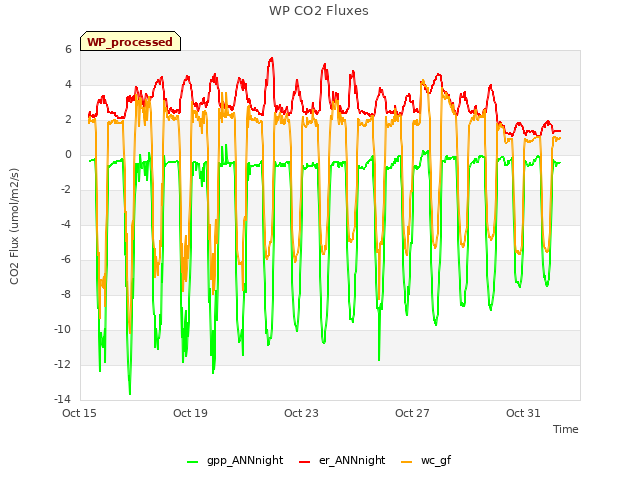

Explore the graph:WP CO2 Fluxes in a new window
