Sherman Wetland: 2019-10-16 10:00:00 (DOY 289)
Author: Daphne Szutu
Others: Alex

Summary: Regular data collection/cleaning, lots of poop

2019-10-16
Sherman Wetland

Alex and I arrived at 10:00. It was a breezy, overcast, and cool day. The water level was 81 cm. Things were very poopy – much otter poop on the boardwalk, and lots of bird poop everywhere else.

Alex cleaned flux and rad sensors. He also cleaned out bird poop from the precip bucket and otter poop from the boardwalk. The wash reservoir was mostly full; we topped it off. I collected met, camera, USB, and miniDOT data. We swapped the desiccant for the water level sensor and miniDOT.

LI-7500 readings:
CO2 425ppm
H2O 560ppm
T 15.1C
P 101.6kPa
SS 97 --> 100
LI7700 readings:
CH4 2.13 ppm
RSSI 50--> 84 after cleaning

We left at 10:30.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

Explore the graph:Temperatures in a new window

Explore the graph:Water Temperature Profile A in a new window

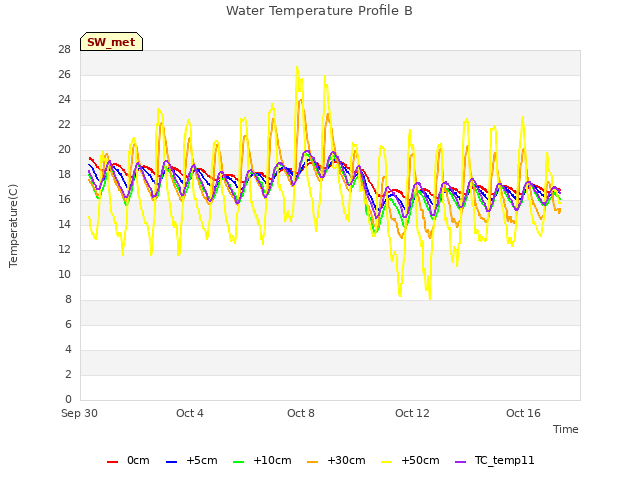

Explore the graph:Water Temperature Profile B in a new window

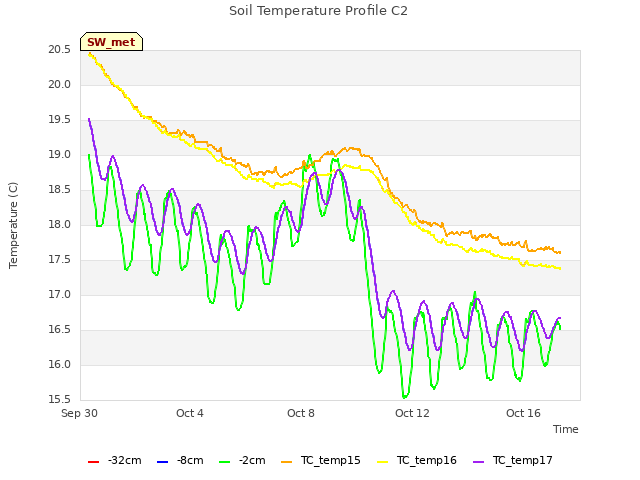

Explore the graph:Soil Temperature Profile C2 in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four channel Radiometer in a new window

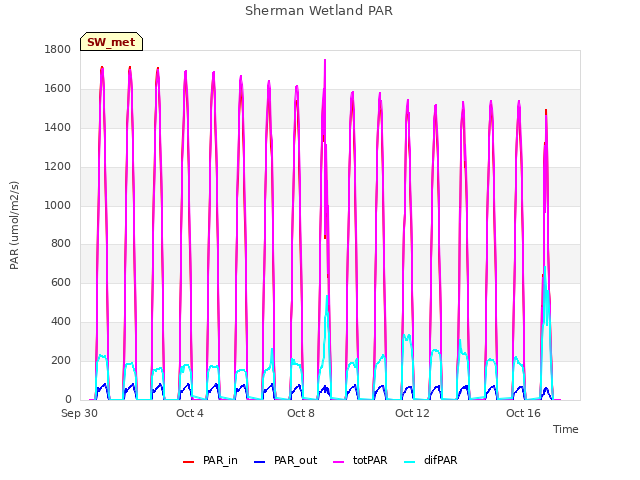

Explore the graph:Sherman Wetland PAR in a new window

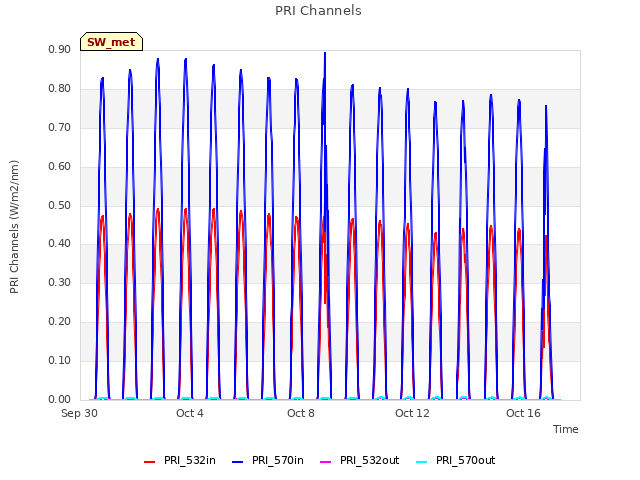

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI Channels in a new window

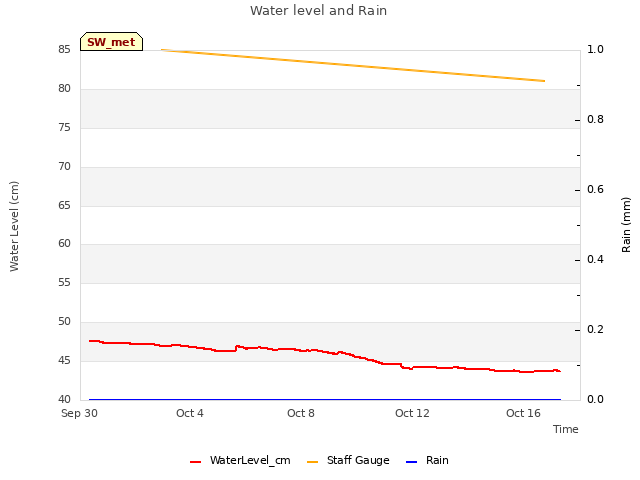

Explore the graph:Water level and Rain in a new window

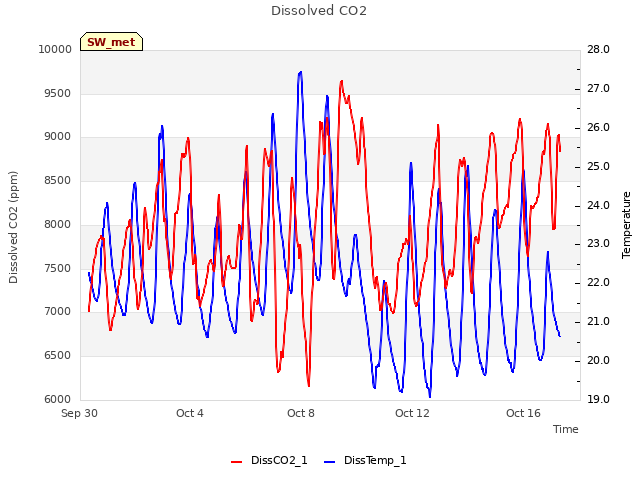

Explore the graph:Dissolved CO2 in a new window

Explore the graph:Air Pressure in a new window

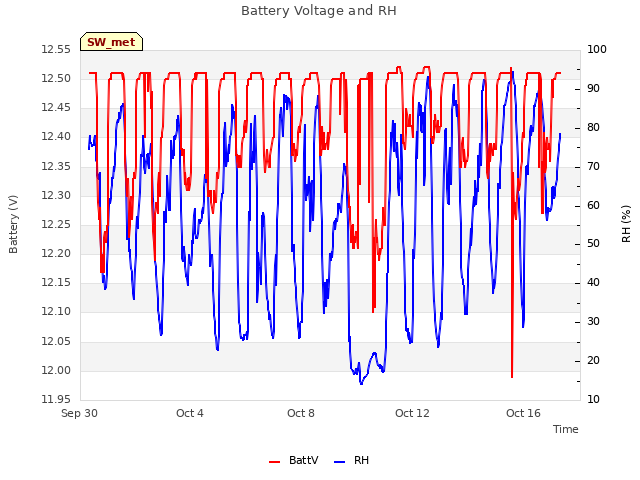

Explore the graph:Battery Voltage and RH in a new window

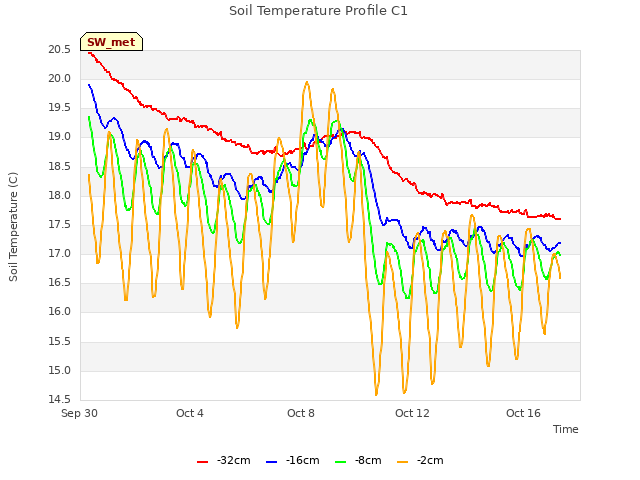

Explore the graph:Soil Temperature Profile C1 in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

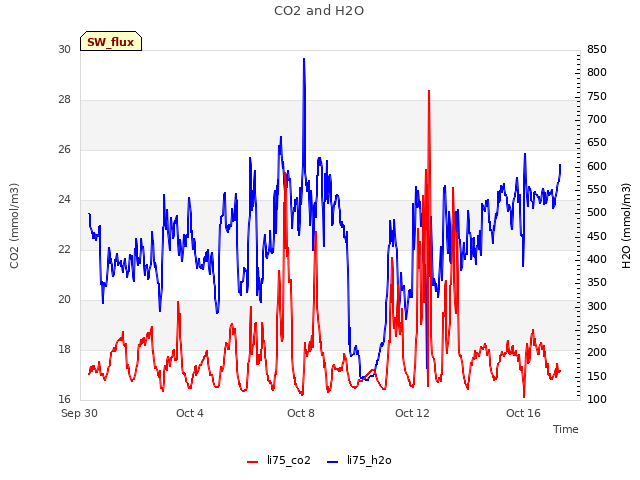

Explore the graph:CO2 and H2O in a new window

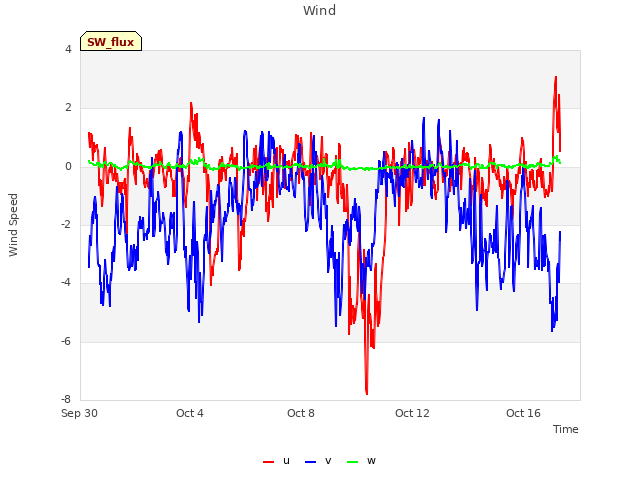

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

3 SW_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

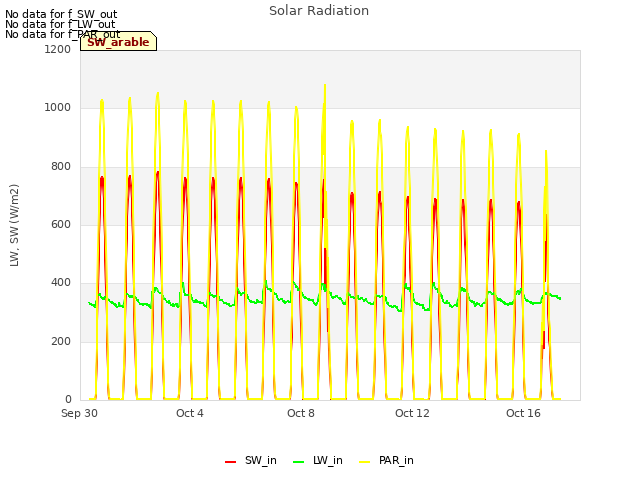

Explore the graph:Solar Radiation in a new window
