Field Notes

West Pond: 2019-10-16 13:25:00 (DOY 289)
Author: Daphne Szutu
Others: Alex

Summary: Regular data collection/cleaning, LAI, manual fisheye lens photos, disconnected a TC, measured water level at outlets

2019-10-16
West Pond

Alex and I arrived at 13:25. It was a cloudy and mild day with patches of sun and a slight breeze. Bruce and his crew are re-doing the Twitchell gravel road; they were working on smoothing a dirt layer. The water level was 30 cm.

I collected met, camera, USB GHG, miniDOT, and zcam data. We swapped the desiccant for the water level sensor and miniDOT. The wash reservoir was mostly full; we topped it off. I disconnected TC16, which has been NAN.

We had a Raspberry-pi camera with a fisheye lens that Alex used to take some photos along the boardwalk. He also took 1-wand LAI measurements along the boardwalk, facing south into the sun, with the 45deg view cap.

At both outlets, the water was higher on the upstream (wetland) side. I measured the distance from the water surface to the top of the boards at the outlets. In the east outlet, it was 30.5 cm upstream and 38 cm downstream. In the west outlet, it was 24 cm upstream and 33 cm downstream.

We left at 14:20.

0 photos found

8 sets found

Can't check WP_DO

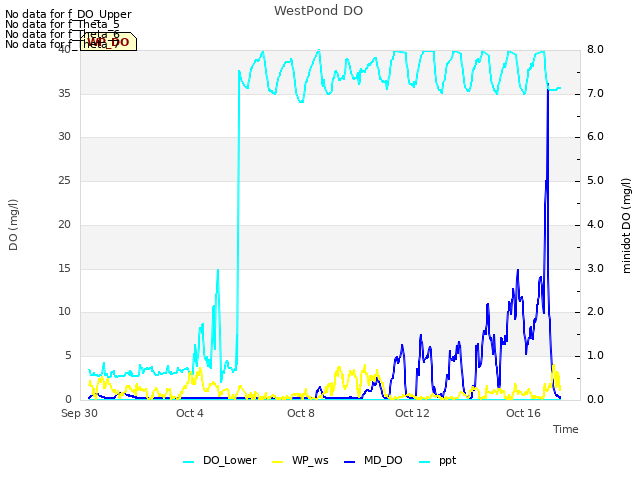

1 WP_DO graphs found
