Field Notes

<--2009-10-09 12:00:00 | 2009-10-22 11:30:00-->
Other sites visited today: Sherman Island
Phenocam link: Searching...

Twitchell Rice: 2009-10-15 12:30:00 (DOY 288)
Author: Joe Verfaillie
Others:

Summary: corn field blown down by storm, rice still too wet, LGR fixed, power computer from solar system

Twitchell
10/15/2009

Arrived about 12:30 PDT. Clear, sunny, warm. The corn field to the east was all blown down by the storm – looks like strong wind from the south east. Some blow down in the rice too. Some rice was harvested from the northern section of Field 1 on Monday 10/12 along the edges and a little deeper than the end of our measurement berm. The edges have been mowed as well, but some still standing straw on either side of the measurement berm.

Processor says rice is still too wet (green). Probably continue harvest next week.

Instruments running, LGR in 1Hz slow flow mode. Generator went down on 10/10. I think I fixed the problem of the LGR starting up in slow flow mode. I shut it down properly in Hi flow mode and on restart it remained in hi flow mode. Even after pulling the plug it returned to hi flow after power was returned.

LGR Stats: 12:13PST, 1.8970ppm, 19670.1ppm, 396.94ppm, 27.76C, 145.7Torr, 18.1108usec, 10Hz. Pressure was 132 but I adjusted bypass valve to bring it back to 145.7.

Laptop was sleeping due to generator outage, web cam photos not collected. I need to power computer from solar system.

Data collected, card swapped. Rain reported incorrectly due to but in CR23X program – will fix next time out. Now wind data from sonic at height of storm.


17 photos found

Rice straw partially chopped
Rice straw partially chopped

Rice straw partially chopped
Rice straw partially chopped

The rice field has been harvested
The rice field has been harvested

The rice field has been harvested
The rice field has been harvested

USGS eddy tower and harvested rice field
USGS eddy tower and harvested rice field

USGS eddy tower and harvested rice field
USGS eddy tower and harvested rice field

Standing rice straw
Standing rice straw

Tractor chopping rice straw
Tractor chopping rice straw

Rice straw left in the field after harvest
Rice straw left in the field after harvest

Unharvested and harvested rice side by side in the field
Unharvested and harvested rice side by side in the field

Unharvested and harvested rice side by side in the field
Unharvested and harvested rice side by side in the field

Large blow down in the rice field
Large blow down in the rice field

Large blow down in the rice field
Large blow down in the rice field

Large blow down in the rice field
Large blow down in the rice field

Large blow down in the rice field
Large blow down in the rice field

Large blow down in the rice field
Large blow down in the rice field

Large blow down in the rice field
Large blow down in the rice field

Graphs display:
6 sets found

12 TW_met graphs found

Explore the graph:Soil Heat Flux in a new window

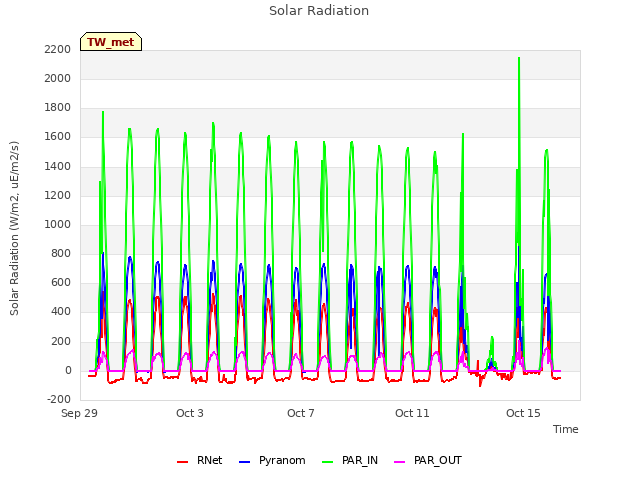

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Temperature in a new window

Explore the graph:Soil Temperature Set 1 in a new window

Explore the graph:Soil Temperature Set 2 in a new window

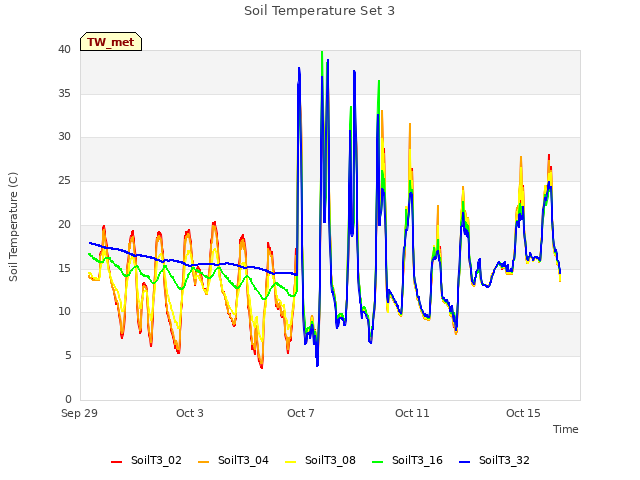

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Water Temperature in a new window

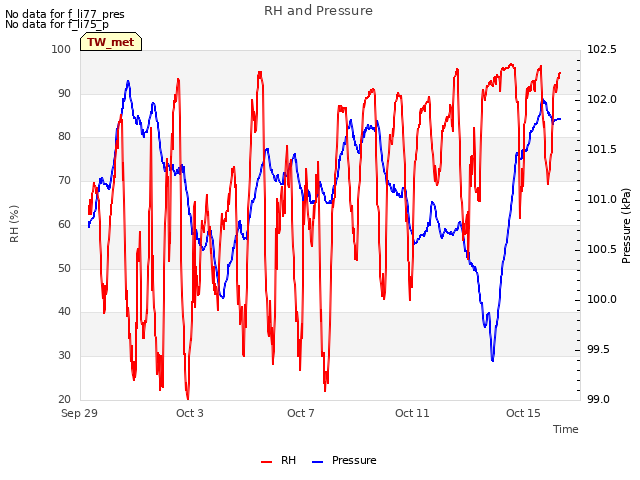

Explore the graph:RH and Pressure in a new window

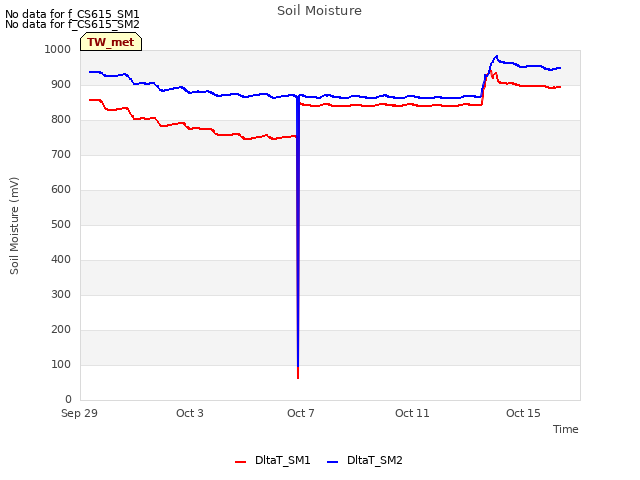

Explore the graph:Soil Moisture in a new window

Explore the graph:Rain and Water Level in a new window

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

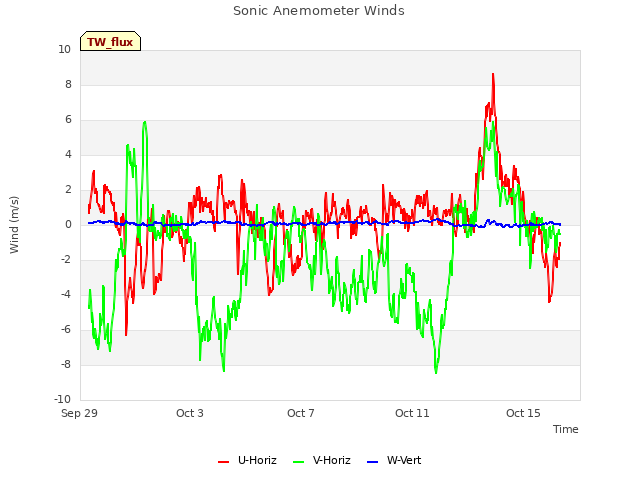

Explore the graph:Sonic Anemometer Winds in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

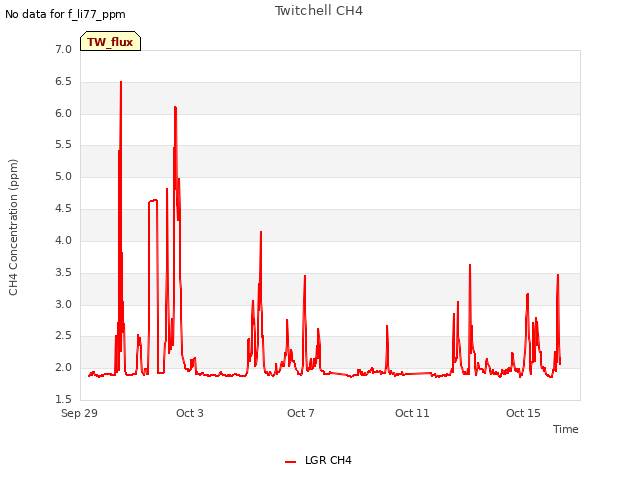

Explore the graph:Twitchell CH4 in a new window

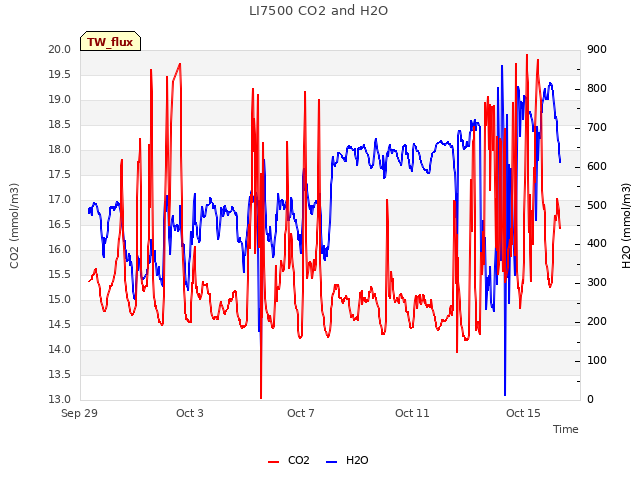

Explore the graph:LI7500 CO2 and H2O in a new window

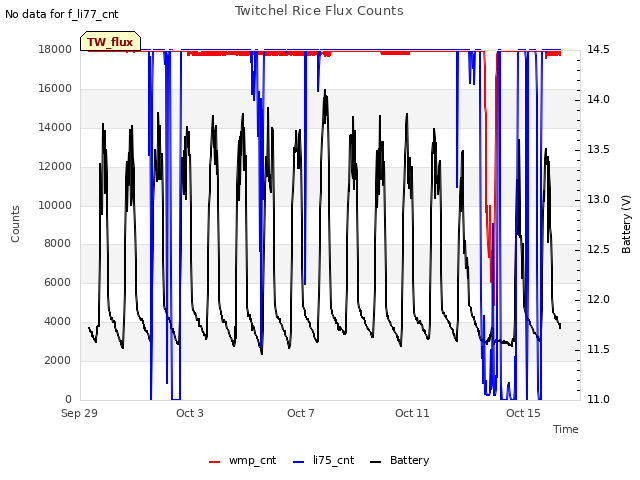

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
