Sherman Wetland: 2019-02-12 10:05:00 (DOY 43)
Author: Daphne Szutu
Others: Kuno, Camilo
Summary: Regular data collection/cleaning, upgraded 7700 firmware to 1.0.27, changed 7500/7700 clock to match laptop time

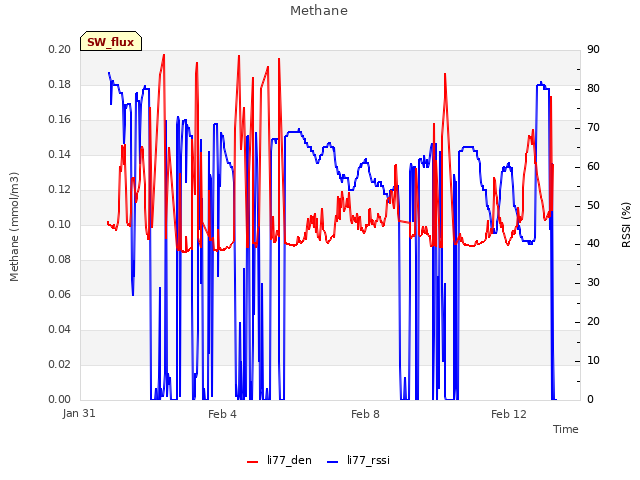

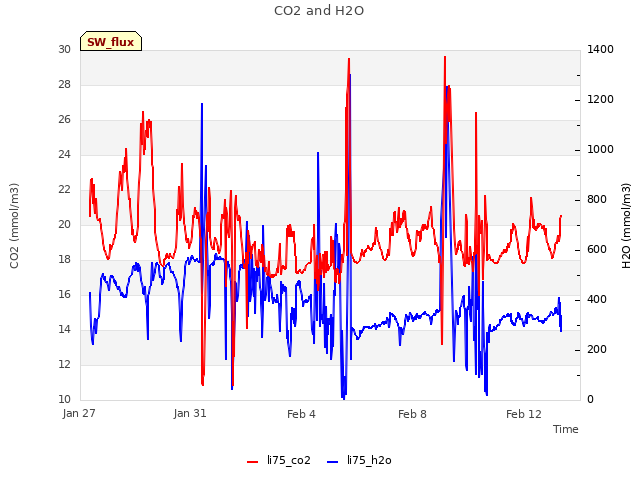

| 2019-02-12 Sherman Wetland Kuno, Camilo, and I arrived at 10:05. It was overcast and cold. The wetland is mostly brown, with clumps of green tule. Patty’s tarp had blown off; Kuno fixed it. The water level was 77 cm. The wash reservoir was ½ empty; we refilled it. I collected met, camera, and USB GHG data. The AirT/RH data look fine after sensor swap on 2019-01-24. I upgraded the 7700 sn TG1-0424 firmware from 1.0.23 to 1.0.27. I changed the 7500 and 7700 time to match the laptop time: when the 7500 and 7700 read 10:23, I changed it to 10:28. I changed 7700 clock setting from slave to automatic. I reset the box and confirmed that the 7700 was connected, USB was logging, and the GHG columns look good. LI-7500 readings: CO2 448ppm H2O 334ppm T 6.0C P 102.0kPa SS 97--> 98 LI7700 readings: CH4 3.1ppm --> 3.0 after firmware upgrade RSSI 42 --> 81 after cleaning --> 81 after firmware upgrade We left at 10:35. |
1 photos found
Camilo
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

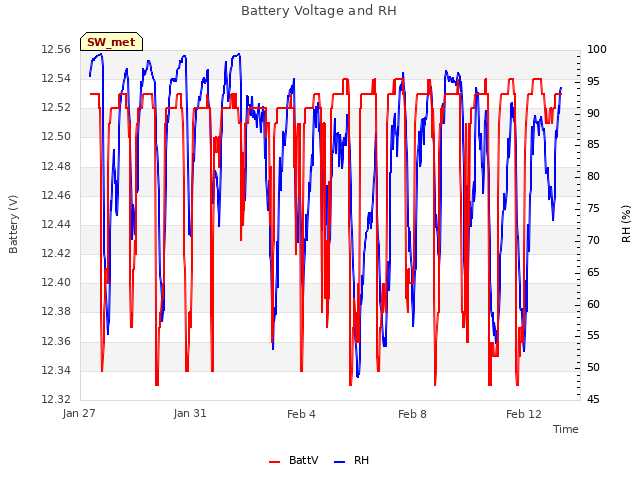

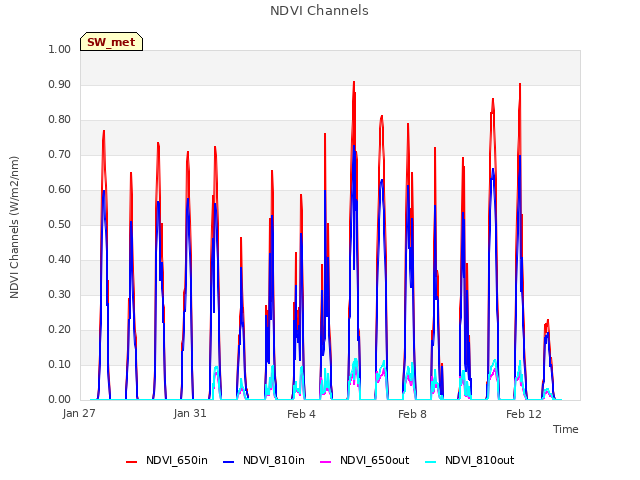

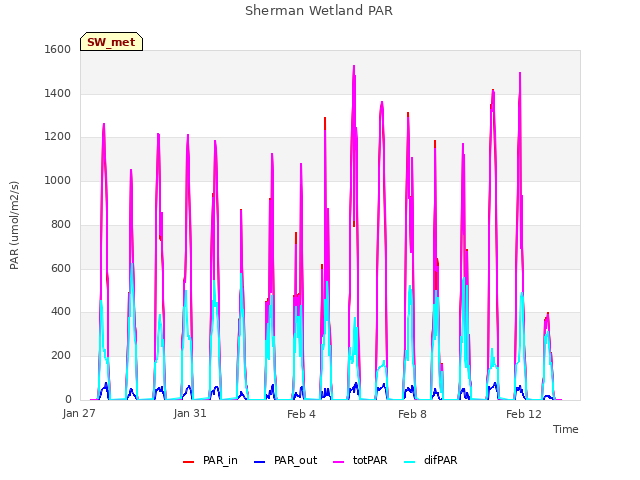

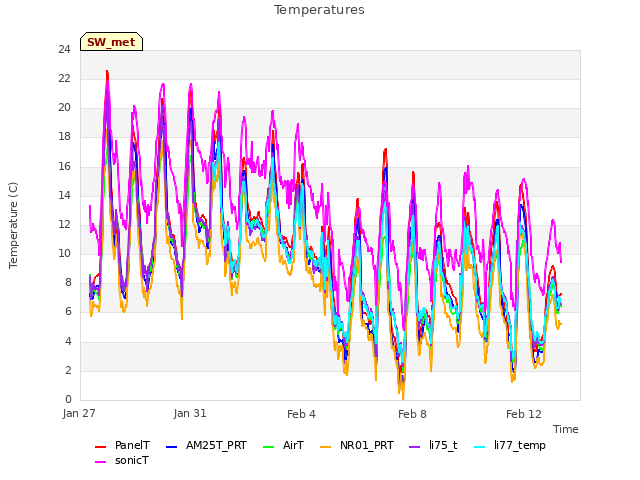

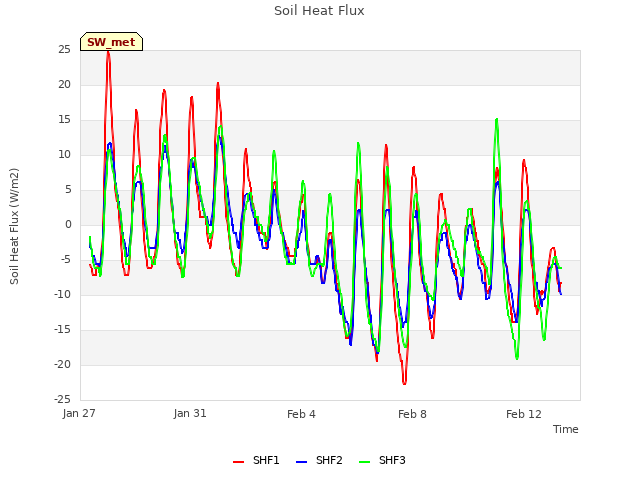

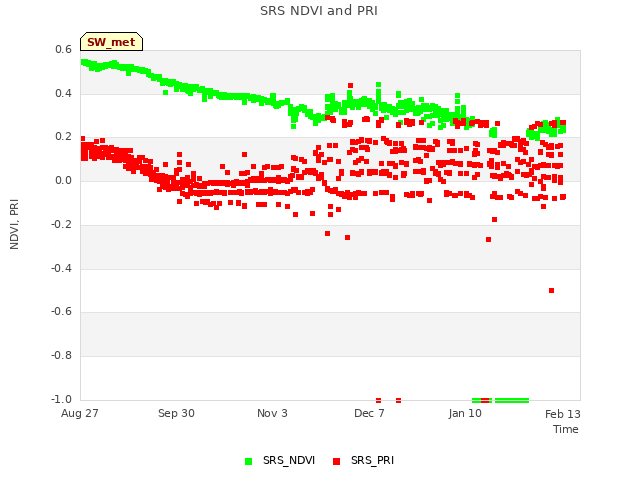

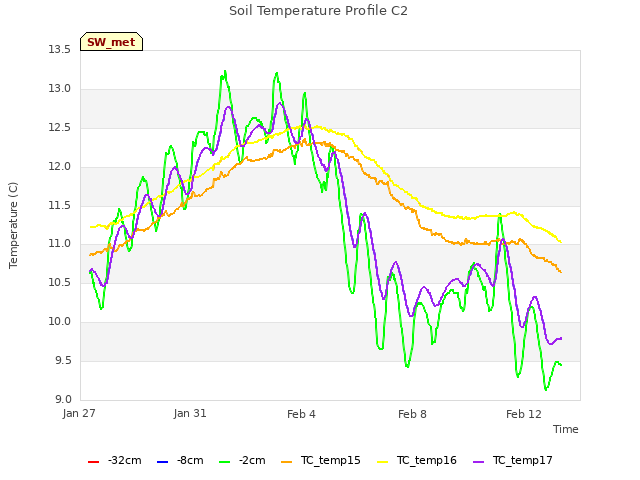

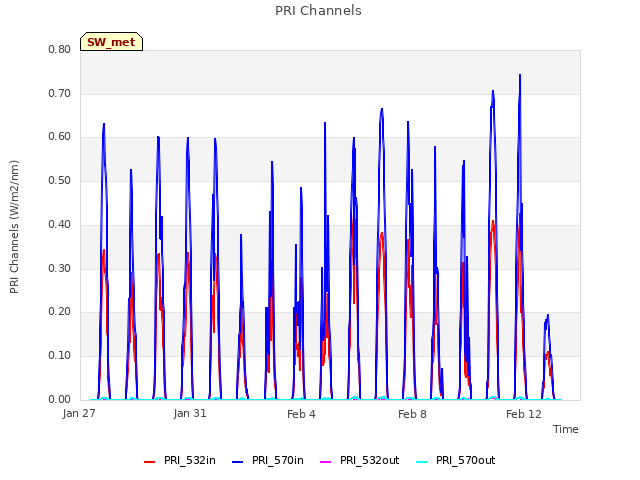

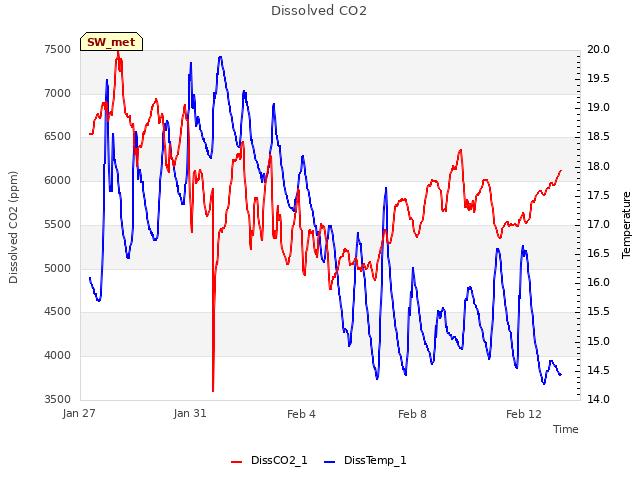

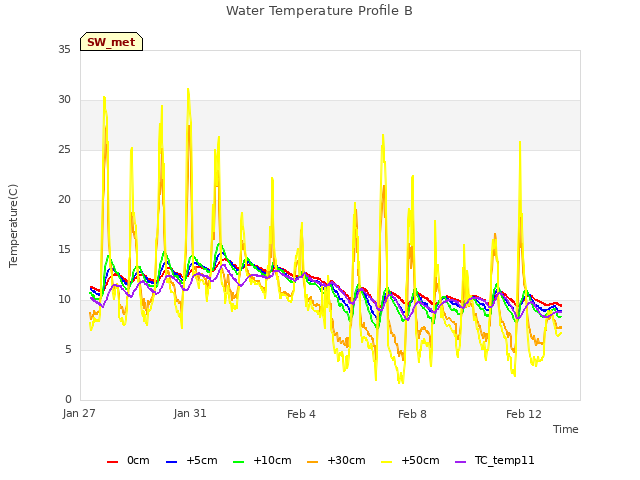

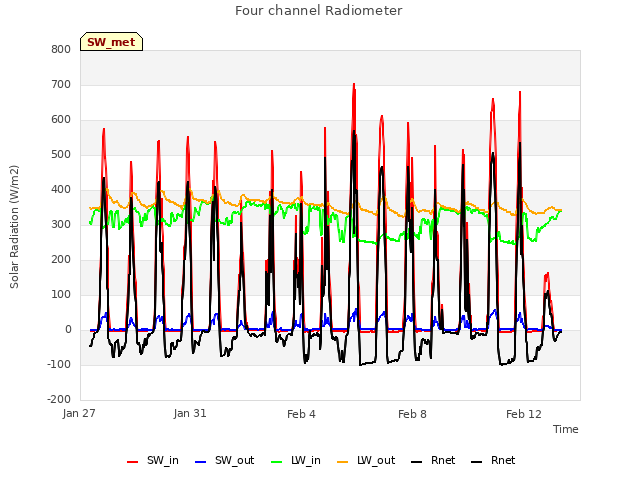

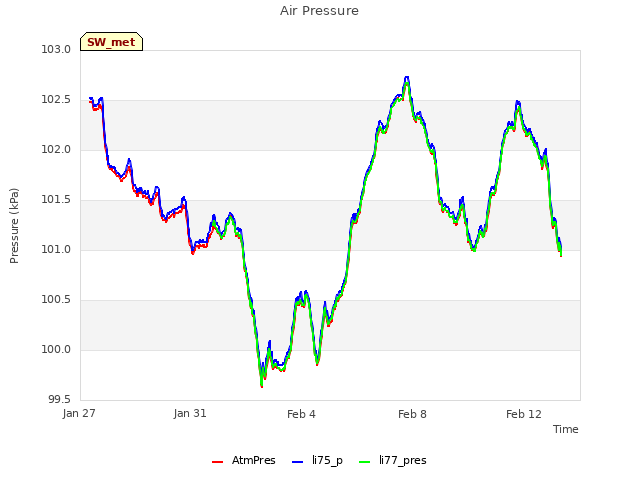

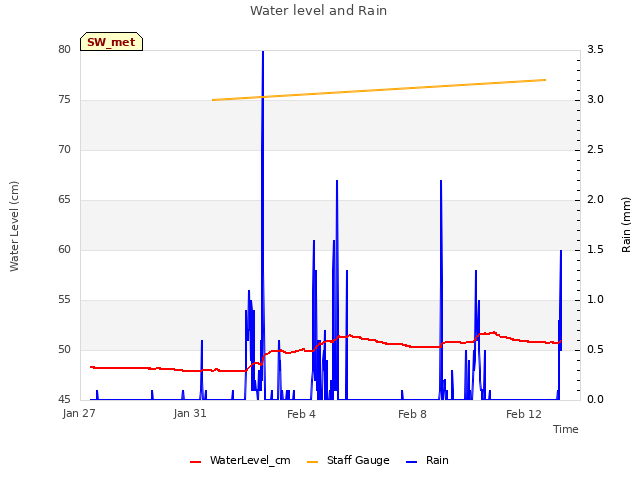

16 SW_met graphs found

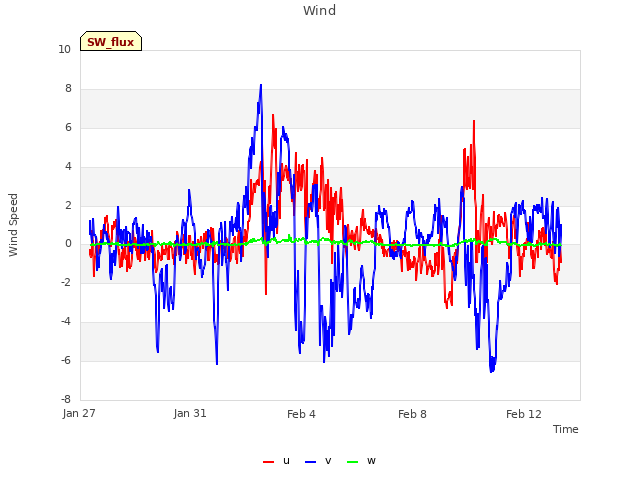

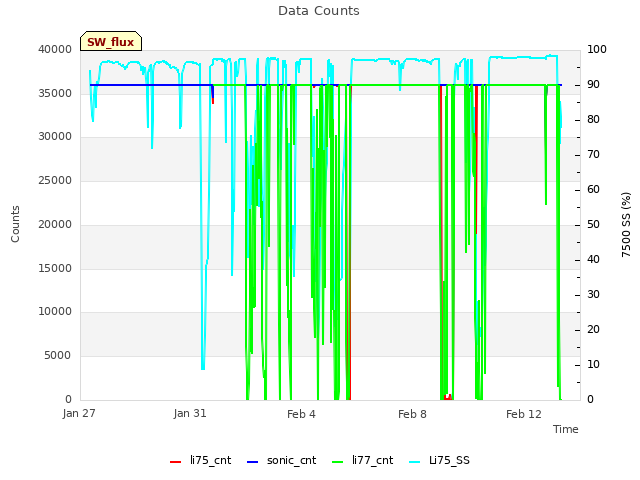

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp

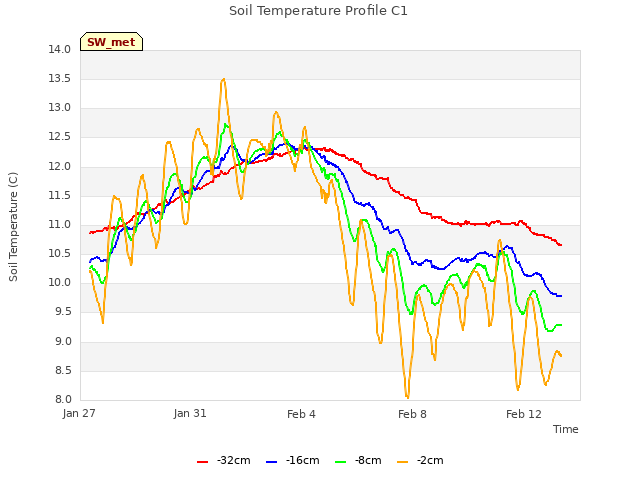

14 SW_Temp graphs found
No data found for SW_arable.
