Tonzi: 2018-06-26 11:30:00 (DOY 177)
Author: Joe Verfaillie
Others: Siyan, Dennis, Ana

Summary: Inventoried OSU equipment, swapped 7500s, watered soil CO2 batteries, standard fieldwork.

Tonzi
2018-06-26

I arrived with Dennis, Siyan and Ana at about 11:30. It was sunny and hot with little to no wind. It is still green around the pond but very dry elsewhere though Dennis was noting about 20% VWC at depth.

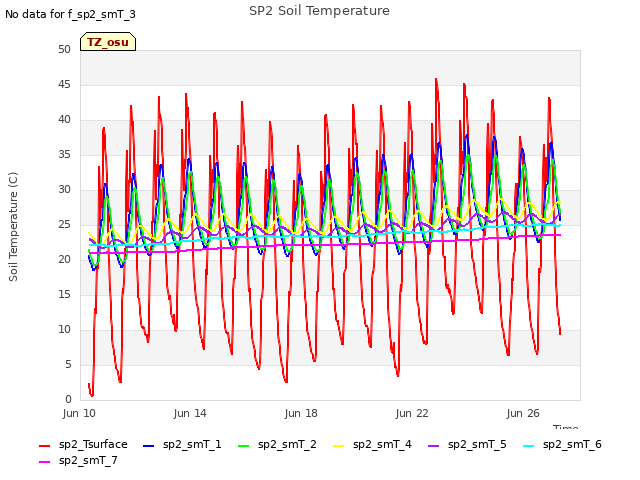

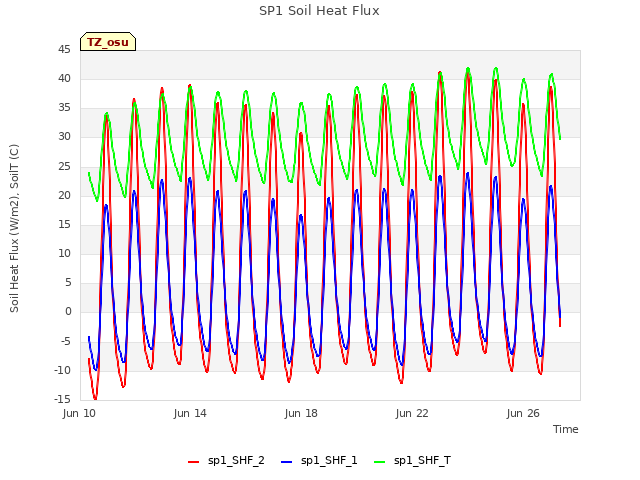

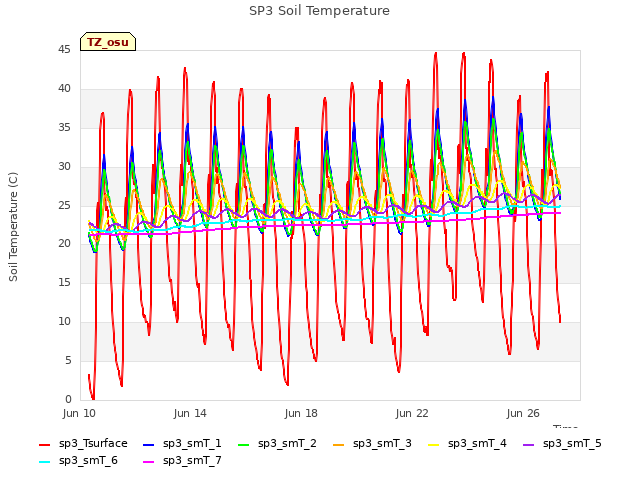

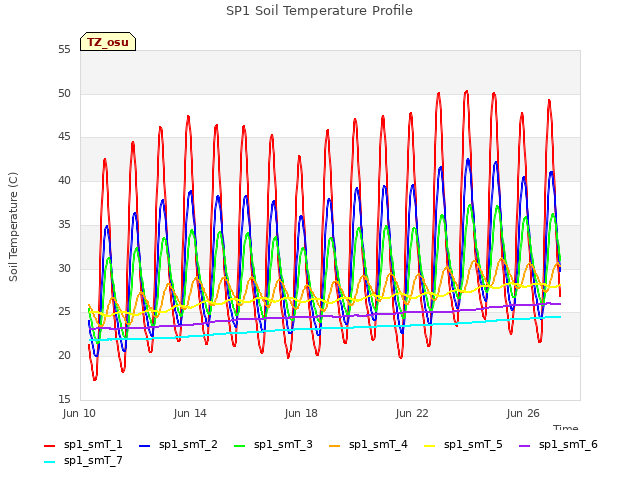

Ana and I did an inventory of the OSU AirMOSS equipment which we have inherited. All three stations are still running and we got data back to February or May depending on the location and data file.

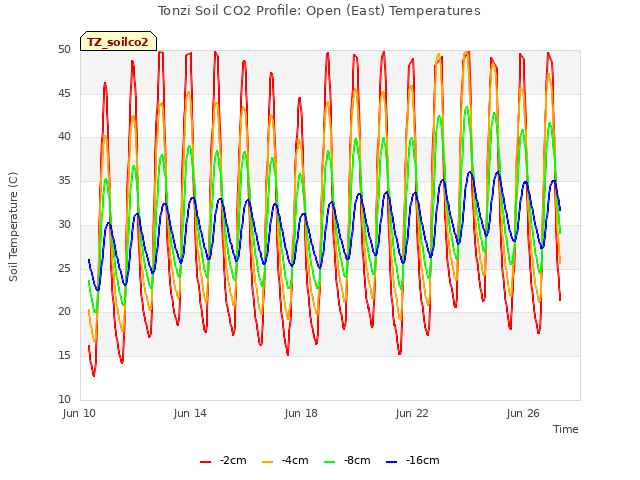

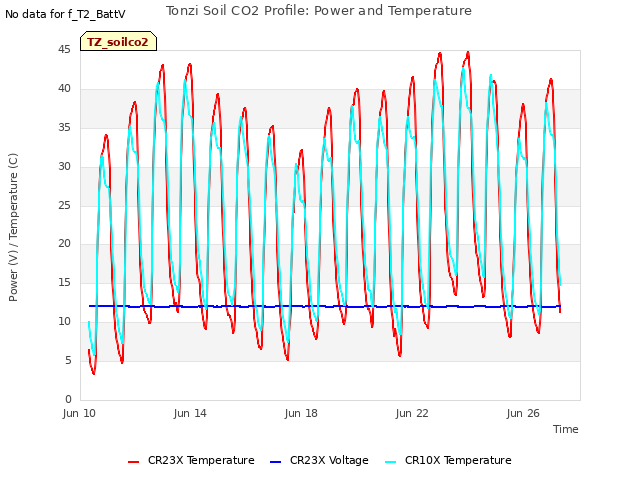

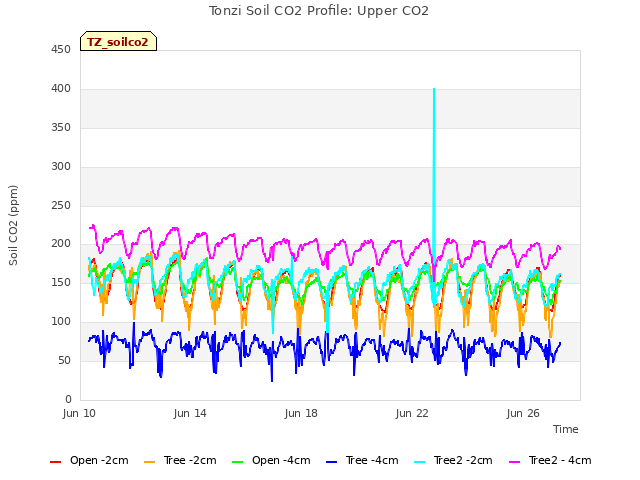

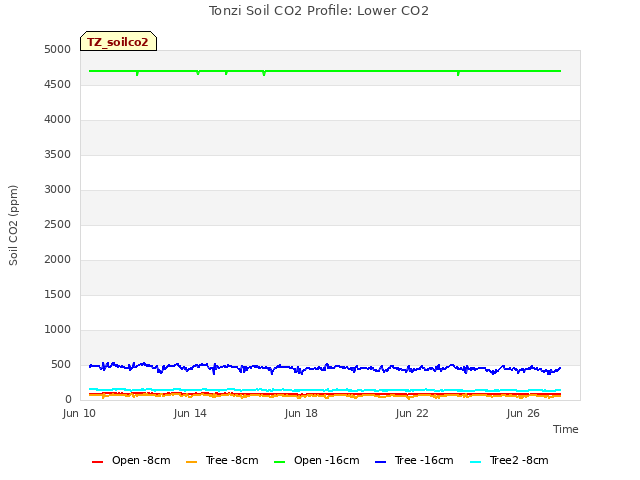

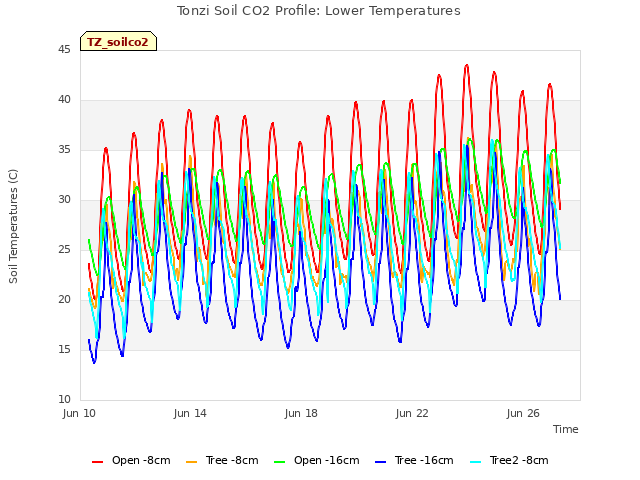

I added water to the soil co2 battery bank sn BB-TZ_soilco2. The batteries there are from November 2009.

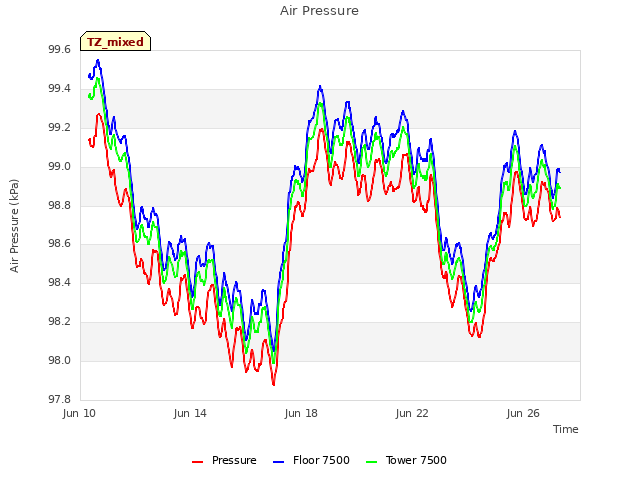

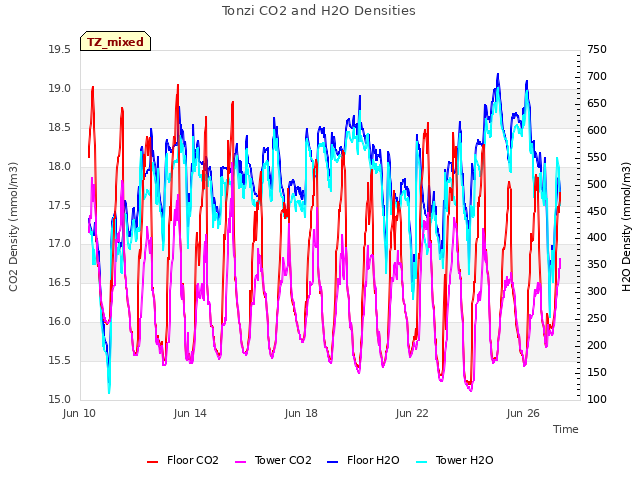

I swapped both 7500s. At the floor sn 0042 came off and sn 0035 went on. At the Tower sn 0041 came off and sn 75H-2180 went on.
Floor 0042 read: 406.5ppm CO2, 523.0mmol/m3 H2O, 33.4C, 99.0kPa, 95.6SS
Floor 0035 read: 417.7ppm CO2, 458.6mmol/m3 H2O, 34.5C, 99.0kPa, 100.1SS
Tower 0041 read: 399.2ppm CO2, 482.3mmol/m3 H2O, 31.1C, 99.0kPa, 95.1SS
Tower 2180 read: 408.5ppm CO2, 401.2mmol/m3 H2O, 29.9C, 98.9kPa, 100.4SS

The Phenocam card had only 127 images again. I took the images off the card and put it back. I change the ftp timeout from 500 to 1000 in the Stardot scripts.

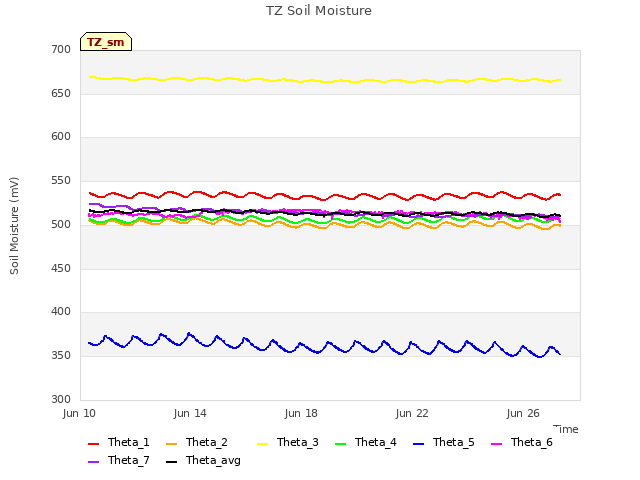

Dennis did the soil moisture. Siyan collected the met data, did the well measurements, serviced the z-cams and did midday water potential.

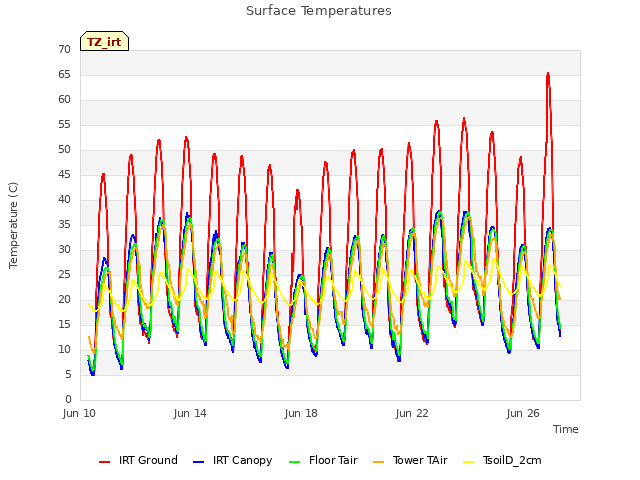

The ground where the IRT(TZ_irt 71) is oriented was cleaned, in order to measure bare soil temperature.

Field Data

No tank data

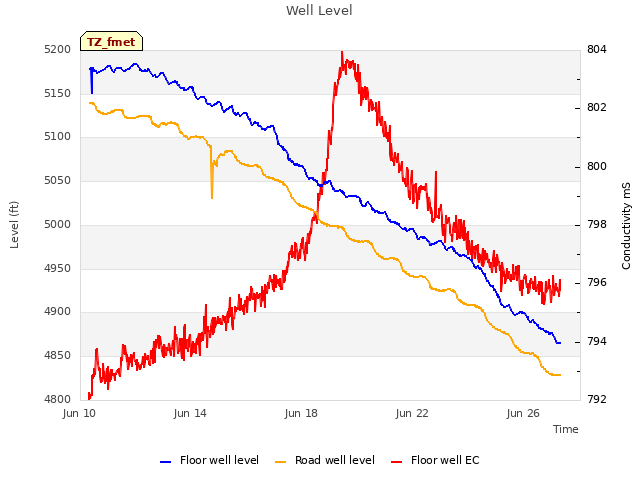

Well Depth

Date	Location	Depth (feet)
2018-06-26	TZ_road	29.1
2018-06-26	TZ_tower	24.6
2018-06-26	TZ_floor	20.1
2018-06-26	VR_pond	17.02

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Soil_Transect_4_4 [33] => Soil_Transect_3_4 [34] => Soil_Transect_2_4 [35] => Soil_Transect_1_4 [36] => SoilCO2_West_A_4 [37] => SoilCO2_West_B_4 [38] => SoilCO2_West_C_4 [39] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_4	Spacial Count
2018-06-26	177	0	nan	4.7	0.1	5.6	1.3	3.6	4.5	0.1	9.4	4.7	3	12.4	10.3	6.8	9.3	15.5	12.7	5.1	9	0.5	12.4	14.8	12.6	27.4	9.8	15.6	17.6	14	17.3	15.6	12.9	19.3	4.7	12.8	17.3	28.2	12.5	19.3	19.9	24.2
2018-06-26	177	1	nan	5	0.7	6.5	2.2	2.1	4.2	0.3	10	5	3	11.8	10.9	6	9.3	15.2	12.7	4.2	9.3	0.2	12.1	15.1	12.9	39.6	9.2	14.8	17.6	14.5	17.3	15.6	12.9	19.3	4.7	12.5	18.2	28.8	12.8	19.6	19.6	23.9	11.1
2018-06-26	177	2	nan	5.3	0.4	0	2.2	4.2	4.2	0.3	9.4	4.7	3.3	11.5	10	11.1	9.3	15.2	12.7	4.8	9.3	0.2	11.8	14.5	13.1	5.7	10.1	15.4	17.3	14.5	17	15.4	13.4	18.2	5	12.2	17.3	27.9	12.5	19.9	19.1	24.2	28.2
2018-06-26	177	Avg	0-15cm																																									0
2018-06-26	177	Avg	15-30cm																																									0
2018-06-26	177	Avg	30-45cm																																									0
2018-06-26	177	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Gate_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 [12] => Flux_Tower_1 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Flux_Tower_1	Spacial Count
2018-06-26	177	0	nan	4.5	15.3	1.2	9	8.4	6.5	13.7	5.6	17	27.5	15	19.6
2018-06-26	177	1	nan	3.6	17.3	1.5	8.7	8.7	6.3	13.4	4.5	17.3	27.9	15	19.3
2018-06-26	177	2	nan	3.9		1.6	9	9	6.3	14.3	4.5	17.3	27.5	14.5	19.3	0.4
2018-06-26	177	Avg	0-15cm														0
2018-06-26	177	Avg	15-30cm														0
2018-06-26	177	Avg	30-45cm														0
2018-06-26	177	Avg	45-60cm														0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2018-06-26	1	22.2
2018-06-26	102	10.9
2018-06-26	2	22.3
2018-06-26	245	9.1
2018-06-26	3	18.9
2018-06-26	4	8.1
2018-06-26	5	7.9
2018-06-26	7	21.3
2018-06-26	72	15.4
2018-06-26	79	12.6
2018-06-26	8	24.0

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2018-06-26 13:07:00	OAK	102	-30	-20	-35
2018-06-26 13:07:00	OAK	35	-30	-28	-29
2018-06-26 13:07:00	OAK	92	-33	-34	-35
2018-06-26 13:32:00	PINE	OLD	-13	-1	-16
2018-06-26 13:32:00	PINE	YNG	-5	-5	-6
