Bouldin Alfalfa: 2018-06-14 10:30:00 (DOY 165)
Author: Katrina Cone
Others: Daphne, Dennis, Kyle

Summary: Regular data collection/cleaning, clip plots, LAI, veg height.

2018-06-14
Bouldin Alfalfa

We arrived at 10:30, and it was warm and sunny, there were clear skies, a slight breeze, and Mount Diablo was hazy. Alfalfa looked green and healthy. Sabina visited the site.

Kyle took clip plots and cleaned the rad sensors, and Dennis took measurements of vegetation height. The water reservoir was mostly full and we topped it off. I took handheld LAI measurements.

Daphne collected USB, met, and camera data and checked the 7500. The spectral needs charging.

LI-7500 readings:
CO2 402ppm
H2O 530ppm
T 23.8C
P 100.8kPa
SS 112 --> 114 after cleaning

LI7700 readings
CH4 2.0ppm
RSSI 39 --> 72 after cleaning

We left at 11:20.

Next Mowing: 2018-06-22

Veg Height (cm): Tape measure from ground to top of plant
47, 43, 30, 34, 43, 23, 24, 37, 34, 31, 27, 28, 36, 35, 38, 43, 31, 35, 34, avg = 34.4, stdev = 6.58

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

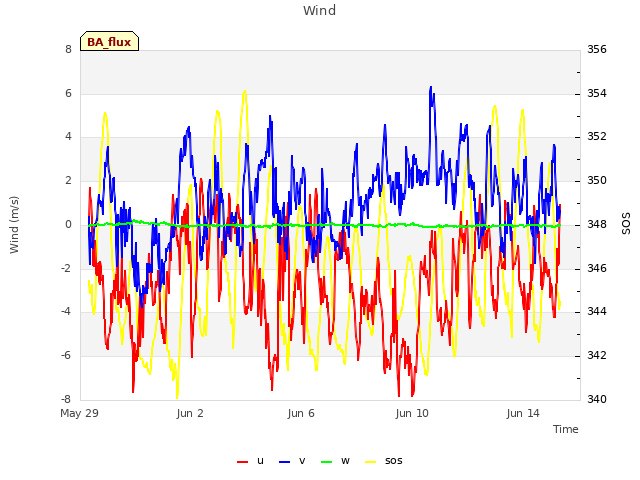

Explore the graph:Wind in a new window

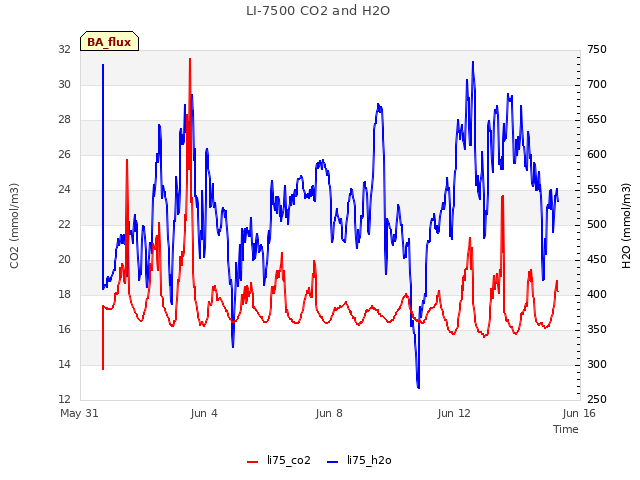

Explore the graph:LI-7500 CO2 and H2O in a new window

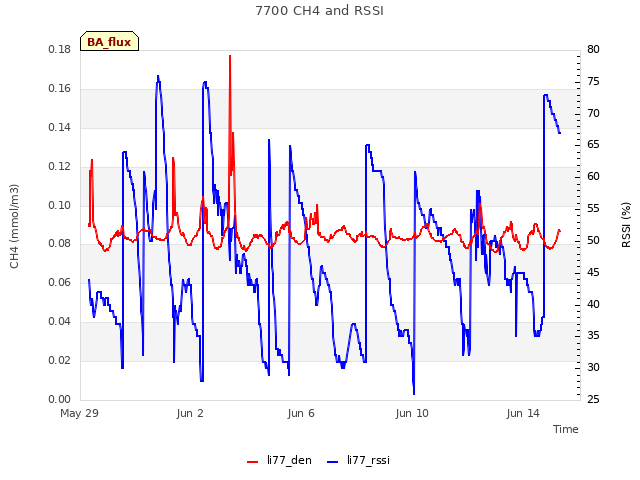

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

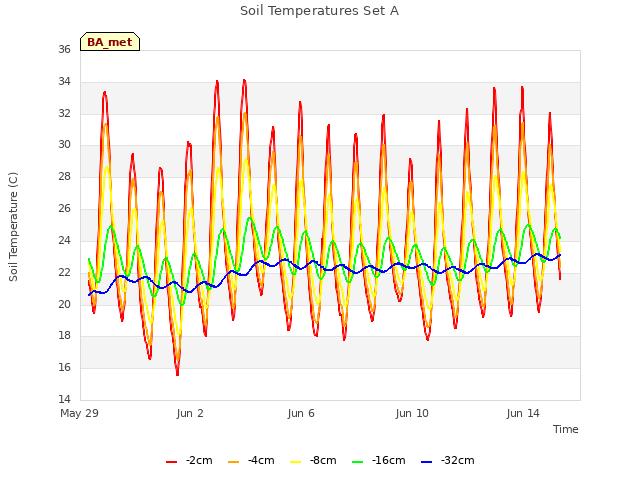

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

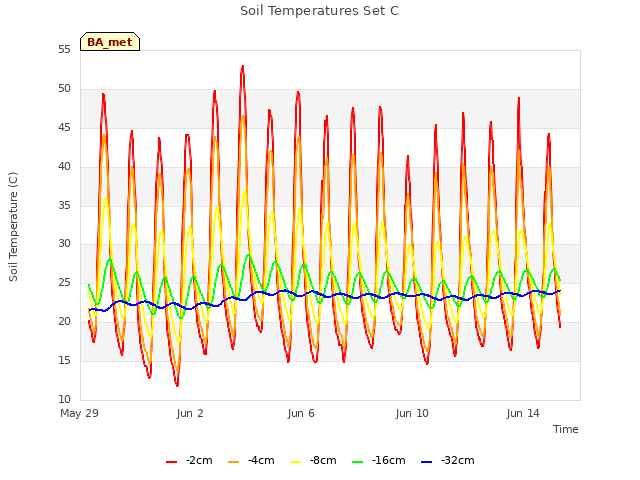

Explore the graph:Soil Temperatures Set C in a new window

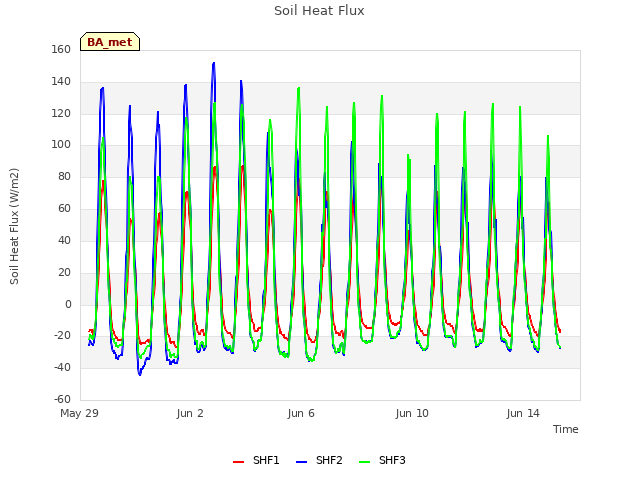

Explore the graph:Soil Heat Flux in a new window

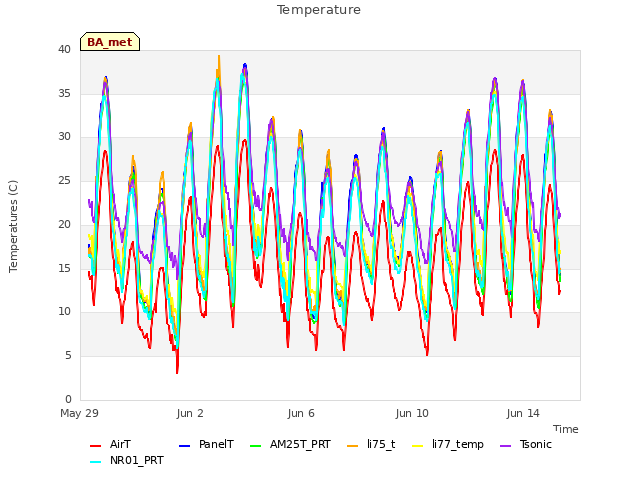

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

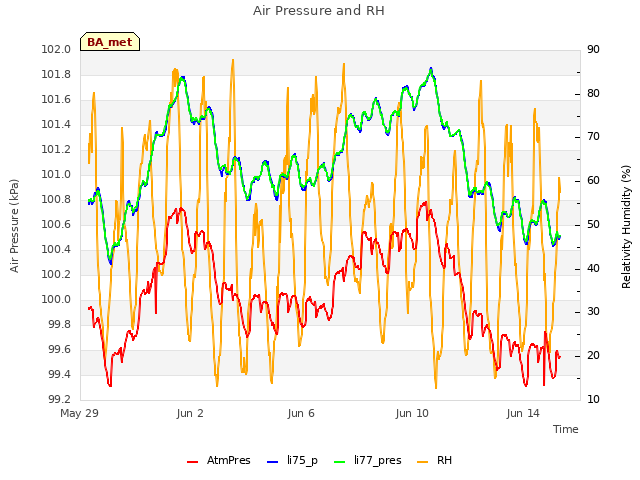

Explore the graph:Air Pressure and RH in a new window

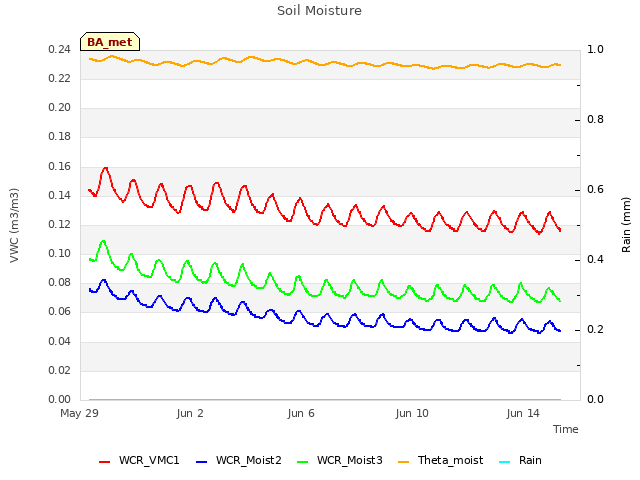

Explore the graph:Soil Moisture in a new window

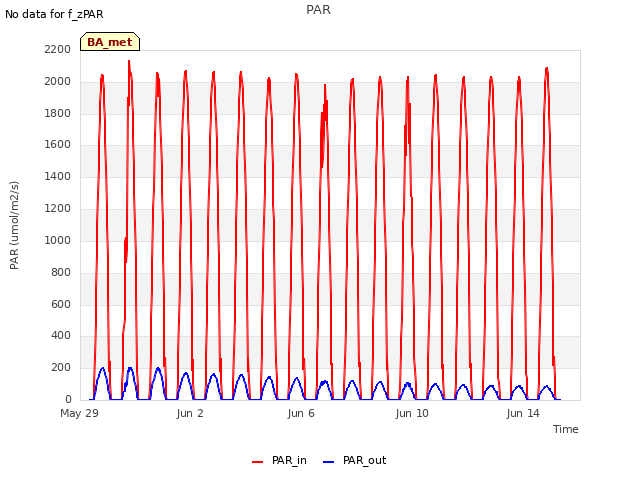

Explore the graph:PAR in a new window

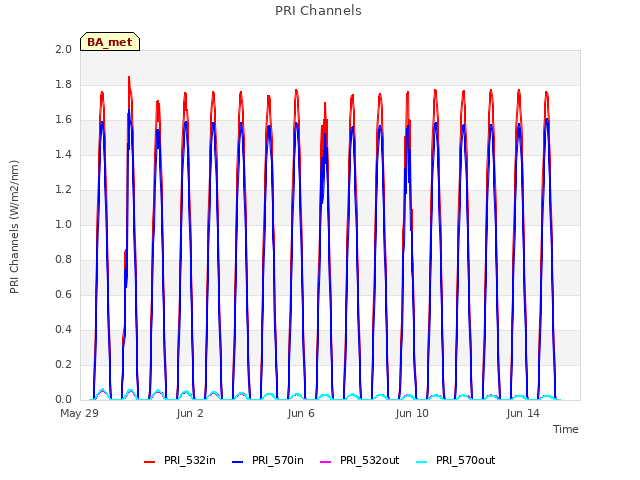

Explore the graph:PRI Channels in a new window

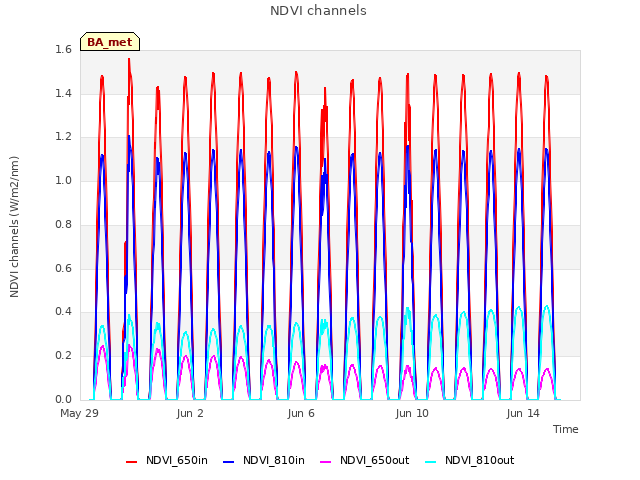

Explore the graph:NDVI channels in a new window

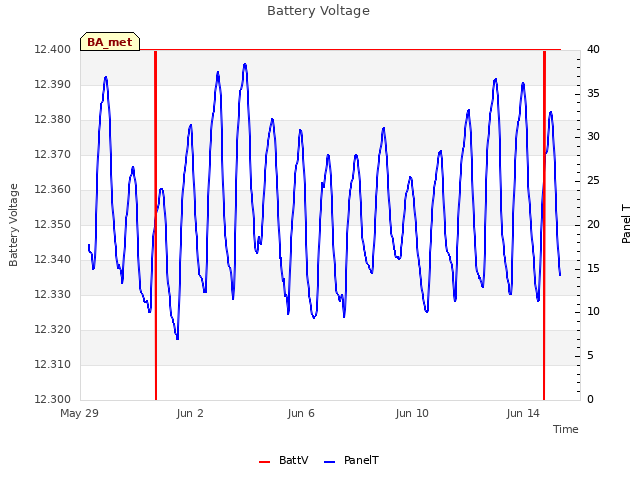

Explore the graph:Battery Voltage in a new window

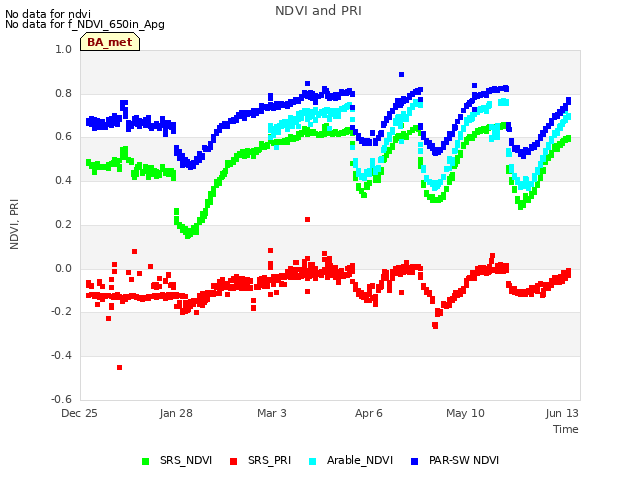

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

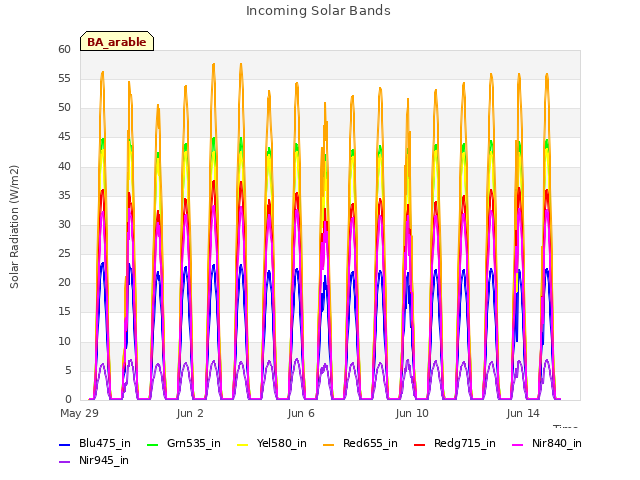

Explore the graph:Incoming Solar Bands in a new window

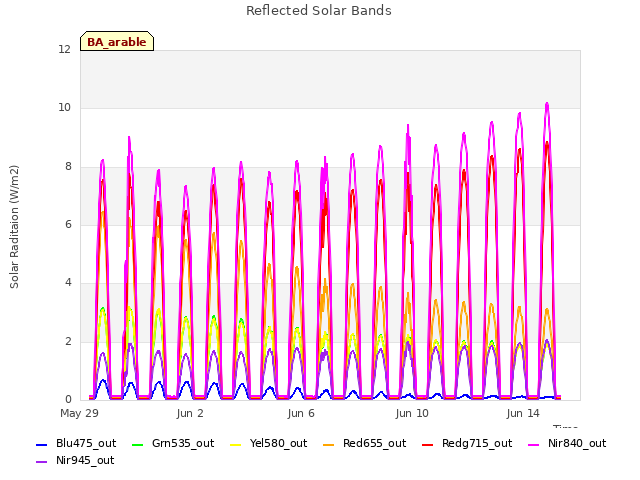

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

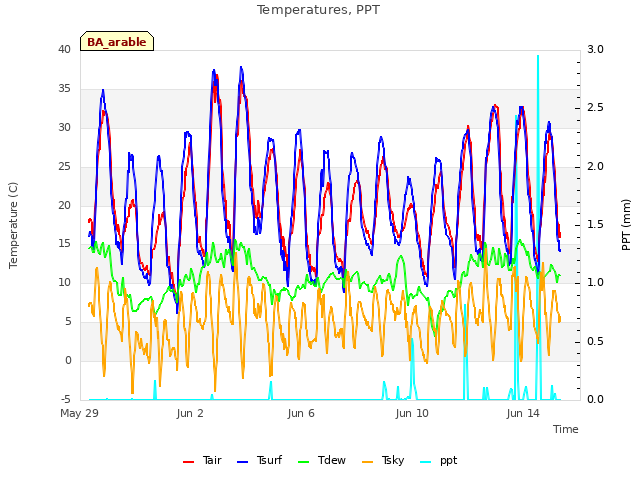

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

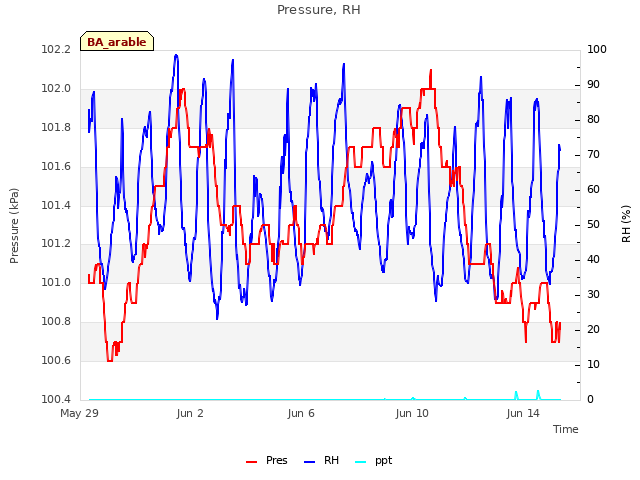

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

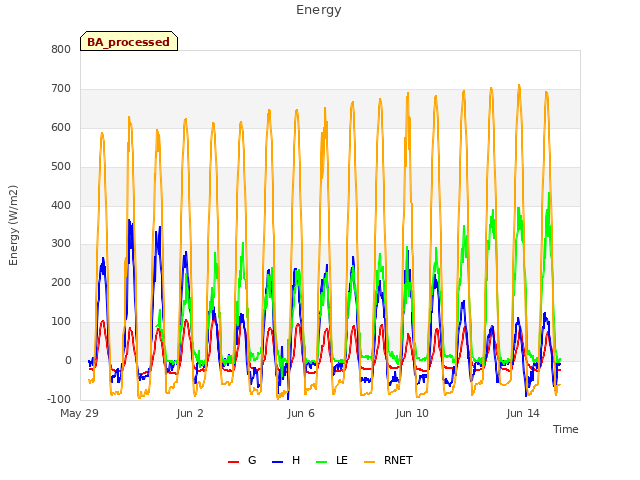

Explore the graph:Energy in a new window

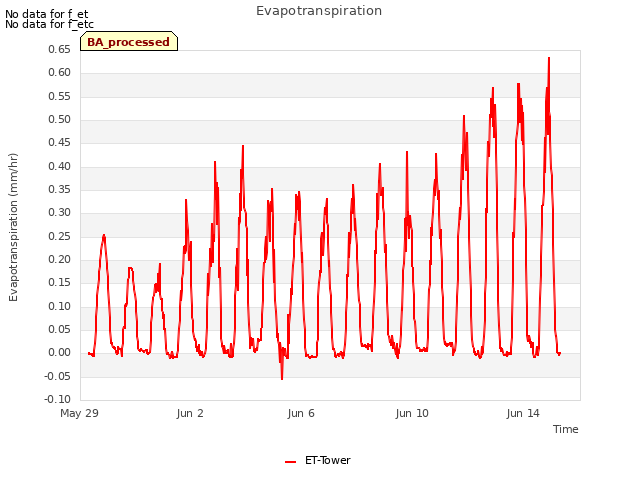

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
