Bouldin Alfalfa: 2018-05-03 13:30:00 (DOY 123)
Author: Daphne Szutu
Others: Kyle, Alex, Dennis

Summary: Regular data collection and cleaning, biomass samples (clip plots), veg height measurements

2018-05-03
Bouldin Alfalfa

We arrived at 13:30. It was breezy, sunny, and hazy. The field has been mowed and the bales removed. The new growth was about 10 cm tall. The field roads are dry and very dusty.

Kyle took clip plot samples. Alex and Dennis took LAI samples. Dennis took veg height measurements. I collect met, camera, and USB GHG data.

Dennis refilled the wash reservoir; it was mostly full. I cleaned the flux, rad, and Arable solar panels. I cleaned the solar panels and Kyle trimmed the alfalfa under the tower.

LI-7500 readings:
CO2 406ppm
H2O 542ppm
T 20.8C
P 102.3kPa
SS 108 --> 109 after cleaning

LI7700 readings:
CH4 1.99ppm
RSSI 58 --> 76 after cleaning

We left at 14:00.

Next Mowing: 2018-05-24

Veg Height (cm): Tape measure from ground to top of plant
15, 15, 15, 7, 8, 14, 14, 10, 10, 8, 8, 8, 11, 8, 12, 10, 12, 11, 11, avg = 10.9, stdev = 2.71

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

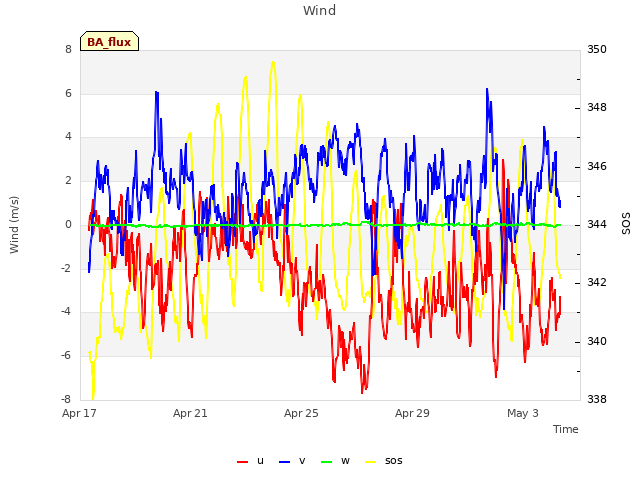

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

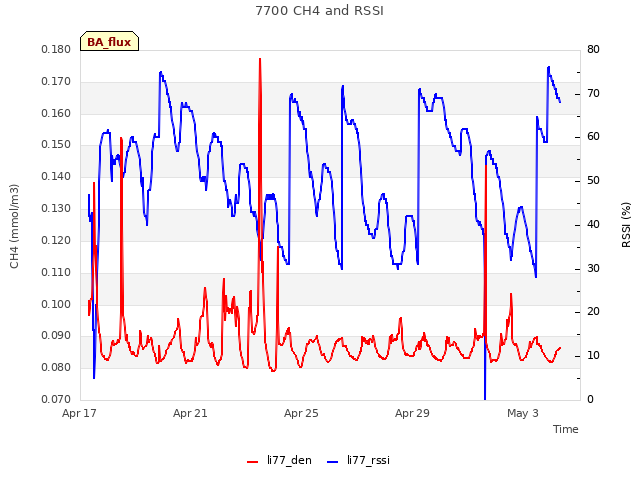

Explore the graph:7700 CH4 and RSSI in a new window

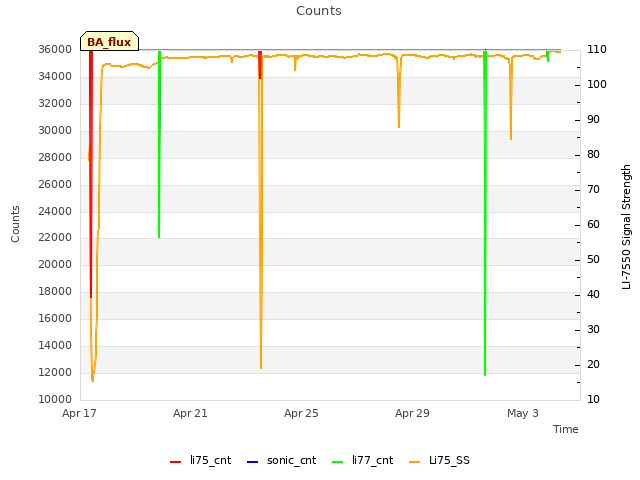

Explore the graph:Counts in a new window

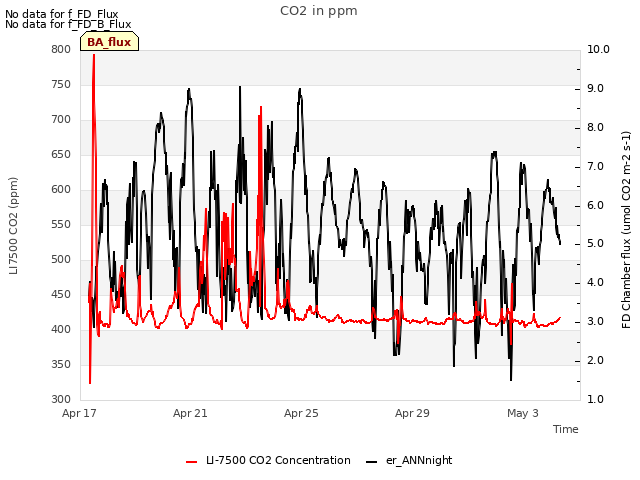

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

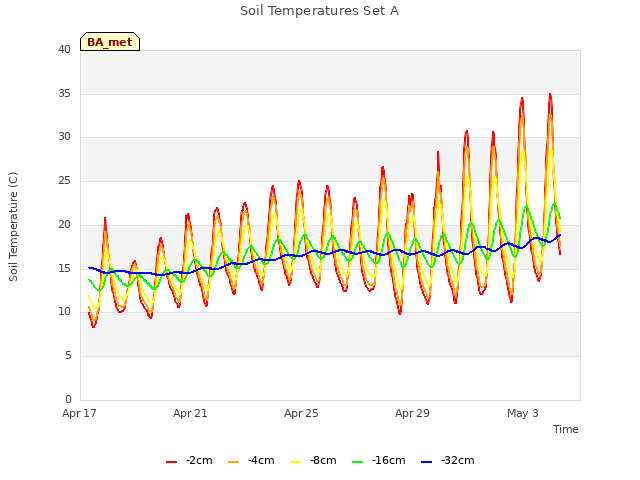

Explore the graph:Soil Temperatures Set A in a new window

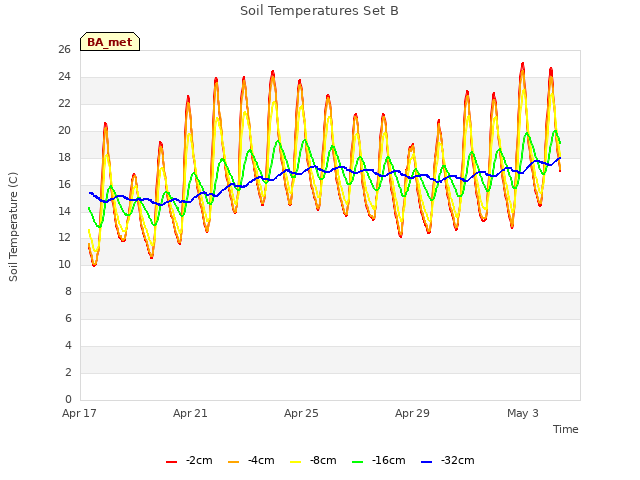

Explore the graph:Soil Temperatures Set B in a new window

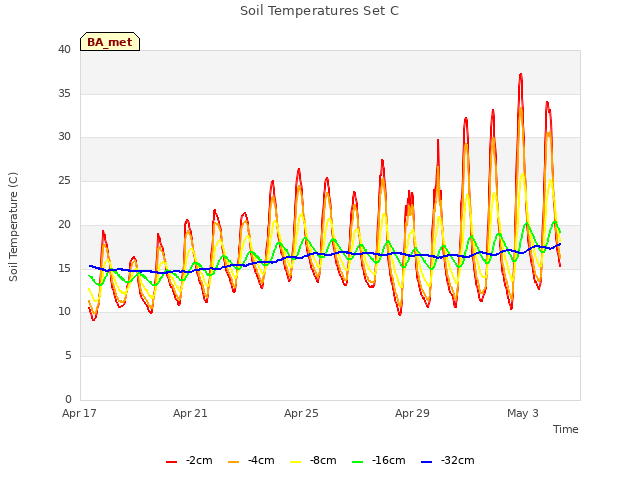

Explore the graph:Soil Temperatures Set C in a new window

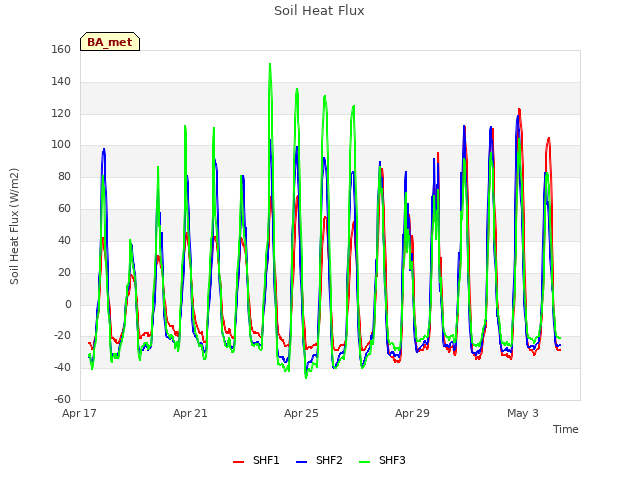

Explore the graph:Soil Heat Flux in a new window

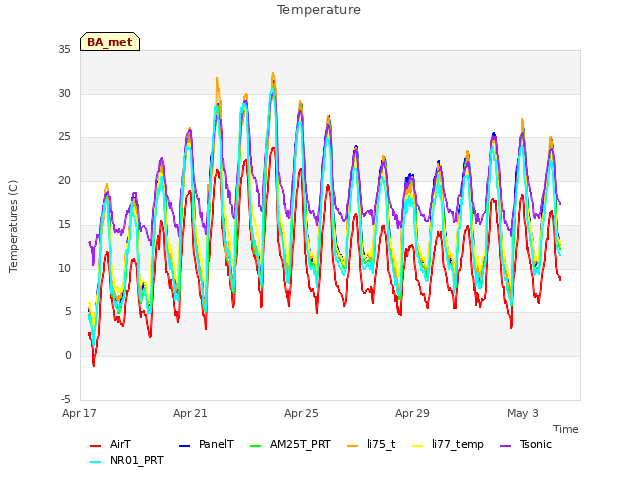

Explore the graph:Temperature in a new window

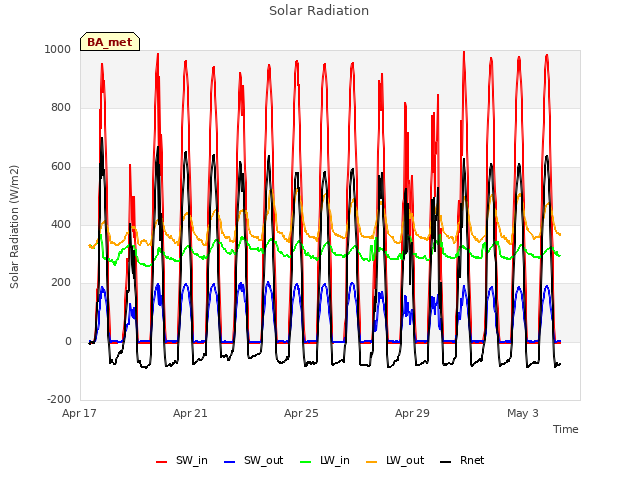

Explore the graph:Solar Radiation in a new window

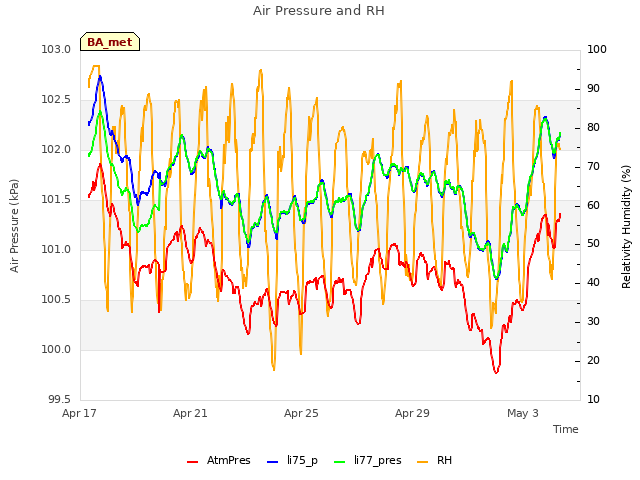

Explore the graph:Air Pressure and RH in a new window

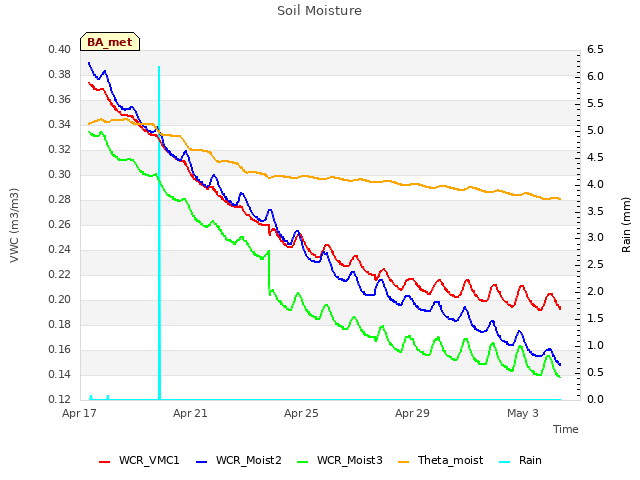

Explore the graph:Soil Moisture in a new window

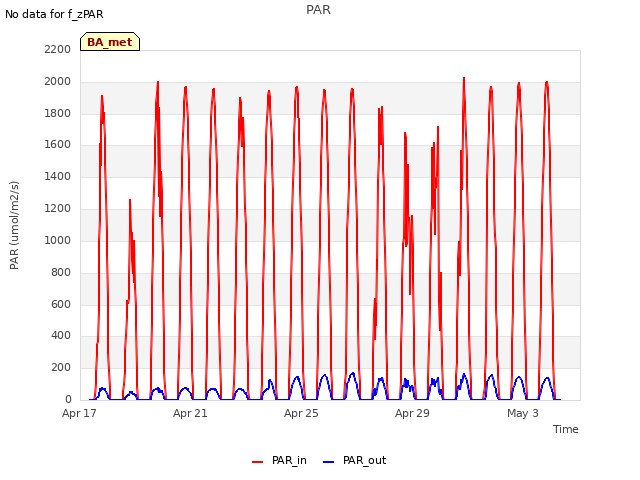

Explore the graph:PAR in a new window

Explore the graph:PRI Channels in a new window

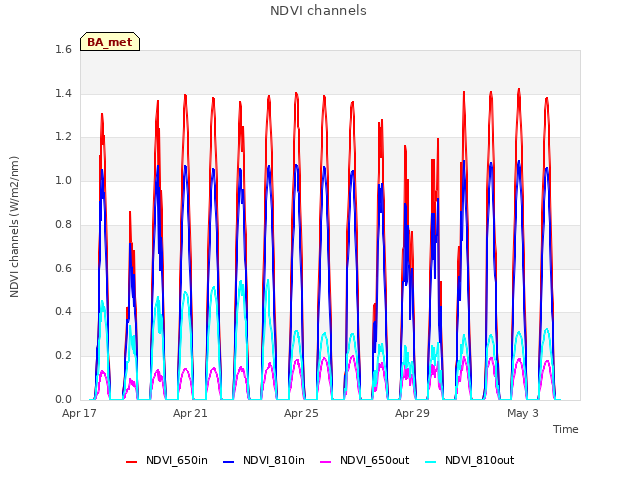

Explore the graph:NDVI channels in a new window

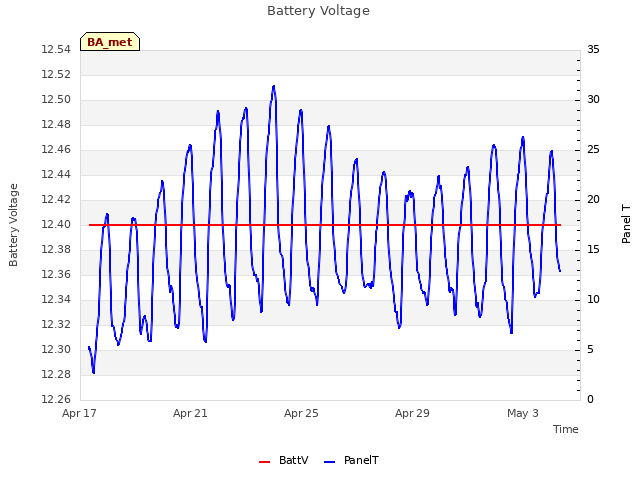

Explore the graph:Battery Voltage in a new window

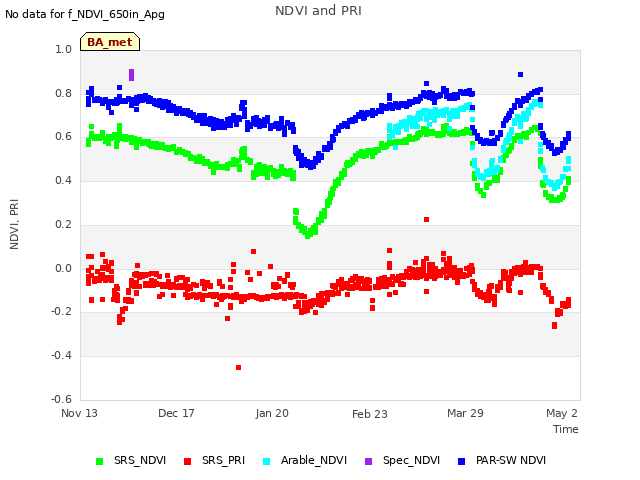

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

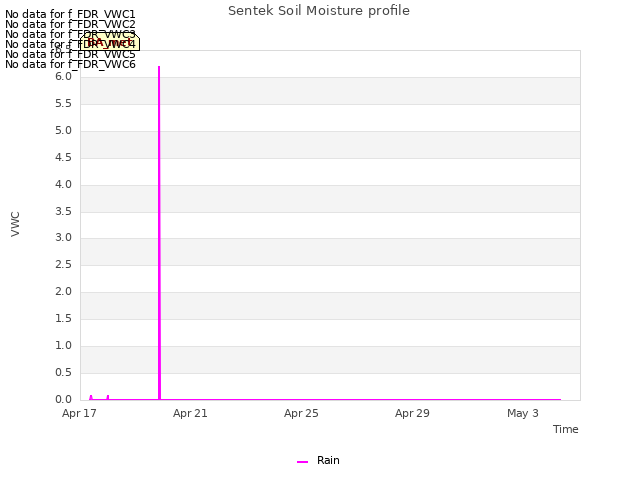

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

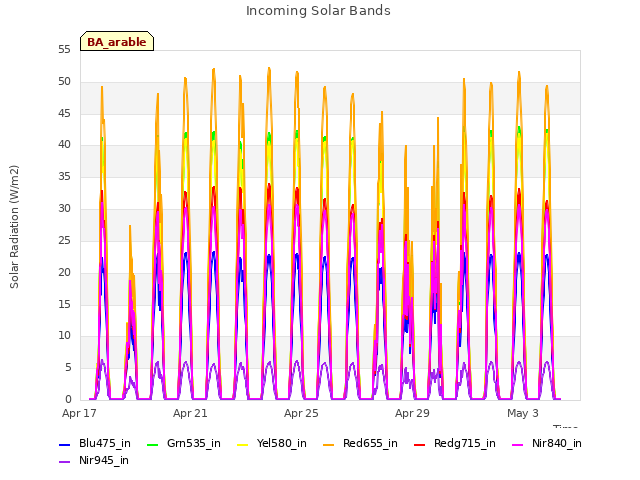

Explore the graph:Incoming Solar Bands in a new window

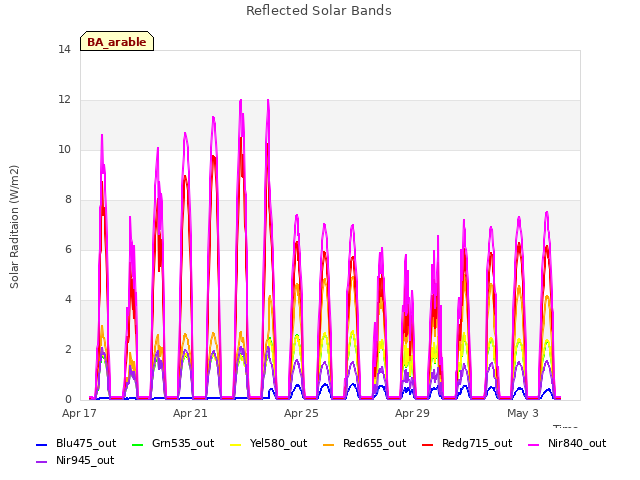

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

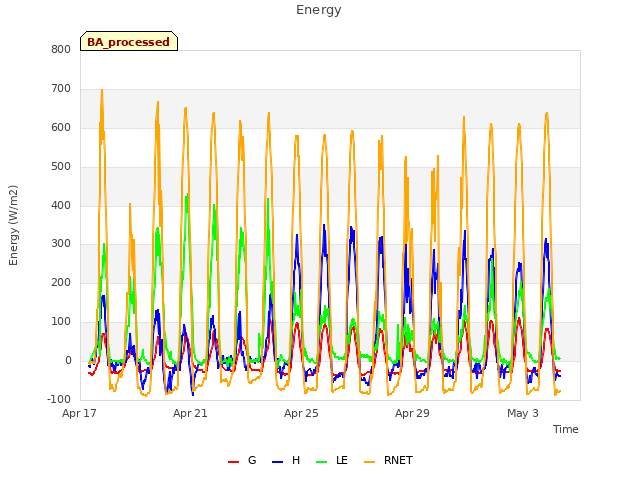

Explore the graph:Energy in a new window

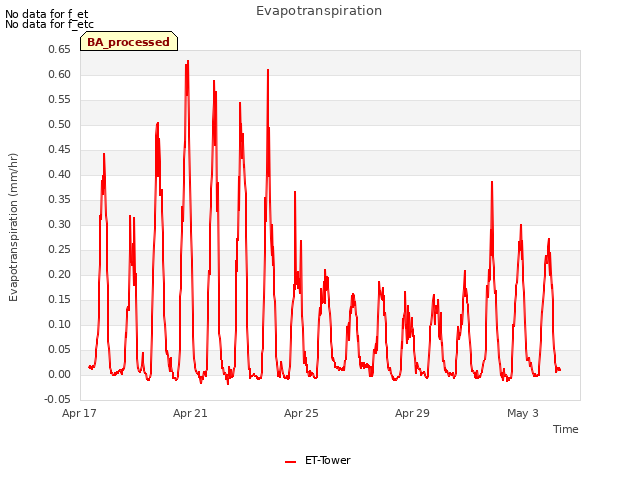

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
