Field Notes

<--2018-04-24 09:30:00 | 2018-05-10 10:15:00-->
Other sites visited today: Bouldin Alfalfa | East End | Twitchell Alfalfa | Mayberry | West Pond | Bouldin Corn | East Pond

Sherman Wetland: 2018-05-03 09:15:00 (DOY 123)
Author: Daphne Szutu
Others: Kyle, Alex, Dennis

Summary: Regular data collection/cleaning

2018-05-03
Sherman Wetland

We arrived at 9:15. It was sunny but cool and windy, with low cloud cover. The plants are greening in patches. The water level seems lower; bare ground exposed around the tower, but the water level in the pond near the solar panel was 1m deep.

I collect met, camera, and USB GHG data. The camera is writing photos to the CF card again. Kyle cleaned flux and rad sensors. We refilled the wash reservoir.

LI-7500 readings:
CO2 390ppm
H2O 580ppm
T 14.4C
P 102.9kPa
SS 99 --> 101 after cleaning

LI7700 readings:
CH4 2.02ppm
RSSI 37 --> 79 after cleaning

We left at 12:30.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
15 SW_met graphs found

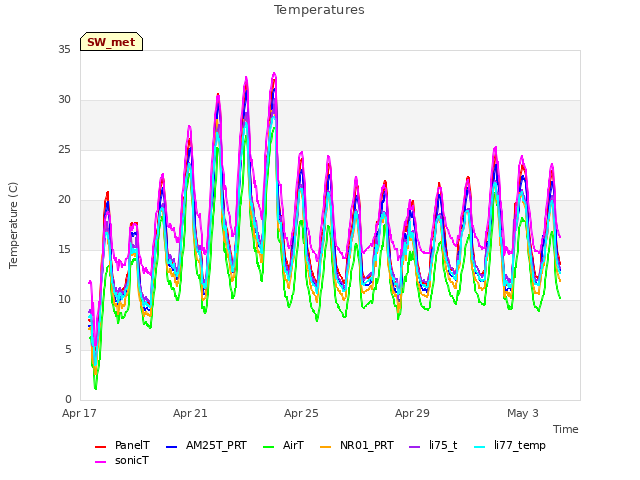

Explore the graph:Temperatures in a new window

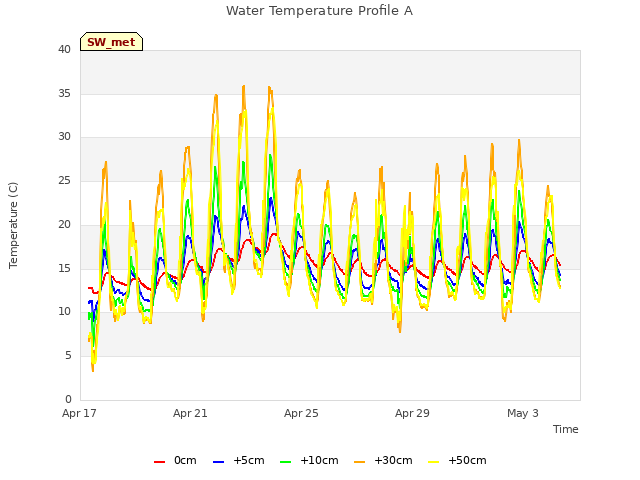

Explore the graph:Water Temperature Profile A in a new window

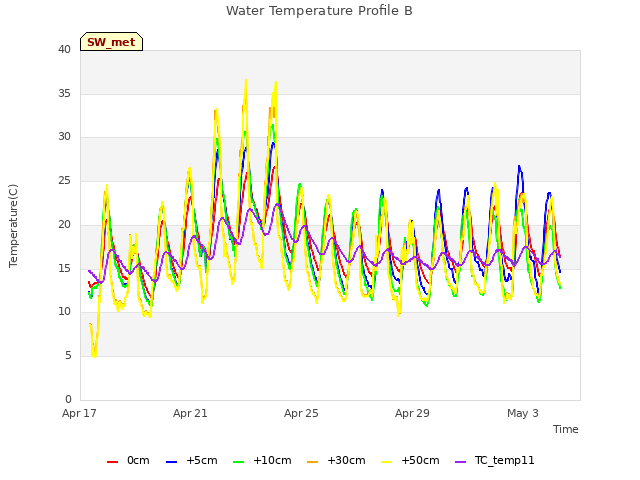

Explore the graph:Water Temperature Profile B in a new window

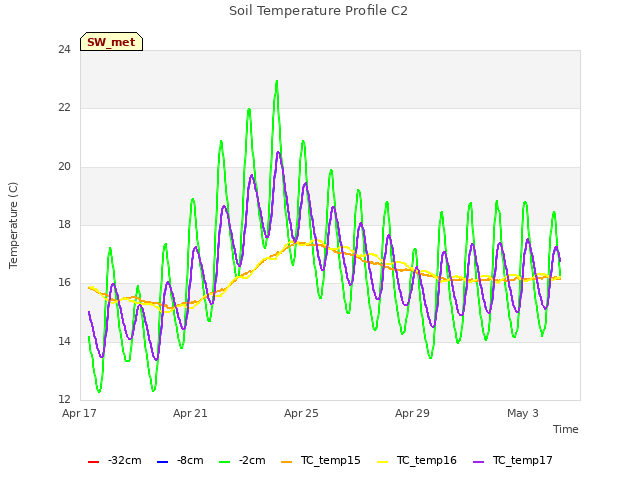

Explore the graph:Soil Temperature Profile C2 in a new window

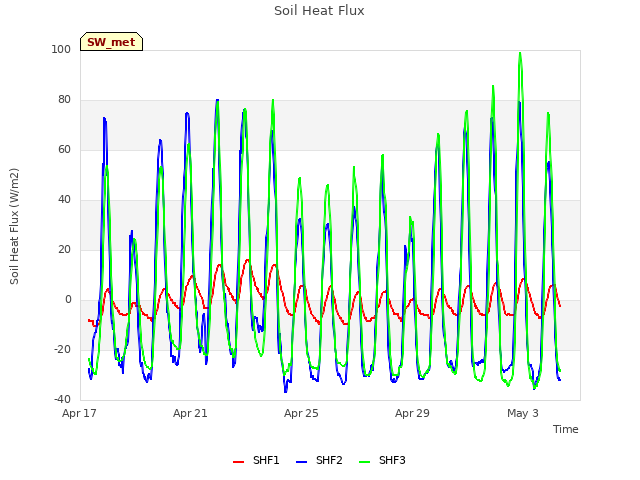

Explore the graph:Soil Heat Flux in a new window

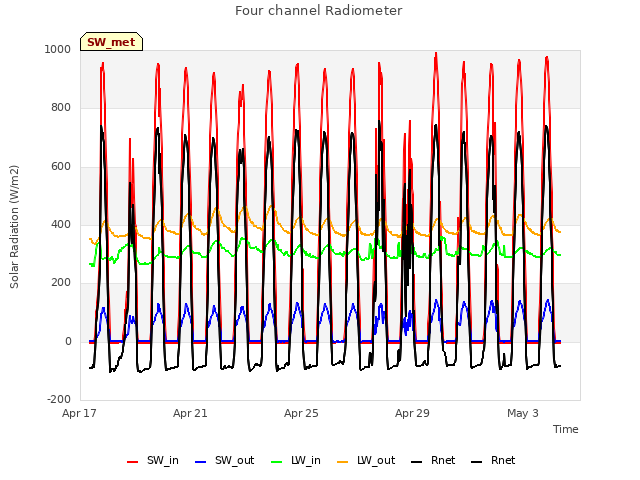

Explore the graph:Four channel Radiometer in a new window

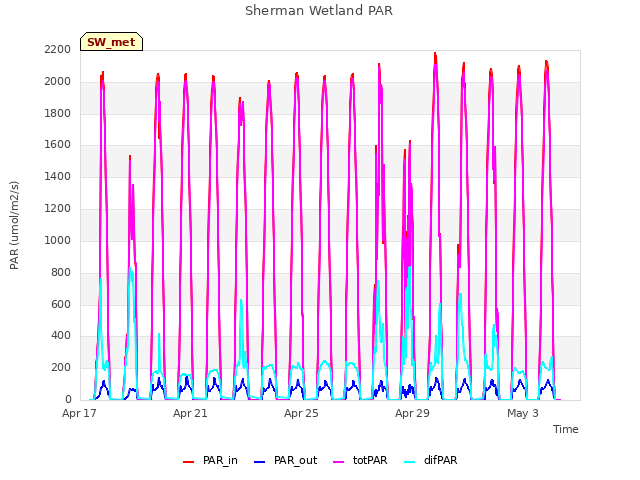

Explore the graph:Sherman Wetland PAR in a new window

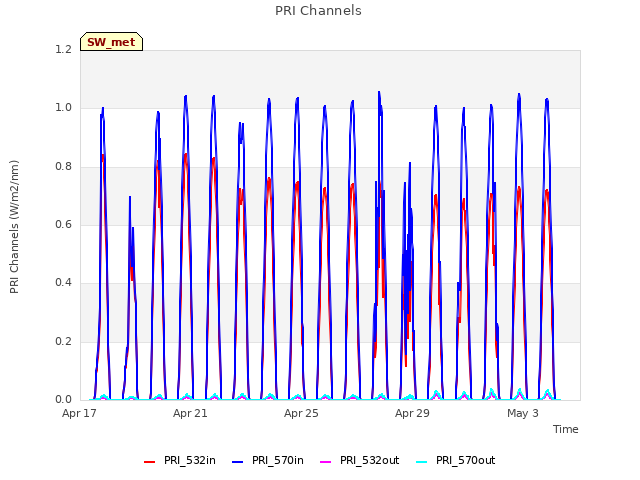

Explore the graph:PRI Channels in a new window

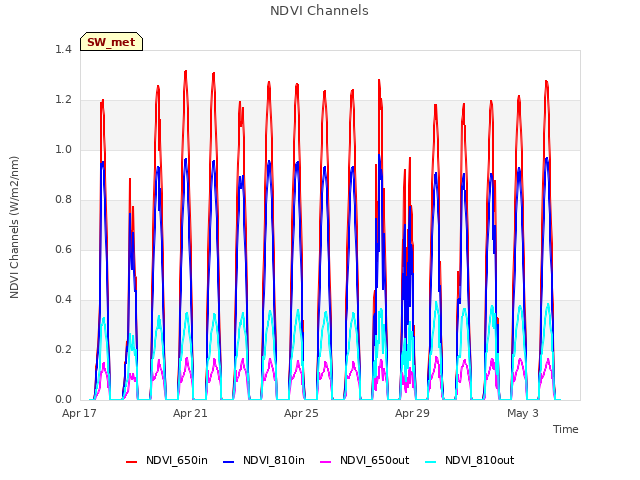

Explore the graph:NDVI Channels in a new window

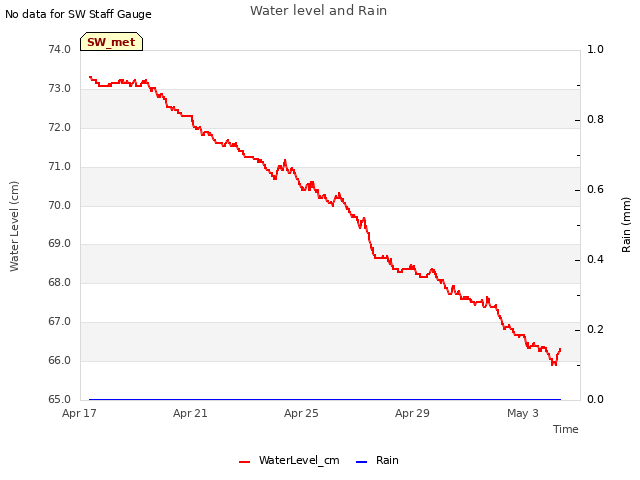

Explore the graph:Water level and Rain in a new window

Explore the graph:Dissolved CO2 in a new window

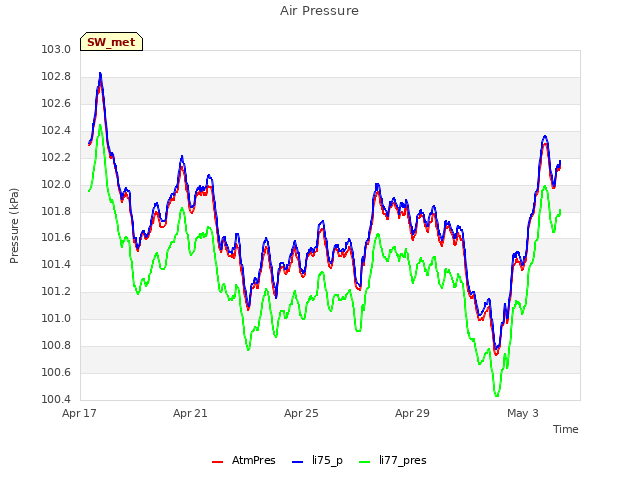

Explore the graph:Air Pressure in a new window

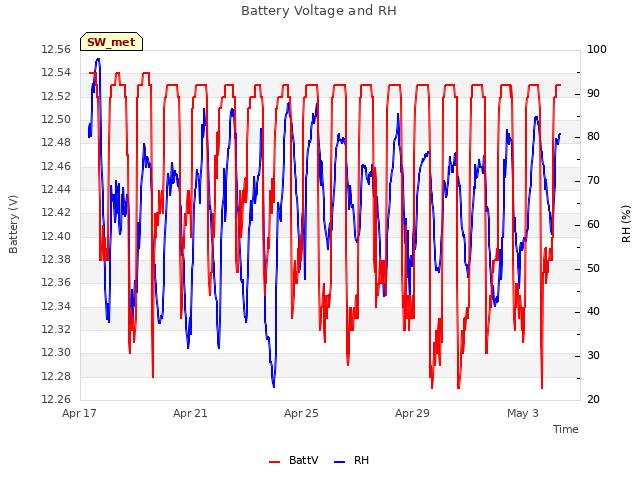

Explore the graph:Battery Voltage and RH in a new window

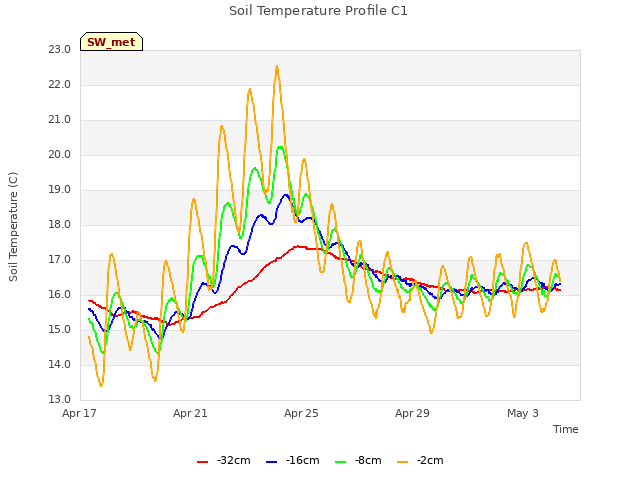

Explore the graph:Soil Temperature Profile C1 in a new window

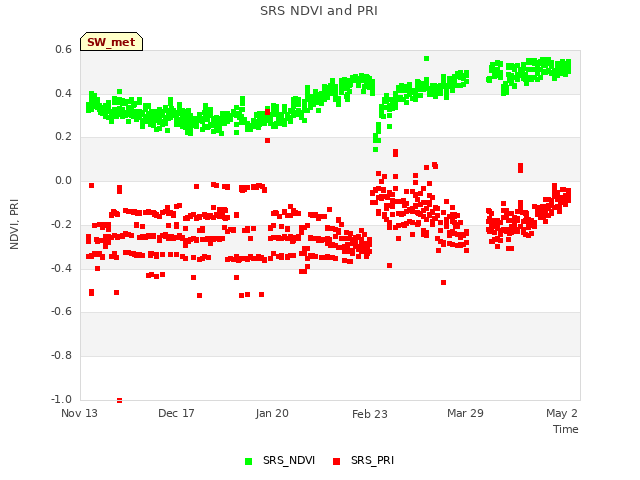

Explore the graph:SRS NDVI and PRI in a new window

4 SW_flux graphs found

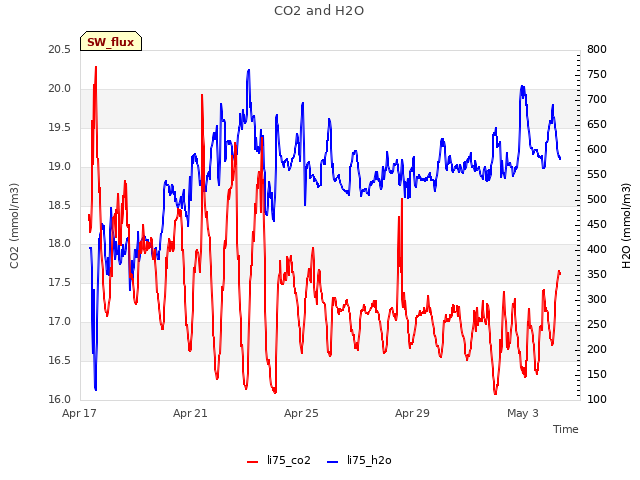

Explore the graph:CO2 and H2O in a new window

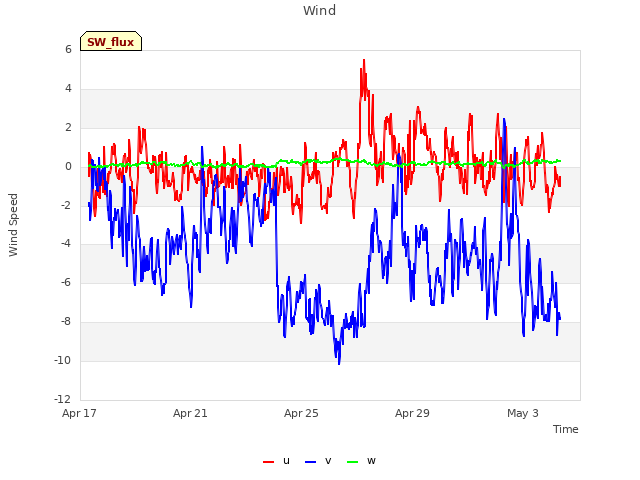

Explore the graph:Wind in a new window

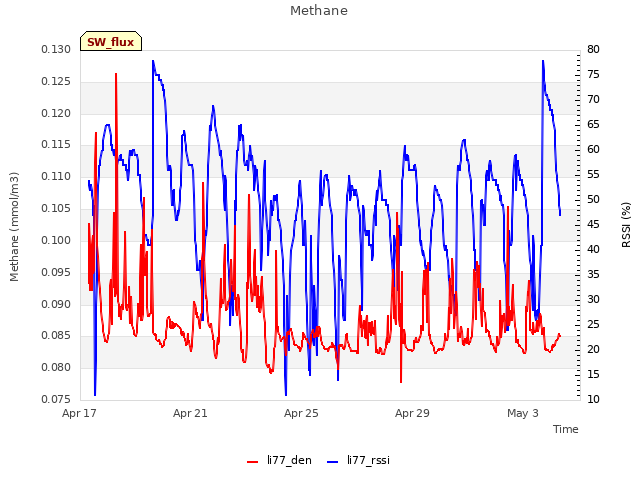

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
