West Pond: 2018-02-28 13:40:00 (DOY 59)
Author: Daphne Szutu
Others: Elke, Alex, Sigrid

Summary: Regular data collection/cleaning

2018-02-28
West Pond

We arrived at 13:40. It was partly sunny with a gentle breeze, but you can see the storm clouds looming. The willows by the road are coming back with new sprouts. There’s a gate on the road between WP and the Twitchell Island Ferry Road which was closed but not locked.

The wash reservoir was mostly full; Elke topped it off. There was no time sync error between the 7500 and 7700. When I tried to eject the USB, got a slow blink LED on the 7550 which means error. I took out the old USB, put in the new USB, and reset the box.

Elke collect met, camera, and USB data. She checked the Licor GHG columns, but everything looks ok; I’m not sure why there are extra wind data columns with the 7700 data. Alex cleaned the flux and rad sensors. I brushed out the camera enclosure, but I would like to swap the enclosure because this one is wobbly and dew forms on the inside of the enclosure window.

LI-7500 readings:
CO2 418ppm
H2O 334ppm
T 16.8C
P 102.1 kPa
SS 97 --> 98 after cleaning

LI7700 readings:
CH4 2.0 ppm
RSSI 58--> 74 after cleaning

We left at 14:00.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

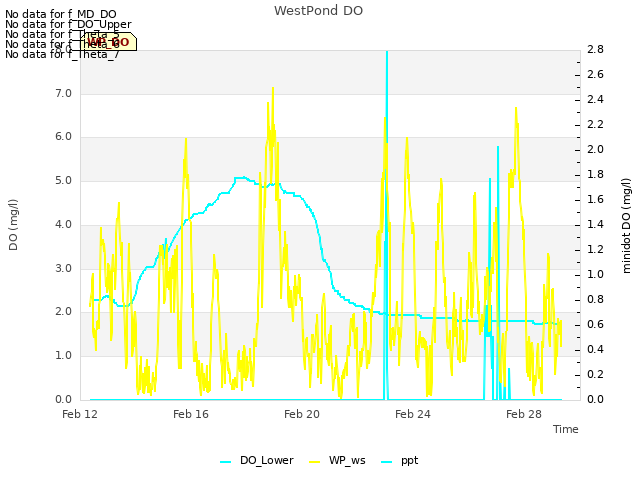

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

Explore the graph:Battery in a new window

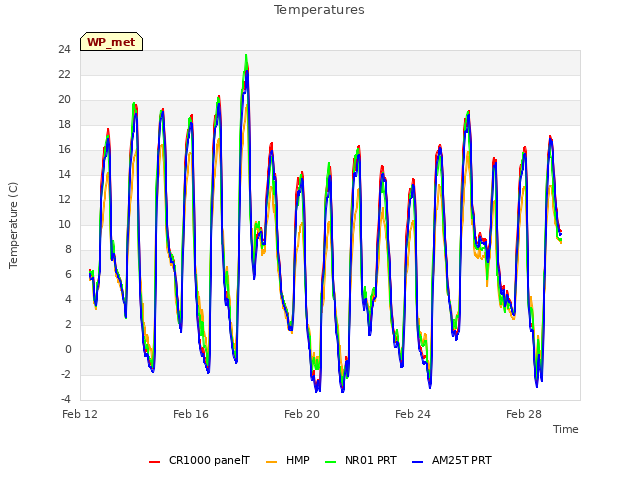

Explore the graph:Temperatures in a new window

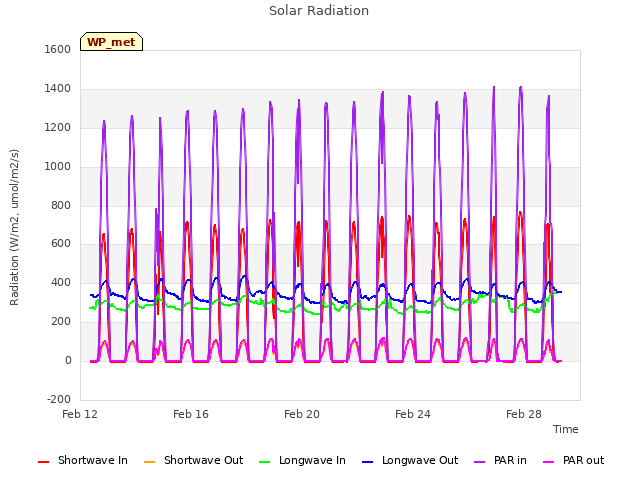

Explore the graph:Solar Radiation in a new window

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

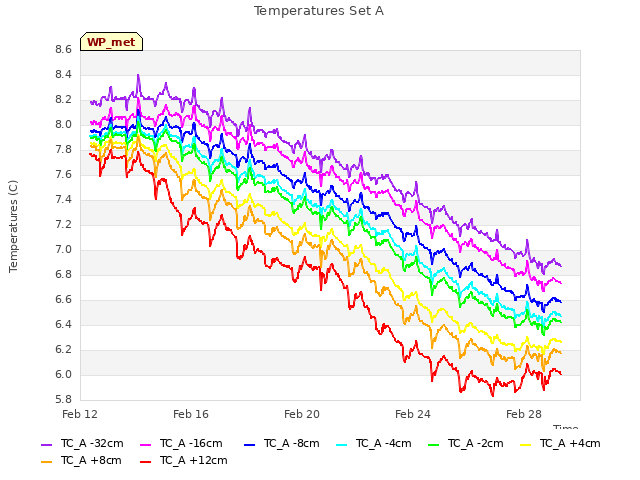

Explore the graph:Temperatures Set A in a new window

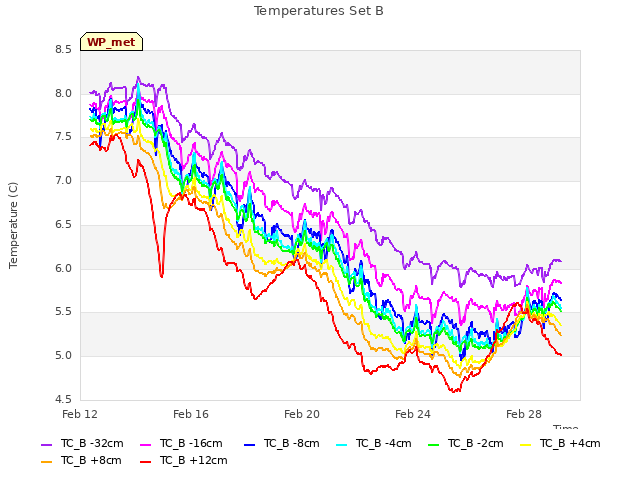

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

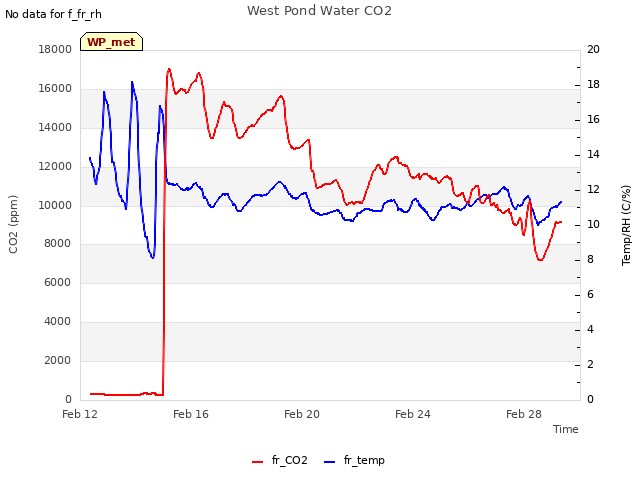

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

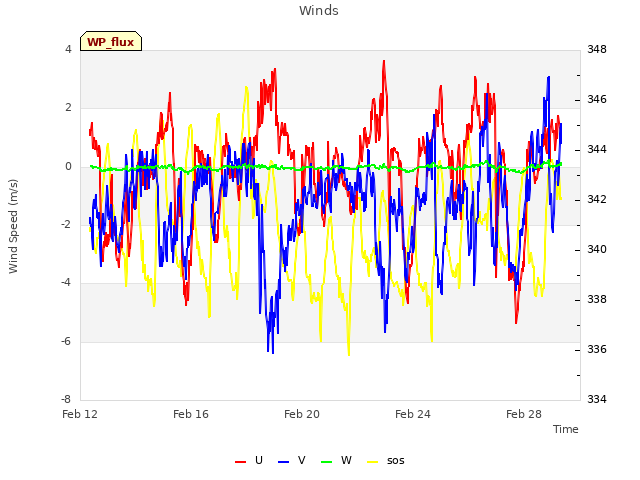

Explore the graph:Winds in a new window

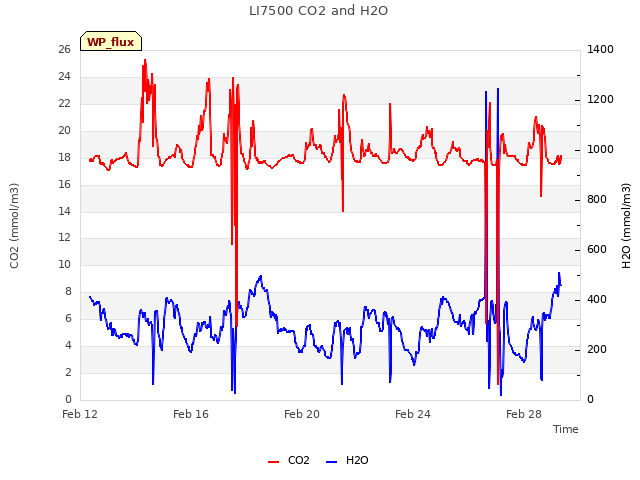

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

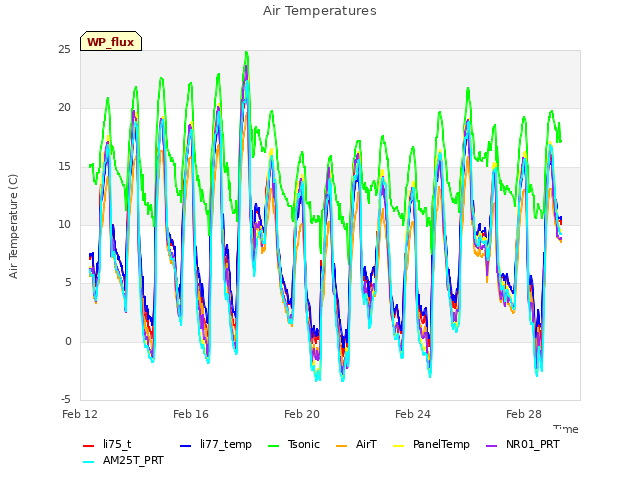

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

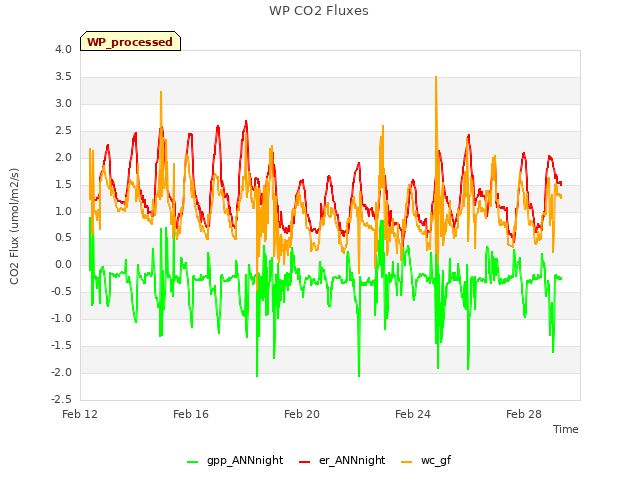

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
