Bouldin Corn: 2018-02-28 14:25:00 (DOY 59)
Author: Daphne Szutu
Others: Elke, Alex, Sigrid

Summary: Regular data collection/cleaning, fields are dry

2018-02-28
Bouldin Corn

We arrived at 14:25. It was cool and overcast with a light breeze. The fields are all dry, even the ones to the east and west of our field. The spud ditches are dry, but the ground is still soft. We refilled the wash reservoir; it was mostly full.

Elke downloaded the met, camera, and USB GHG data. The met data from sensors on the multiplexer all seemed fine.

We checked the sn of PRI sensors: sn 913003004 (SDI-12 addr = A), sn 897103002 (SDI-12 addr = F)

LI-7500 readings:
CO2 405 ppm
H2O 387 ppm
T 14.9 C
P 101.7 kPa
SS 99 --> 100 after cleaning

LI7700 readings:
CH4 1.95 ppm
RSSI 42--> 70 after cleaning

We left at 14:50.

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

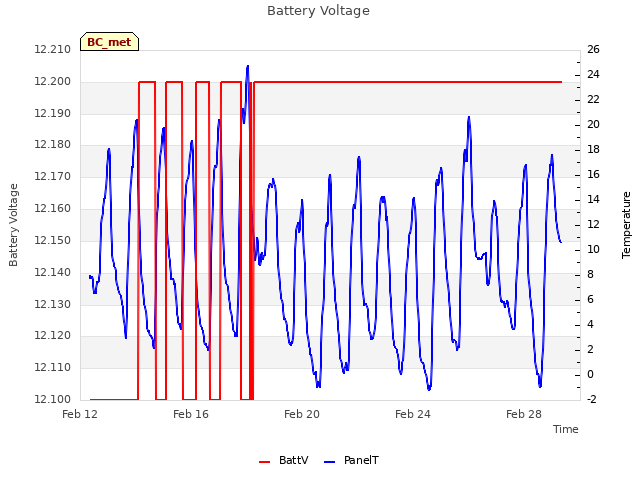

Explore the graph:Battery Voltage in a new window

Explore the graph:Soil Heat Flux in a new window

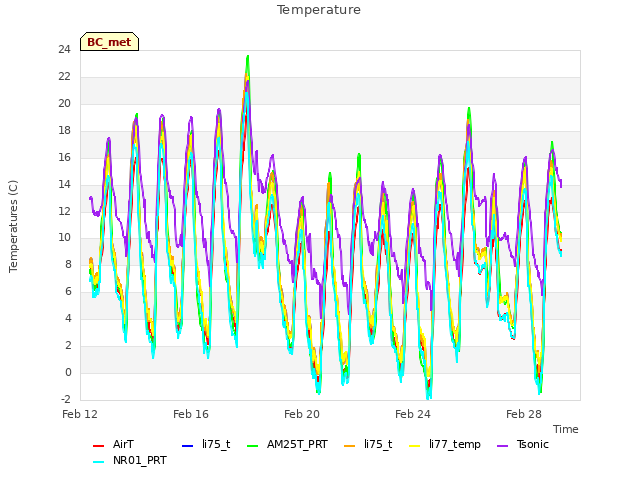

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

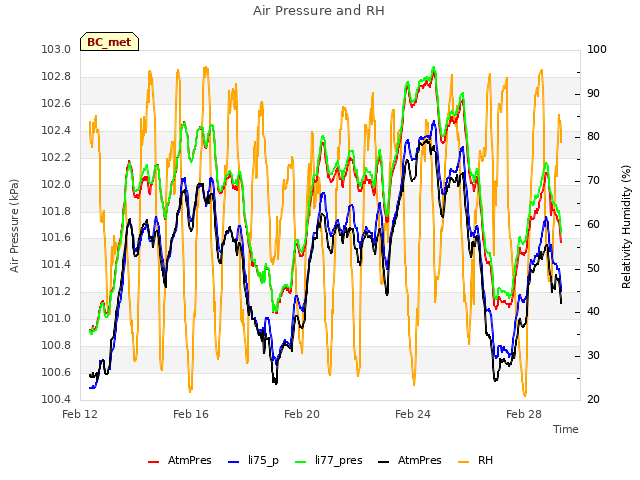

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

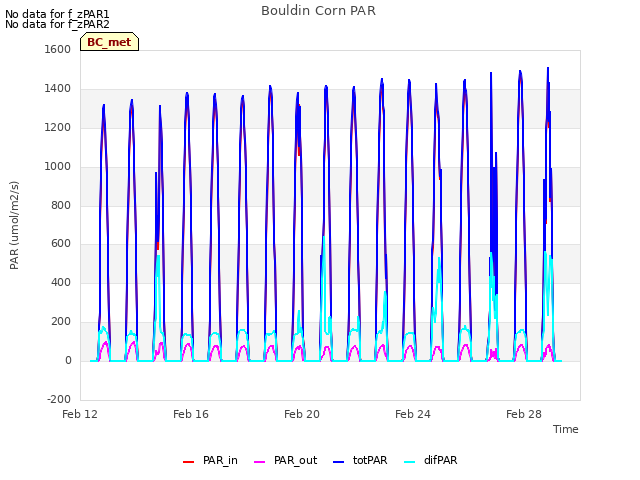

Explore the graph:Bouldin Corn PAR in a new window

Explore the graph:NDVI channels in a new window

Explore the graph:PRI Channels in a new window

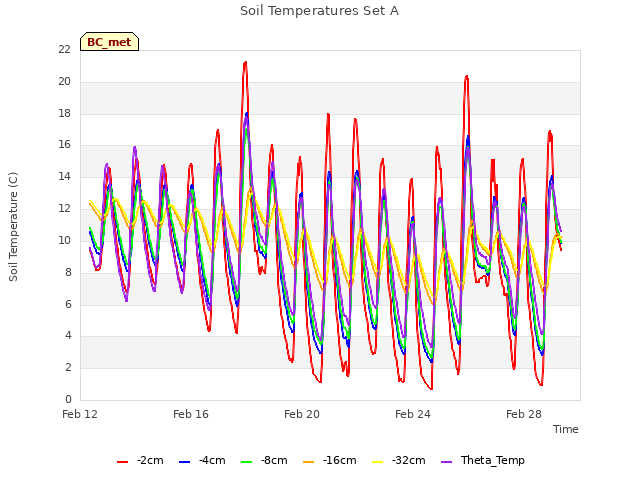

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

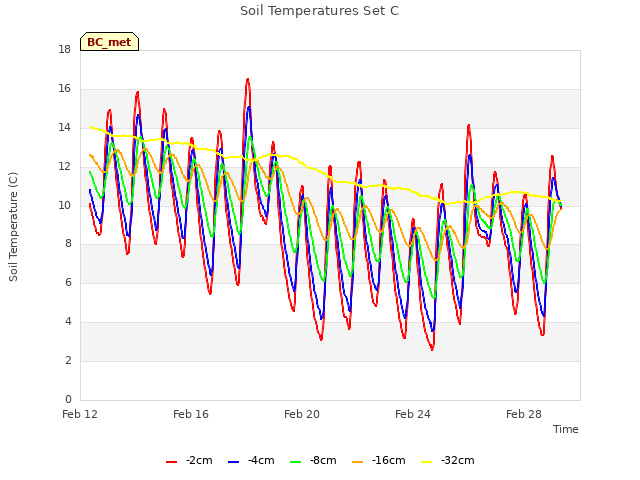

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:SRS NDVI and PRI in a new window

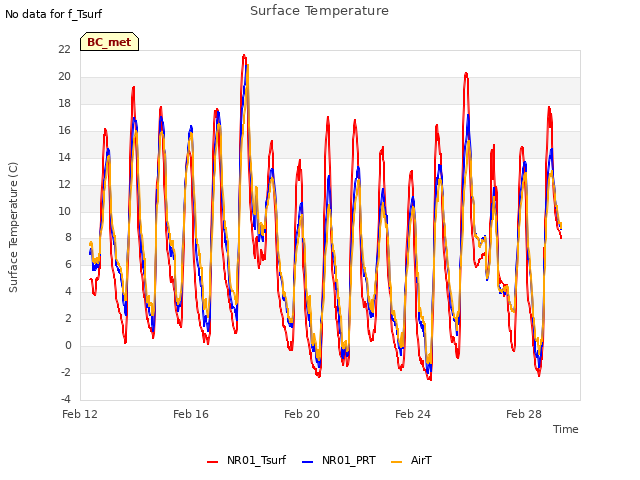

Explore the graph:Surface Temperature in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

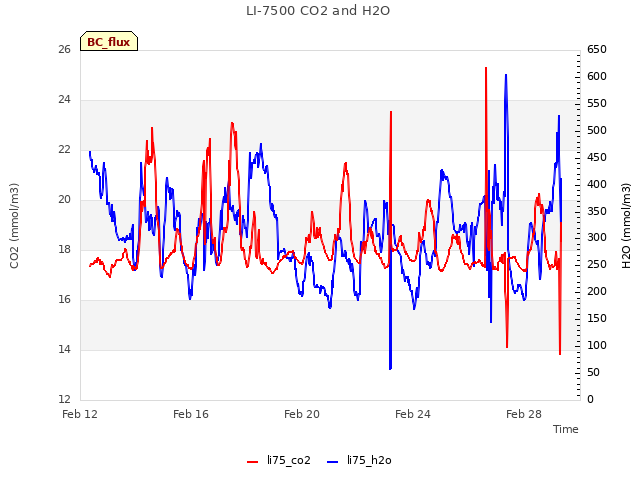

Explore the graph:LI-7500 CO2 and H2O in a new window

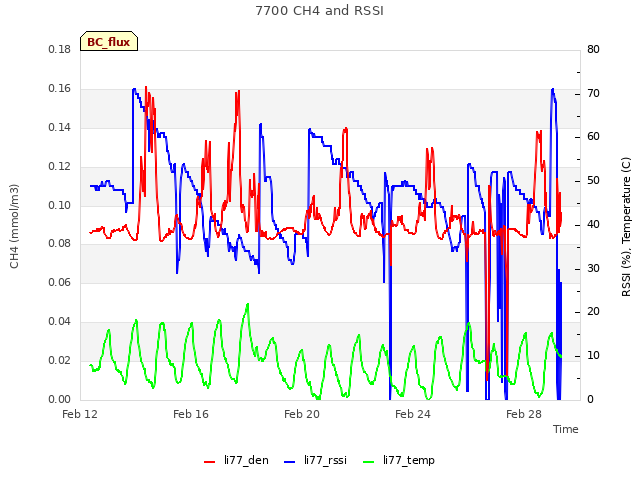

Explore the graph:7700 CH4 and RSSI in a new window

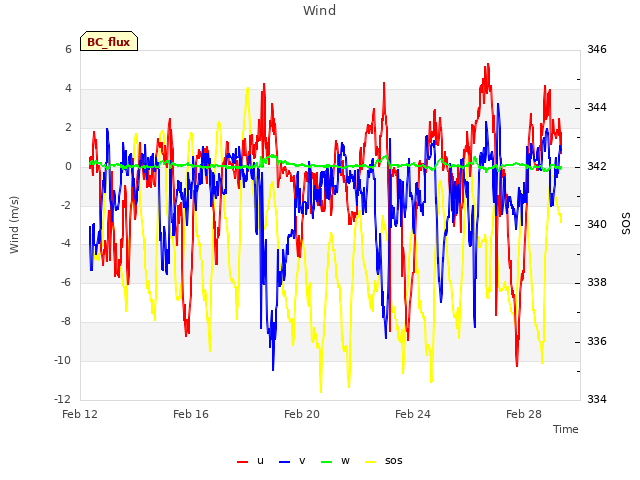

Explore the graph:Wind in a new window

Explore the graph:Counts in a new window

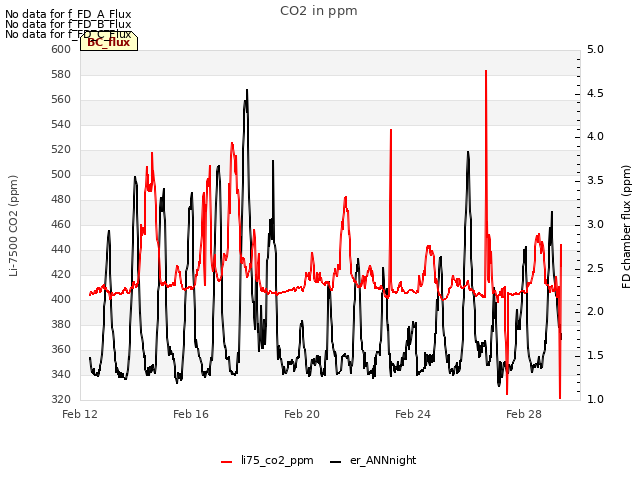

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
No data found for BC_pa.
No data found for BC_arable.
