West Pond: 2017-10-26 12:15:00 (DOY 299)
Author: Daphne Szutu
Others: Joe, Sam

Summary: Regular data collection/cleaning

2017-10-26
West Pond

We arrived at 12:15. It was sunny, clear, and no wind. Water level was back to near normal - the top half on the Eosense CO2 sensor was above the water line. Joe checked the drain and the water was only a inch or two below the top board.

I downloaded met, camera, and USB GHG data. Sam cleaned the EC/rad sensors. The wash reservoir was mostly full.

LI-7500 readings:
CO2 435.8
H2O 645.6
T 27.4
P 100.9
SS 91.6 --> 96.1 after cleaning

LI7700 readings:
CH4 2.4
RSSI 43.7 --> 78.5 after cleaning

We left at 12:30.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

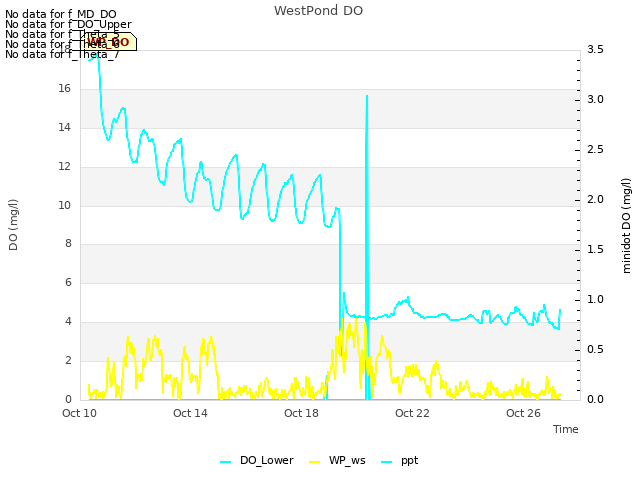

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

Explore the graph:Battery in a new window

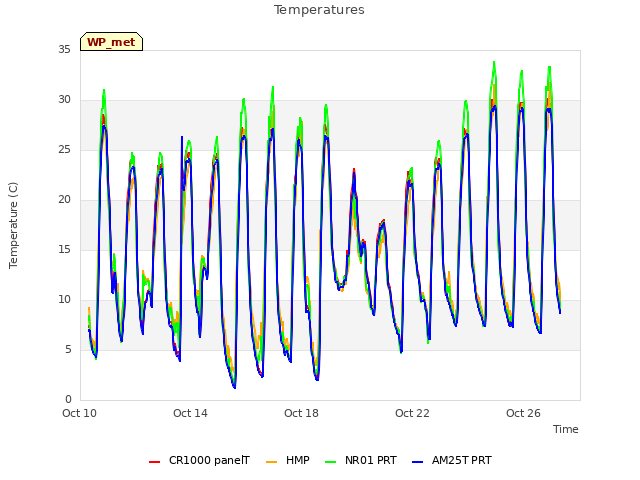

Explore the graph:Temperatures in a new window

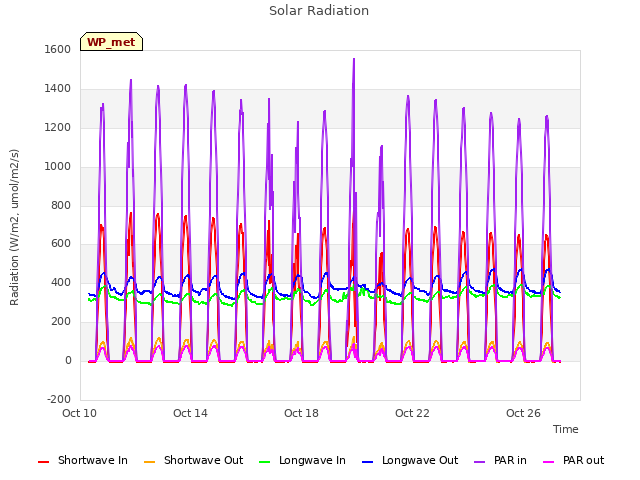

Explore the graph:Solar Radiation in a new window

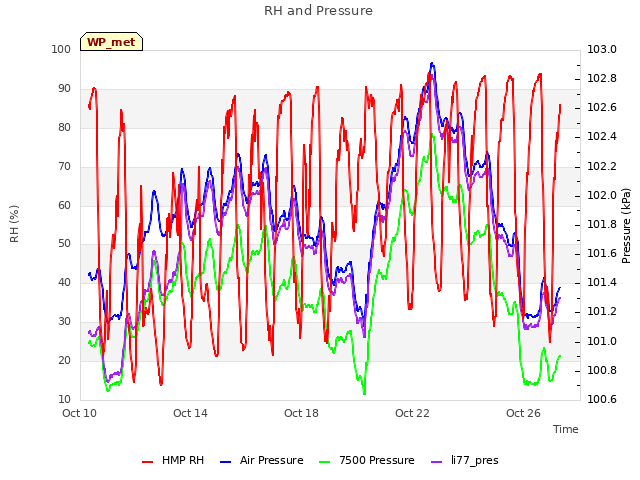

Explore the graph:RH and Pressure in a new window

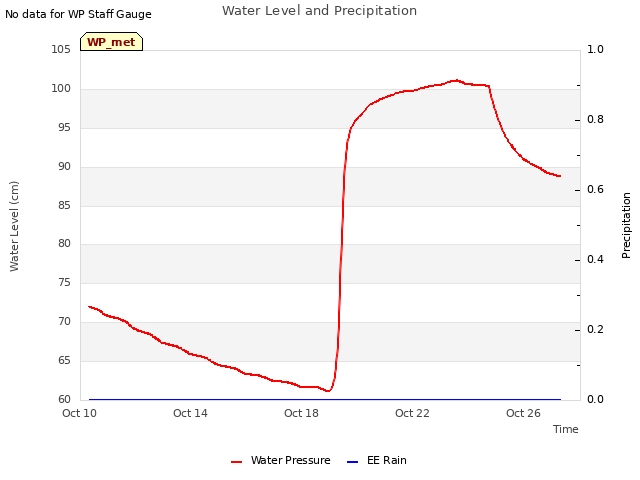

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

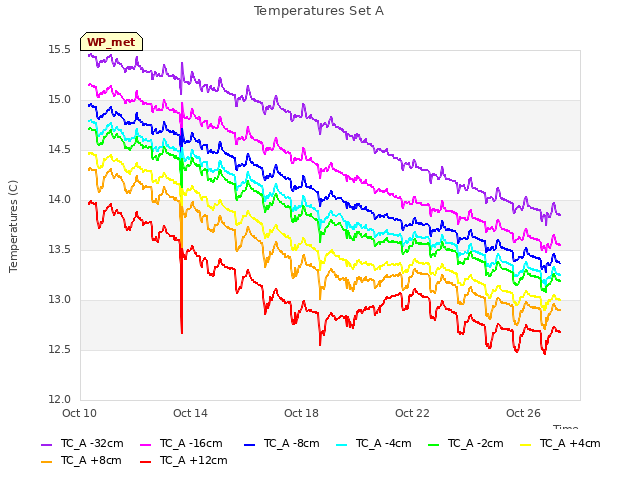

Explore the graph:Temperatures Set A in a new window

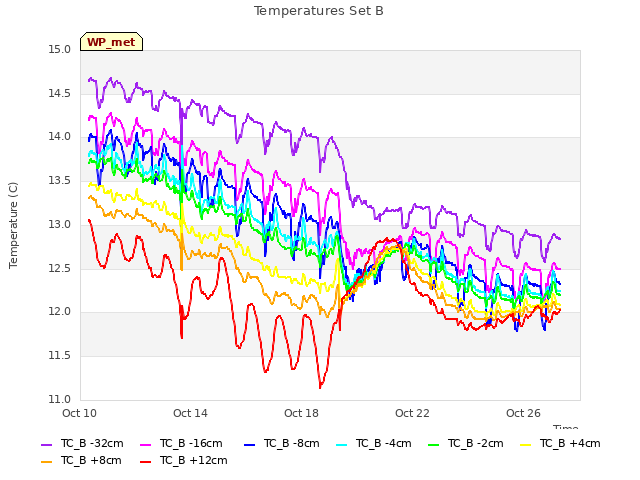

Explore the graph:Temperatures Set B in a new window

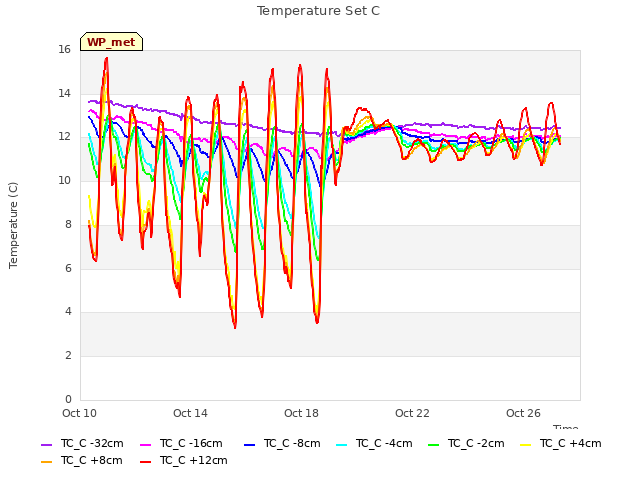

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

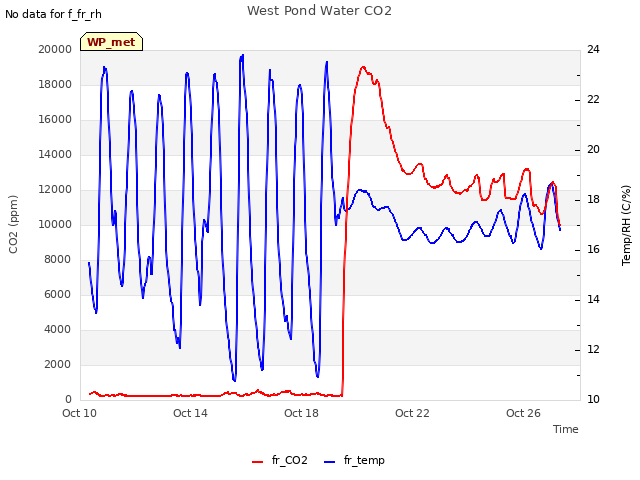

Explore the graph:West Pond Water CO2 in a new window

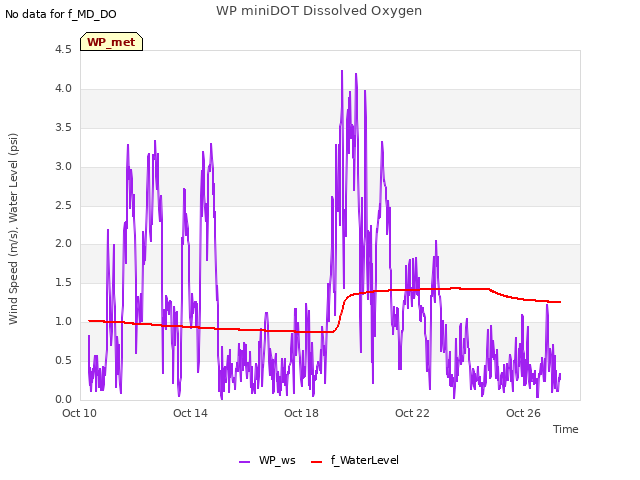

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

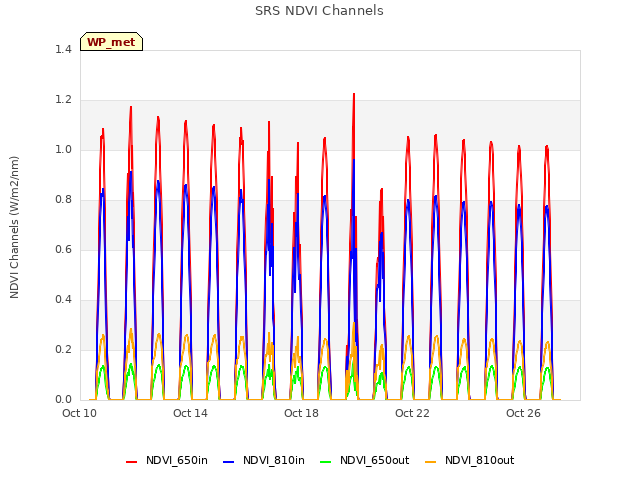

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

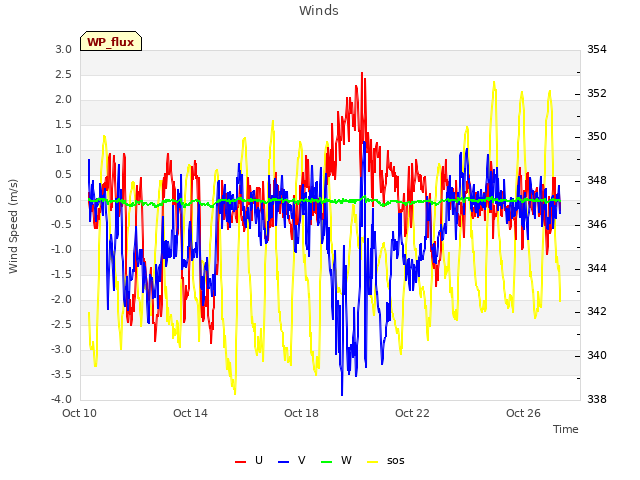

Explore the graph:Winds in a new window

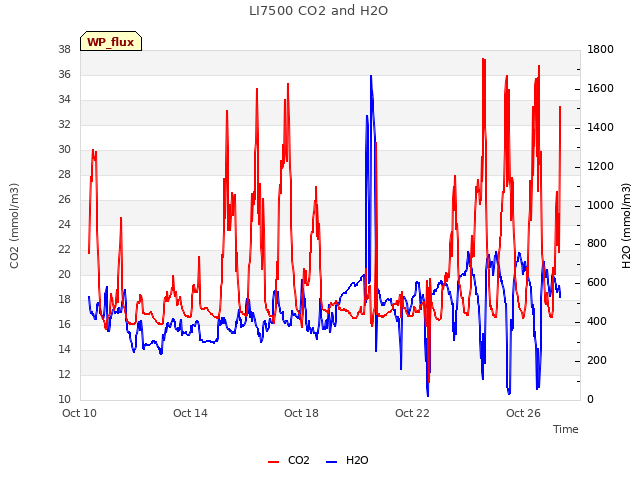

Explore the graph:LI7500 CO2 and H2O in a new window

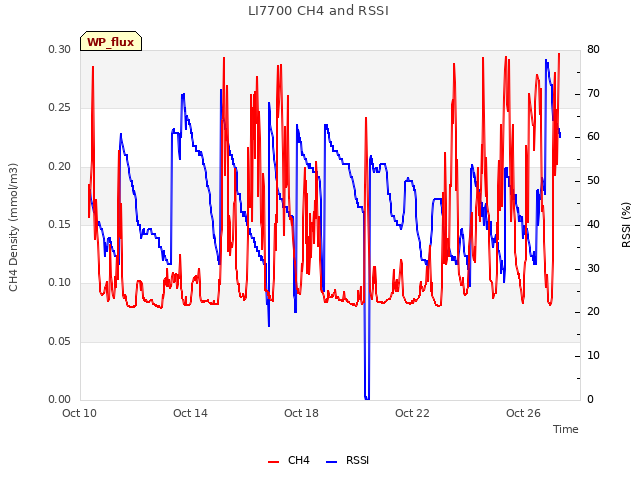

Explore the graph:LI7700 CH4 and RSSI in a new window

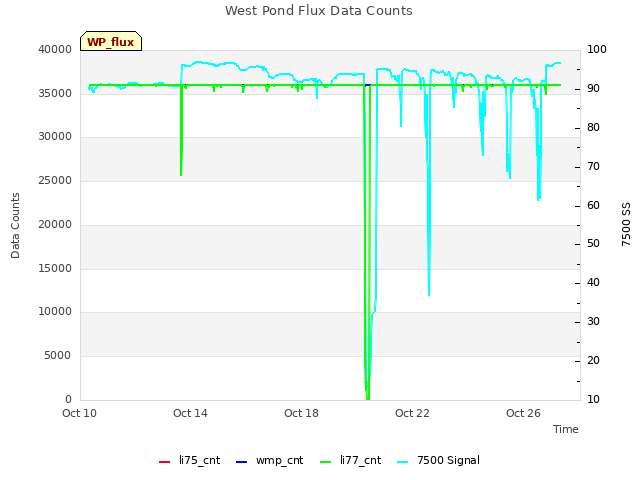

Explore the graph:West Pond Flux Data Counts in a new window

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

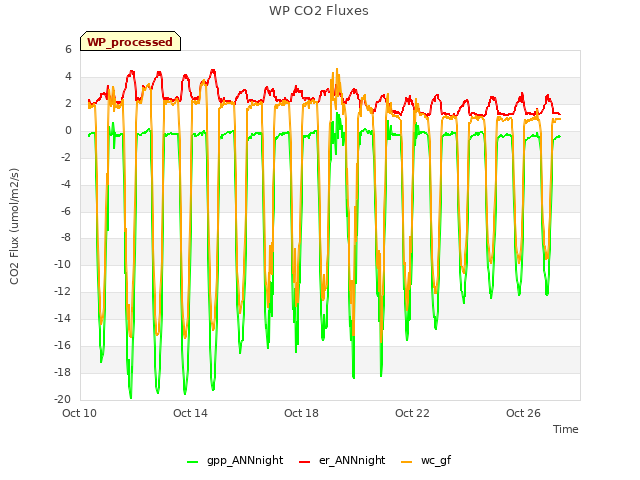

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
