Bouldin Alfalfa: 2017-10-26 10:05:00 (DOY 299)
Author: Daphne Szutu
Others: Joe, Sam

Summary: Regular data collection/cleaning, clip plots, veg height measurements

2017-10-26
Bouldin Alfalfa

We arrived at 10:05. It was sunny with blue skies, but there was smog covering most of Mt. Diablo. It was mild with no wind.

Joe cleaned the EC/radiation sensors and the precip bucket. The bucket was dirty but there was some water in the tipper. He also refilled the wash box; it was 1/2 full. Sam took clip plots samples and veg height measurements. I collected met, camera, and USB GHG data. I also confirmed the heating/wash cycle for the 7700.

LI-7500 readings:
CO2 510.5
H2O 630.0
T 20.1
P 101.3
SS 98.1 --> 100.6 after cleaning

LI7700 readings:
CH4 2.97 --> 2.8 after cleaning
RSSI 16.2 --> 83.8 after cleaning

We left at 10:25.

Next Mowing: 2018-01-13

Veg Height (cm): Tape measure from ground to top of plant
36, 19, 26, 21, 22, 14, 20, 16, 12, 14, 17, 15, 15, 26, 14, 20, 22, 11, 16, 28, avg = 19.2, stdev = 6.21

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

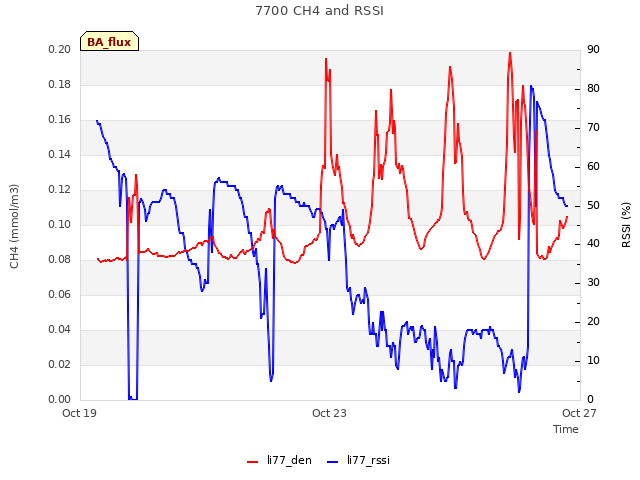

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

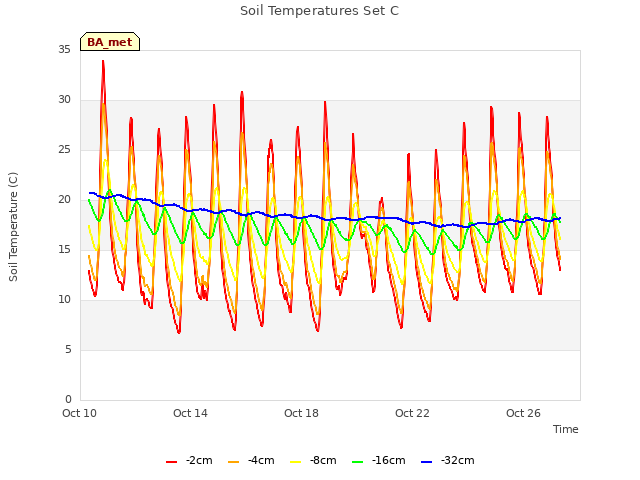

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

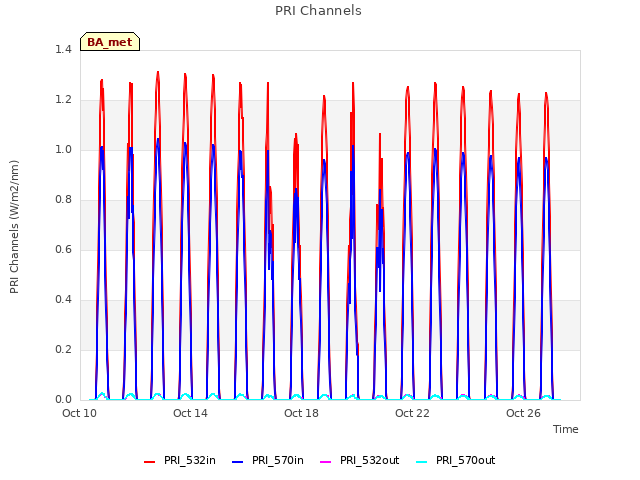

Explore the graph:PRI Channels in a new window

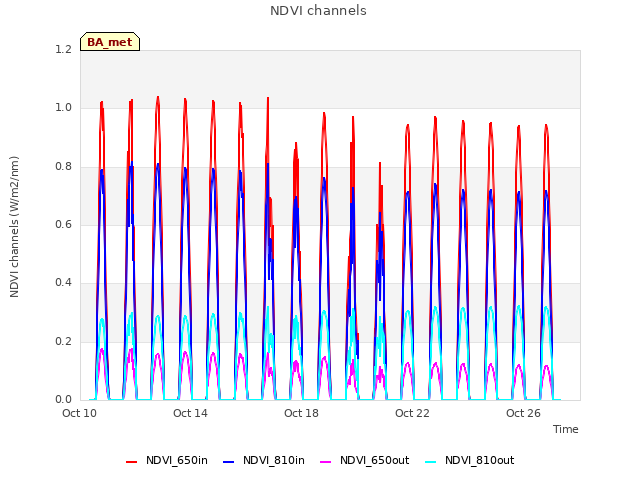

Explore the graph:NDVI channels in a new window

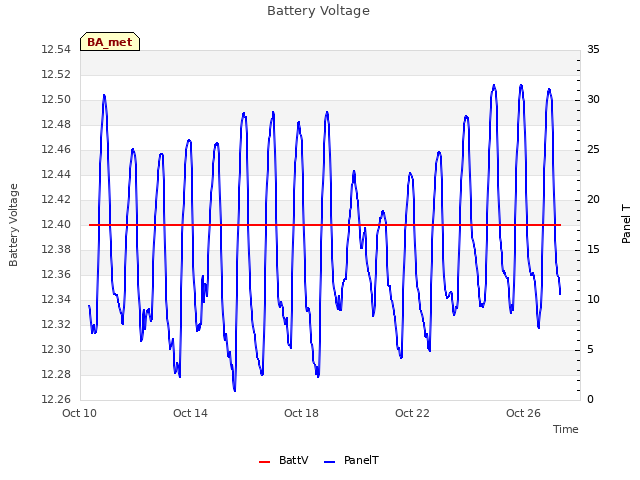

Explore the graph:Battery Voltage in a new window

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

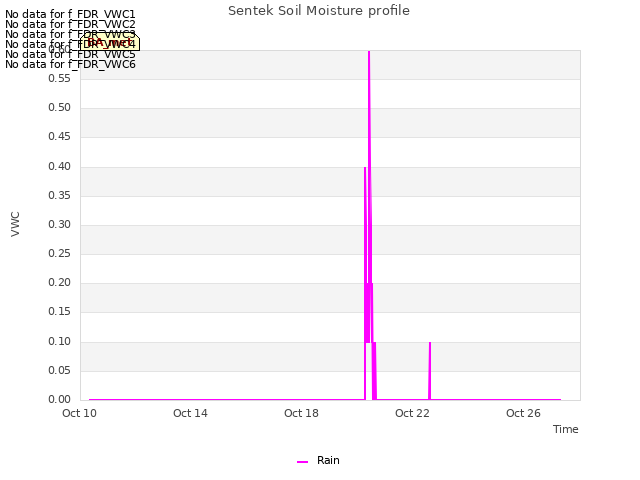

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
