Twitchell Alfalfa: 2017-10-26 10:50:00 (DOY 299)
Author: Daphne Szutu
Others: Joe, Sam

Summary: Regular data collection/cleaning, installed stardot camera biomass samples (clip plots), vegetation height measurements, Licor soil co2 was not working

2017-10-26
Twitchell Alfalfa

We arrived at 10:50. It was sunny and clear, but hazy on the horizon. We disturbed a burrowing owl while we drove through the field. It bobbed up and down indignantly.

Joe cleaned the EC and radiation sensor and reinstalled the StarDot camera sn 0030F4D2148D (missing the sliding mount). Sam started Licor soil CO2 readings, but the instrument was not working (Sam - more details). Sam took 5 clip plot samples and I took veg height measurements.

I downloaded met, soilCO2, camera, and USB GHG data.

LI-7500 readings:
CO2 449.8 ppm
H2O 581.5
T 25.1
P 101.4
SS 96.1 --> 99.5 after cleaning

We left at 11:20.

Veg Height (cm): Tape measure from ground to top of plant
19, 14, 5, 9, 10, 8, 14, 6, 13, 12, 17, 8, 10, 16, 9, 10, 11, 9, 16, 7, avg = 11.2, stdev = 3.86

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

Explore the graph:Alfalfa Temperatures in a new window

Explore the graph:Alfalfa Soil Heat Flux in a new window

Explore the graph:Alfalfa Soil Moisture in a new window

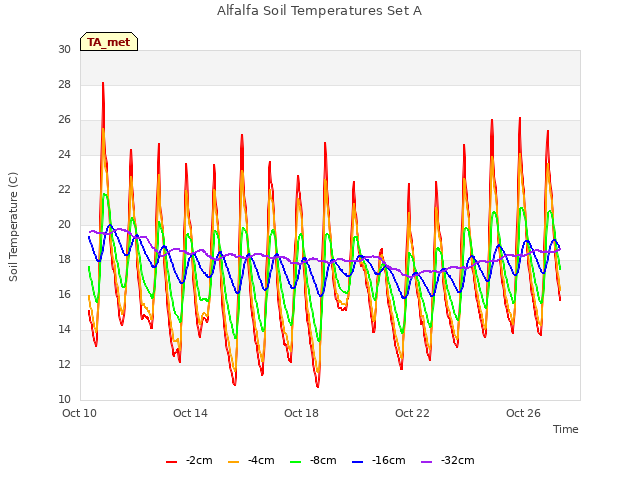

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

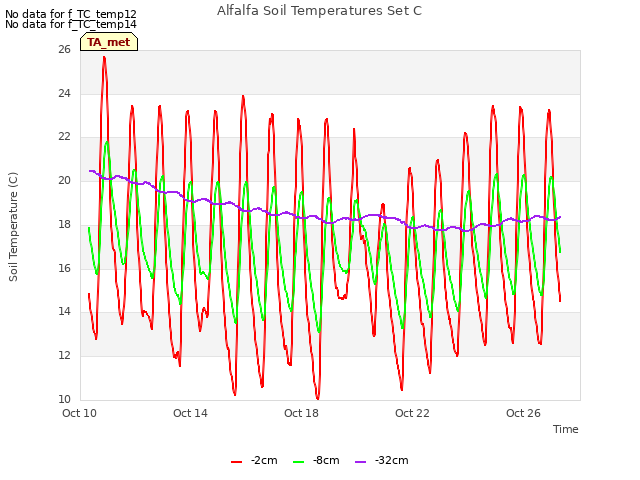

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

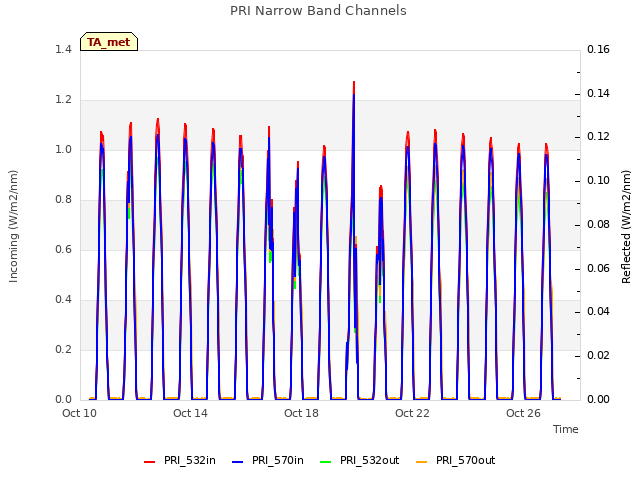

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

Explore the graph:Alfalfa Radiation in a new window

Explore the graph:Alfalfa LED NDVI Sensor in a new window

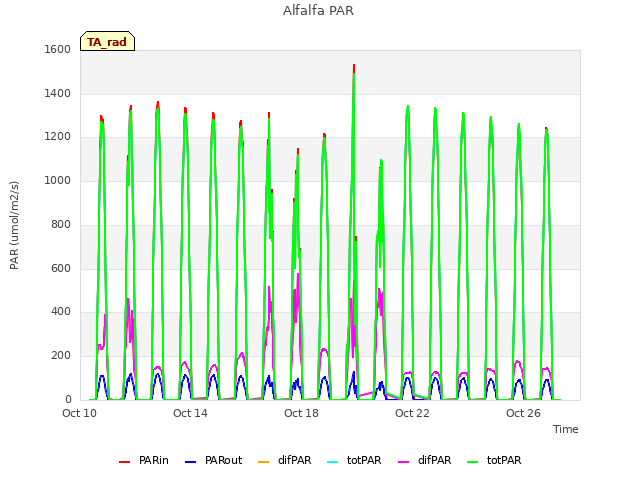

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

Explore the graph:Alfalfa Sonic Wind in a new window

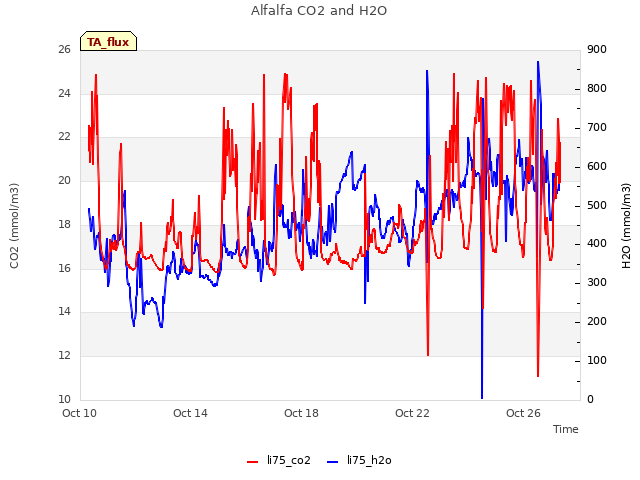

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

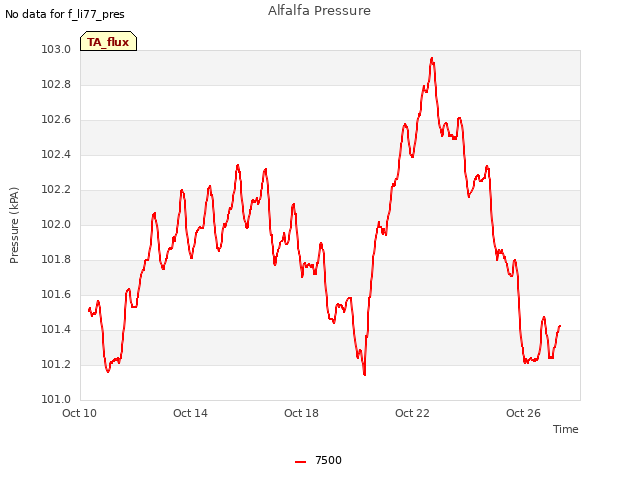

Explore the graph:Alfalfa Pressure in a new window

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

Explore the graph:Set B Soil CO2 in a new window

Explore the graph:Soil CO2 Soil Moisture in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

Explore the graph:Alfalfa Forerunner Temperatures in a new window

Explore the graph:Alfalfa Forerunner Probe RH in a new window

1 TA_arable graphs found

Explore the graph:Temperatures in a new window
