Field Notes

<--2017-04-10 12:00:00 | 2017-04-24 11:30:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2017-04-24 10:00:00 (DOY 114)
Author: Siyan Ma
Others: Joe

Summary: Last day of Ameriflux inter-comparison at Vaira, clip plots, grass height, midday water potential, pond.

When: Date: 4/24/2017 Watch Time: 10:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: cloudy

Phenology:



Summary

  1. Joe swapped memory cards of CR1000s at three sites.
  2. Joe downloaded data at Tonzi – could not get phenocam image or tower met.
  3. Downloaded phenocam images at Vaira.
  4. Read dendrometers
  5. Measured soil moisture
  6. Measured grass height
  7. Measured groundwater wells
  8. Measured midday water potential of oak leaves
  9. Collected grass samples for LAI
  10. Spectrum of Vaira grassland
  11. Joe downloaded IRT data and GlobalWater data

Vaira_Grass Site

  1. Fence worked.
  2. Downloaded Phenocam images.
  3. Joe swapped the memory card of CR1000 and showed me how to swap the memory stick equipped in the new Li-cor box.
  4. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  5. Checked levels of Radiation sensors, clear up surfaces.YES! (Joe)
  6. Checked rain gage, make sure not clogged. YES! (Joe)
  7. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence worked.
  2. swapped the memory cards of CR1000.


  1. download Phenocam images. Yes!
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Checked rain gage, make sure not clogged. YES!
  4. Joe downloaded data directly from data loggers because of absence of computer (will be fixed soon):

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile

7. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence worked.
  2. Joe swapped the memory cards of CR1000.


  1. Closed gate and set up fence. YES!

Veg Height (cm): Tape measure from ground to top of plant
19, 24, 30, 23, 30, 57, 46, 40, 47, 44, 23, 24, 20, 20, 18, avg = 31, stdev = 12.51

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2017-04-24TZ_floor7.2
2017-04-24TZ_road17
2017-04-24TZ_tower11
2017-04-24VR_pond22.04

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2017-04-24 114 0 0-15cm 36.7 31.1 49.9 33.5 39.9 34.6 22.9 25.8 27.3 25.3 36.4 35.2
2017-04-24 114 0 15-30cm 37.8 35.3 38.1 38.7 30.4 31.3 30.4 21.9 31.6 24.3 31.6
2017-04-24 114 0 30-45cm 36 43.3 45.2 39.9 33.5 31.5 35.4 33.8 35.4 34.6 38
2017-04-24 114 0 45-60cm 38.8 54.9 60.9 46.3 36 44.8 50.9 33.7 46.3 53.1 47.9
2017-04-24 114 Avg 0-15cm 36.7 31.1 49.9 33.5 39.9 34.6 22.9 25.8 27.3 25.3 36.4 35.2 33.22 12 12
2017-04-24 114 Avg 15-30cm 37.8 35.3 38.1 38.7 30.4 31.3 30.4 21.9 31.6 24.3 31.6 31.95 11 11
2017-04-24 114 Avg 30-45cm 36 43.3 45.2 39.9 33.5 31.5 35.4 33.8 35.4 34.6 38 36.96 11 11
2017-04-24 114 Avg 45-60cm 38.8 54.9 60.9 46.3 36 44.8 50.9 33.7 46.3 53.1 47.9 46.69 11 11

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2017-04-24 114 0 0-15cm 16.2 22.9 23.5 10
2017-04-24 114 0 15-30cm 28 28.3 18.7 18.8
2017-04-24 114 0 30-45cm 28.8 15.4 23.5 28.5
2017-04-24 114 0 45-60cm 42.8 29.7 22.8 33.1
2017-04-24 114 1 0-15cm 15.3 22.3 23.8 9.4
2017-04-24 114 1 15-30cm 28.3 28 19.7 19.1
2017-04-24 114 1 30-45cm 29.6 15.4 22.3 28.8
2017-04-24 114 1 45-60cm 42.5 29.9 2.8 32.8
2017-04-24 114 Avg 0-15cm 15.75 22.6 23.65 9.7 17.93 4 8
2017-04-24 114 Avg 15-30cm 28.15 28.15 19.2 18.95 23.61 4 8
2017-04-24 114 Avg 30-45cm 29.2 15.4 22.9 28.65 24.04 4 8
2017-04-24 114 Avg 45-60cm 42.65 29.8 12.8 32.95 29.55 4 8

Grass Height TZ 15

DateHeight reps (cm)LocationAverageSampSTDEV
2017-04-2419 24 30 23 30 57 46 40 47 44 23 24 20 20 18 GH_ALL311512.08

Grass Height VR 15

DateHeight reps (cm)LocationAverageSampSTDEV
2017-04-2464 60 62 58 50 66 63 52 55 84 61 58 54 35 30 GH_ALL56.81512.24

Tree DBH

DateTag#Reading (mm)
2017-04-24125.9
2017-04-24220.6
2017-04-2424524.9
2017-04-24322.9
2017-04-24421.5
2017-04-24521.9
2017-04-24718.6
2017-04-247223.6
2017-04-247922.9
2017-04-24822.0

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2017-04-24 13:06:00 OAK 102 -6 -6 -7
2017-04-24 13:06:00 OAK 35 -7 -10 -6
2017-04-24 13:06:00 OAK 92 -11 -5 -25
2017-04-24 13:36:00 PINE OLD -14 -15 -17
2017-04-24 13:36:00 PINE YNG -2 -4 -6

OAK_102 Whole Study20170424 13:06:00 twig/leaf cluster -0.6 0.06 3
OAK_35 Whole Study20170424 13:06:00 twig/leaf cluster -0.8 0.21 3
OAK_92 Whole Study20170424 13:06:00 twig/leaf cluster -1.4 1.03 3
PINE_OLD Whole Study20170424 13:36:00 twig/leaf cluster -1.5 0.15 3
PINE_YNG Whole Study20170424 13:36:00 twig/leaf cluster -0.4 0.2 3

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

view of field site
view of field site

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

Tonzi Tower Met: Temperature and Power

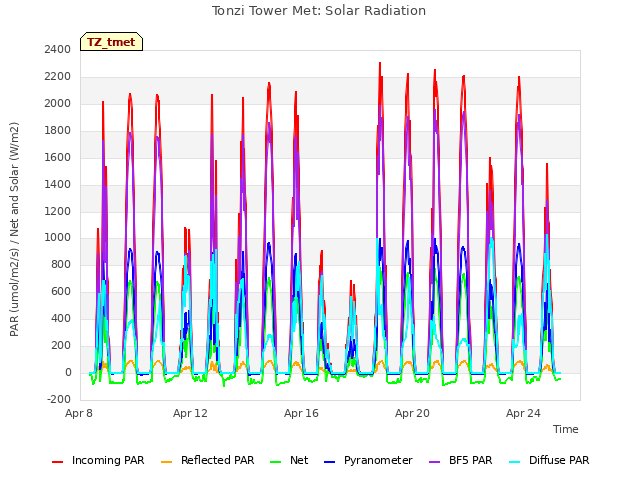

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

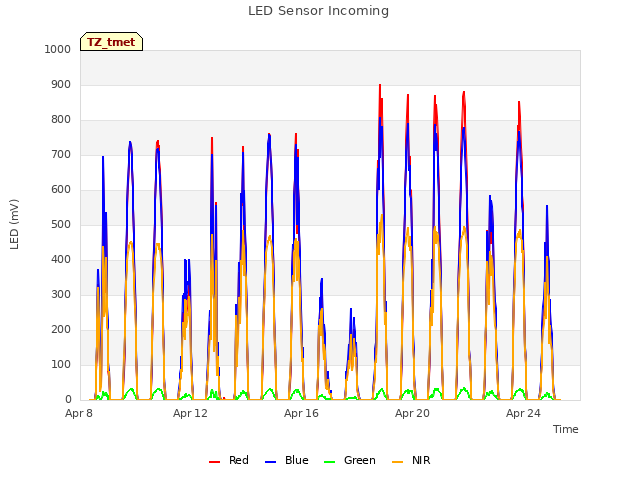

LED Sensor Incoming

LED Sensor Outgoing

4-Band Solar Radiation

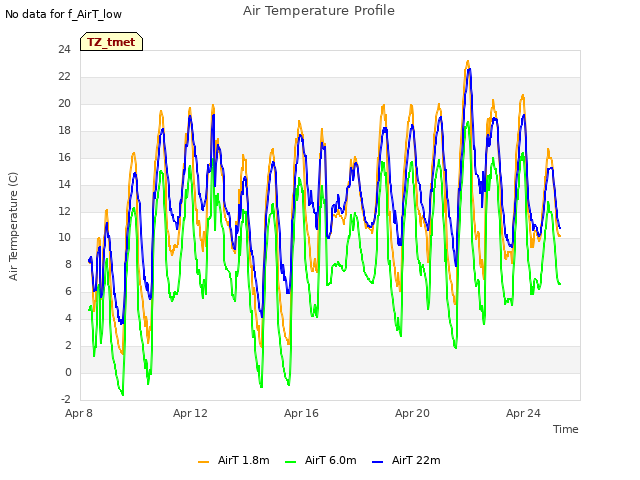

Air Temperature Profile

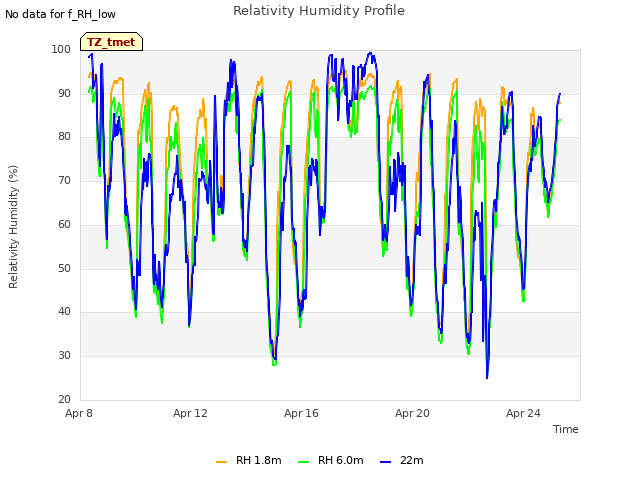

Relativity Humidity Profile

Tonzi Tower PRI

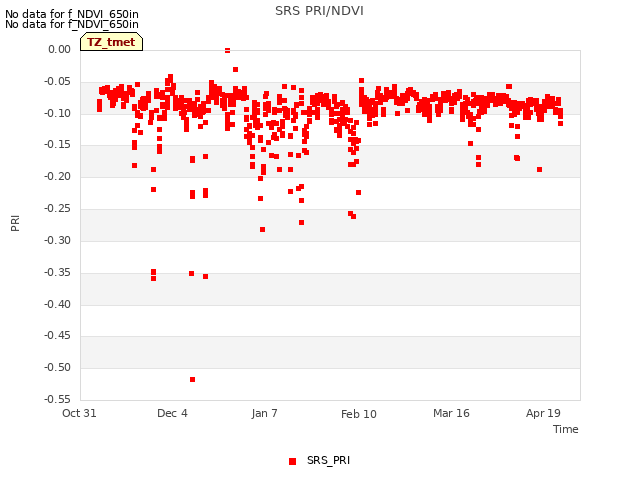

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

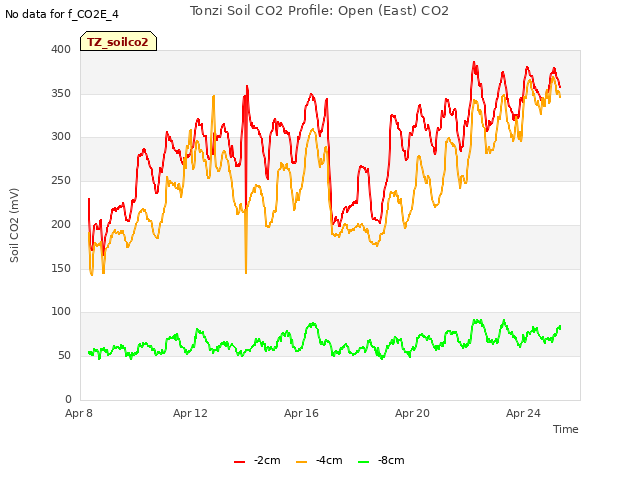

Tonzi Soil CO2 Profile: Open (East) CO2

Tonzi Soil CO2 Profile: Tree (West) CO2

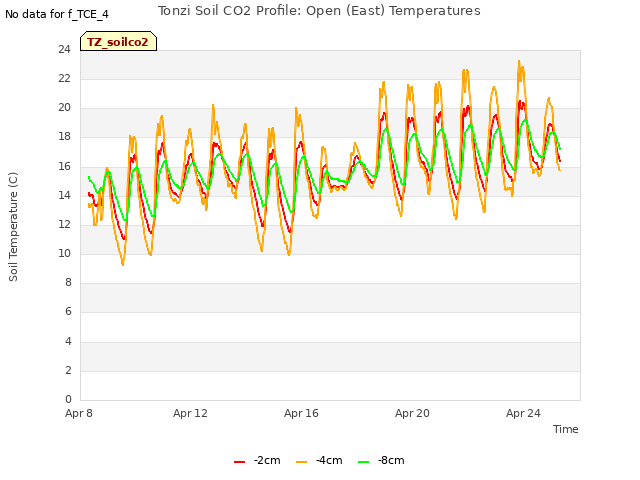

Tonzi Soil CO2 Profile: Open (East) Temperatures

Tonzi Soil CO2 Profile: Tree (West) Temperatures

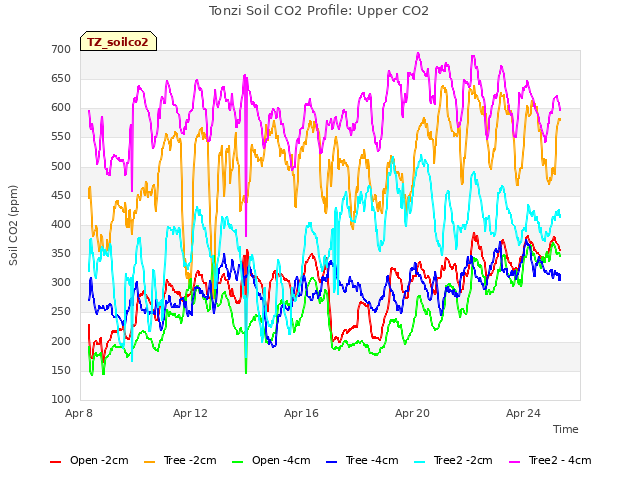

Tonzi Soil CO2 Profile: Upper CO2

Tonzi Soil CO2 Profile: Lower CO2

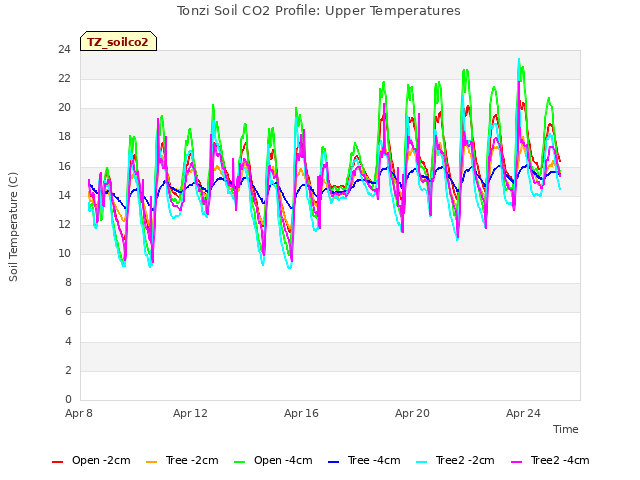

Tonzi Soil CO2 Profile: Upper Temperatures

Tonzi Soil CO2 Profile: Lower Temperatures

Tonzi Soil CO2 Profile: Power and Temperature

Tree 2 Soil CO2

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

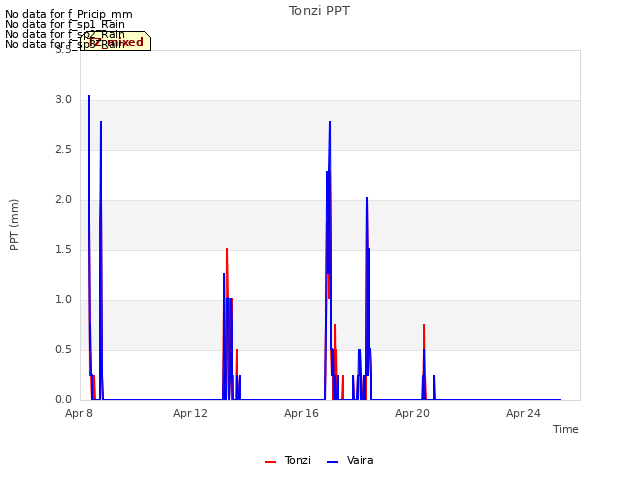

Tonzi PPT

Tonzi CO2 and H2O Densities

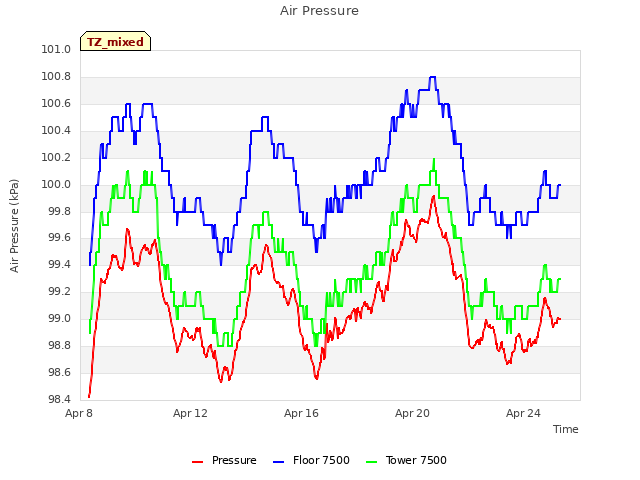

Air Pressure

1 TZ_fflux graphs found

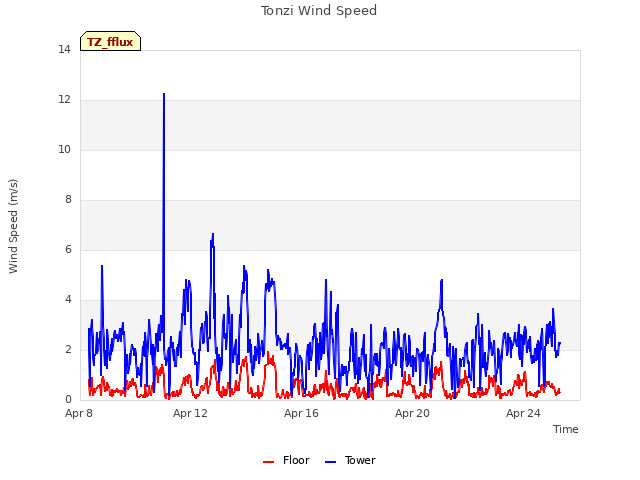

Tonzi Wind Speed

8 TZ_fmet graphs found

Soil Heat Flux

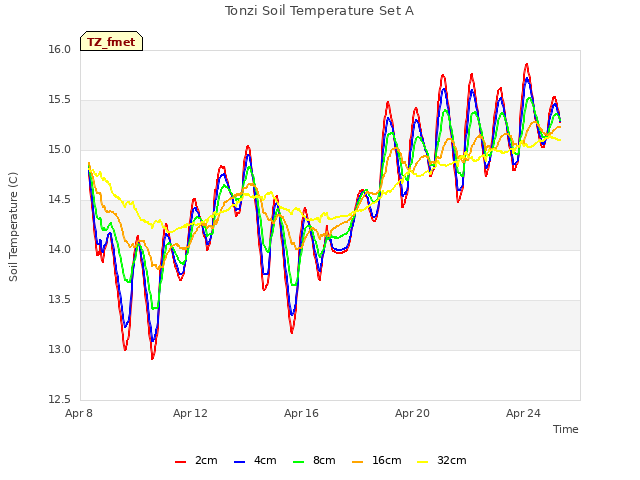

Tonzi Soil Temperature Set A

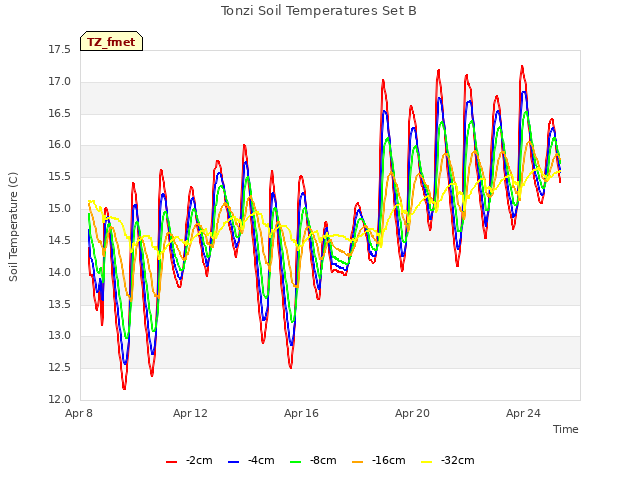

Tonzi Soil Temperatures Set B

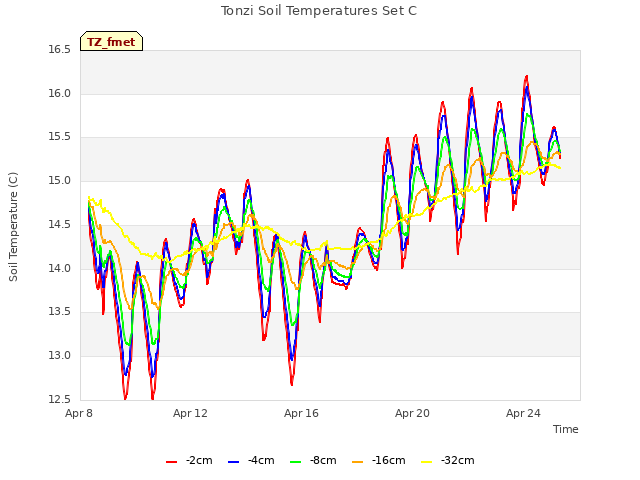

Tonzi Soil Temperatures Set C

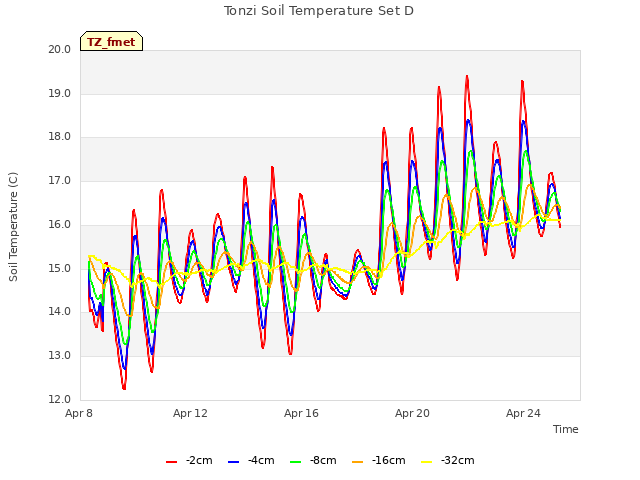

Tonzi Soil Temperature Set D

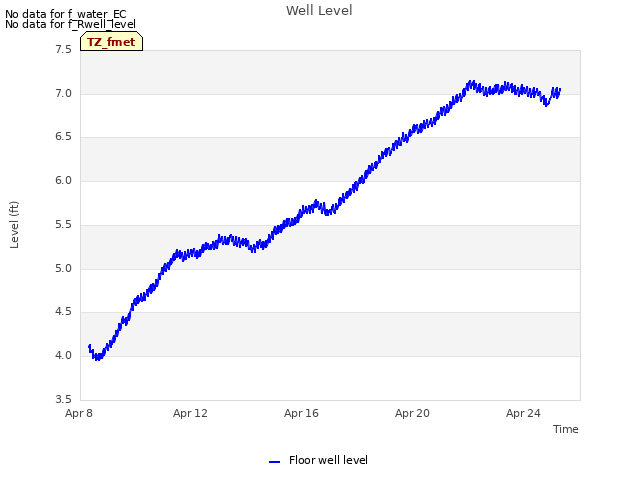

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

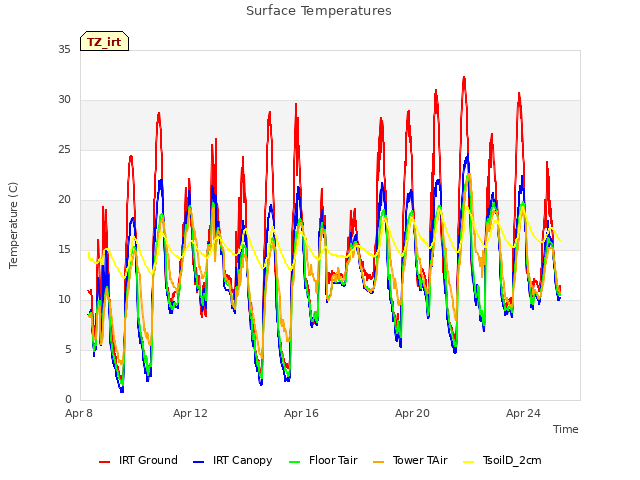

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

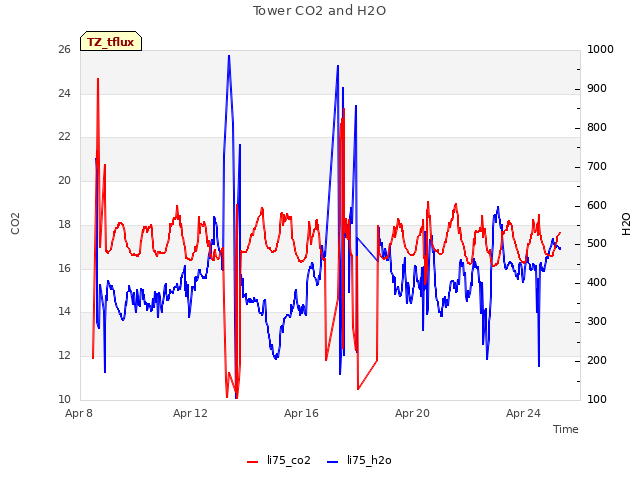

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

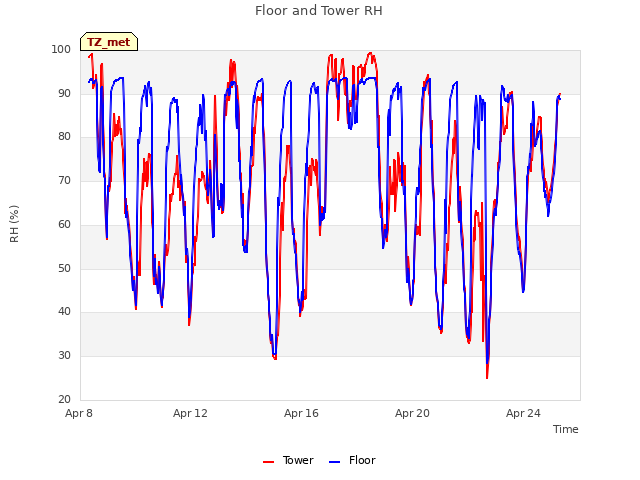

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
