Field Notes

<--2017-01-17 11:05:00 | 2017-02-14 11:45:00-->
Other sites visited today: Vaira | Tonzi | Sherman Wetland | Mayberry | West Pond | East End | Twitchell Alfalfa

Twitchell Rice: 2017-01-31 10:15:00 (DOY 31)
Author: Elke Eichelmann
Others: Sam Chamberlain

Summary: Dense fog, high water level, no pictures on camera card, regular data collection

Arrived at 10:15. It was cold and very foggy, visibility was only about 30m. The water level in the rice field was very high. The ground on the small berm we usually park on was soggy and the water came up to road level along the road.

We filled the wash water reservoir, it was empty.

Collected USB GHG data, collected met data.

We tried to collect camera card pictures but there were no pictures on the SD card. The camera was running but the screen looked different, it looked like it was in picture view mode rather than in camera mode. I think the program might not have been started correctly last time in the field. We put the SD card back and started the program. I am pretty sure the program was running when we left.

The LI7500 and LI7700 had water on their windows from the fog. We were not able to get them completely dry in these conditions (especially not the 7700), but the readings improved after cleaning.

LI7500 readings:
CO2 497.31 → 467.6
H2O 123.4 → 395.7
T 5.83
P 102.53
SS 73.24 → 84.89

LI7700 readings:
CH4: 2.05 → 2.79
RSSI: 2.3 -> 43.4 after cleaning

Left at 10:35.

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

Soil Heat Flux

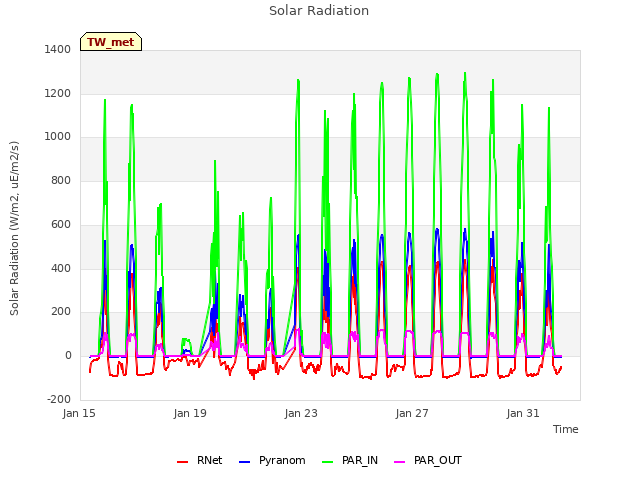

Solar Radiation

Air Temperature

Soil Temperature Set 1

Soil Temperature Set 2

Soil Temperature Set 3

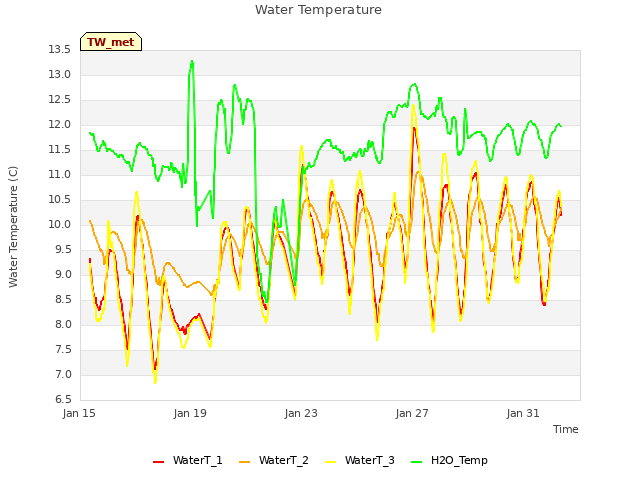

Water Temperature

RH and Pressure

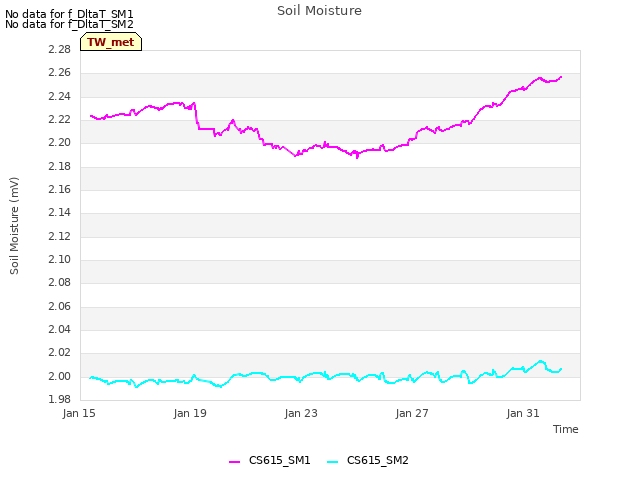

Soil Moisture

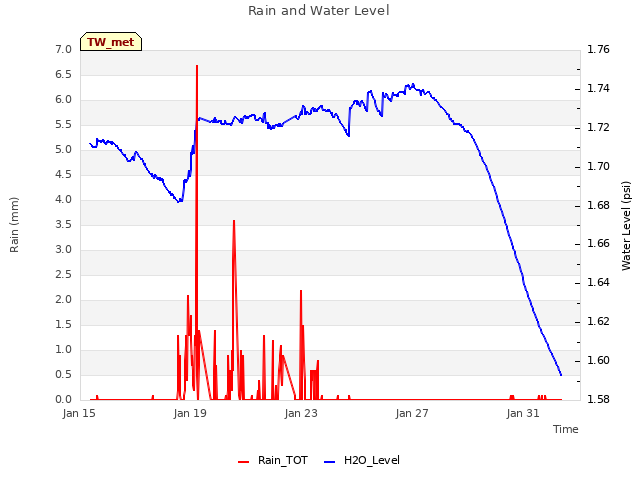

Rain and Water Level

Disolved Oxygen

LED NDVI Channels

5 TW_flux graphs found

Sonic Anemometer Winds

LI7700 CH4 and RSSI

Twitchell CH4

LI7500 CO2 and H2O

Twitchel Rice Flux Counts

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

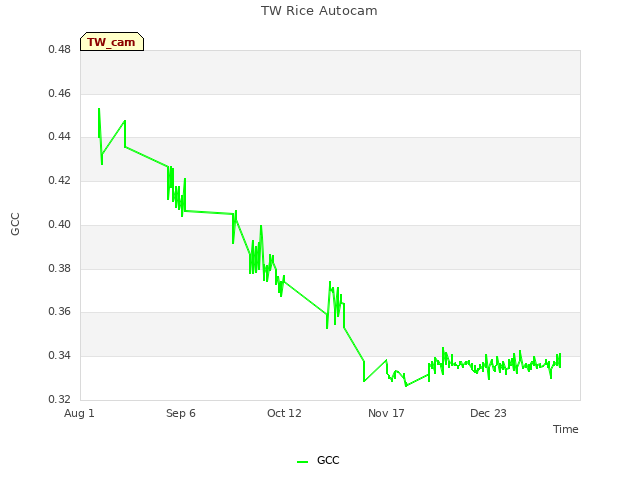

TW Rice Autocam

Can't check TATWBABCSB_cam
