Sherman Wetland: 2016-12-06 09:30:00 (DOY 341)
Author: Joe Verfaillie
Others: Dennis, Sam, Daphne, Jorge Perez

Summary: LOTS of bird poop, more water, cold, windy, standard data collection.

Sherman Wetland
2016-12-06

I arrived about 9:30 with Dennis, Sam, Daphne, and Jorge Perez. It was cold and windy with a light overcast. The water level in the wetland is higher with all the ponds and swales filled and overflowing the edges in low spots, especially the northeast corner of the wetland. The ground immediately around the tower is still dry. There was bird poop everywhere - the boardwalks were nearly white with it.

There were a few ants in the data logger box, but they were very cold. I didn’t, but we should put a couple of moth balls in that box.

Sam cleaned the solar panels and radiometers and Dennis and Jorge cleaned the tipping bucket. The tipping bucket funnel was full of bird poop.

The 7500 read:
CO2 428.2ppm
H2O 316.0mmol/m
T 10.7C
P 100.3kPa
SS 100.8 --> 102.3 after cleaning

The 7700 read:
CH4 1.98ppm
RSSI 48 --> 83.3
The bottom mirror on the 7700 may have a small scratch.

The wash reservoir was refilled.

Dennis tried to put the EosGP CO2 probe in the water but the water is still too far away. He settled for putting the sensors near the ground because the water table seemed to almost be at the surface.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
15 SW_met graphs found

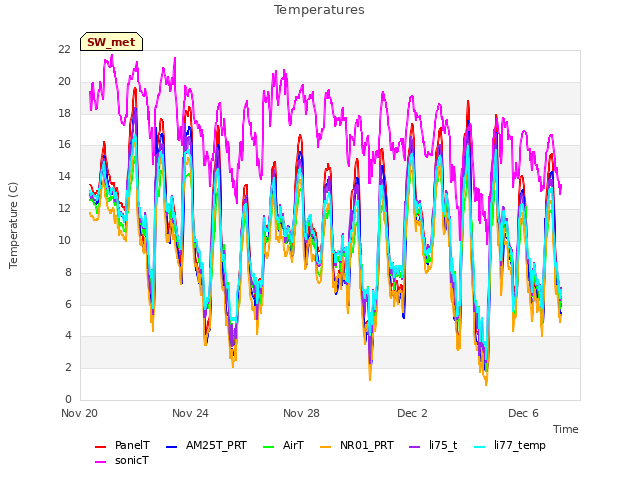

Temperatures

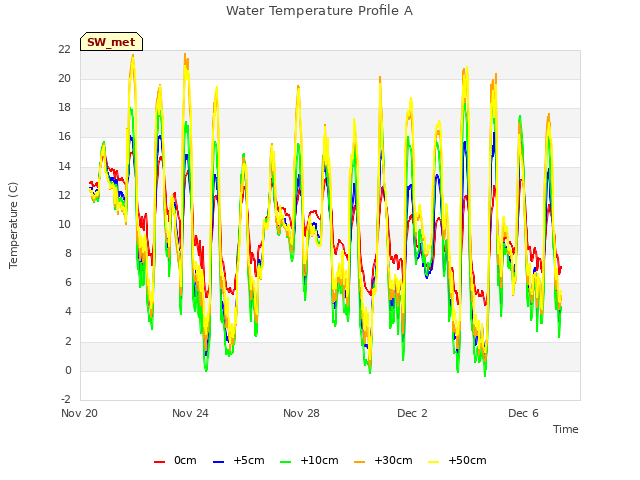

Water Temperature Profile A

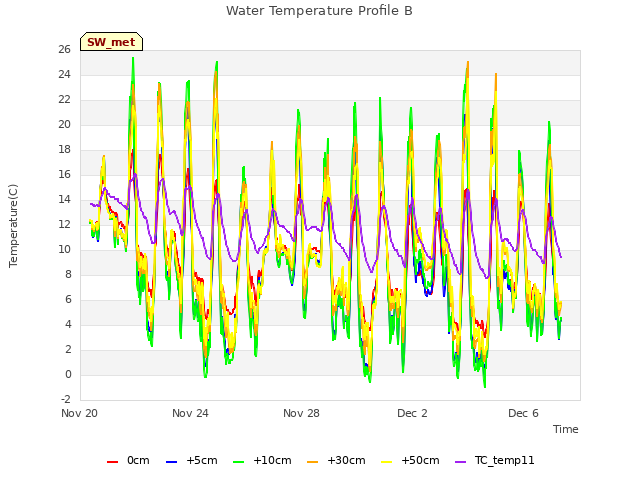

Water Temperature Profile B

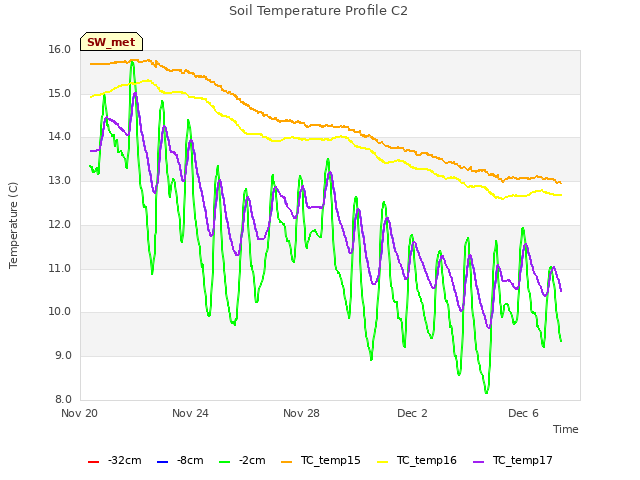

Soil Temperature Profile C2

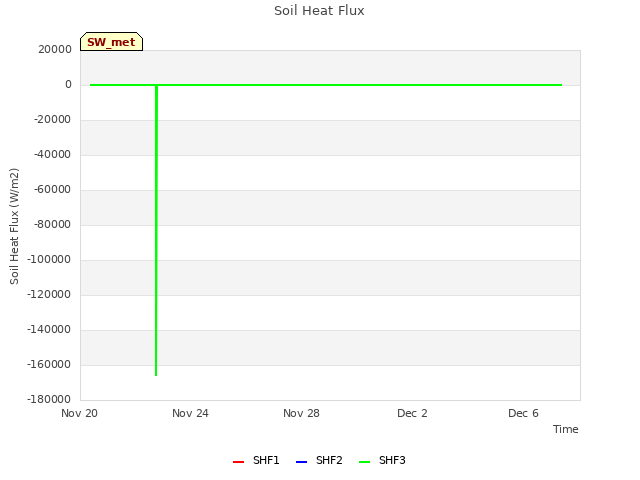

Soil Heat Flux

Four channel Radiometer

Sherman Wetland PAR

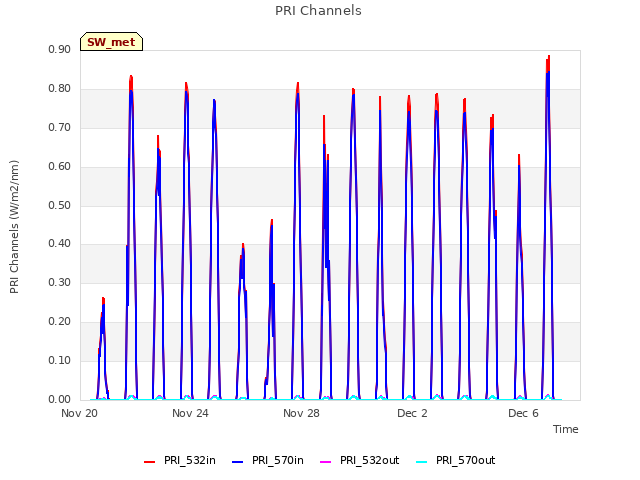

PRI Channels

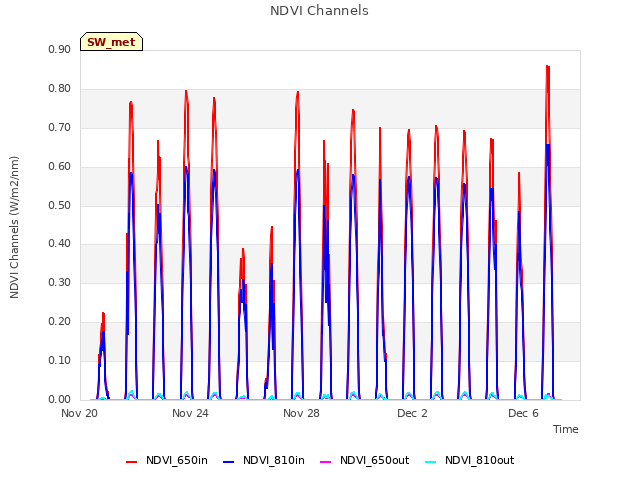

NDVI Channels

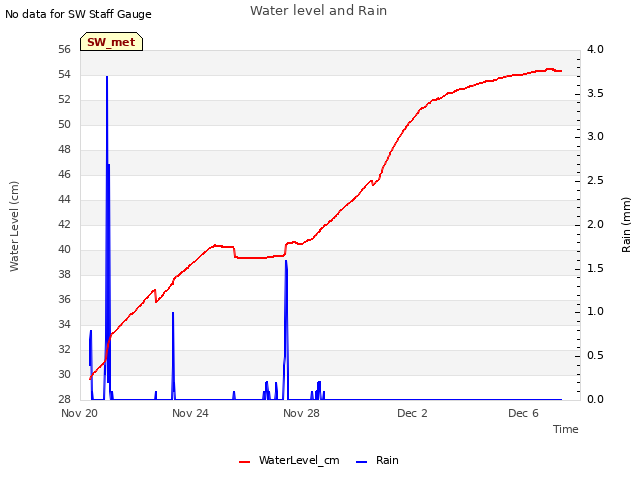

Water level and Rain

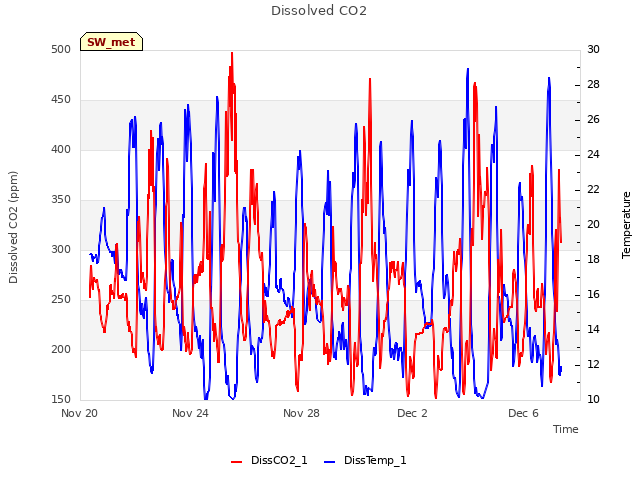

Dissolved CO2

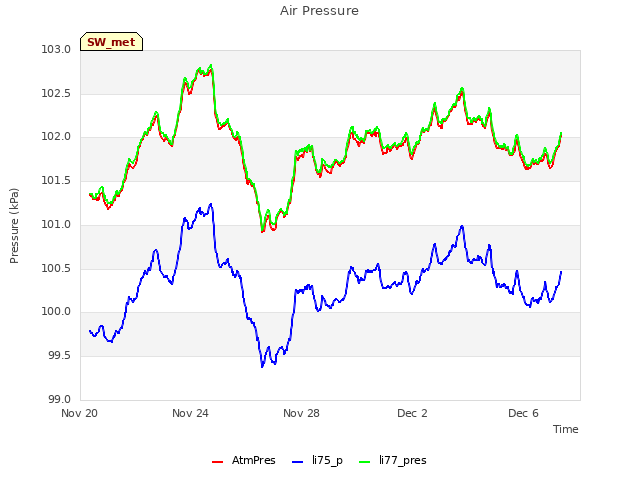

Air Pressure

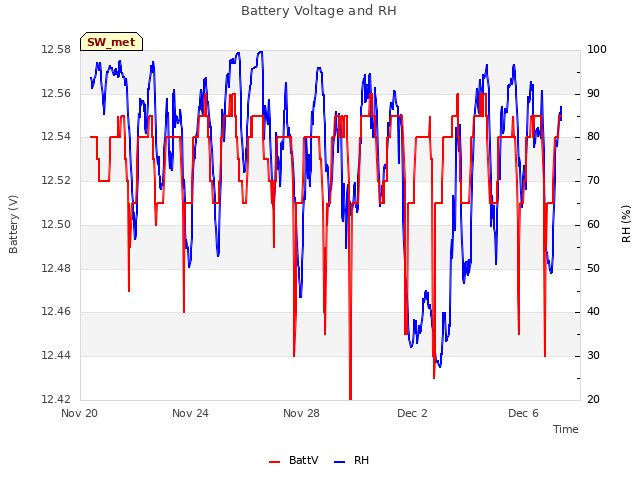

Battery Voltage and RH

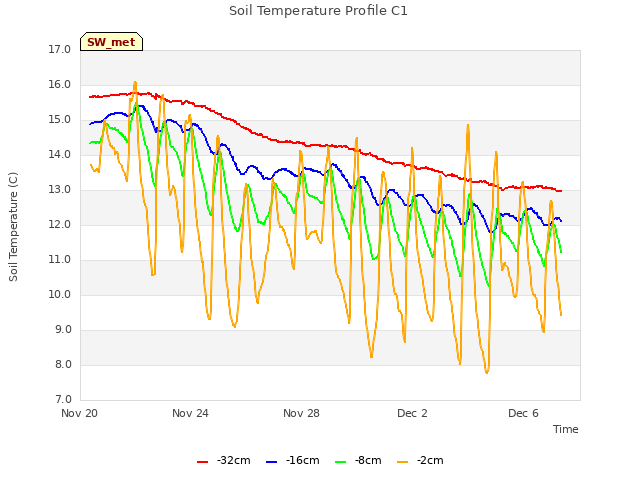

Soil Temperature Profile C1

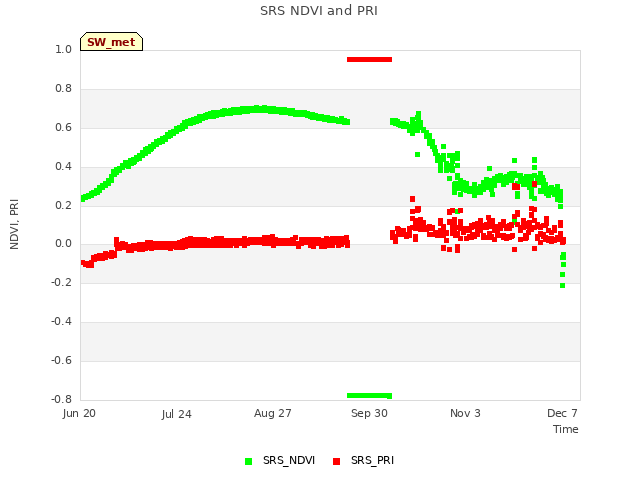

SRS NDVI and PRI

4 SW_flux graphs found

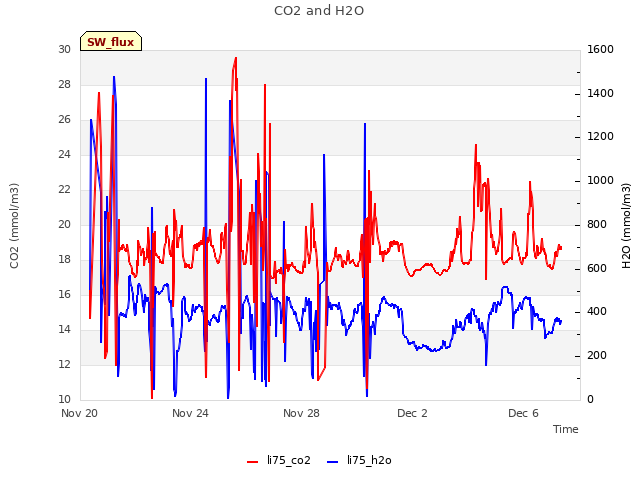

CO2 and H2O

Wind

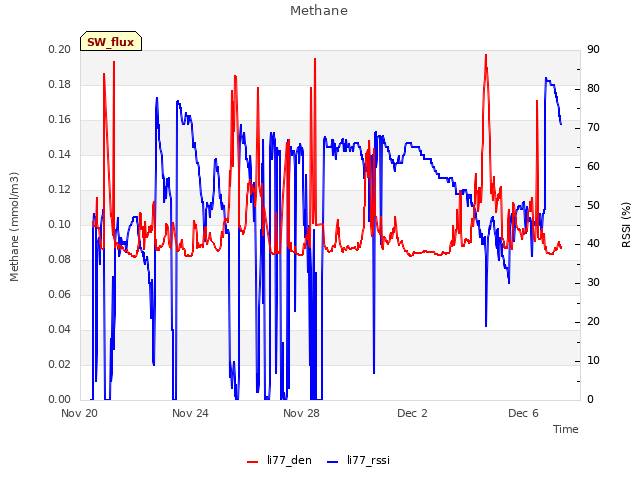

Methane

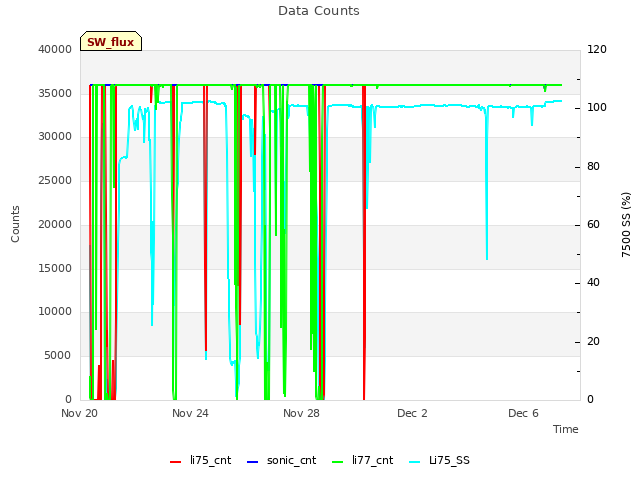

Data Counts

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Temperatures

CO2 and H2O

Wind

Methane

Data Counts

Temperature Profile A

Temperature Profile B

Temperature Profile C

Soil Heat Flux

Four-channel radiometer

NDVI Channels

PAR

Air Pressure and Water Level

Air T and RH

No data found for SW_arable.
