<--2016-11-21 09:15:00 | 2016-12-21 12:30:00-->
Other sites visited today: Sherman Wetland | Mayberry | Twitchell Alfalfa | Twitchell Rice | West Pond

East End: 2016-12-06 13:30:00 (DOY 341)
Author: Joe Verfaillie
Others: Dennis, Sam, Daphne, Jorge Perez

Summary: Cold and windy, standard data collection, checked on computer - some problem auto collecting from CR1000

East End

I arrived about 13:30 with Dennis, Sam, Daphne and Jorge Perez. It was cold, breezy and gray. No change in site conditions here. There are some patches of tules that are still green along the levee road.

The 7500 read:
CO2 413.3ppm
H2O 379.3mmol/m
T 13.3C
P 101.7kPa
SS 100.3 --> 101.9

The 7700 read:
CH4 1.95ppm
RSSI 64 --> 89.2

The wash reservoir was refilled.

The computer was running but it was not collecting the data from the CR1000 for some reason. I tried to install a program called caffeine that feeds a key stroke to Windows once a minute to keep it awake, but it would not run on the Compute Stick even though it ran on my desktop just fine. So no changes in computer system.

The radiometers and tipping bucket? were cleaned.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

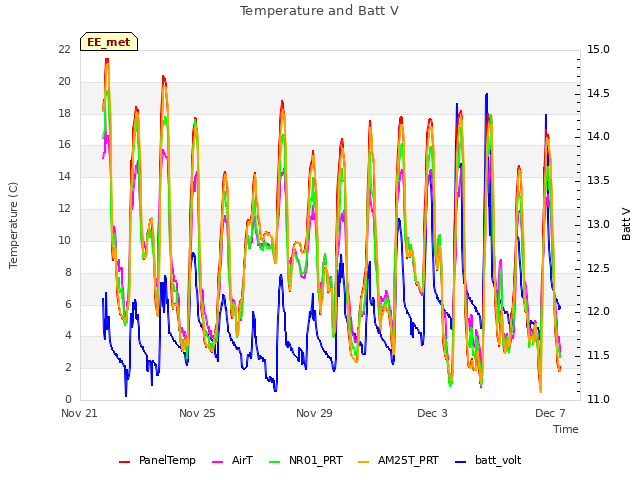

Temperature and Batt V

Soil Moisture and Well Pressure

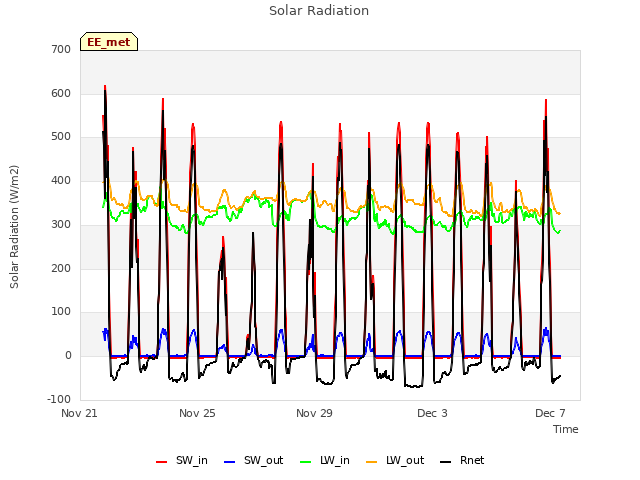

Solar Radiation

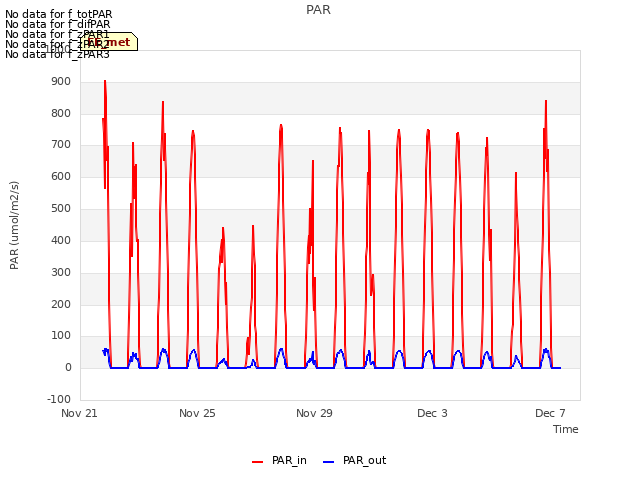

PAR

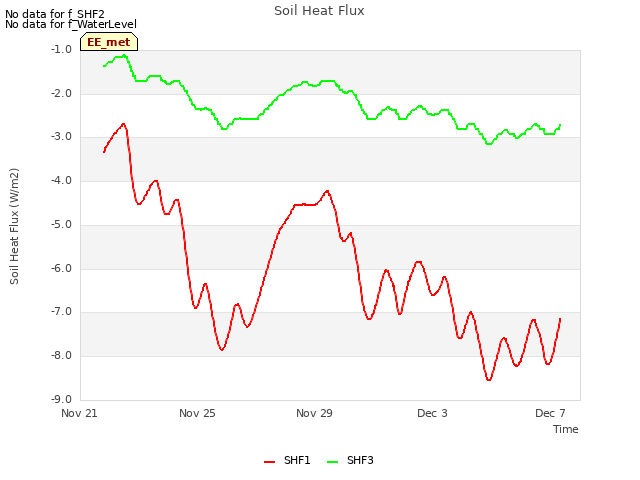

Soil Heat Flux

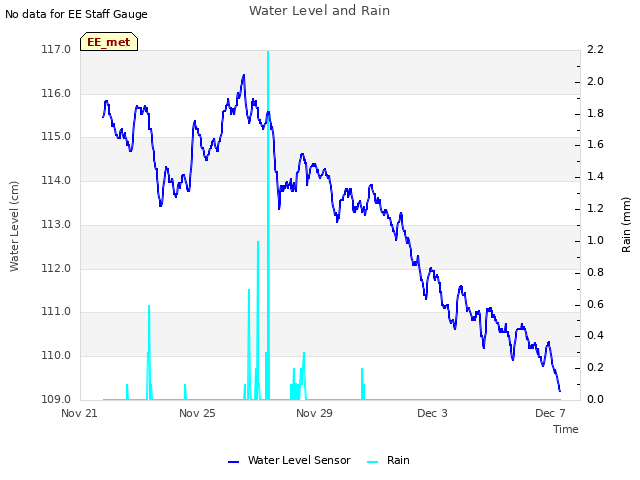

Water Level and Rain

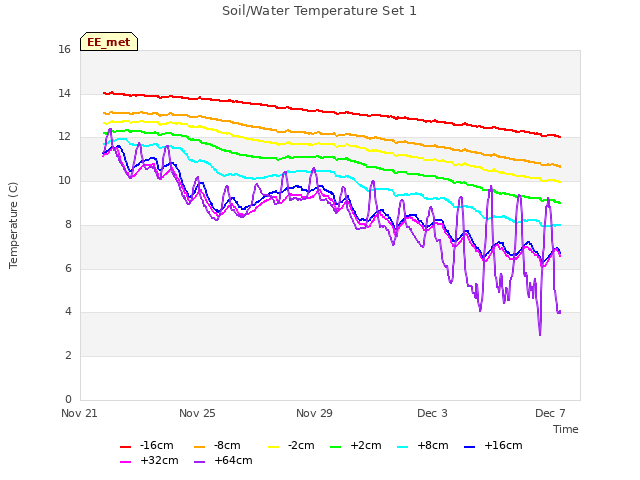

Soil/Water Temperature Set 1

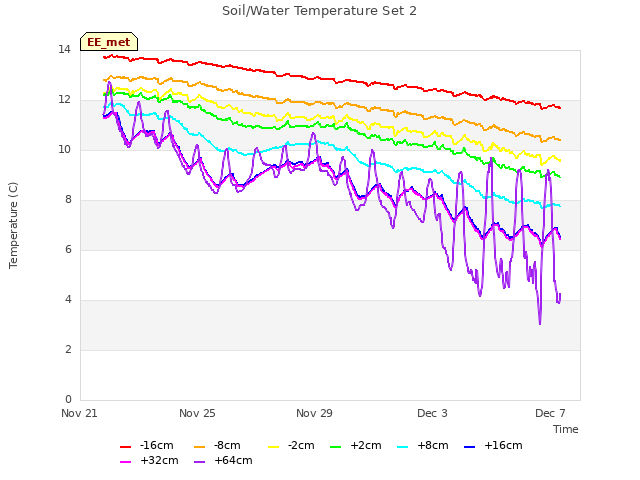

Soil/Water Temperature Set 2

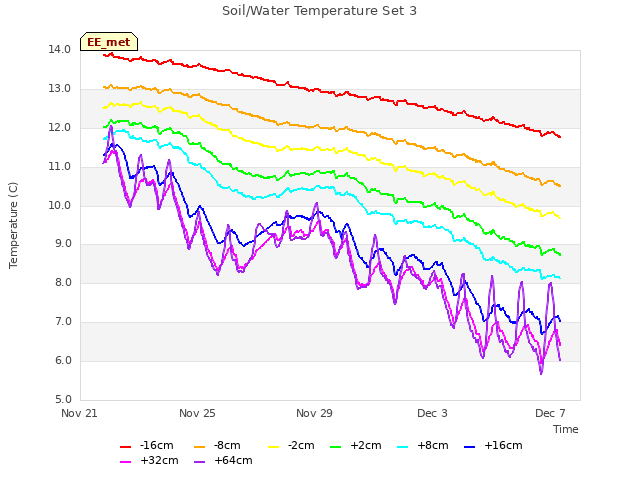

Soil/Water Temperature Set 3

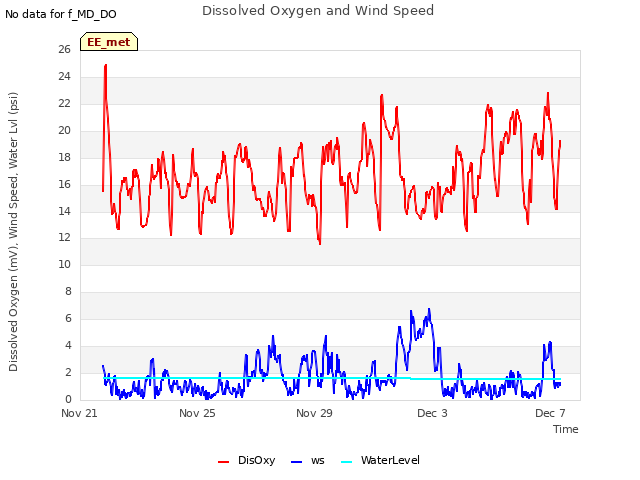

Dissolved Oxygen and Wind Speed

SRS NDVI Channels

Apogee NDVI

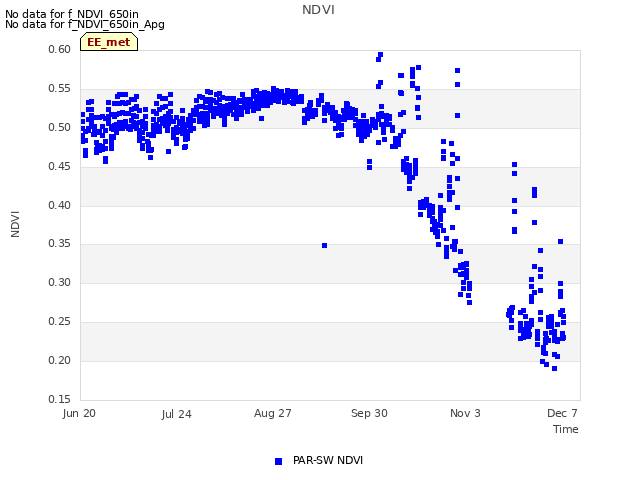

NDVI

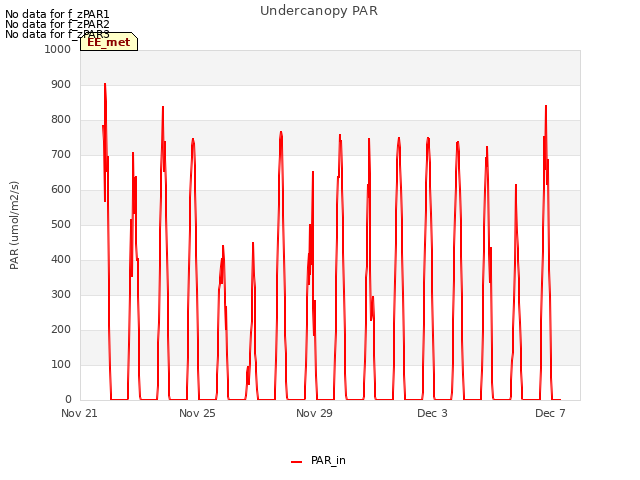

Undercanopy PAR

Can't check EE_mixed
1 EE_mixed graphs found

Air Pressure and RH

8 EE_flux graphs found

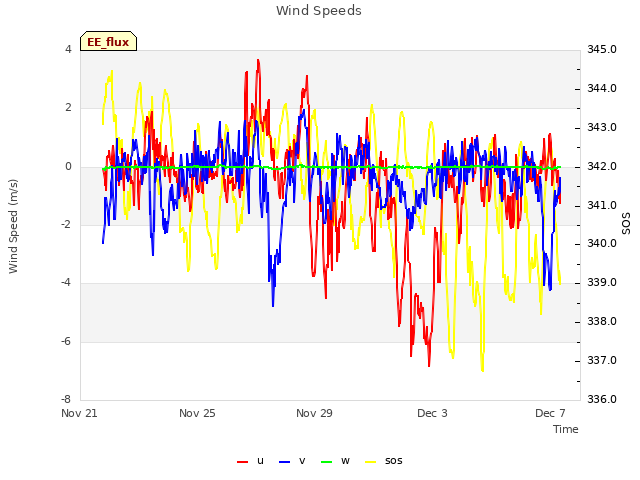

Wind Speeds

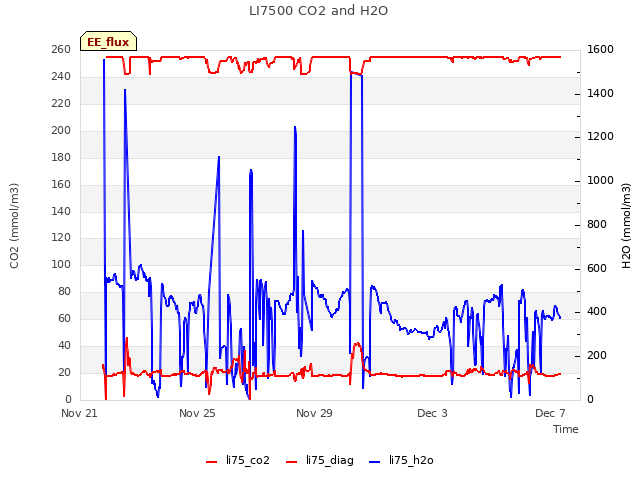

LI7500 CO2 and H2O

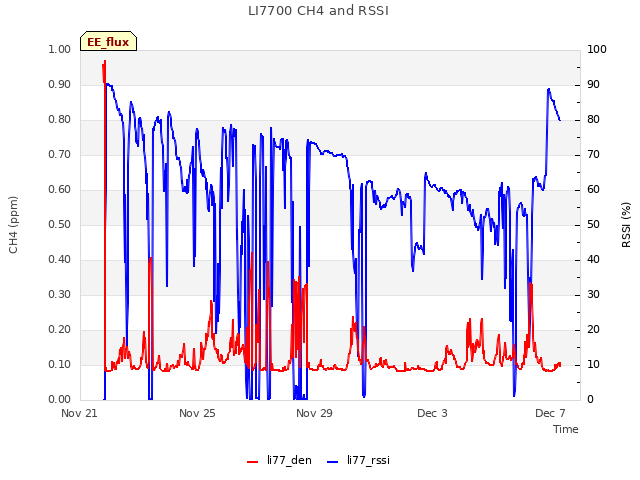

LI7700 CH4 and RSSI

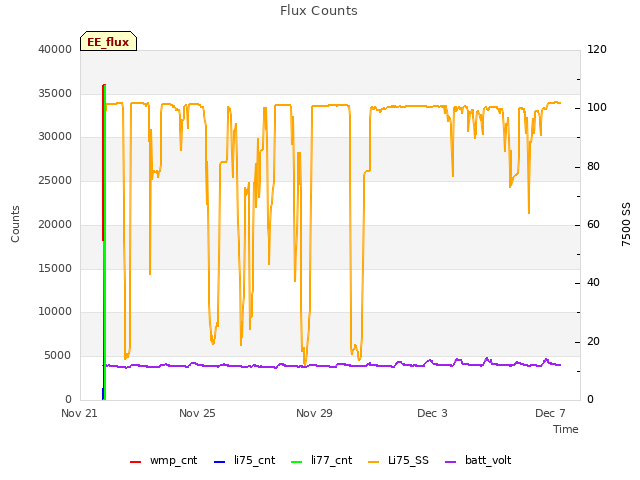

Flux Counts

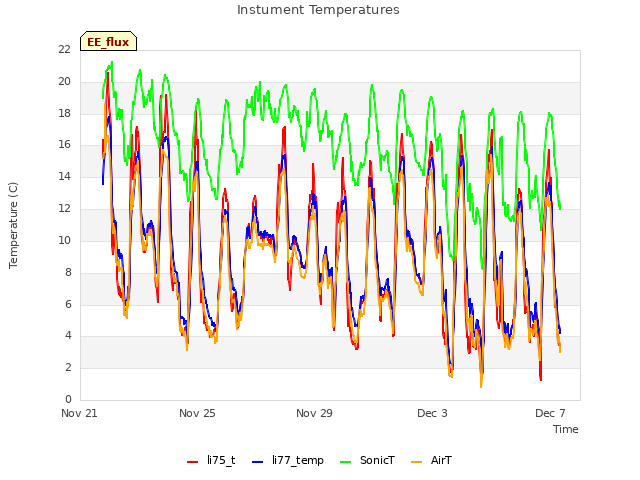

Instument Temperatures

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

EE Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

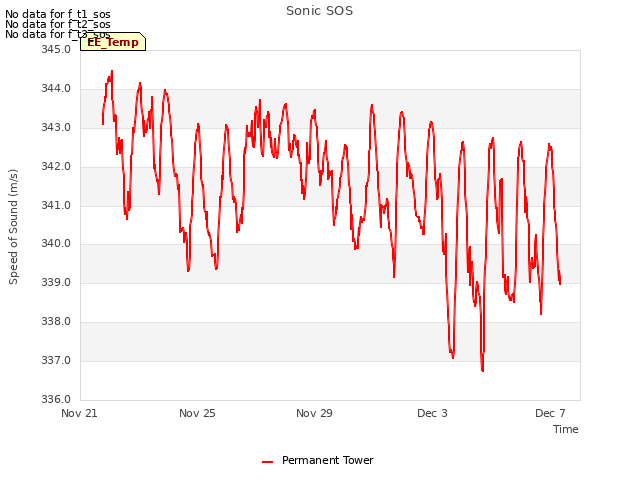

Sonic SOS

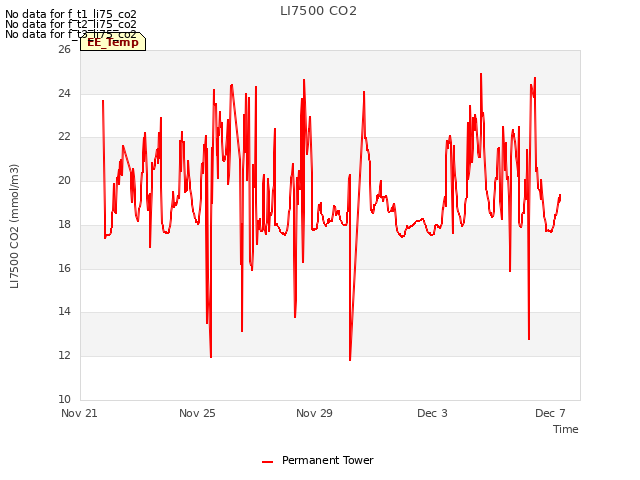

LI7500 CO2

Water Level

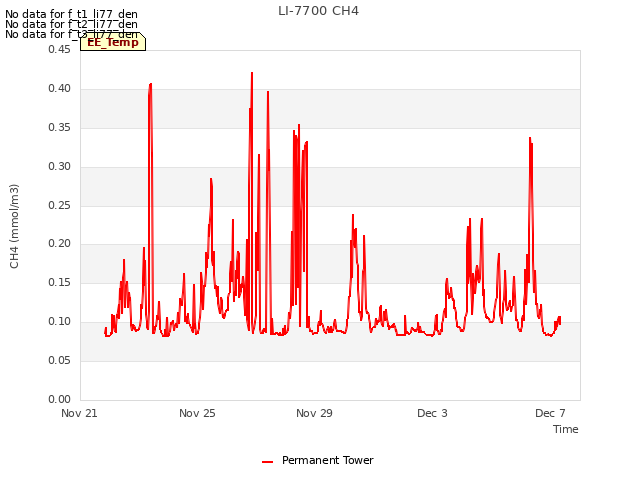

LI-7700 CH4

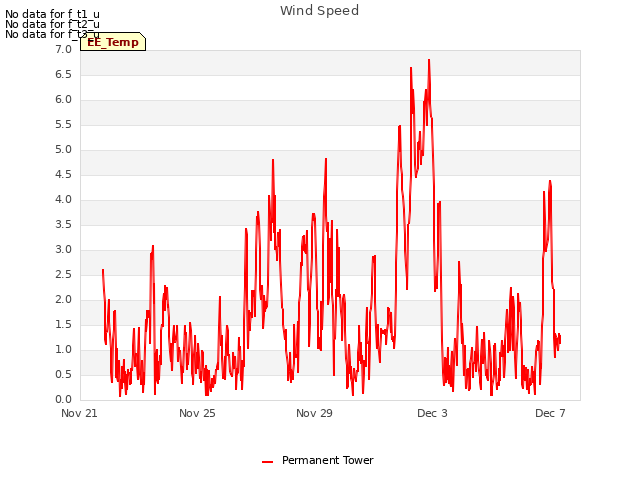

Wind Speed

Can't check EE_minidot
1 EE_minidot graphs found

EE miniDOT Dissolved Oxygen

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

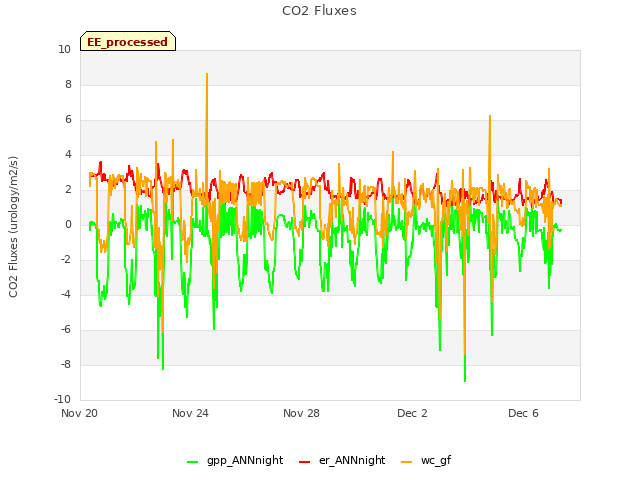

CO2 Fluxes
