Mayberry: 2016-12-06 10:00:00 (DOY 341)
Author: Joe Verfaillie
Others: Dennis, Sam, Daphne, Jorge Perez

Summary: Serviced water sensors, standard data collection, 23x still finicky.

Mayberry
2016-12-06

I arrived about 10:00 with Dennis, Sam, Daphne and Jorge Perez. It was cold, windy and gray. The water level is about the same and still brown.

Sam got in the water to retrieve the mimiDots. We also read the Hobo conductivity. I had trouble getting data from the 23x on the rs232 line but it seemed to work okay on the csi/o line. This site eventually needs a new datalogger and mux.

The 7500 read:
CO2 418.4ppm
H2O 338.4mmol/m
T 11.6C
P 101.8kPa
SS 87.1

The 7700 read:
CH4 1.93ppm
RSSI 37 --> 75 after cleaning

The wash reservoir was refilled

Dennis cleaned the radiometers. Dennis and Jorge lowered the eddy post to clean the eddy sensors. There were some spider webs on them.

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

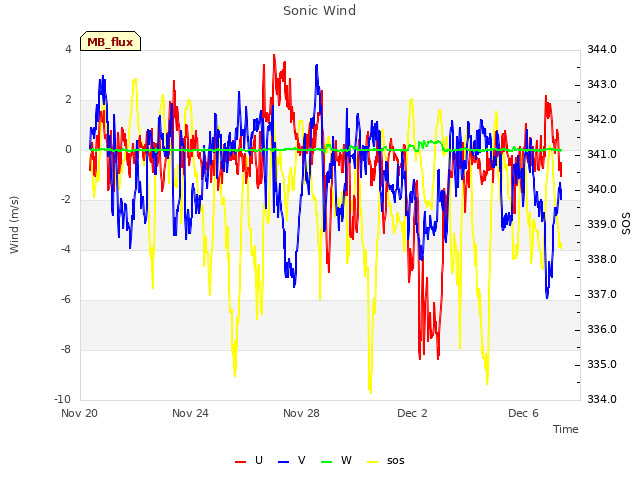

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

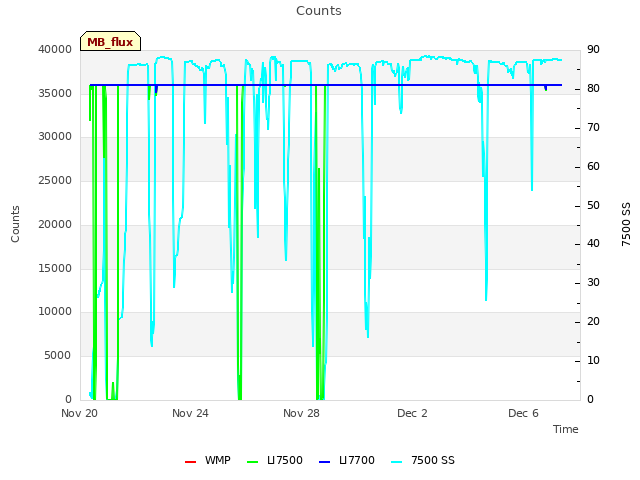

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

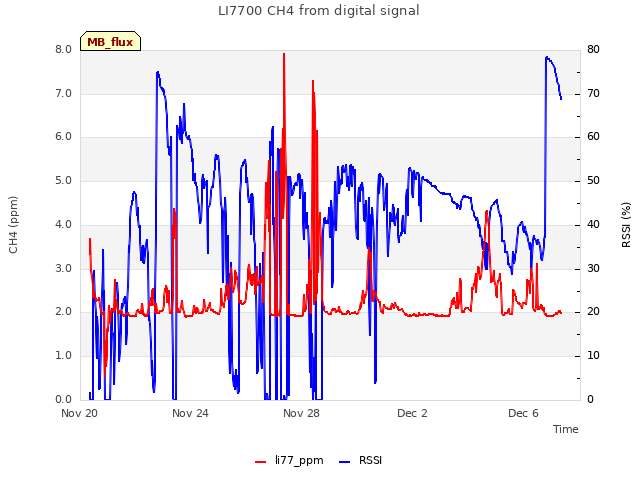

Explore the graph:LI7700 CH4 from digital signal in a new window

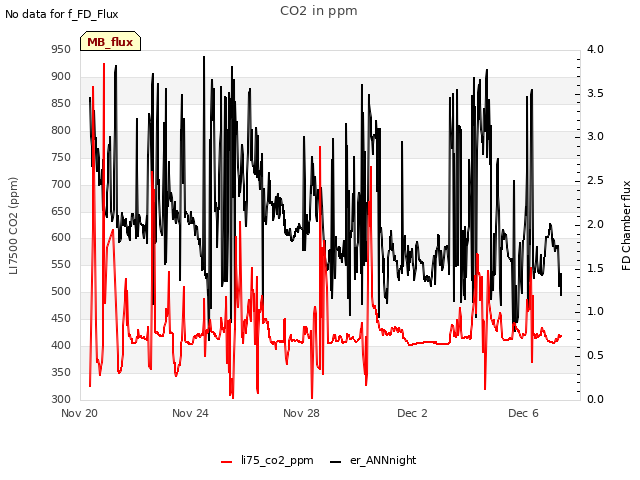

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

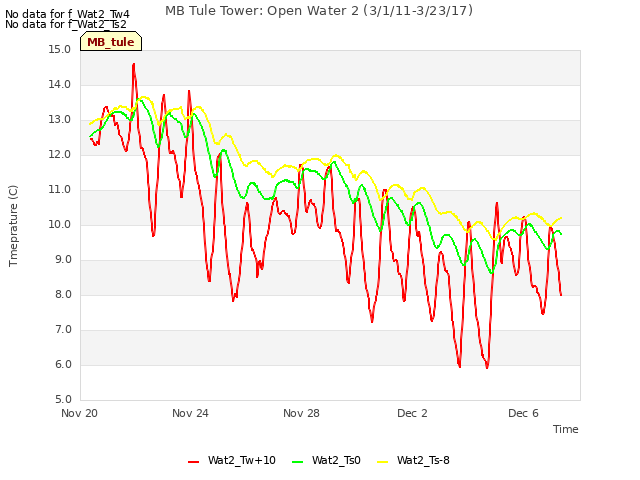

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

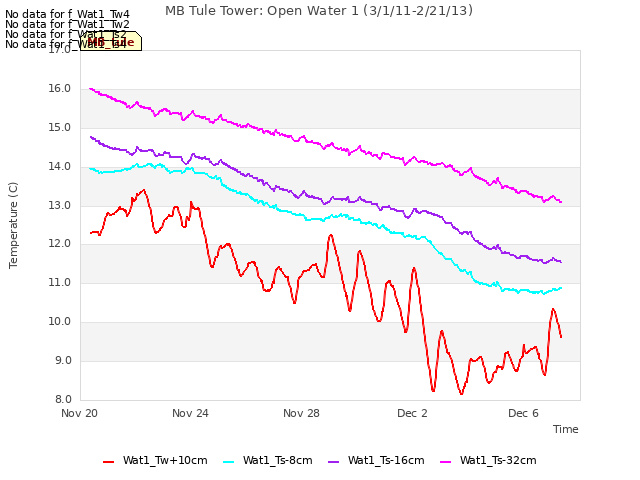

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

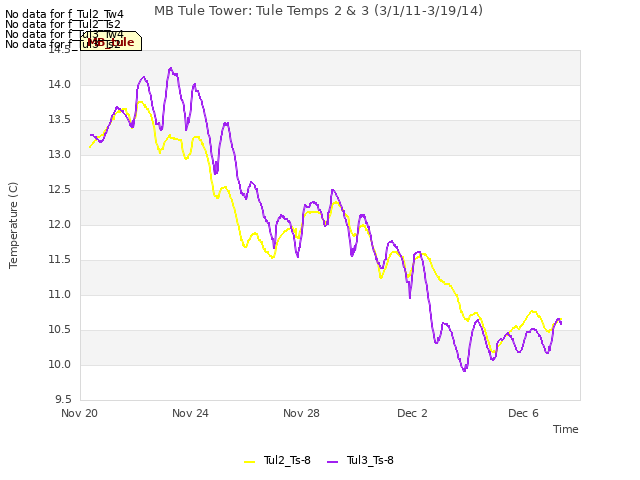

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

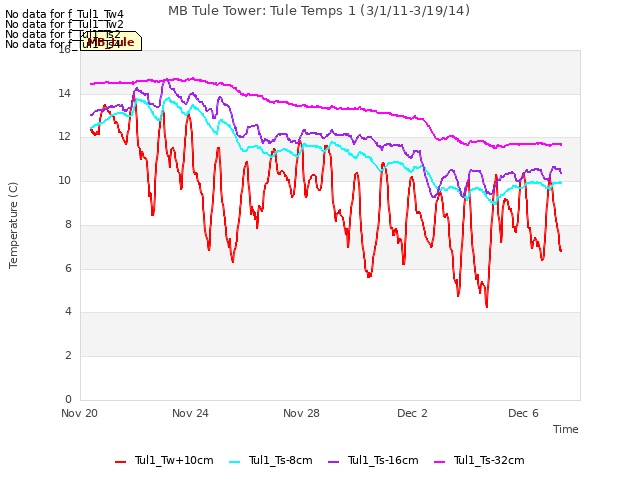

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

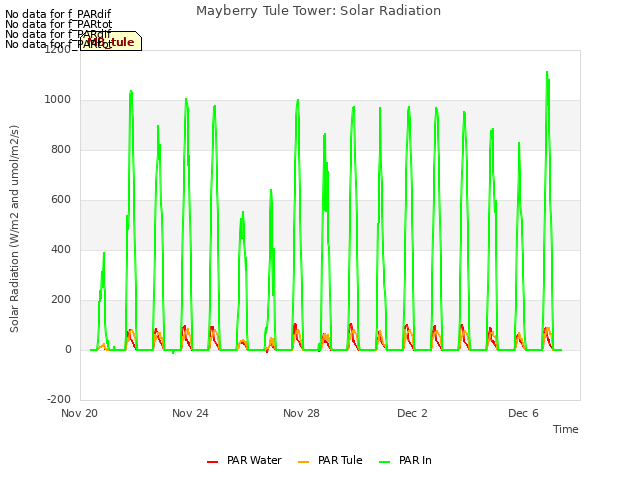

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

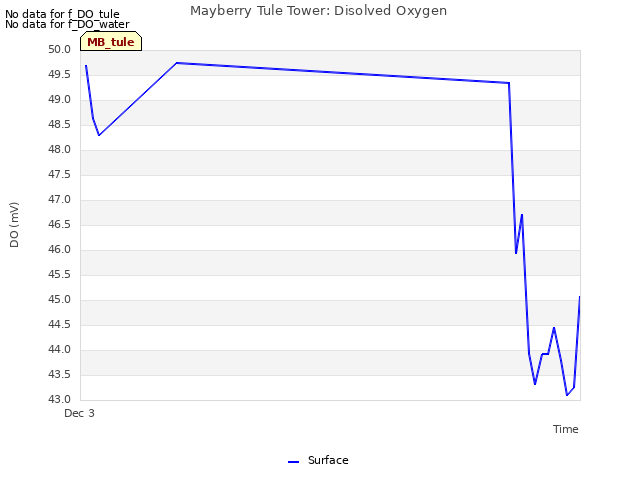

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

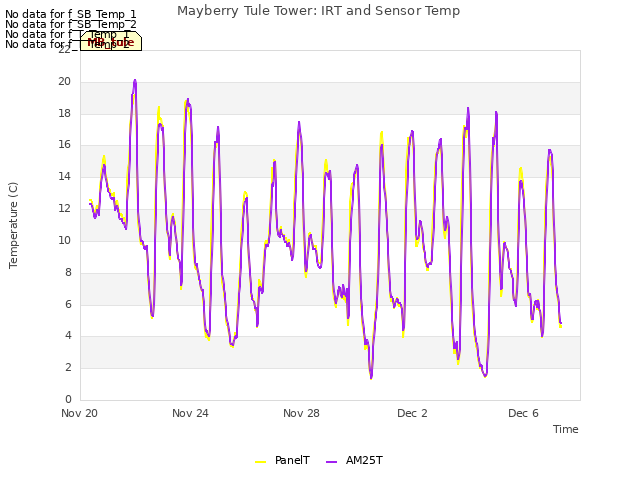

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

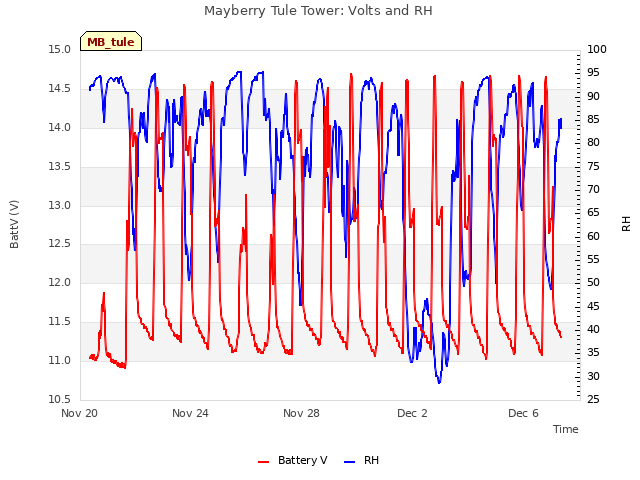

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

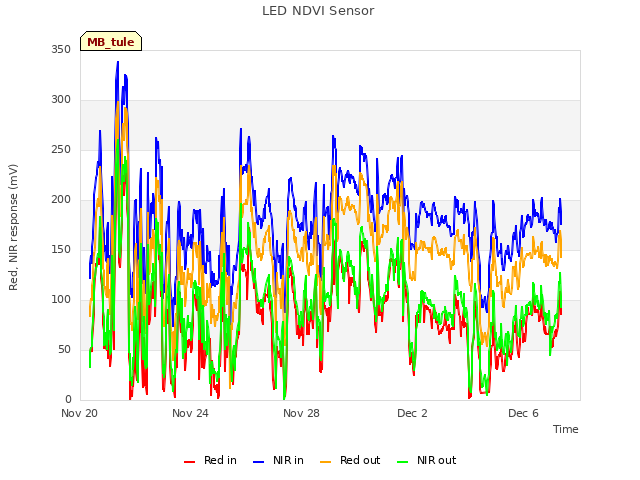

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

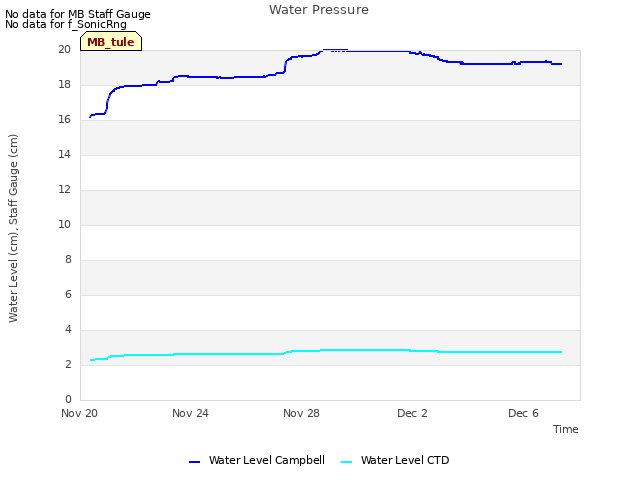

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

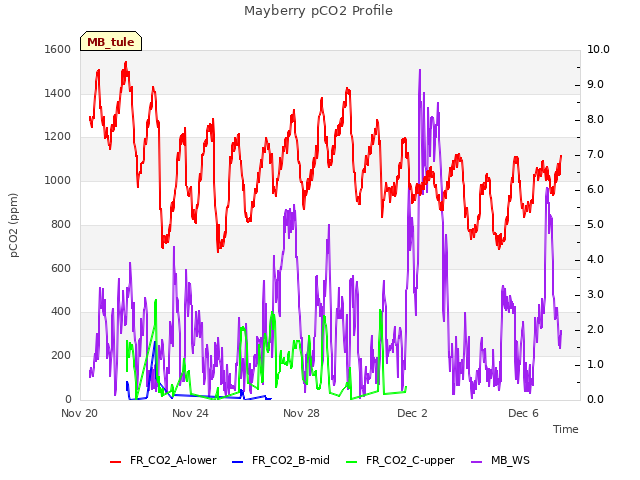

Explore the graph:Mayberry pCO2 Profile in a new window

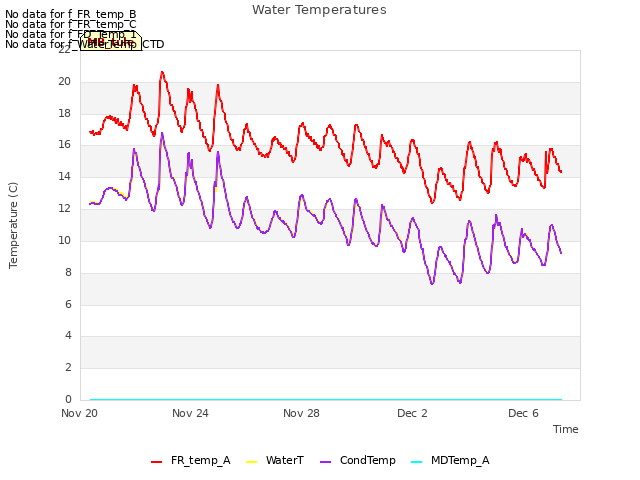

Explore the graph:Water Temperatures in a new window

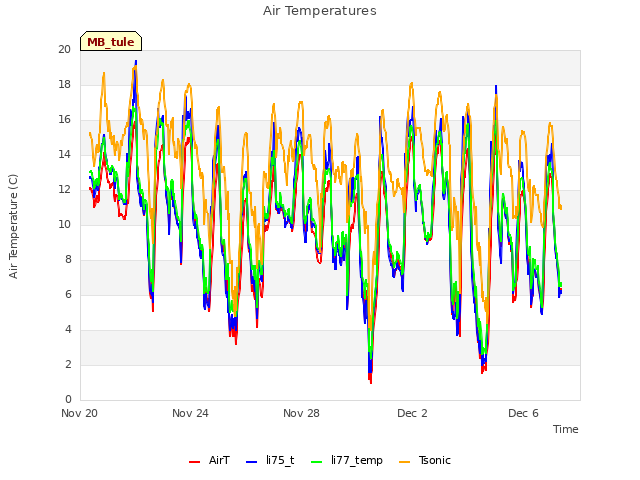

Explore the graph:Air Temperatures in a new window

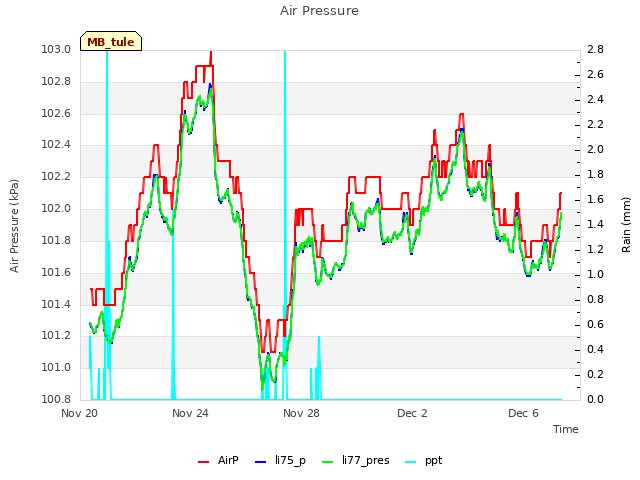

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

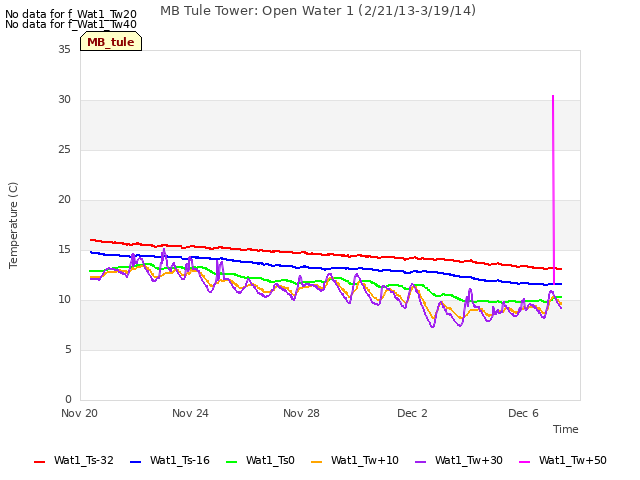

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

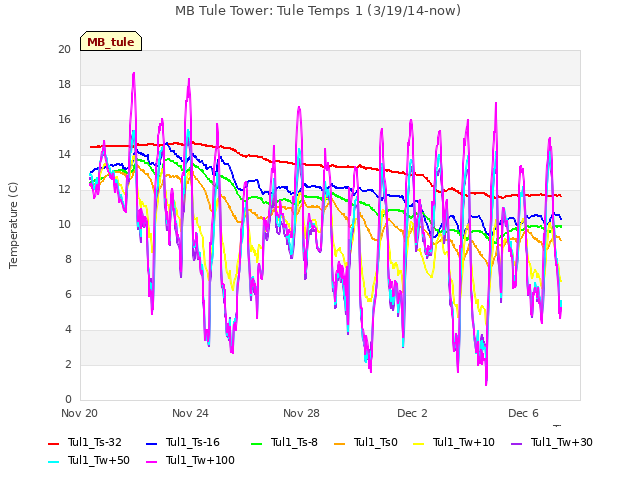

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

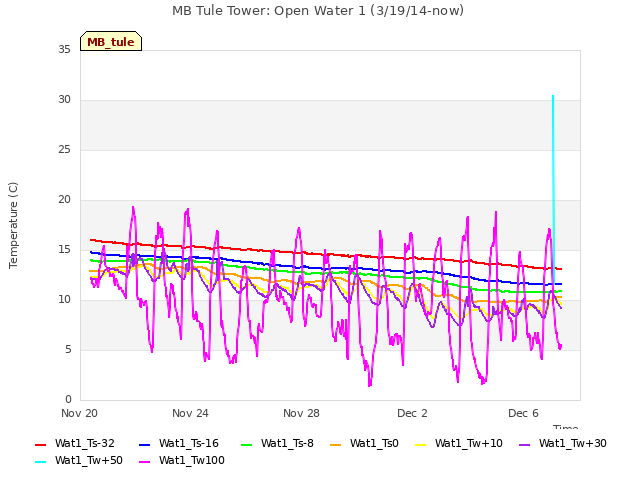

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

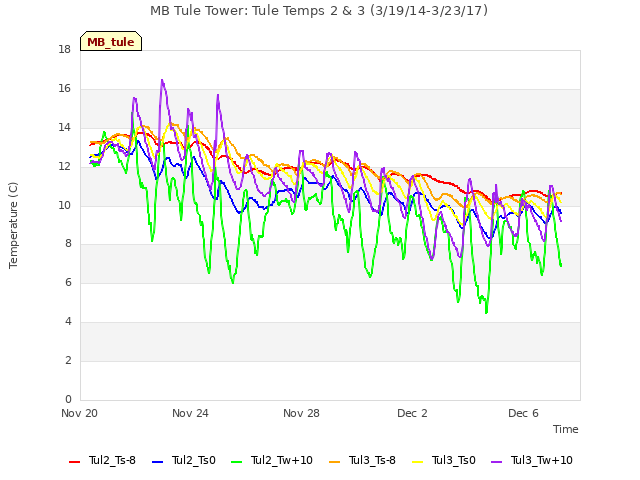

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

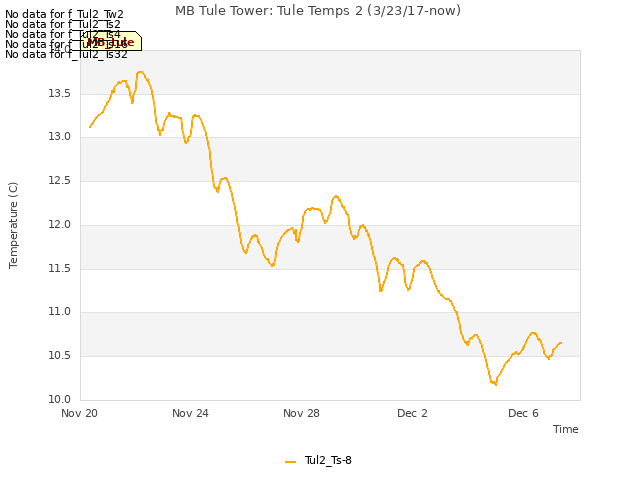

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

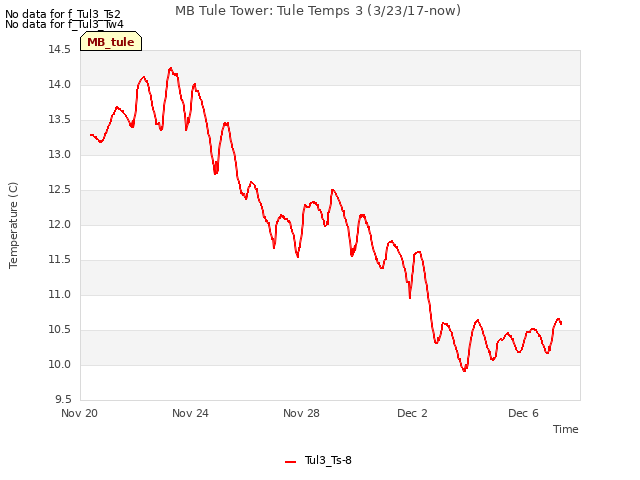

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

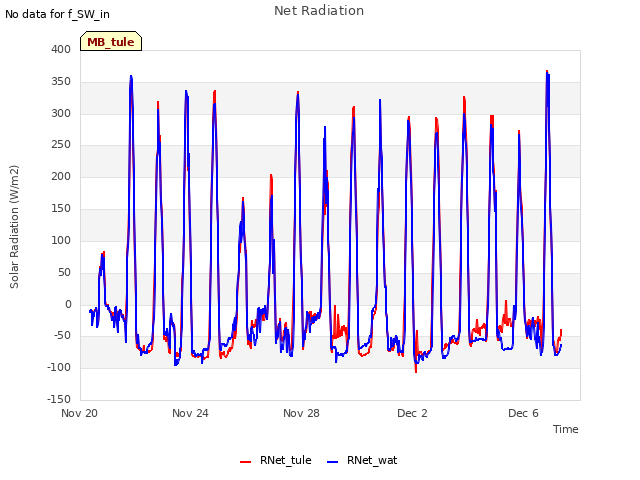

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

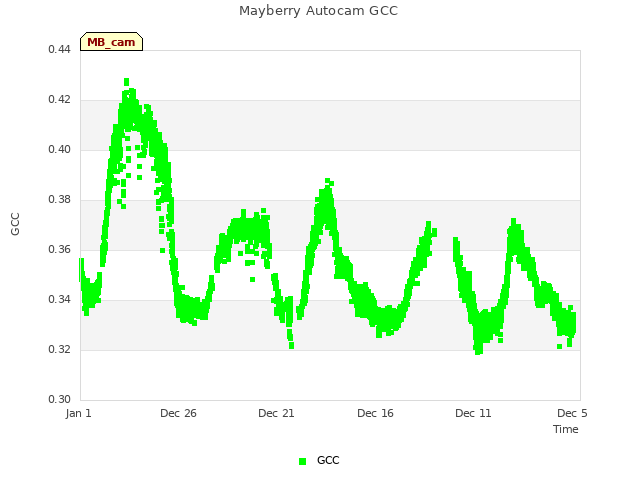

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

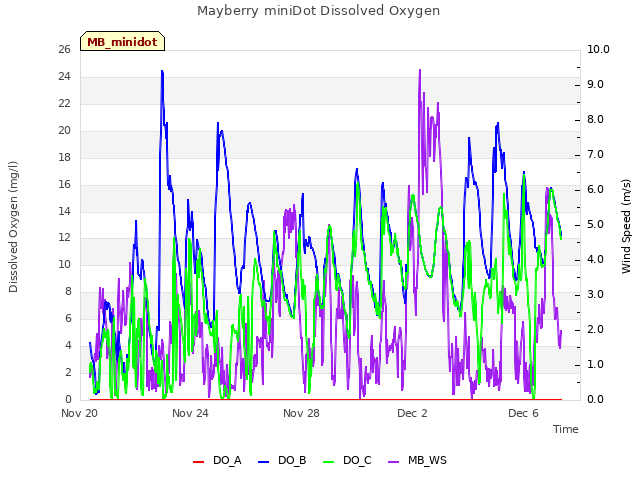

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

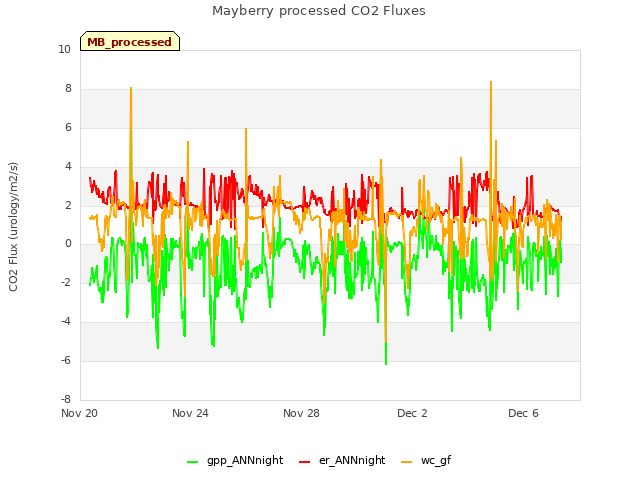

Explore the graph:Mayberry processed CO2 Fluxes in a new window
