West Pond: 2016-12-06 14:00:00 (DOY 341)
Author: Joe Verfaillie
Others: Dennis, Sam, Daphne, Jorge Perez

Summary: Standard data collection, water level higher than normal.

West Pond
2016-12-06

I arrived about 2pm with Dennis, Sam, Daphne and Jorge Perez. It was cold and breezy with a light overcast. The water level was high, but the inlet was not running. Standard data collection – no problems.

The 7500 read:
CO2 409.9ppm
H2O 362.2mmol/m
T 14.6C
P 101.4kPa
SS 97.3 --> 97.7 after cleaning

The 7700 read:
CH4 1.985ppm
RSSI 65.2 --> 85.6 after cleaning

The wash reservoir was filled.

Dennis cut some of the willows along the levee.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

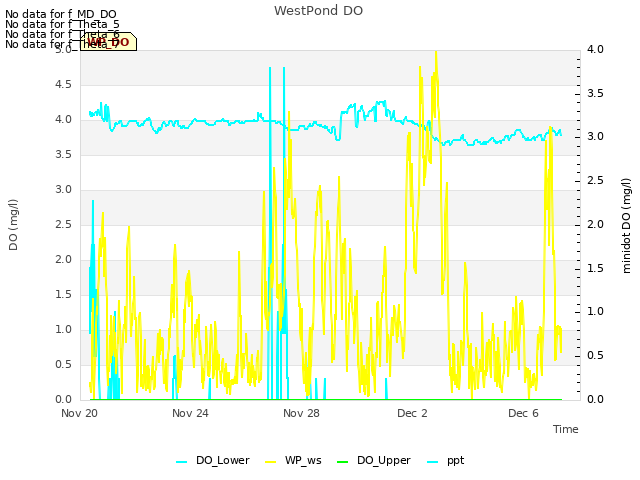

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

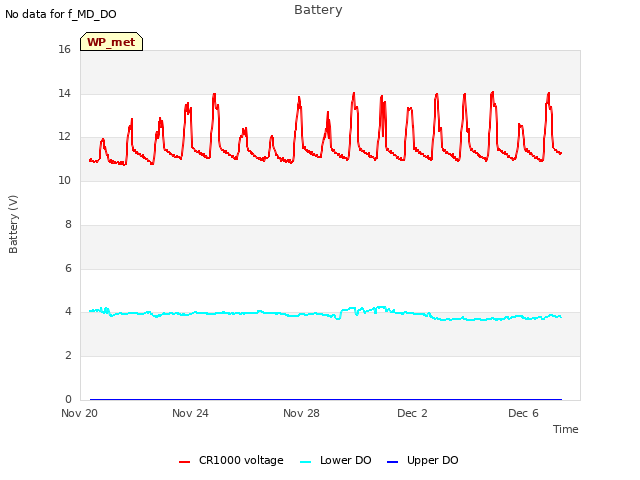

Explore the graph:Battery in a new window

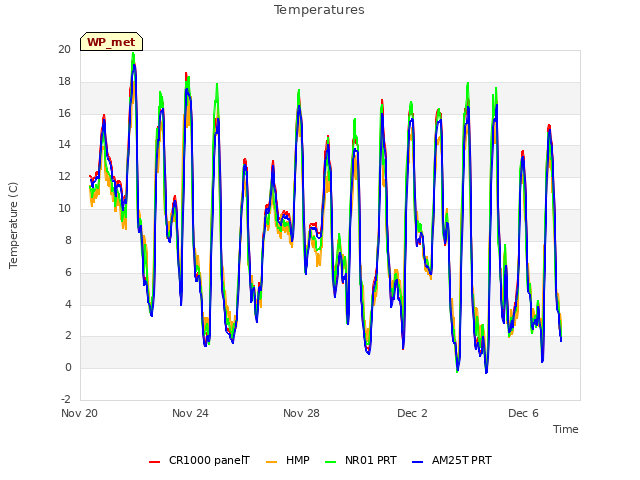

Explore the graph:Temperatures in a new window

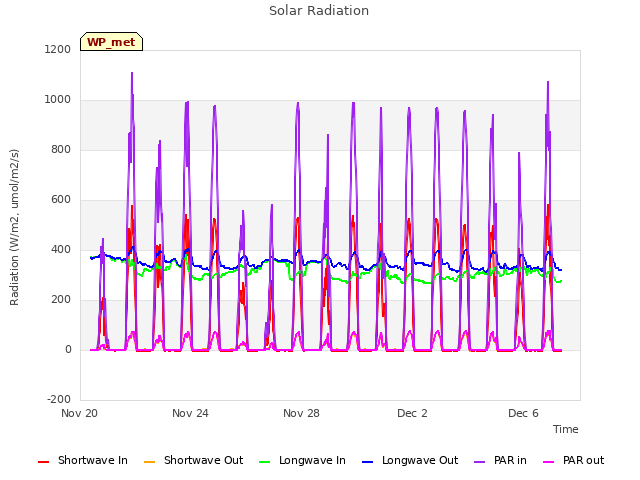

Explore the graph:Solar Radiation in a new window

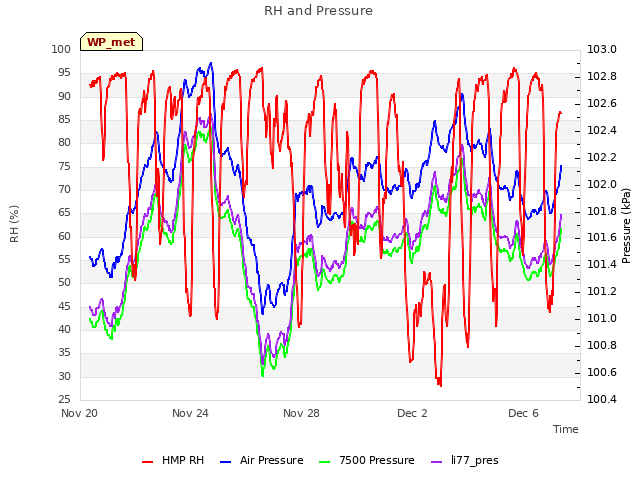

Explore the graph:RH and Pressure in a new window

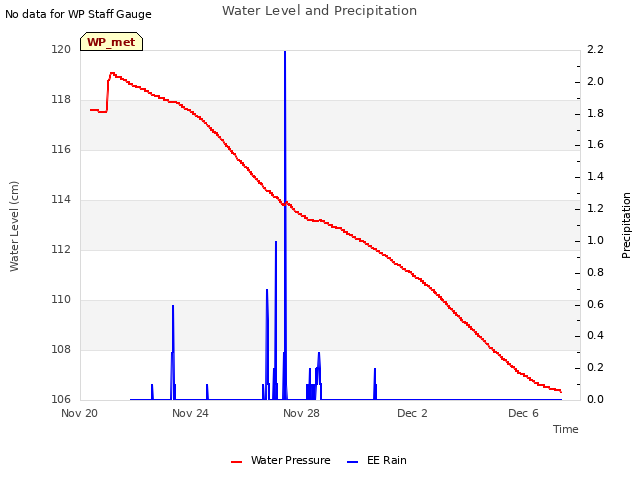

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

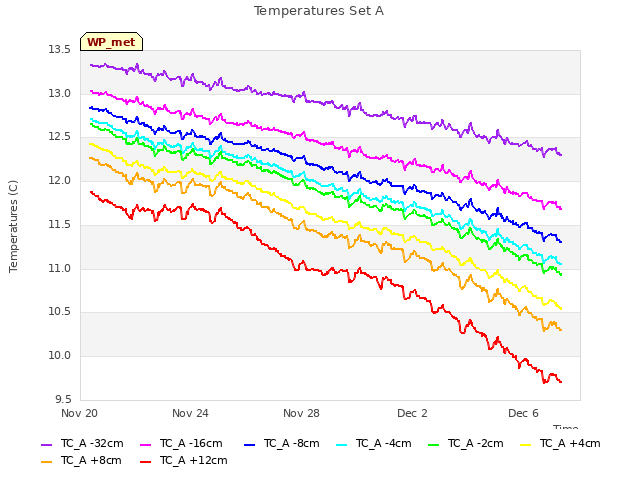

Explore the graph:Temperatures Set A in a new window

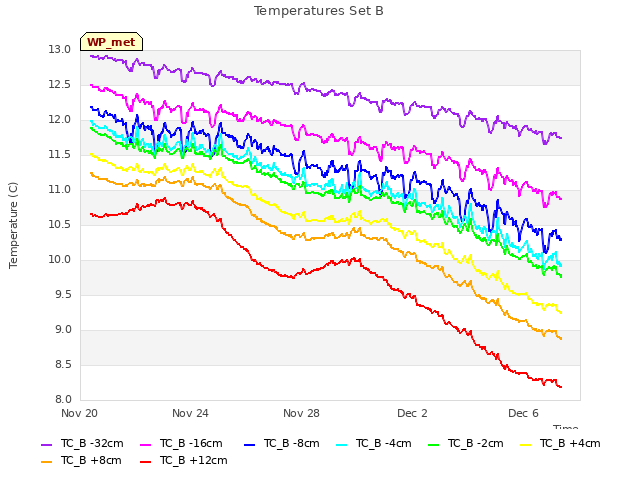

Explore the graph:Temperatures Set B in a new window

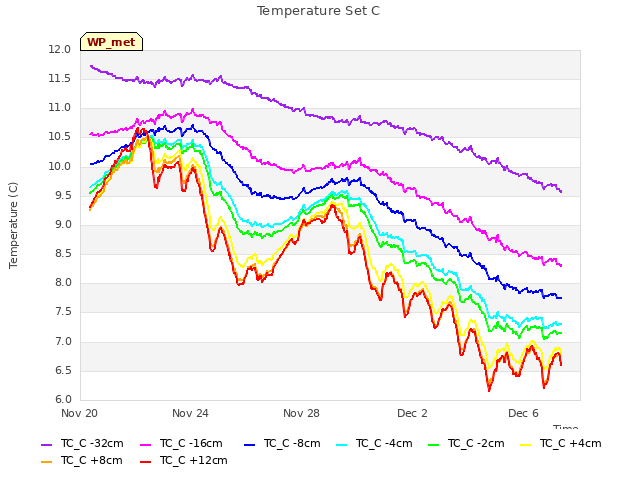

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

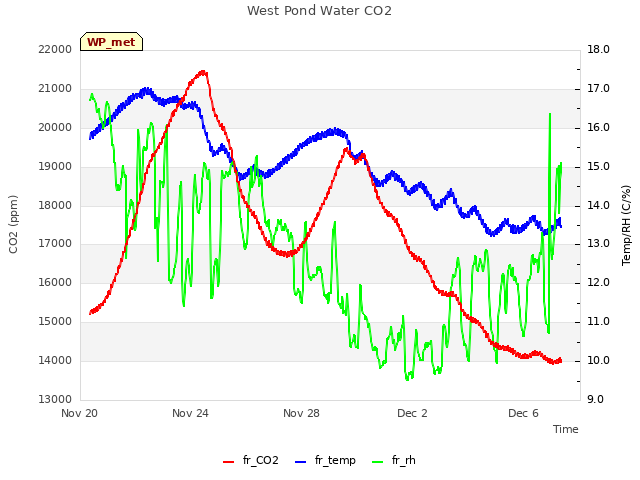

Explore the graph:West Pond Water CO2 in a new window

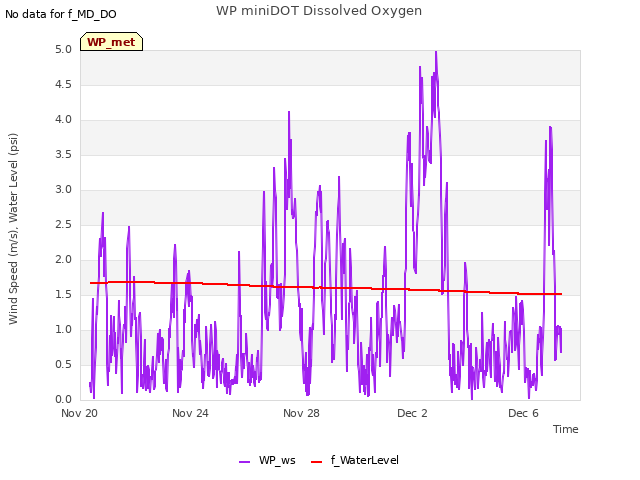

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

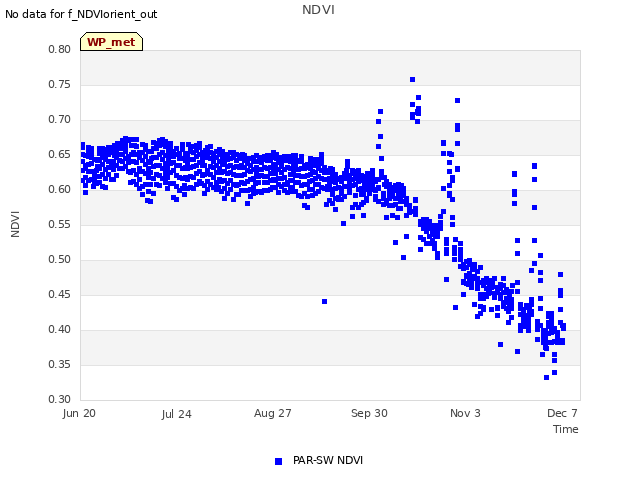

Explore the graph:NDVI in a new window

5 WP_flux graphs found

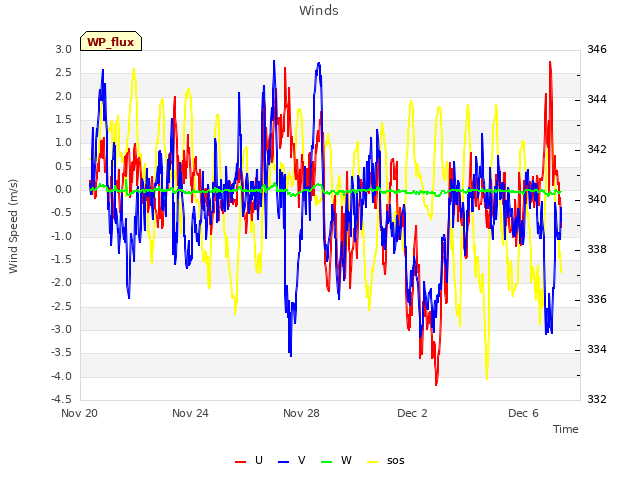

Explore the graph:Winds in a new window

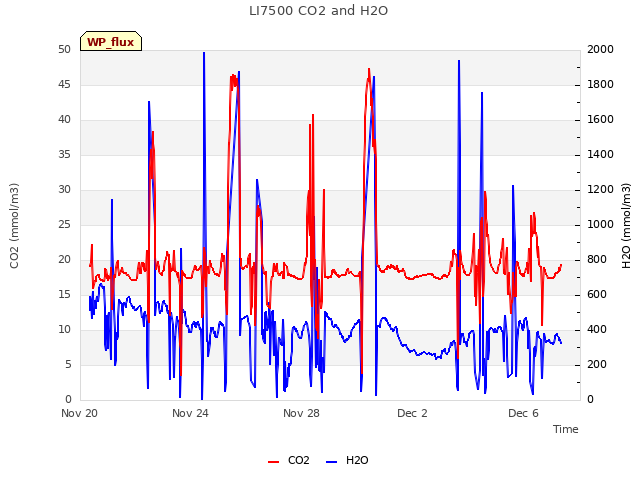

Explore the graph:LI7500 CO2 and H2O in a new window

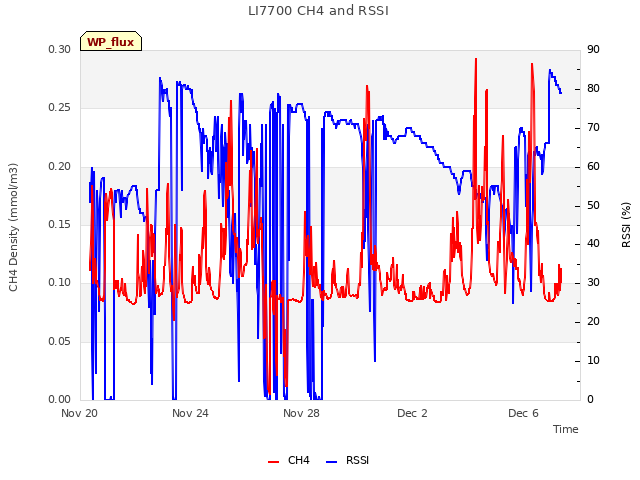

Explore the graph:LI7700 CH4 and RSSI in a new window

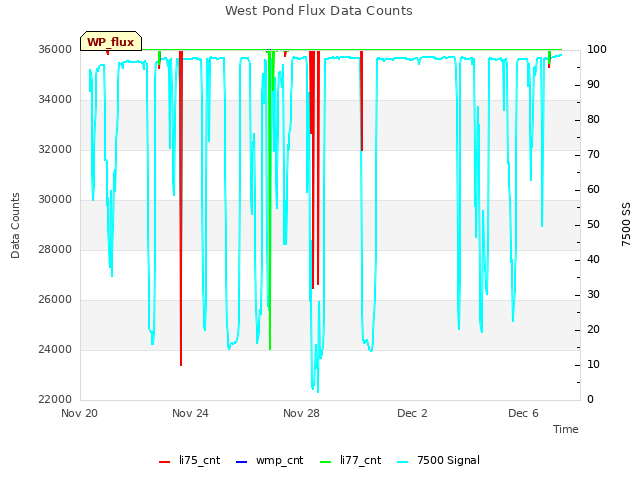

Explore the graph:West Pond Flux Data Counts in a new window

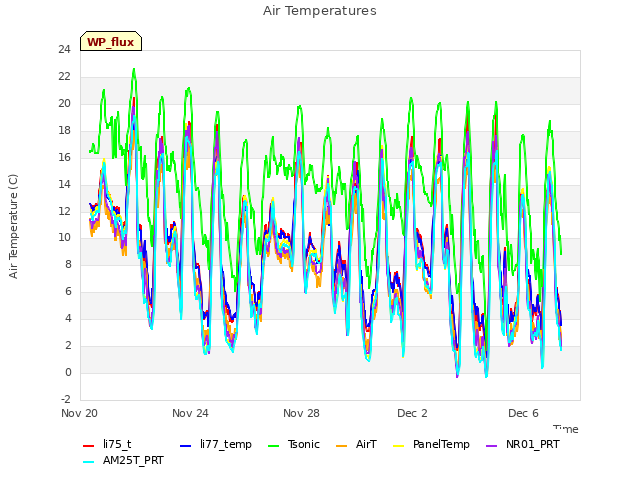

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

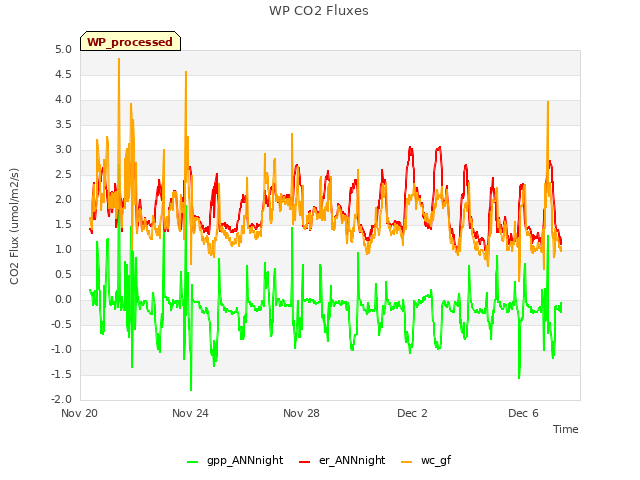

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
