Twitchell Rice: 2016-12-06 12:30:00 (DOY 341)
Author: Joe Verfaillie
Others: Dennis, Sam, Daphne, Jorge Perez

Summary: Standard data collection, cold, windy, a few birds.

Twitchell Rice
2016-12-06

I arrived about 12:30 with Dennis, Sam, Daphne and Jorge Perez. It was cold, windy and overcast. The fields are flooded with some geese in the north check.

The 7500 read:
CO2 400.5ppm
H2O 340 mmol/m
T 13.3C
P 102.2kPa
SS 94.3 --> 95.3 after cleaning

The 7700 read:
CH4 1.92ppm
RSSI 42.2 --> 71.3 after cleaning

The wash reservoir was filled.

The tipping bucket was cleaned and the camera data was collected.

The locking clip on the Licor Ethernet RJ45 connector is broken. Swap out next time.

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

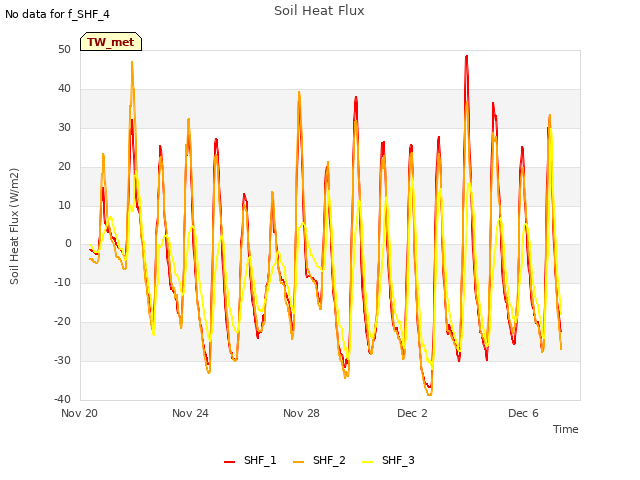

Explore the graph:Soil Heat Flux in a new window

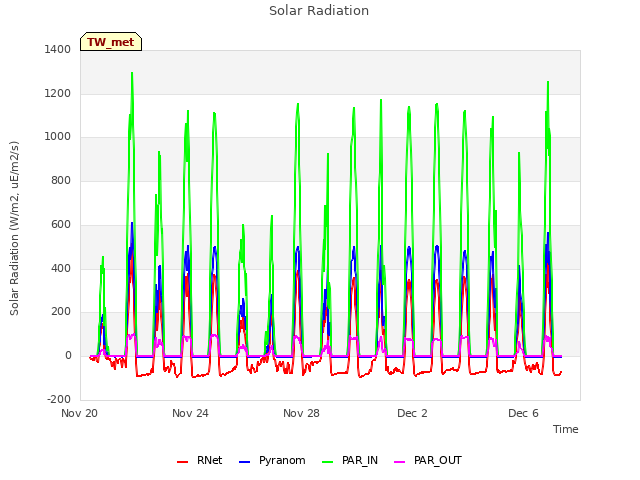

Explore the graph:Solar Radiation in a new window

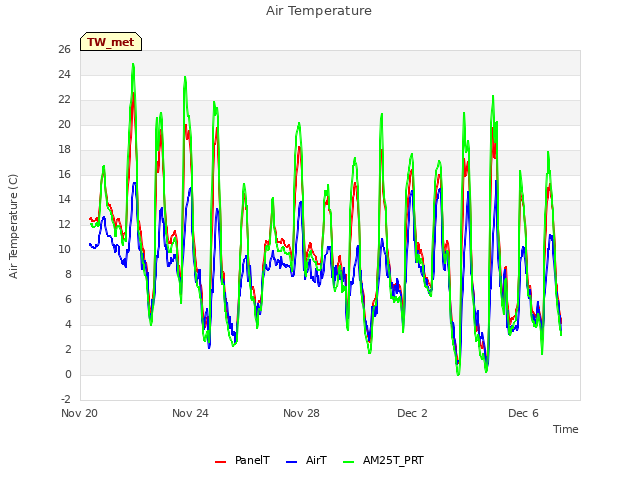

Explore the graph:Air Temperature in a new window

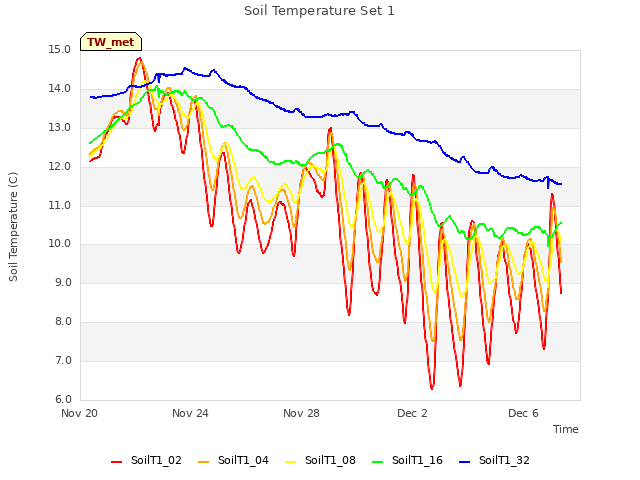

Explore the graph:Soil Temperature Set 1 in a new window

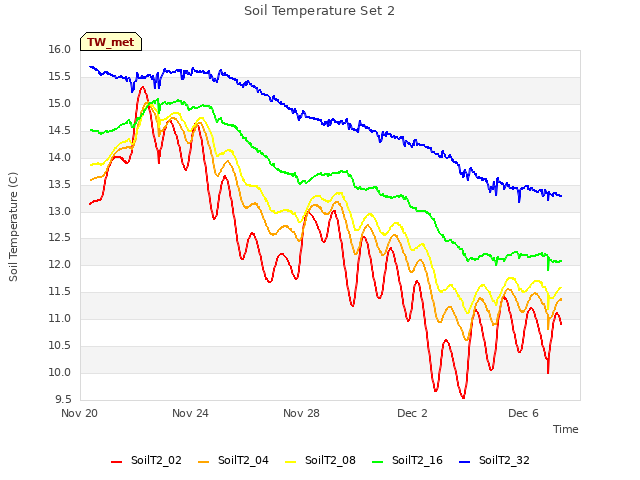

Explore the graph:Soil Temperature Set 2 in a new window

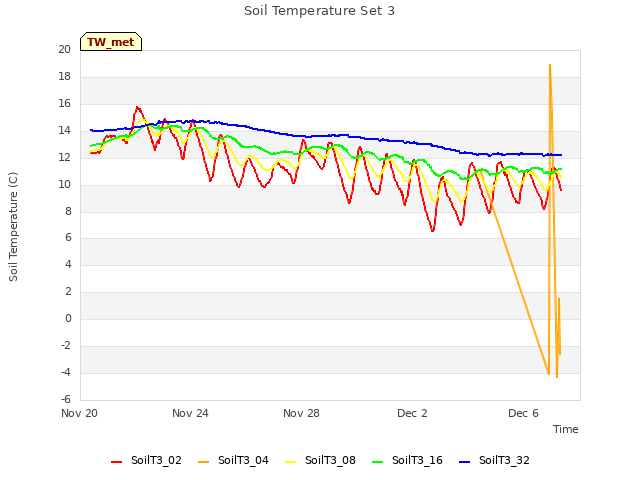

Explore the graph:Soil Temperature Set 3 in a new window

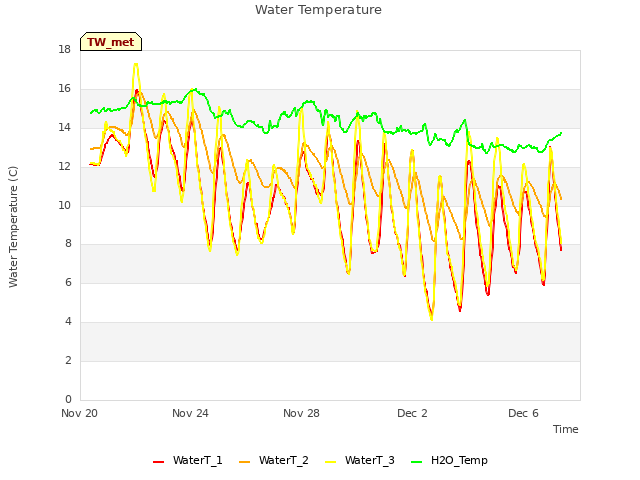

Explore the graph:Water Temperature in a new window

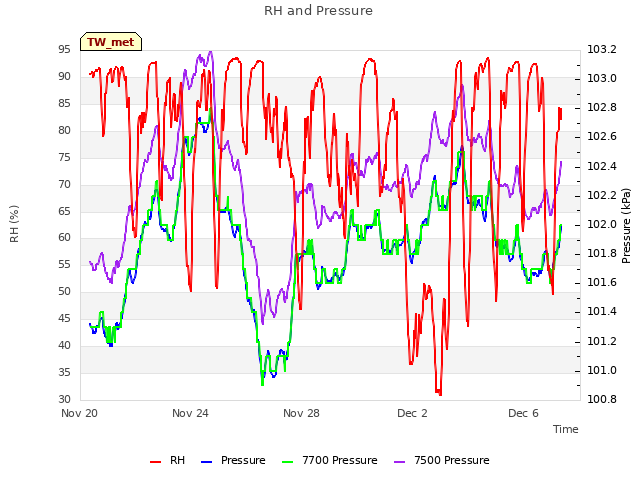

Explore the graph:RH and Pressure in a new window

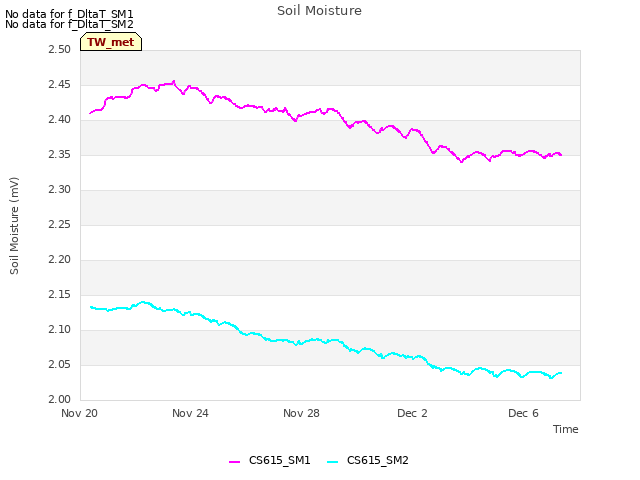

Explore the graph:Soil Moisture in a new window

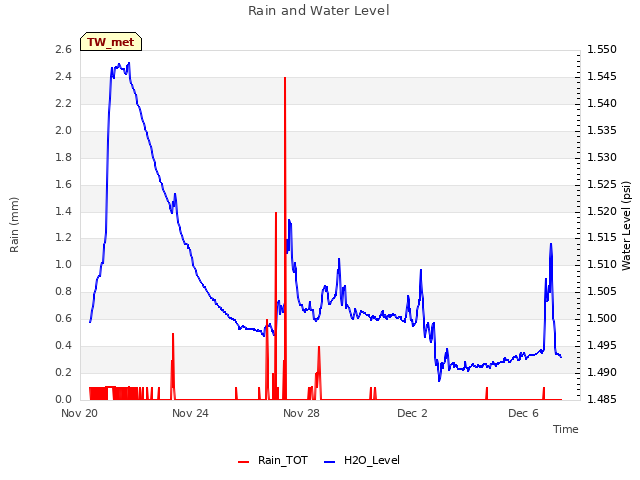

Explore the graph:Rain and Water Level in a new window

Explore the graph:Disolved Oxygen in a new window

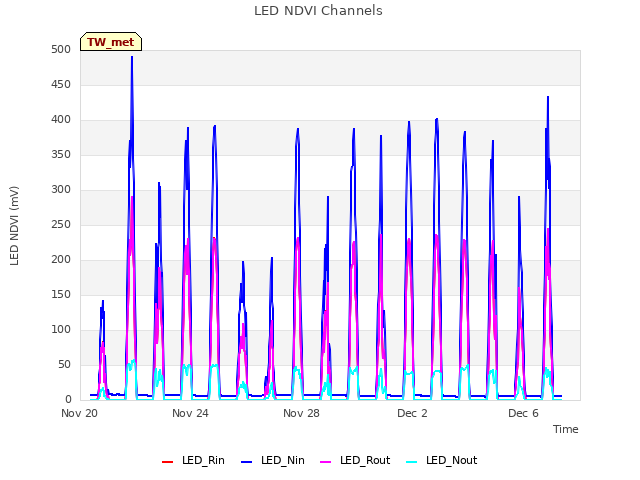

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

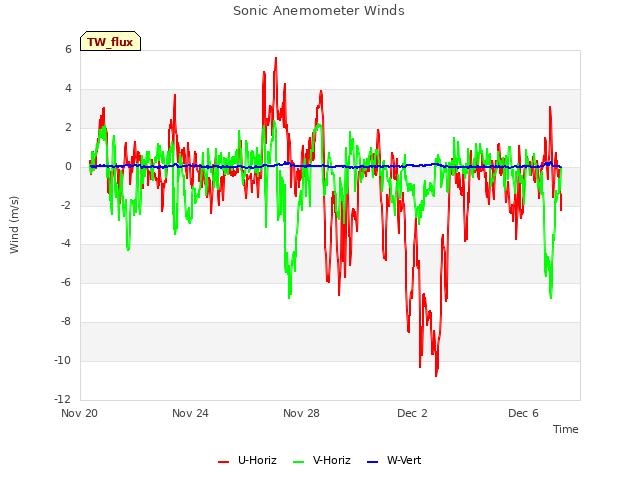

Explore the graph:Sonic Anemometer Winds in a new window

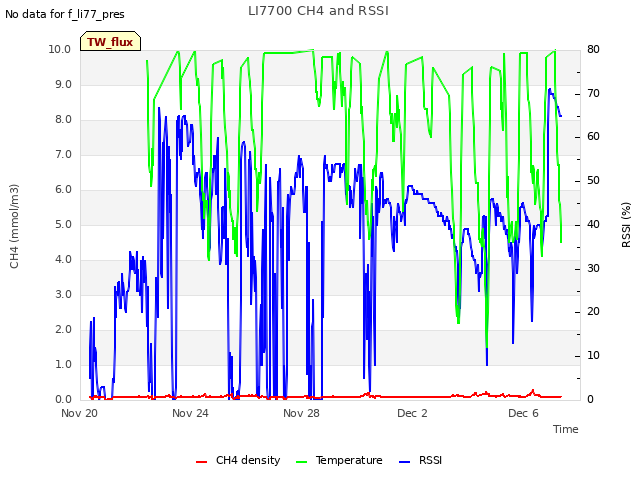

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

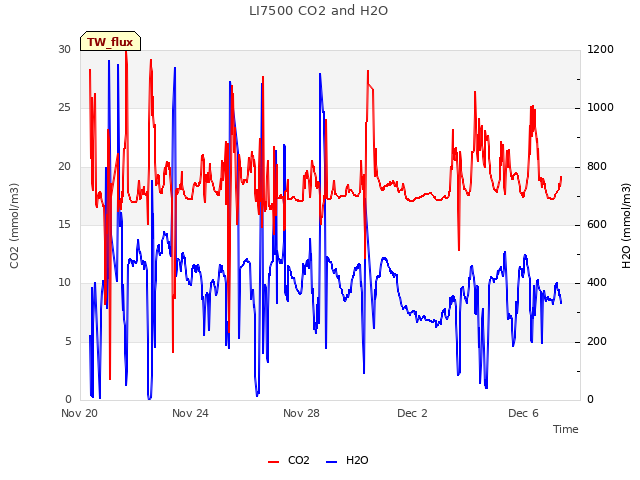

Explore the graph:LI7500 CO2 and H2O in a new window

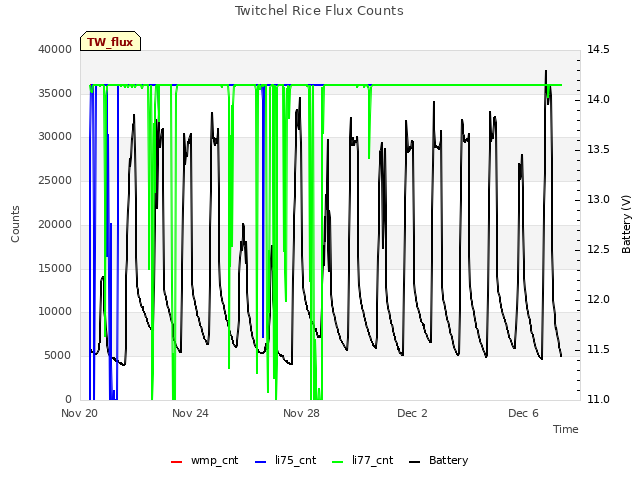

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

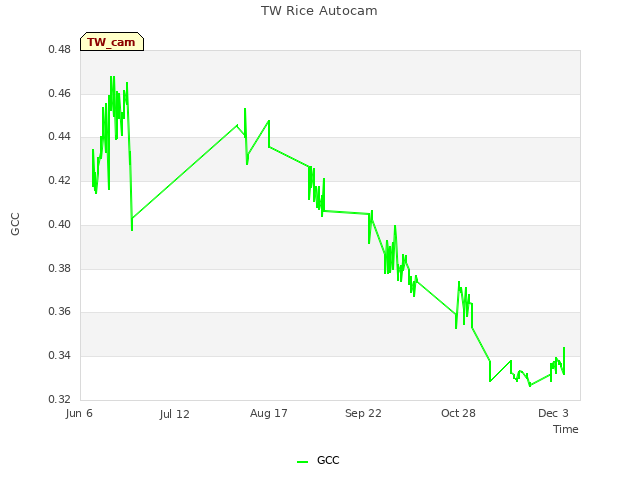

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
