Field Notes
<--2016-04-20 10:30:00 | 2016-05-10 10:30:00-->Tonzi: 2016-04-25 10:30:00 (DOY 116)
Author: Joe Verfaillie
Others: Siyan, Stephen, Alex
Summary: Take down of Ameriflux inter-comparison, added tz3 soil moisture to daily data.
| Tonzi 2016-04-25 I arrived about 10:30 with Siyan. Stephen and Alex from Ameriflux were already there getting ready to take down the inter-comparison equipment. Siyan went up the tower with Stephen to help take things off. I stayed on the ground working the rope when needed and taking apart the bottom part of the Ameriflux CO2 profile. I also ran a new serial line to the soil moisture 23x (tz3). The line was a little short. I should replace it next time and put it in plastic pipe. But, I did get it set up to be collected by the tower computer and send its data to Berkeley daily. Stephen and Alex had most of their stuff disassembled and were packing up when we left. Siyan collected data to give to Ameriflux. |
Field Data
No tank data

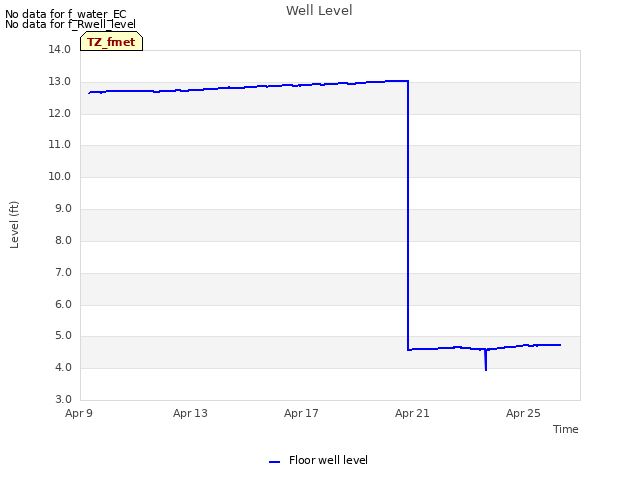

Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2016-04-25 | TZ_floor | 23.5 |
| 2016-04-25 | TZ_road | 31.8 |
| 2016-04-25 | TZ_tower | 26.7 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

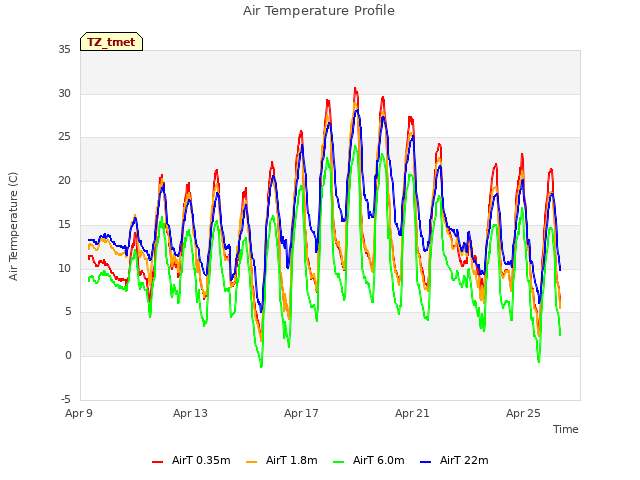

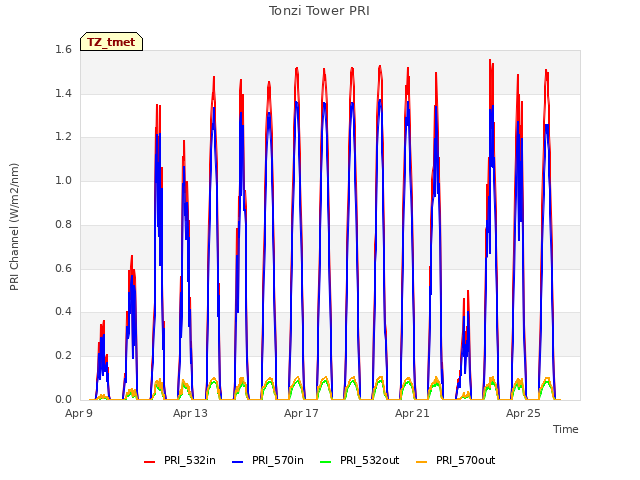

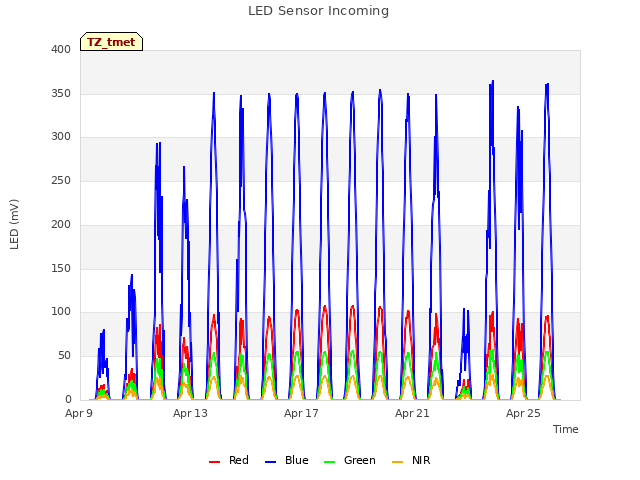

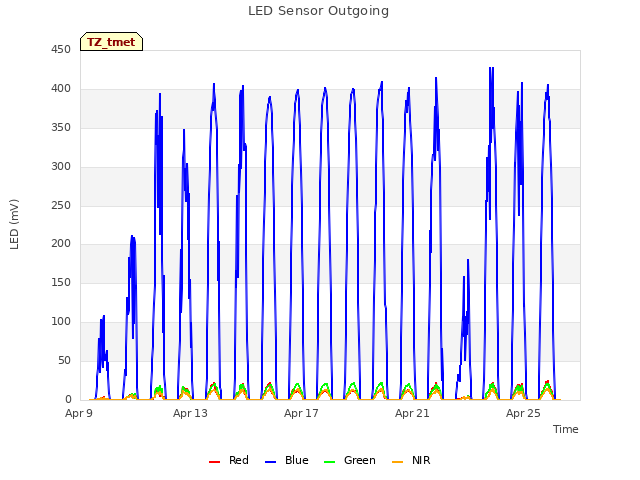

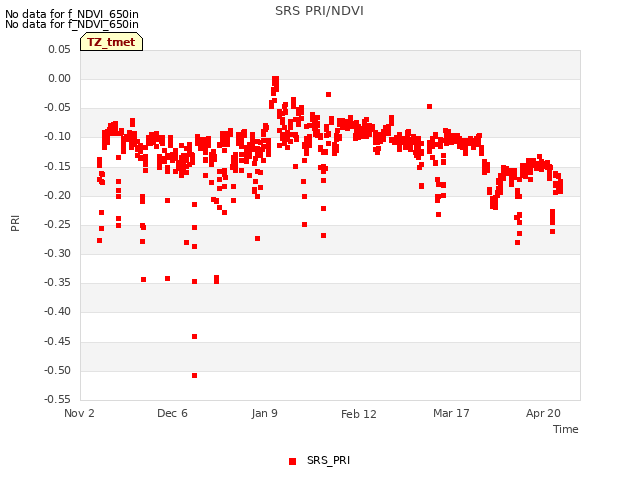

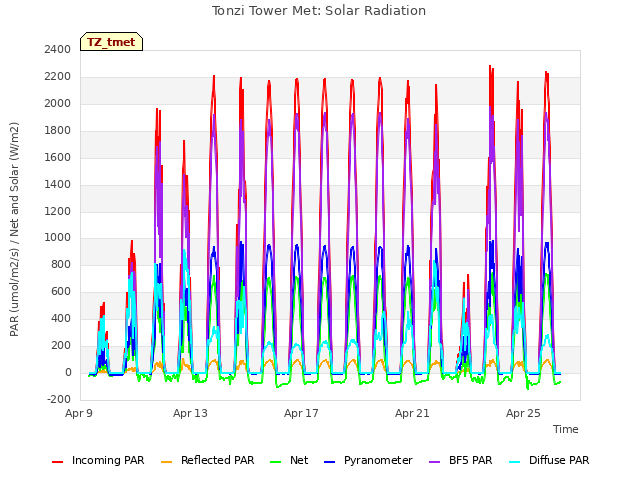

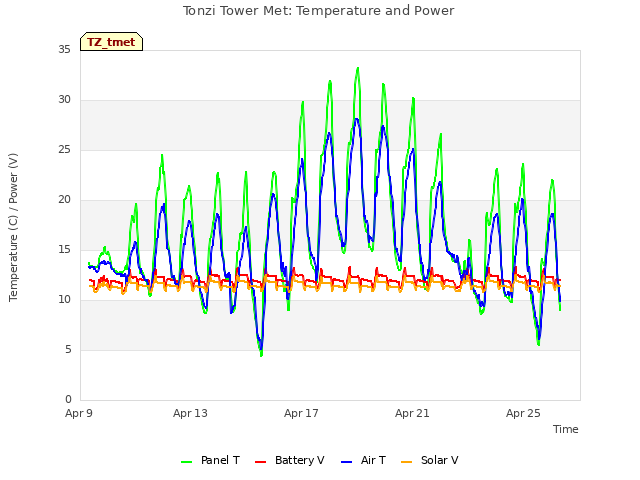

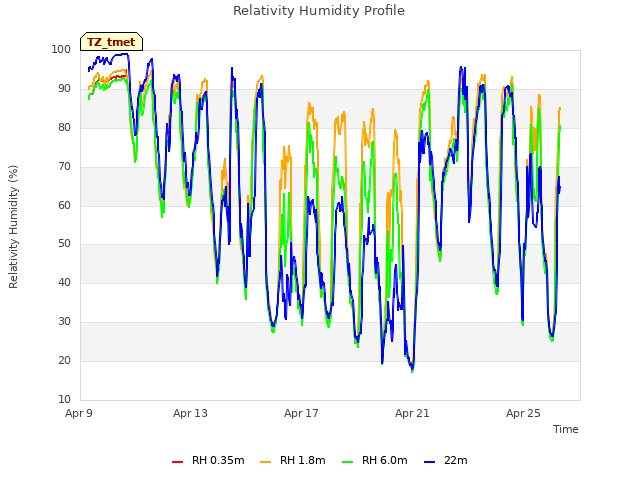

11 TZ_tmet graphs found

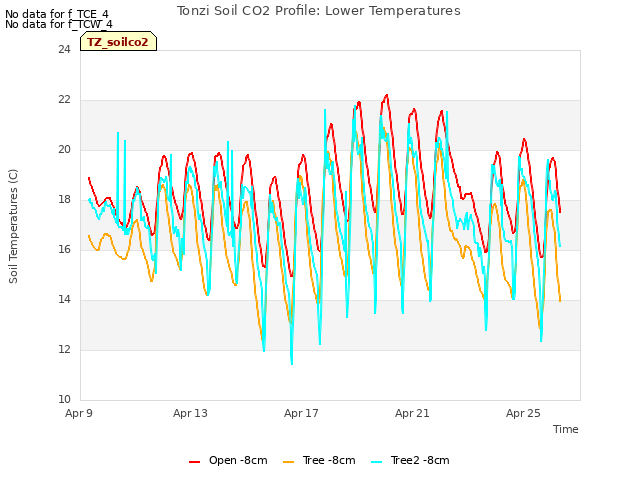

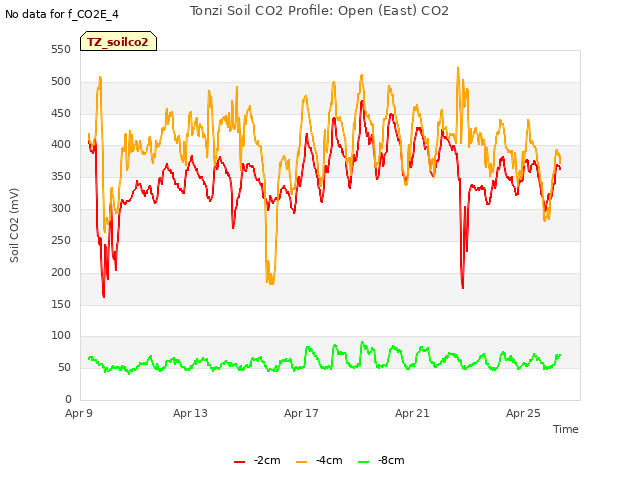

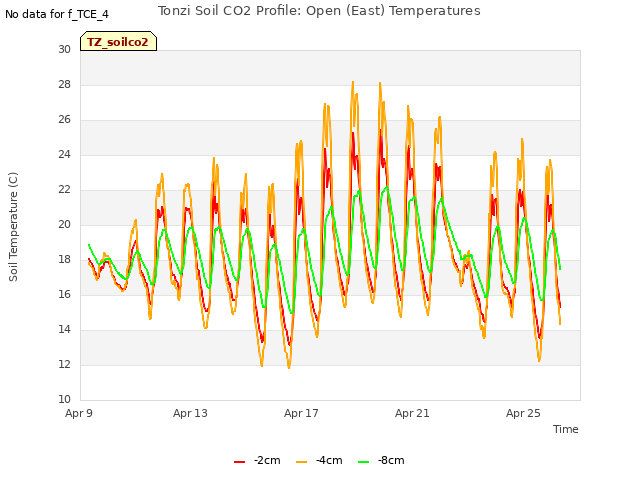

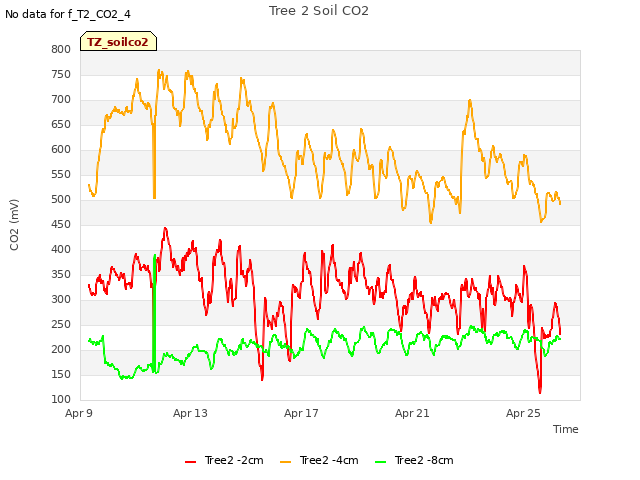

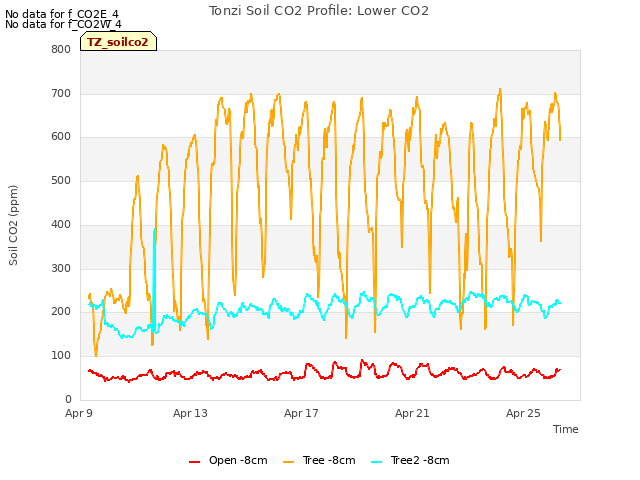

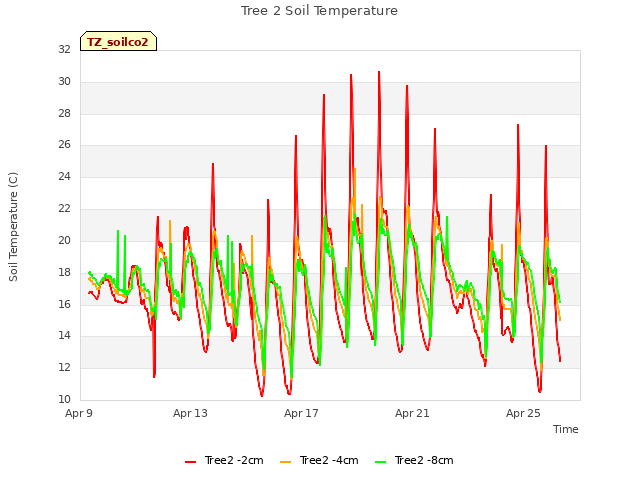

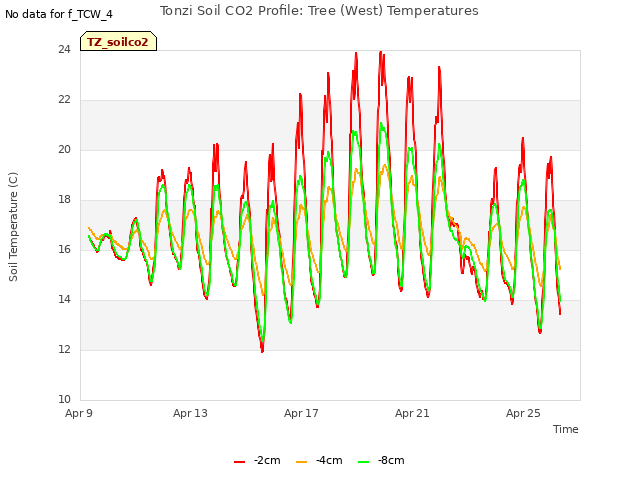

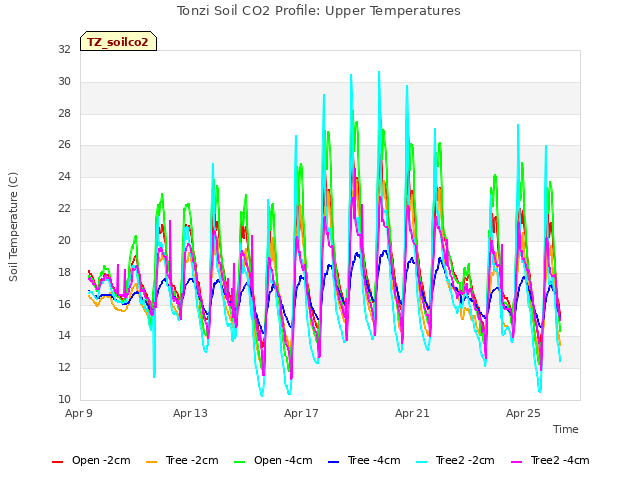

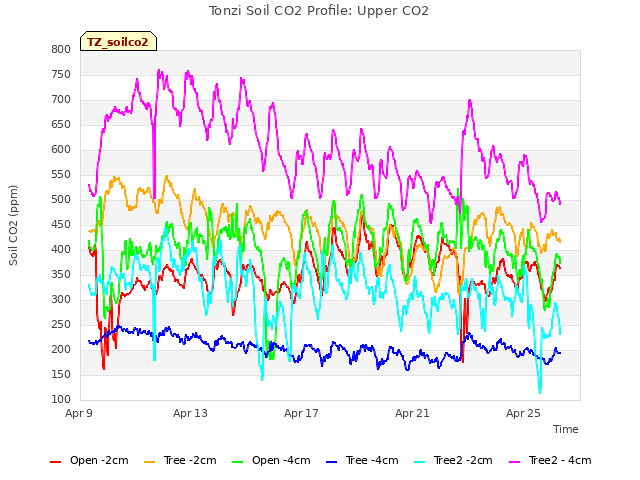

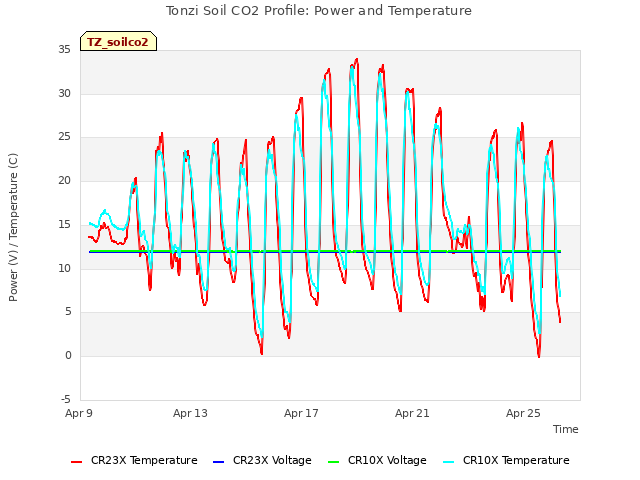

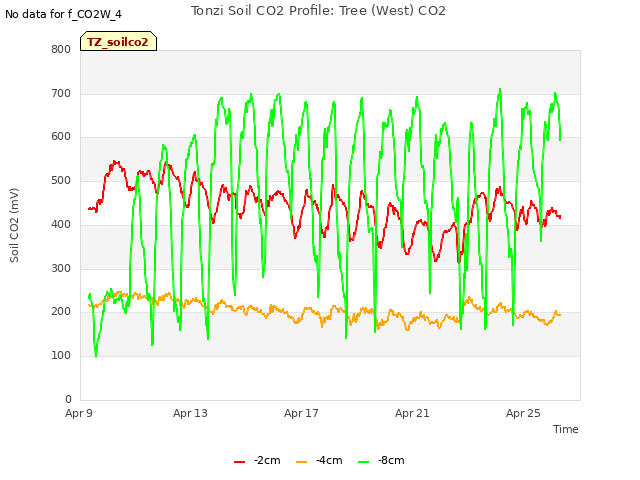

11 TZ_soilco2 graphs found
Can't check TZ_mixed

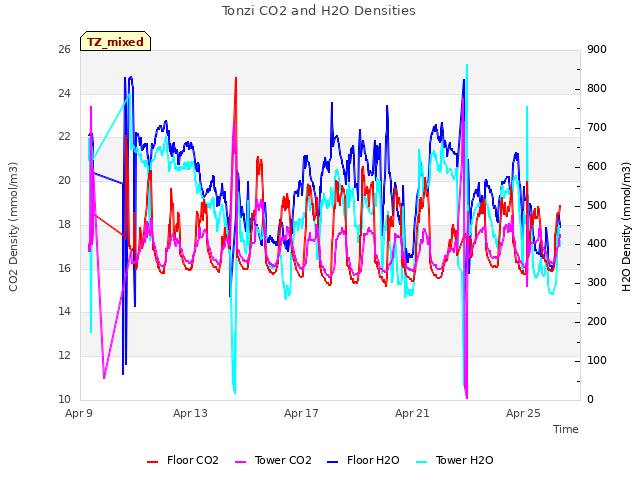

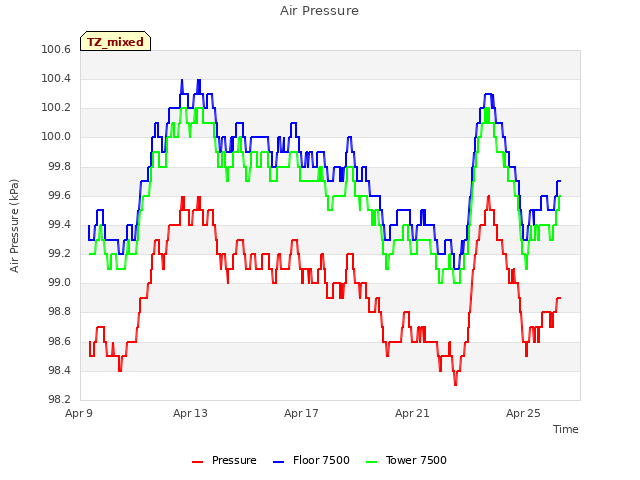

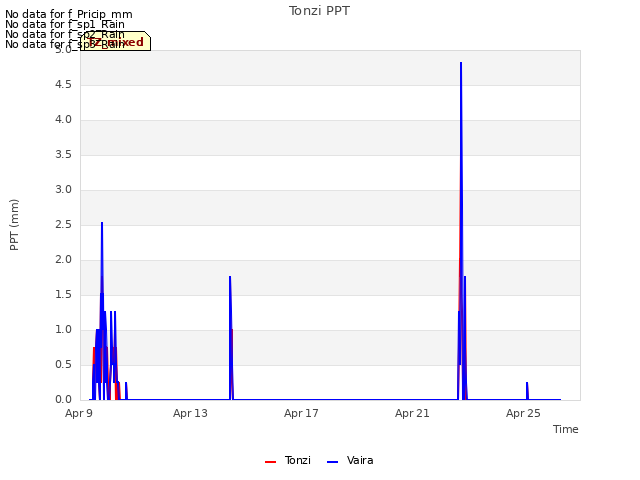

3 TZ_mixed graphs found

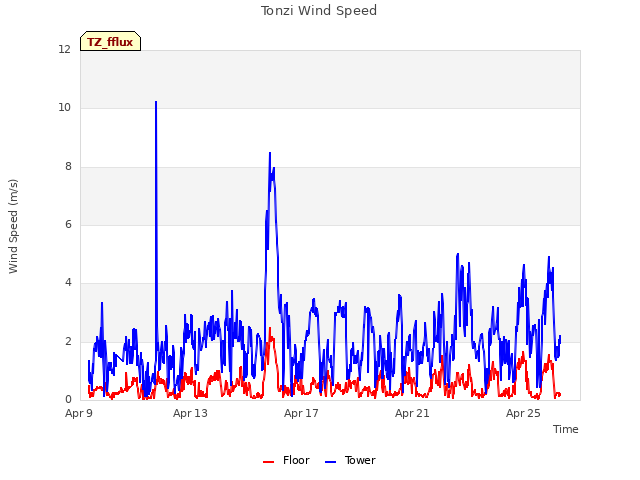

1 TZ_fflux graphs found

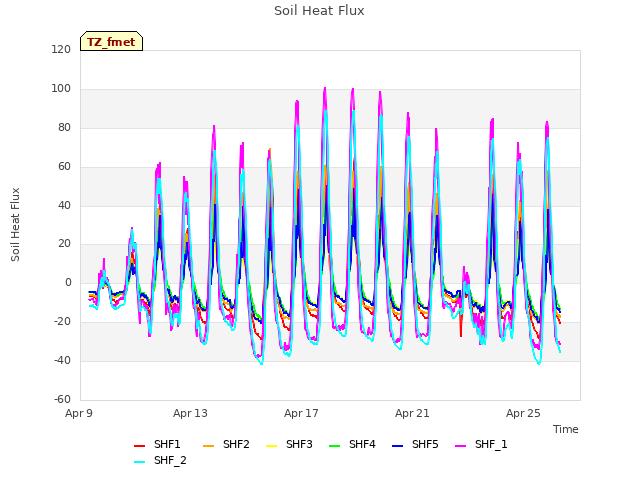

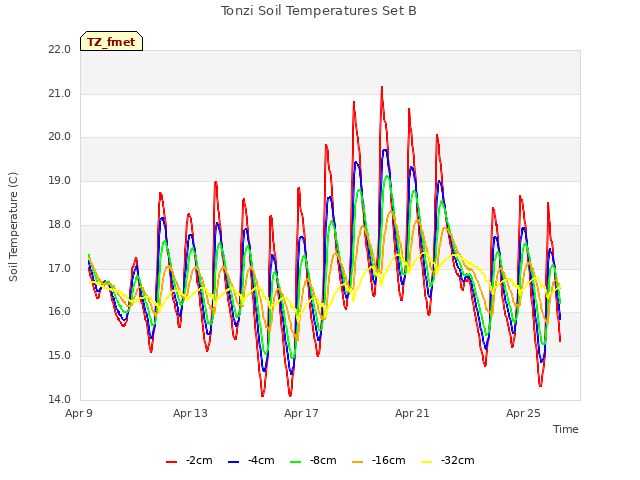

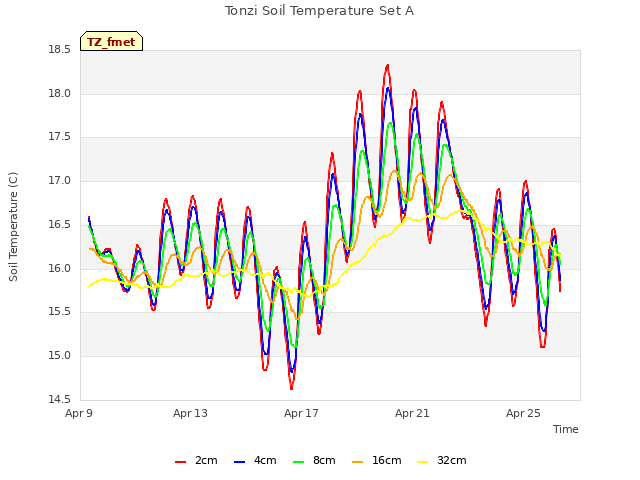

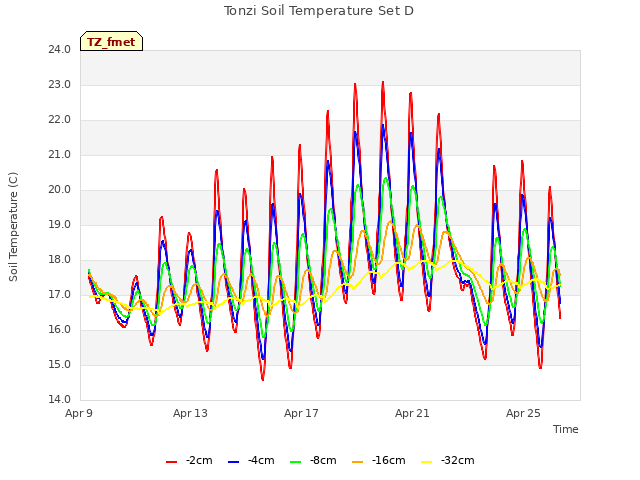

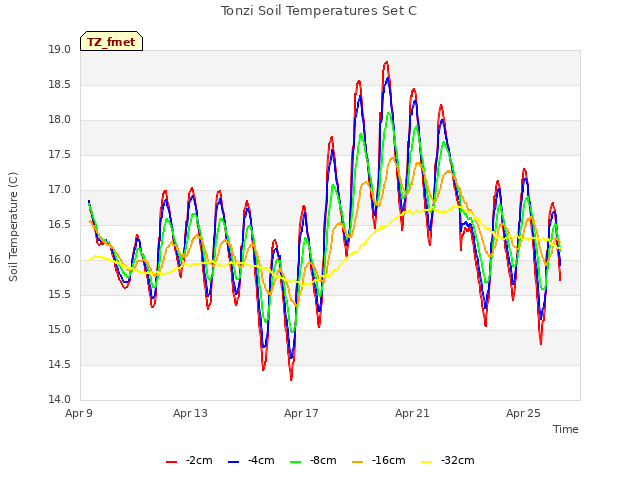

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.

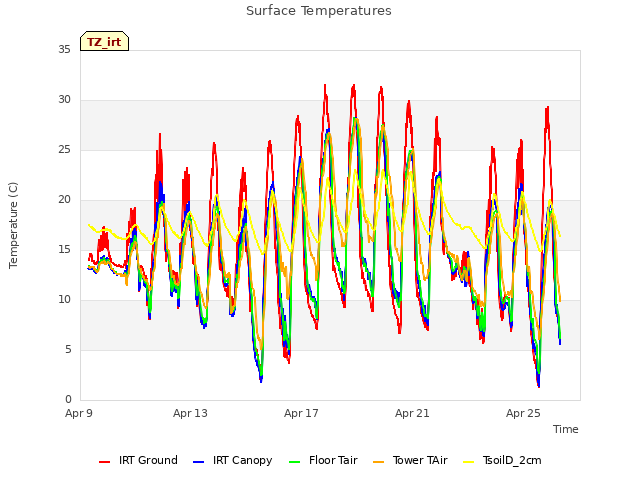

1 TZ_irt graphs found
No data found for TZ_windprof.
1 TZ_tflux graphs found

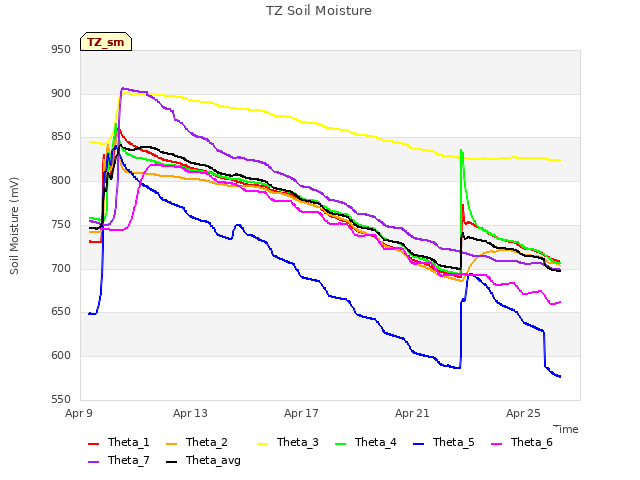

2 TZ_sm graphs found
Can't check TZ_met

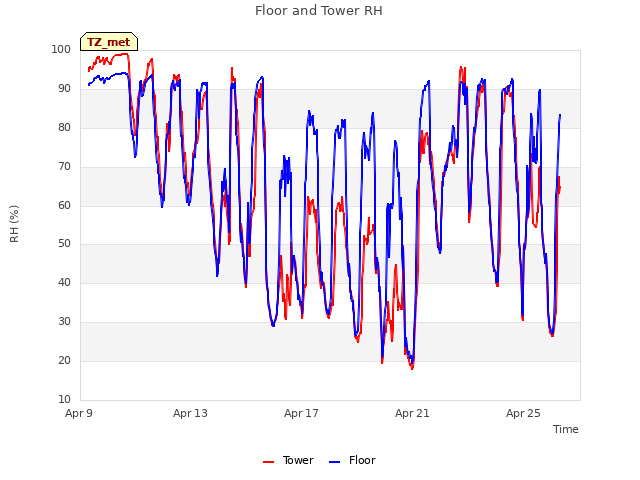

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
