Field Notes
<--2015-10-01 09:00:00 | 2015-11-03 09:00:00-->Other sites visited today: Tonzi | Vaira
Tonzi: 2015-10-01 10:00:00 (DOY 274)
Author: Joe Verfaillie
Others: Siyan
Summary: rainy day, cows broke fences, still having troubles swapping tower computer.
| Tonzi 2015-10-01 I arrived with Siyan about 10:00am. It was mostly cloudy and cool with a little rain clearing up later in the day. The top centimeter or so of the soil was damp. Cows are around and broke all the fences again. We repaired the fences. I tried to swap the tower computer again, but cannot make a connection to the Phenocam with the Compute stick. The field computer to the Phenocam works, putting the computer at the top and connecting to the compute stick at the bottom works. So there is something specific to the compute stick and the Phenocam. I can test with one of the old web cams in the lab. Maybe power the usb hub. The flow rate for the CO2 profile was very low. I replaced the filters at the inlets, but that didn’t seem to improve the flow much. The IRGA values looked okay, but I could not calibrate. Siyan collected data, did the wells, dendrometers, and midday water potential. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2015-10-01 | TZ_floor | 35.6 |
| 2015-10-01 | TZ_road | 38.8 |
| 2015-10-01 | TZ_tower | 37 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|---|---|
| 2015-10-01 | 1 | 14.1 |
| 2015-10-01 | 102 | 10.9 |
| 2015-10-01 | 2 | 14.7 |
| 2015-10-01 | 245 | 29.8 |
| 2015-10-01 | 3 | 15.5 |
| 2015-10-01 | 4 | 9.9 |
| 2015-10-01 | 5 | 15.0 |
| 2015-10-01 | 7 | 11.5 |
| 2015-10-01 | 73 | 21.0 |
| 2015-10-01 | 79 | 17.0 |
| 2015-10-01 | 8 | 15.9 |
Water Potential - mode: raw
| Time< h> | Species | Tree | readings (bar) | ||
|---|---|---|---|---|---|
| 2015-10-01 11:52:00 | OAK | 102 | -42 | -52 | -40 |
| 2015-10-01 11:52:00 | OAK | 35 | -42 | -35 | -43 |
| 2015-10-01 11:52:00 | OAK | 92 | -32 | -32 | -34 |
| 2015-10-01 12:12:00 | PINE | OLD | -18 | -3 | -17 |
| 2015-10-01 12:12:00 | PINE | YNG | -7.5 | -2 | -2 |
| OAK_102 | Whole Study | 20151001 | 11:52:00 | twig/leaf cluster | -4.5 | 0.64 | 3 | |
| OAK_35 | Whole Study | 20151001 | 11:52:00 | twig/leaf cluster | -4 | 0.44 | 3 | |
| OAK_92 | Whole Study | 20151001 | 11:52:00 | twig/leaf cluster | -3.3 | 0.12 | 3 | |
| PINE_OLD | Whole Study | 20151001 | 12:12:00 | twig/leaf cluster | -1.3 | 0.84 | 3 | |
| PINE_YNG | Whole Study | 20151001 | 12:12:00 | twig/leaf cluster | -0.4 | 0.32 | 3 |
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

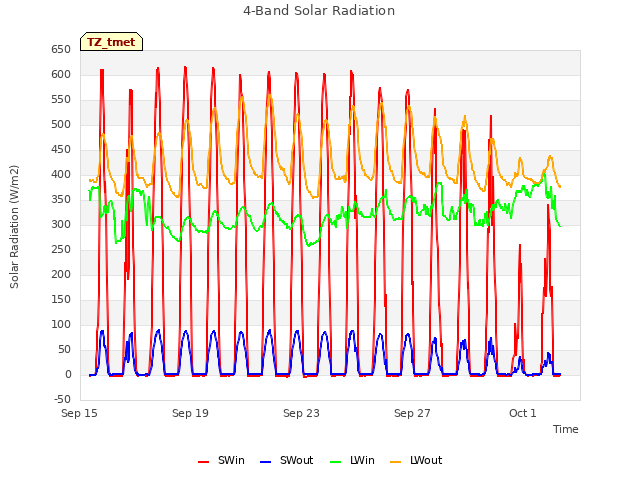

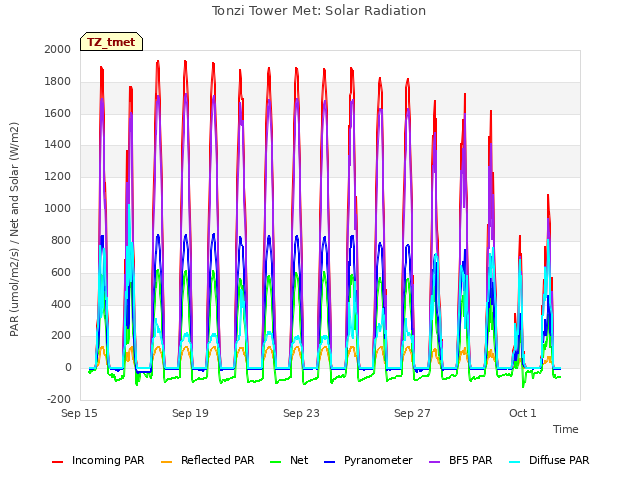

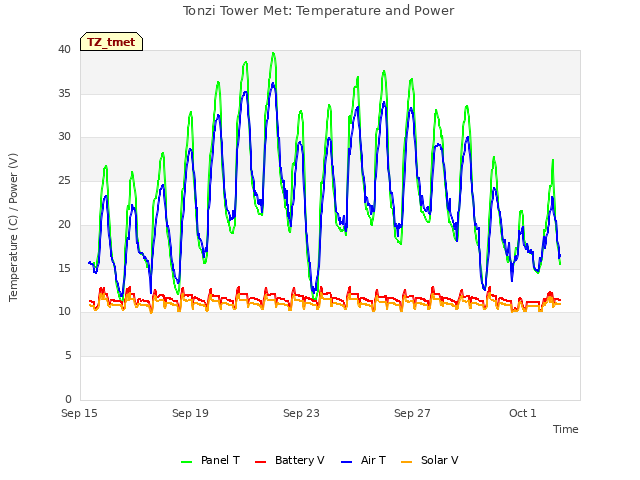

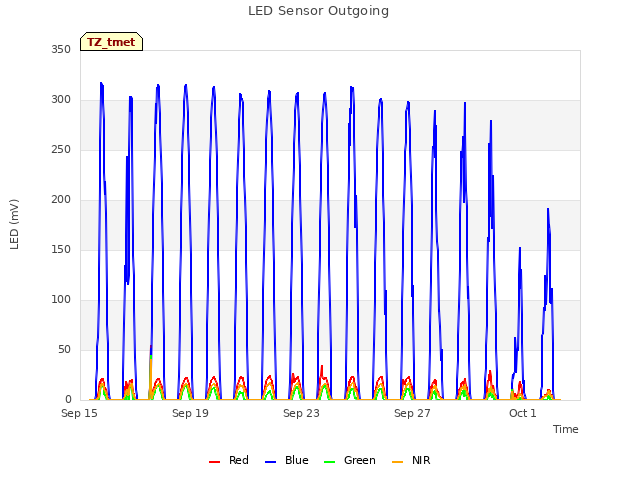

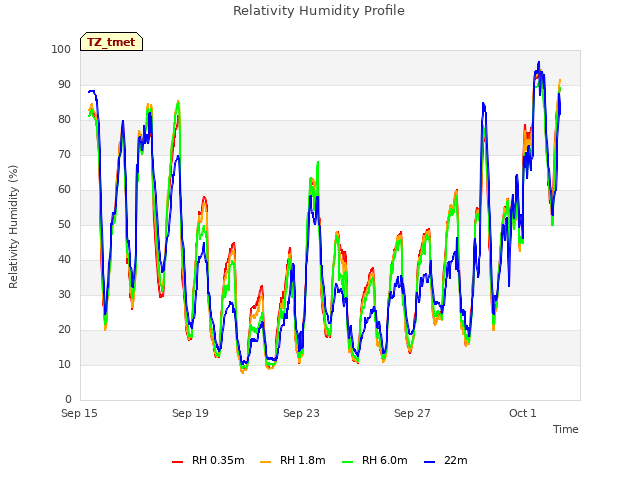

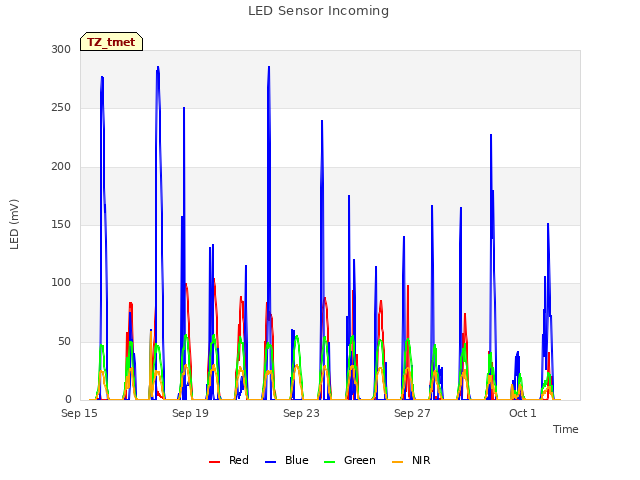

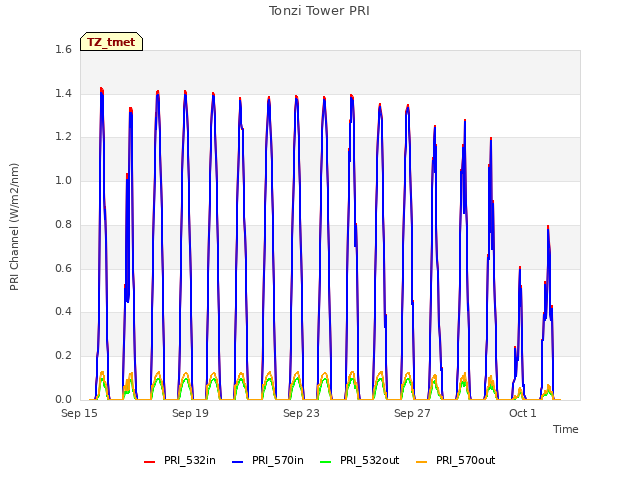

11 TZ_tmet graphs found

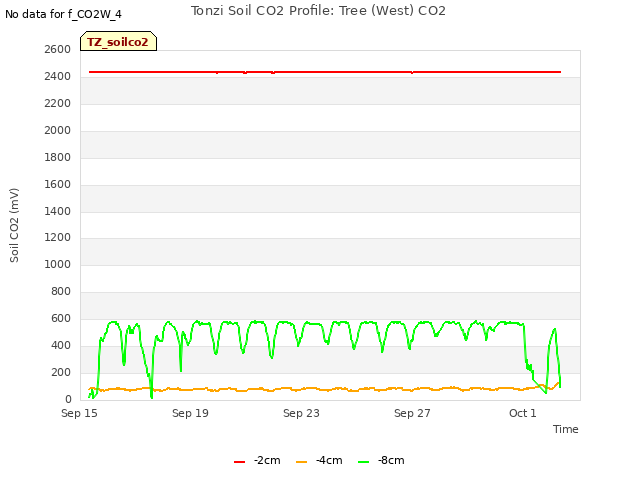

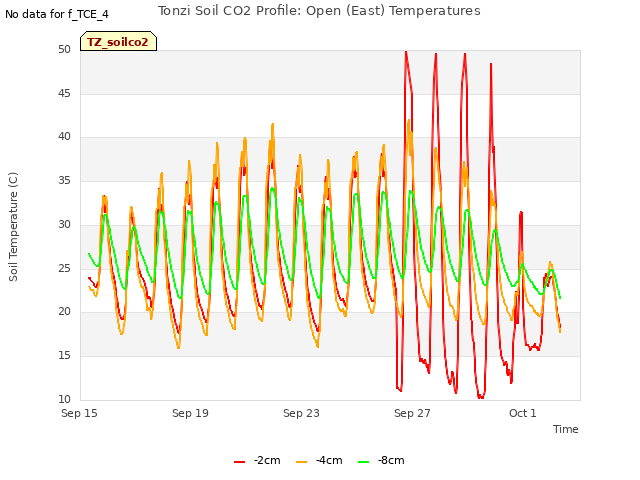

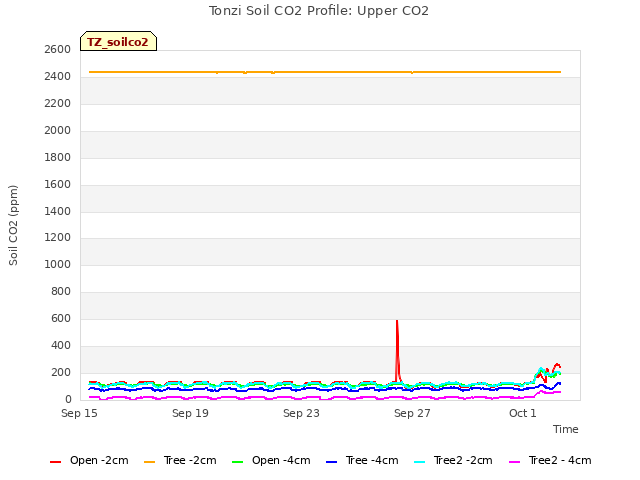

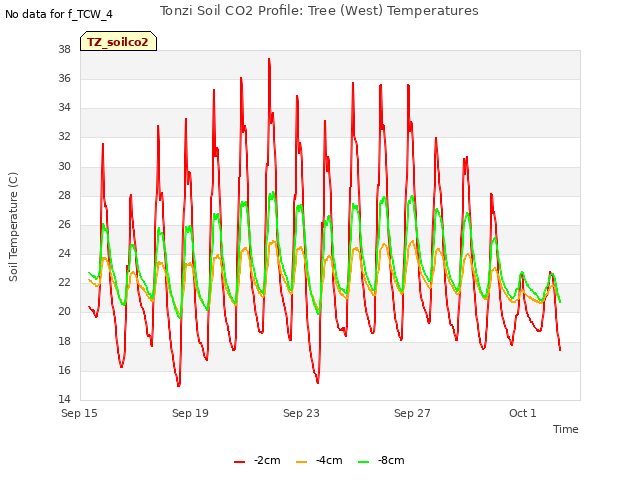

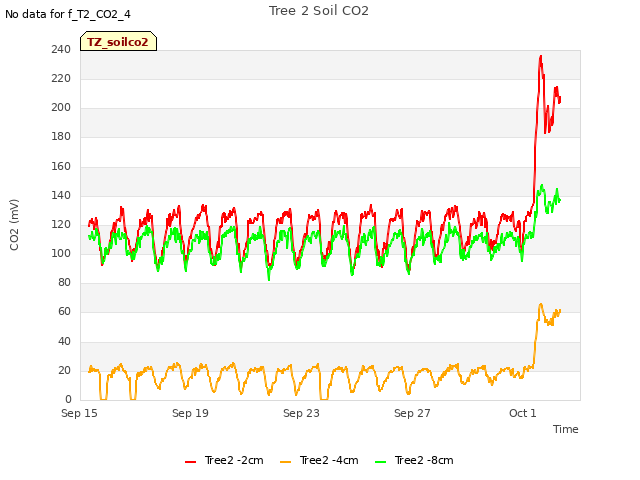

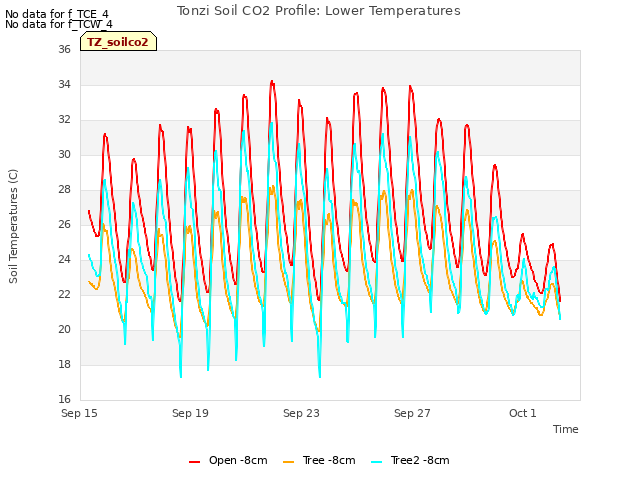

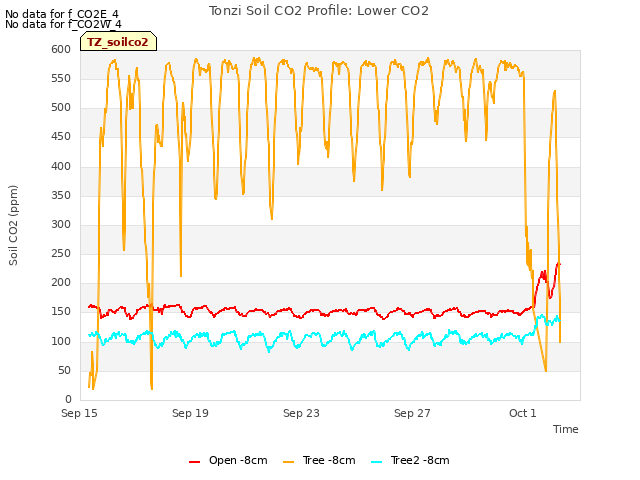

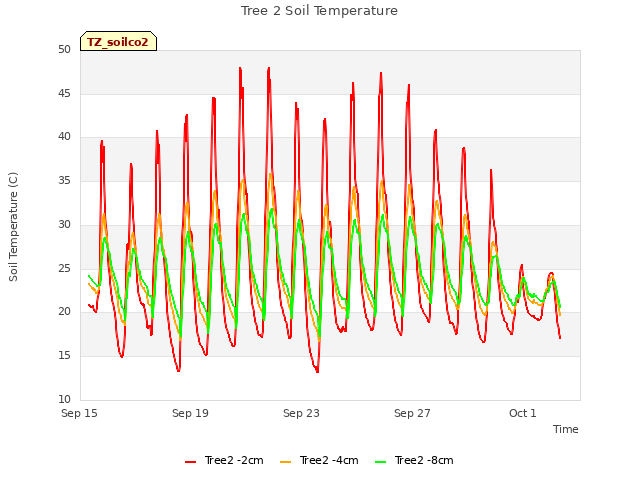

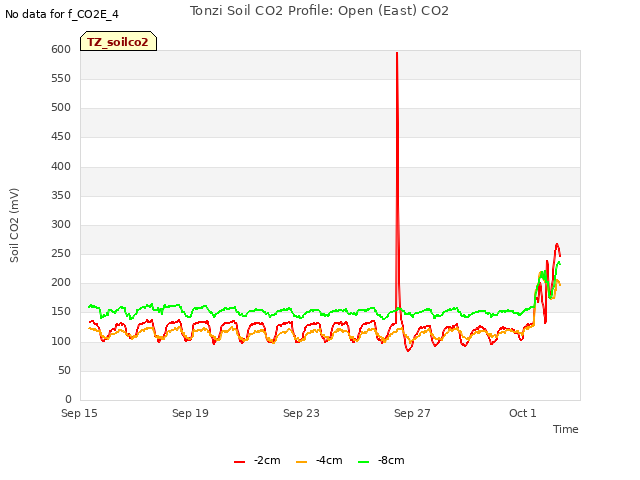

11 TZ_soilco2 graphs found
Can't check TZ_mixed

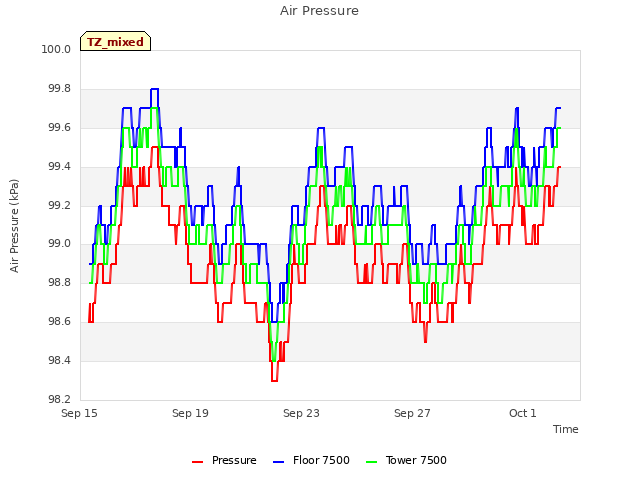

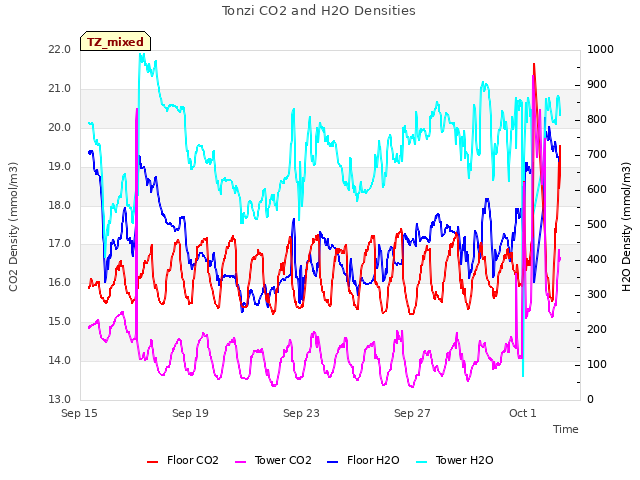

3 TZ_mixed graphs found

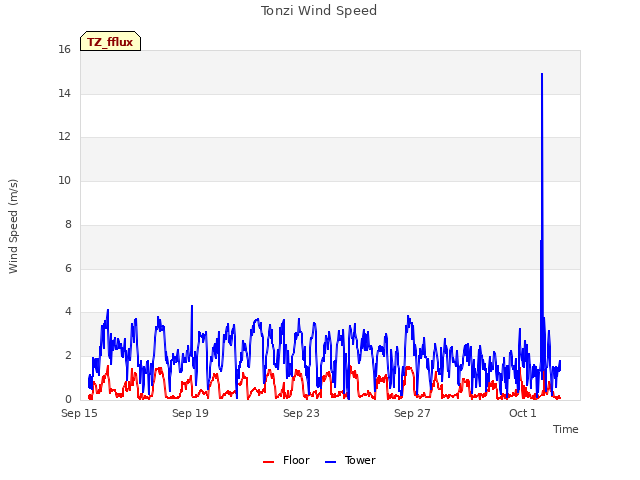

1 TZ_fflux graphs found

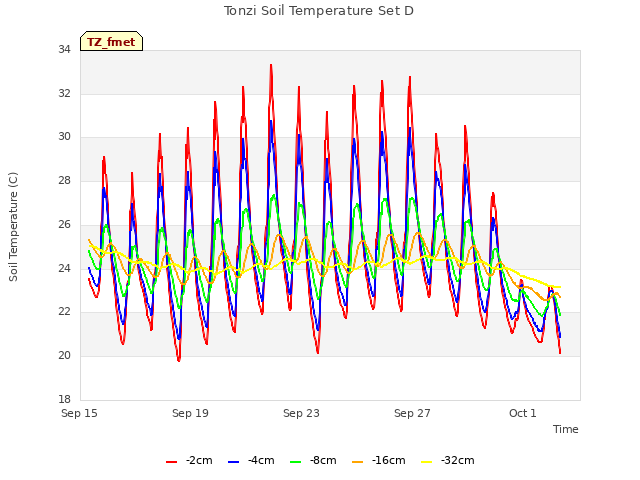

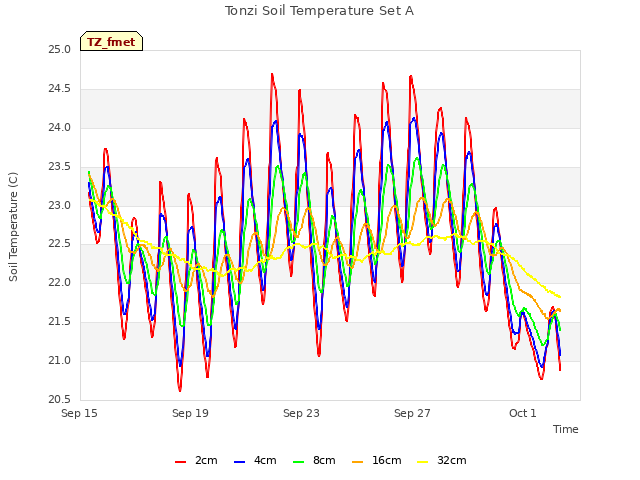

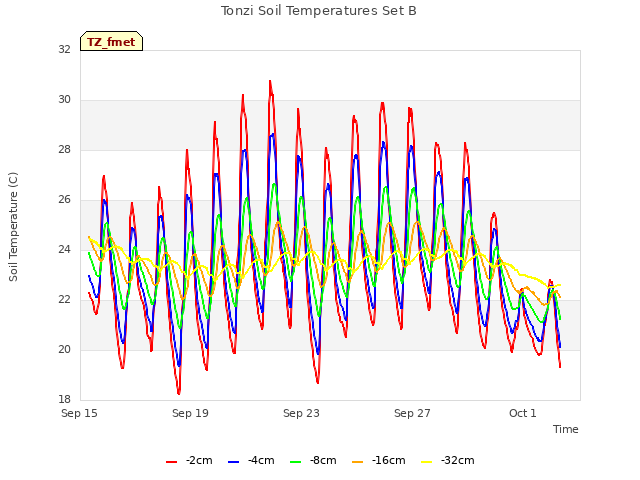

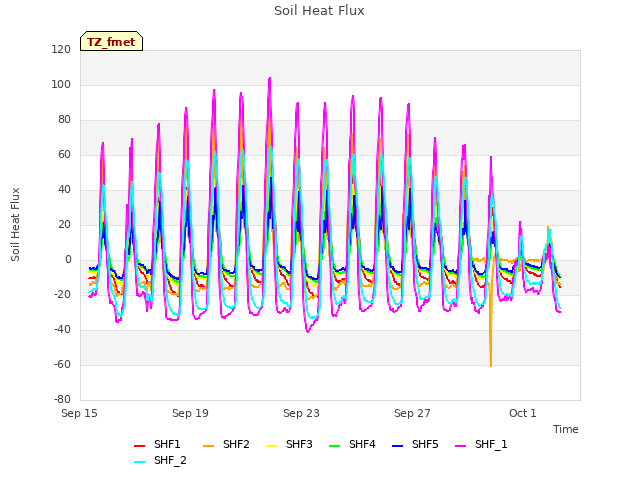

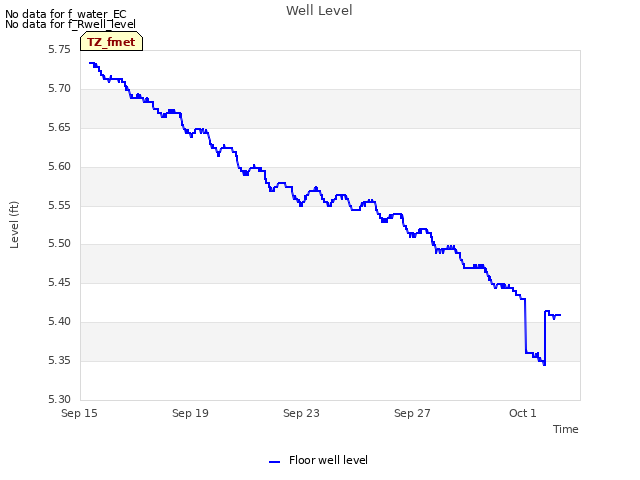

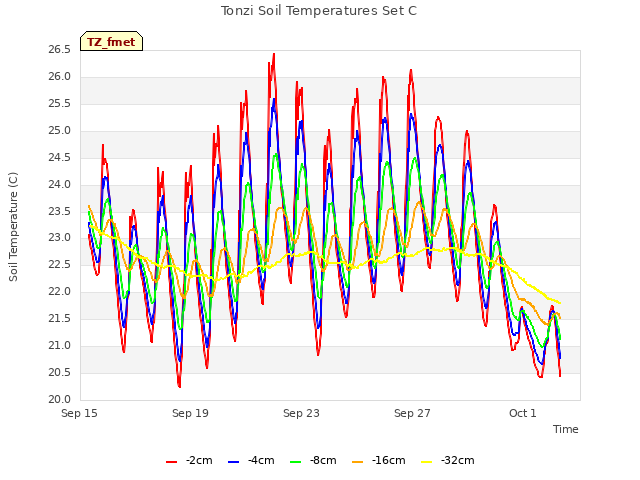

8 TZ_fmet graphs found

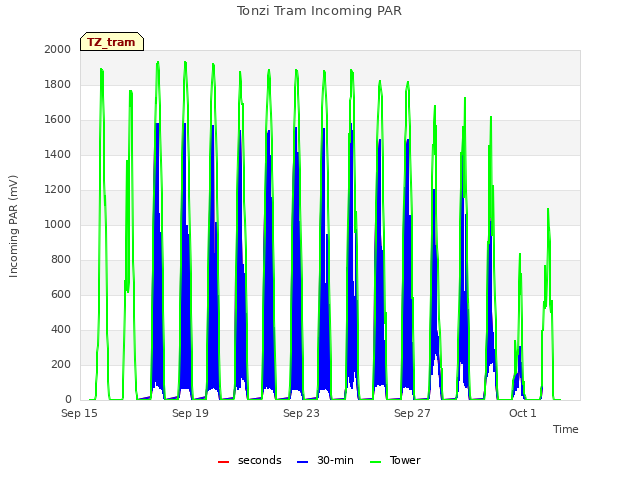

1 TZ_tram graphs found

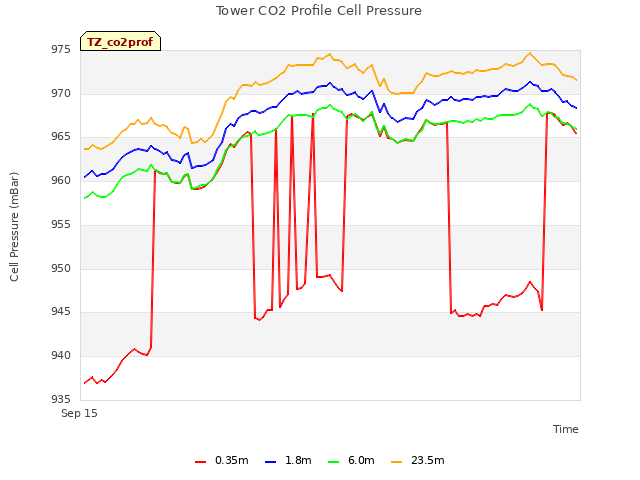

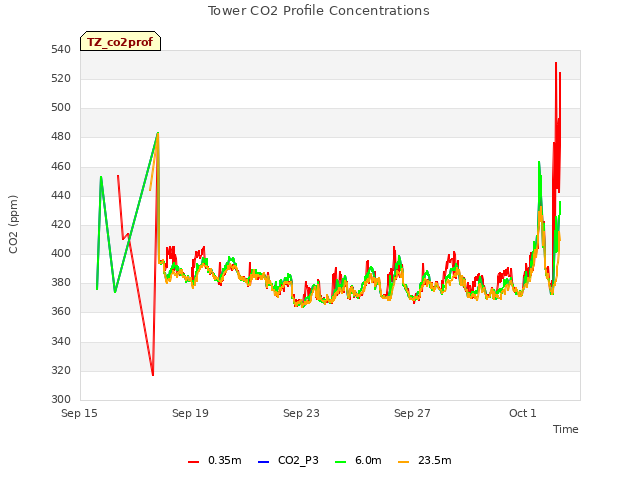

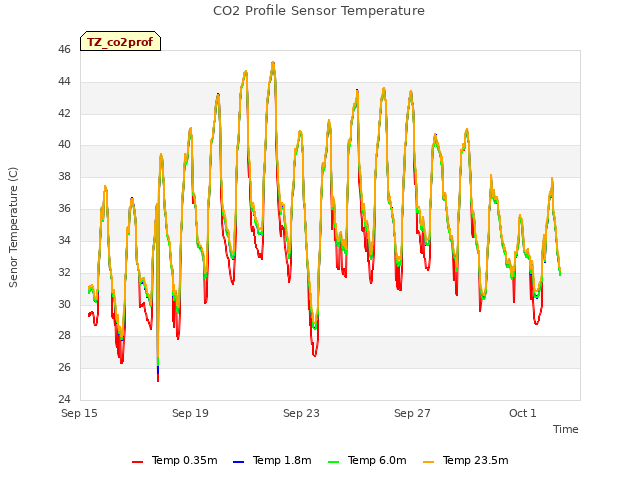

3 TZ_co2prof graphs found

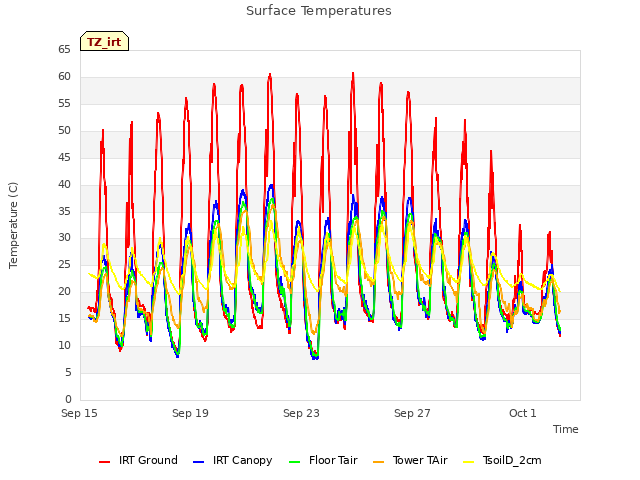

1 TZ_irt graphs found
No data found for TZ_windprof.

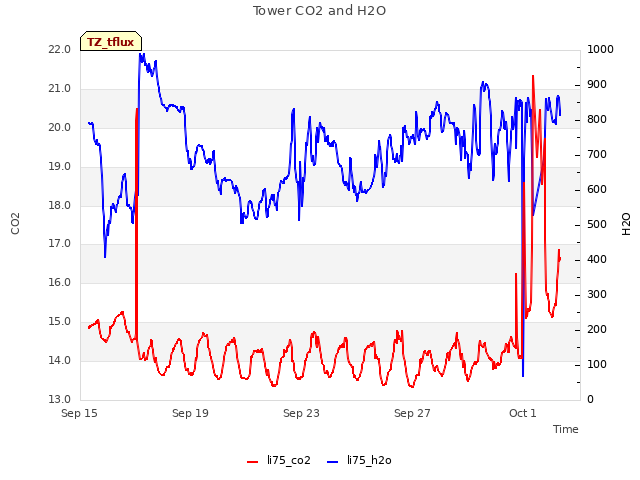

1 TZ_tflux graphs found

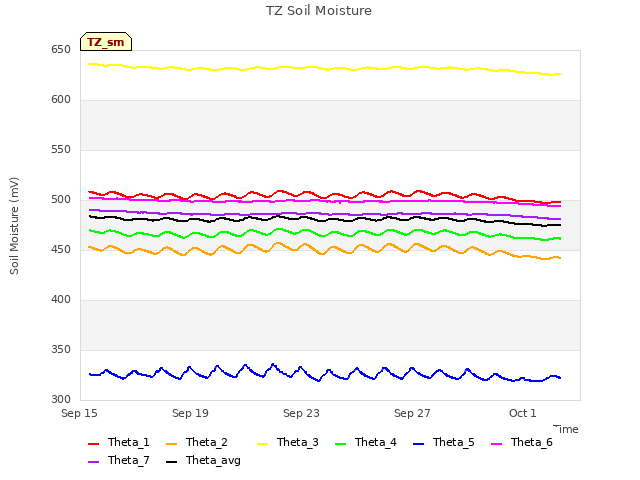

2 TZ_sm graphs found
Can't check TZ_met

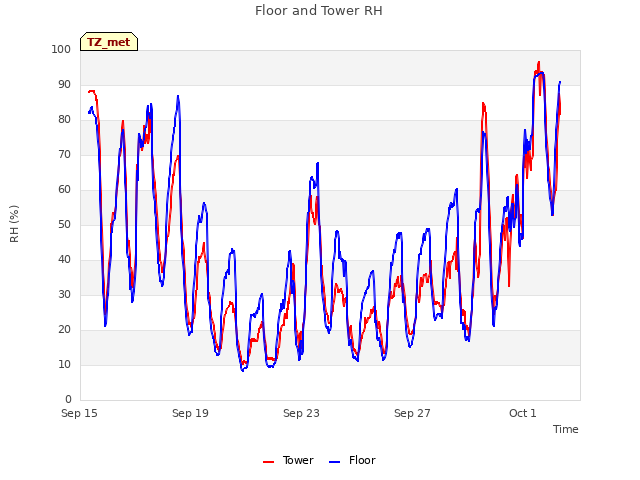

1 TZ_met graphs found
Can't check TZVR_mixed

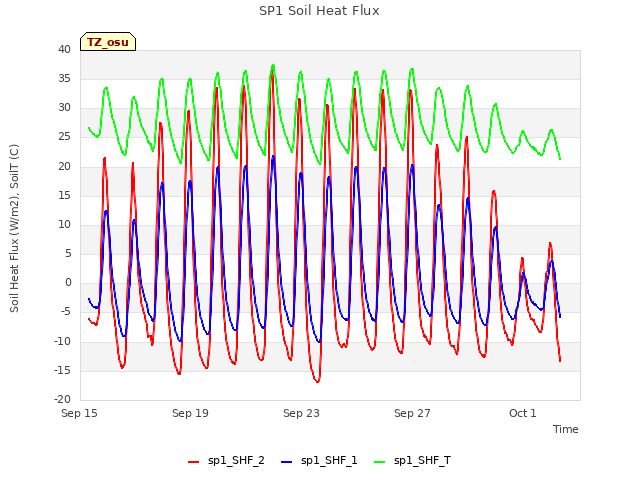

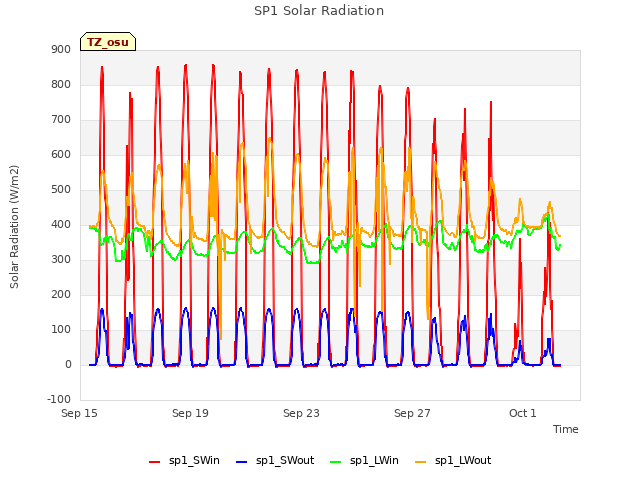

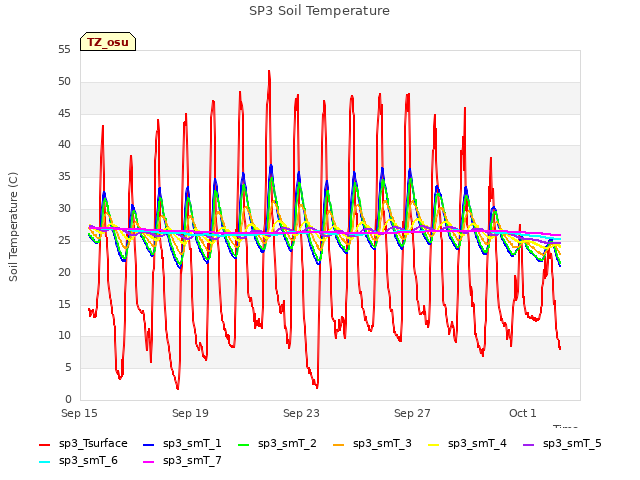

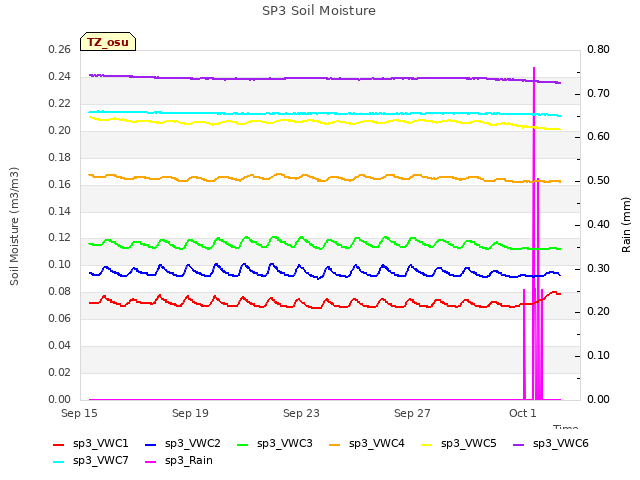

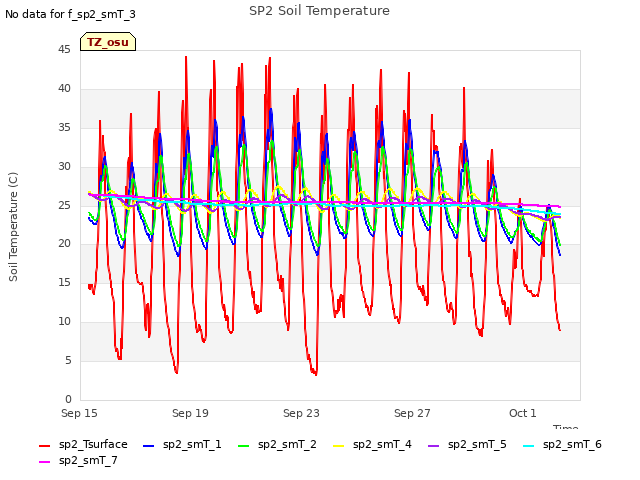

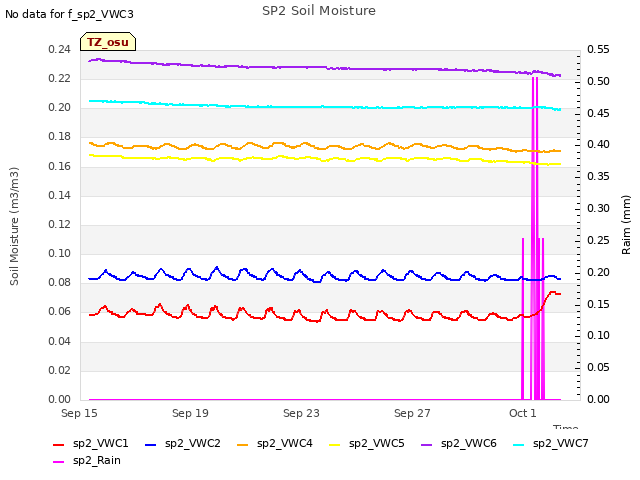

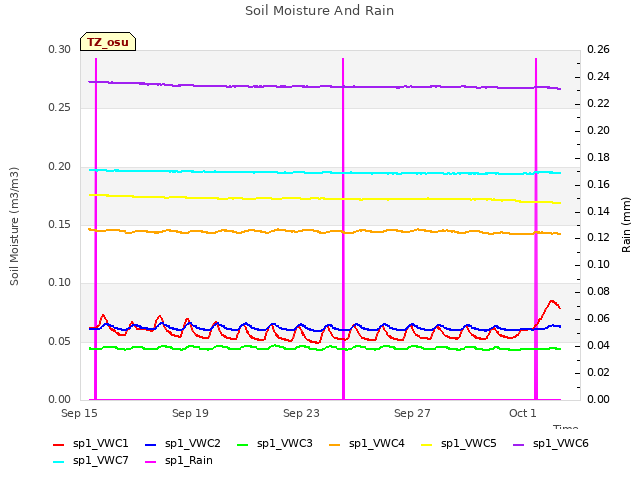

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
