Tonzi: 2015-11-03 09:00:00 (DOY 307)
Author: Siyan Ma
Others: Joe

Summary: Grass has germinated, recent rain, swapped 7500s, swapped tower computer, swapped three Vaisala probes, standard fieldwork and data collection.

When: Date: 11/3/2015 , Day: 306 , Watch Time: 9:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: partially cloudy

Phenology: grasses had germinated for a while; the length of leaves were about 5 cm long; some green oak leaves still on.

A little green grass near fence line and diffuse PAR tripodOaks with cloudy sky

Summary

  1. Joe swapped memory cards of CR1000s at Vaira; I did at Floor and Tower.
  2. Joe installed a new PC at Tonzi Tower.
  3. Joe calibrated 3 sets of IRGA Li-7500 and swapped those on the three towers.
  4. Checked and downloaded winflux and met data from PC at Tower, Floor.
  5. The IRGA for the CO2 profile system didn’t work properly. Joe took it back to the lab.
  6. Joe swapped soil CO2 probes at Tonzi and Vaira; details in his notes.
  7. Download Ana’s wind profile and temperature measurements.
  8. Took spectrum measurement at Vaira (incoming light was instable due to the movement of clouds).
  9. Read dendrometers
  10. Measured soil moisture
  11. Measure groundwater well

Vaira_Grass Site

  1. Downloaded Phenocam images.
  2. Swapped Li-7500s. sn 0976 off, sn 0041 on
  3. Swapped the memory cards of CR1000.

Screen shot of Vaira flux data logger table

  1. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  2. Downloaded met and soil CO2 profile data:

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table

  1. Checked levels of Radiation sensors, clear up surfaces.YES!
  2. Checked rain gage, make sure not clogged. YES!
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: broken; fixed.
  2. Swapped Li-7500s. sn 0418 off sn 0035 on.
  3. downloaded Winflux data from PC. YES!

Tower Gill sonic plots screen before downloading data

  1. swapped the memory cards of CR1000.

Screen shot of tower flux data logger table

  1. download Phenocam images. Yes!
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Checked rain gage, make sure not clogged. YES!
  4. Downloaded met data from PC

Screen shot of rad tram data logger table

  1. CO2 profile: IRGA did not work well. Joe took it back to the lab.

Screen shot of Li-800 calibration pre-cal

10. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence and gate power: broken; fixed.
  2. Swapped Li-7500s. sn 0042 off sn 0073 on.
  3. downloaded Winflux data from PC. YES!

Floor Gill sonic plots screen before downloading data

  1. Swapped the memory cards of CR1000.

Screen shot of floor flux data logger table

  1. downloaded met data from PC. YES!

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile

Screen shot of soil moisture data logger table

Screen shot of floor met data logger table

Screen shot of soil co2 data logger table

  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2015-11-03TZ_floor31.8
2015-11-03TZ_road40
2015-11-03TZ_tower37.5

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000
Date DOY Rep Depth
Tower_1
Floor_South_1
Floor_East_1
Floor_West_1
SoilCO2_1
Soil_Transect_4_1
Soil_Transect_3_1
Soil_Transect_2_1
Soil_Transect_1_1
SoilCO2_West_A_1
SoilCO2_West_B_1
SoilCO2_West_C_1
Tower_2
Floor_South_2
Floor_East_2
Floor_West_2
SoilCO2_2
Soil_Transect_4_2
Soil_Transect_3_2
Soil_Transect_2_2
Soil_Transect_1_2
SoilCO2_West_A_2
SoilCO2_West_B_2
SoilCO2_West_C_2
Tower_3
Floor_South_3
Floor_East_3
Floor_West_3
SoilCO2_3
Soil_Transect_4_3
Soil_Transect_3_3
Soil_Transect_2_3
Soil_Transect_1_3
SoilCO2_West_A_3
SoilCO2_West_B_3
SoilCO2_West_C_3
Tower_4
Floor_South_4
Floor_East_4
Floor_West_4
SoilCO2_4
Soil_Transect_4_4
Soil_Transect_3_4
Soil_Transect_2_4
Soil_Transect_1_4
SoilCO2_West_A_4
SoilCO2_West_B_4
SoilCO2_West_C_4
 Avg
Spacial Count
Measurement Count
2015-11-03 307 0 nan 13.512.725.312.116.26.812.413.21310.919.714.7107.26.97.112.411.813.610.94.219.73.611.814.55.37.310.66.78.79.814.312.317.215.912.68.73.615.611.918.29.315.920.510.713.611.615.9
2015-11-03 307 1 nan 1311.524.411.815.1712.41312.71019.71510.97.28.79.712.111.814.511.23.920.83.512.114.358.412.377.810.615.412.918.816.213.193.915.610.51710.21520.510.513.31316.5
2015-11-03 307 Avg 0-15cm 0
2015-11-03 307 Avg 15-30cm 0
2015-11-03 307 Avg 30-45cm 0
2015-11-03 307 Avg 45-60cm 0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000
Date DOY Rep Depth
Solar_Panels_1
Flux_Tower_1
Gate_1
Biomass_Cage_1
Solar_Panels_2
Flux_Tower_2
Gate_2
Biomass_Cage_2
Solar_Panels_3
Flux_Tower_3
Gate_3
Biomass_Cage_3
Solar_Panels_4
Flux_Tower_4
Gate_4
Biomass_Cage_4
 Avg
Spacial Count
Measurement Count
2015-11-03 307 0 nan 11.51512.15.91310.98.15.715.159.81226.5138.215.3
2015-11-03 307 1 nan 10.915.312.15.913.310.37.85.115.14.59.211.226.513.39.915
2015-11-03 307 Avg 0-15cm 0
2015-11-03 307 Avg 15-30cm 0
2015-11-03 307 Avg 30-45cm 0
2015-11-03 307 Avg 45-60cm 0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2015-11-03116.9
2015-11-0310212.1
2015-11-03214.6
2015-11-0324622.1
2015-11-03316.2
2015-11-03411.5
2015-11-03515.3
2015-11-03711.9
2015-11-037221.2
2015-11-037918.3
2015-11-03816

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

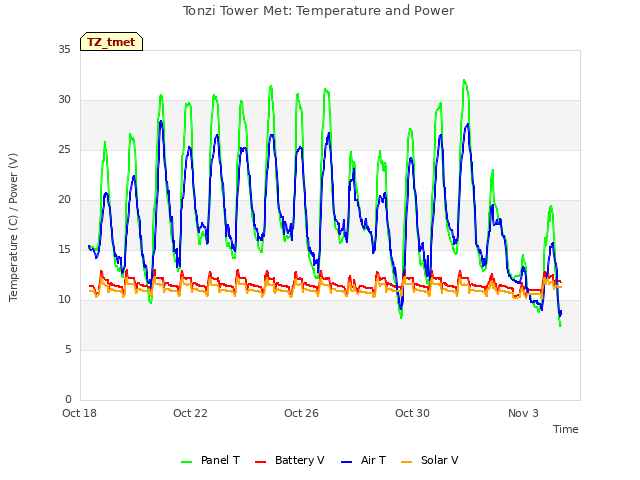

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

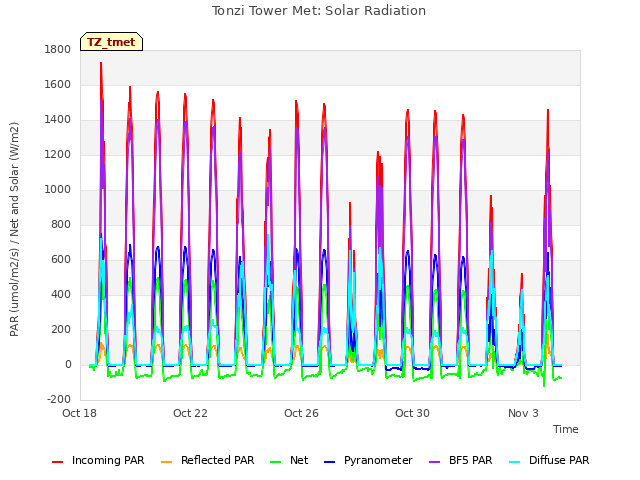

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

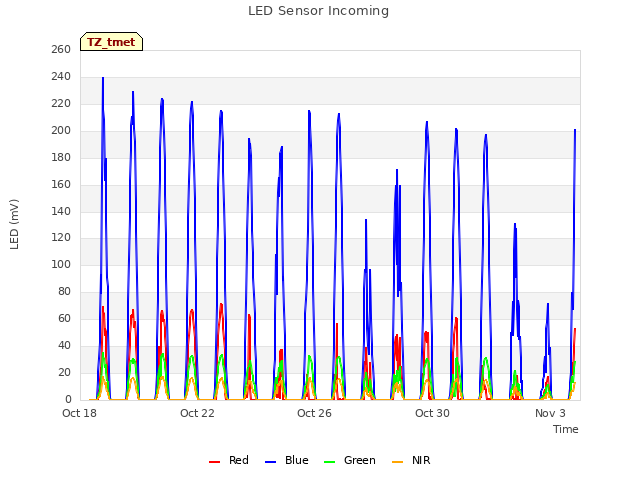

Explore the graph:LED Sensor Incoming in a new window

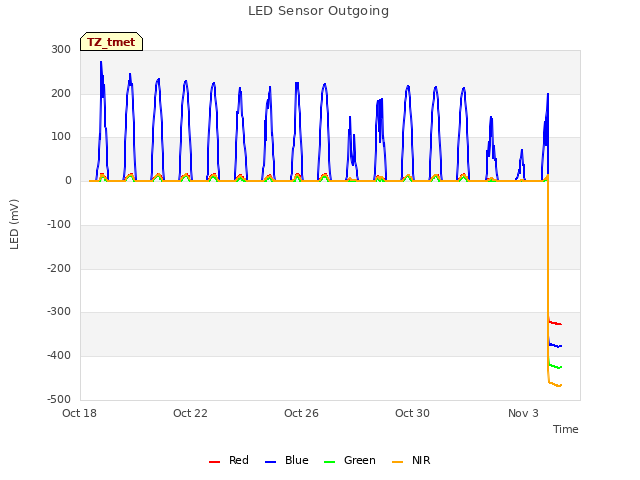

Explore the graph:LED Sensor Outgoing in a new window

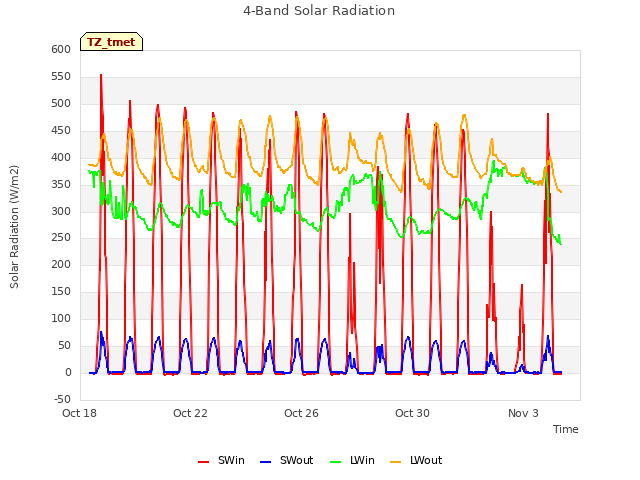

Explore the graph:4-Band Solar Radiation in a new window

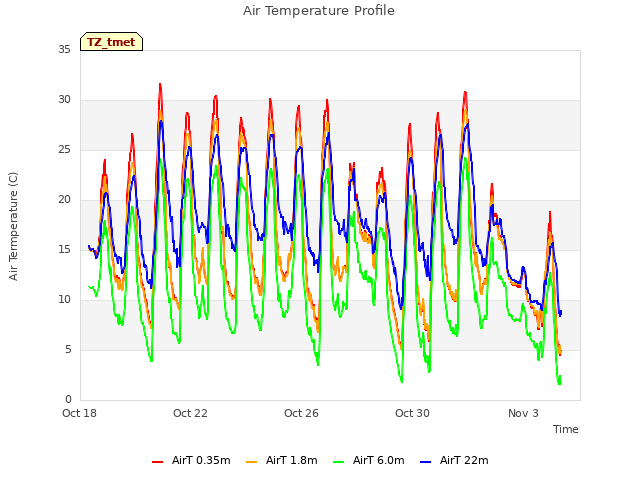

Explore the graph:Air Temperature Profile in a new window

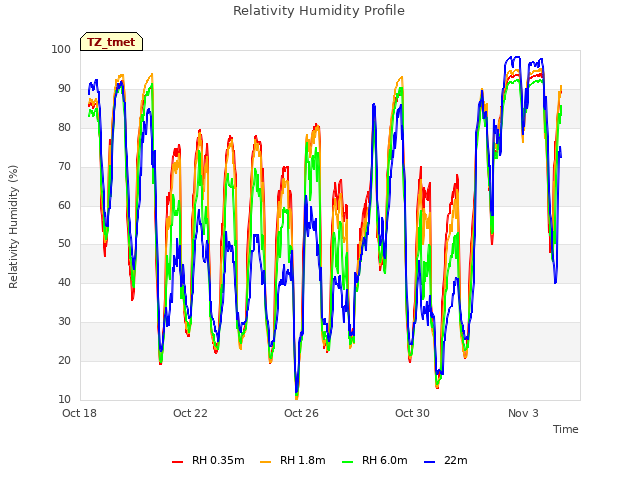

Explore the graph:Relativity Humidity Profile in a new window

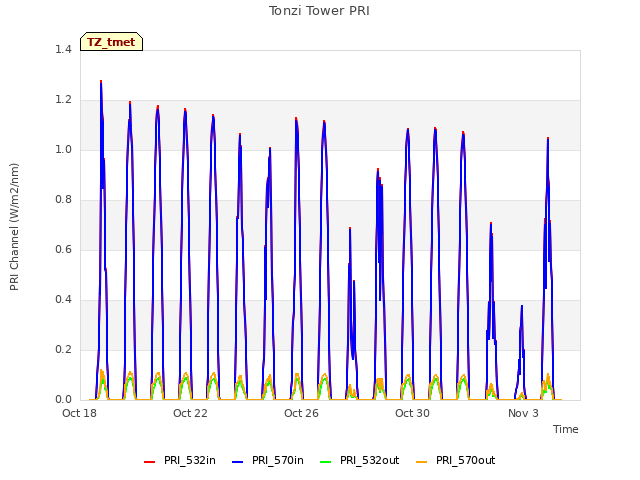

Explore the graph:Tonzi Tower PRI in a new window

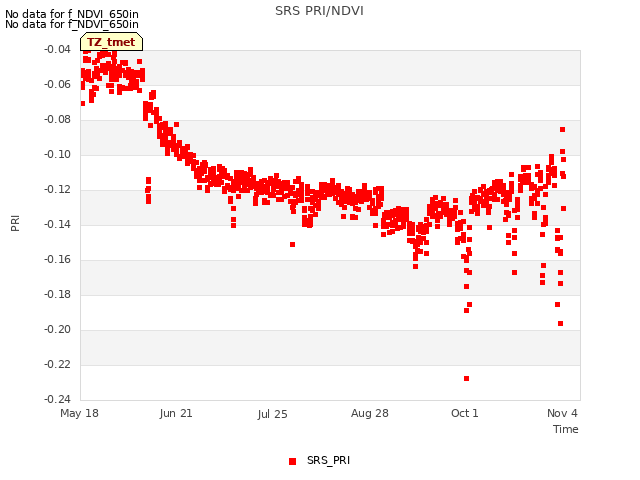

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

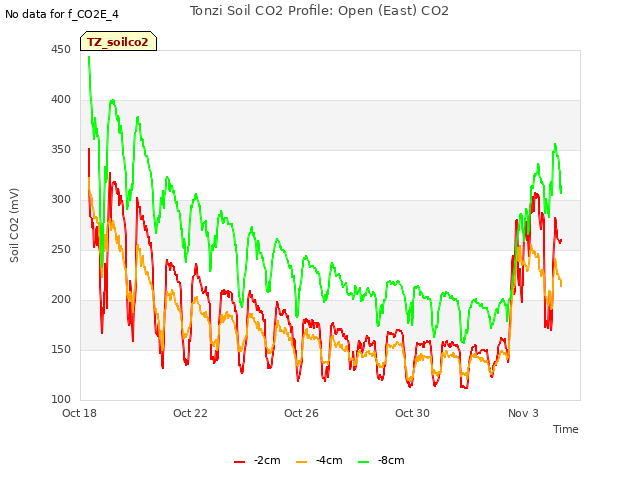

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

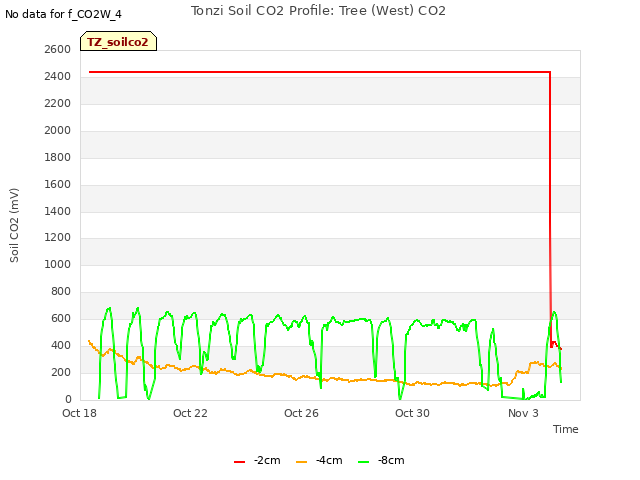

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

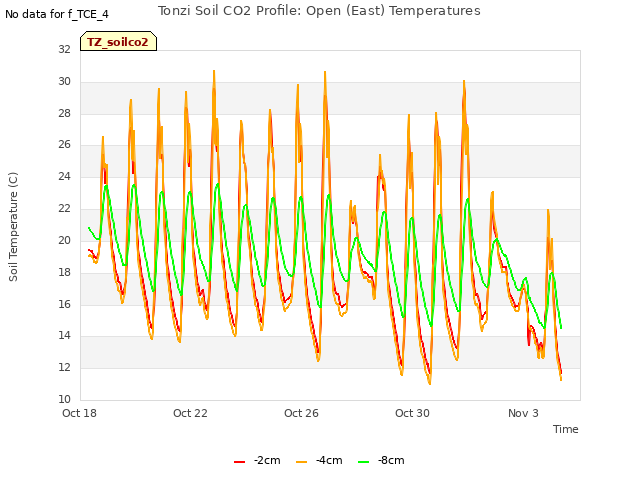

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

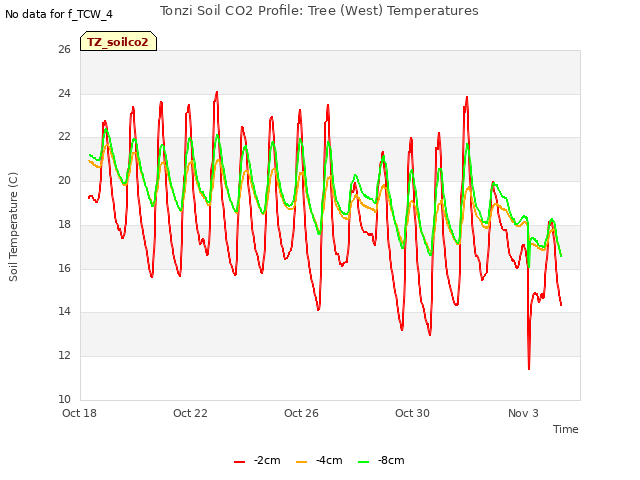

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

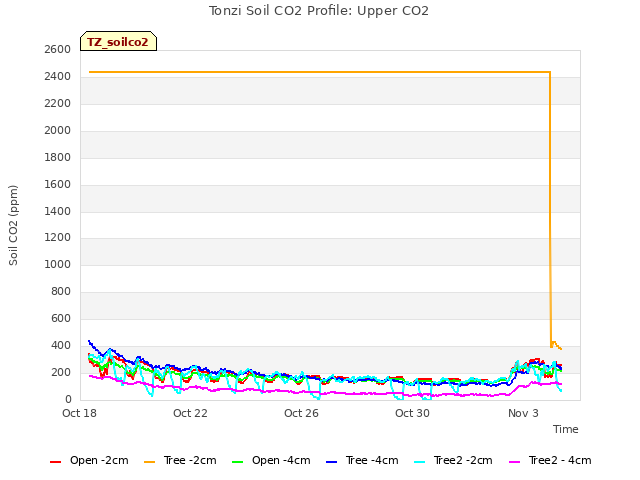

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

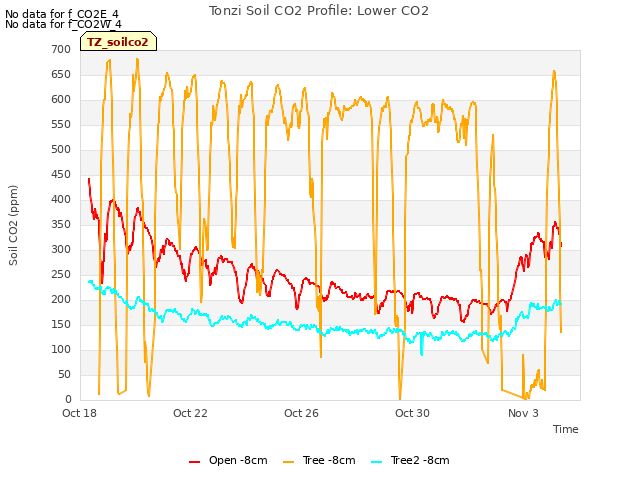

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

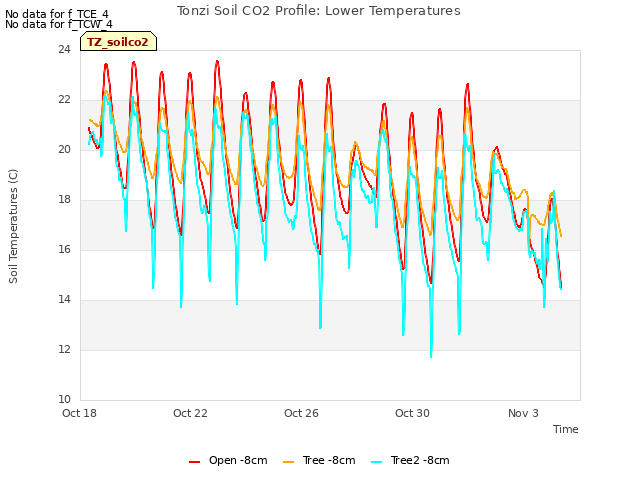

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

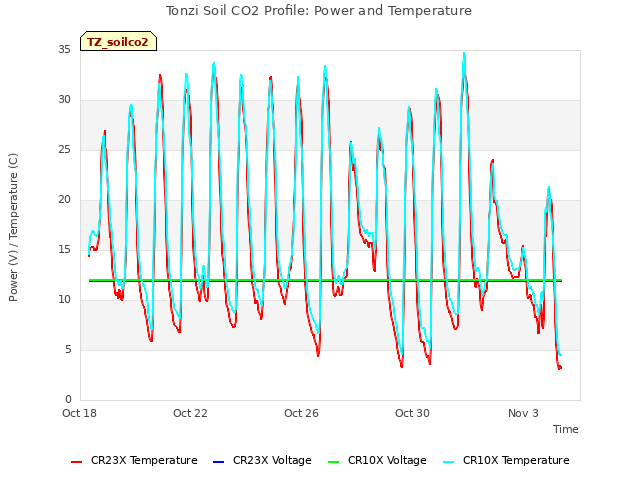

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

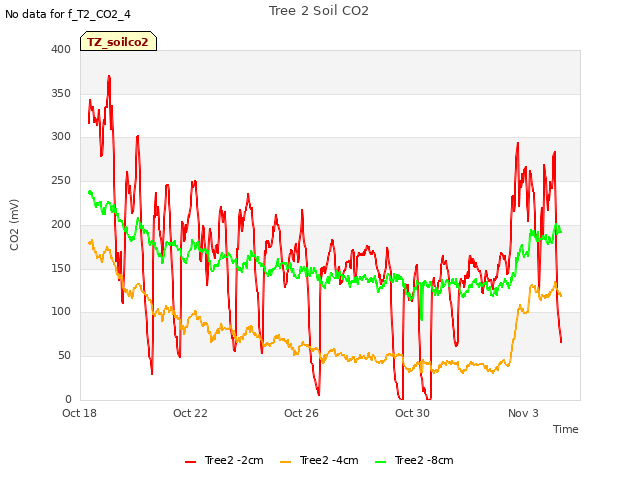

Explore the graph:Tree 2 Soil CO2 in a new window

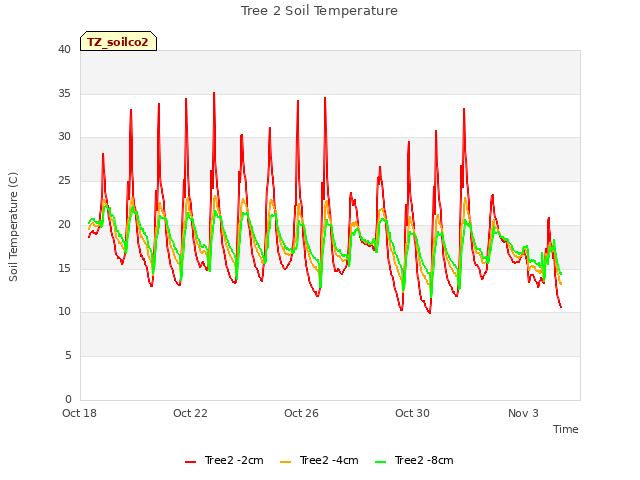

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

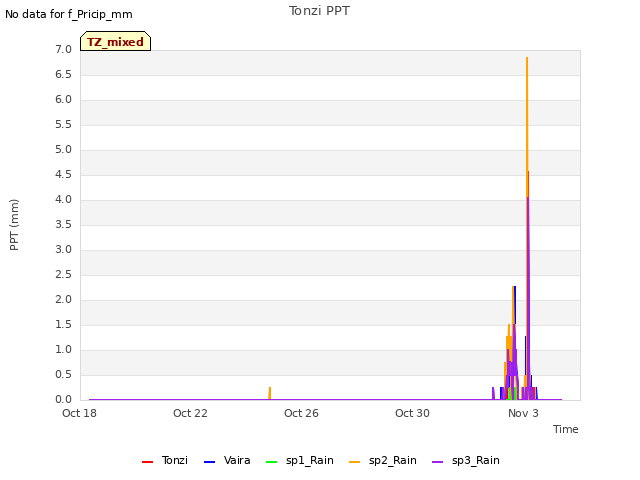

Explore the graph:Tonzi PPT in a new window

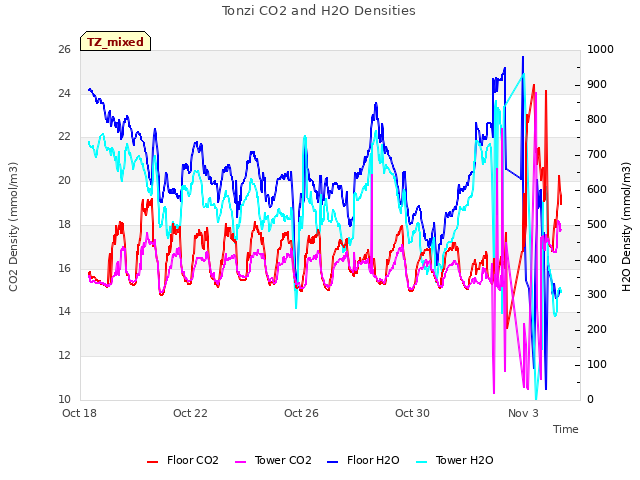

Explore the graph:Tonzi CO2 and H2O Densities in a new window

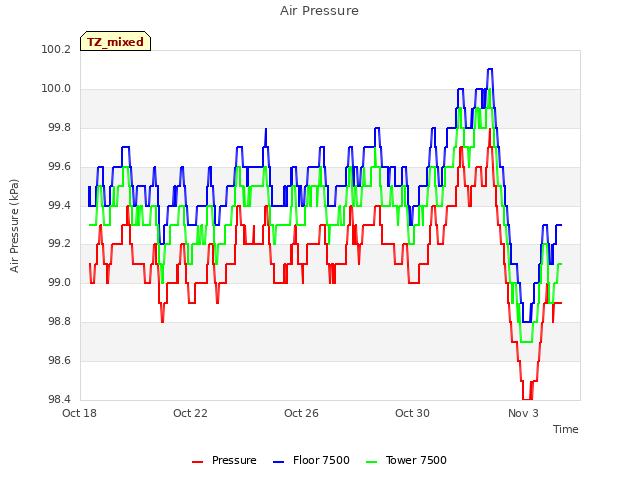

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

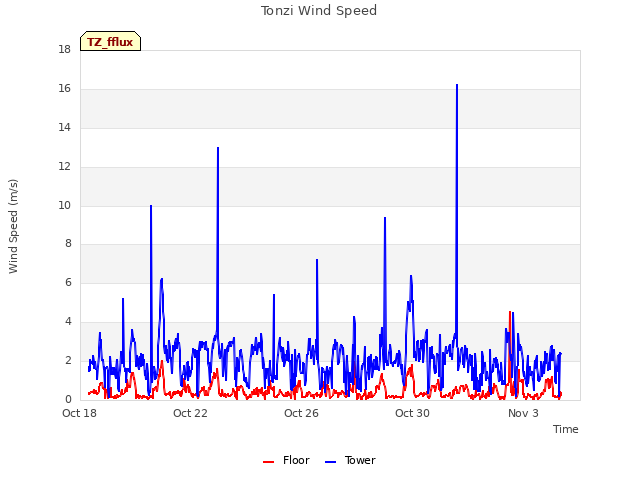

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

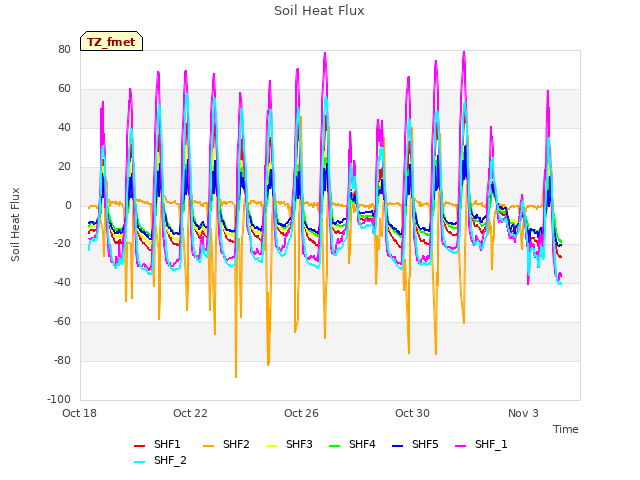

Explore the graph:Soil Heat Flux in a new window

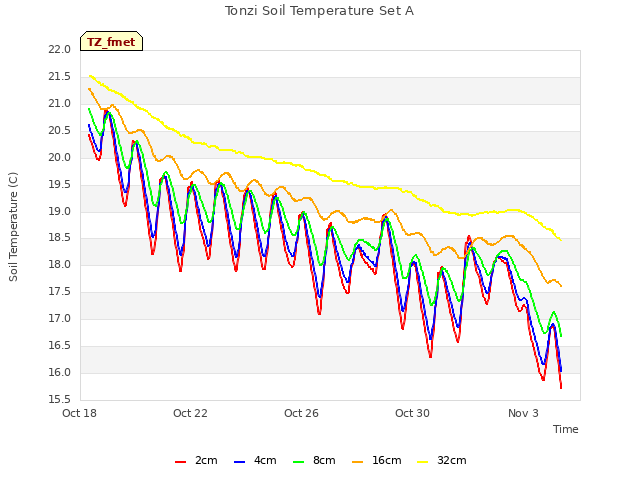

Explore the graph:Tonzi Soil Temperature Set A in a new window

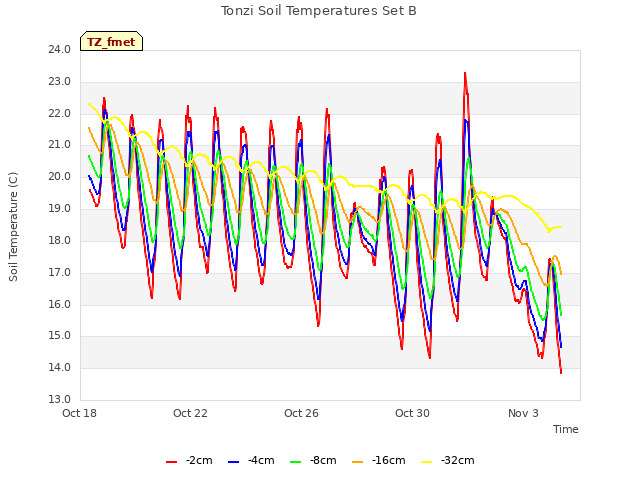

Explore the graph:Tonzi Soil Temperatures Set B in a new window

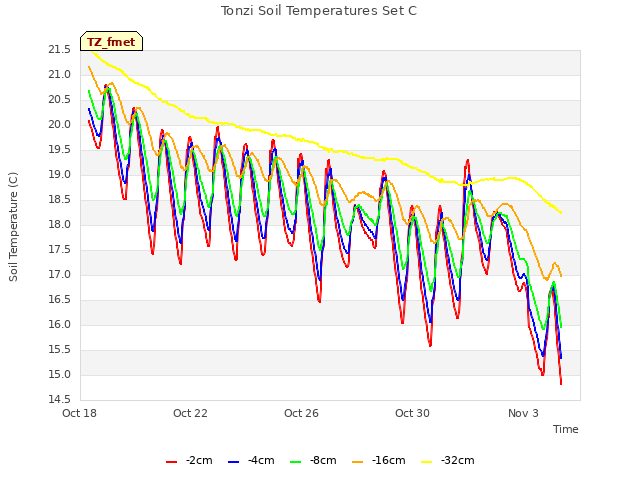

Explore the graph:Tonzi Soil Temperatures Set C in a new window

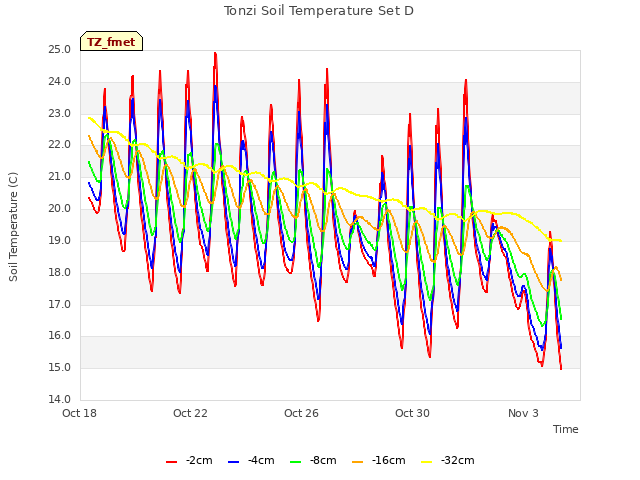

Explore the graph:Tonzi Soil Temperature Set D in a new window

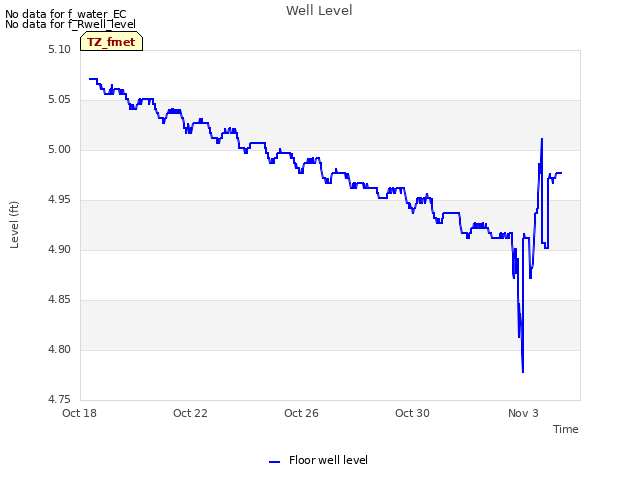

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

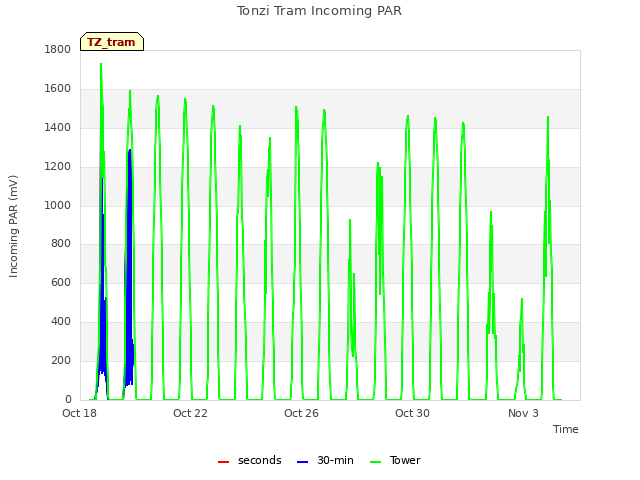

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

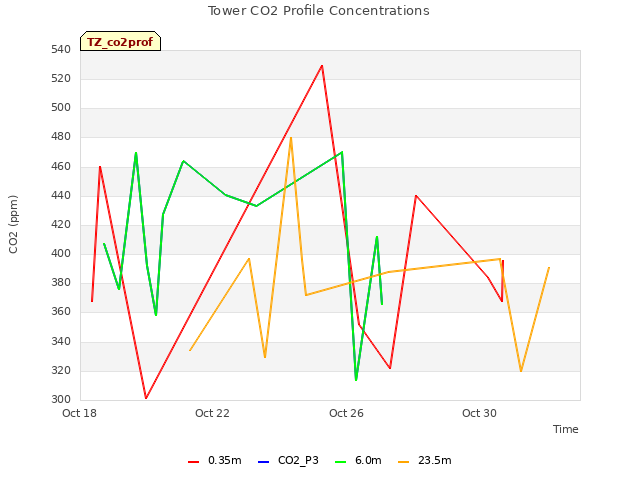

Explore the graph:Tower CO2 Profile Concentrations in a new window

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

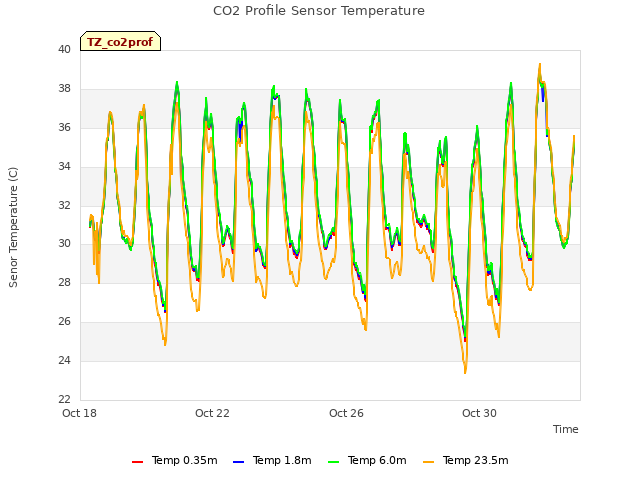

Explore the graph:CO2 Profile Sensor Temperature in a new window

1 TZ_irt graphs found

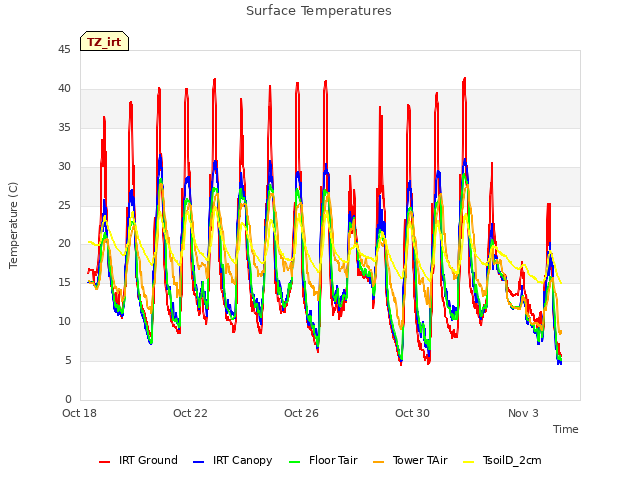

Explore the graph:Surface Temperatures in a new window

No data found for TZ_windprof.
1 TZ_tflux graphs found

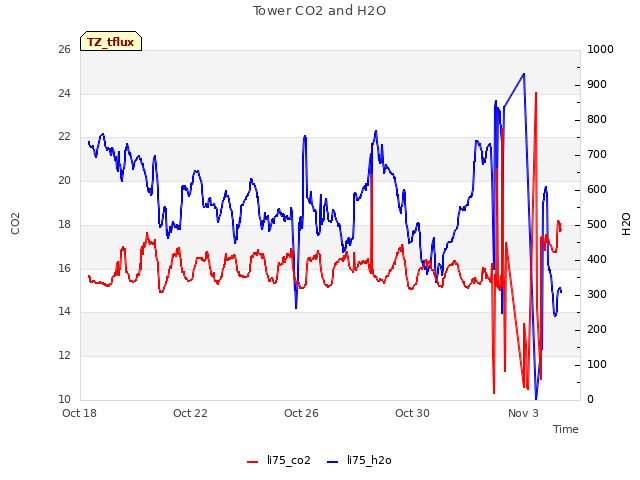

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

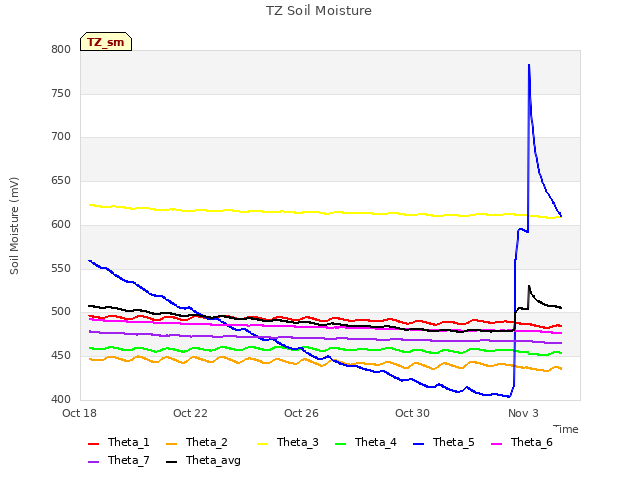

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

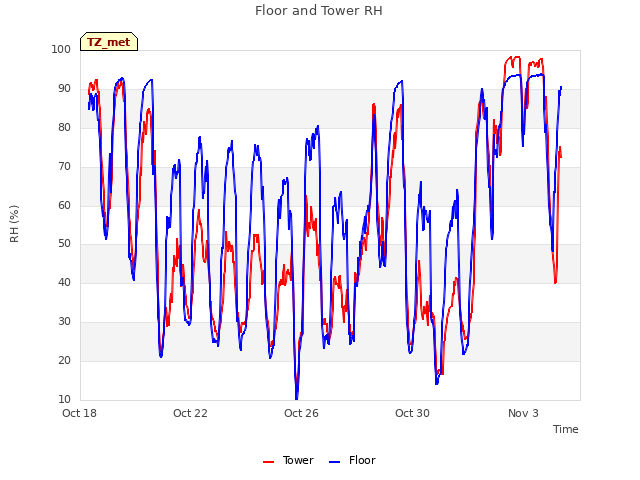

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

Explore the graph:Soil Moisture And Rain in a new window

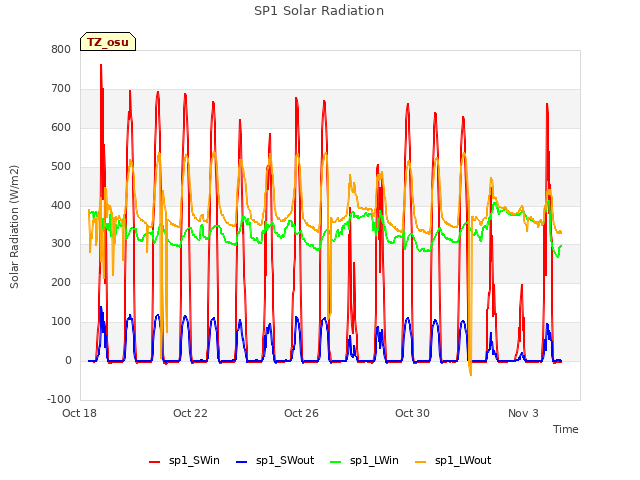

Explore the graph:SP1 Solar Radiation in a new window

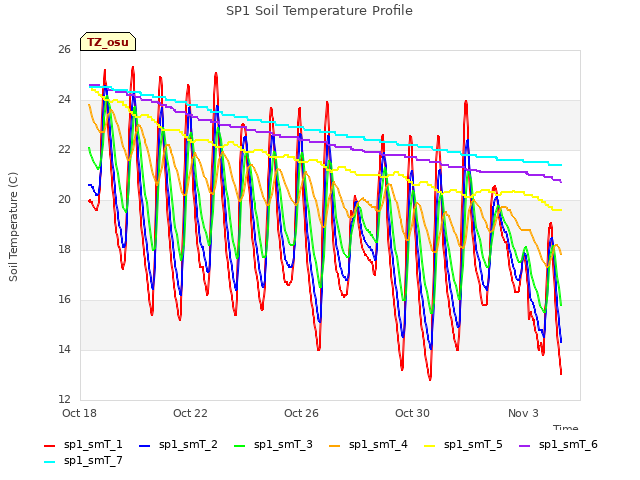

Explore the graph:SP1 Soil Temperature Profile in a new window

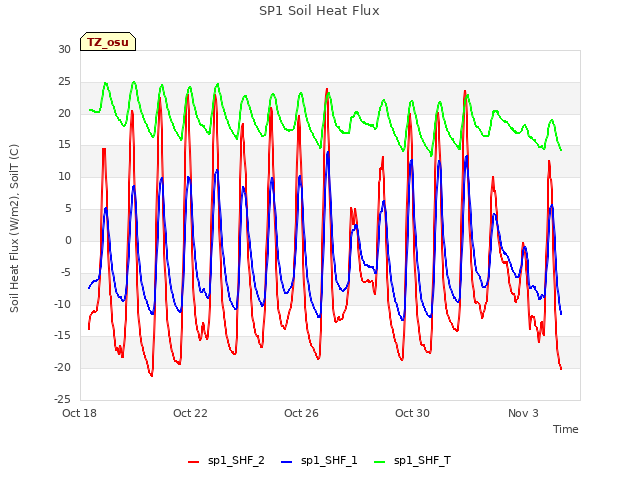

Explore the graph:SP1 Soil Heat Flux in a new window

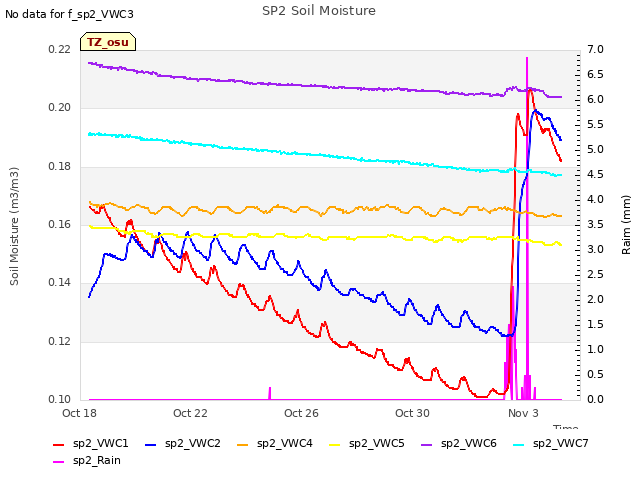

Explore the graph:SP2 Soil Moisture in a new window

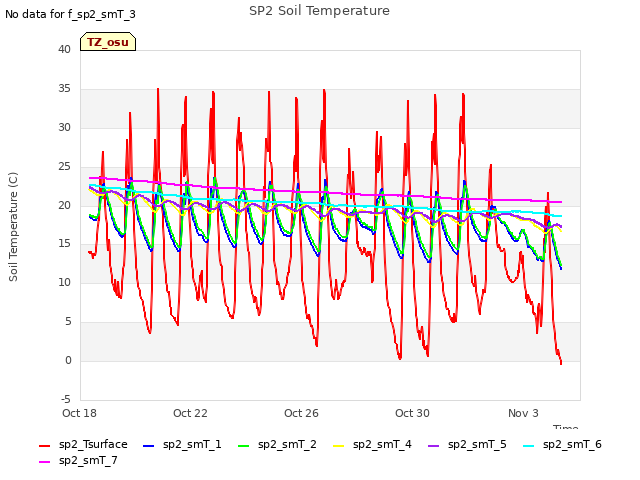

Explore the graph:SP2 Soil Temperature in a new window

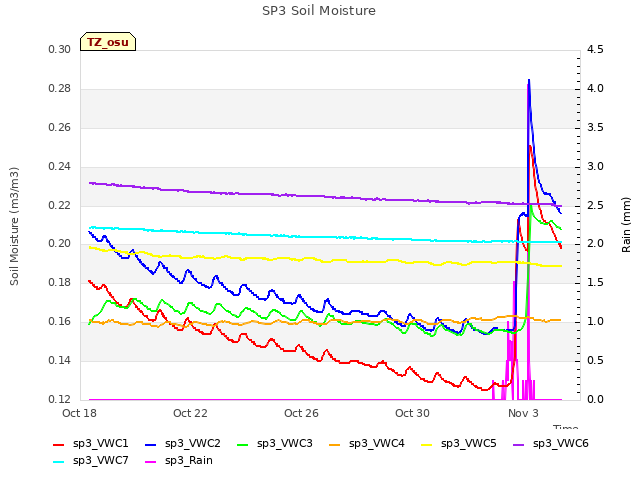

Explore the graph:SP3 Soil Moisture in a new window

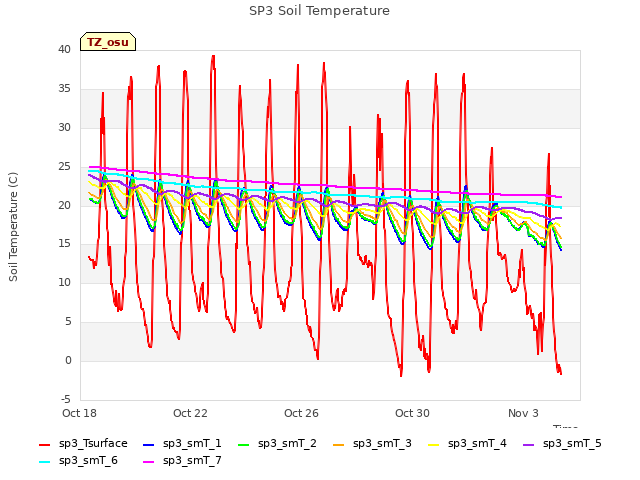

Explore the graph:SP3 Soil Temperature in a new window

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
